Page 601 of 860
601
3-8. Other interior features
3
Interior features
SIENNA_U (OM45477U)
■
Adjusting the armrests (if equipped)
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Push the armrest down while pressing
the button.
Page 602 of 860
602
3-8. Other interior features
SIENNA_U (OM45477U)

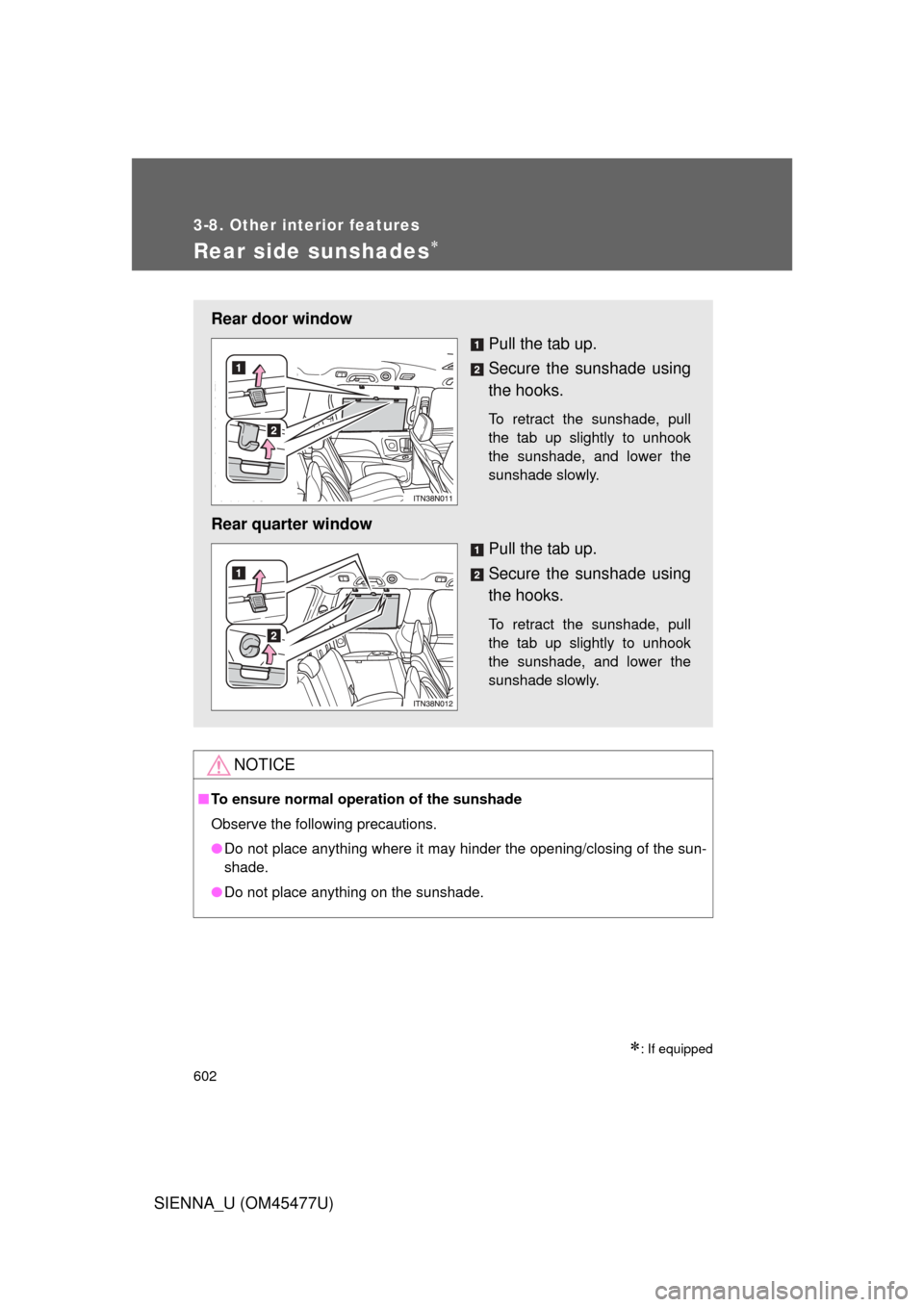

Rear side sunshades
: If equipped
NOTICE
■To ensure normal operation of the sunshade
Observe the following precautions.
● Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
Rear door window
Pull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.
Rear quarter windowPull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.
Page 603 of 860
603
3-8. Other interior features
3
Interior features
SIENNA_U (OM45477U)

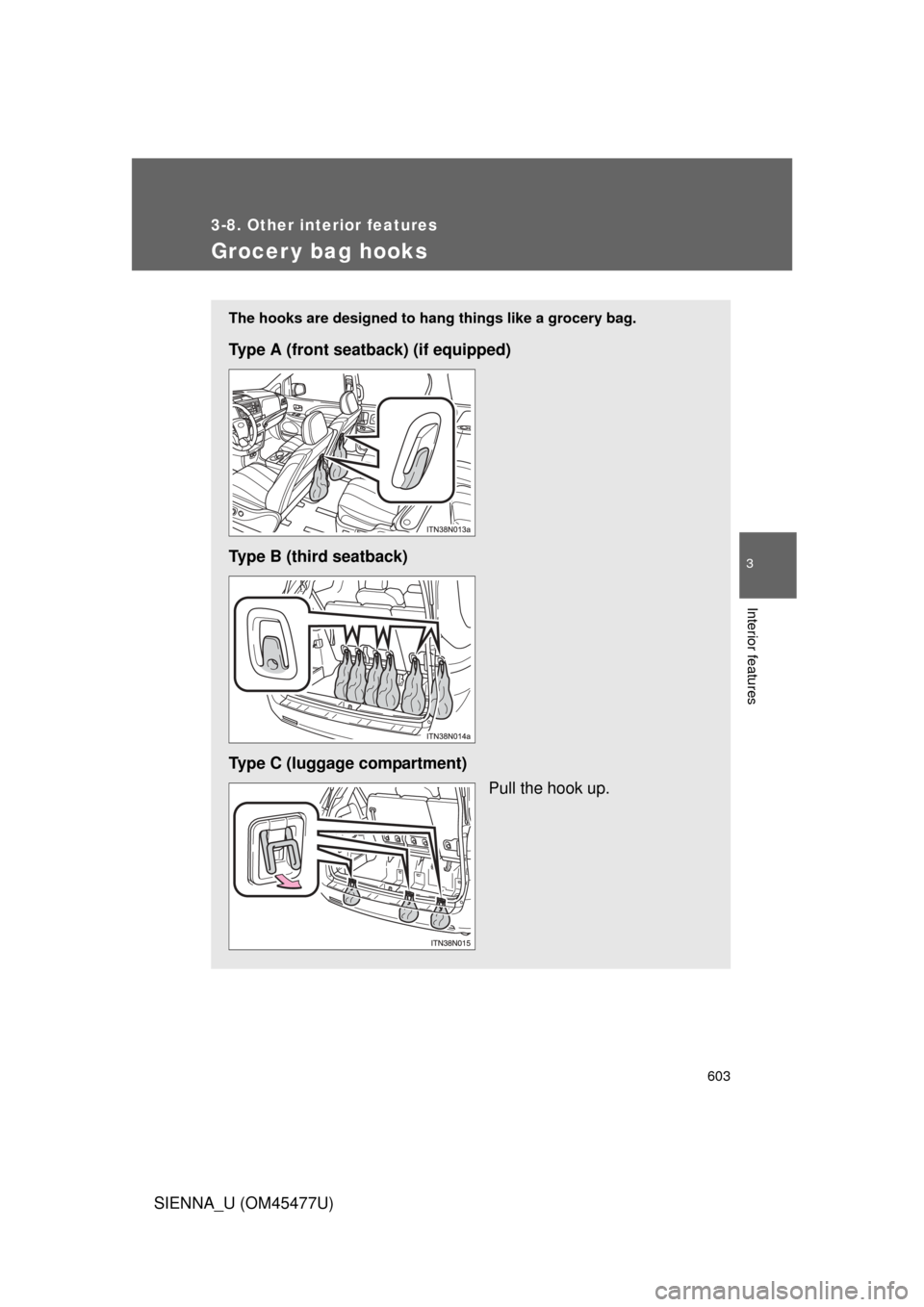

Grocer y bag hooks
The hooks are designed to hang things like a grocery bag.
Type A (front seatback) (if equipped)
Type B (third seatback)
Type C (luggage compartment)
Pull the hook up.
Page 604 of 860
604 3-8. Other interior features
SIENNA_U (OM45477U)
CAUTION
■When not in use (type C)
Keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
■Grocery bag hook weight capacity (type A and B)
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hook.
Type D (luggage compartment)
ITN38N036
Page 605 of 860

605
3-8. Other interior features
3
Interior features
SIENNA_U (OM45477U)
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.
Page 606 of 860
606 3-8. Other interior features
SIENNA_U (OM45477U)
CAUTION
■Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
Page 607 of 860
607
3-8. Other interior features
3
Interior features
SIENNA_U (OM45477U)

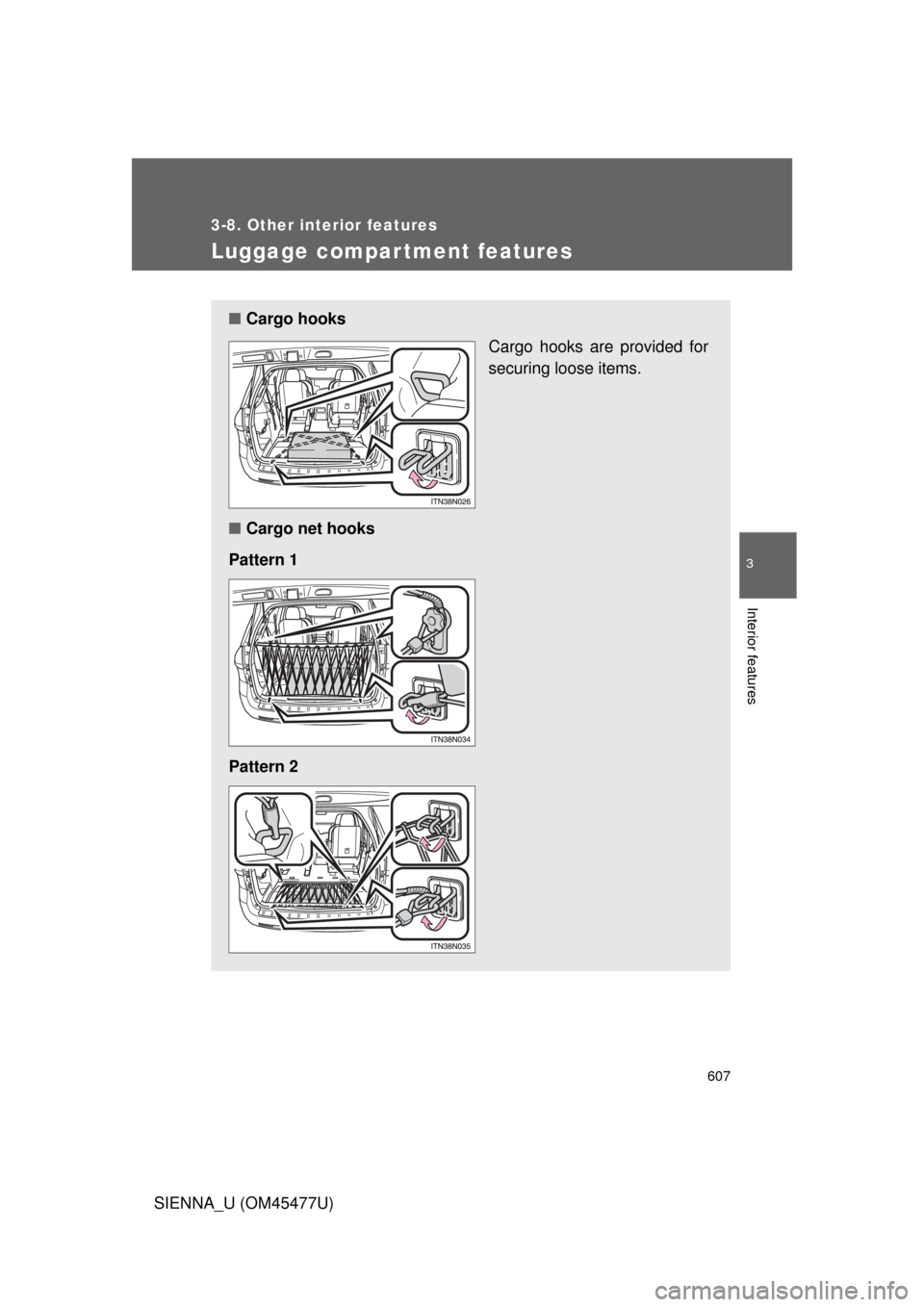

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Cargo net hooks
Pattern 1
Pattern 2
Page 608 of 860
608 3-8. Other interior features
SIENNA_U (OM45477U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
■To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on them.
■ Storage box (if equipped)
Engage the latch buckle.
Page 609 of 860
609
3-8. Other interior features
3
Interior features
SIENNA_U (OM45477U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, secu-
rity systems, and other devices.
Page 610 of 860
610 3-8. Other interior features
SIENNA_U (OM45477U)■
Programming the HomeLink
®
Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
® control but-
tons.
Keep the indicator light on the
HomeLink® in view while pro-
gramming.
Press and hold one of the
HomeLink
® buttons and the
transmitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both but-
tons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the
“Reprogramming a HomeLink
®
button” instructions. ( P. 614)
STEP1
STEP2
