1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
■

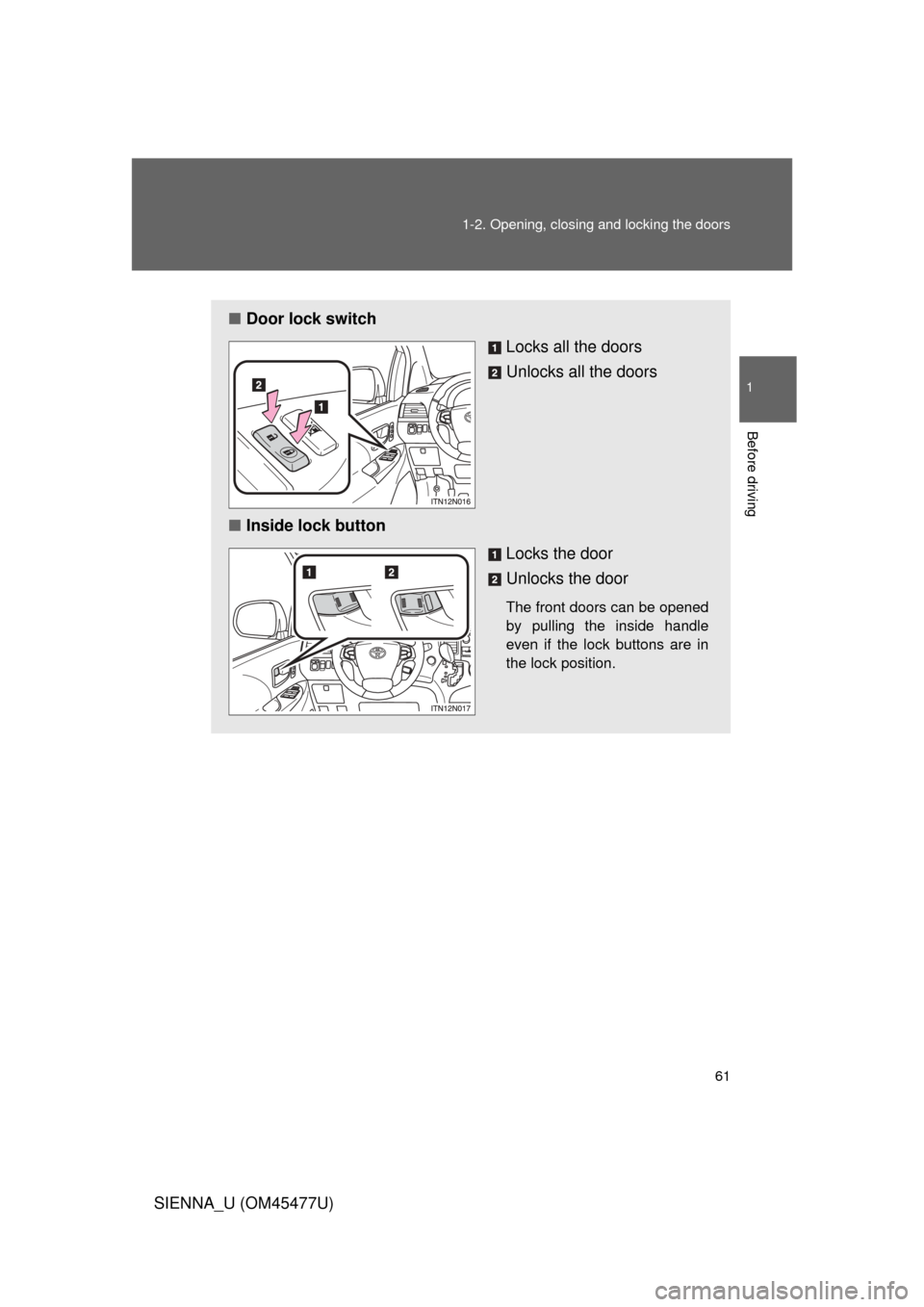

Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

62 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
Locking the front doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The doors cannot be locked if either of the front doors is open and the
key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
STEP1
STEP2

63
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
Automatic door locking and unlocking systems
The following functions can be set or cancelled:
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of P locks all the
doors.
Shift position linked
door unlocking function Shifting the shift lever to P unlocks all the
doors.
Speed linked door lock-
ing function All the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked
door unlocking function
(vehicles without a
smart key system) All the doors are unlocked when the driver’s
door is opened within 10 seconds after turn-
ing the engine switch to “ACC” or “LOCK”.
Driver’s door linked
door unlocking function
(vehicles with a smart
key system) All the doors are unlocked when the driver’s
door is opened within 10 seconds after turn-
ing the “ENGINE START STOP” switch off.

64 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)■
Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Vehicles without a smart key system
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.)
Vehicles with a smart key system
Close all the doors and turn the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform step 2 within 10 sec-
onds.)
STEP1

65
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)

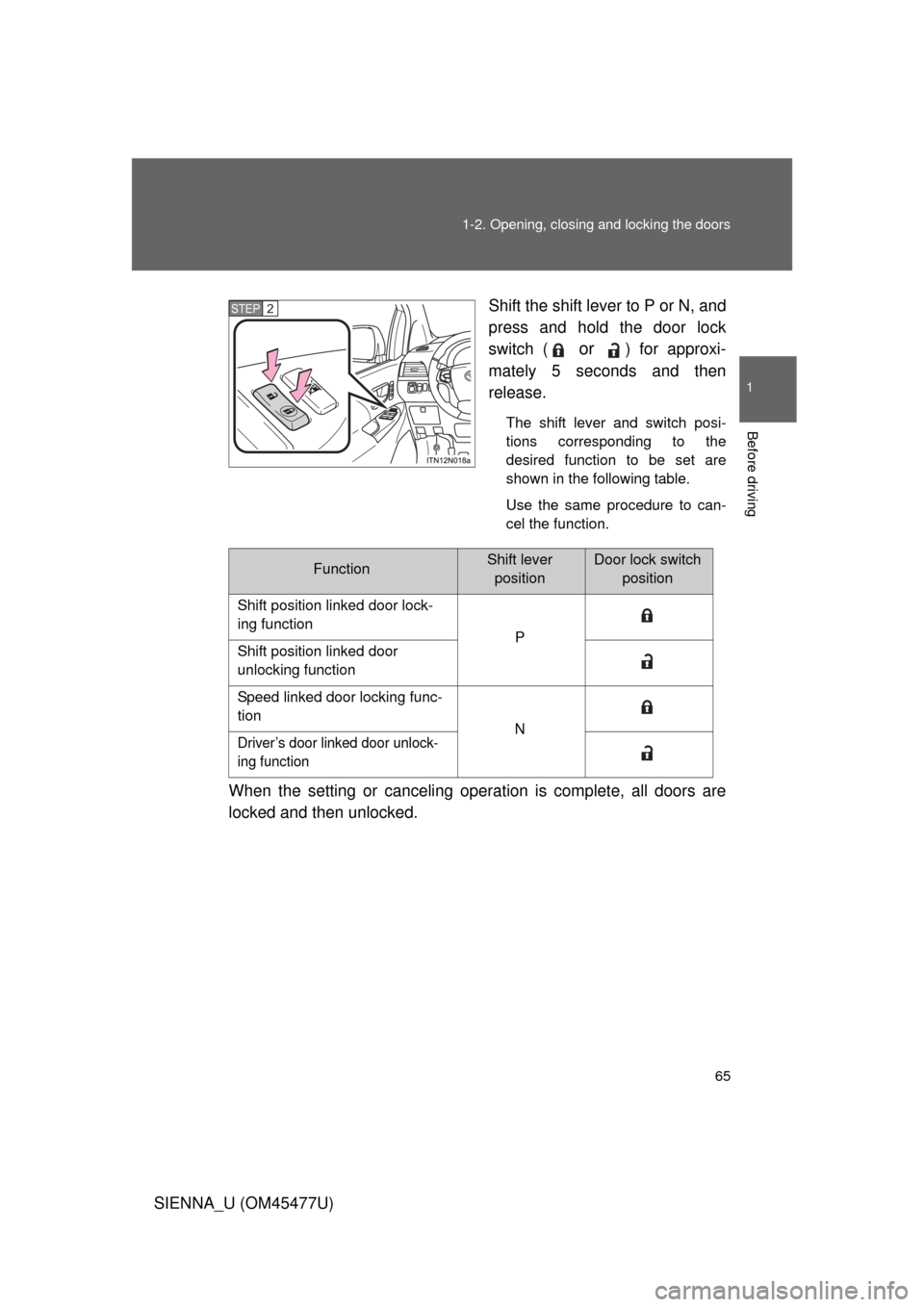

Shift the shift lever to P or N, and
press and hold the door lock
switch (
or ) for approxi-
mately 5 seconds and then
release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP2
FunctionShift lever positionDoor lock switch position
Shift position linked door lock-
ing function P
Shift position linked door
unlocking function
Speed linked door locking func-
tion
N
Driver’s door linked door unlock-
ing function

66 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
■When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control or key.
■ Using the mechanical key (vehicles with a smart key system)
The doors can also be locked and unlocked with the mechanical key.
(P. 767)
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 815)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers could be thrown out of the
vehicle which may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in the locked position.

67
1
1-2. Opening, closing and locking the doors
Before driving
SIENNA_U (OM45477U)

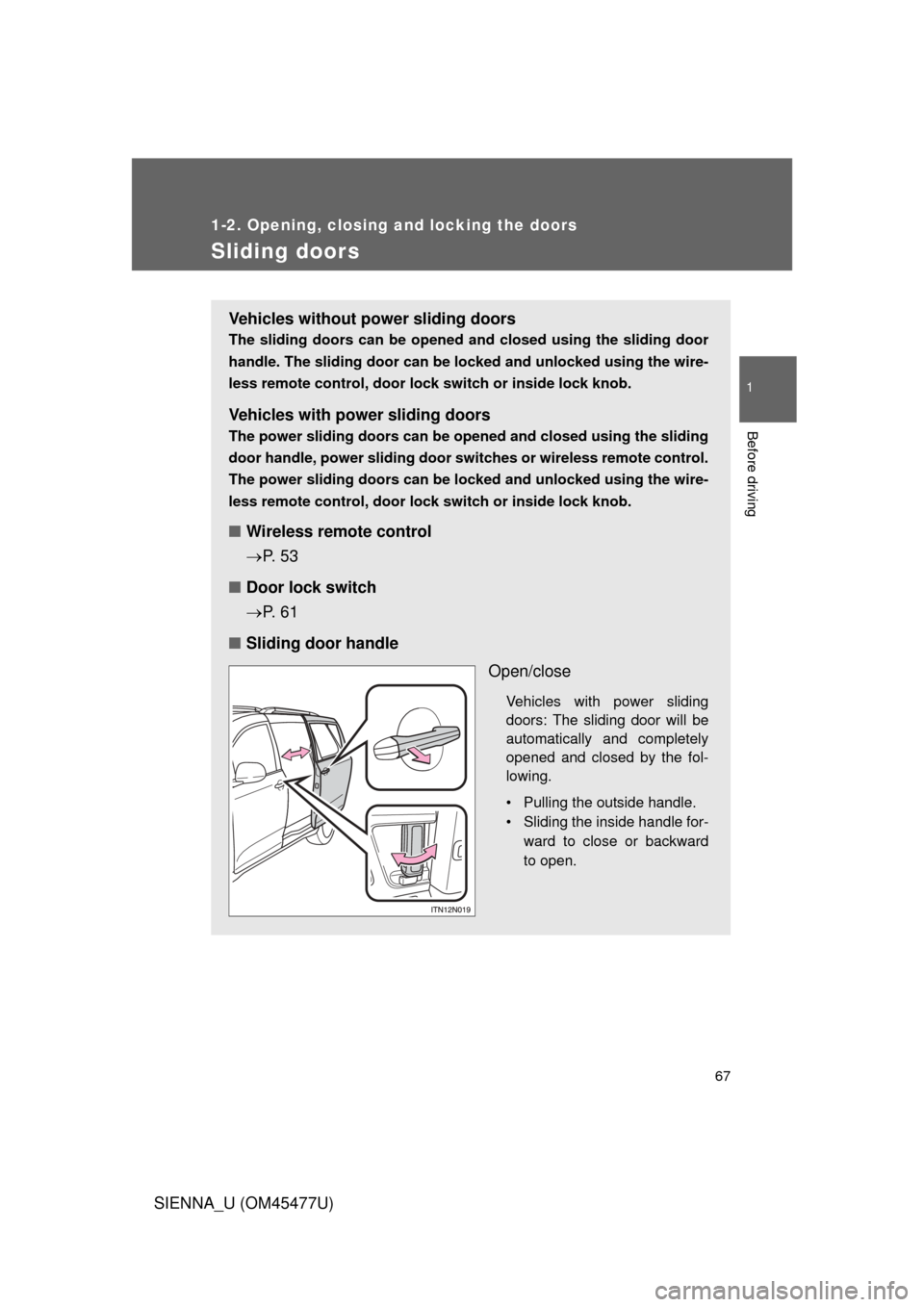

Sliding doors
Vehicles without power sliding doors
The sliding doors can be opened and closed using the sliding door
handle. The sliding door can be locked and unlocked using the wire-
less remote control, door lock switch or inside lock knob.
Vehicles with power sliding doors
The power sliding doors can be opened and closed using the sliding
door handle, power sliding door switches or wireless remote control.
The power sliding doors can be lo cked and unlocked using the wire-
less remote control, door lock switch or inside lock knob.
■ Wireless remote control
P. 5 3
■ Door lock switch
P. 6 1
■ Sliding door handle
Open/close
Vehicles with power sliding
doors: The sliding door will be
automatically and completely
opened and closed by the fol-
lowing.
• Pulling the outside handle.
• Sliding the inside handle for-ward to close or backward
to open.

68 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
■Inside lock knobs
Unlocks
Locks

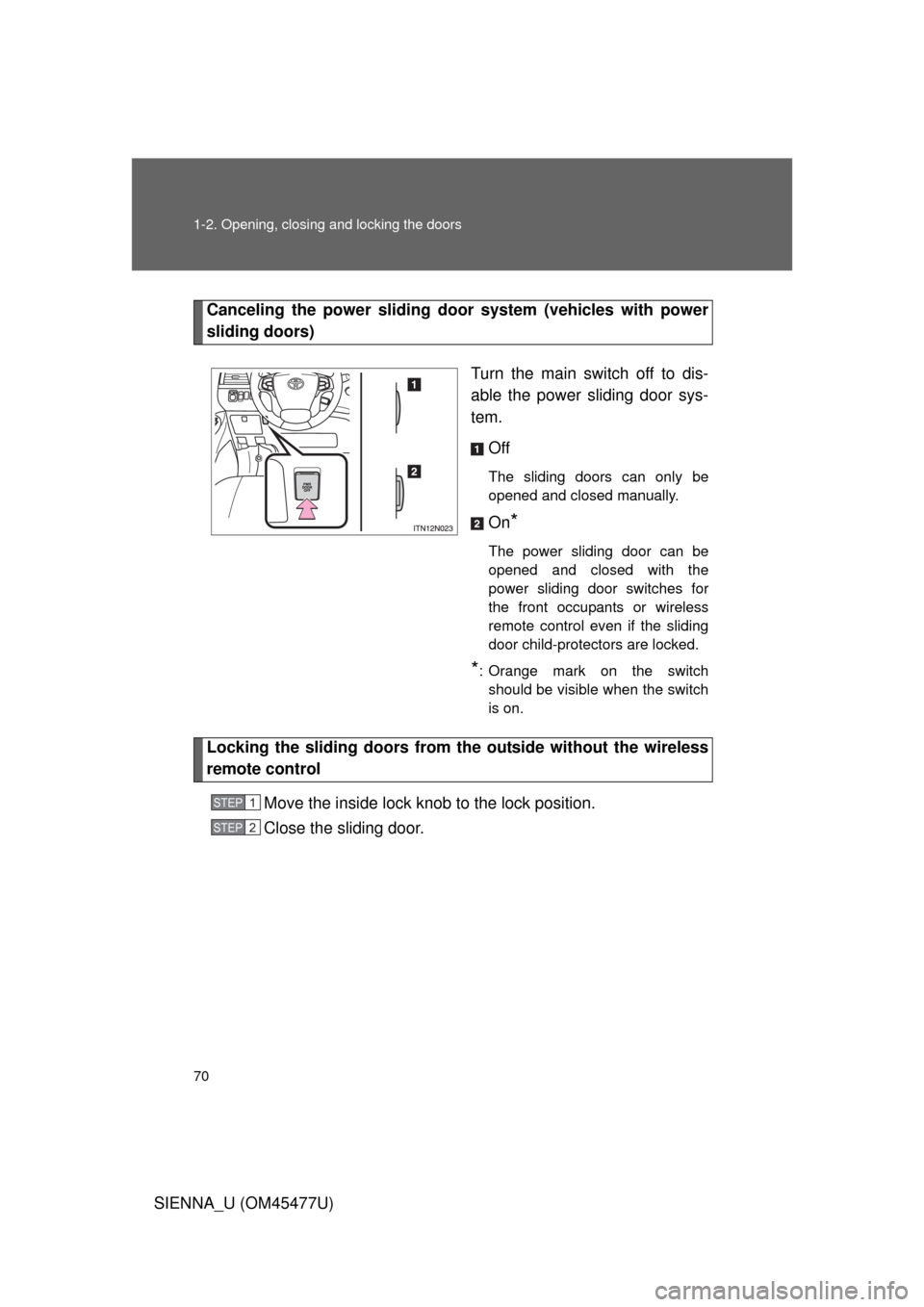

■ Power sliding door switches (v ehicles with power sliding
doors)
From front seats Press the switch to open and
close the following door.
The right side sliding door
The left side sliding door
Pressing the switch again
while the door is operating will
cause the operation to reverse.
However, the reverse opera-
tion cannot be performed for
the first second after automatic
operation starts, even if the
switch is pressed again.

69
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)

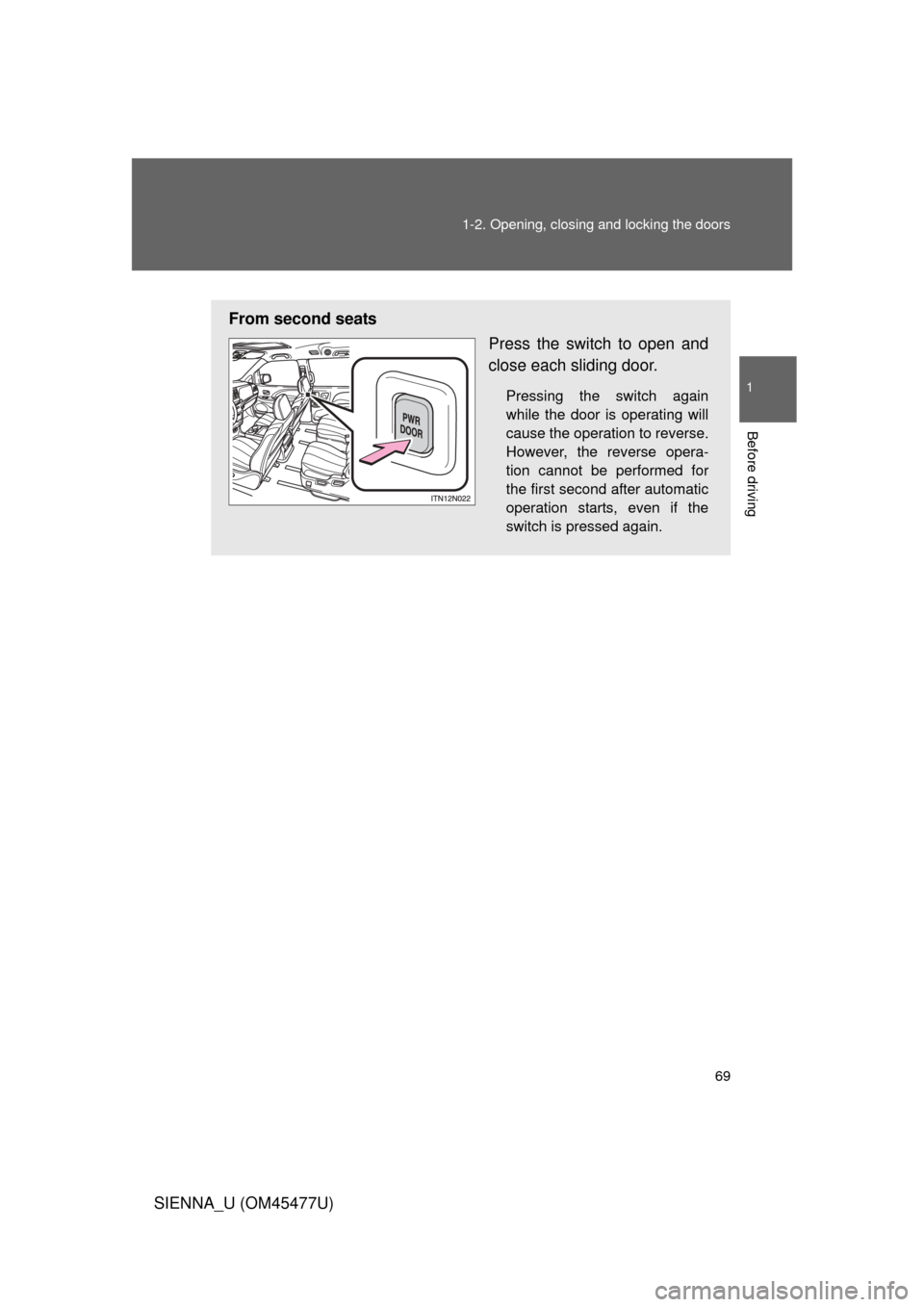

From second seats
Press the switch to open and
close each sliding door.
Pressing the switch again
while the door is operating will
cause the operation to reverse.
However, the reverse opera-
tion cannot be performed for
the first second after automatic
operation starts, even if the
switch is pressed again.

70 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)
Canceling the power sliding door system (vehicles with power
sliding doors)
Turn the main switch off to dis-
able the power sliding door sys-
tem.Off
The sliding doors can only be
opened and closed manually.
On*
The power sliding door can be
opened and closed with the
power sliding door switches for
the front occupants or wireless
remote control even if the sliding
door child-protectors are locked.
*: Orange mark on the switchshould be visible when the switch
is on.
Locking the sliding doors from th e outside without the wireless
remote control
Move the inside lock knob to the lock position.
Close the sliding door.
STEP1
