TOYOTA SIENNA 2012 XL30 / 3.G Owner's Guide

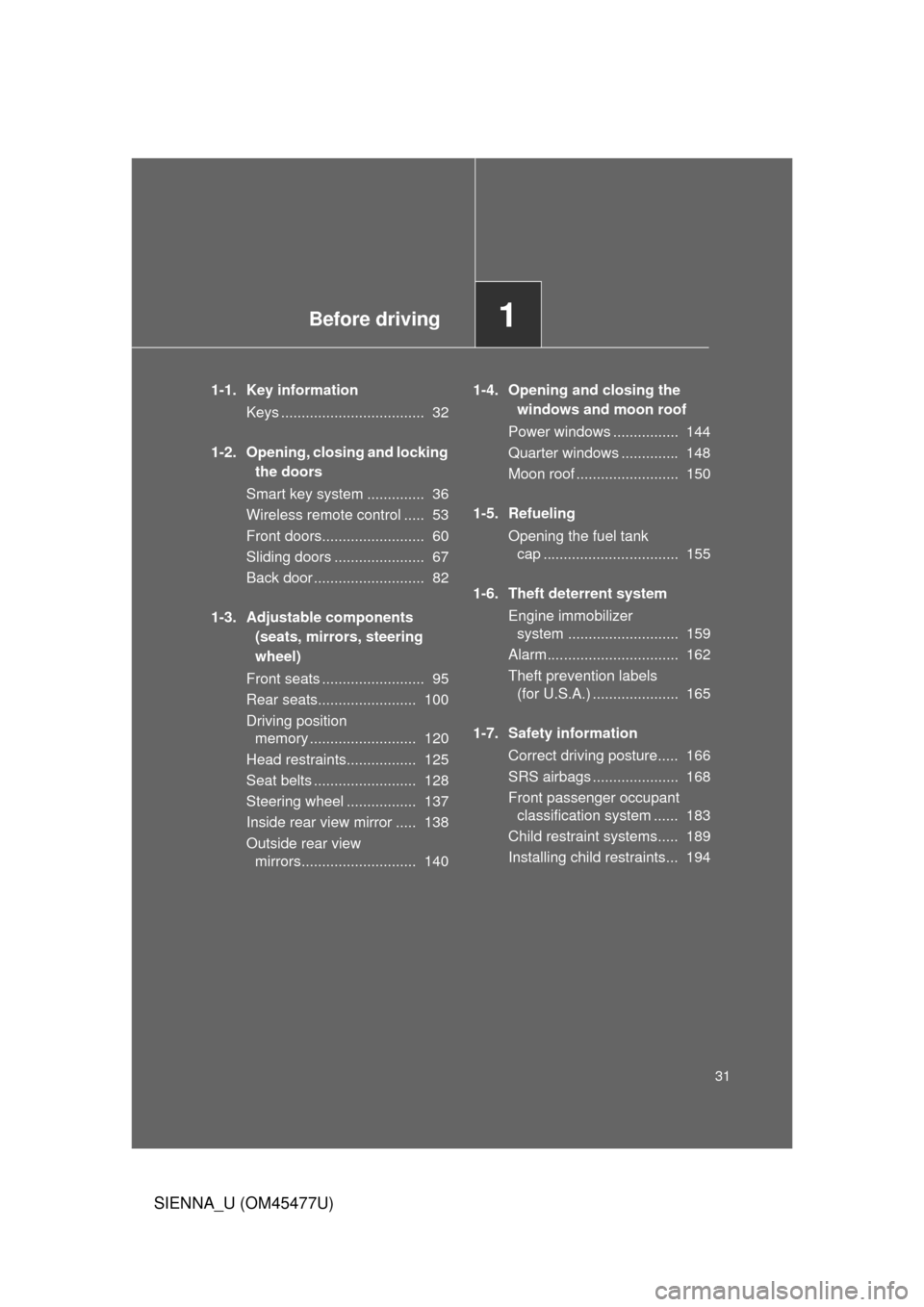

Before driving1
31
SIENNA_U (OM45477U)
1-1. Key informationKeys ................................... 32
1-2. Opening, closing and locking the doors
Smart key system .............. 36
Wireless remote control ..... 53
Front doors......................... 60
Sliding doors ...................... 67
Back door ........................... 82
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 95
Rear seats........................ 100
Driving position memory .......................... 120
Head restraints................. 125
Seat belts ......................... 128
Steering wheel ................. 137
Inside rear view mirror ..... 138
Outside rear view mirrors............................ 140 1-4. Opening and closing the
windows and moon roof
Power windows ................ 144
Quarter windows .............. 148
Moon roof ......................... 150
1-5. Refueling Opening the fuel tank cap ................................. 155
1-6. Theft deterrent system Engine immobilizer system ........................... 159
Alarm................................ 162
Theft prevention labels (for U.S.A.) ..................... 165
1-7. Safety information Correct driving posture..... 166
SRS airbags ..................... 168
Front passenger occupant classification system ...... 183
Child restraint systems..... 189
Installing child restraints... 194

32
SIENNA_U (OM45477U)
1-1. Key information

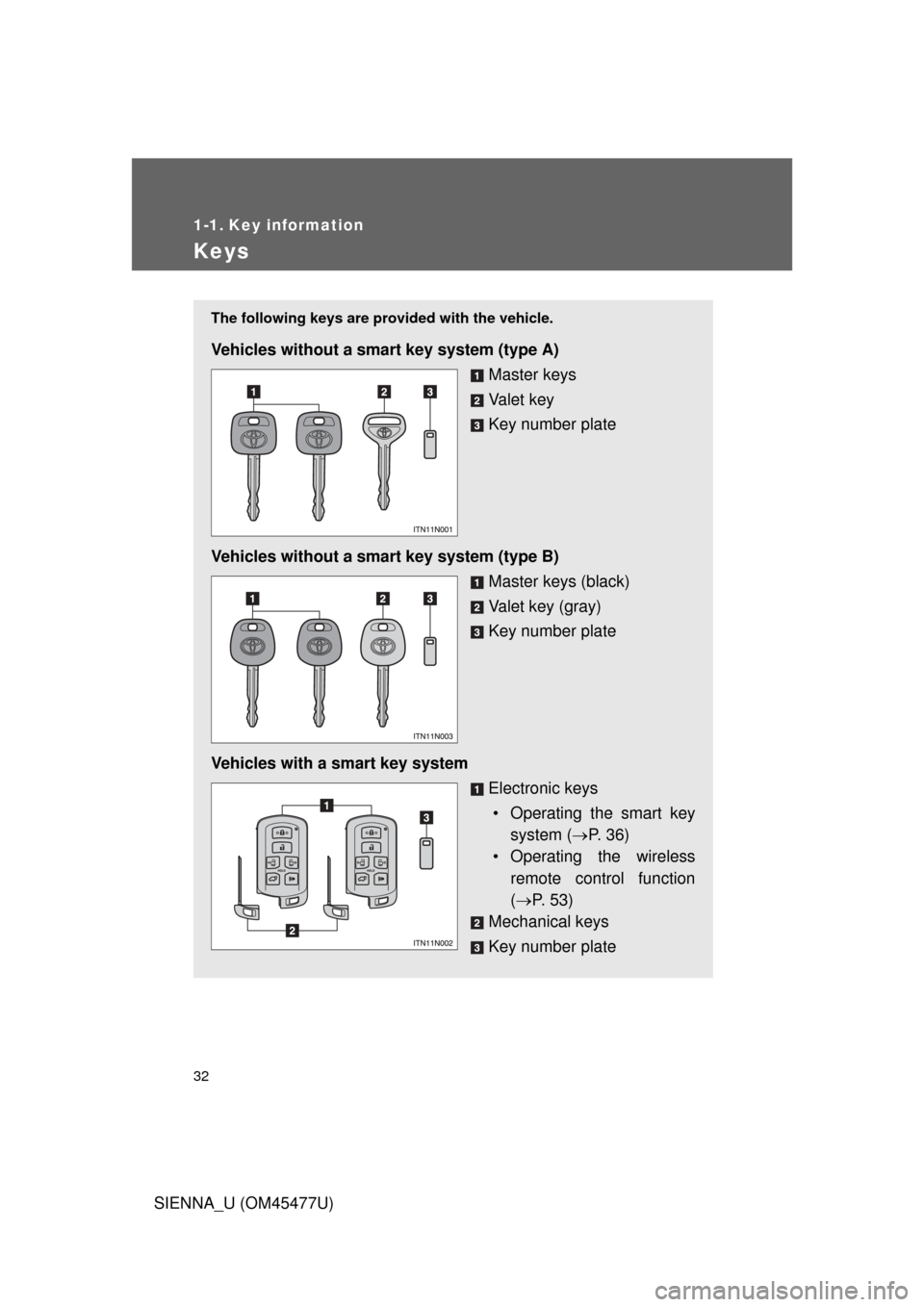

Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Master keys
Va l e t k e y
Key number plate
Vehicles without a smart key system (type B) Master keys (black)
Valet key (gray)
Key number plate
Vehicles with a smart key system Electronic keys• Operating the smart key system ( P. 36)
• Operating the wireless
remote control function
( P. 53)
Mechanical keys
Key number plate

33
1-1. Key information
1
Before driving
SIENNA_U (OM45477U)
Using the mechanical key (vehicles with a smart key system)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be inserted
in a lock cylinder, turn it over and
re-attempt to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 767)

34 1-1. Key information
SIENNA_U (OM45477U)
■When required to leave the vehic le’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 573)
On vehicles without the smart key system, provide the attendant with the
valet key.
On vehicles with the smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key (without a smart key system) or mechanical key (with a
smart key system) is lost, a new key can be made by your Toyota dealer
using the key number plate. ( P. 766)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the a\
ircraft.

35
1-1. Key information
1
Before driving
SIENNA_U (OM45477U)
NOTICE
■
To prevent key damage
Observe the following:
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems, glass top ranges, or medical electrical equipment,
such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on.
■ In case of a smart key system malf unction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When a vehicle key is lost (vehicles with a smart key system)
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining electronic keys that were
provided with your vehicle.

36
SIENNA_U (OM45477U)
1-2. Opening, closing and locking the doors

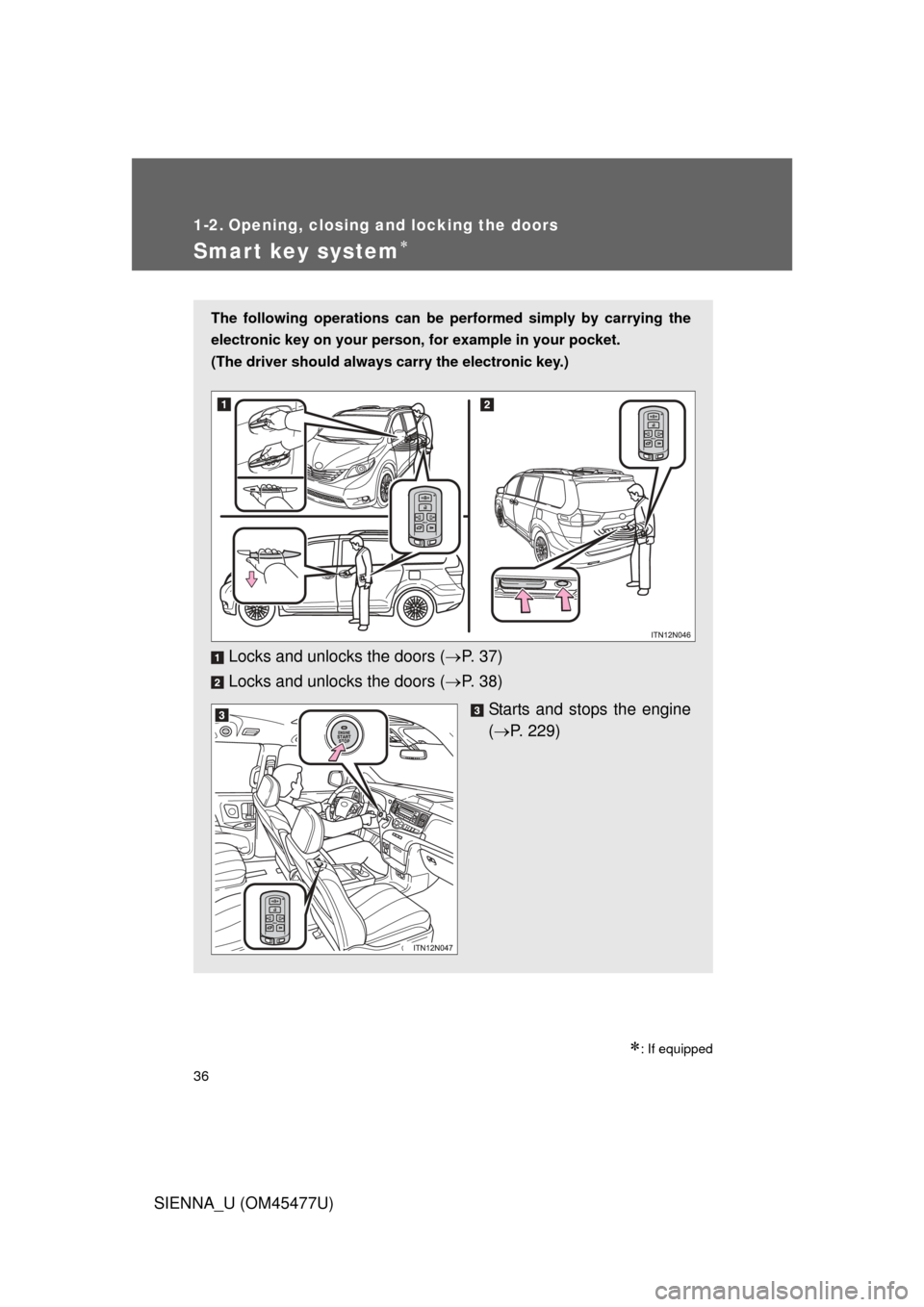

Smart key system
: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( P. 3 7 )
Locks and unlocks the doors ( P. 3 8 )
Starts and stops the engine
( P. 229)

37
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
Unlocking and locking the doors
Front door handles Grip the handle to unlock all the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the upper part of
the door handle) to lock all the
doors.
Sliding door handles (vehicl es with power sliding door)
Pull the handle to unlock all the
doors.
There is no touch type sensor in
slide door handle. You must pull
the handle to activate the opera-
tion.

38 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)Back door
Press the unlock button to
unlock all the doors.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.
Press the lock button to lock all
the doors.

39
1-2. Opening, closing and locking the doors
1
Before driving
SIENNA_U (OM45477U)
Antenna location a
nd effective range
■ Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna outside luggage com-
partment

40 1-2. Opening, closing and locking the doors
SIENNA_U (OM45477U)■
Effective range (areas within which the electronic key is
detected)
When locking or unlock-
ing the doors
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(0.7 m) of either of the front
outside door handles. (Only
the doors detecting the key
can be operated.)
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be oper-
ated when the electronic
key is inside the vehicle.
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ When the door cannot be locked by the lock sensor on the upper part
of the front door handle
Touch both lock sensors on the upper and
lower part of the front door handle simul-
taneously.
