TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

471
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
●
ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3
tags. (The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a device containing MP3 or WMA files is connected, all files in the
USB memory device are checked. Once the file check is finished, the first
MP3 or WMA file is played. To make the file check finish more quickly, we
recommend that you do not include any files other than MP3 or WMA files
or create any unnecessary folders.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of playback
may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of Microsoft Corporation in the U.S.A. and other countries.

472 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)
CAUTION
■While driving
Do not connect USB memory or operate the controls on the USB memory.
NOTICE
■To prevent damage to USB memory
●Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
● Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

473
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)

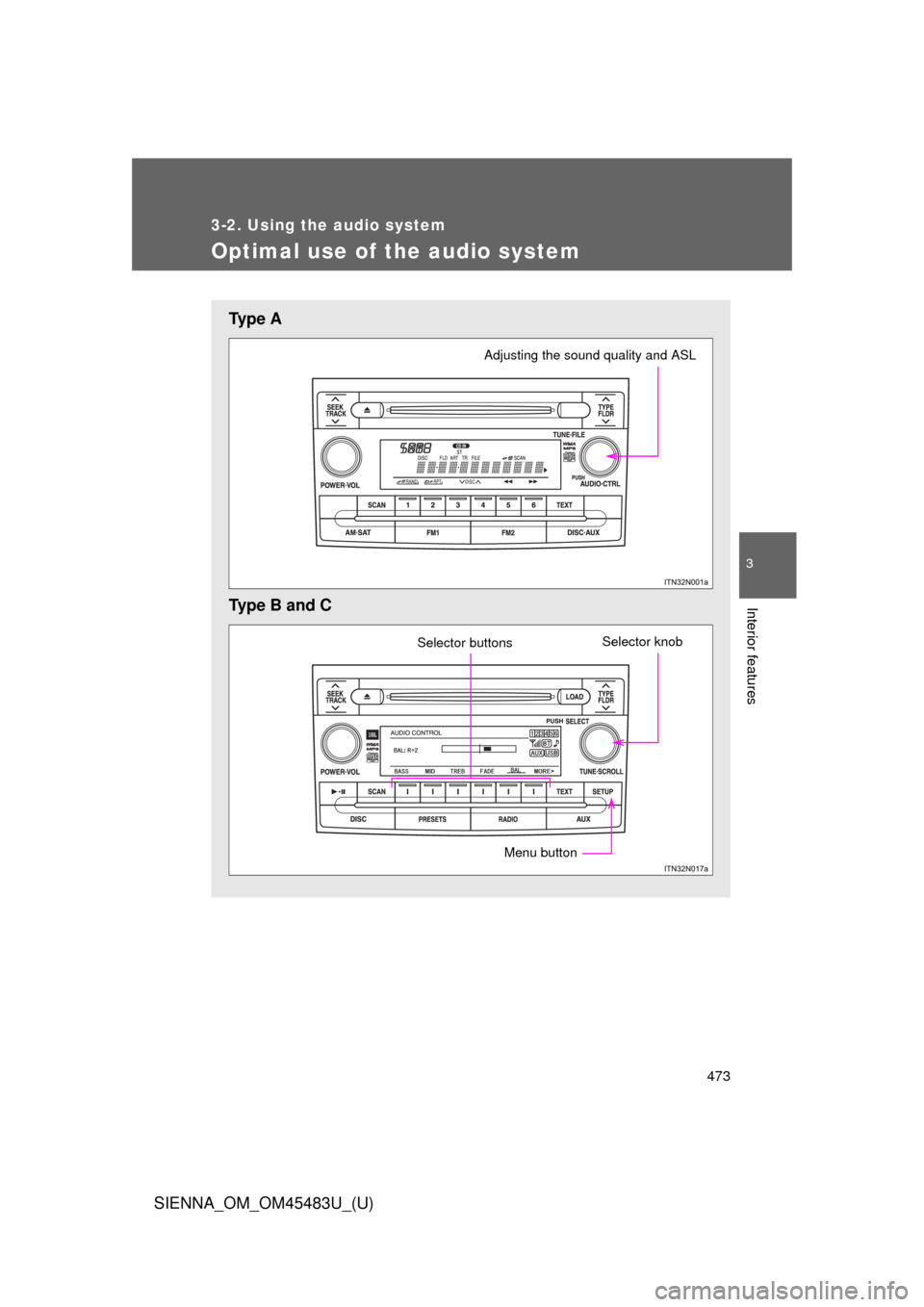

Optimal use of the audio system
Ty p e A
Type B and C
Adjusting the sound quality and ASL
Selector knobSelector buttons
Menu button

474 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)
Using the audio control function■ Changing sound quality modes
Ty p e A
Pressing selects the mode in the following order.
“BAS”  “TRE”  “FAD”  “BAL”  “ASL”
Type B and C
Press .
Press that corresponds to the desired mode.
“BASS”, “MID” (type C only), “TREB”, “FADE”, or “BAL”
STEP1
STEP2

475
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
■
Adjusting sound quality
Turning or adjusts the level.
*1:The sound quality level is adjusted individually in each audio mode.
*2:Type C only
Sound quality
modeMode
displayedLevelTurn to the leftTurn to the right
Low-pitched tones
*1BAS -5 to 5
Low High
Mid-pitched
tones
*1MID*2-5 to 5
High-pitched tones
*1TRE -5 to 5
Front/rear
volume balance FAD F7 to R7 Shifts to rear Shifts to
front
Left/right volume balance BAL L7 to R7 Shifts to left Shifts to right

476 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)■
Adjusting the Automatic Sound Levelizer (ASL)
Ty p e A
When “ASL” is selected, turnin g to the right changes the
“ASL” level in the order of “LOW”, “MID” and “HIGH”.
Turning to the left turns “ASL” off.
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Type B and C
Press .
Press that corresponds to “MORE”.
Press that corresponds to “ASL”.
Press that corresponds to the desired mode.
Type B: “LOW”, “MID”, “HIGH”, or “OFF”
Type C: “ON” or “OFF”
ASL automatically adjusts the volume and tone quality according
to vehicle speed.
STEP1
STEP2
STEP3
STEP4

477
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
■
Setting the number of preset pages (type B and C)
The number of preset pages desired can be set from 1 to 6. The
initial setting is 6 pages.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “PRESET”.
Press that corresponds to the desired number of pre-
set pages.
■ Language settings (type B and C)
P. 4 2 5
■Trademark owned by SRS Labs, Inc. (type A and B)
The audio systems utilize SRS FOCUS
™ and SRS TruBass audio
enhancement technologies, under license from SRS Labs, Inc., in all mode
except AM radio mode.
FOCUS, TruBass, SRS and
symbols are trademarks of SRS Labs,
Inc.
FOCUS and TruBass technologies are incorporated under license from
SRS Labs, Inc.
STEP1
STEP2
STEP3
STEP4

478
3-2. Using the audio system
SIENNA_OM_OM45483U_(U)

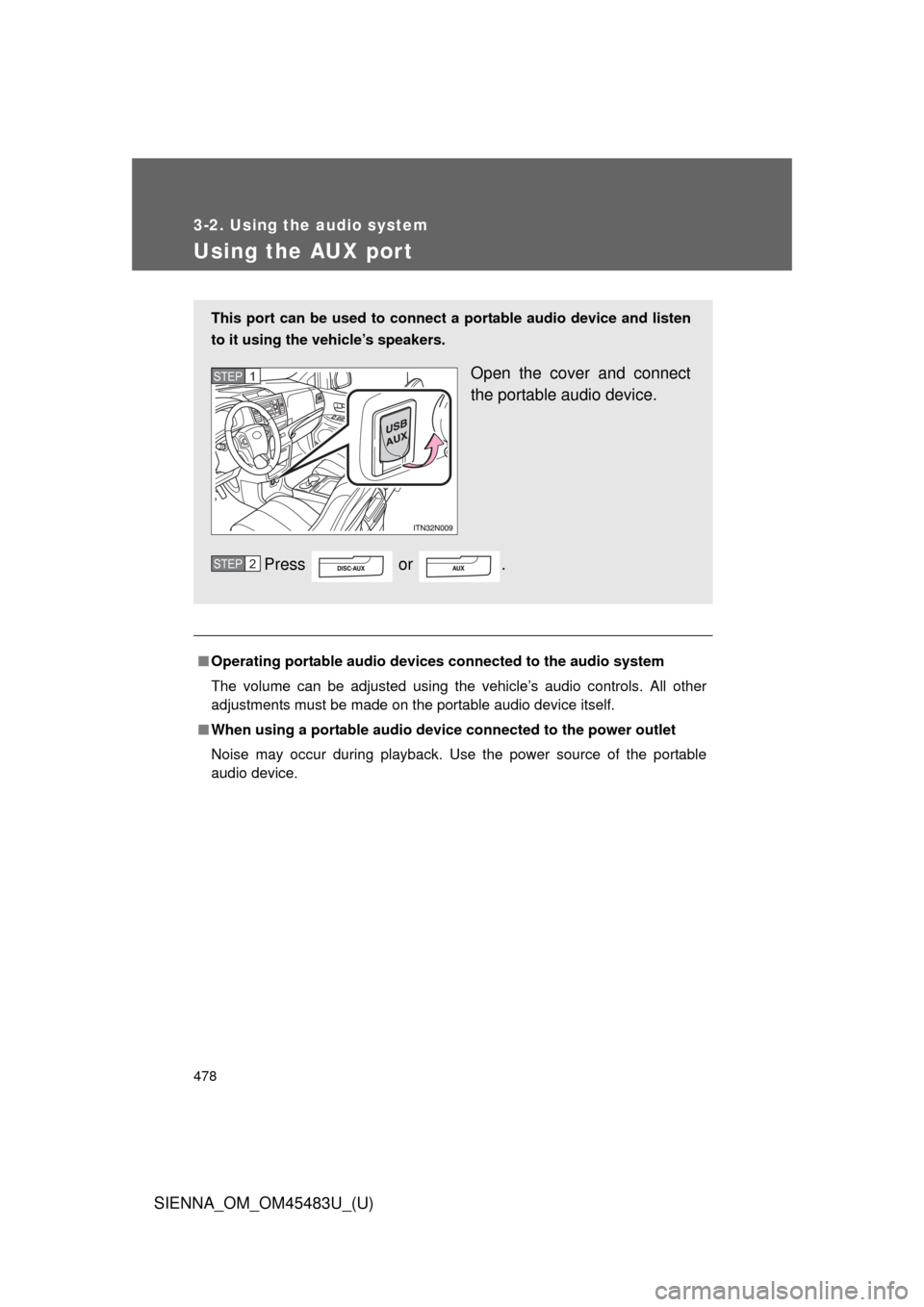

Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it using the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press or .STEP1
STEP2

479
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)

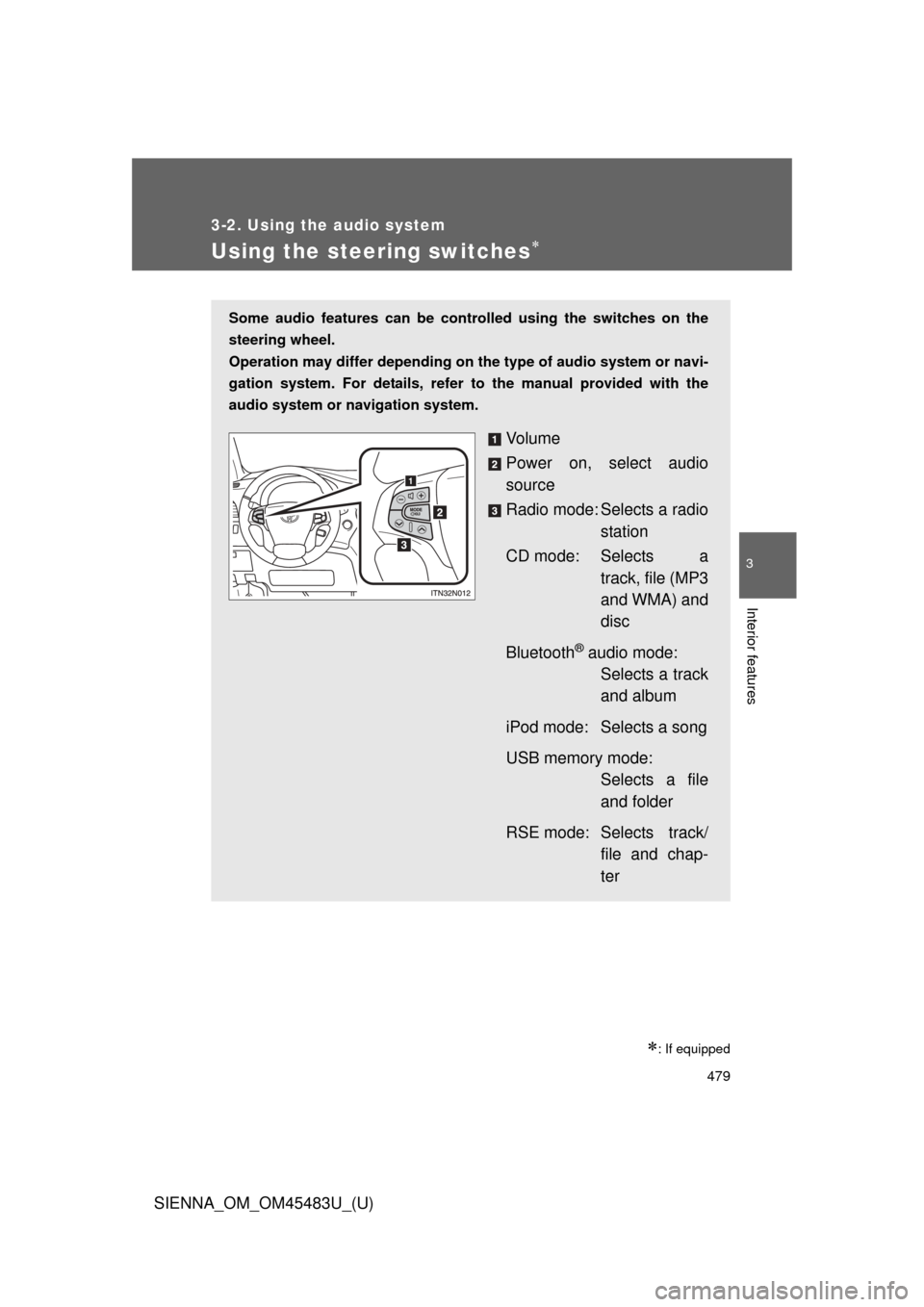

Using the steering switches
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
Vo l u m e
Power on, select audio
source
Radio mode: Selects a radio station
CD mode: Selects a track, file (MP3
and WMA) and
disc
Bluetooth
® audio mode: Selects a track
and album
iPod mode: Selects a song
USB memory mode: Selects a file
and folder
RSE mode: Selects track/ file and chap-
ter

480 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a mode cannot
be used, it will be skipped.
Type A:
FM (1, 2)  CD player  AUX  AM  SAT (1, 2, 3)
Type B and C:
FM  SAT  CD player (type B) or CD changer (type C) 
RSE
*  Bluetooth® audio  AUX  iPod or USB memory  AM
*: If equipped
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold down the button to continue increasing or decreasing the volume.
