7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
AUDIO/VISUAL SYSTEM
3
1Select “Format SD Card” .
2Select “Yes” to format the SD card.
If the SD card is formatted, all data on the
card will be erased.
1Select “Clear BD Data” .
2Select “Yes” to delete the BD history
data.
■COMPATIBLE FILES
The following files can be displayed.
 Music file format:MP3/WMA/AAC
For details, refer to compatible file format
for CD/DVD disc ( P.162)
 Photo file format:JPEG
(Gray scale JPEG and Motion JPEG are
not supported.)
 Pixel size (photo):
Between 1 x 1 and 8192 x 8192 pixels
 Video file format:
•MPEG-4
• H.264/AVC

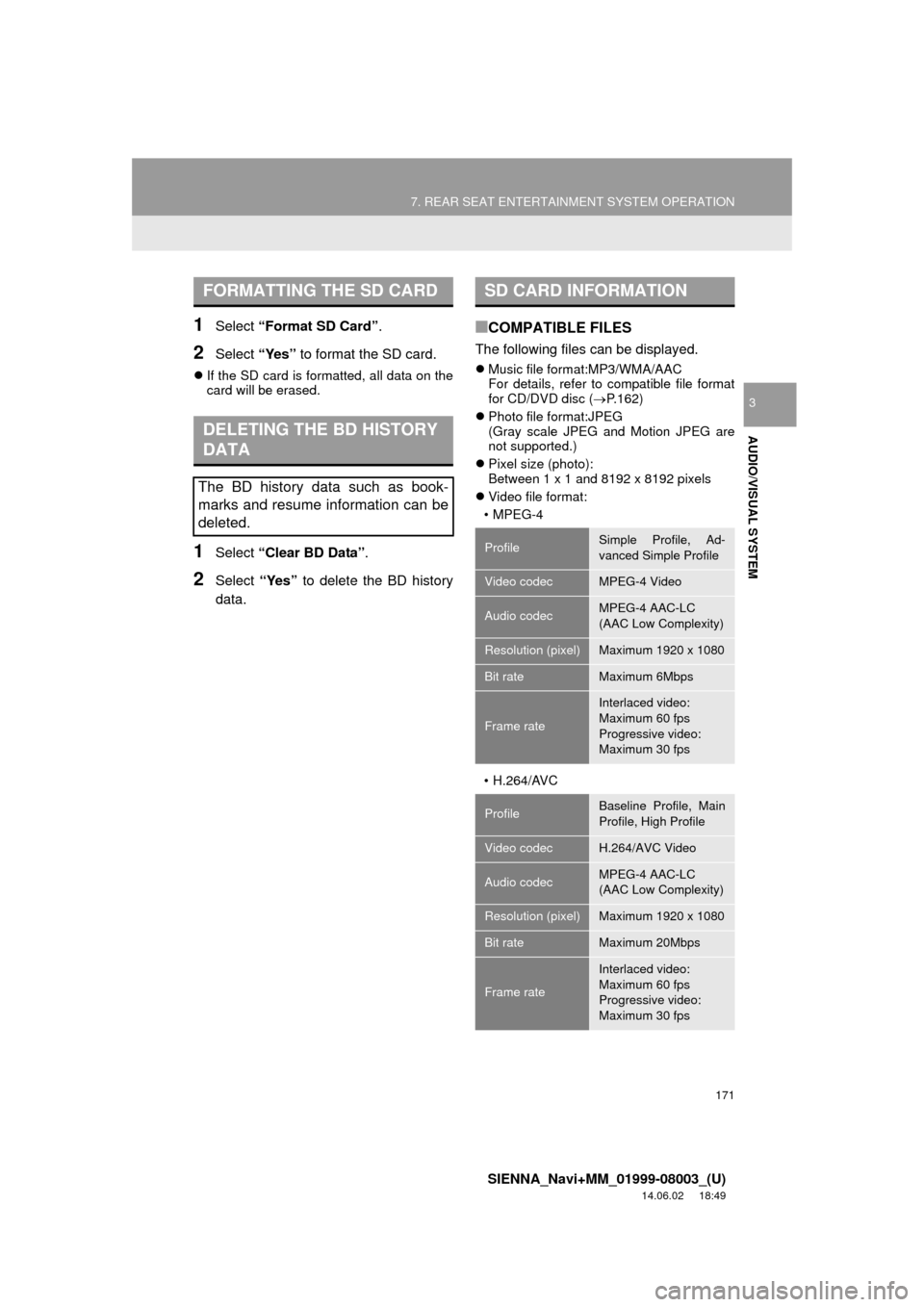

FORMATTING THE SD CARD
DELETING THE BD HISTORY
DATA
The BD history data such as book-
marks and resume information can be
deleted.
SD CARD INFORMATION
ProfileSimple Profile, Ad-
vanced Simple Profile
Video codecMPEG-4 Video
Audio codecMPEG-4 AAC-LC
(AAC Low Complexity)
Resolution (pixel)Maximum 1920 x 1080
Bit rateMaximum 6Mbps
Frame rate
Interlaced video:
Maximum 60 fps
Progressive video:
Maximum 30 fps
ProfileBaseline Profile, Main
Profile, High Profile
Video codecH.264/AVC Video
Audio codecMPEG-4 AAC-LC
(AAC Low Complexity)
Resolution (pixel)Maximum 1920 x 1080
Bit rateMaximum 20Mbps
Frame rate
Interlaced video:
Maximum 60 fps
Progressive video:
Maximum 30 fps

172
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
•MPEG-2
• WINDOWS MEDIA VIDEO (WMV)• AVI CONTAINER
ProfileMP@HL, MP@ML
Video codecMPEG-2 PS (Program
Stream)
Audio codecMPEG-1 Audio Layer
2, Dolby Digital
Resolution (pixel)Maximum 1920 x 1080
Bit rateMaximum 12Mbps
Frame rate
Interlaced video:
Maximum 60 fps
Progressive video:
Maximum 30 fps
Profile
Simple Profile, Main
Profile, Advanced Pro-
file
Video codecWMV (VC-1)
Audio codec
WMA
(WMA Professional
and Lossless are not
supported.)
Resolution (pixel)Maximum 1920 x 1080
Bit rate
Simple and Main Pro-
file:
Maximum 15Mbps
Advanced Profile:
Maximum 20Mbps
Frame rate
Interlaced video:
Maximum 60 fps
Progressive video:
Maximum 30 fps
Profile
Refer to supported pro-
files for MPEG-4,
H.264/AVC, WMV
To be played
back video and
audio codec
Video:
H.264/AVC Video
Audio:
MPEG-4 AAC-LC, MP3
Video:
MPEG-4 Video
Audio:
MPEG-4 AAC-LC, MP3
Video:WMV (VC-1)
Audio:MP3
Resolution (pixel)Maximum 1920 x 1080
Bit rateRefer to supported bit
rate for MPEG-4,
H.264/AVC, WMV
Frame rate
Interlaced video:
Maximum 60 fps
Progressive video:
Maximum 30 fps

173
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
AUDIO/VISUAL SYSTEM
3
• SD-VIDEO H.264 MOBILE VIDEO PRO-FILE
For the operation of how to make the video
file, see the manual that come with each
device, encoder soft, etc.
It may not be played depending on the
type of encoder soft.
 Compatible formats
This system is compatible with SD mem-
ory cards that meet SD card specifications
FAT16 formats, SDHC memory cards in
FAT32 format, and SDXC memory cards
in exFAT format.
 An SD card is not provided with the rear
seat entertainment system and needs to
be purchased separately.
 The Panasonic SD memory card format
software version 4.0 or higher is recom-
mended.
 Data stored in an SD card may be lost.
Before playing back music, pictures and
videos stored in an SD card, make certain
to back up the data.
 Before an SD card that contains any kind
of data is played, slide the lock switch on
the SD card to “LOCK” in order to prevent
any data from being accidentally deleted
or overwritten.

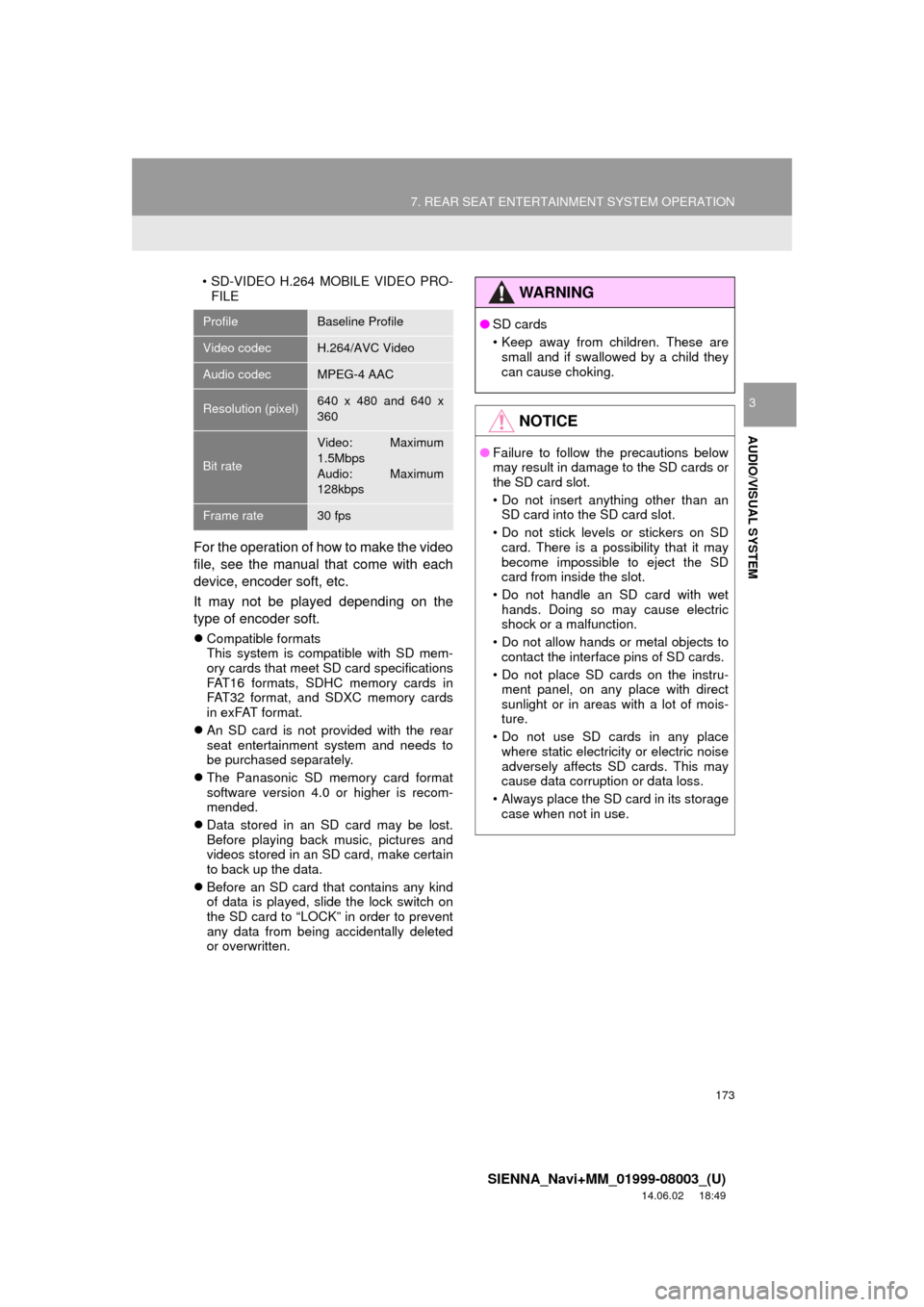

ProfileBaseline Profile
Video codecH.264/AVC Video
Audio codecMPEG-4 AAC
Resolution (pixel)640 x 480 and 640 x
360
Bit rate
Video: Maximum
1.5Mbps
Audio: Maximum
128kbps
Frame rate30 fps
WA R N I N G
●SD cards
• Keep away from children. These are
small and if swallowed by a child they
can cause choking.
NOTICE
● Failure to follow the precautions below
may result in damage to the SD cards or
the SD card slot.
• Do not insert anything other than an
SD card into the SD card slot.
• Do not stick levels or stickers on SD card. There is a possibility that it may
become impossible to eject the SD
card from inside the slot.
• Do not handle an SD card with wet hands. Doing so may cause electric
shock or a malfunction.
• Do not allow hands or metal objects to contact the interface pins of SD cards.
• Do not place SD cards on the instru- ment panel, on any place with direct
sunlight or in areas with a lot of mois-
ture.
• Do not use SD cards in any place where static electricity or electric noise
adversely affects SD cards. This may
cause data corruption or data loss.
• Always place the SD card in its storage case when not in use.

174
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
5. USING THE VIDEO MODE*
1Open the cover and connect audio-vid-
eo equipment to the A/V input port.
 Type A
 Type B
 The A/V input port is composed of 3 input
jacks.
Yellow: Video input
White: Left channel audio input
Red: Right channel audio input
2Turn on the power of the audio-video
equipment.
3Press the “INPUT” button to turn on
the video mode.
The rear seat entertainment system
plays videos and sound when audio-
video equipment is connected to the
A/V input port.
Press the “INPUT” button to turn on
the video mode. Each time “INPUT”
button is pushed, the mode will be
changed between video mode and
HDMI mode.
REMOTE CONTROLLER
No.Function
Turning on the video mode
Volume up/down
*: If equipped
USING THE A/V INPUT PORT

175
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
AUDIO/VISUAL SYSTEM
3
INFORMATION
●The volume can be adjusted using the
vehicle’s audio controls. All other opera-
tions must be made on the audio-video
equipment itself.
For details about operation of audio-
video equipment, refer to the manufac-
turer’s instructions.
NOTICE
●When the A/V input port is not in use,
keep the A/V input port cover closed.
Inserting anything other than an appro-
priate plug may cause electrical failure.

176
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
6. USING THE HDMI MODE*
1Open the cover and connect audio-vid-
eo equipment to the HDMI port.
2Turn on the power of the audio-video
equipment.
3Press the “INPUT” button to turn on
the HDMI mode.
About the HDMI terminal, the interface
that is connected video and audio to
system and audio/video device. You
can enjoy the high-definition video and
audio by connecting the single cable to
the HDMI terminal and the system.
The rear seat entertainment system
plays videos and sound when audio-
video equipment is connected to the
HDMI port.
Press the “INPUT” button to turn on
the HDMI mode. Each time “INPUT”
button is pushed, the mode will be
changed between video mode and
HDMI mode.
REMOTE CONTROLLER
No.Function
Turning on the HDMI mode
Volume up/down
*: If equipped
USING THE HDMI PORT
INFORMATION
● The volume can be adjusted using the
vehicle’s audio controls. All other opera-
tions must be made on the audio-video
equipment itself.
For details about operation of audio-
video equipment, refer to the manufac-
turer’s instructions.
NOTICE
●When the HDMI port is not in use, keep
the cover closed. Inserting anything
other than an appropriate plug may
cause electrical failure or a short circuit.

177
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49
AUDIO/VISUAL SYSTEM
3
Compatible video signal
480p, 576p, 720p, 1080i, VGA
 Compatible sound signal
LPCM 2ch
COMPATIBLE FORMAT
The terms HDMI and HDMI High-
Definition Multimedia Interface, and
the HDMI Logo are trademarks or
registered trademarks of HDMI
Licensing LLC in the United States and
other countries.

178
7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:49

4
179
SIENNA_Navi+MM_01999-08003_(U)
14.06.02 18:35
1
2
3
4
5
6
7
8
9

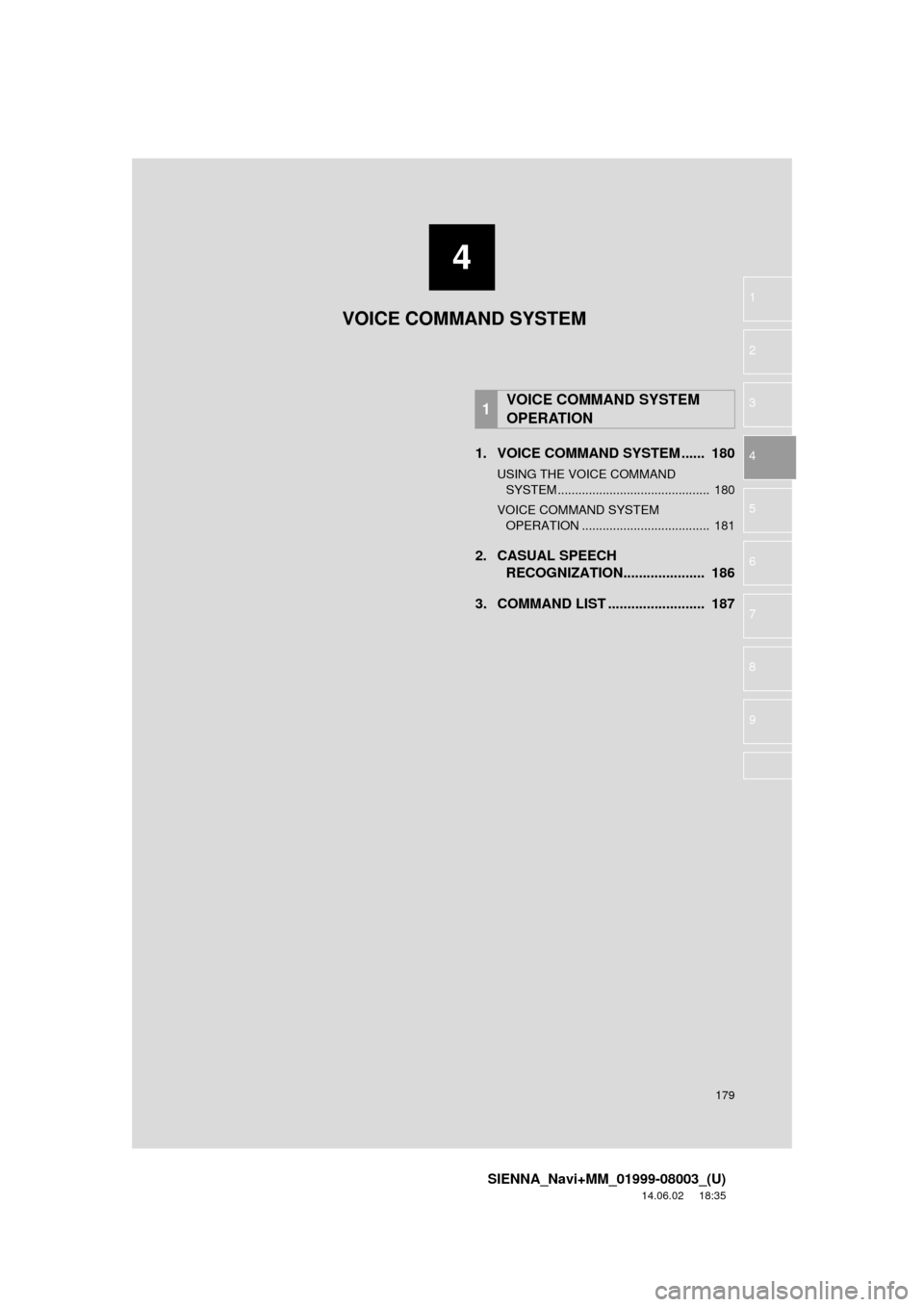

1. VOICE COMMAND SYSTEM ...... 180
