21Pictorial index
SIENNA_OM_01999-08001_(U)SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Second seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Third seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Console box
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Quarter windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 426
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 428
Door pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Rear automatic air conditioning system . . . . . . . . . . . . . . . P. 413
Rear seat entertainment system
*1, 2
Rear side sunshades*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11
12
13
Page 22 of 664
22Pictorial index
SIENNA_OM_01999-08001_(U)Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188, 189
Power sliding door switches
*1. . . . . . . . . . . . . . . . . . . . . . . P. 123
Personal/interior lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Rear ceiling light switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
Power back door switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 420
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 441
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 435
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 435
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 444
Compass
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 449
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
9
10
11
12
Page 23 of 664
23
SIENNA_OM_01999-08001_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 36
Front passenger occupant classification system ......... 50
Safety information for children ........................ 55
Child restraint systems........ 56
Installing child restraints...... 60
Exhaust gas precautions..... 74
1-2. Theft deterrent system Engine immobilizer system .............................. 75
Alarm................................... 77
Theft prevention labels (for U.S.A.) ........................ 80
Page 24 of 664
241-1. For safe use
SIENNA_OM_01999-08001_(U)
Before driving

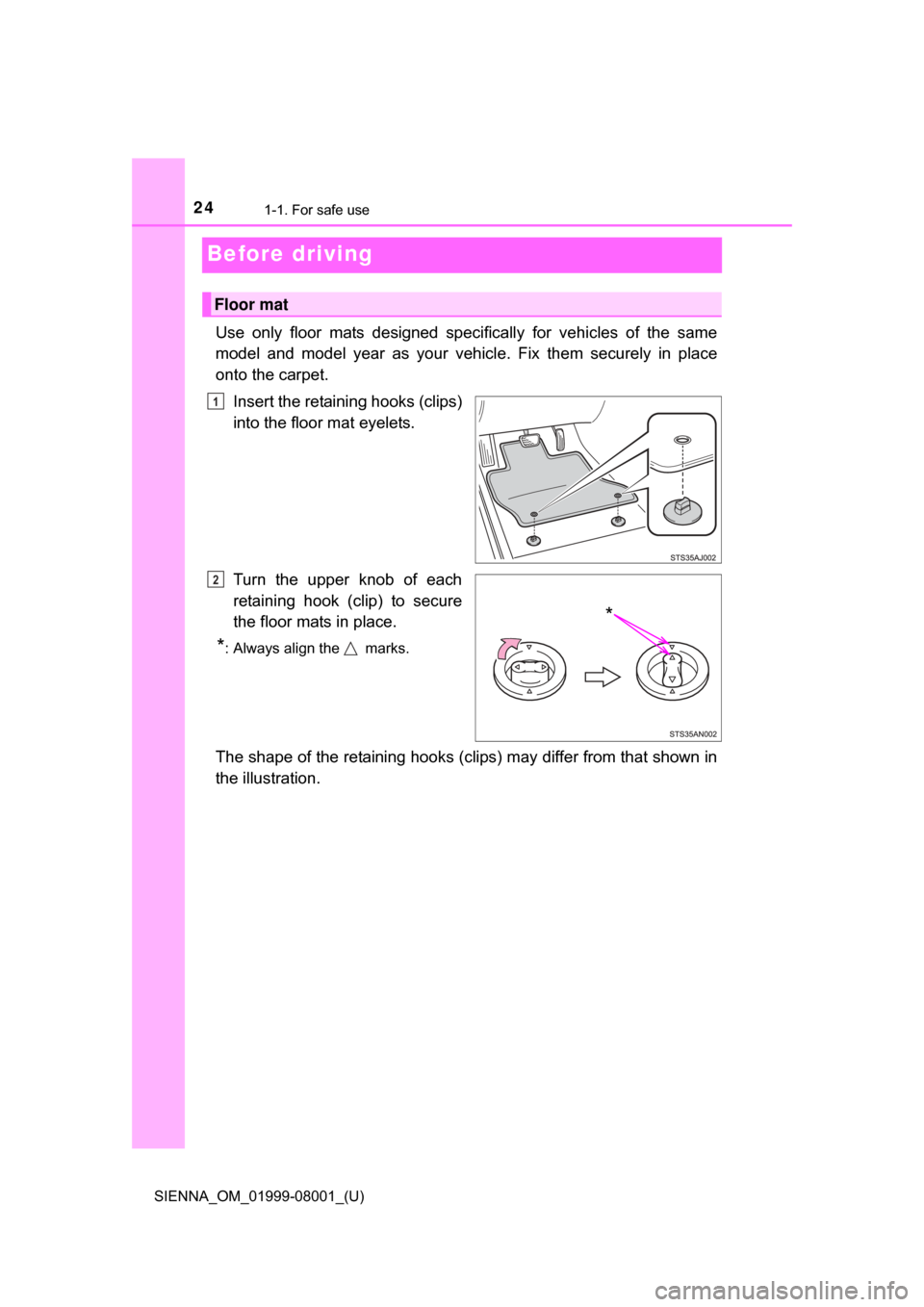

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in
the illustration.
Floor mat
1
*
O
Page 25 of 664
251-1. For safe use
SIENNA_OM_01999-08001_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident, or leading to
death or a serious injury.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
Page 26 of 664
261-1. For safe use
SIENNA_OM_01999-08001_(U)
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 148)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 148)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 172)
Wear the seat belt correctly. ( P. 2 8 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 8 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 56)
Make sure that you can see backwar d clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 178, 180)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
Page 27 of 664
271-1. For safe use
SIENNA_OM_01999-08001_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Page 28 of 664
281-1. For safe use
SIENNA_OM_01999-08001_(U)
Seat belts
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts

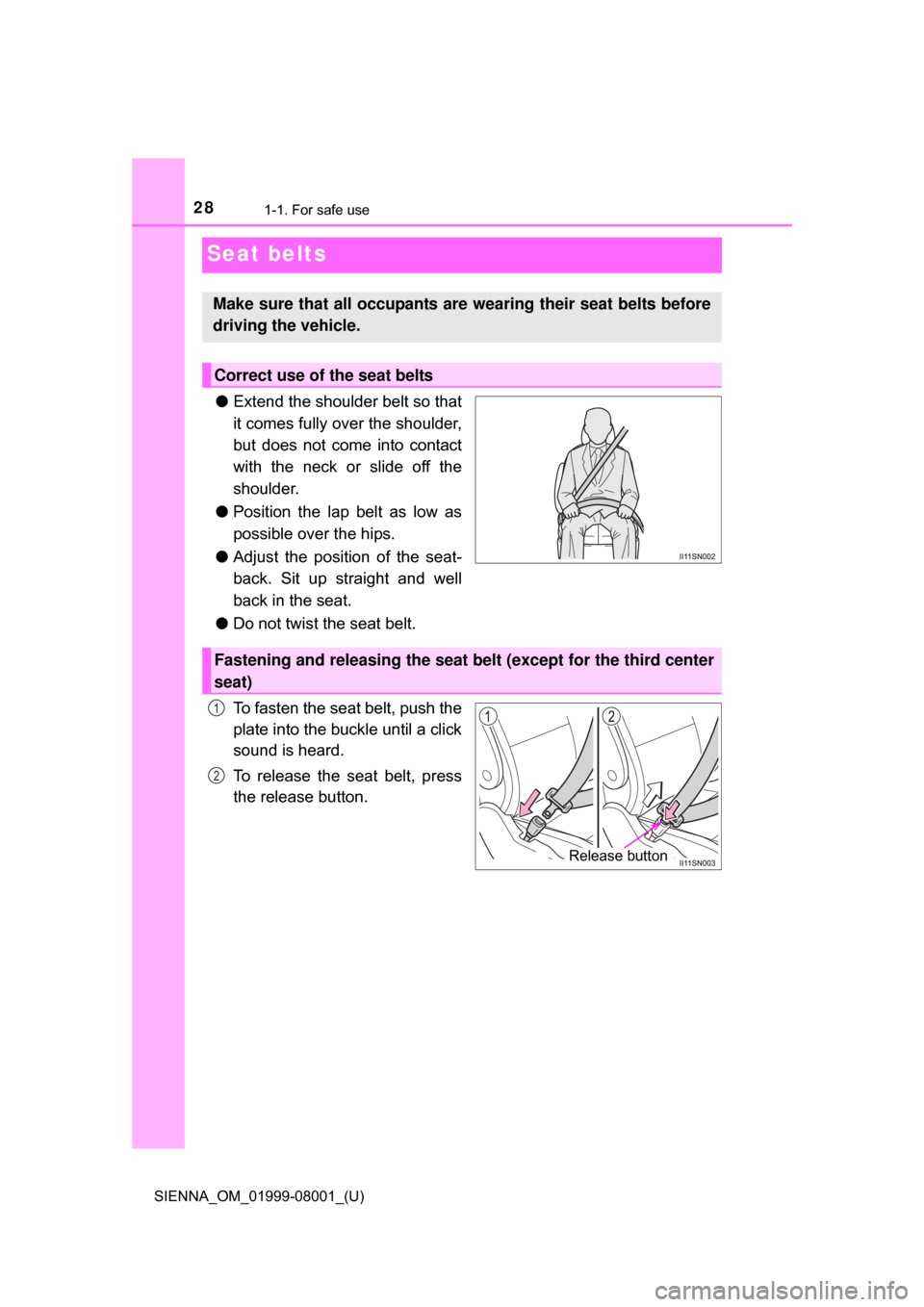

Fastening and releasing the seat belt (except for the third center
seat)
Release button
1
2
Page 29 of 664
291-1. For safe use
SIENNA_OM_01999-08001_(U)
1
For safety and security
Take the plate out of the holder,
and then pull down the seat
belt.
Push plate “A” into buckle “A”
until a click sound is heard.
Push plate “B” into buckle “B”
until a click sound is heard.

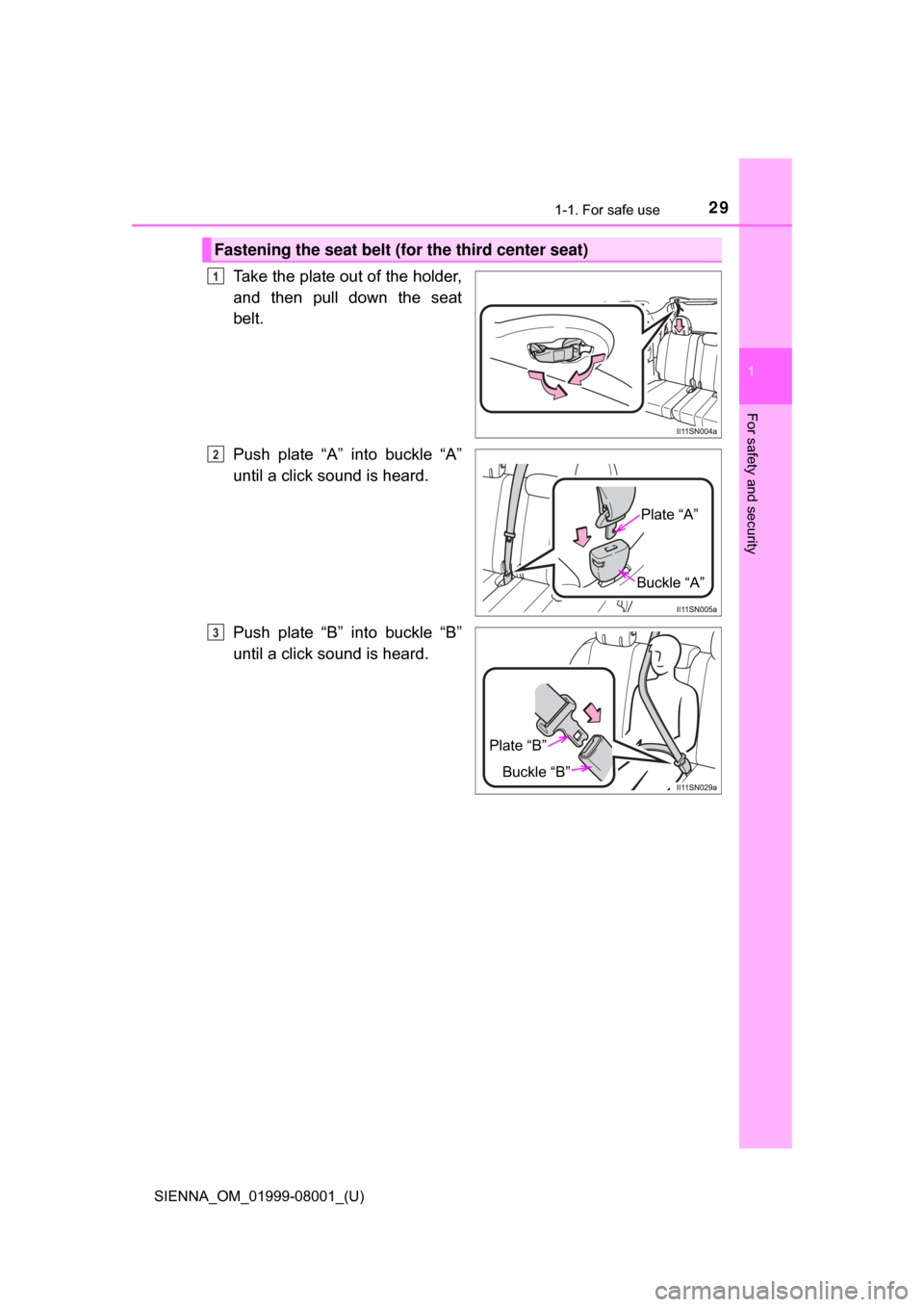

Fastening the seat belt (for the third center seat)
1
Plate “A”
Buckle “A”
O
Plate “B”
Buckle “B”
P
Page 30 of 664
301-1. For safe use
SIENNA_OM_01999-08001_(U)
To release plate “B”, press the
release button on buckle “B”.
To release plate “A”, insert the
key (P. 104) or plate “B” into
the hole on buckle “A”.
Retract the belt slowly when
releasing and stowing the seat
belt.
Insert the seat belt plates into
the holder on the roof as
shown.

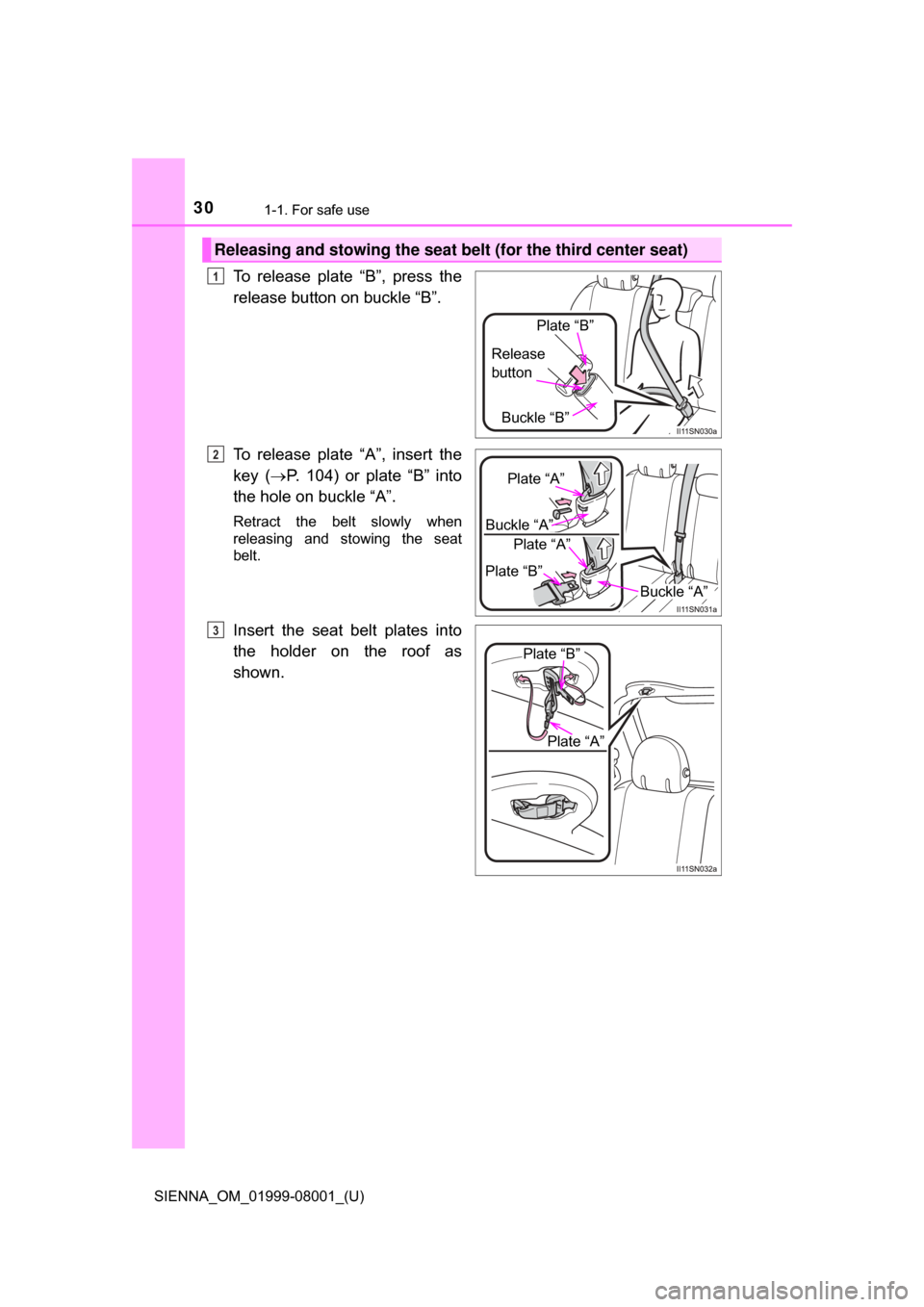

Releasing and stowing the seat belt (for the third center seat)
Buckle “B”
Release
button
Plate “B”
1
Buckle “A”
Plate “A”
Plate “A”
Plate “B”
Buckle “A”
O
Plate “A”
Plate “B”
P
