The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.
Page 12 of 664
12
SIENNA_OM_01999-08001_(U)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123
Page 13 of 664
13
SIENNA_OM_01999-08001_(U)
How to search
■Searching by name• Alphabetical index .......P. 649
■Searching by installation
position• Pictorial index ................P. 14
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 644
■Searching by title• Table of contents .............P. 2
Page 14 of 664
14Pictorial index
SIENNA_OM_01999-08001_(U)
Pictorial index
■

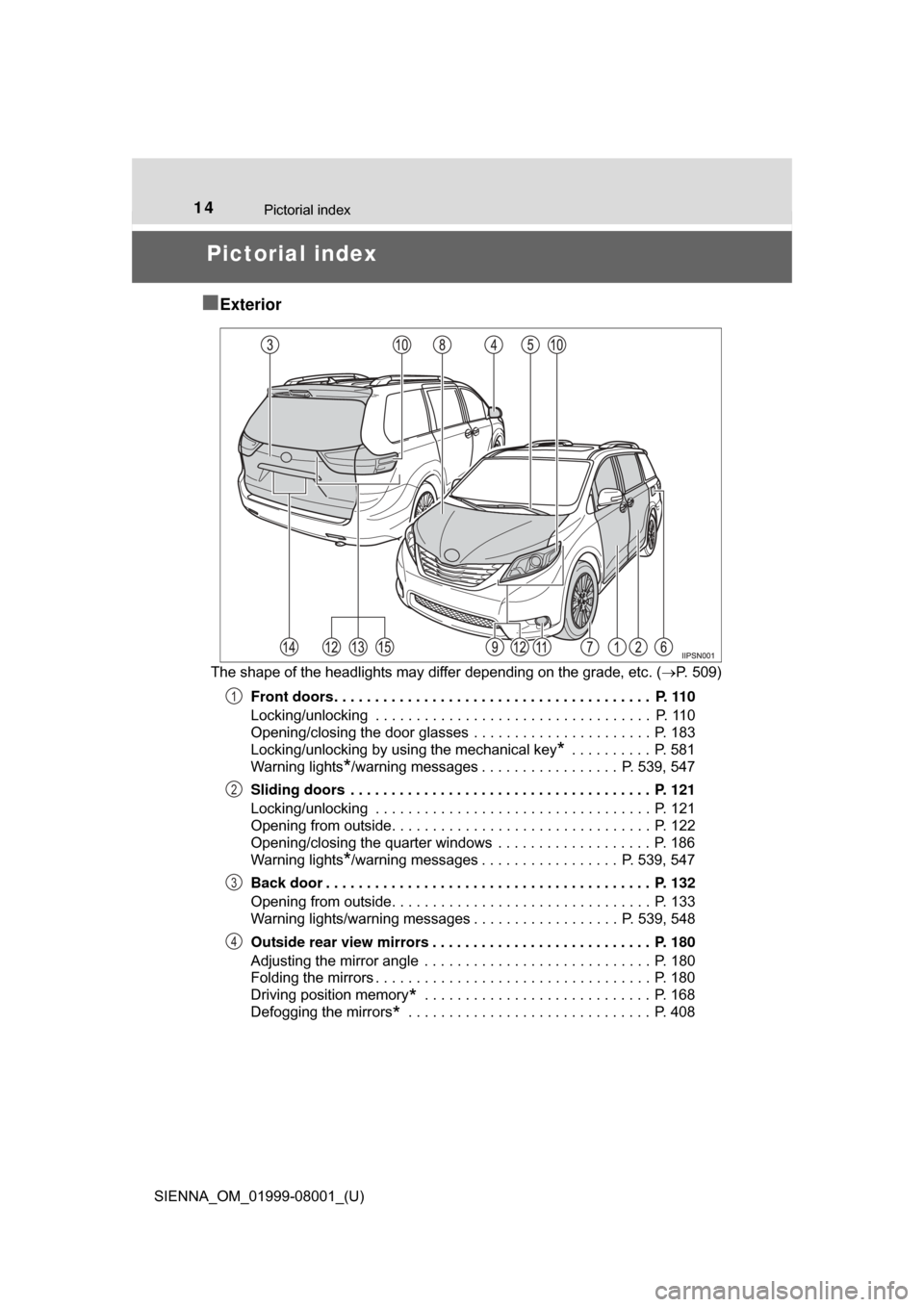

Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 509)
Front doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 183
Locking/unlocking by using the mechanical key
* . . . . . . . . . . P. 581
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 539, 547
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Opening/closing the quarter windows . . . . . . . . . . . . . . . . . . . P. 186
Warning lights
*/warning messages . . . . . . . . . . . . . . . . . P. 539, 547
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Opening from outside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 539, 548
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Driving position memory
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
1
2
3
4
Page 15 of 664
15Pictorial index
SIENNA_OM_01999-08001_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 311
To prevent freezing (windshield wiper de-icer)
*. . . . . . . . . . . . P. 408
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 488
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
Checking/rotation/tire pressure warning system . . . . . . . . . P. 488
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . P. 562, 564
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 596
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 587
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 548
Headlights/parking lights/ daytime running lights
*. . . . . . . P. 237
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 509, Watts: P. 602)
*: If equipped
9
10
11
12
13
14
15
Page 16 of 664
16Pictorial index
SIENNA_OM_01999-08001_(U)

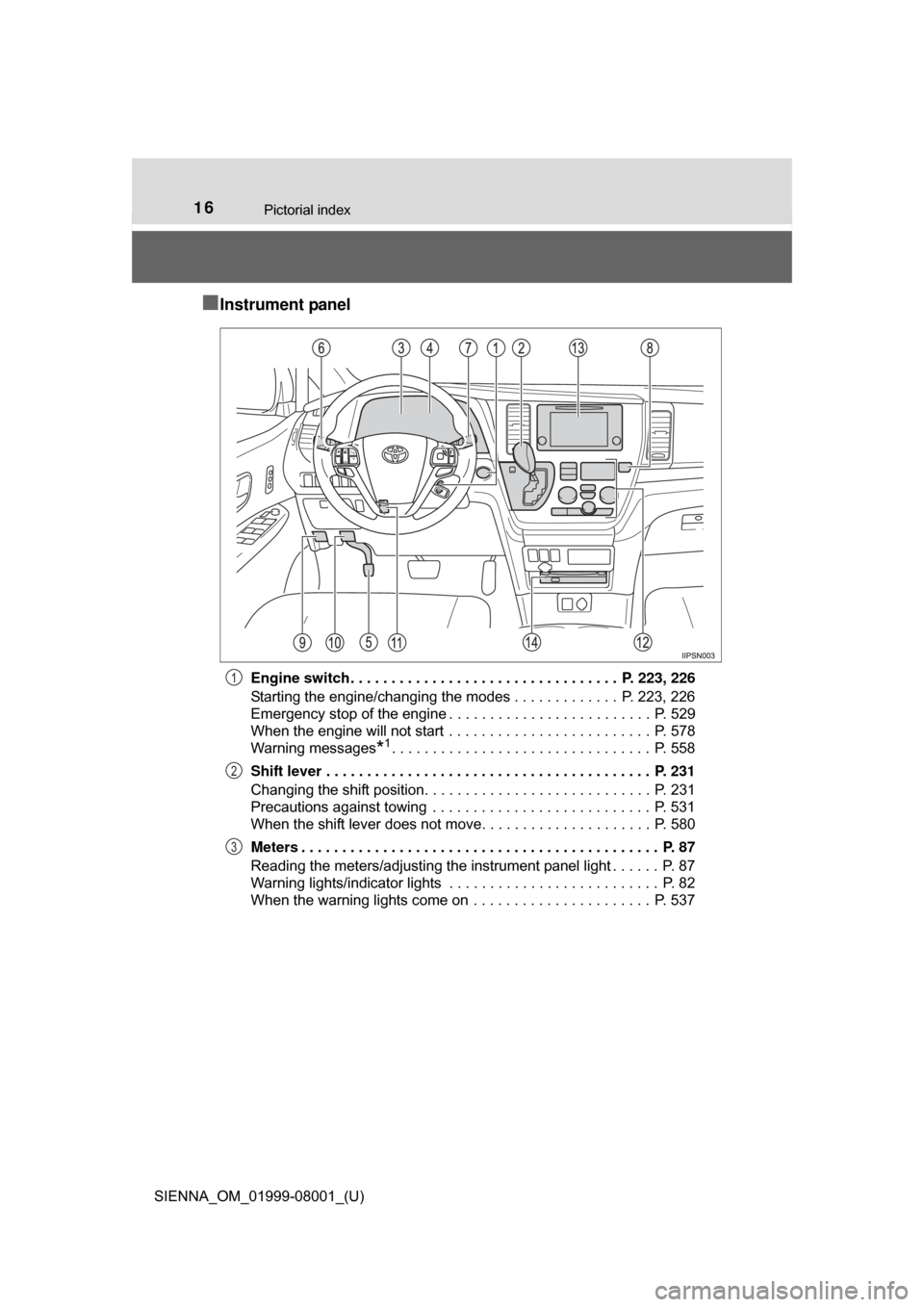

■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223, 226
Starting the engine/changing the modes . . . . . . . . . . . . . P. 223, 226
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 529
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 578
Warning messages
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Changing the shift position. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . P. 580
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 87
Reading the meters/adjusting the instrument panel light . . . . . . P. 87
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 537
1
2
3
Page 17 of 664
17Pictorial index
SIENNA_OM_01999-08001_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 90, P. 93
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 93
When the warning messages are displayed . . . . . . . . . . . . . . P. 546
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 312
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Headlights/parking lights/tail lights/
daytime running lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Windshield wiper and washer switch . . . . . . . . . . . . . P. 248, 252
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248, 252
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 487
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 528
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 176
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Audio system
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Navigation system
*1, 3
Blu-ray disc/DVD player*1, 3
*1: If equipped
*2: For vehicles with an Entune Audio Plus or Entune Premium Audio
with Navigation, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14
Page 18 of 664
18Pictorial index
SIENNA_OM_01999-08001_(U)
■Switches
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Driving position memory switches
*1. . . . . . . . . . . . . . . . . . P. 168
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 180
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114, 122
Power quarter window switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 186
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Intuitive parking assist switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 273
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . P. 303
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 416
Manual headlight leveling dial
*1 . . . . . . . . . . . . . . . . . . . . . P. 239
Power sliding d oor main switch
*1. . . . . . . . . . . . . . . . . . . . P. 124
Power back door main switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 135
Seat heater dials
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . P. 489
Pre-collision braking off switch*1 . . . . . . . . . . . . . . . . . . . . P. 297
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Page 19 of 664
19Pictorial index

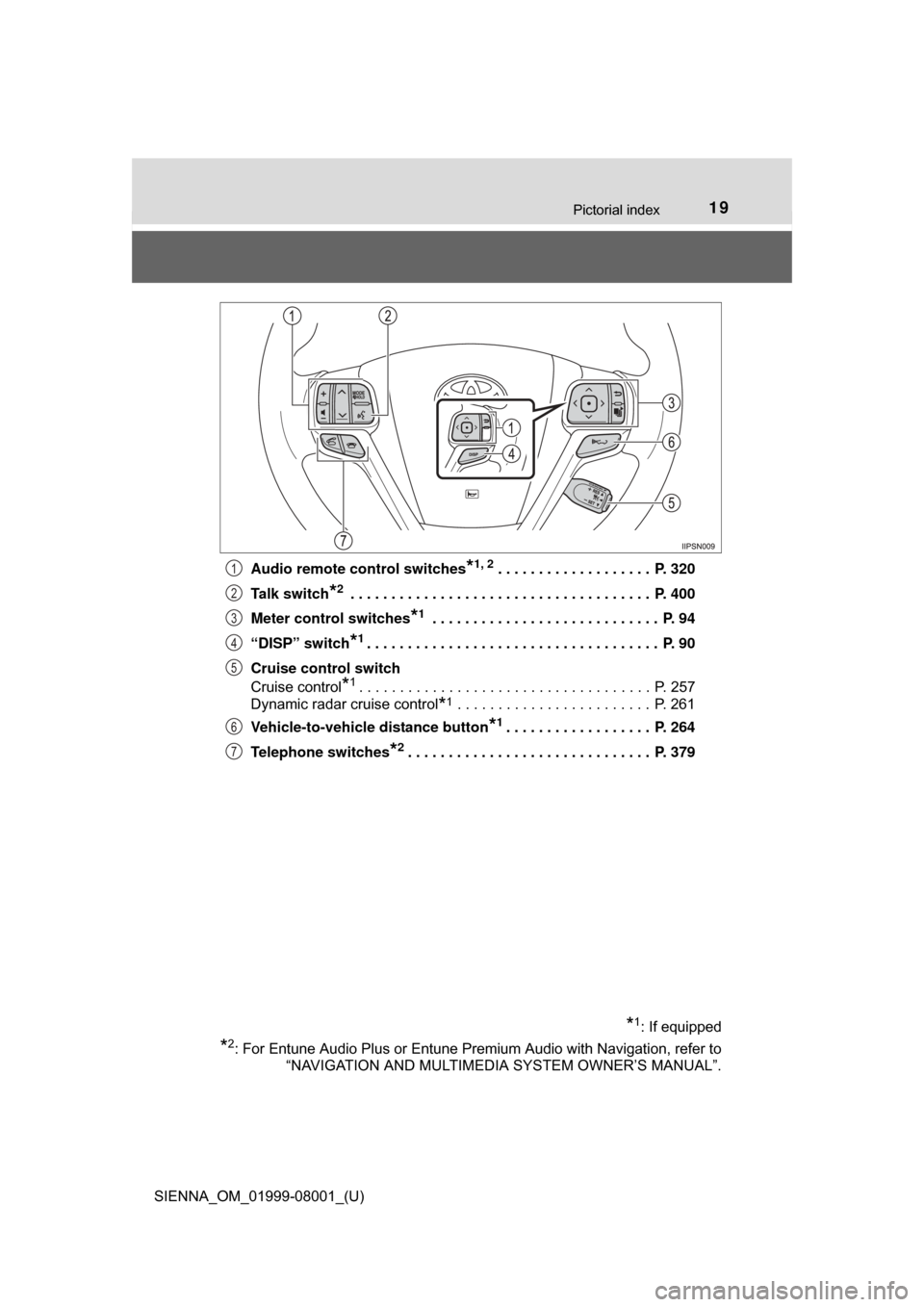

SIENNA_OM_01999-08001_(U)Audio remote control switches
*1, 2 . . . . . . . . . . . . . . . . . . . P. 320
Talk switch
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Meter control switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
“DISP” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
Cruise control switch
Cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
Dynamic radar cruise control
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Vehicle-to-vehicle distance button
*1. . . . . . . . . . . . . . . . . . P. 264
Telephone switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
1
2
3
4
5
6
7
*1: If equipped
*2: For Entune Audio Plus or Entune Premium Audio with Navigation, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Page 20 of 664
20Pictorial index
SIENNA_OM_01999-08001_(U)

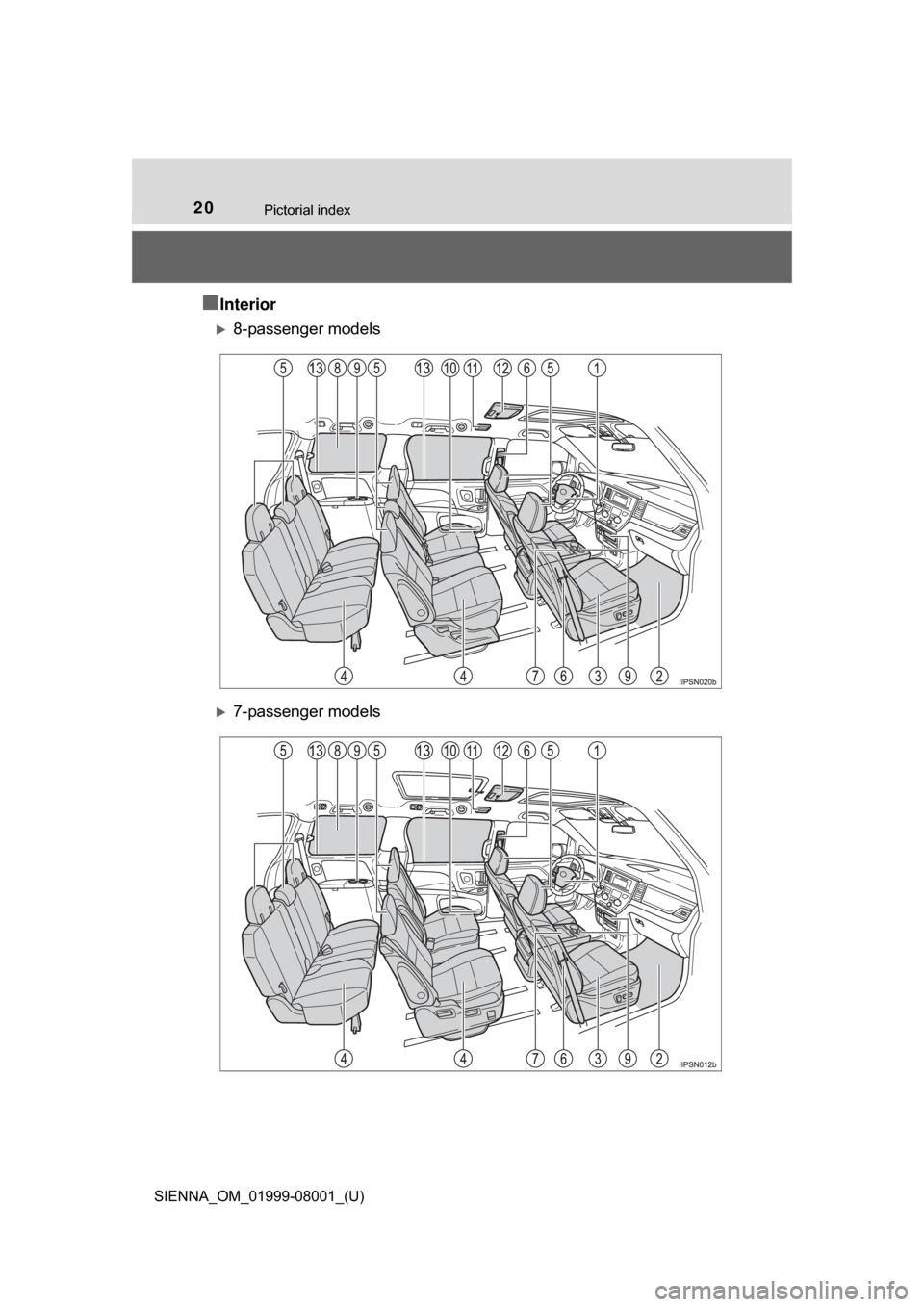

■Interior
8-passenger models
7-passenger models
