TOYOTA SIENNA 2017 XL30 / 3.G Navigation Manual

341
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
Entune App Suite
9
2. Entune App Suite OPERATION
1. Entune App Suite
1Press the “APPS” button.
2Select the desired application button.USING Entune App Suite
Entune App Suite is a service that en-
ables the usable contents of a cellular
phone to be displayed on and operated
from the screen. Before Entune App
Suite can be used, a few actions need
to be performed first. ( P.339)
For details about the function and ser-
vice of each application, refer to
http://www.toyota.com/entune/
.
No.FunctionPage
Select to activate an appli-
cation.
Select to update the appli-
cation.342
Select to reorder the appli-
cations.343

342
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
■DOWNLOADING THE UPDATED
DATA
1Select “Update” .
2Check that downloading is started.
“Download in Background” : Select to
operate other function while downloading.
“Cancel” : Select to cancel updating.
3Check that downloading is completed.UPDATING an application
When Entune App Suite is activated,
an application may need to be updat-
ed. By updating, an application can be
kept to the latest version. When updat-
ing the application, it is necessary to
download the updated data and install
it.
If an update is available, “Update” can
be selected.
No.Function
Select to install the update later. The
screen will return to the last dis-
played screen. Installing the updat-
ed data later: P.343
Select to display detailed informa-
tion about the updated data.
Select to install the updated data.
Follow the steps “INSTALLING THE
UPDATED DATA” from “STEP 2”.
( P.343)
INFORMATION
● Application download time may vary
based on the speed of the cellular net-
work.
● Application download can be resumed
after turning off and back on.
● Future mandatory updates will display
an on-screen pop-up when available.
● Entune App Suite function cannot be
operated while mandatory updates
downloading.

343
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
Entune App Suite
9
■INSTALLING THE UPDATED DATA
1Select “Install” .
2Select “Continue” .
“Later” : Select to postpone the installation
of the updated data and go back to the pre-
vious screen.
3Check that installing is started.
“Install in Background” : Select to oper-
ate other function while installing.
4Select “OK” after the installing is com-
plete.
1Display the “Apps” screen. ( P.341)
2Select “Reorder” .
3Select the desired application to be
moved.
4Select or to move the ap-
plication, and select “OK”.
After the downloading is complete,
“Update” will be changed to “Install”.
INFORMATION
●Entune App Suite function cannot be
operated while installing.
REORDERING THE
APPLICATIONS
Order of the applications can be
changed.

344
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
IF A MESSAGE APPEARS ON THE SCREEN
When problems occur starting up the application player, a message will appear on
the screen. Referring to the table below to identify the problem, take the suggested
corrective action. The following messages are only a few examples. If a message
other than the following is displayed, follow the instructions displayed on \
the
screen.
MessageDisplay conditionsCorrective action
“The Phone is not connected.
For more information, please
visit toyota.com.”The cellular phone cannot be
connected.
Refer to http://
www.toyota.com/entune/ to
confirm if the phone is com-
patible or not.
“To use the services, an ac-
tive application needs to be
running on your phone. For
more information, please visit
toyota.com.”The Entune App Suite appli-
cation cannot be connected
to Bluetooth
® SPP.
Refer to http://www.toyota.com/entune/ to
confirm if the phone is
Bluetooth
® SPP compatible
or not, and then activate the
Entune App Suite application.
*: Bluetooth is a registered trade mark of Bluetooth SIG, Inc.
INFORMATION
●The actual messages displayed on screen may differ from the messages in this manual.

345
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
Entune App Suite
9
1Press the “APPS” button.
2Select “Navigation” .
3Select “Dest.” .
4Select “Web Search” .
5Check that the “Web Search” screen is
displayed.
1Display the “Web Search” screen.
(P.345)
2Select the desired application button to
search.
3Enter a search term, and select “GO”.
4Select “Map”.
5Select “Go to ” .
6Select “OK” to start guidance.
LINKING Entune App Suite
AND NAVIGATION FUNCTION
The system can set a destination and
make a hands-free call via Entune App
Suite. For details about the function
and service of each application, refer
to http://www.toyota.com/entune/
.
SETTING A DESTINATION
USING Entune App Suite
Locations that were searched using
Entune App Suite can be set as a des-
tination.
 For the operation of the route guidance
screen and the function of each screen
button: P.296
INFORMATION
● Actual sequence may vary based on the
application.

346
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
1Display the “Web Search” screen.
(P.345)
2Select the desired application button to
search.
3Enter a search term, and select “GO”.
4Select “Call”.
5Select “Yes”.
“Cancel” : Select to cancel making a
phone call.
6Check that the “Call” screen is dis-
played.
1Display the “Apps” screen. ( P.341)
2Select the desired application button.
3Select the character input space.
MAKING A PHONE CALL
USING Entune App Suite
Phone calls can be made to locations
which were searched using Entune
App Suite.
 For phone operation and the function of
each screen button: P.236
Entune App Suite KEYWORD
OPERATION
Information can be entered to an appli-
cation by the software keyboard or
voice recognition. For details about
the function and service of each appli-
cation, refer to
http://www.toyota.com/entune/
.
 The keyboard layout can be changed.
( P.59)
USING THE SOFTWARE
KEYBOARD

347
2. Entune App Suite OPERATION
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
Entune App Suite
9
4Enter a search term, and then select
“OK”.
5Entering characters will be reflected on
the character input space.
1Display the “Apps” screen. ( P.341)
2Select the desired application button.
3Press the talk switch. (P.186)
4When this screen is displayed, say the
desired keyword.
Completion of saying the keyword will be
detected automatically.
5Search results will be displayed on the
screen.
For details on operating the keyboard:
P. 3 8
ENTERING A KEYWORD USING
THE VOICE RECOGNITION
FUNCTION

348
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40

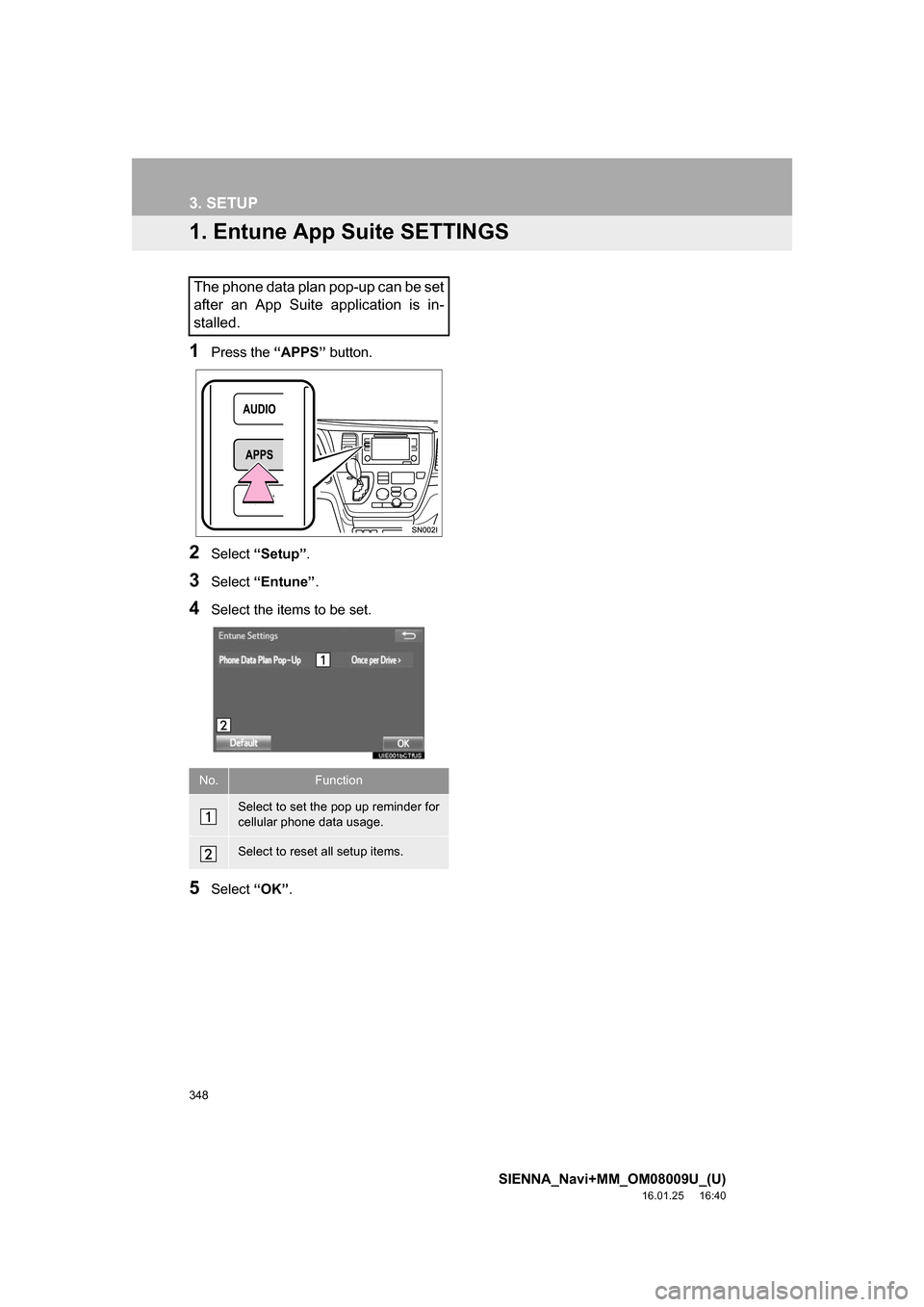

3. SETUP
1. Entune App Suite SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Entune” .
4Select the items to be set.
5Select “OK”.
The phone data plan pop-up can be set
after an App Suite application is in-
stalled.
No.Function
Select to set the pop up reminder for
cellular phone data usage.
Select to reset all setup items.

349
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
1
2
3
4
5
6
7
8
9

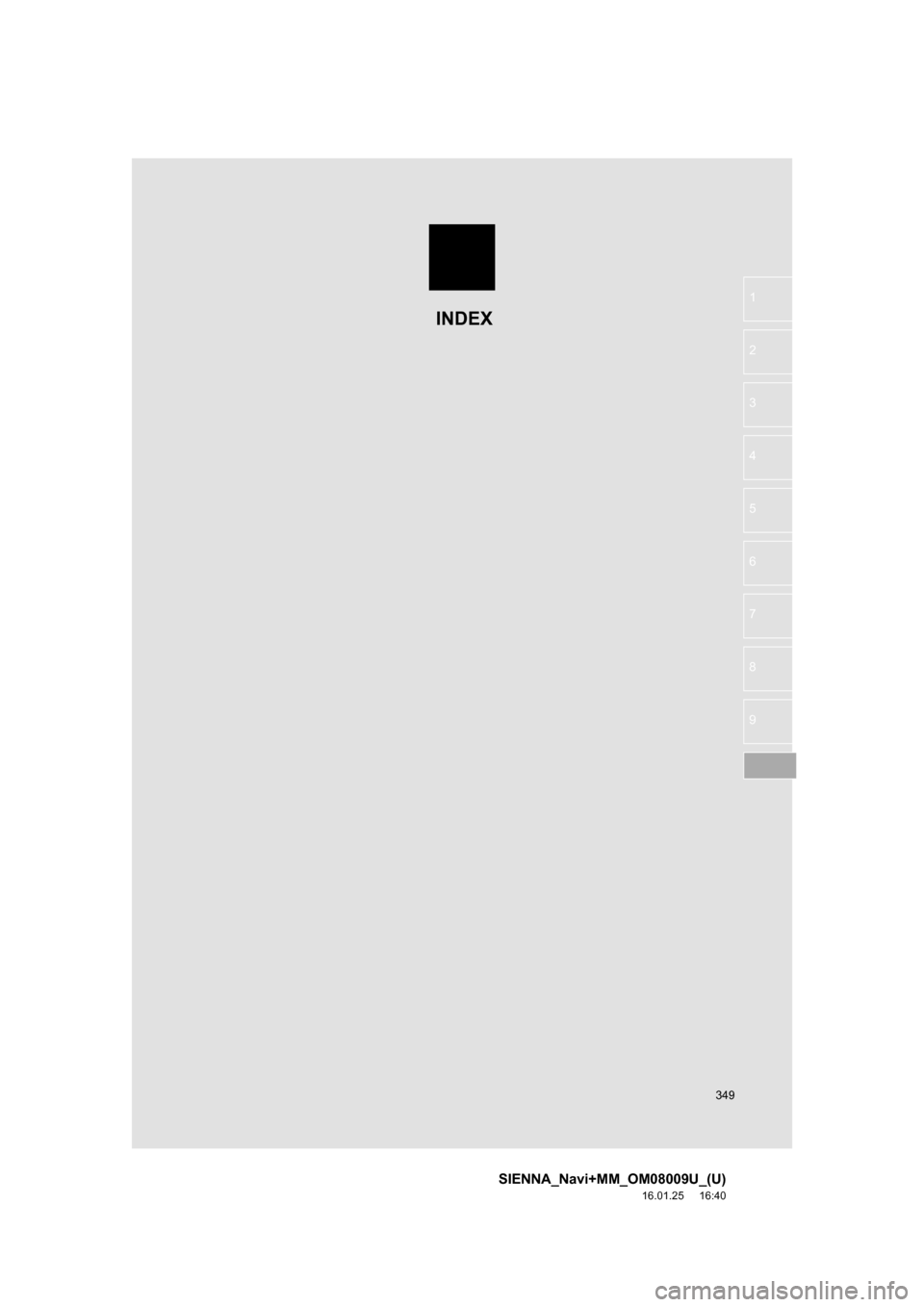

INDEX

350
ALPHABETICAL INDEX
SIENNA_Navi+MM_OM08009U_(U)
16.01.25 16:40
A
AM/FM radio ............................................. 82Available HD Radio™ technology ......... 90
Caching a radio program ....................... 87
Overview ............................................... 82
Presetting a station................................ 86
Radio broadcast data system ................ 88
Selecting a station from the list ............. 86
Traffic announcement (FM radio) .......... 89
Troubleshooting guide ........................... 92
Using HD Radio™ technology............... 90
“Apps” screen............................................ 14
Audio settings ......................................... 123 Audio settings screen .......................... 123
Audio/visual remote controls ................... 120
Audio/visual system .................................. 71
AUX......................................................... 118 Overview ............................................. 118
B
Basic function...................................... 12, 31
Basic information before operation ........... 32
Basic operation ................................. 74, 268
Bluetooth
® audio ..................................... 113
Connecting a Bluetooth® device ......... 117
Listening to Bluetooth® audio .............. 117
Overview ............................................. 113
Bluetooth
® phone message function ...... 239
Calling the message sender ................ 243
Checking messages ............................ 241
Receiving a message .......................... 240
Replying to a message (Quick reply) .................................... 242
Bluetooth
® settings ................................... 44
C
Calling on the Bluetooth® phone .............229
By call history ......................................230
By contacts list.....................................231
By dial pad ...........................................233
By favorites list ....................................230
By “Home” screen................................233
By off hook switch................................233
Capacitive touch switches .........................34
Casual speech recognization ..................193
CD ...........................................................102 Overview..............................................102
Playing an audio CD ............................104
Playing an MP3/WMA/AAC disc ..........104
Command list ..........................................194
D
Data services settings .............................203 Setting download methods ..................203
Destination search ..................................284
Destination search screen.......................284
Detailed navigation settings ....................320 Screens for navigation settings ...........320
Driver Easy Speak ..................................204
Changing Driver Easy Speak settings.............................................204
Using Driver Easy Speak.....................204
Driver settings ...........................................67
Manually select linked settings ..............67
