TOYOTA SIENNA 2017 XL30 / 3.G Owners Manual

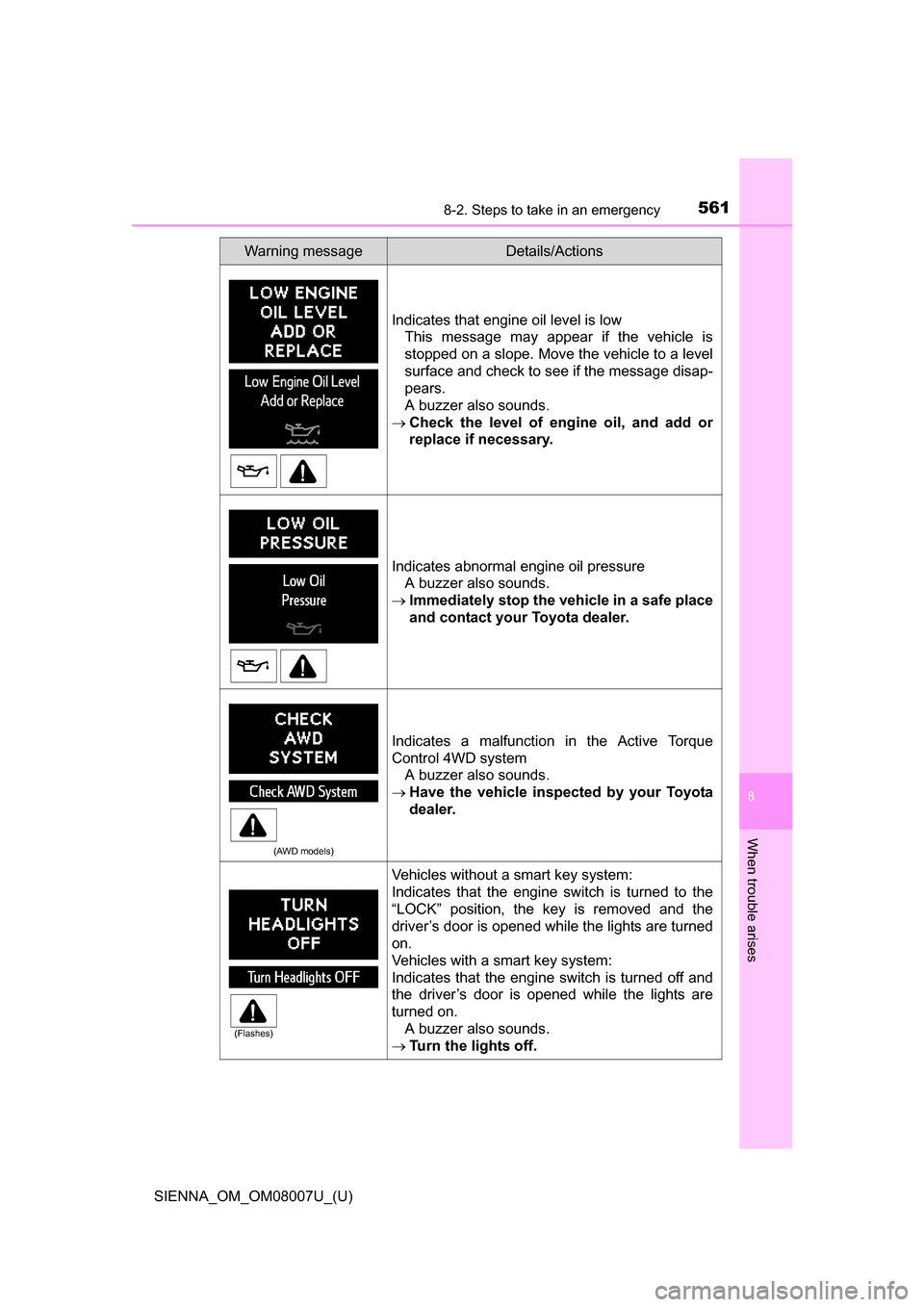

5618-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates that engine oil level is lowThis message may appear if the vehicle is
stopped on a slope. Move the vehicle to a level
surface and check to see if the message disap-
pears.
A buzzer also sounds.
 Check the level of engine oil, and add or
replace if necessary.
Indicates abnormal engine oil pressure A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(AWD models)
Indicates a malfunction in the Active Torque
Control 4WD system A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Vehicles without a smart key system:
Indicates that the engine switch is turned to the
“LOCK” position, the key is removed and the
driver’s door is opened while the lights are turned
on.
Vehicles with a smart key system:
Indicates that the engine switch is turned off and
the driver’s door is opened while the lights are
turned on. A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)

5628-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
(AWD models)
Indicates the Active Torque Control 4WD system
has overheatedA buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the brake override sys-
tem A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)

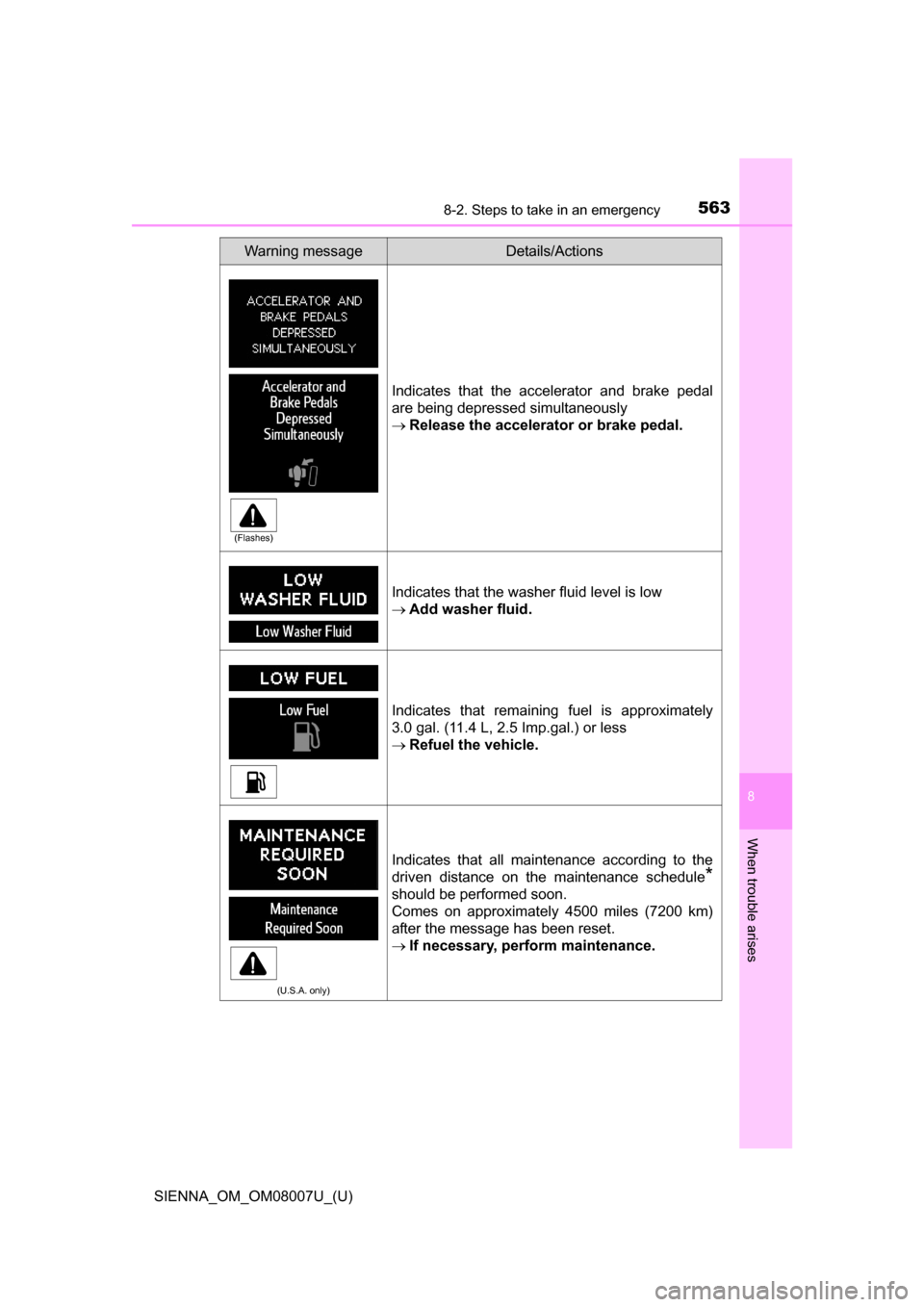

5638-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates that the accelerator and brake pedal
are being depressed simultaneously
Release the accelerator or brake pedal.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately
3.0 gal. (11.4 L, 2.5 Imp.gal.) or less
 Refuel the vehicle.
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance.
Warning messageDetails/Actions
(Flashes)

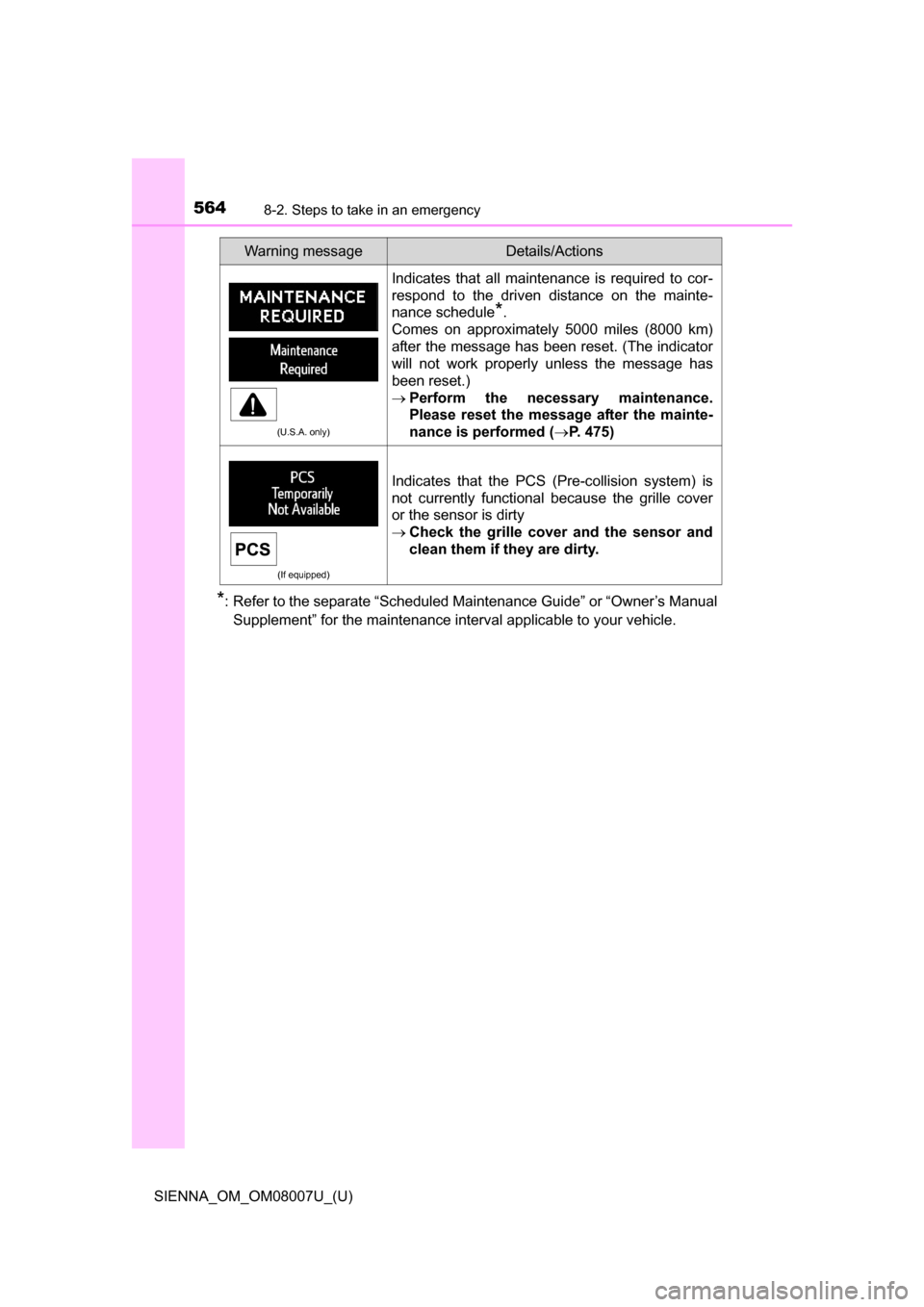

5648-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indicator
will not work properly unless the message has
been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed ( P. 475)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions

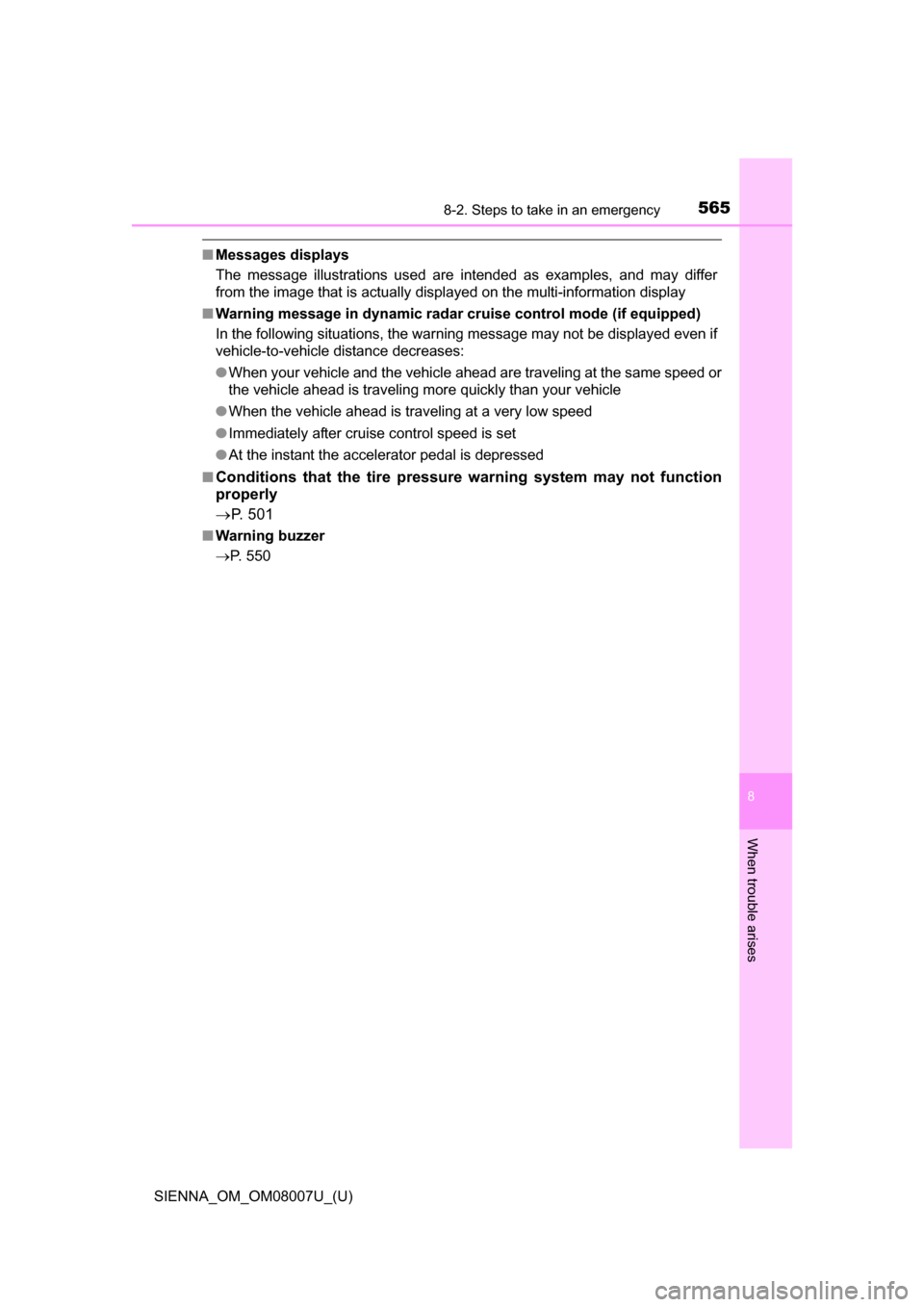

5658-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display
■ Warning message in dynamic radar cr uise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■
Conditions that the tire pressure warning system may not function
properly
 P. 5 0 1
■Warning buzzer
P. 550

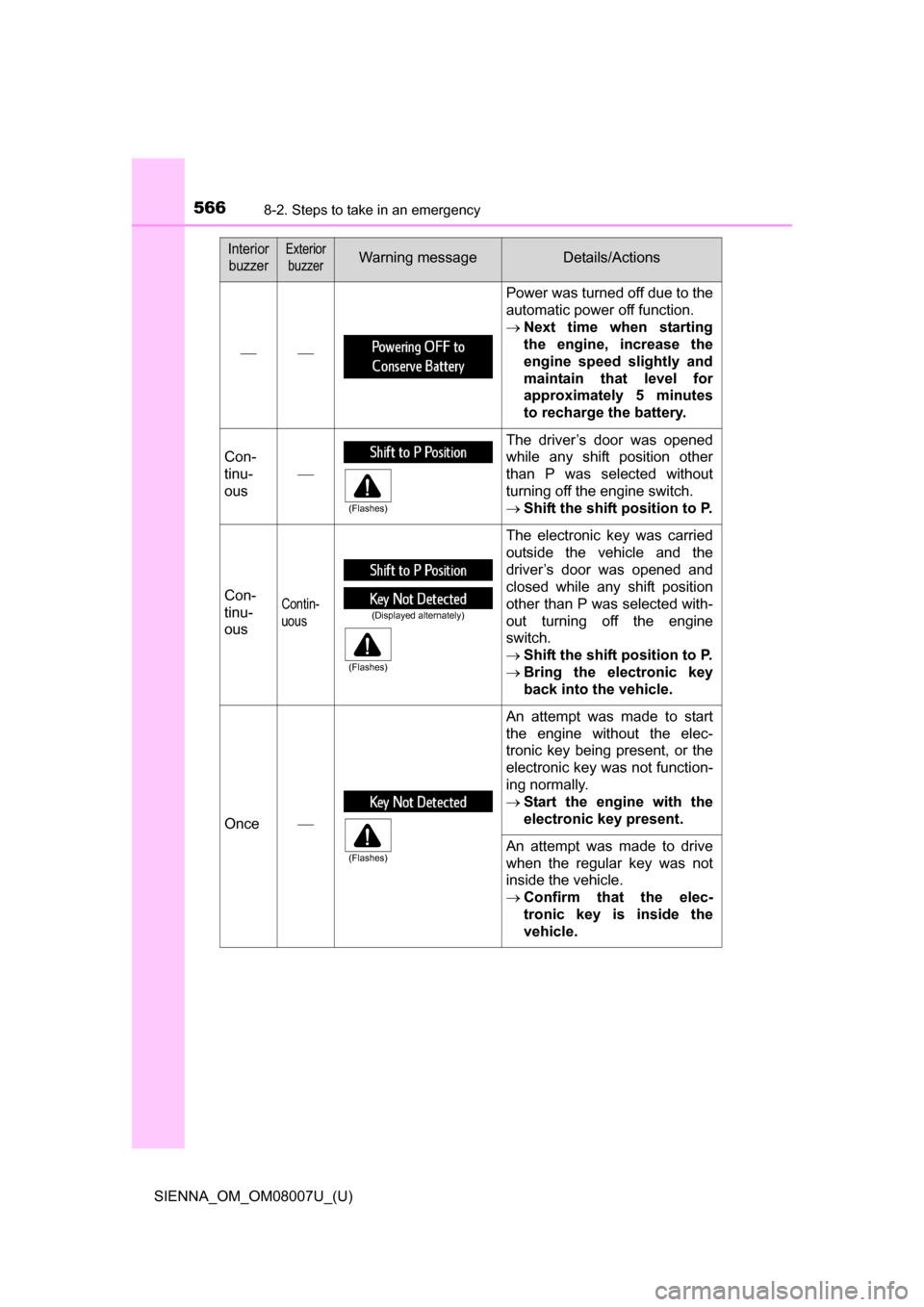

5668-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions

Power was turned off due to the
automatic power off function.
 Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Con-
tinu-
ous  The driver’s door was opened
while any shift position other
than P was selected without
turning off the engine switch.

Shift the shift position to P.
Con-
tinu-
ousContin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the engine
switch.
Shift the shift position to P.
 Bring the electronic key
back into the vehicle.
Once  An attempt was made to start
the engine without the elec-
tronic key being present, or the
electronic key was not function-
ing normally.

Start the engine with the
electronic key present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
 Confirm that the elec-
tronic key is inside the
vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

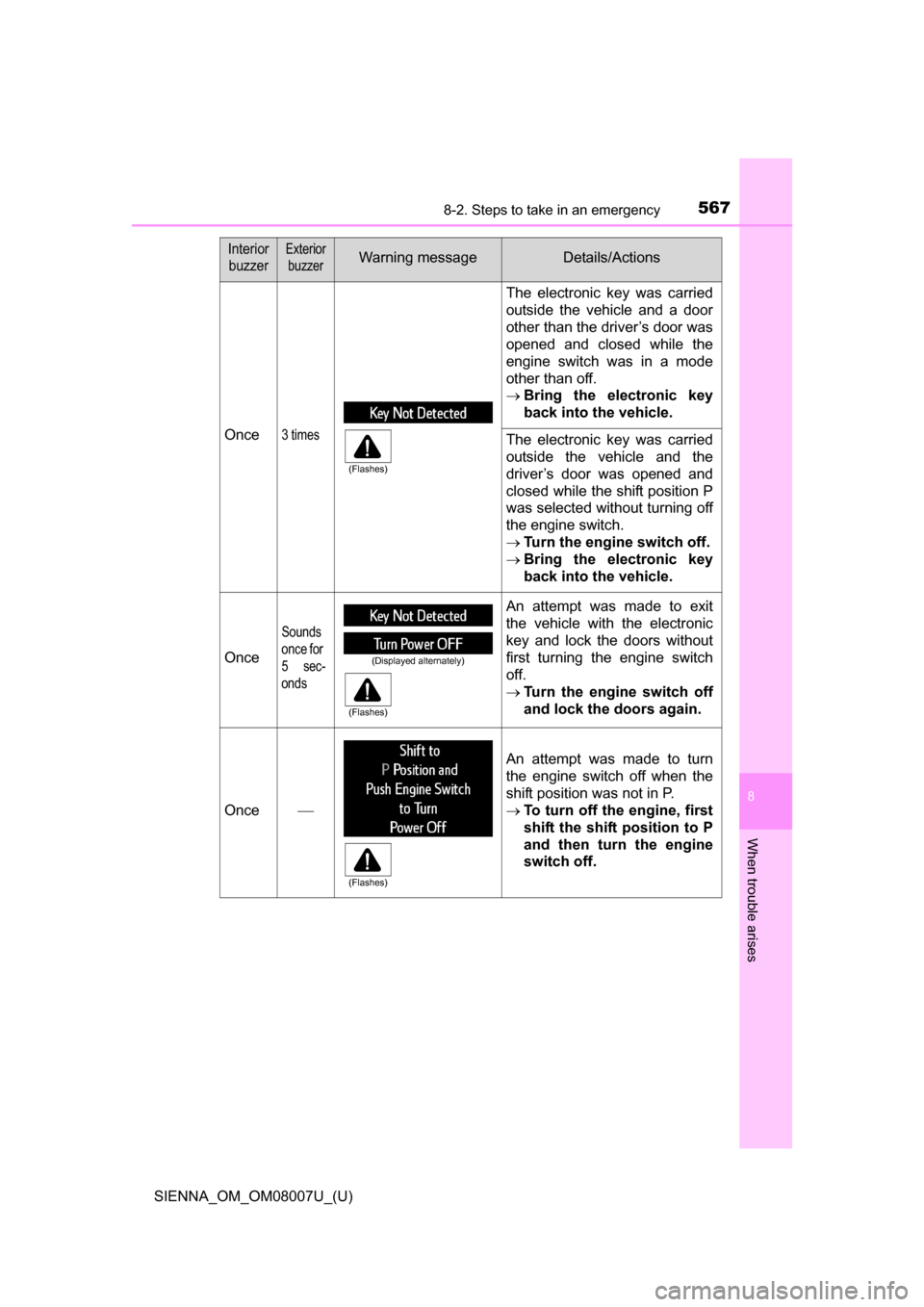

5678-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the engine switch.
Turn the engine switch off.
 Bring the electronic key
back into the vehicle.
Once
Sounds
once for
5 sec-
onds
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off.
Turn the engine switch off
and lock the doors again.
Once
An attempt was made to turn
the engine switch off when the
shift position was not in P.
To turn off the engine, first
shift the shift position to P
and then turn the engine
switch off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

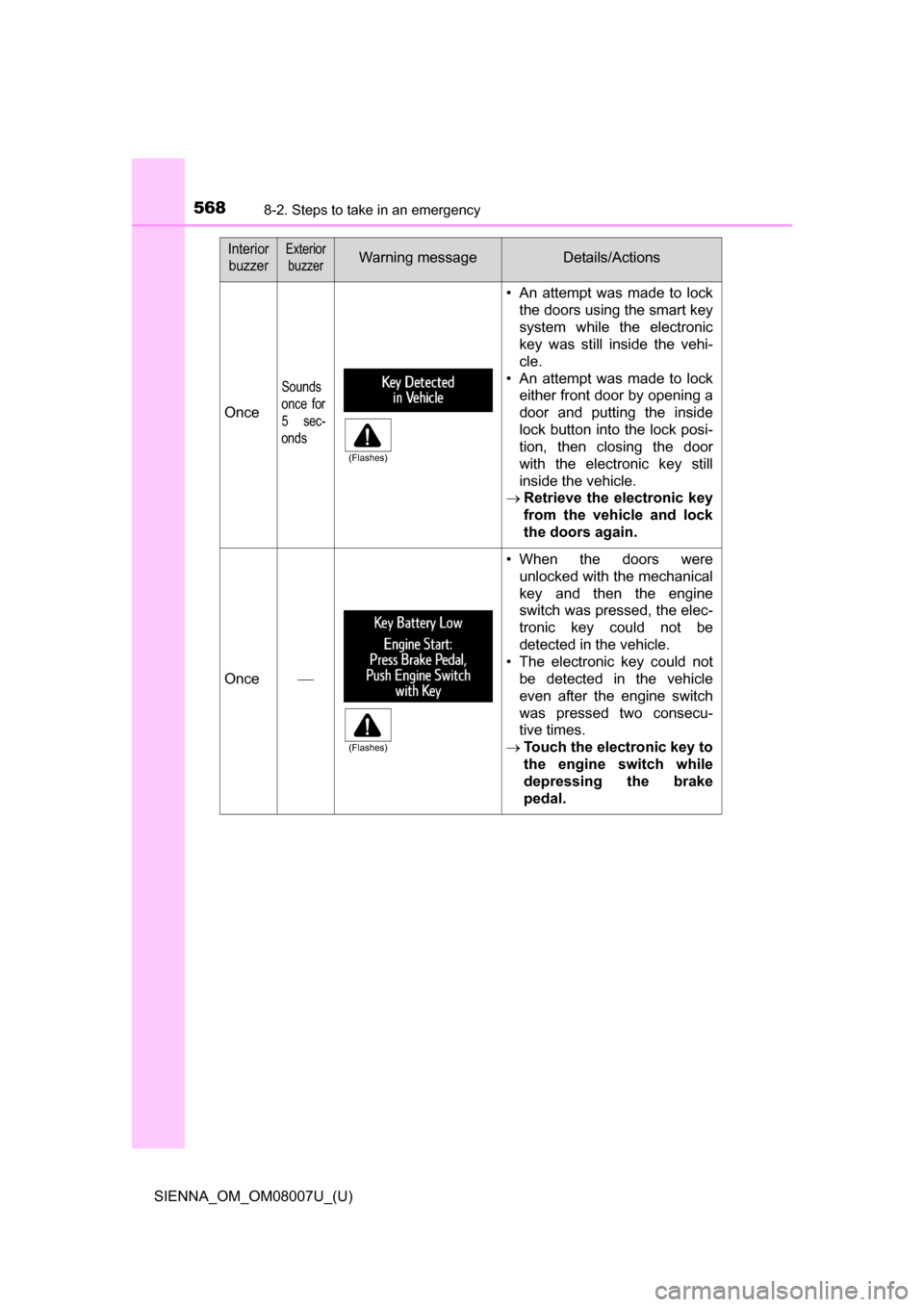

5688-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
Once
Sounds
once for
5 sec-
onds
• An attempt was made to lockthe doors using the smart key
system while the electronic
key was still inside the vehi-
cle.
• An attempt was made to lock either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door
with the electronic key still
inside the vehicle.
 Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

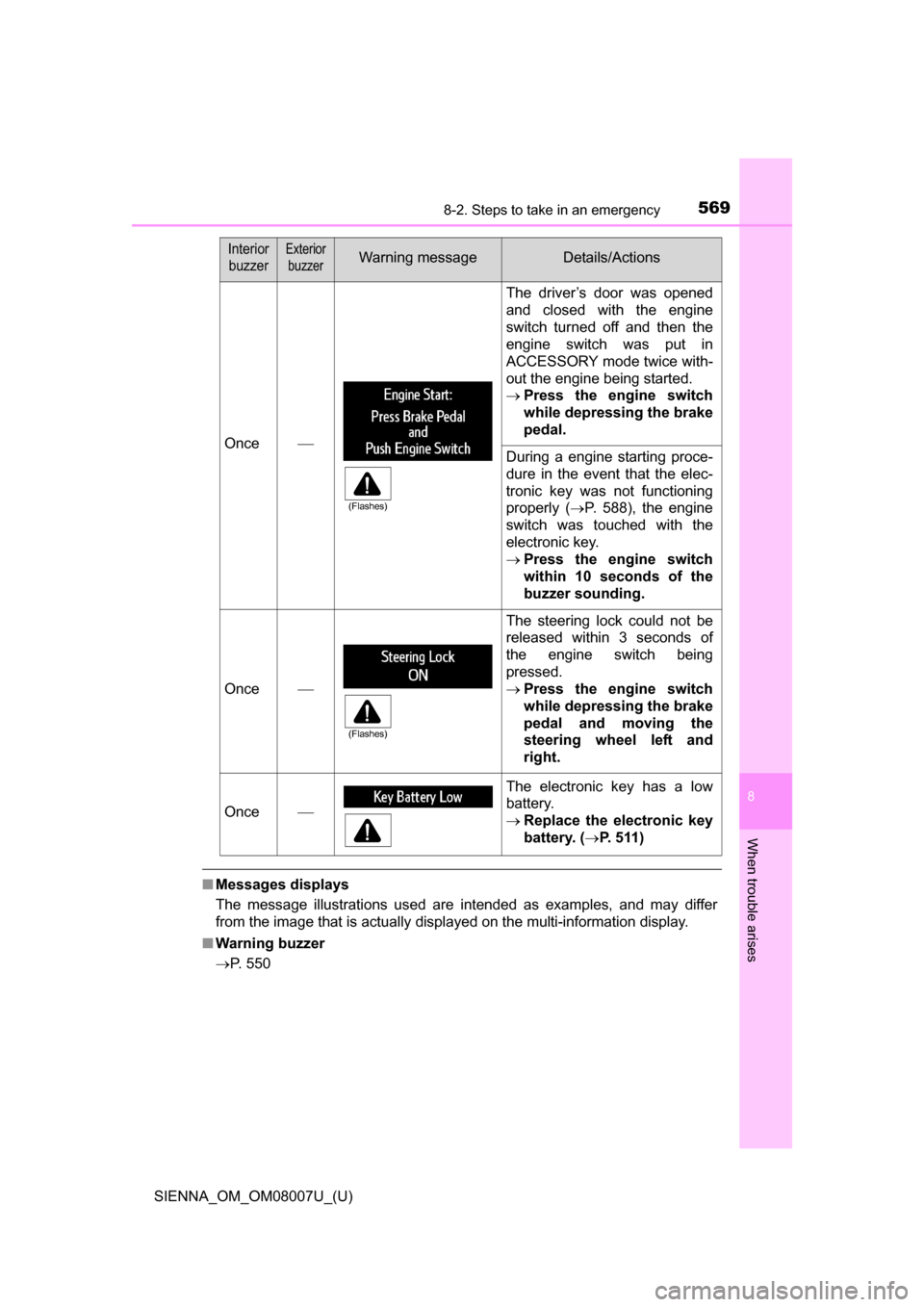

5698-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Warning buzzer
P. 550
Once
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY mode twice with-
out the engine being started.
 Press the engine switch
while depressing the brake
pedal.
During a engine starting proce-
dure in the event that the elec-
tronic key was not functioning
properly ( P. 588), the engine
switch was touched with the
electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 511)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

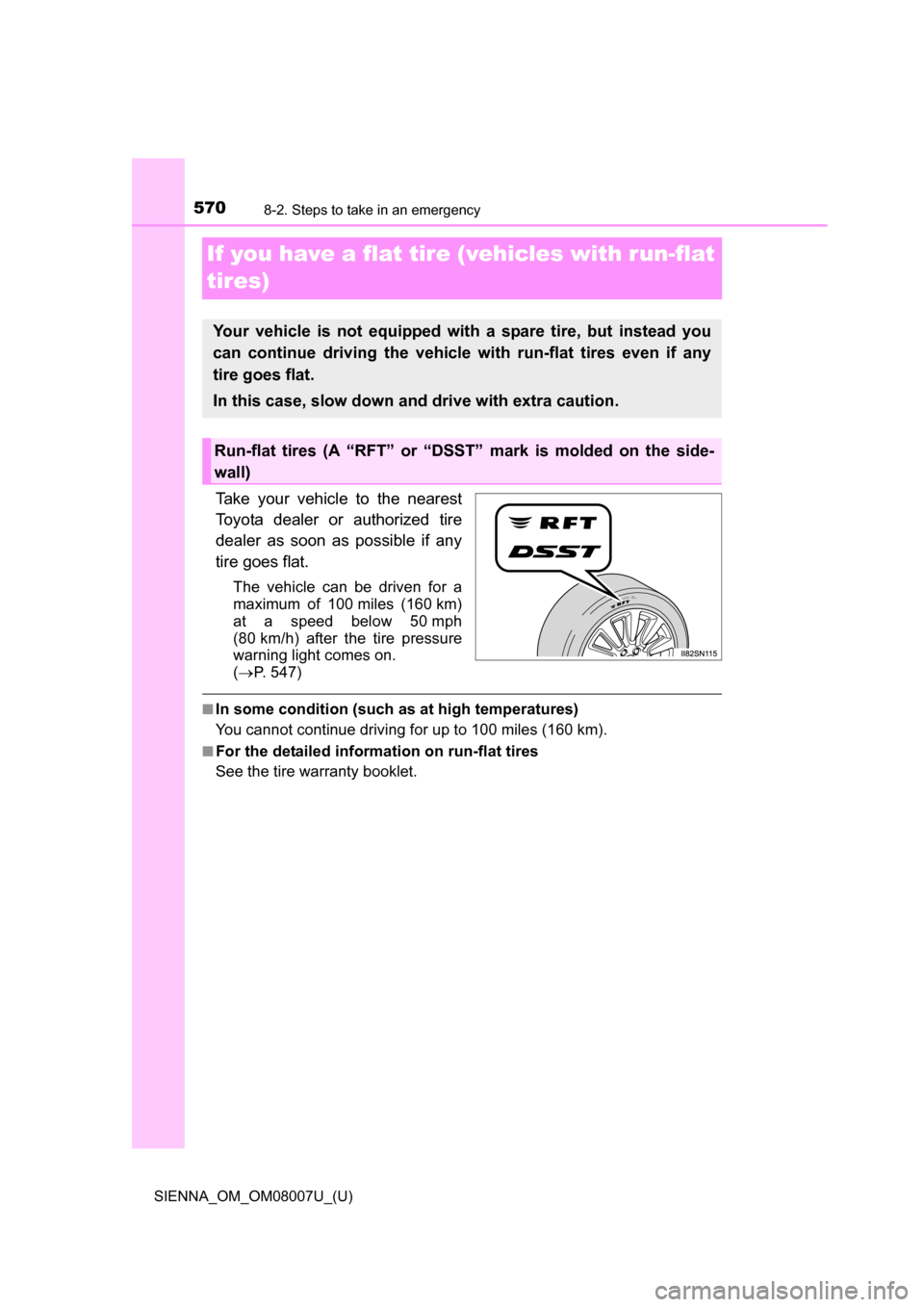

570
SIENNA_OM_OM08007U_(U)
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with run-flat
tires)
Take your vehicle to the nearest
Toyota dealer or authorized tire
dealer as soon as possible if any
tire goes flat.
The vehicle can be driven for a
maximum of 100 miles (160 km)
at a speed below 50 mph
(80 km/h) after the tire pressure
warning light comes on.
( P. 547)
■In some condition (such as at high temperatures)
You cannot continue driving for up to 100 miles (160 km).
■For the detailed information on run-flat tires
See the tire warranty booklet.
Your vehicle is not equipped wi th a spare tire, but instead you
can continue driving the vehicle with run-flat tires even if any
tire goes flat.
In this case, slow down and drive with extra caution.
Run-flat tires (A “RFT” or “DSS T” mark is molded on the side-
wall)
