TOYOTA SIENNA 2017 XL30 / 3.G Owners Manual

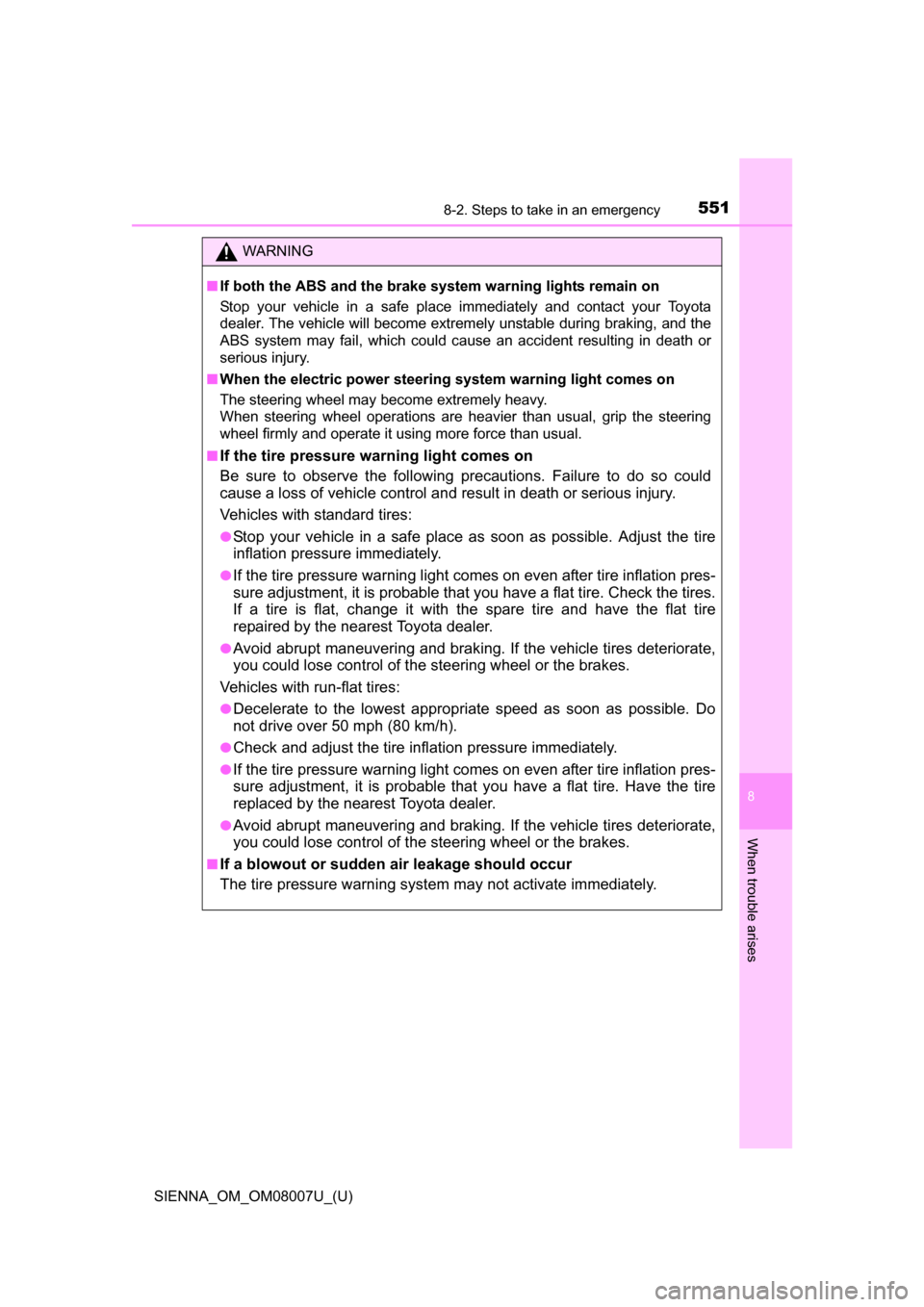

5518-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extrem ely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steerin g system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
Vehicles with standard tires:
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with th e spare tire and have the flat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
Vehicles with run-flat tires:
●Decelerate to the lowest appropriate speed as soon as possible. Do
not drive over 50 mph (80 km/h).
●Check and adjust the tire inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Have the tire
replaced by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

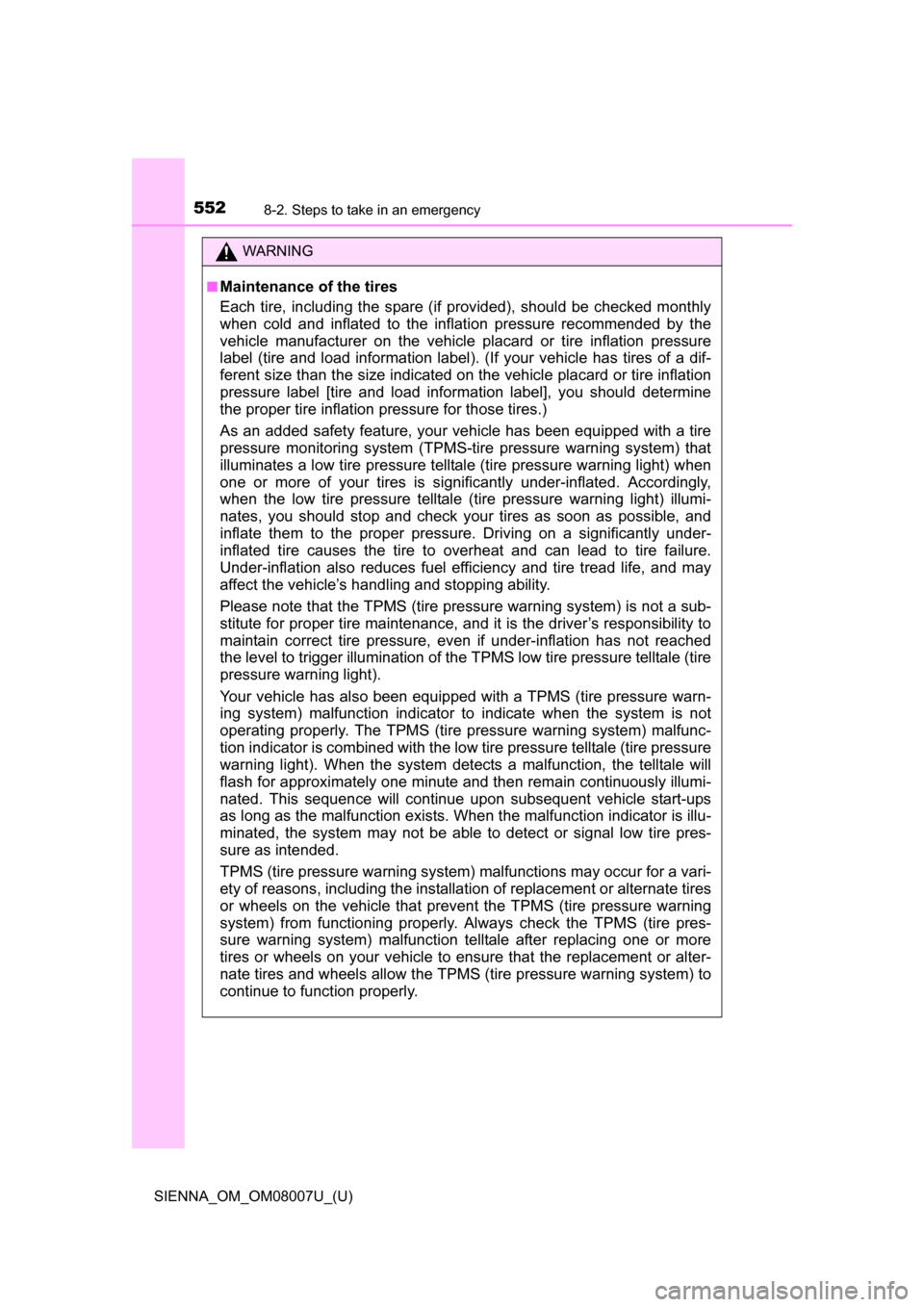

5528-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pre ssure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s hand ling and stopping ability.
Please note that the TPMS (tire pres sure warning system) is not a sub-
stitute for proper ti re maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumina tion of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the lo w tire pressure telltale (tire pressure
warning light). When the system dete cts a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue up on subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.

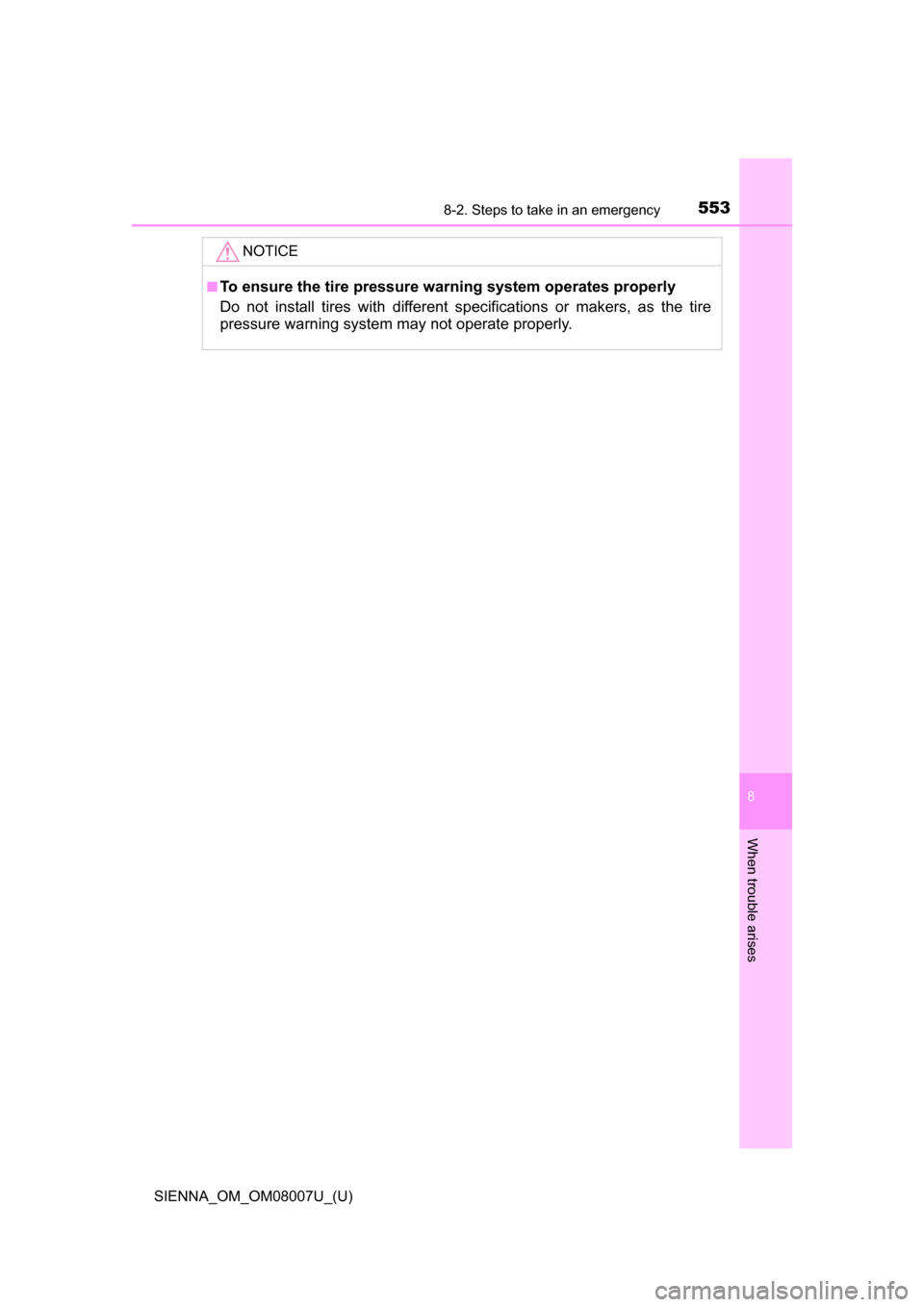

5538-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.

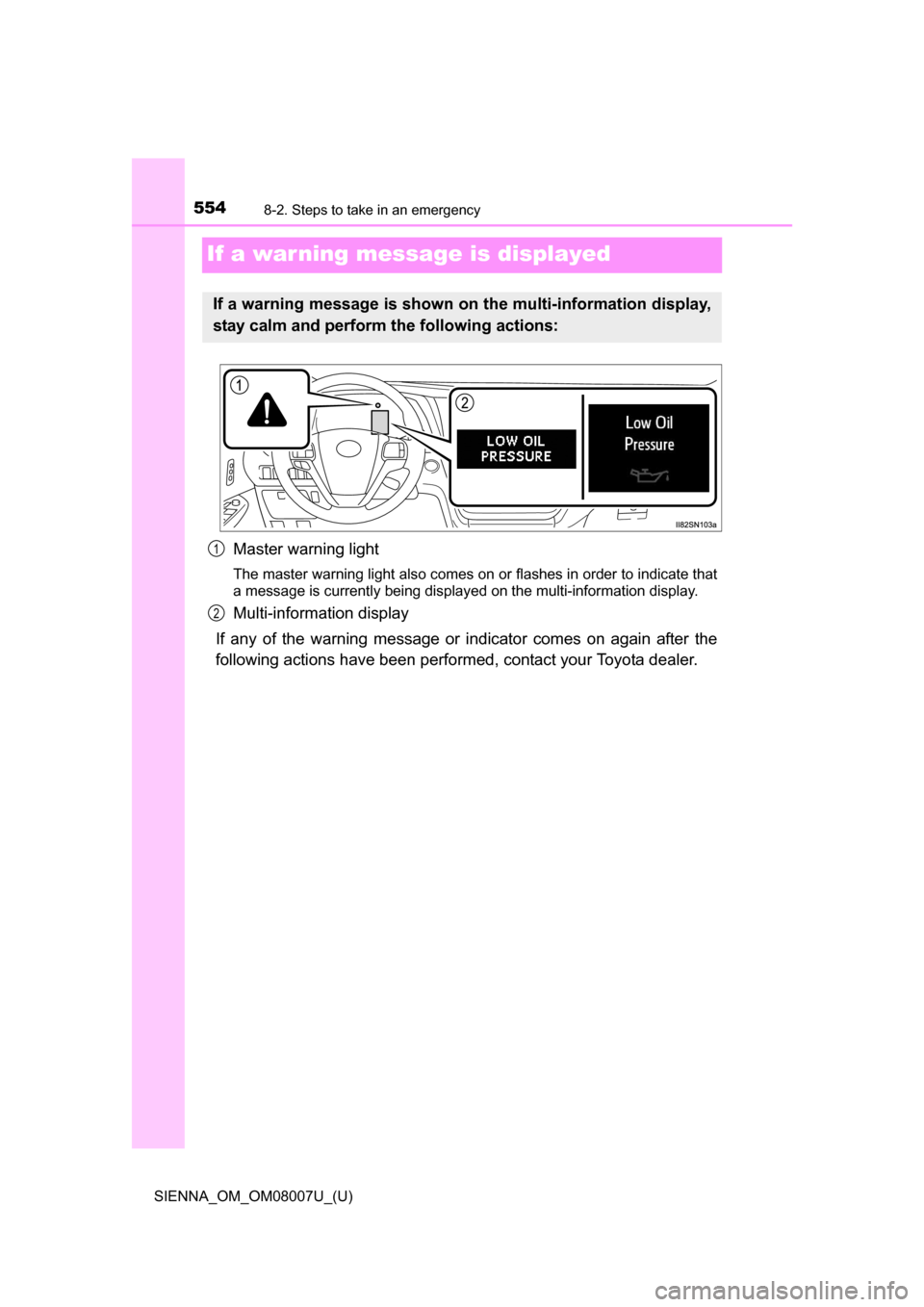

554
SIENNA_OM_OM08007U_(U)
8-2. Steps to take in an emergency
If a war ning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that
a message is currently being displayed on the multi-information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a warning message is shown on the multi-information display,
stay calm and perform the following actions:
1
2

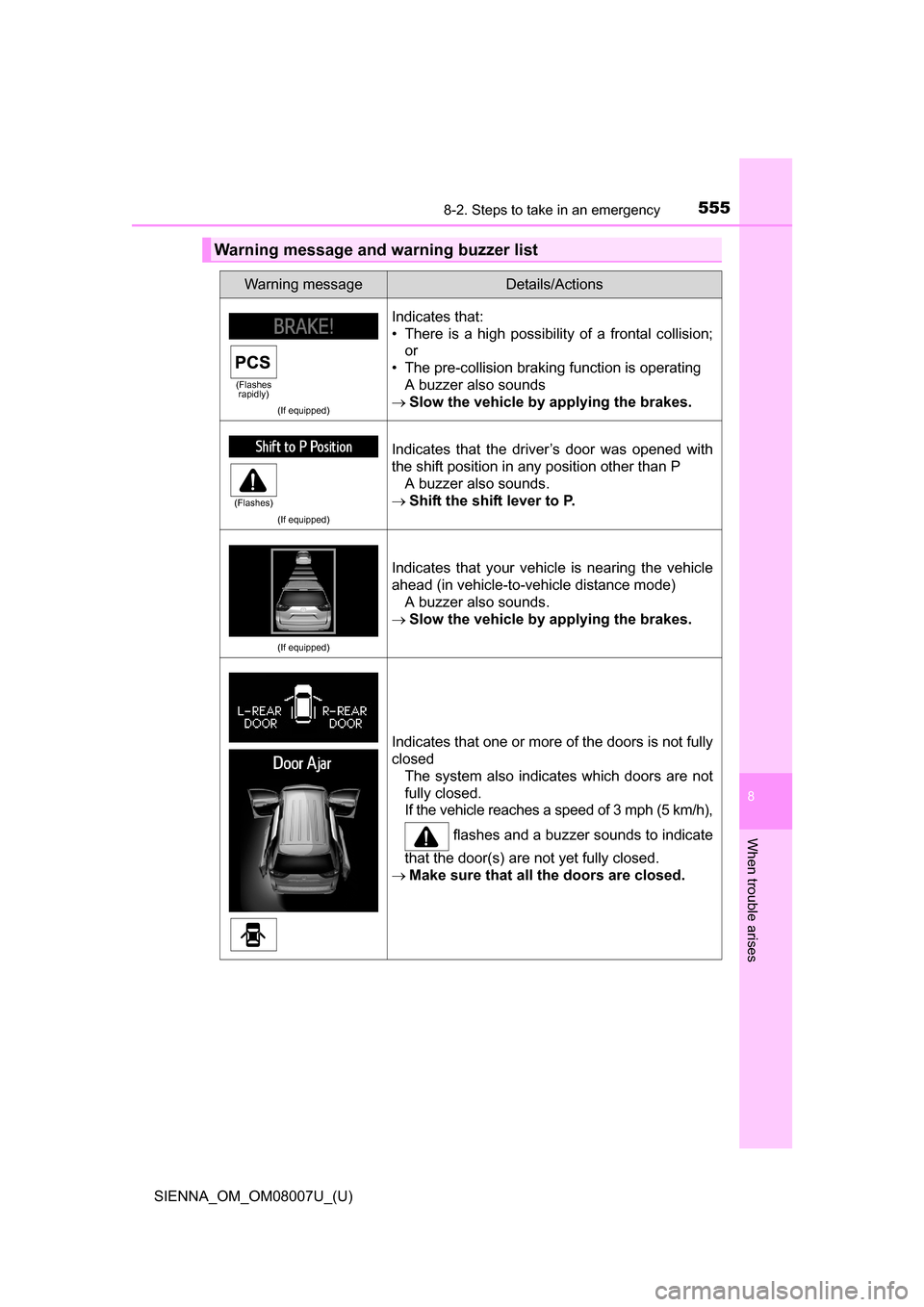

5558-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision;or
• The pre-collision braking function is operating A buzzer also sounds
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that the driver’s door was opened with
the shift position in any position other than P
A buzzer also sounds.
 Shift the shift lever to P.
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that one or more of the doors is not fully
closed The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
(Flashes
rapidly)
(Flashes)

5568-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
 Close the hood.
Indicates that the back door is not fully closed If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the back door is not yet fully closed.
 Close the back door.
(If equipped)
Indicates a malfunction in the intuitive parking
assist
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the intuitive parking assist is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
Warning messageDetails/Actions

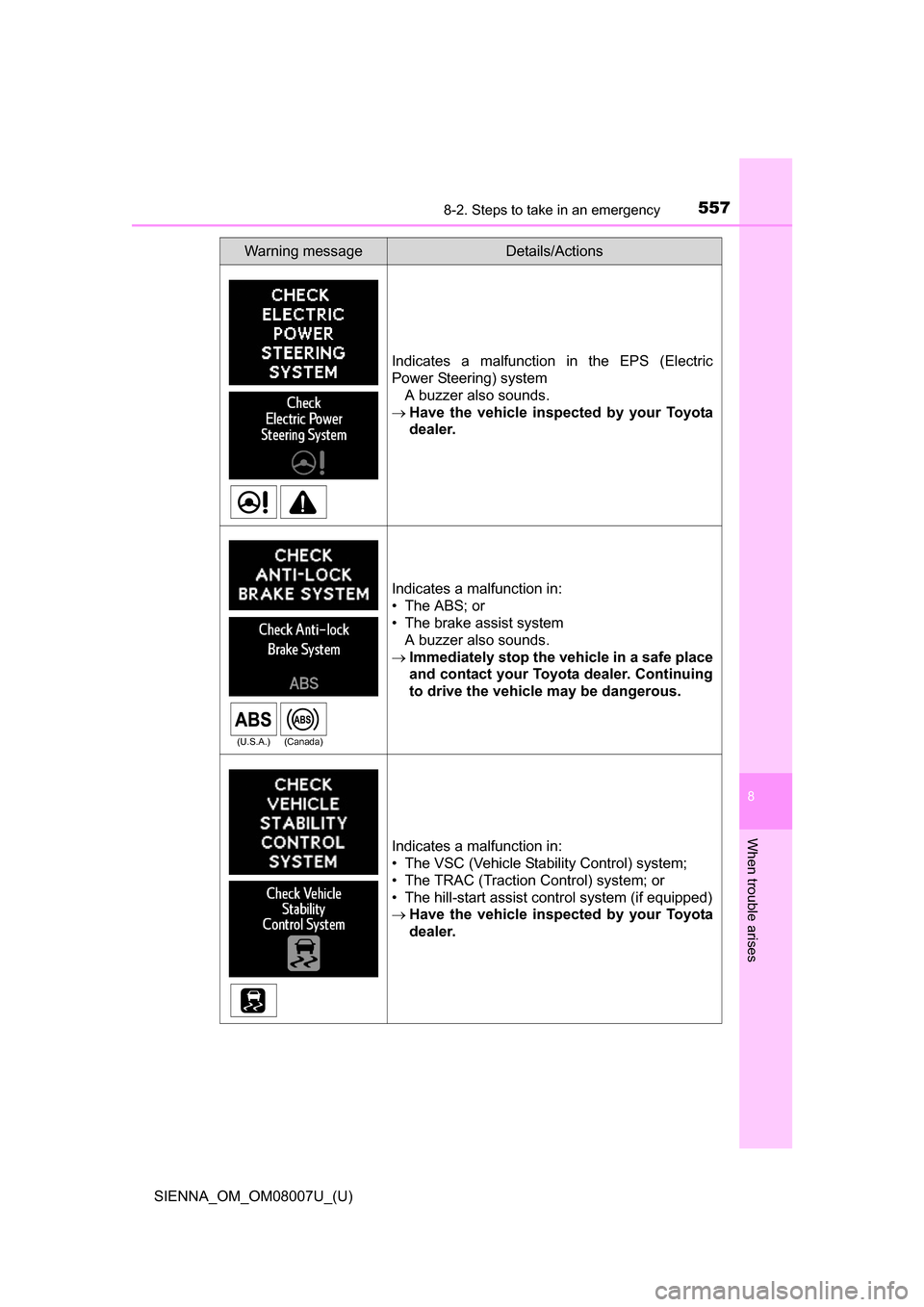

5578-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates a malfunction in the EPS (Electric
Power Steering) systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system (if equipped)
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(U.S.A.) (Canada)

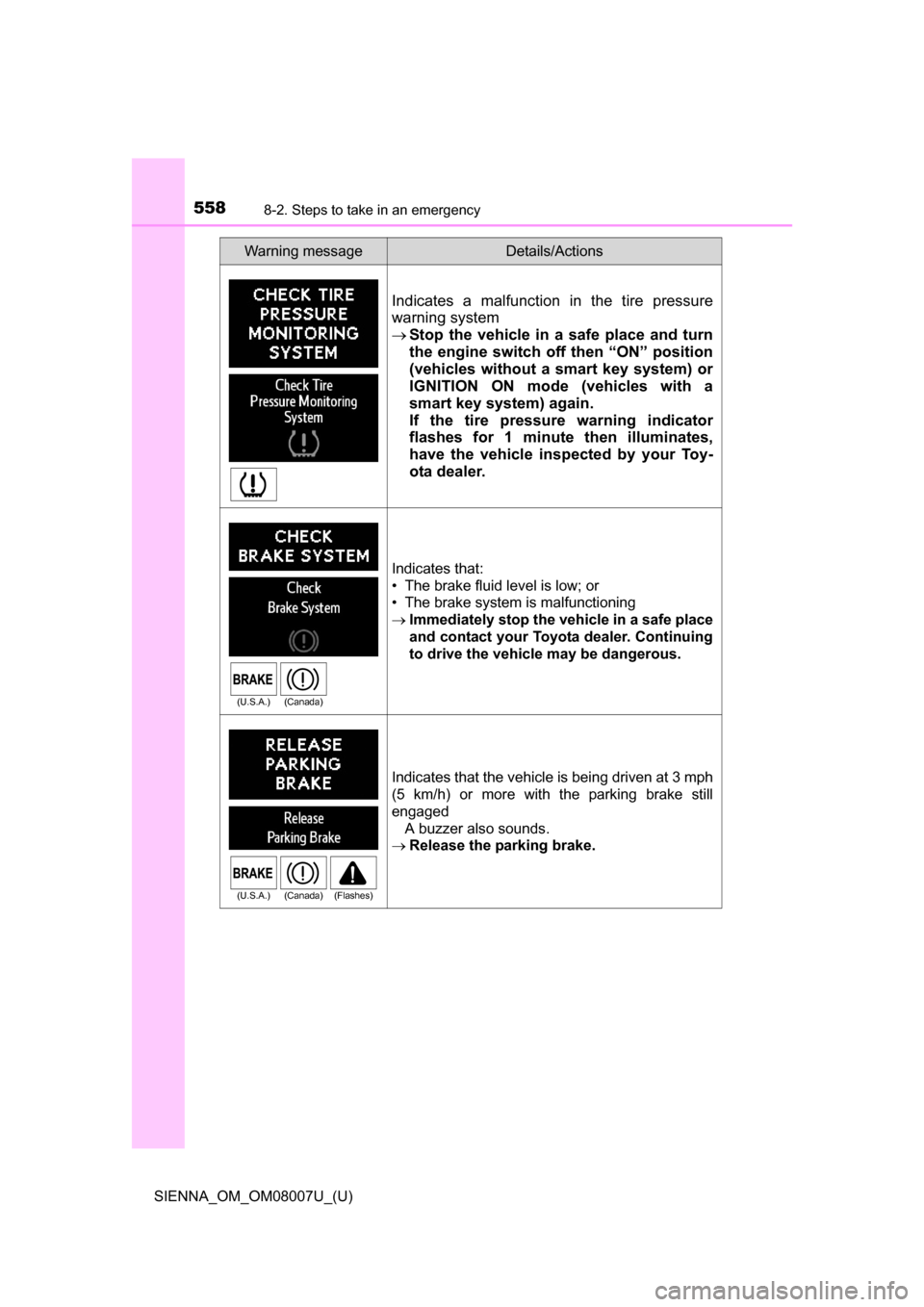

5588-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the engine switch off then “ON” position
(vehicles without a smart key system) or
IGNITION ON mode (vehicles with a
smart key system) again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
have the vehicle inspected by your Toy-
ota dealer.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Indicates that the vehicle is being driven at 3 mph
(5 km/h) or more with the parking brake still
engaged A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada)
(U.S.A.) (Canada) (Flashes)

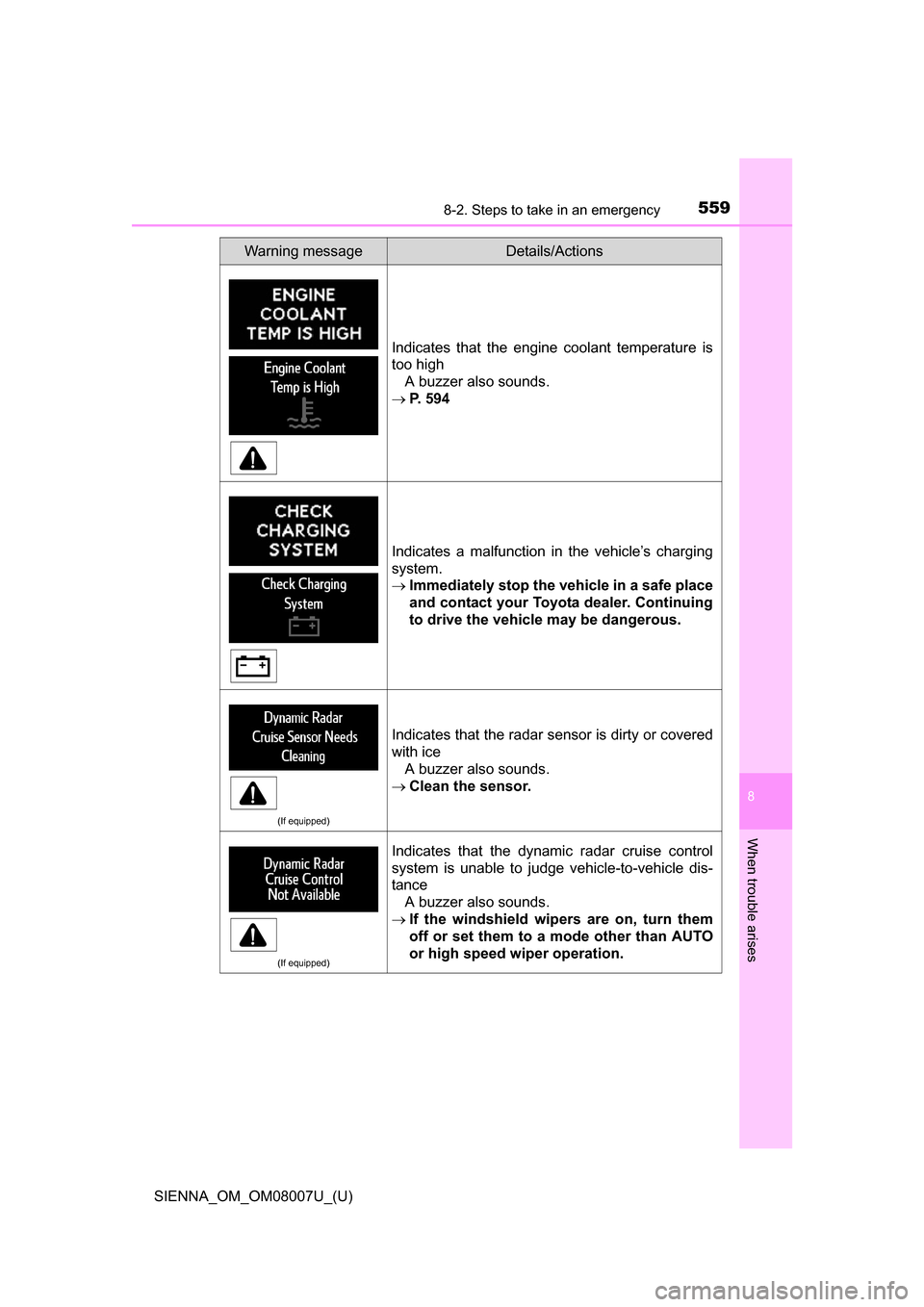

5598-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 594
Indicates a malfunction in the vehicle’s charging
system.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 If the windshield wipers are on, turn them
off or set them to a mode other than AUTO
or high speed wiper operation.
Warning messageDetails/Actions

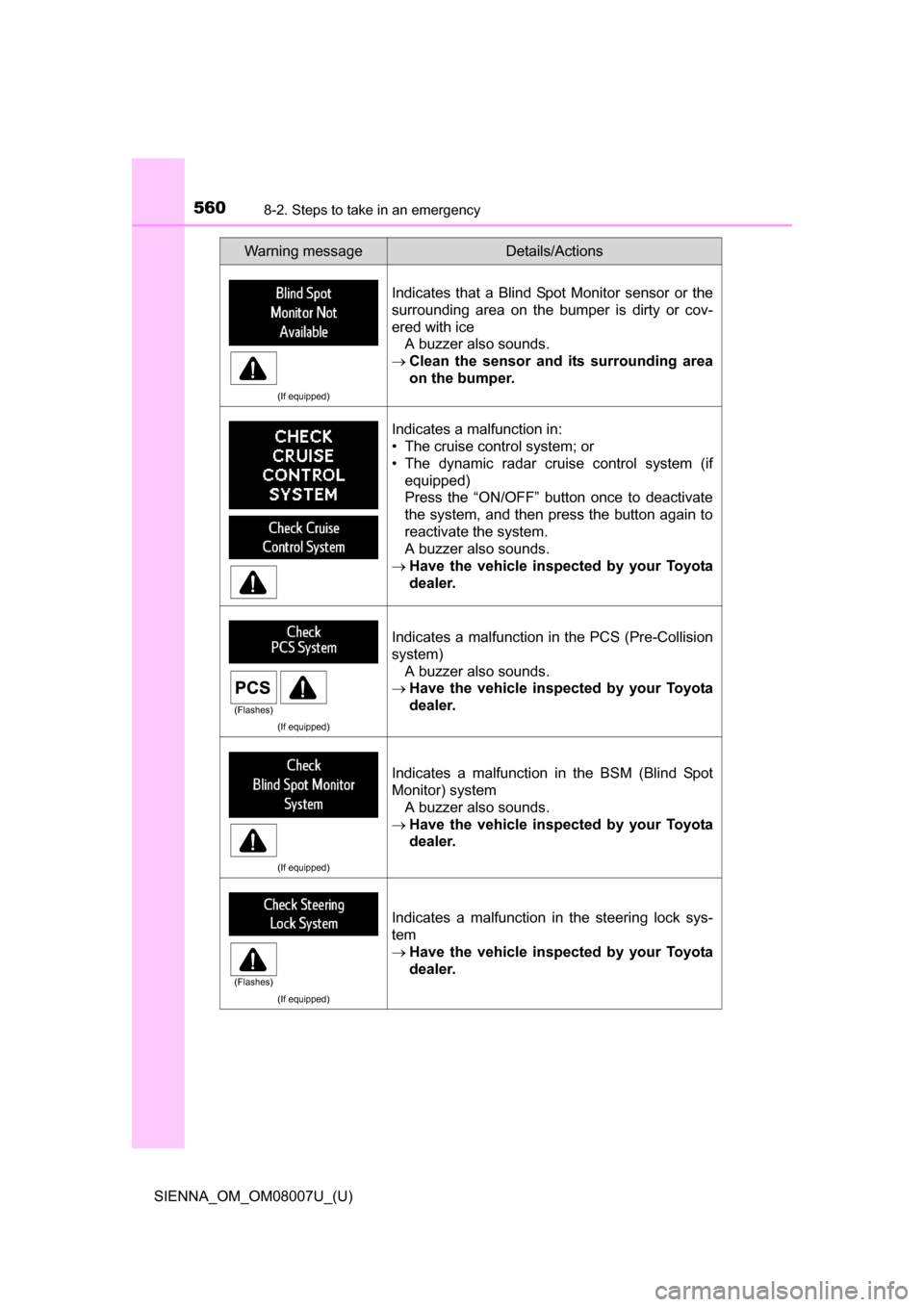

5608-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with iceA buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the steering lock sys-
tem
Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)
