6219-1. Specifications
9
Vehicle specifications

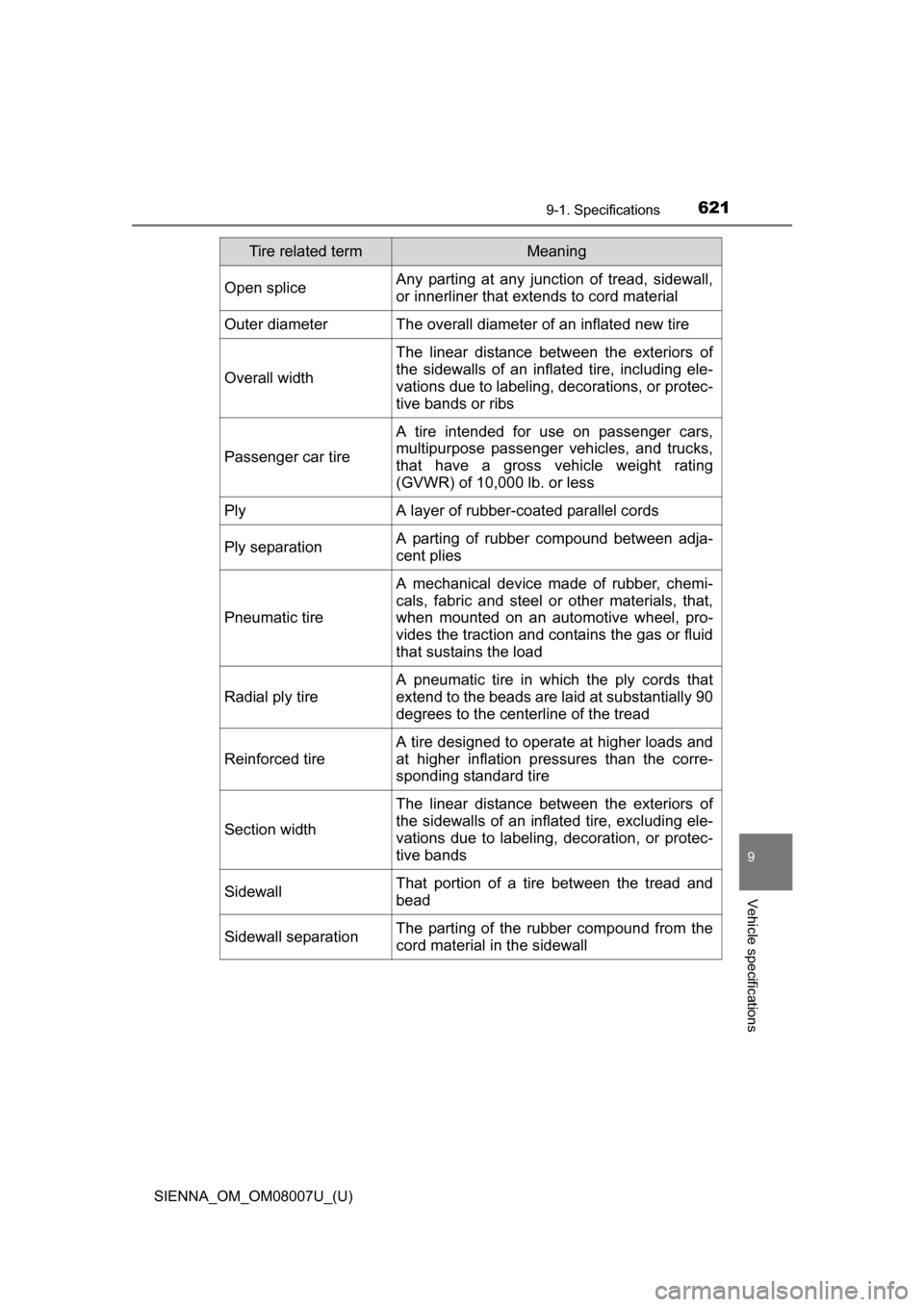

Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameter The overall diameter of an inflated new tire
Overall width The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less
Ply A layer of rubber-coated parallel cords
Ply separation A parting of rubber compound between adja-
cent plies
Pneumatic tire A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
Sidewall That portion of a tire between the tread and
bead
Sidewall separation The parting of the rubber compound from the
cord material in the sidewall
Tire related termMeaning

622
SIENNA_OM_OM08007U_(U)
9-1. Specifications
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities

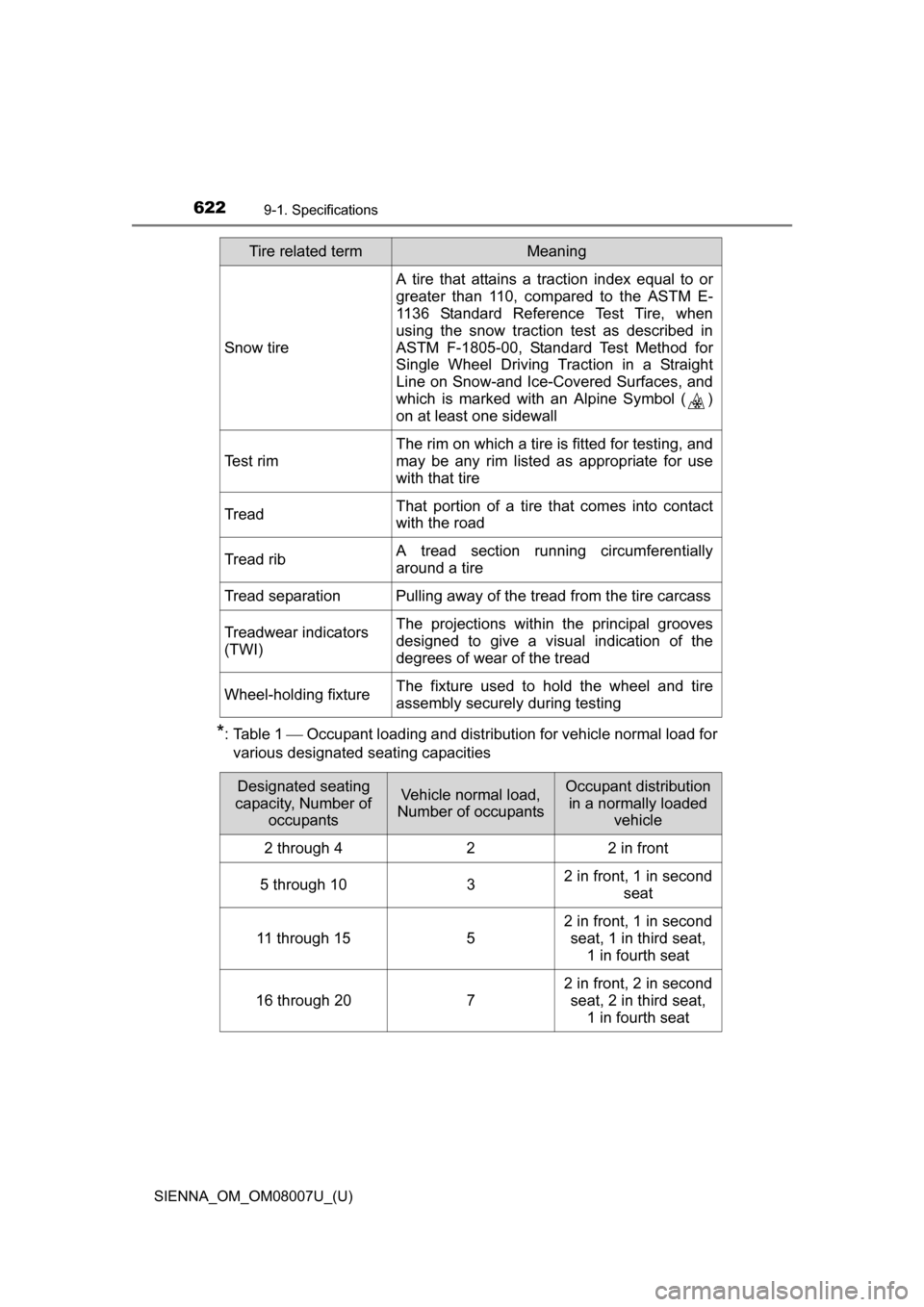

Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
Tread That portion of a tire that comes into contact
with the road
Tread rib A tread section running circumferentially
around a tire
Tread separation Pulling away of th e tread from the tire carcass
Treadwear indicators
(TWI) The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture The fixture used to hold the wheel and tire
assembly securely
during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution
in a normally loaded vehicle
2 through 4 2 2 in front
5 through 10 32 in front, 1 in second
seat
11 through 15 52 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 20 72 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

623
SIENNA_OM_OM08007U_(U)
9-2. Customization
9
Vehicle specifications

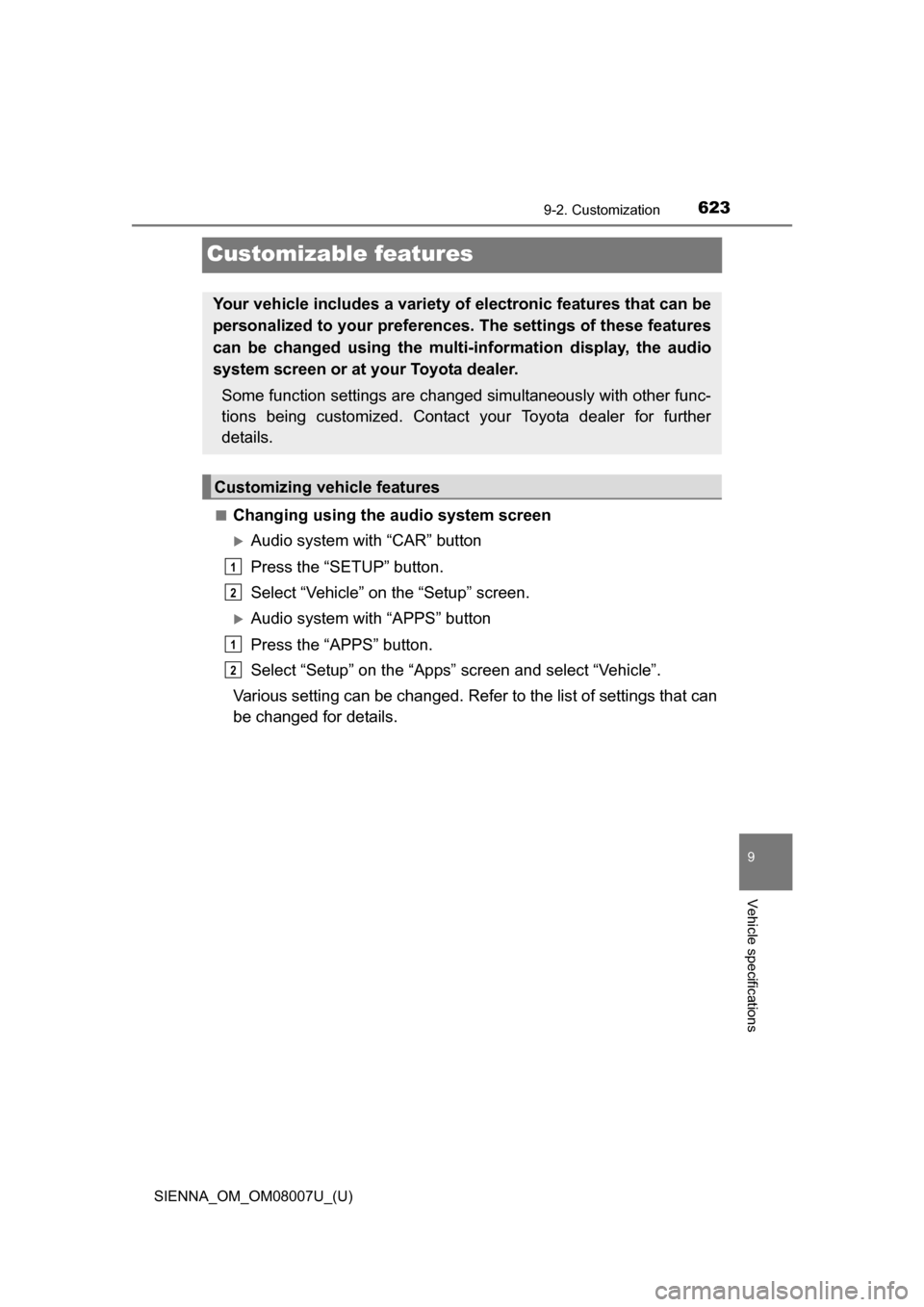

Customizable features
■Changing using the audio system screen
Audio system with “CAR” button
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen.
Audio system with “APPS” button
Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, the audio
system screen or at your Toyota dealer.
Some function settings are change d simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features
1
2
1
2

624
SIENNA_OM_OM08007U_(U)
9-2. Customization

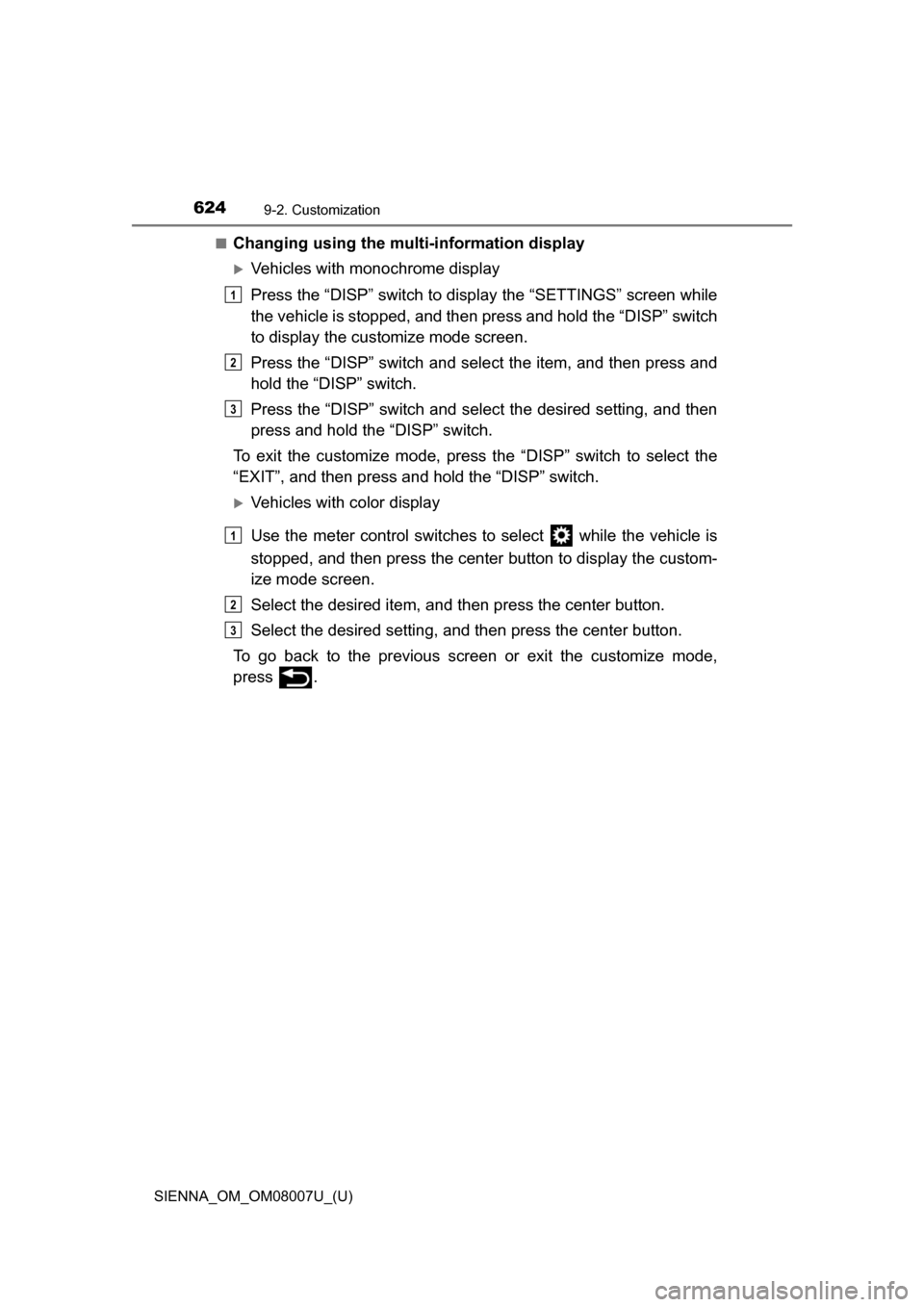

■Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the “SETTINGS” screen while
the vehicle is stopped, and then press and hold the “DISP” switch
to display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
Vehicles with color display
Use the meter control switches to select while the vehicle is
stopped, and then press the center button to display the custom-
ize mode screen.
Select the desired item, and then press the center button.
Select the desired setting, and then press the center button.
To go back to the previous screen or exit the customize mode,
press .
1
2
3
1
2
3

SIENNA_OM_OM08007U_(U)
6259-2. Customization
9
Vehicle specifications

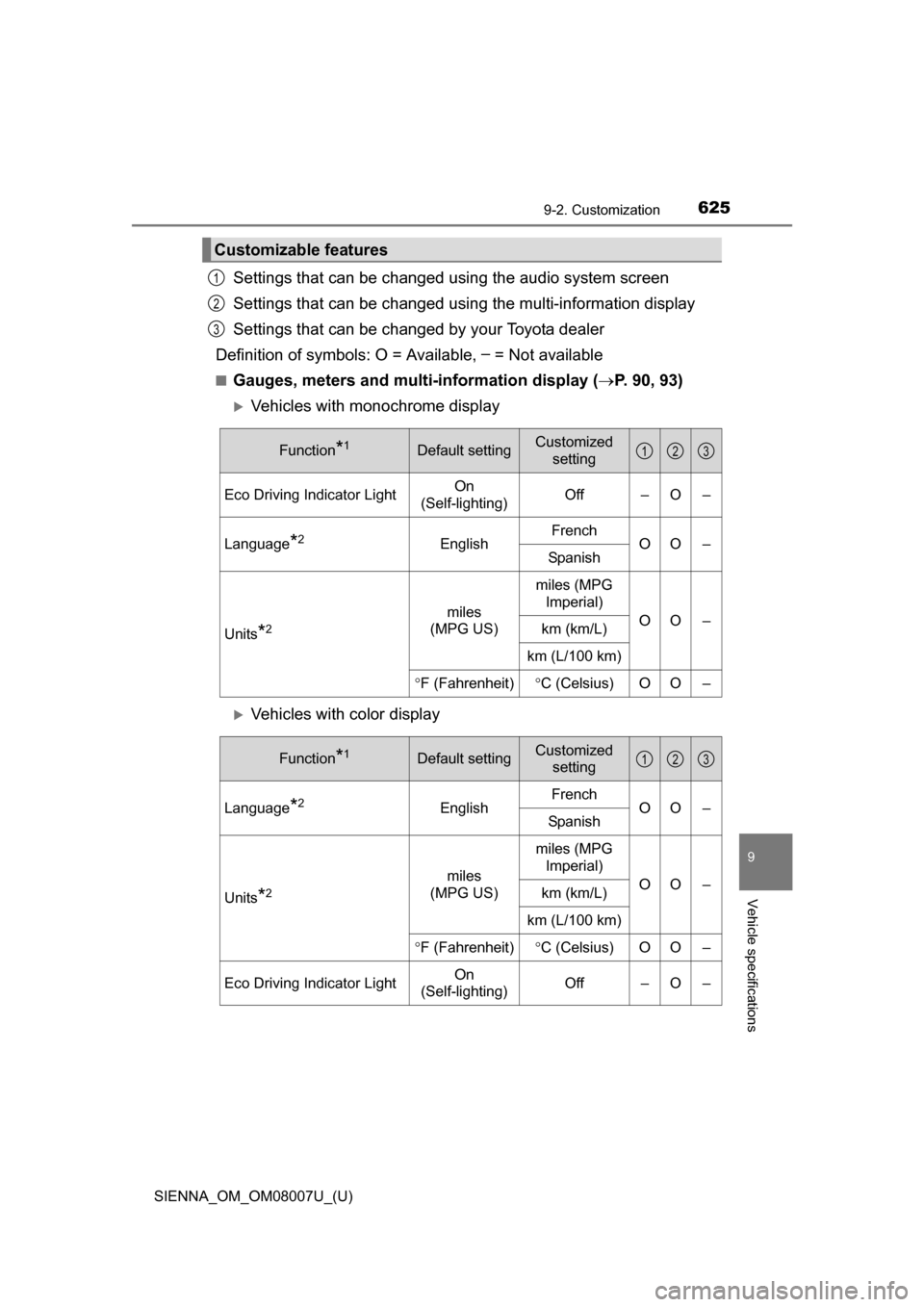

Settings that can be changed using the audio system screen
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, –
= Not available
■Gauges, meters and mult i-information display (P. 90, 93)
Vehicles with monochrome display
Vehicles with color display
Customizable features
1
2
3
Function*1Default settingCustomized
setting
Eco Driving Indicator Light On
(Self-lighting) Off – O –
Language
*2English French
OO –
Spani sh
Units
*2
miles
(MPG US) miles (MPG
Imperial)
OO –
km (km/L)
km (L/100 km)
 F (Fahrenheit) C (Celsius) O O –
123
Function*1Default settingCustomized
setting
Language*2English French
OO –
Spani sh
Units
*2
miles
(MPG US) miles (MPG
Imperial)
OO –
km (km/L)
km (L/100 km)
 F (Fahrenheit) C (Celsius) O O –
Eco Driving Indicator Light On
(Self-lighting) Off – O –
123

626
SIENNA_OM_OM08007U_(U)
9-2. Customization

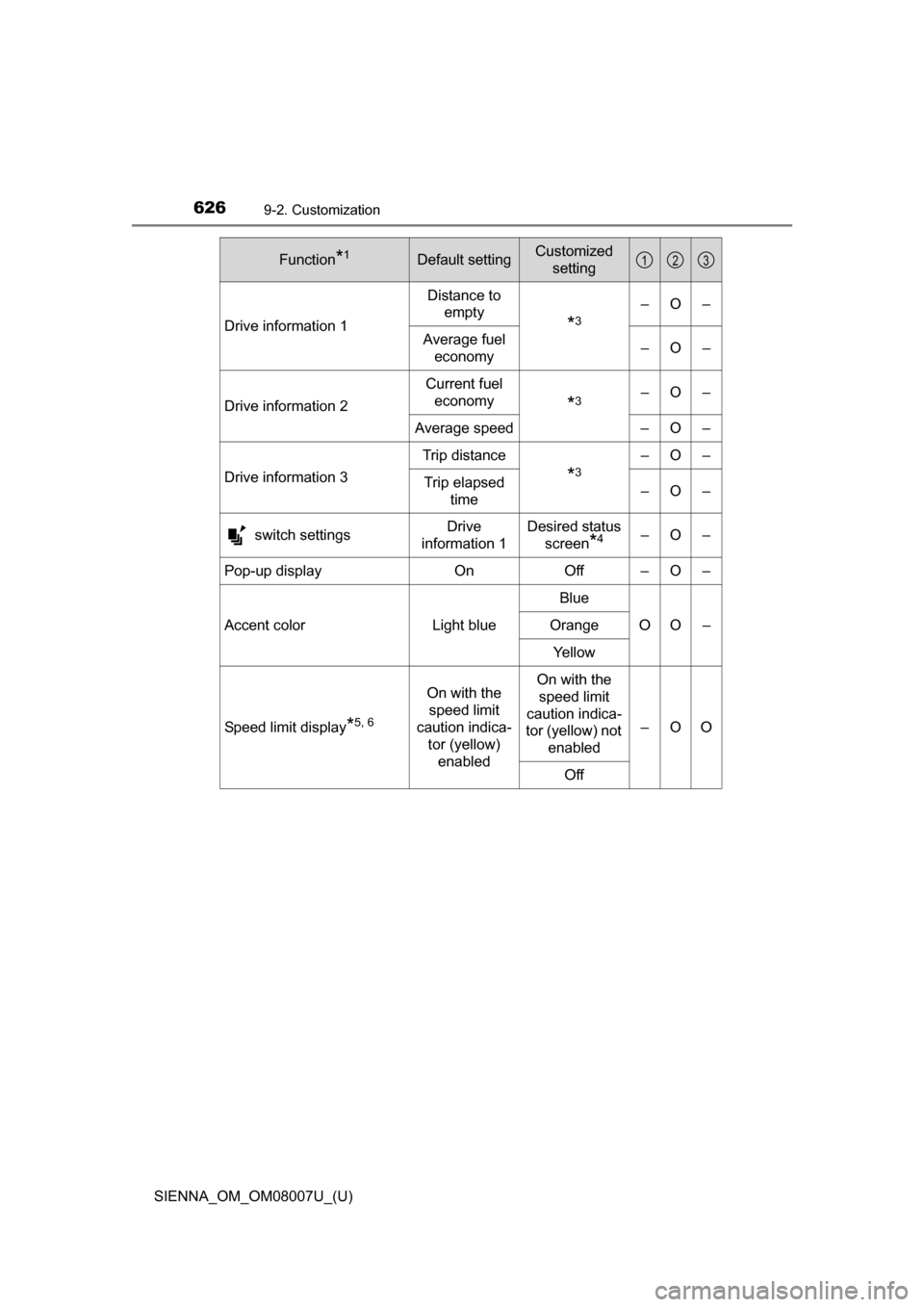

Drive information 1Distance to
empty*3
–O–
Average fuel economy –O–
Drive information 2 Current fuel
economy
*3–O–
Average speed – O –
Drive information 3 Trip distance
*3
–O–
Trip elapsed time –O–
switch settings Drive
information 1 Desired status
screen
*4–O–
Pop-up display On Off – O –
Accent color Light blueBlue
OO –
Orange
Yellow
Speed limit display
*5, 6
On with the speed limit
caution indica- tor (yellow) enabled On with the
speed limit
caution indica-
tor (yellow) not
enabled –OO
Off
Function*1Default settingCustomized setting123

SIENNA_OM_OM08007U_(U)
6279-2. Customization
9
Vehicle specifications

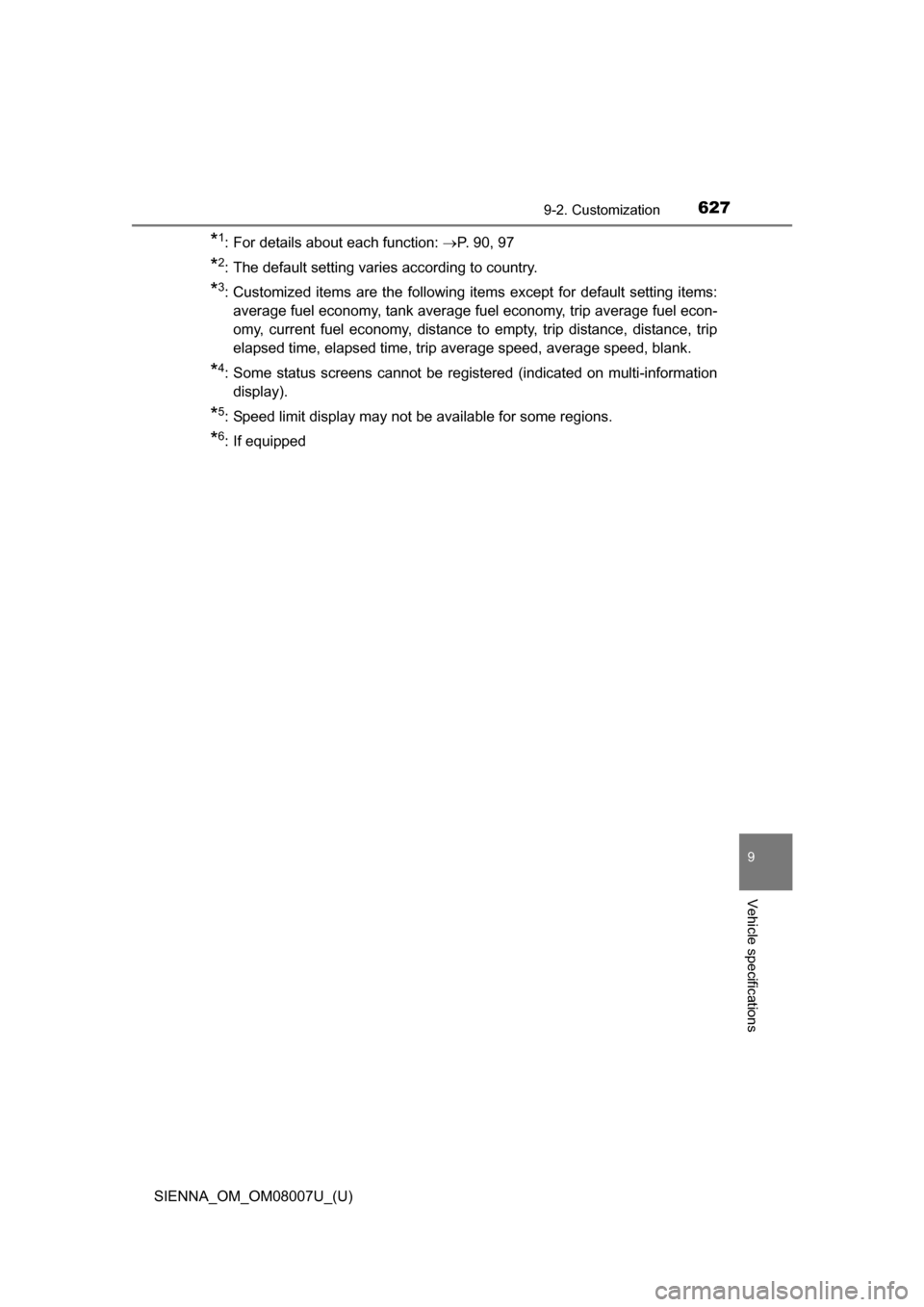

*1: For details about each function: P. 90, 97
*2: The default setting varies according to country.
*3: Customized items are the following items except for default setting items:average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, distance, trip
elapsed time, elapsed time, trip average speed, average speed, blank.
*4: Some status screens cannot be regist ered (indicated on multi-information
display).
*5: Speed limit display may not be available for some regions.
*6: If equipped

628
SIENNA_OM_OM08007U_(U)
9-2. Customization

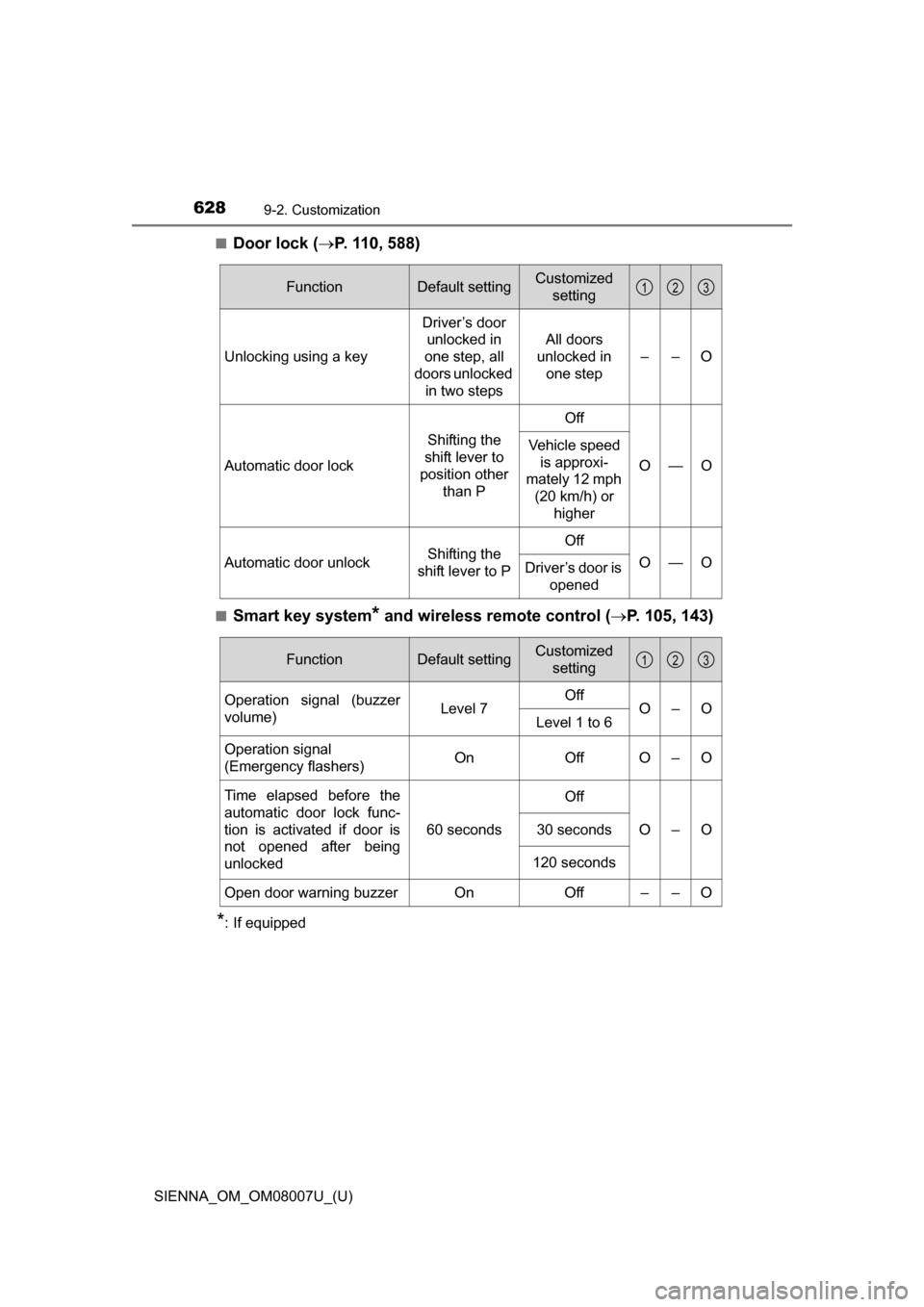

■Door lock (P. 110, 588)
■Smart key system* and wireless remote control ( P. 105, 143)
*: If equipped
FunctionDefault settingCustomized
setting
Unlocking using a key Driver’s door
unlocked in
one step, all
doors unlocked in two steps All doors
unlocked in
one step ––O
Automatic door lock
Shifting the
shift lever to
position other than P
Off
O—O
Vehicle speed
is approxi-
mately 12 mph (20 km/h) or
higher
Automatic door unlockShifting the
shift lever to POff
O—ODriver’s door is opened
123
FunctionDefault settingCustomized setting
Operation signal (buzzer
volume) Level 7Off
O–O
Level 1 to 6
Operation signal
(Emergency flashers) On Off O – O
Time elapsed before the
automatic door lock func-
tion is activated if door is
not opened after being
unlocked 60 seconds
Off
O–O
30 seconds
120 seconds
Open door warning buzzer On Off – – O
123

SIENNA_OM_OM08007U_(U)
6299-2. Customization
9
Vehicle specifications

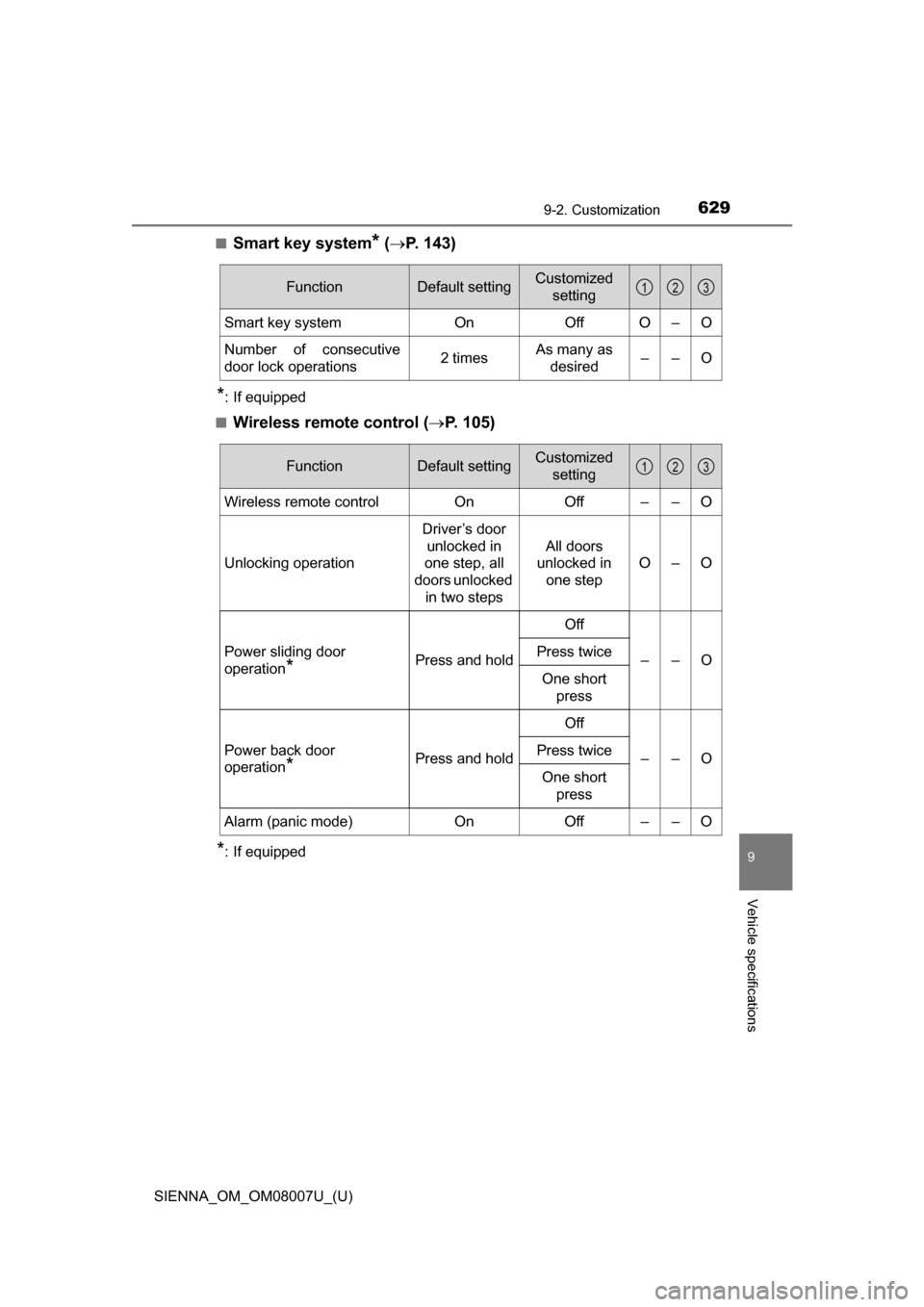

■Smart key system* ( P. 143)
*: If equipped
■
Wireless remote control ( P. 105)
*: If equipped
FunctionDefault settingCustomized
setting
Smart key system OnOff O – O
Number of consecutive
door lock operations 2 timesAs many as
desired ––O
123
FunctionDefault settingCustomized
setting
Wireless remote control OnOff – – O
Unlocking operation Driver’s door
unlocked in
one step, all
doors unlocked
in two steps All doors
unlocked in one step O–O
Power sliding door
operation
*Press and hold
Off
––O
Press twice
One short press
Power back door
operation
*Press and hold
Off
––O
Press twice
One short press
Alarm (panic mode) OnOff – – O
123

630
SIENNA_OM_OM08007U_(U)
9-2. Customization

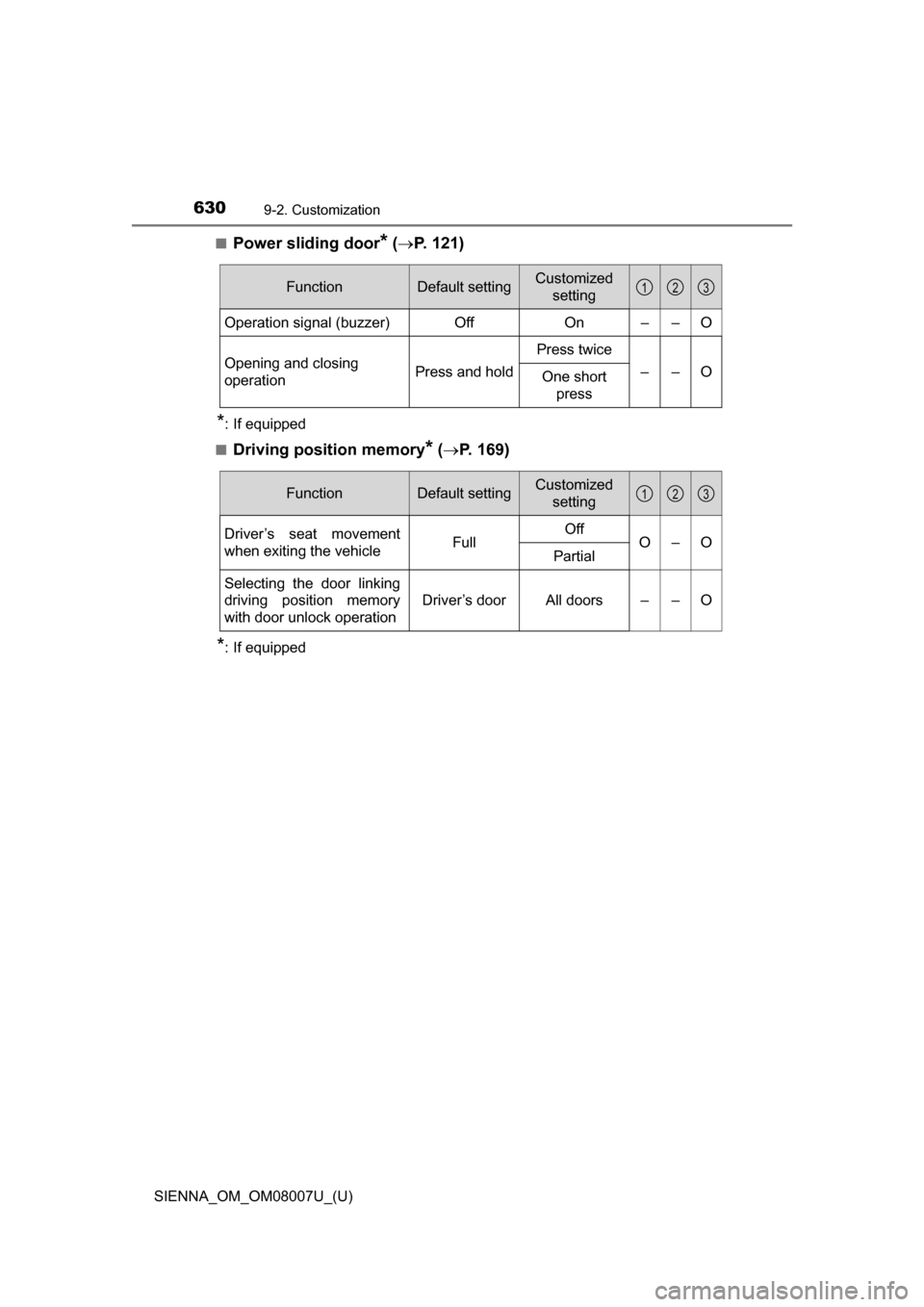

■Power sliding door* ( P. 121)
*: If equipped
■
Driving position memory* (  P. 169)
*: If equipped
FunctionDefault settingCustomized
setting
Operation signal (buzzer)OffOn – – O
Opening and closing
operationPress and hold
Press twice
––O
One short press
123
FunctionDefault settingCustomized
setting
Driver’s seat movement
when exiting the vehicleFullOff O–O
Partial
Selecting the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors – – O
123
