6319-2. Customization
9
Vehicle specifications
■Automatic light control system (P. 242)
*1: If equipped
*2: U.S.A. only
■
Intuitive parking assist*1 (  P. 279)
*1: If equipped
*2: When intuitive parking assist is operating.
■
Automatic air condi tioning system (P. 412)
FunctionDefault settingCustomized
setting
Light sensor sensitivity Standard -2 to 2 O – O
Time elapsed before head-
lights automatically turn off
after doors are closed 30 secondsOff
O–O
60 seconds
90 seconds
Automatic High Beam
*1On Off – – O
Daytime running light
system
*2On Off – – O
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensor Far Near O – O
Buzzer volume Level 3 Level 1 to 5 O – O
Display setting
*2All sensors displayed Display off O – O
123
FunctionDefault settingCustomized
setting
A/C on operation linked
with “AUTO” button On Off O – O
123

632
SIENNA_OM_OM08007U_(U)

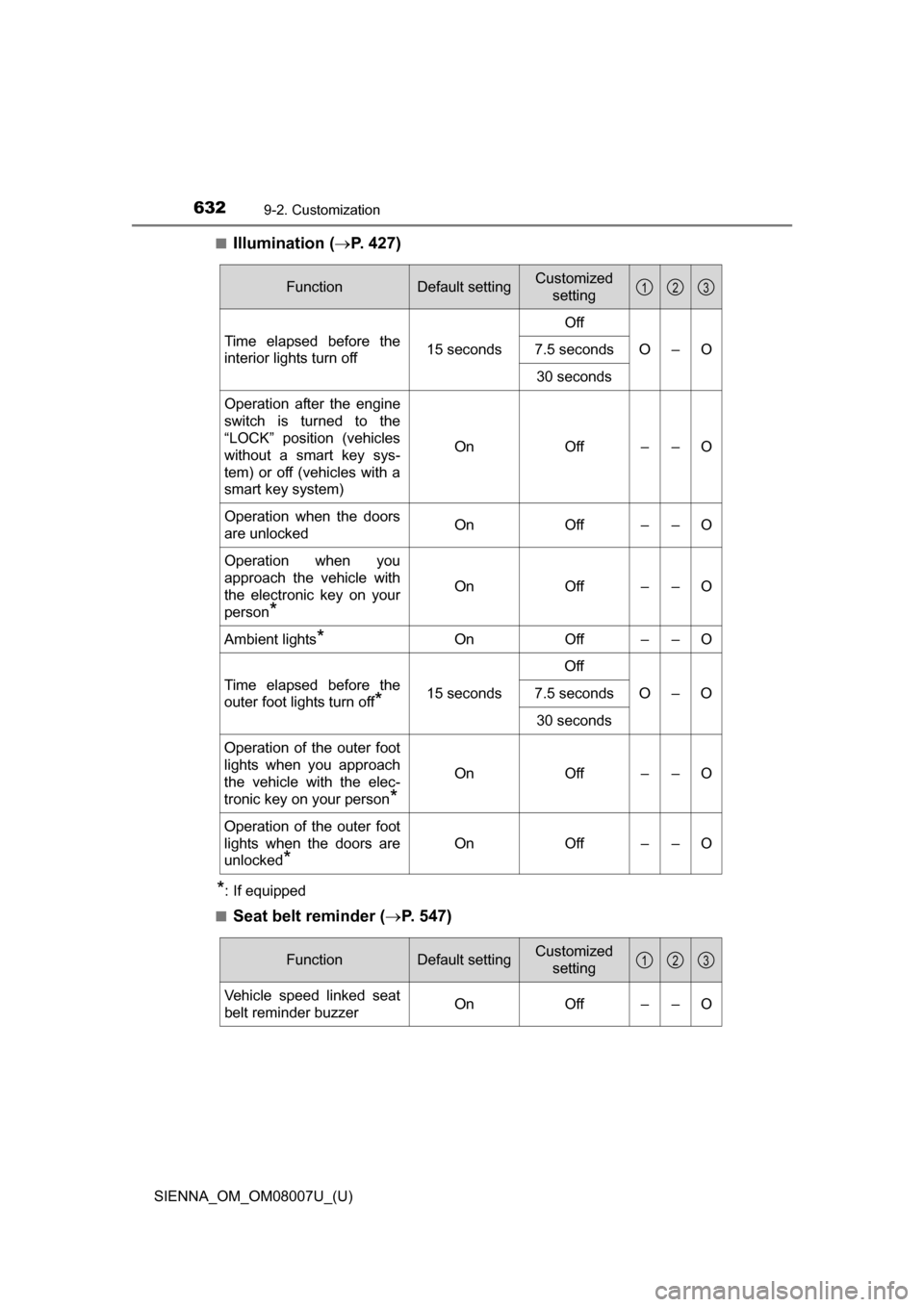

9-2. Customization
■Illumination (P. 427)
*: If equipped
■
Seat belt reminder ( P. 547)
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off 15 secondsOff
O–O
7.5 seconds
30 seconds
Operation after the engine
switch is turned to the
“LOCK” position (vehicles
without a smart key sys-
tem) or off (vehicles with a
smart key system) On Off – – O
Operation when the doors
are unlocked On Off – – O
Operation when you
approach the vehicle with
the electronic key on your
person
*
On Off – – O
Ambient lights
*On Off – – O
Time elapsed before the
outer foot lights turn off
*15 seconds Off
O–O
7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
*
On Off – – O
Operation of the outer foot
lights when the doors are
unlocked
*
On Off – – O
123
FunctionDefault settingCustomized
setting
Vehicle speed linked seat
belt reminder buzzer On Off – – O
123

SIENNA_OM_OM08007U_(U)

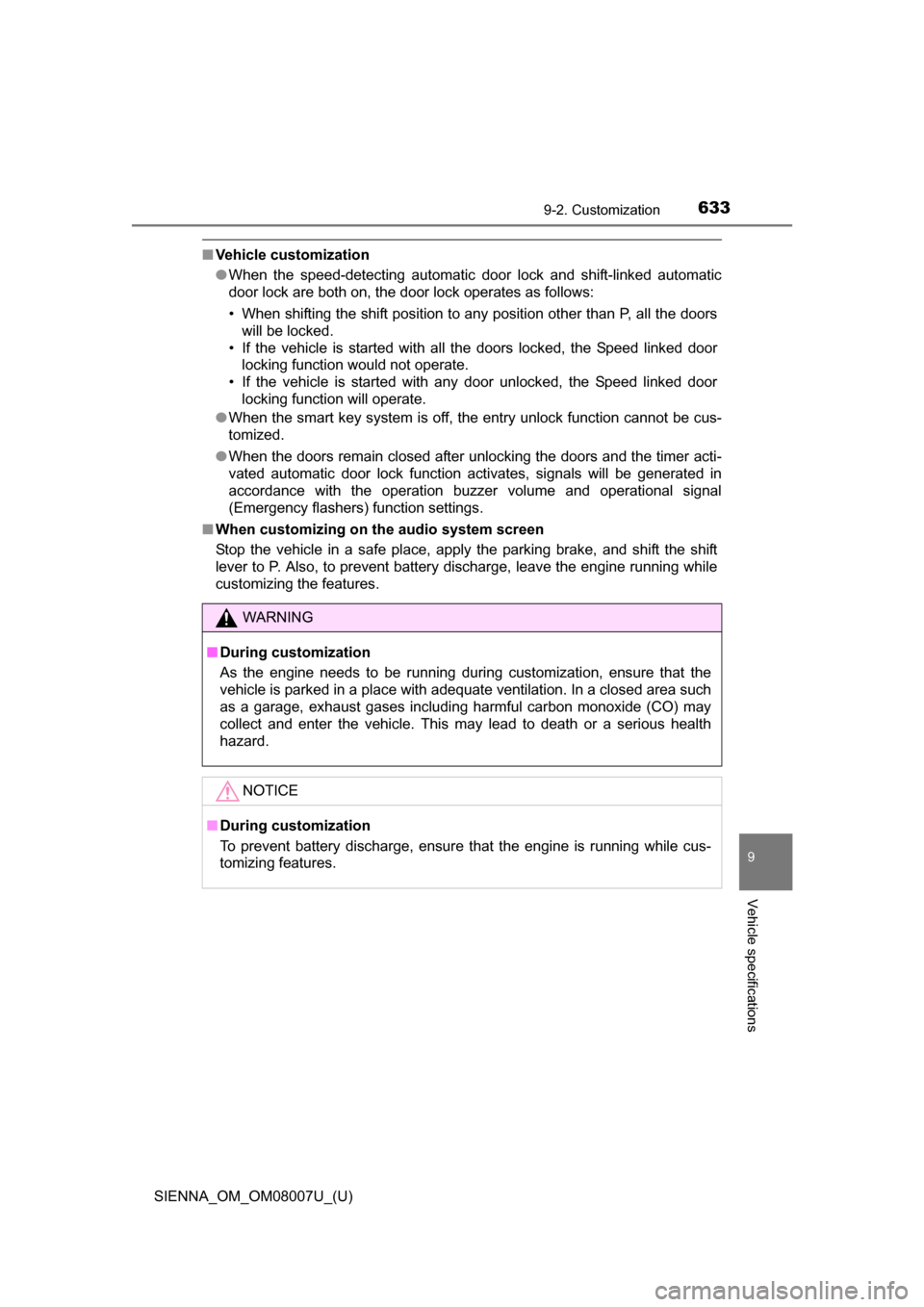

6339-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic
door lock are both on, the door lock operates as follows:
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal
(Emergency flashers) function settings.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

634
SIENNA_OM_OM08007U_(U)

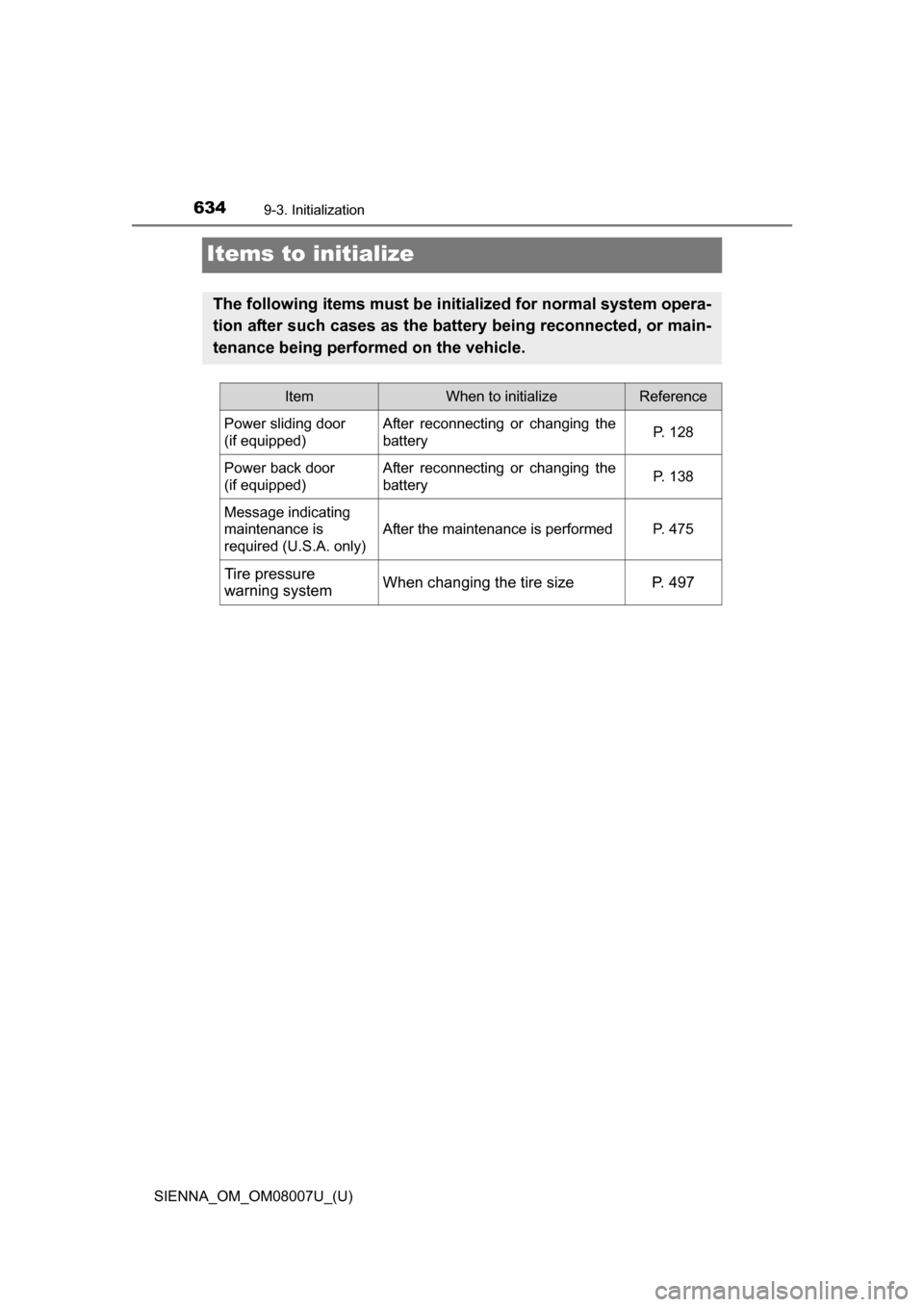

9-3. Initialization
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle.
ItemWhen to initializeReference
Power sliding door
(if equipped) After reconnecting or changing the
battery
P. 128
Power back door
(if equipped) After reconnecting or changing the
battery
P. 138
Message indicating
maintenance is
required (U.S.A. only) After the maintenance is performed P. 475
Tire pressure
warning system
When changing the tire size
P. 497

635
SIENNA_OM_OM08007U_(U)

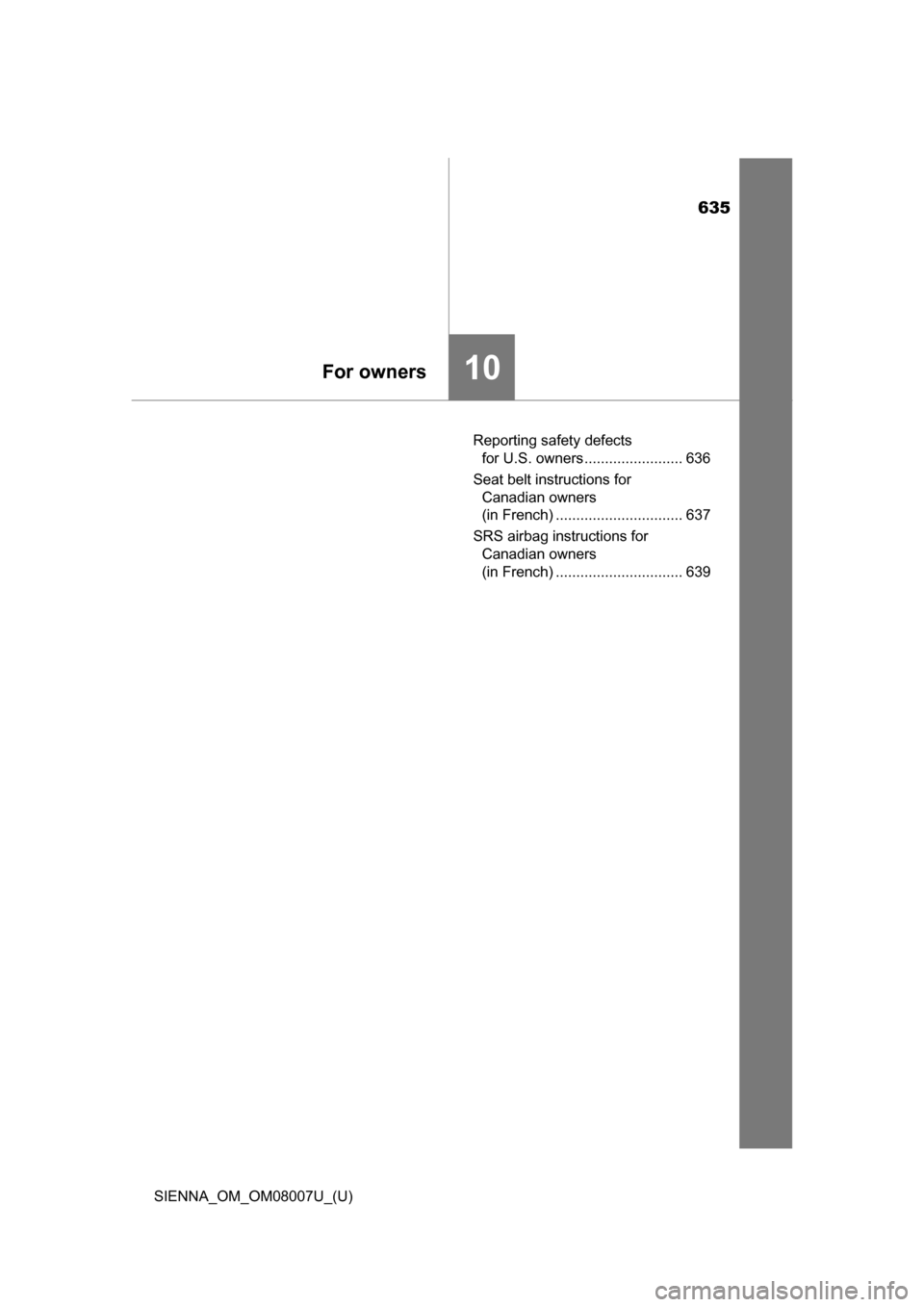

10For owners
Reporting safety defects for U.S. owners ........................ 636
Seat belt instructions for Canadian owners
(in French) ............................... 637
SRS airbag instructions for Canadian owners
(in French) ............................... 639

636
SIENNA_OM_OM08007U_(U)

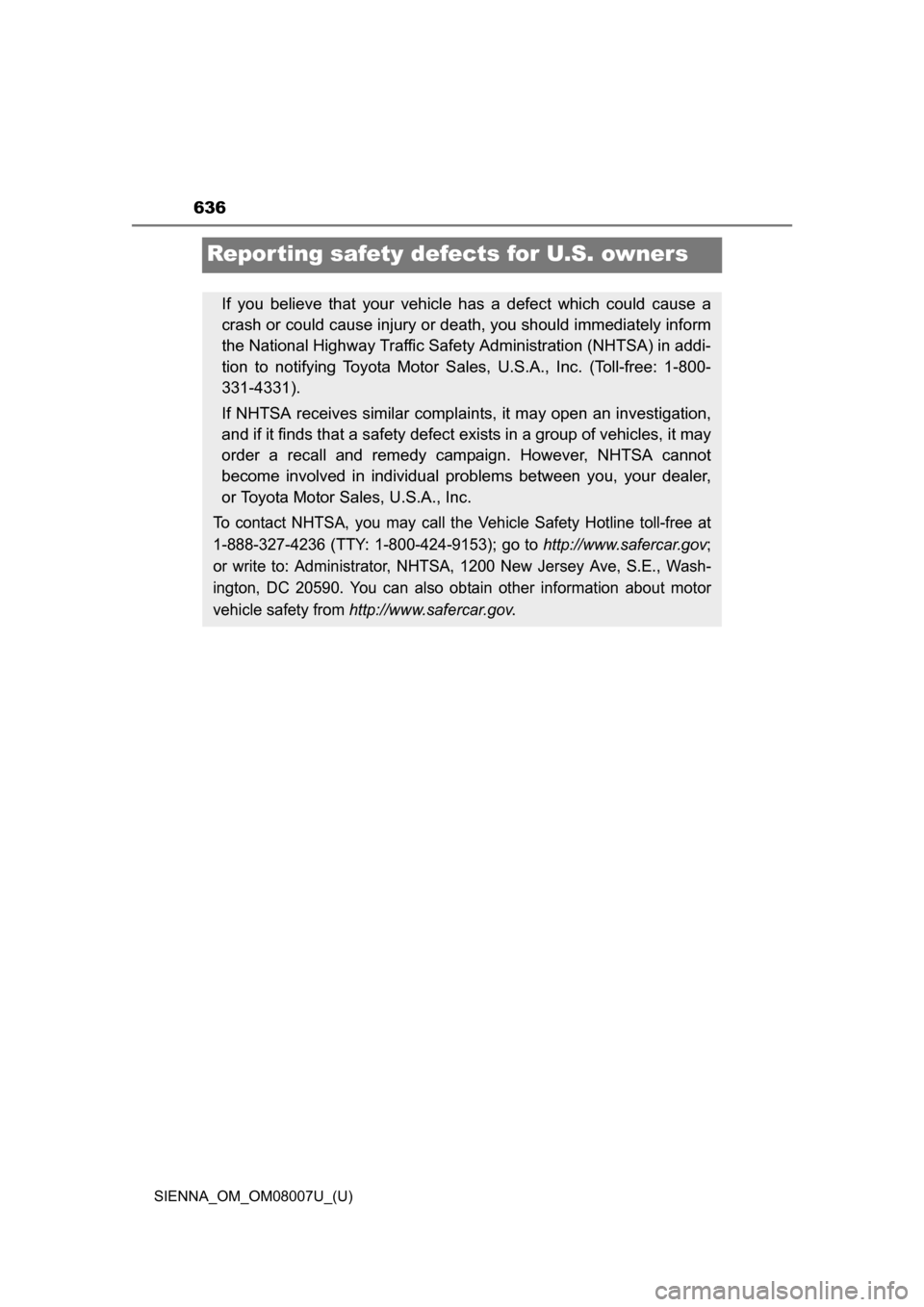

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov .

637
SIENNA_OM_OM08007U_(U)
10
For owners

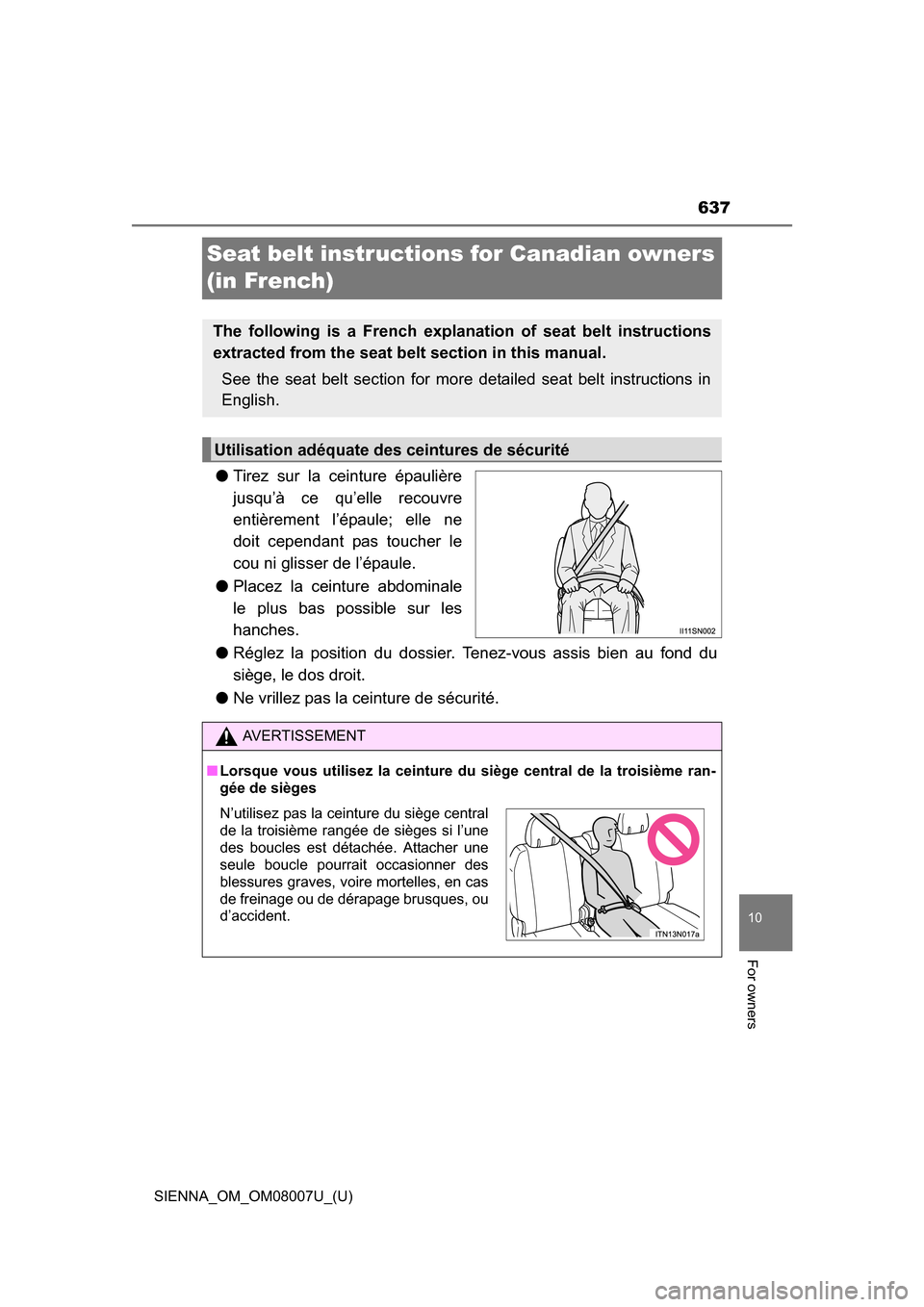

Seat belt instructions for Canadian owners
(in French)
● Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
● Placez la ceinture abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
● Ne vrillez pas la ceinture de sécurité.
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité
AVERTISSEMENT
■ Lorsque vous utilisez la ceinture du siège central de la troisième ran-
gée de sièges
N’utilisez pas la ceinture du siège central
de la troisième rangée de sièges si l’une
des boucles est détachée. Attacher une
seule boucle pourrait occasionner des
blessures graves, voire mortelles, en cas
de freinage ou de dérapage brusques, ou
d’accident.

638

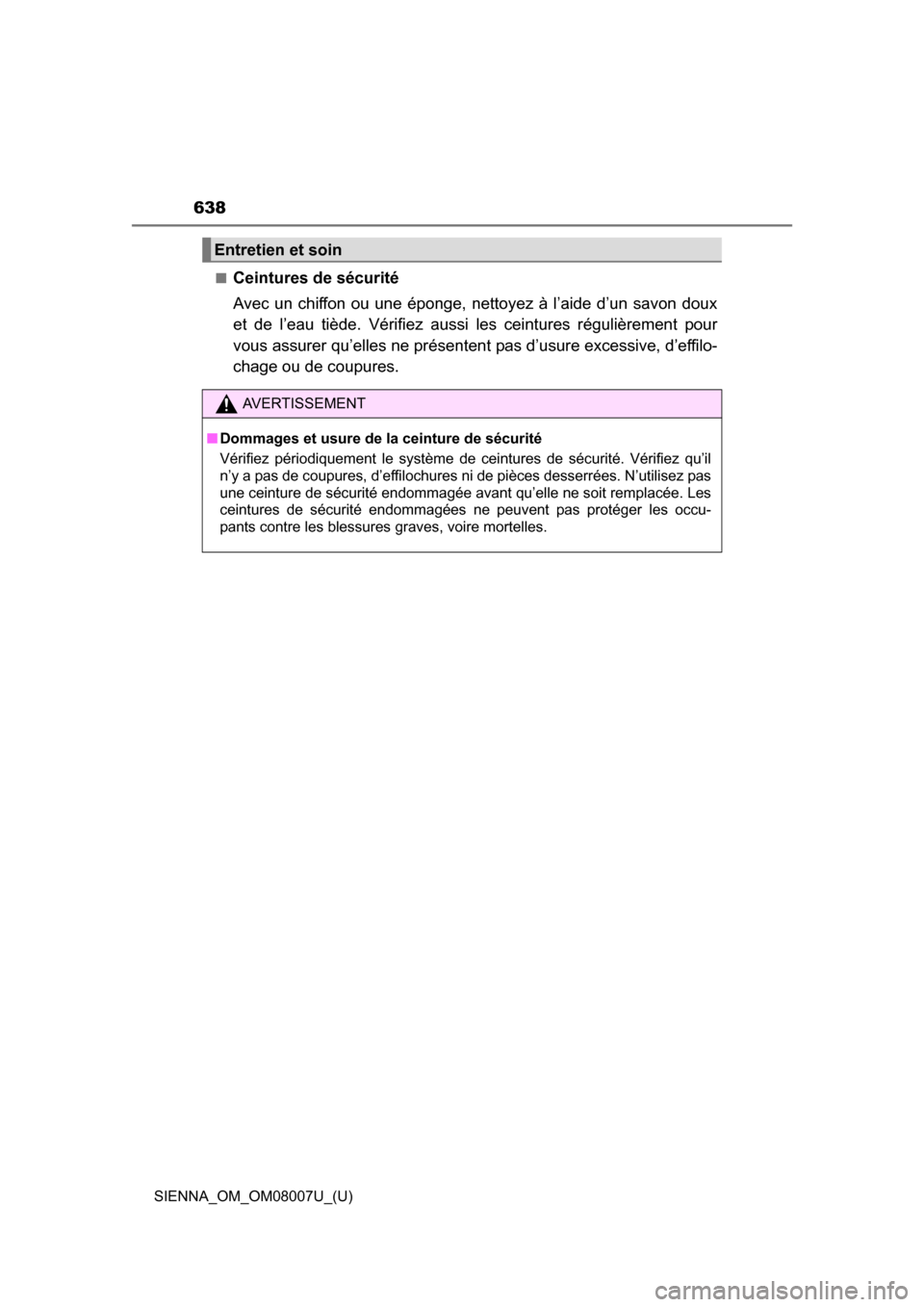

SIENNA_OM_OM08007U_(U)■
Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux
et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour
vous assurer qu’elles ne présentent pas d’usure excessive, d’effilo-
chage ou de coupures.
Entretien et soin
AVERTISSEMENT
■
Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas
une ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les
ceintures de sécurité endommagées ne peuvent pas protéger les occu-
pants contre les blessures graves, voire mortelles.

639
SIENNA_OM_OM08007U_(U)
10
For owners

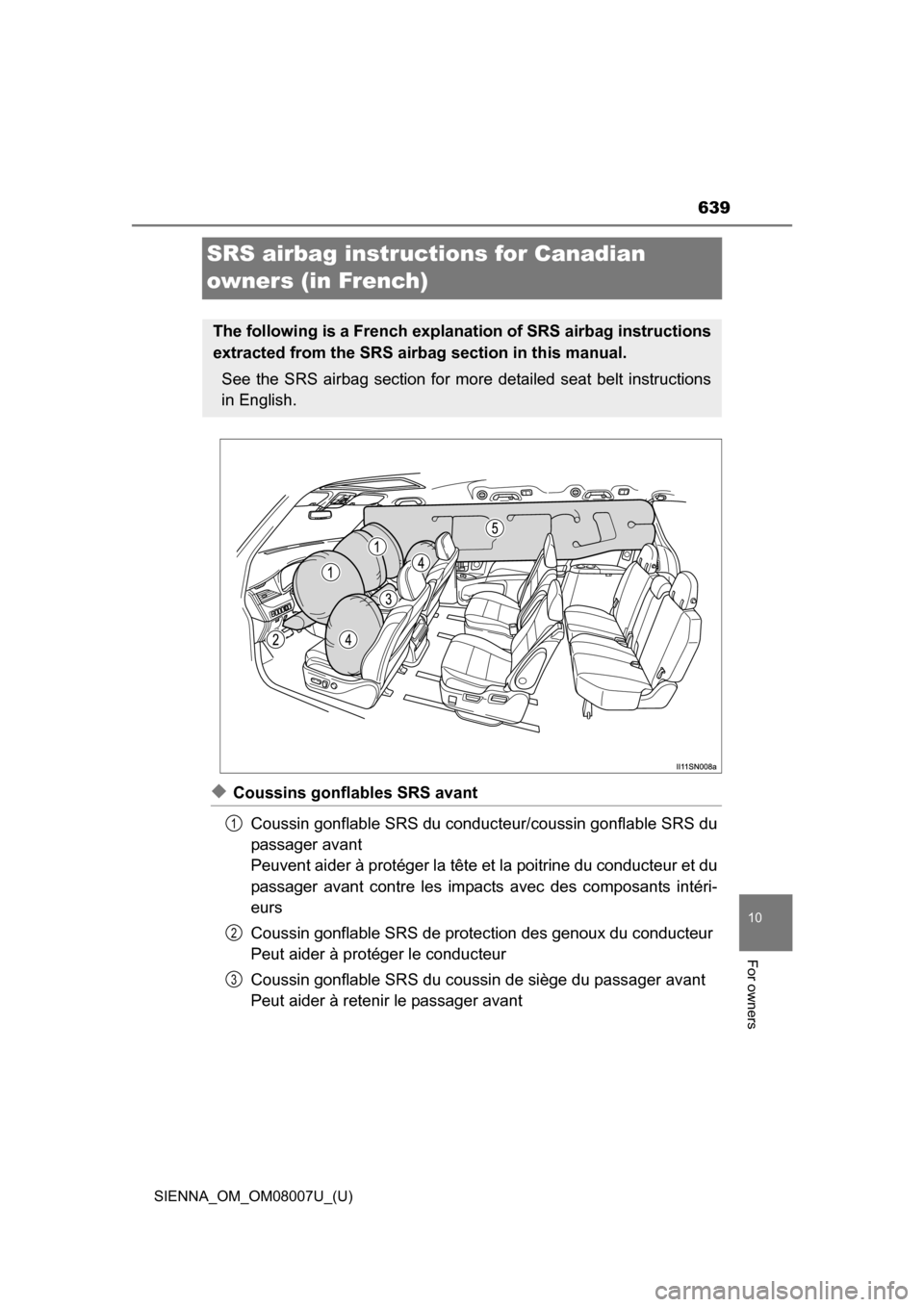

SRS airbag instructions for Canadian
owners (in French)
◆Coussins gonflables SRS avantCoussin gonflable SRS du conduc teur/coussin gonflable SRS du
passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du
passager avant contre les impa cts avec des composants intéri-
eurs
Coussin gonflable SRS de protec tion des genoux du conducteur
Peut aider à protéger le conducteur
Coussin gonflable SRS du coussi n de siège du passager avant
Peut aider à retenir le passager avant
The following is a French explan ation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed seat belt instructions
in English.
1
2
3

640
SIENNA_OM_OM08007U_(U)

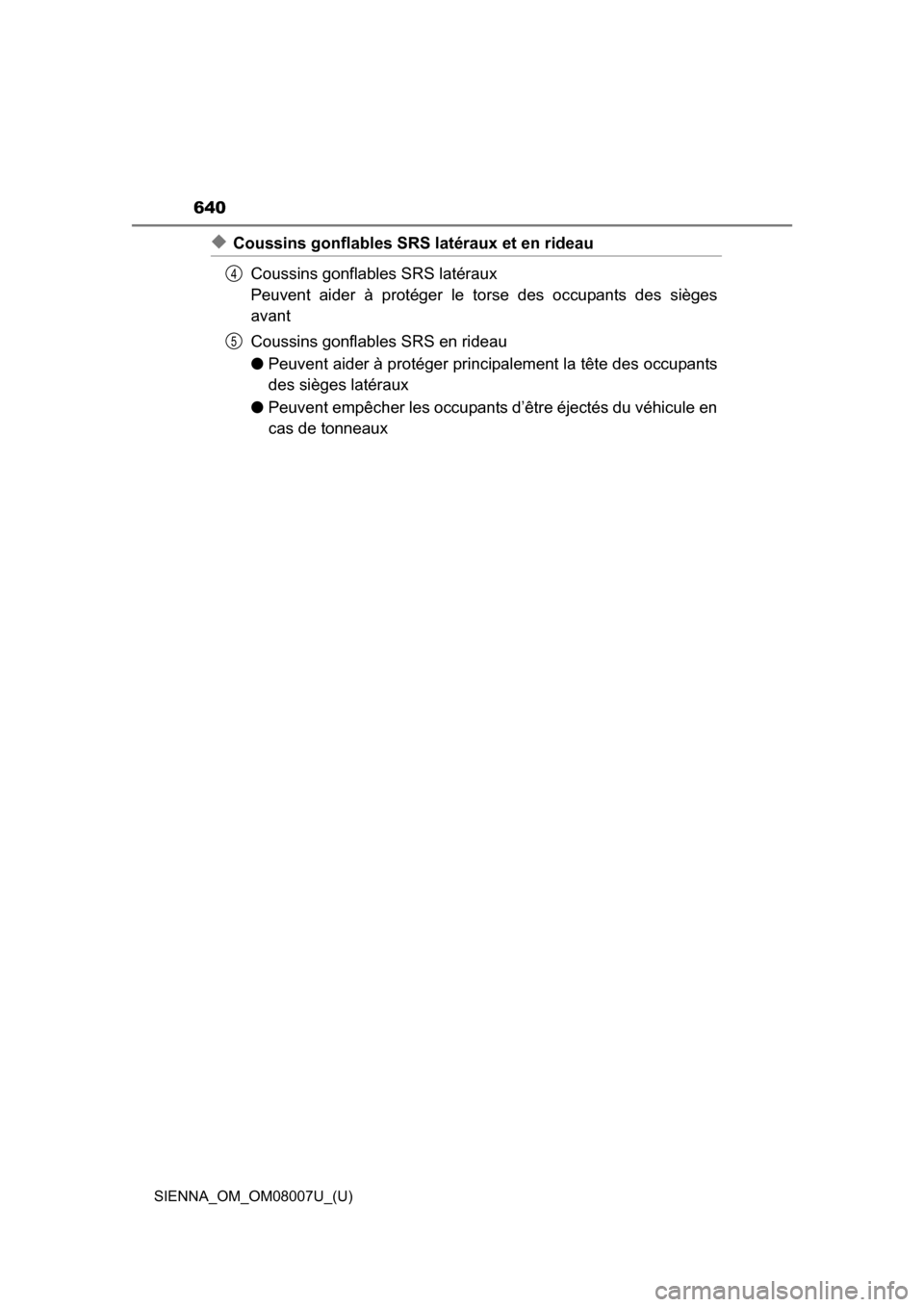

◆Coussins gonflables SRS latéraux et en rideauCoussins gonflables SRS latéraux
Peuvent aider à protéger le torse des occupants des sièges
avant
Coussins gonflabl es SRS en rideau
● Peuvent aider à protéger principalement la tête des occupants
des sièges latéraux
● Peuvent empêcher les occupants d’être éjectés du véhicule en
cas de tonneaux
4
5
