TOYOTA SIENNA 2018 (in English) User Guide

111-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
■Adjusting the height of the head restraint
Make sure that the head restraint is
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraint.
Failure to do so may result in death or serious injury.
● Use the head restraint designed for AUTO ACCESS SEAT.
● Adjust the head restraint to the correct position at all times.
● After adjusting the head restraint, push down on it and make sure it is
locked in position.
● Do not drive with the head restraint removed.

121-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
Armrests
Raise
Lower
■Wearing the seat belt
Wearing the seat belt is easier with the armrest raised.
Lower the armrests as far as they will go when rotating or rais-
ing/lowering the AUTO ACCESS SEAT.
1
2
WARNING
■When wearing the seat belt
Wear the seat belt correctly, passing it
underneath the armrest.
If the seat belt is caught on the armrest, it
may not be fully effective, which could
cause death or serious injury in the event
of a sudden braking, sudden swerving or
an accident.

131-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
Footrest
Raise
Lower
Lower the footrest as far as it will go when rotating or raising/
lowering the AUTO ACCESS SEAT.
1
2
WARNING
■When operati ng the footrest
Operate the footrest by holding the front edge.
You may be injured if your fingers get caught in the rotating parts.

141-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
Correct riding posture
Sit while keeping both knees
aligned and inside the AUTO
ACCESS SEAT.
Lower the armrests and keep
both arms inside the armrests
and inside the AUTO ACCESS
SEAT.
Lower the footrest and place
both feet on the footrest.
If you cannot place your feet on the
footrest, have someone help you,
so as not to get your feet caught
between the AUTO ACCESS
SEAT and the vehicle body.
Maintain the correct posture while sitting in the seat, as follows:
1
2
3

151-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
WARNING
■When sitting in the seat
● When the seat is being used by a person who is unable to bend his/her
knees or neck, or by a person that is unable to sit far back in the seat, be
careful as their head, feet etc. may hit the vehicle body, and rotation of the
AUTO ACCESS SEAT may become difficult while the seat is occupied.
● Do not stand on the footrest.
Doing so may damage the footrest or cause you to fall from the footrest,
which may cause an injury.
■ When operating
When operating the AUTO ACCESS
SEAT, make sure that the occupant’s
head, arms and legs do not hit the door
opening.
Collision between door opening and
head
Caught between door opening and
AUTO ACCESS SEAT
Collision between door opening and
legs
1
2
3

161-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)

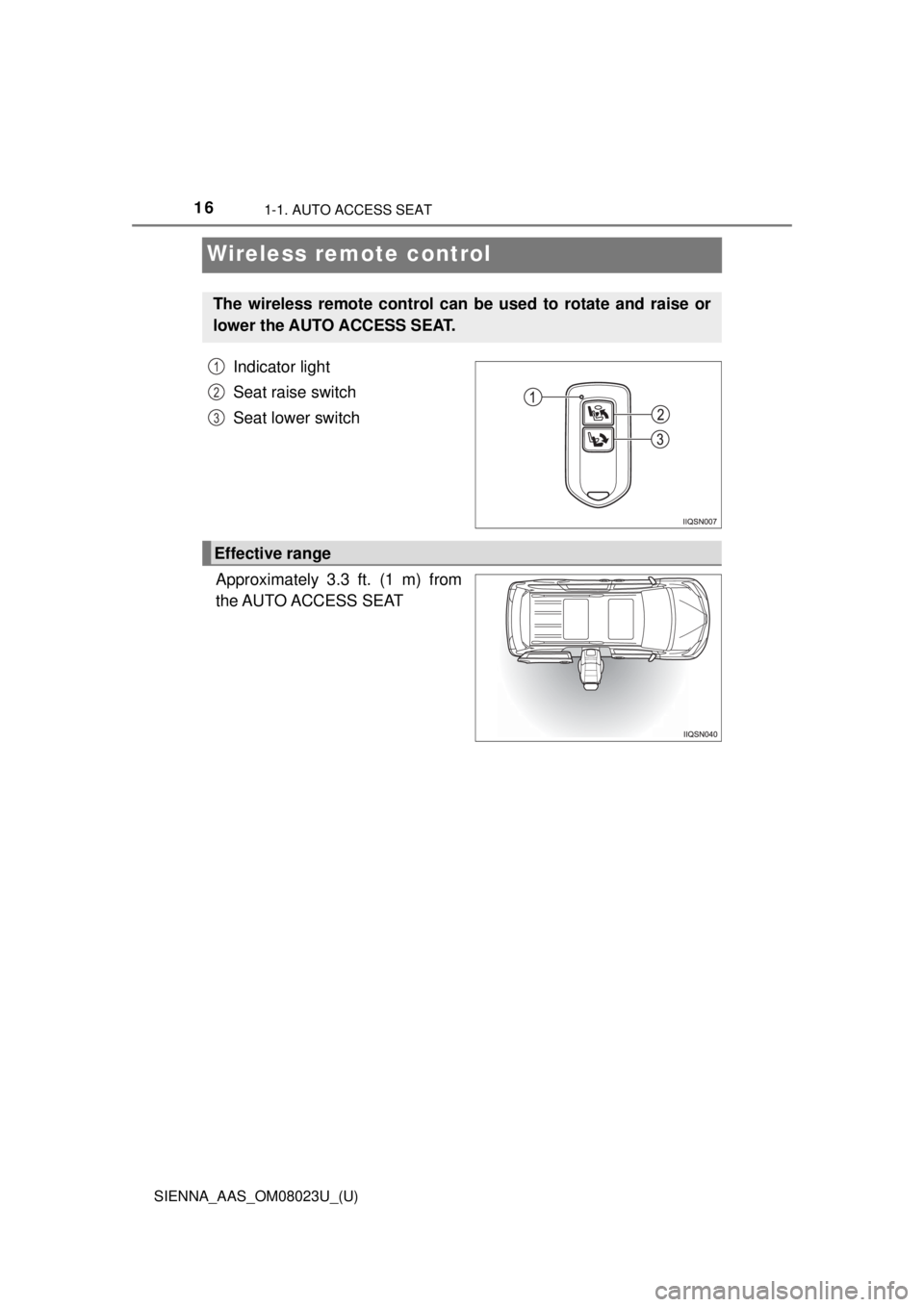

Wireless remote control
Indicator light
Seat raise switch
Seat lower switch
Approximately 3.3 ft. (1 m) from
the AUTO ACCESS SEAT
The wireless remote control can be used to rotate and raise or
lower the AUTO ACCESS SEAT.
1
2
3
Effective range

171-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
■Operating conditions
●The effective range of the wireless remote control changes in accordance
with surroundings.
● Interference from other radio wave s may cause the AUTO ACCESS SEAT
to stop moving temporarily even when pressing the wireless remote control
switches. In this event, do the following:
• Stand in a different place and press the switch. Press the switch once again after moving. The AUTO ACCESS SEAT will
not operate if you hold the switch down while changing position.
• Operate the seat raise/lower switch (→P. 34)
■ Battery
●The lifespan of the battery is about 6 months, but this may change in accor-
dance with usage.
● If the battery is discharged, the AUTO ACCESS SEAT may not operate
even if the wireless remote control is operated or the indicator light will stop
flashing. In these events, replace the battery with a new one. ( →P. 40)
■ When riding in an aircraft
When bringing a wireless remote control onto an aircraft, make sure you do\
not press any buttons on the wireless remote control while inside the aircraft
cabin. If you are carrying the wireless remote control in your bag etc., ensure
that the buttons are not likely to be pressed accidentally. Pressing a button
may cause the wireless remote control to emit radio waves that could inter-
fere with the operation of the aircraft.

181-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)■
Conditions affecting operation
If you use the wireless remote control to operate the AUTO ACCESS SEAT at
the same time as doing any of the following, the AUTO ACCESS SEAT may
not operate properly:
●Operating the AUTO ACCESS SEAT using another wireless remote control
● Operating the AUTO ACCESS SEAT using the seat raise/lower switch
● Using the smart key system
● Unlocking and locking the doors using the wireless remote control
■ When replacing either the transmitter or the receiver of the wireless
remote control
It is necessary to replace both the transmitter and the receiver. Contact your
Toyota dealer.
■ Certification for the wi reless remote control
U.S.A.
FCC ID: HYQ12BDF
FCC ID: HYQ13BDH
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

191-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
WARNING
■Wireless remote control precautions
Observe the following precautions to reduce the risk of injury.
● Operate the AUTO ACCESS SEAT from a position from which you can
see the occupant of the seat.
● Make sure that the occupant’s head, arms and legs will not get caught
between the seat and the body of the vehicle.
● Steady the AUTO ACCESS SEAT and the occupant with your hand while
operating.
NOTICE
■To prevent wireless remote control damage
● Observe the following:
• Do not expose the wireless remote control to high temperatures by
placing it in direct sunlight.
• Do not disassemble the wireless remote control.
• Do not drop the wireless remote control, subject it to strong shocks or bend it.
• Do not get the wireless remote control wet.
● Do not wipe the wireless remote control with thinner, gasoline or benzene.
The surface of it may be damaged.
When cleaning the wireless remote control, wipe it using a wrung cloth
soaked in water or lukewarm water.
● Do not attach metallic or magnetic materials to the wireless remote control
or place the wireless remote control close to such materials.
● Do not attach metallic window tinting or other metallic objects such as non-
genuine antenna to the windows.
● Do not attach accessories to the wireless remote control. These could get
caught in the AUTO ACCESS SEAT during operation.

201-2. Operating the AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)

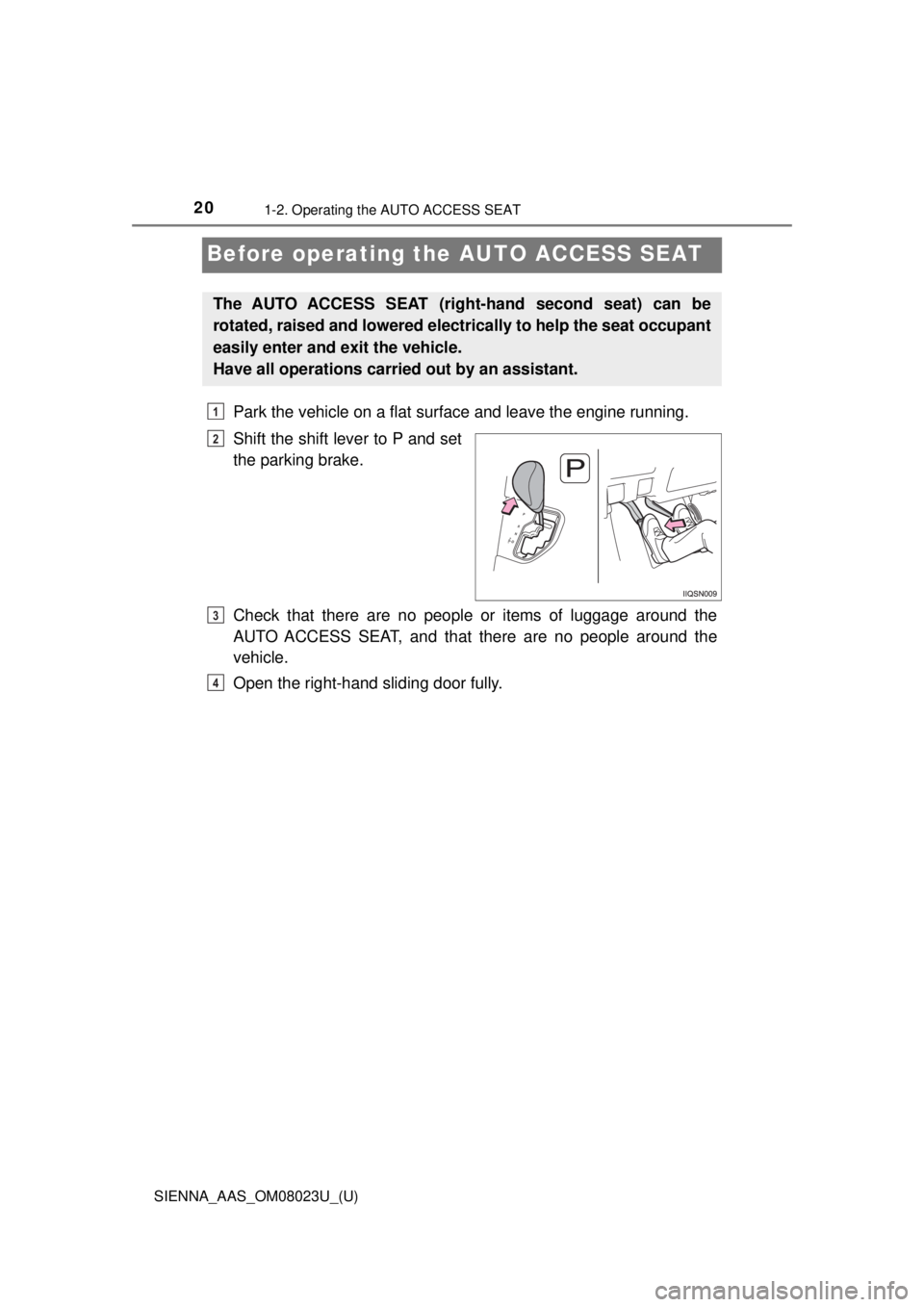

Before operating the AUTO ACCESS SEAT
Park the vehicle on a flat surface and leave the engine running.
Shift the shift lever to P and set
the parking brake.
Check that there are no people or items of luggage around the
AUTO ACCESS SEAT, and that there are no people around the
vehicle.
Open the right-hand sliding door fully.
The AUTO ACCESS SEAT (right-hand second seat) can be
rotated, raised and lowered electrically to help the seat occupant
easily enter and exit the vehicle.
Have all operations carried out by an assistant.
1
2
3
4
