TOYOTA SIENNA 2018 Owners Manual (in English)

SIENNA
2018
QUICK REFERENCE GUIDE

SIENNA 2018
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Sienna.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Sienna operations.
Every Sienna owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
INDEX


Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless (and remote) entry
1 6-7
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 25
Audio 22
AUTO ACCESS SEAT 29-30
Auto lock/unlock
2 10
Automatic transmission 10
Bird’s Eye View Camera
with Perimeter Scan Function 27
Blind Spot Monitor (BSM) 20
Bottle holders 26
Cup holders 13
Door locks 10
Doors-Power sliding 17
Driver Easy Speak 20
Enhanced VSC OFF button 28
Garage door
opener (HomeLink
®)2,3 23
Hill-start Assist Control (HAC) 27
Lights
1 & turn signals 11-12
Moonroof 19
Parking brake 11
Power back door 18
Power outlets-12V DC 21
Power outlets-120V AC 21
Rear seat entertainment system 28
Rear view monitor system 26
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat heaters 26
Seats-Head restraints 17Seats-Removing
2nd row center seat 15
Seats-Removing
2nd row outside seats 15
Seats-Stowing 3rd row seats 16
Steering lock release 30
Steering wheel switches
& telephone controls (Bluetooth
®) 24
Sunshade-Side 19
Tilt & telescopic steering wheel 20
USB charging ports 23
Windows-Power 18
Windows-Quarter 19
Windshield wipers & washers 12
Child restraint anchors 41
Floor mat installation 45
Rear door child safety locks 41
Seat belts 42
Seat belts-Shoulder belt anchor 41
Spare tire & tools 43
Star Safety System
TM 44-45
Tire Pressure Monitoring
(warning) System (TPMS) 42
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 40
Dynamic Radar
Cruise Control (DRCC) 37-39
Lane Departure Alert with Steering
Assist function (LDA w/SA) 34-36
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 32-34
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 31
Sensors 31

2
OVERVIEW

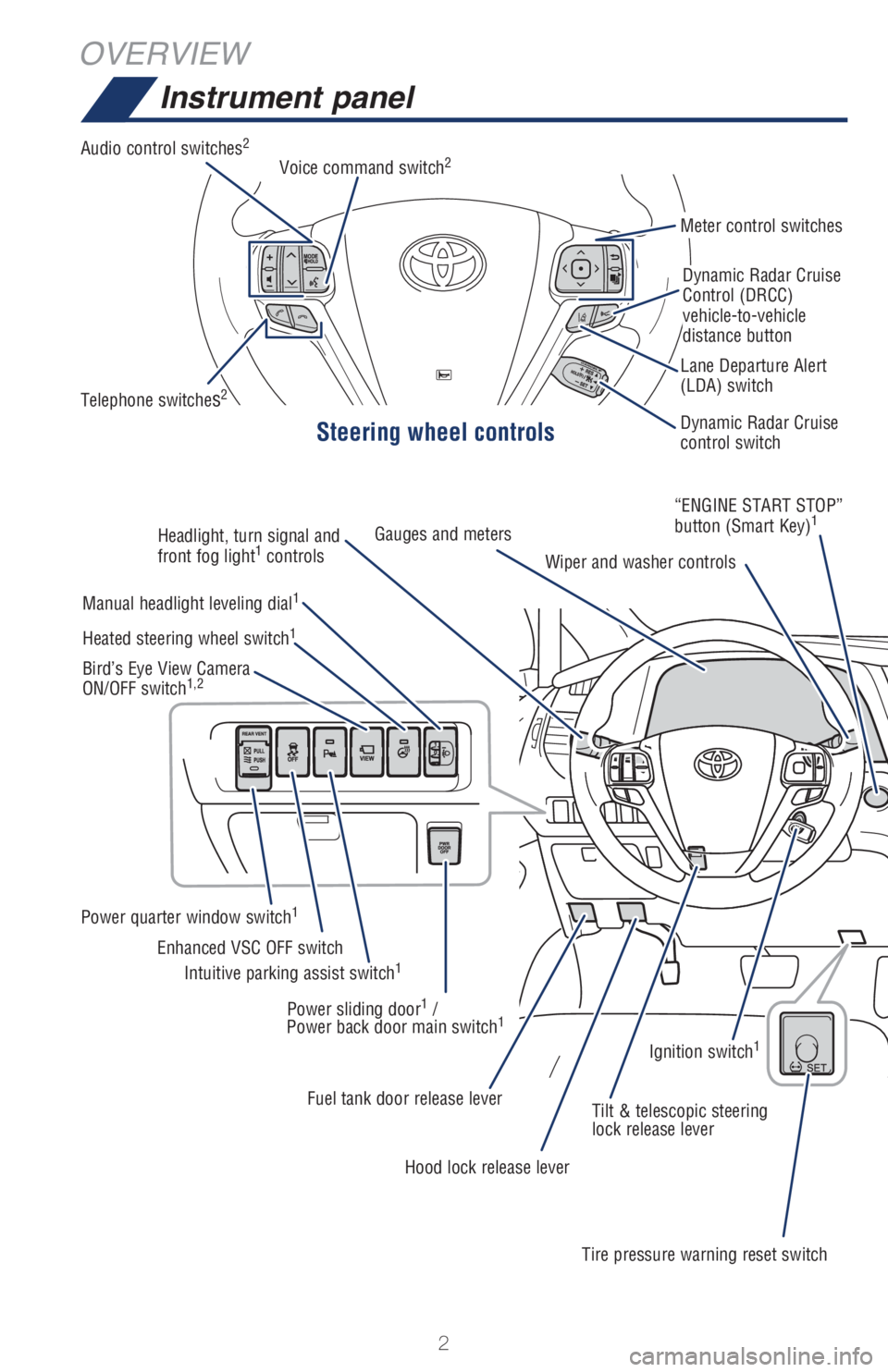

Instrument panel
Steering wheel controls
Audio control switches2
Telephone switches2
Meter control switches
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button
Dynamic Radar Cruise
control switch Lane Departure Alert
(LDA) switch Voice command switch
2
Headlight, turn signal and
front fog light1
controlsGauges and meters
Wiper and washer controls“ENGINE START STOP”
button (Smart Key)
1
Manual headlight leveling dial1
Power quarter window switch1
Intuitive parking assist switch1Enhanced VSC OFF switch Heated steering wheel switch
1
Bird’s Eye View Camera
ON/OFF switch1,2
Power sliding door1 /
Power back door main switch1
Fuel tank door release lever
Tilt & telescopic steering
lock release lever
Hood lock release lever
Tire pressure warning reset switchIgnition switch
1

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

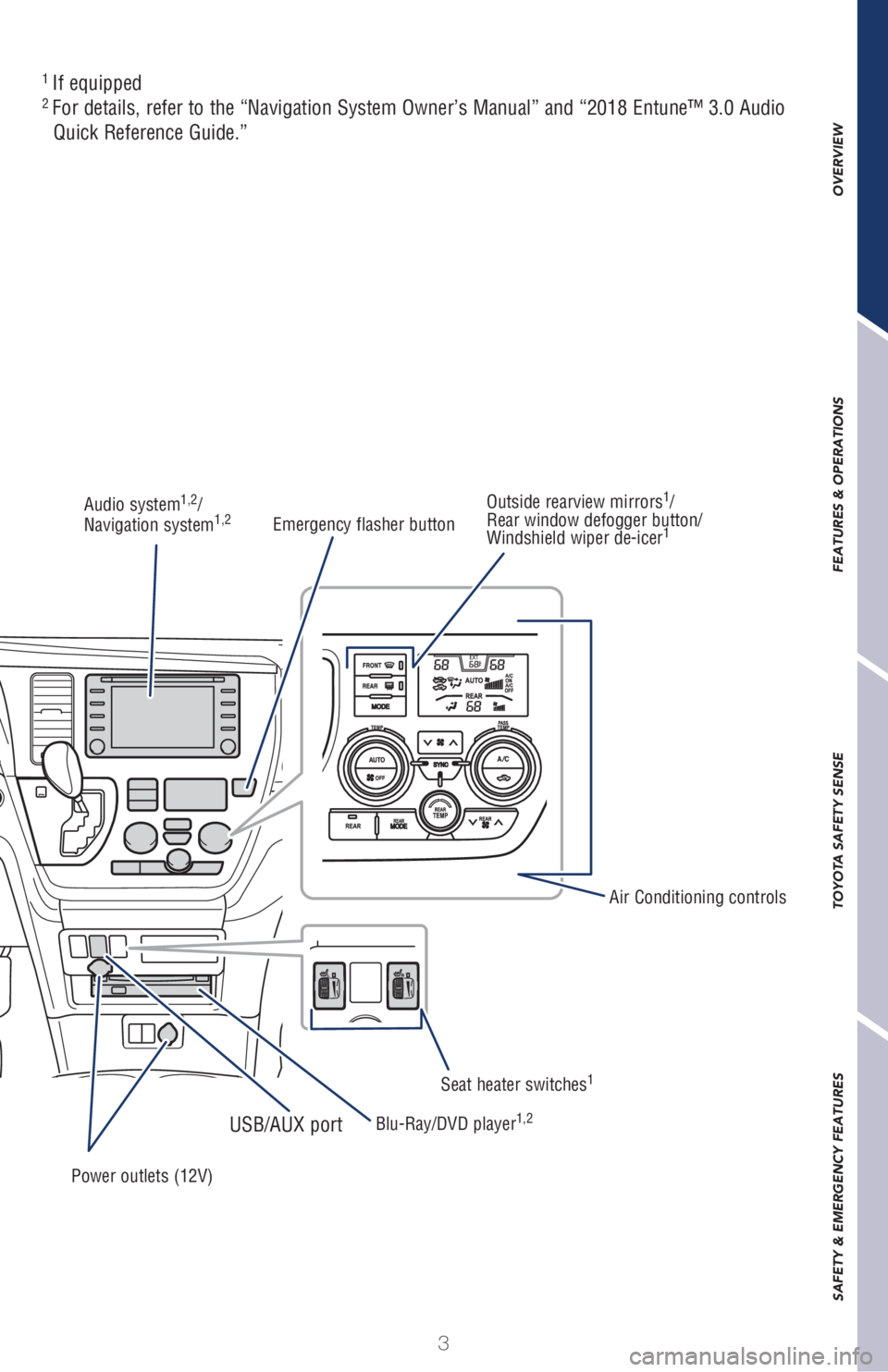

Audio system1,2/
Navigation system1,2
Blu-Ray/DVD player1,2USB/AUX port
Power outlets (12V) Emergency flasher button

Air Conditioning controls
Seat heater switches
1
Outside rearview mirrors1/
Rear window defogger button/
Windshield wiper de-icer
1
1
If equipped2
For details, refer to the “Navigation System Owner’s Manual” and “2018 Entune™ 3.0 Audio
Quick Reference Guide.”

4
ODO1000 miles
68°FExterior
OVERVIEW

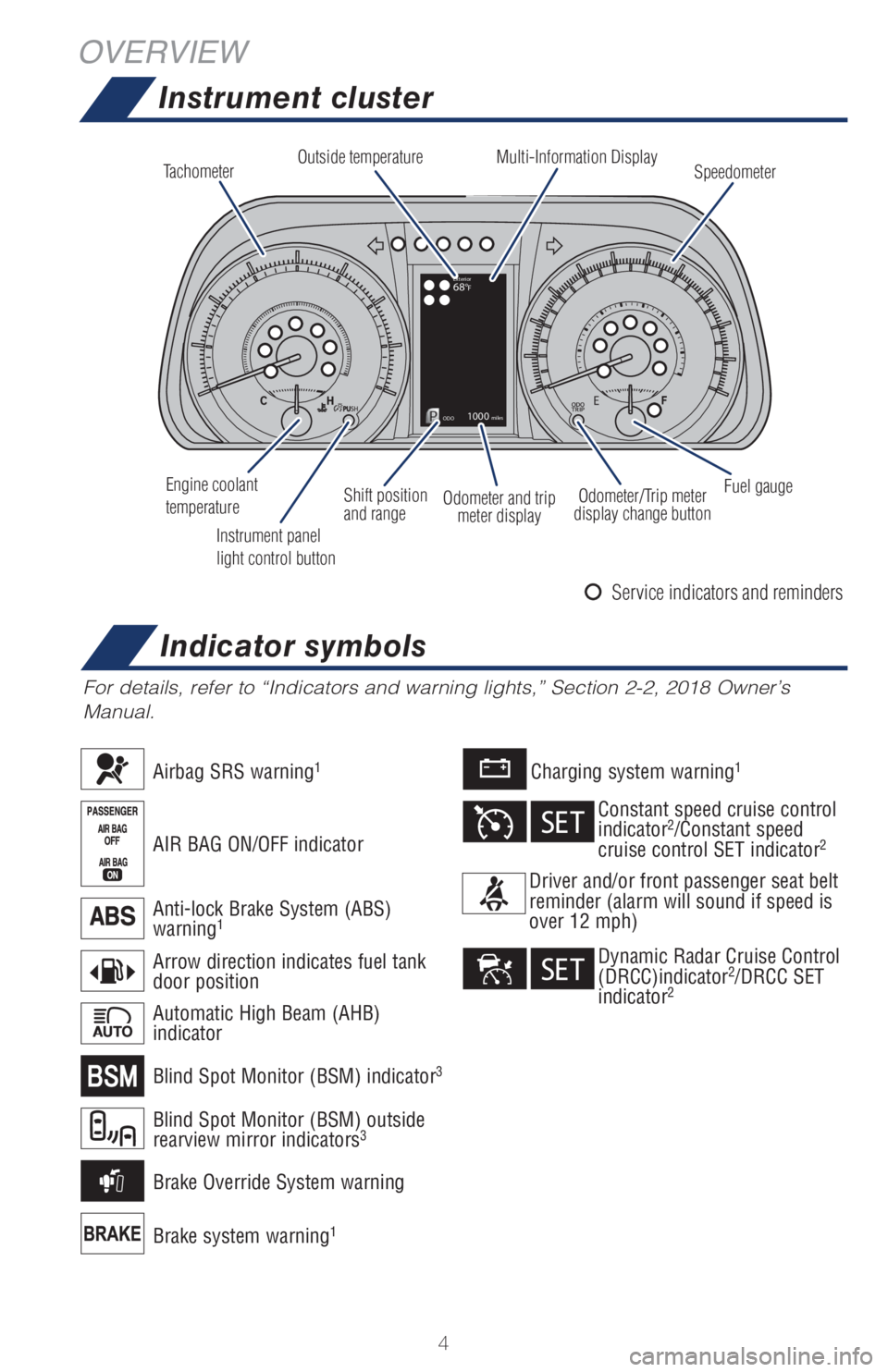

Instrument cluster
For details, refer to “Indicators and warning lights,” Section 2-2, 2018 Owner’s
Manual.
Tachometer
Speedometer Multi-Information Display Outside temperature
Engine coolant
temperature
Instrument panel
light control buttonOdometer and trip
meter display Shift position
and rangeOdometer/Trip meter
display change buttonFuel gauge
Charging system warning1
Brake system warning1
AIR BAG ON/OFF indicator
Airbag SRS warning1
Arrow direction indicates fuel tank
door position
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM) outside
rearview mirror indicators3
Blind Spot Monitor (BSM) indicator3
Brake Override System warning
Driver and/or front passenger seat belt
reminder (alarm will sound if speed is
over 12 mph)
Constant speed cruise control
indicator2/Constant speed
cruise control SET indicator2
Dynamic Radar Cruise Control
(DRCC)indicator2/DRCC SET
indicator2
Indicator symbols
Service indicators and reminders

5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1
If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Dynamic Radar Cruise Control,” Section 4-5, 2018 Owner’s Manual.3 If equipped.

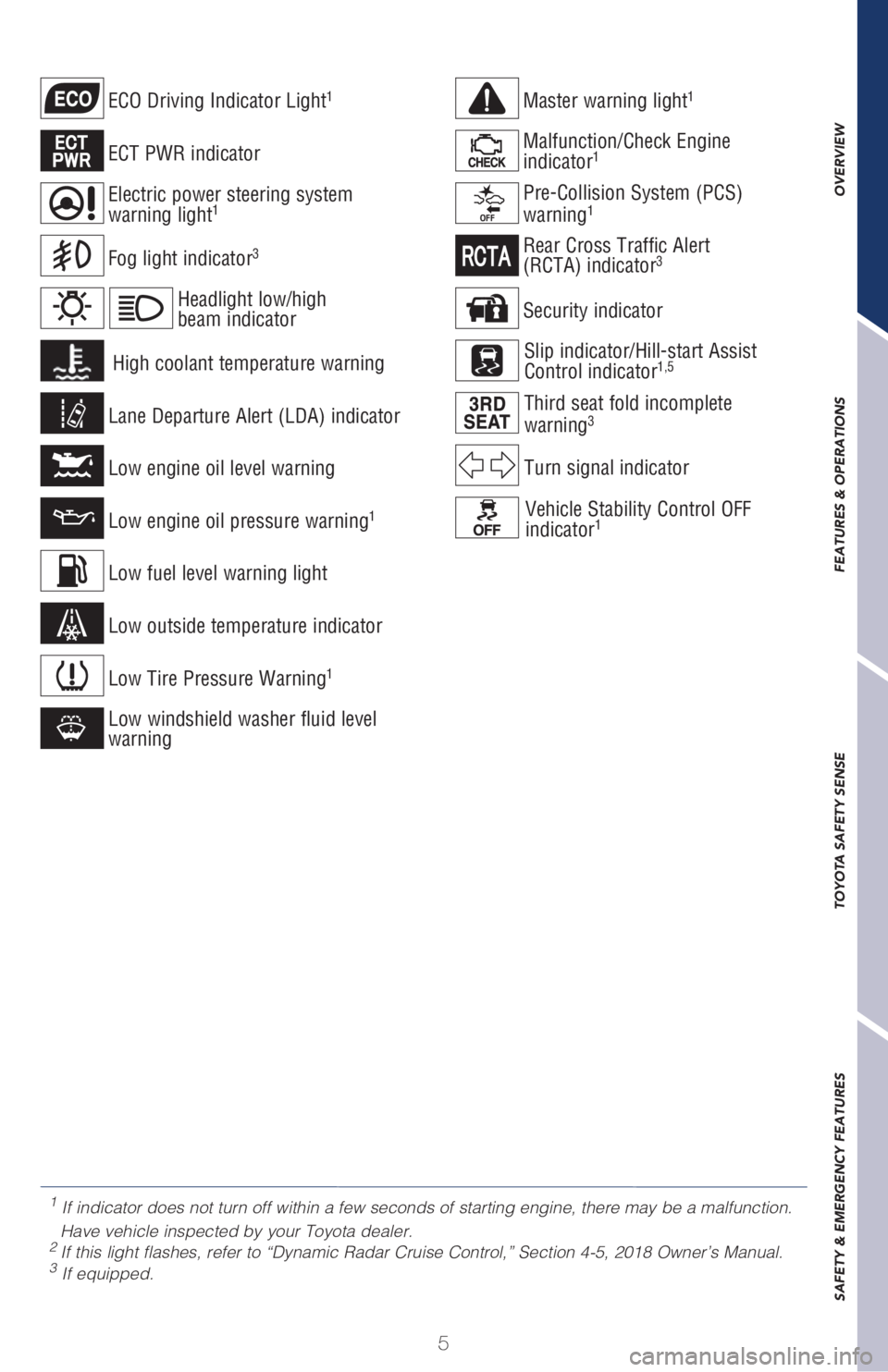

Turn signal indicator
Fog light indicator3
High coolant temperature warning
Low engine oil pressure warning
1
Low Tire Pressure Warning1
Master warning light1
Low fuel level warning light
Lane Departure Alert (LDA) indicator
Low engine oil level warning
Electric power steering system
warning light1
Security indicator
ECO Driving Indicator Light1
ECT PWR indicator
Low outside temperature indicator
Vehicle Stability Control OFF
indicator1
Third seat fold incomplete
warning3
Slip indicator/Hill-start Assist
Control indicator1,5
Low windshield washer fluid level
warning
Rear Cross Traffic Alert
(RCTA) indicator3
Malfunction/Check Engine
indicator1
Pre-Collision System (PCS)
warning1
Headlight low/high
beam indicator

6

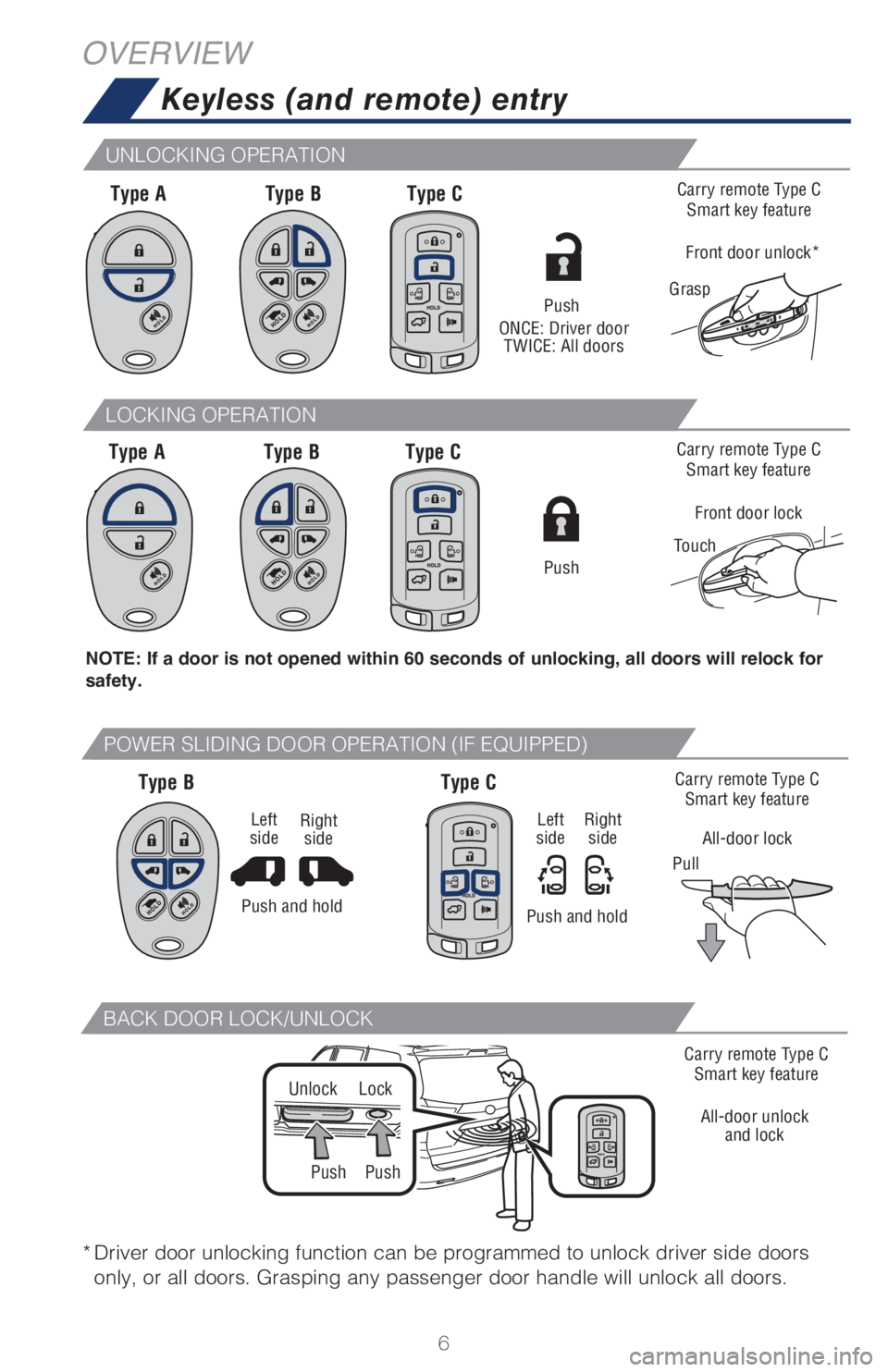

Keyless (and remote) entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Type A
Type AType B
Type BType C
Type C
* Driver door unlocking function can be programmed to unlock driver side doors
only, or all doors. Grasping any passenger door handle will unlock all doors.
Push
ONCE: Driver door
TWICE: All doors
Carry remote Type C
Smart key feature
Front door lock
Touch
Carry remote Type C
Smart key feature
All-door lock
PullCarry remote Type C
Smart key feature
Grasp
Front door unlock*
Push
Type B Type C
LOCKING OPERATION
UNLOCKING OPERATION
POWER SLIDING DOOR OPERATION (IF EQUIPPED)
Push
Unlock
PushLock
Carry remote Type C
Smart key feature
All-door unlock
and lock
BACK DOOR LOCK/UNLOCK
Push and hold
Right
side Left
side
Push and holdRight
side Left
side

7
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

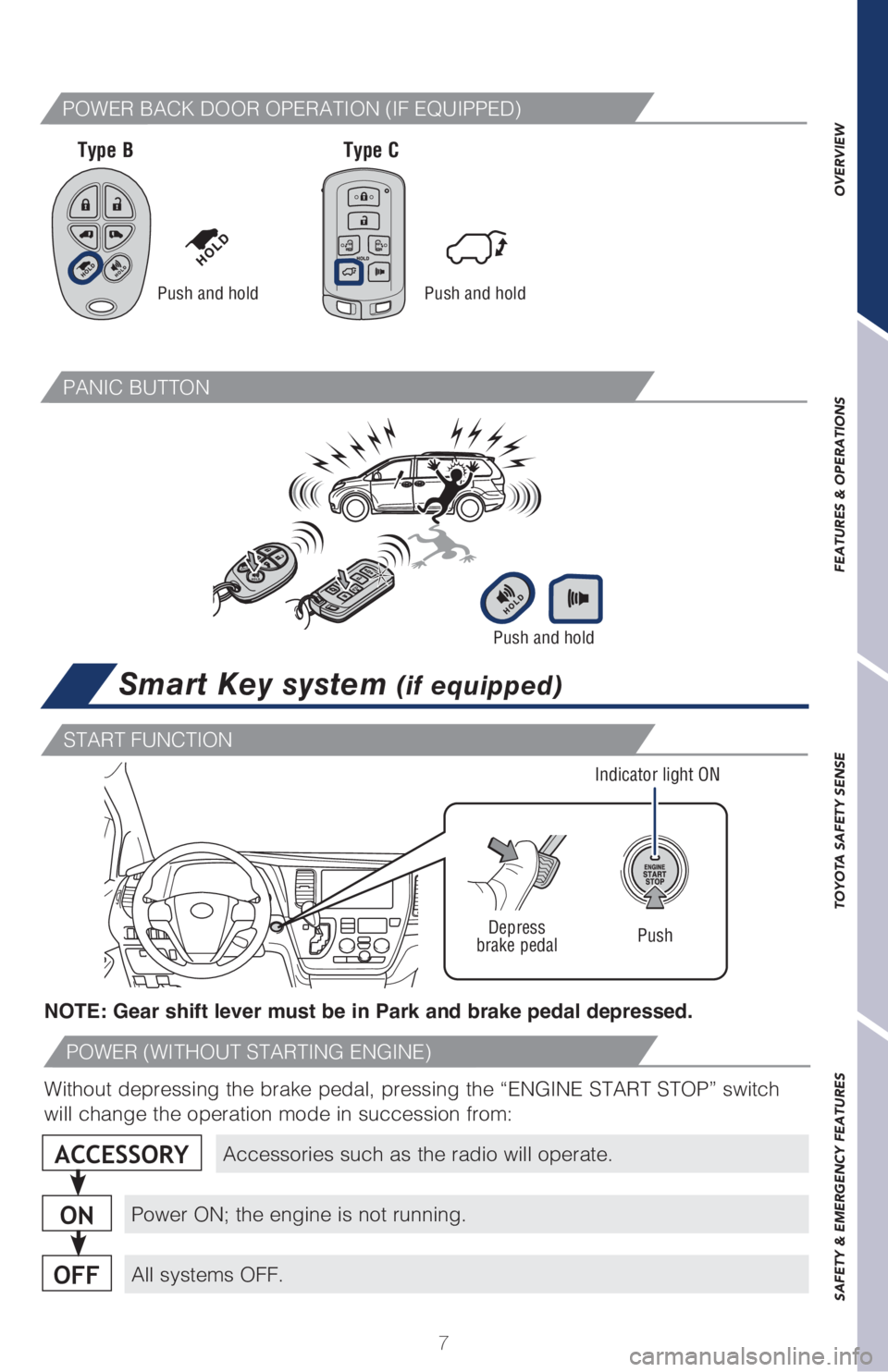

Smart Key system (if equipped)
Push and hold
Accessories such as the radio will operate.
Power ON; the engine is not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedal
Indicator light ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Push and hold
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Push and hold
Type B Type C
POWER BACK DOOR OPERATION (IF EQUIPPED)
PANIC BUTTON

8
OVERVIEW
Pull up
Store
Turn to close
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Pull up latch and
raise hoodPull
Insert rod to hold
hood open
Turn to open

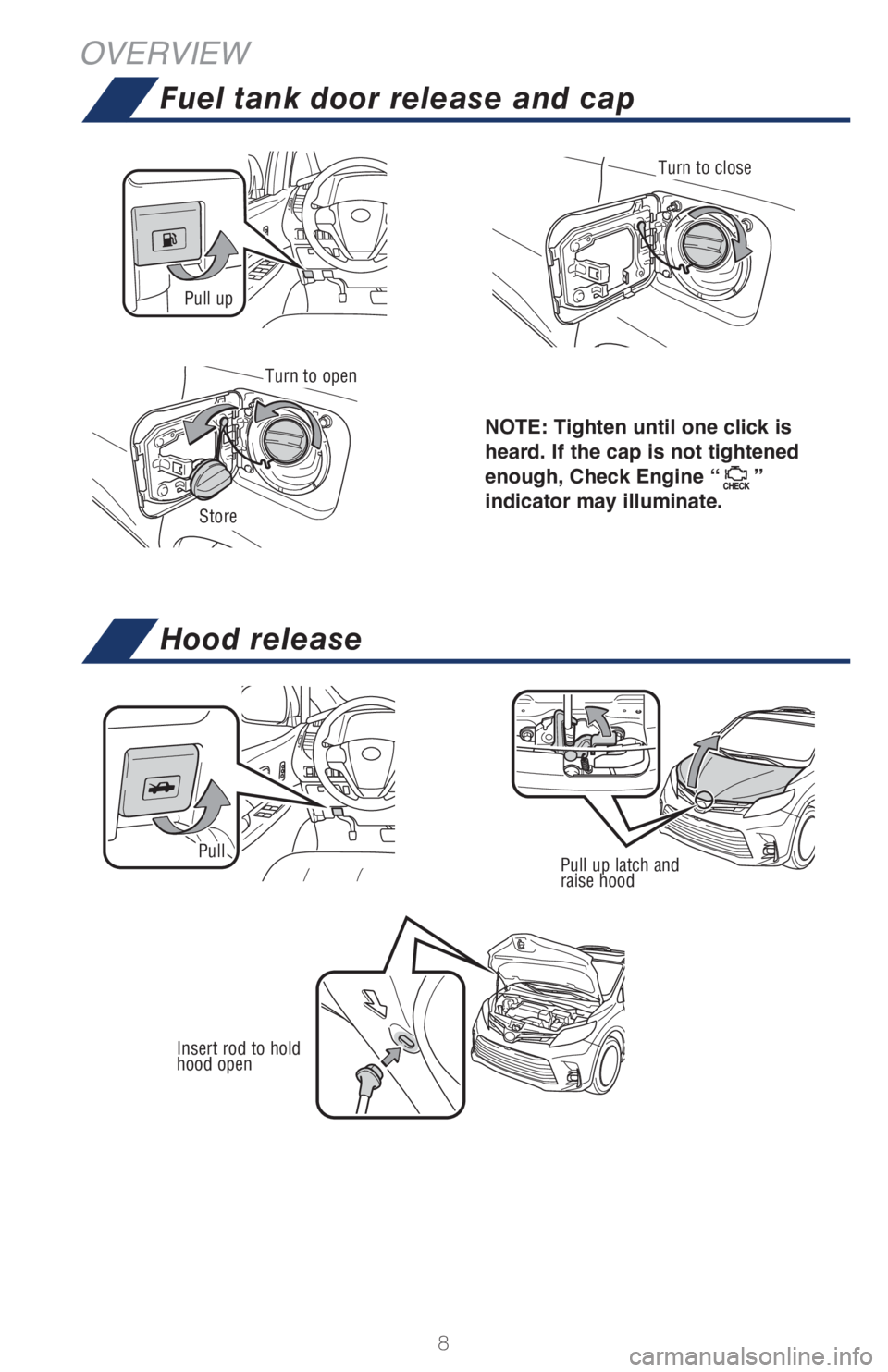

Fuel tank door release and cap
Hood release
