TOYOTA SOLARA 1999 User Guide

SOLARA_U11
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZ RI- 4ATY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
For vehicles sold in CanadaThis device complies with RSS- 210 of
industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

SOLARA_U
12
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Both doors lock and unlock simultaneously
with either door. In the driver's door lock,
turning the key once will unlock the driv-
er's door and twice in succession will un-
lock both doors simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK BUTTON
Move the lock button.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch.Driver's side
Passenger's side

SOLARA_U13
LOCKING AND UNLOCKING WITH POW-
ER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Both doors lock or unlock simultaneously.
ÐWireless remote control
Locking operation
Unlocking operationYour vehicle has a wireless remote
control system that can lock or unlock
both doors, or activate the theft
deterrent system from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE DOORS
To lock and unlock both doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the ºLOCKº switch. Both
doors are locked simultaneously. At this
time, parking lights, side marker lights and
tail lights flash.
Check to see that the doors are securely
locked.
If either doors is not securely closed, or
if the key is in the ignition switch, locking
cannot be performed by the ºLOCKº
switch.
To unlock: Push the ºUNLOCKº switch
once to unlock the driver 's door alone.
Pushing the switch twice within 3 seconds
unlocks both doors simultaneously. At this
time, parking lights, side marker lights and
tail lights flash twice.

SOLARA_U
14
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both
doors will be automatically locked again.
If the ºLOCKº or ºUNLOCKº switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
ºPANICº SWITCH
Pushing the ºPANICº switch blows the
horn intermittently and flashes the
headlights and tail lights.
The ºPANICº switch is used to deter the
vehicle theft when you witness anyone at-
tempting to brake into or damage your
vehicle.
The alarm will last for one minute. To stop
this in the midway, push the ºPANICº
switch once again, unlock any door with
the key or transmitter, or turn the ignition
key from the ºLOCKº to ºONº position.
The ºPANICº mode does not work when
the ignition key is in the ºONº position.
WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage on the transmitter.
Do not leave the transmitter on the
places where the temperature becomes
high such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:

SOLARA_U15

Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been con-
sumed. Check the batteries in the
transmitter. To replace the batteries,
see ºREPLACING TRANSMITTER BAT-
TERYº. REPLACING TRANSMITTER BATTERY
For replacement, use CR2032 battery or
equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
During replacing the terminal bat-
tery, do not push the ºLOCKº andºUNLOCKº switches many times.
When replacing the terminal battery,
be careful not to lose the compo-nents.
Replace the transmitter battery by the fol-
lowing procedures:

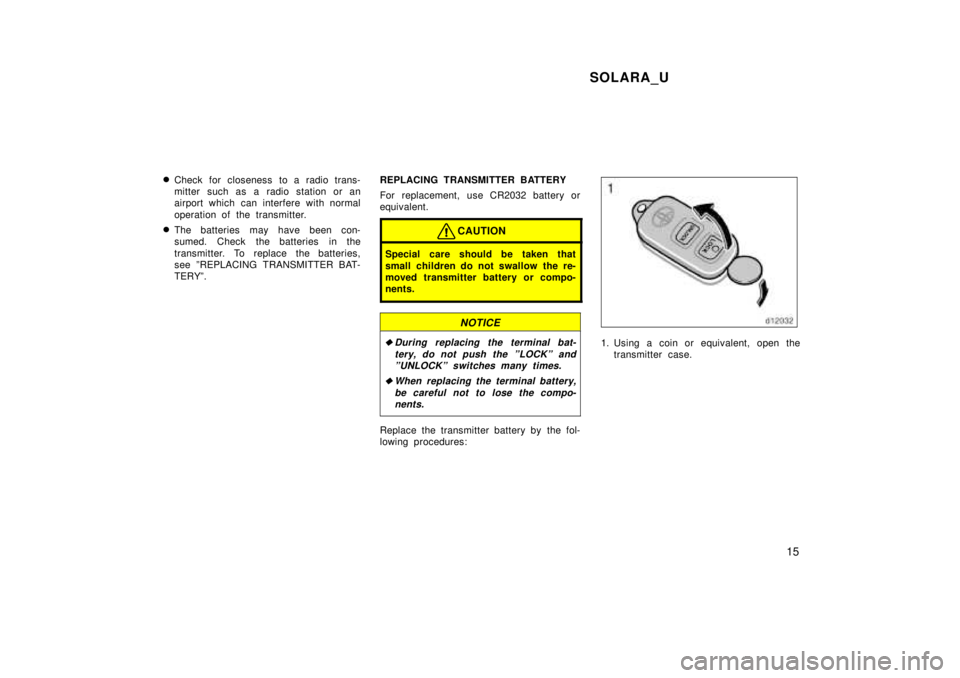

1. Using a coin or equivalent, open the transmitter case.

SOLARA_U
16

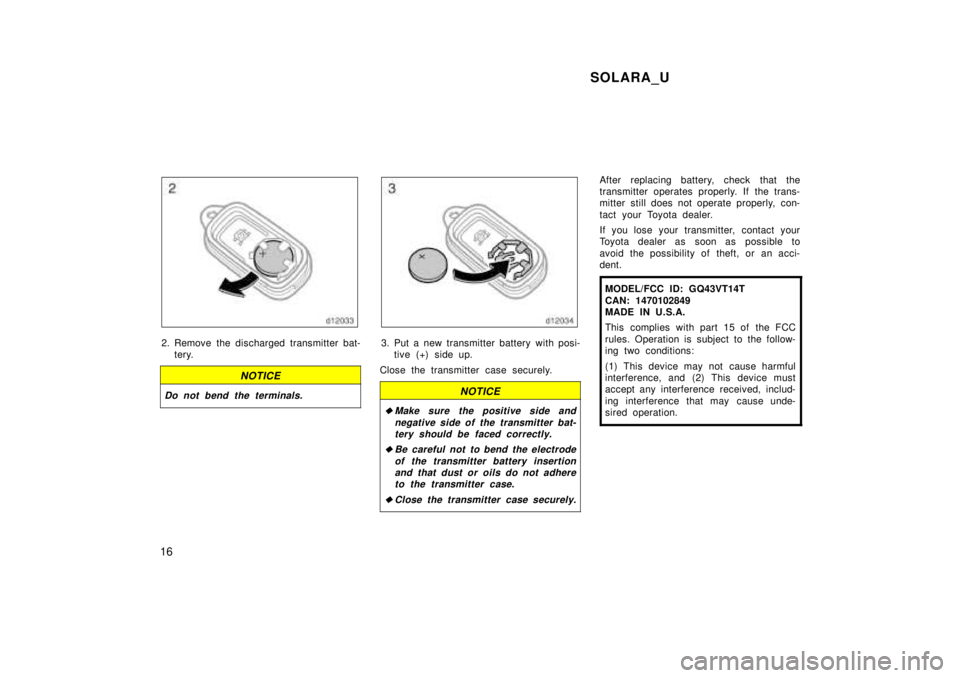

2. Remove the discharged transmitter bat- tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and negative side of the transmitter bat-tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertionand that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
MODEL/FCC ID: GQ43VT14T
CAN: 1470102849
MADE IN U.S.A.
This complies with part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

SOLARA_U17
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the ºONº position. However,
if both doors are closed, they work for 45
seconds even after the ignition switch is
turned off. They stop working when either
door is opened.

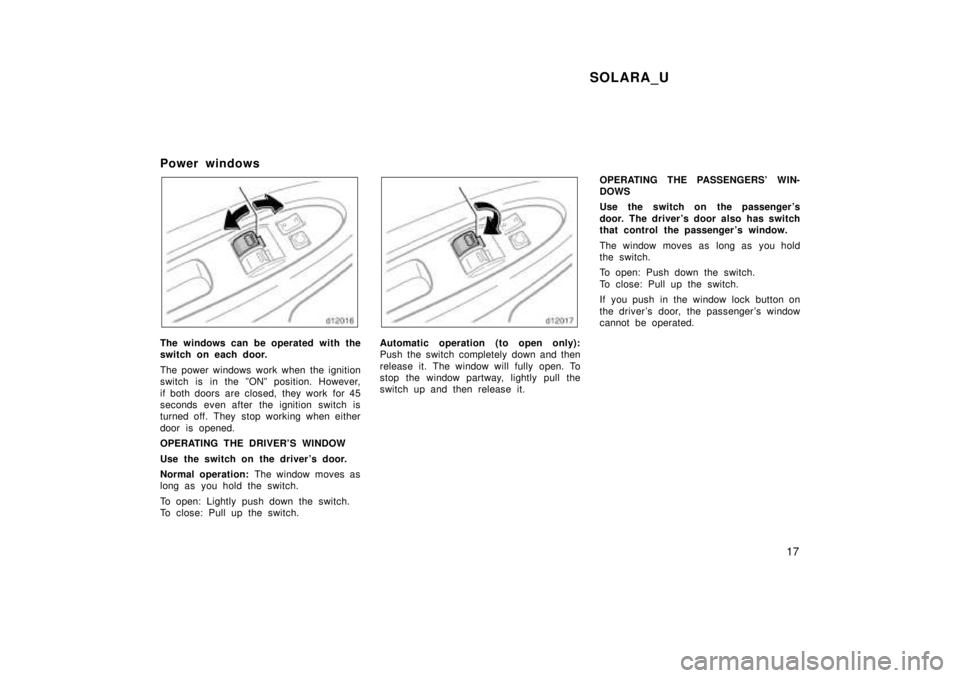

OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation:
The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the

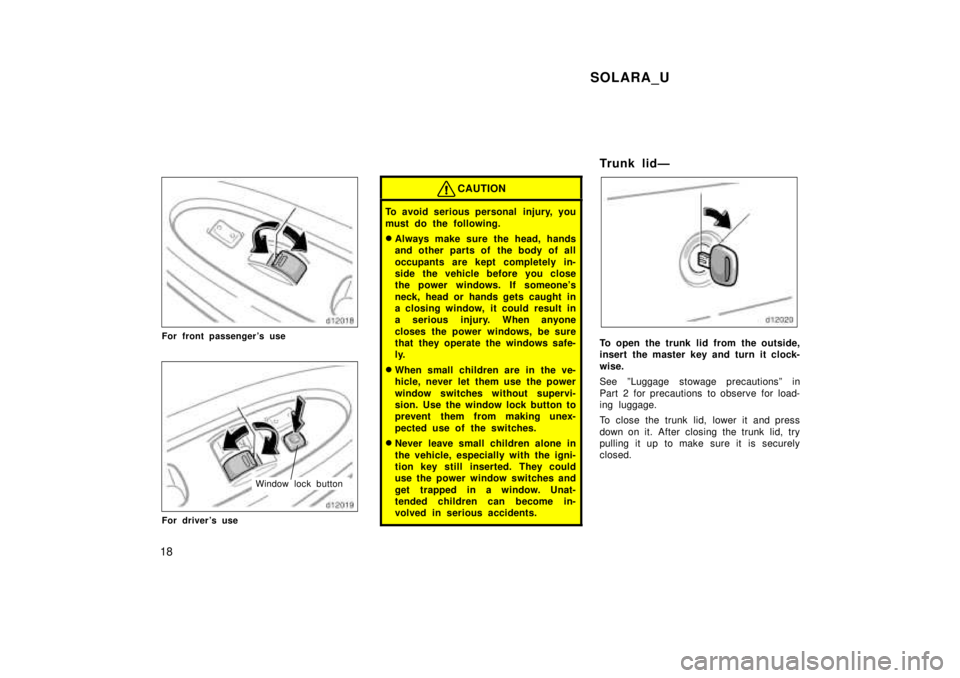

switch up and then release it. OPERATING THE PASSENGERS' WIN-DOWS
Use the switch on the passenger 's
door. The driver 's door also has switch
that control the passenger 's window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver 's door, the passenger 's window
cannot be operated.

SOLARA_U
18
For front passenger's use
Window lock button
For driver's use
CAUTION
To avoid serious personal injury, you
must do the following. Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Trunk lidÐ
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See ºLuggage stowage precautionsº in
Part 2 for precautions to observe for load-
ing luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.

SOLARA_U19
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

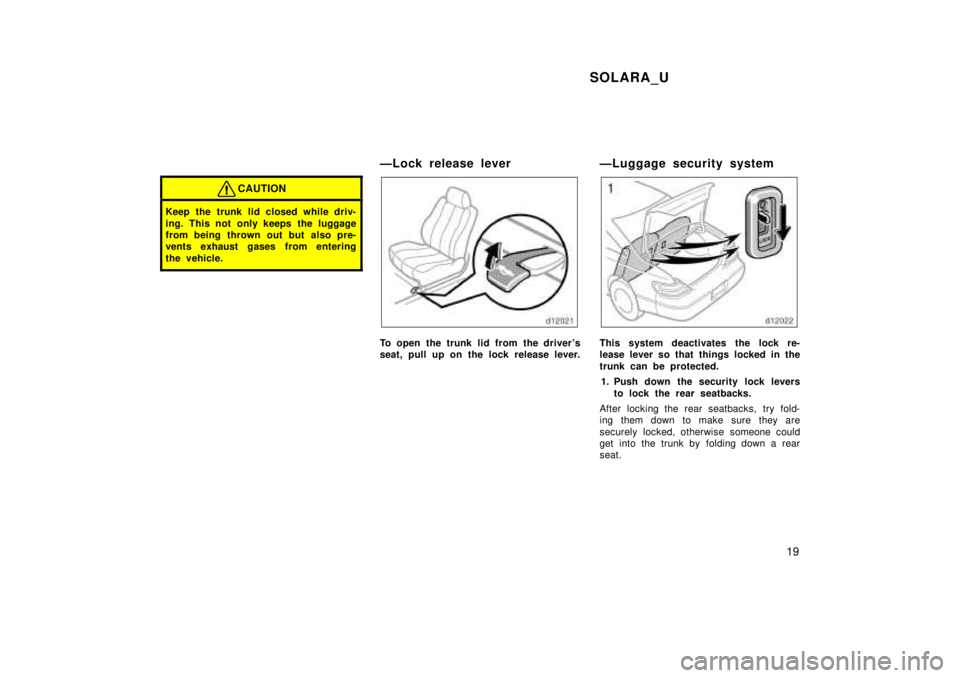

ÐLock release lever
To open the trunk lid from the driver's
seat, pull up on the lock release lever. ÐLuggage security systemThis system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.

SOLARA_U
20
2. After closing the trunk lid, insert the master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked. HoodTo open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up the auxiliary catch l ever and lift the
hood.
