TOYOTA SOLARA 1999 Owners Manual

SOLARA_U1
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel

SOLARA_U
2

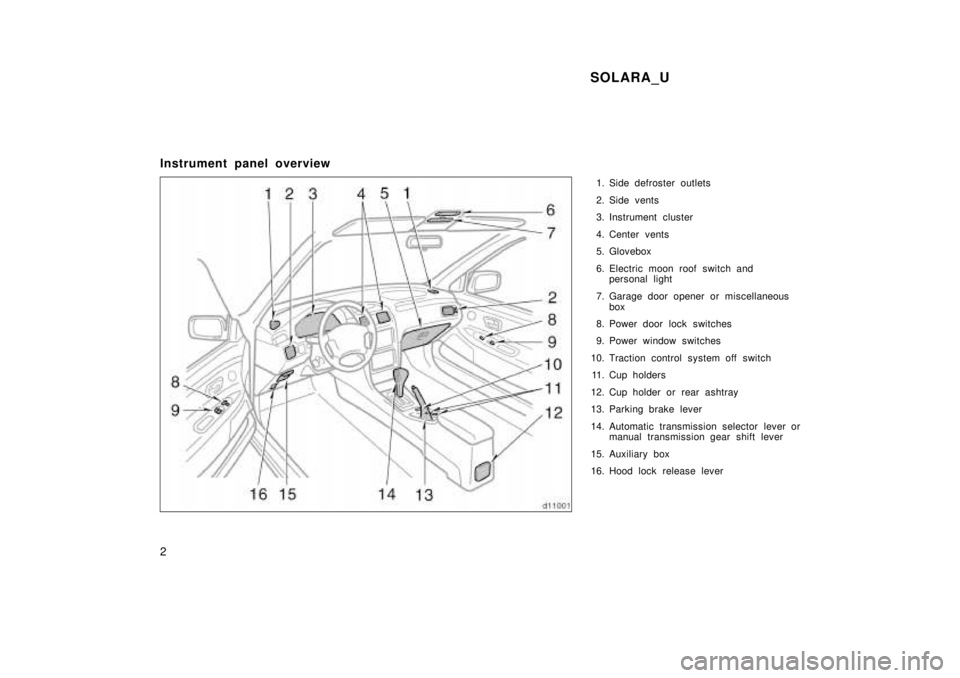

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Glovebox
6. Electric moon roof switch andpersonal light
7. Garage door opener or miscellaneous box
8. Power door lock switches
9. Power window switches
10. Traction control system off switch 11. Cup holders
12. Cup holder or rear ashtray
13. Parking brake lever
14. Automatic transmission selector lever or manual transmission gear shift lever
15. Auxiliary box
16. Hood lock release lever

SOLARA_U3

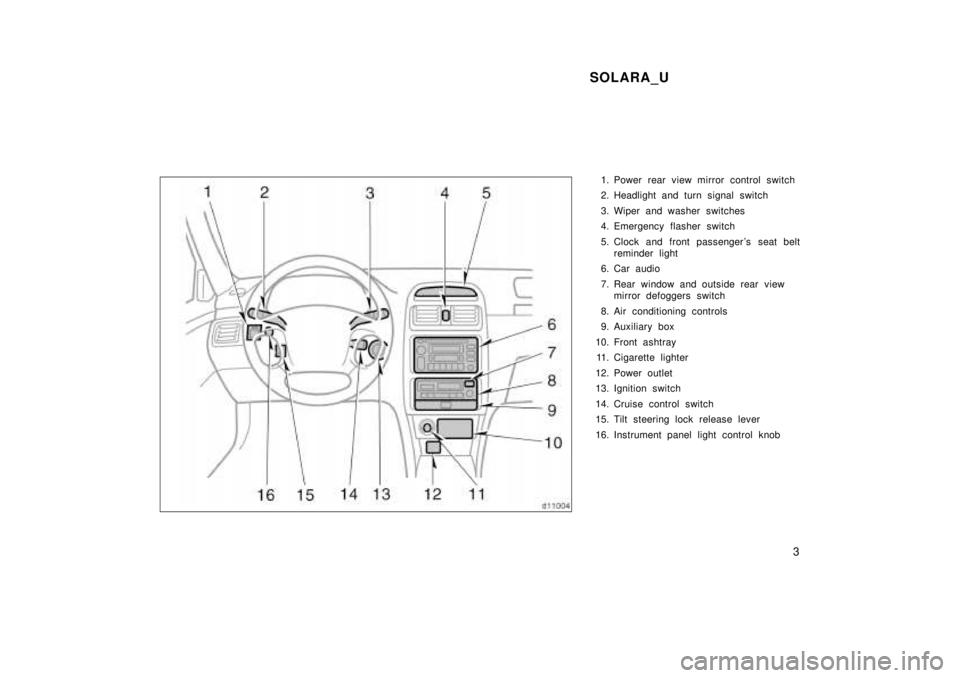

1. Power rear view mirror control switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock and front passenger 's seat belt
reminder light
6. Car audio
7. Rear window and outside rear view mirror defoggers switch
8. Air conditioning controls
9. Auxiliary box
10. Front ashtray 11. Cigarette lighter
12. Power outlet
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Instrument panel light control knob

SOLARA_U
4

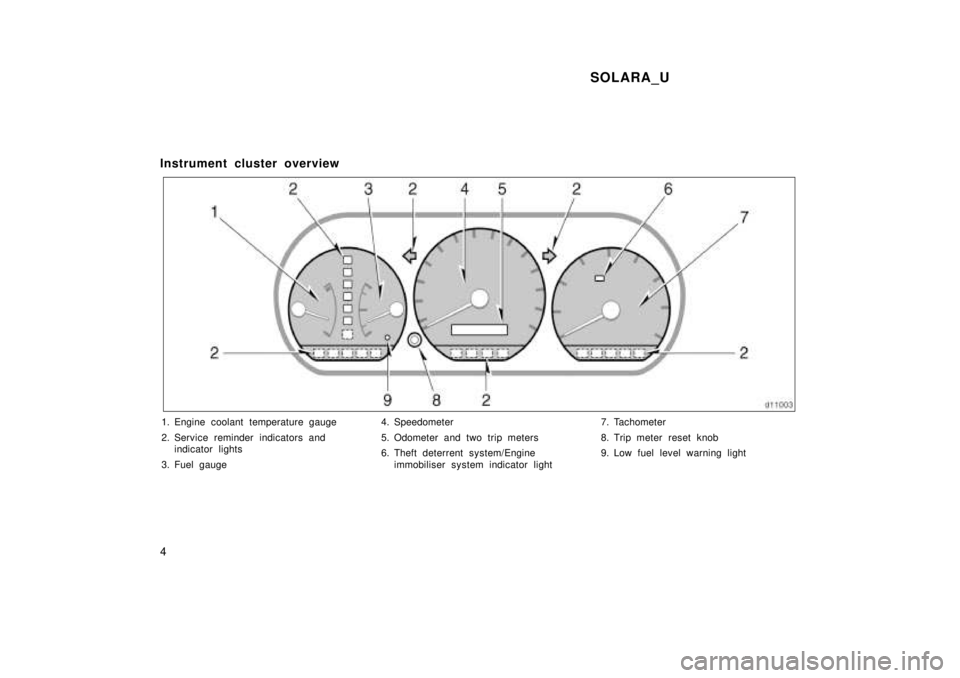

Instrument cluster overview
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Fuel gauge 4. Speedometer
5. Odometer and two trip meters
6. Theft deterrent system/Engine
immobiliser system indicator light 7. Tachometer
8. Trip meter reset knob
9. Low fuel level warning light

SOLARA_U5
Indicator symbols on the instrument panel
Brake system warning light
*
1
Driver 's seat belt reminder light *
1
Discharge warning light *
1
Malfunction indicator lamp *
1
Low oil pressure warning light *
1
(type A)
(type B)Anti-lock brake system warning light
*
1
(type A)
(type B)
Open door warning light
*
1
Rear light failure warning light *
1
SRS airbag warning light *
1
Low windshield washer fluid level warning
light *
1
Traction control system off indicator/warning
light *
1
Front passenger 's seat belt reminder light *
1

SOLARA_U
6
Automatic transmission indicator light
* 1
: For details, see ºService reminder indicators and warning
buzzersº in Chapter 1- 5.
* 2
: If this light flashes, see ºCruise controlº in Chapter 1- 6. Slip indicator light
Overdrive- off indicator light
Cruise control indicator light
*
2
Headlight high beam indicator light
Turn signal indicator lights

SOLARA_U7
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 2
Keys and Doors
Keys
Engine immobiliser system
Side doors
Power windows
Trunk lid
Hood
Theft deterrent system
Fuel tank cap
Electric moon roof

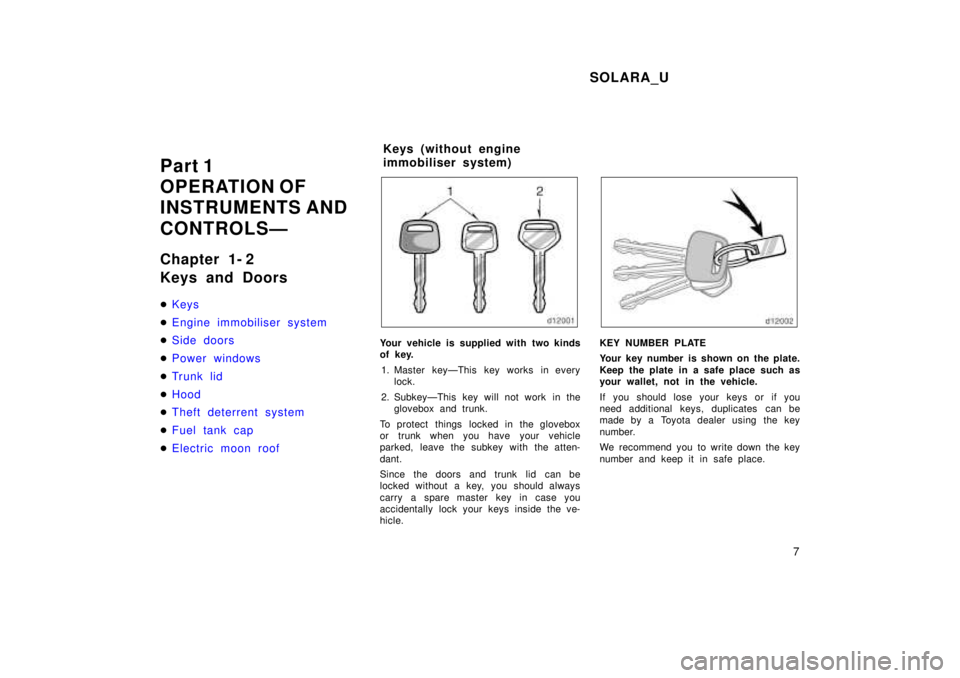

Your vehicle is supplied with two kinds
of key.
1. Master keyÐThis key works in every lock.
2. SubkeyÐThis key will not work in the glovebox and trunk.
To protect things locked in the glovebox
or trunk when you have your vehicle
parked, leave the subkey with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Keys (without engine
immobiliser system)

SOLARA_U
8

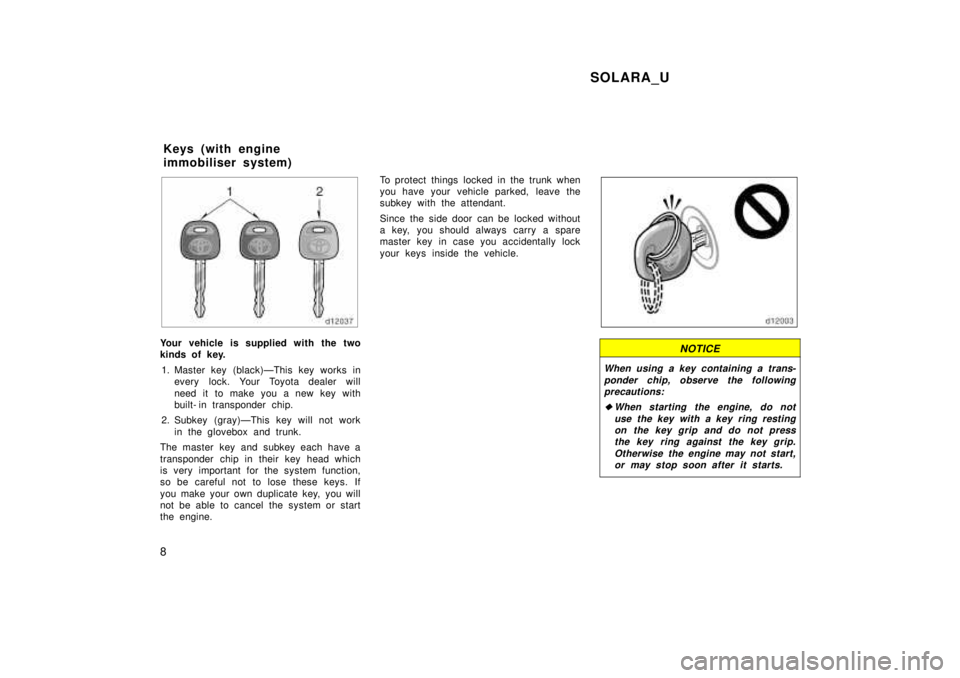

Your vehicle is supplied with the two
kinds of key. 1. Master key (black)ÐThis key works in every lock. Your Toyota dealer will
need it to make you a new key with
built- in transponder chip.
2. Subkey (gray)ÐThis key will not work in the glovebox and trunk.
The master key and subkey each have a
transponder chip in their key head which
is very important for the system function,
so be careful not to lose these keys. If
you make your own duplicate key, you will
not be able to cancel the system or start
the engine. To protect things locked in the trunk when
you have your vehicle parked, leave the
subkey with the attendant.
Since the side door can be locked without
a key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.NOTICE
When using a key containing a trans-
ponder chip, observe the followingprecautions:
When starting the engine, do not
use the key with a key ring restingon the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,or may stop soon after it starts.
Keys (with engine
immobiliser system)

SOLARA_U9
When starting the engine, do notuse the key with other transponderkeys around (including keys of oth- er vehicles) and do not press other
key plates against the key grip.Otherwise the engine may not start,or may stop soon after it starts. If
this happens, remove the key onceand then insert it again after takingoff other transponder keys (includ-
ing keys of other vehicles) from thering or while gripping or coveringthem with your hand to start the
engine.Do not bend the key grip.
Do not cover the key grip with anymaterial that cuts off electromagnet-ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,such as on the dashboard and hoodunder the direct sunlight.
Do not put the key in water or wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.

SOLARA_U
10

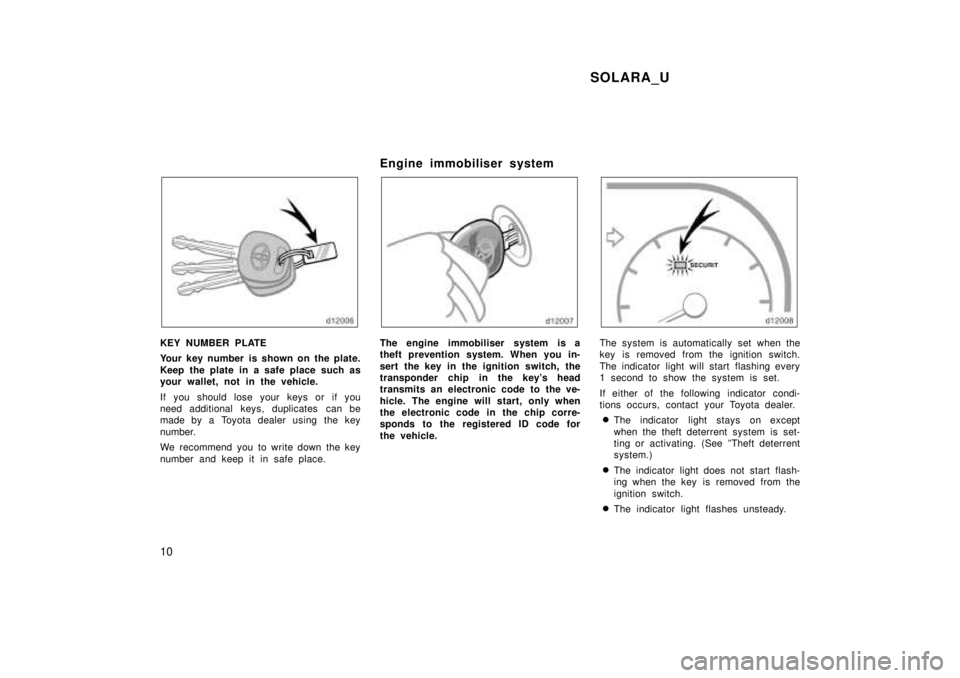

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place. Engine immobiliser systemThe engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
1 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See ºTheft deterrent
system.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
