TOYOTA SOLARA 2000 (in English) Owner's Guide
Manufacturer: TOYOTA, Model Year: 2000, Model line: SOLARA, Model: TOYOTA SOLARA 2000Pages: 256, PDF Size: 4.65 MB
Page 31 of 256
SOLARA_U
26
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
Page 32 of 256
SOLARA_U
27
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts,Steering wheel and Mirrors
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Fold−down rear seat 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Head restraints 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and front passenger airbags 43
. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Child restraint 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti−glare inside rear view mirror 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti−glare inside rear view mirror 71
. . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1− 3
Page 33 of 256
SOLARA_U
28
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded−down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.
Do not modify or replace the seats
or surface of the front seats with
the side airbags. Such changes may
disable the system or cause the
side airbags to inflate, resulting in
death or serious injury. Consult
your Toyota dealer.
Do not use accessories for the
seats which cover the parts where
the side airbags should inflate.
Such accessories may prevent the
side airbags from activating correct-
ly, causing death or serious injury.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat−lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
Front seats
Front seat precautions
(with SRS side airbags)Seat adjustment
precautions
Page 34 of 256
SOLARA_U
29
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch

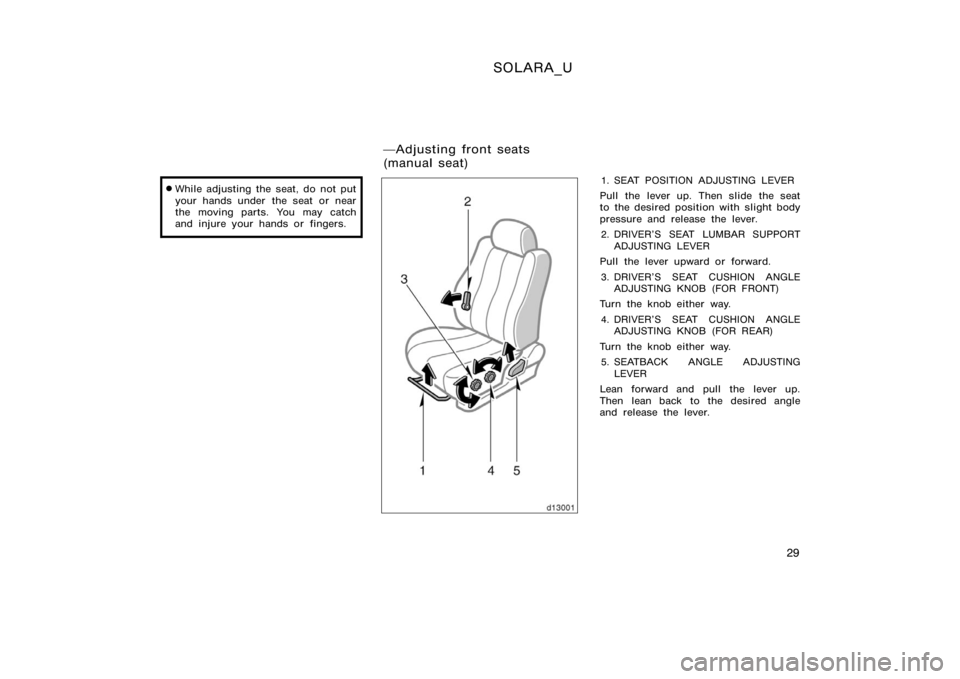

and injure your hands or fingers.1. SEAT POSITION ADJUSTING LEVER
Pull the lever up. Then slide the seat
to the desired position with slight body
pressure and release the lever. 2. DRIVER’S SEAT LUMBAR SUPPORT ADJUSTING LEVER
Pull the lever upward or forward.
3. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB (FOR FRONT)
Turn the knob either way.
4. DRIVER’S SEAT CUSHION ANGLE ADJUSTING KNOB (FOR REAR)
Turn the knob either way. 5. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
Adjusting front seats
(manual seat)
Page 35 of 256
SOLARA_U
30
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.

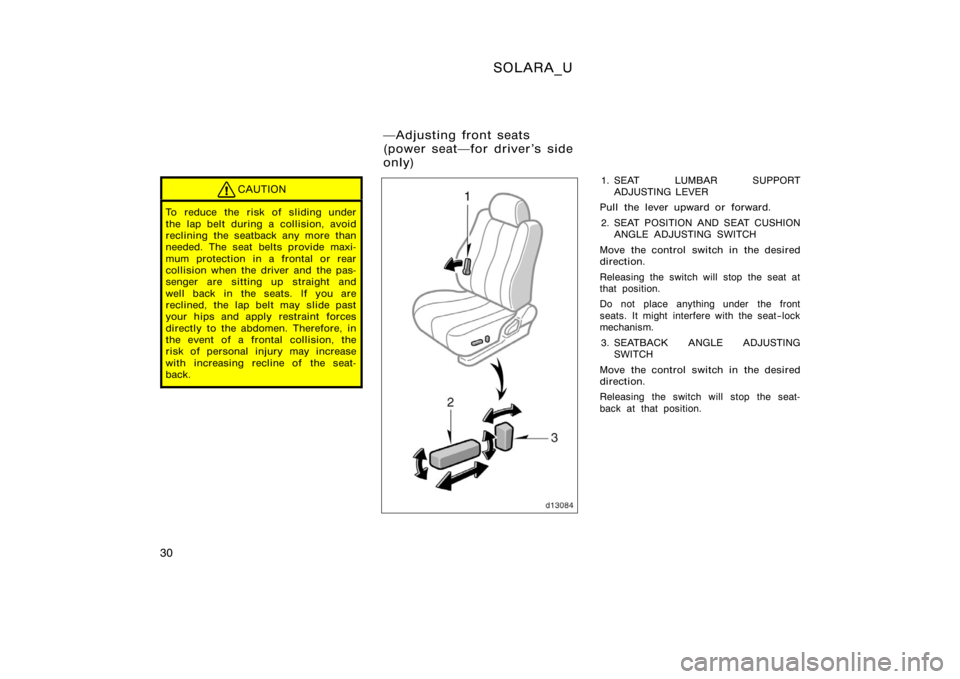

1. SEAT LUMBAR SUPPORTADJUSTING LEVER
Pull the lever upward or forward.
2. SEAT POSITION AND SEAT CUSHION ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats. It might interfere with the seat−lock
mechanism. 3. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
Adjusting front seats
(power seatfor driver ’s side
only)
Page 36 of 256
SOLARA_U
31
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a formal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.

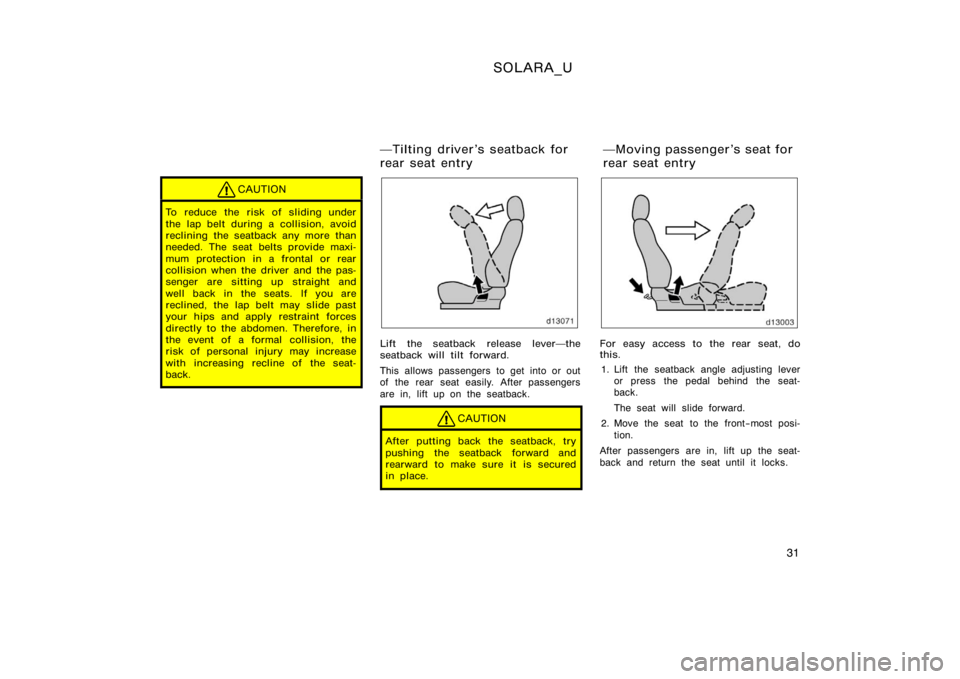

Lift the seatback release leverthe
seatback will tilt forward.
This allows passengers to get into or out
of the rear seat easily. After passengers
are in, lift up on the seatback.
CAUTION
After putting back the seatback, try
pushing the seatback forward and
rearward to make sure it is secured
in place.
For easy access to the rear seat, do
this.1. Lift the seatback angle adjusting lever or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the front−most posi- tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
Tilting driver’s seatback for
rear seat entry Moving passenger’s seat for
rear seat entry
Page 37 of 256
SOLARA_U
32
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the release pedal while the
vehicle is moving.

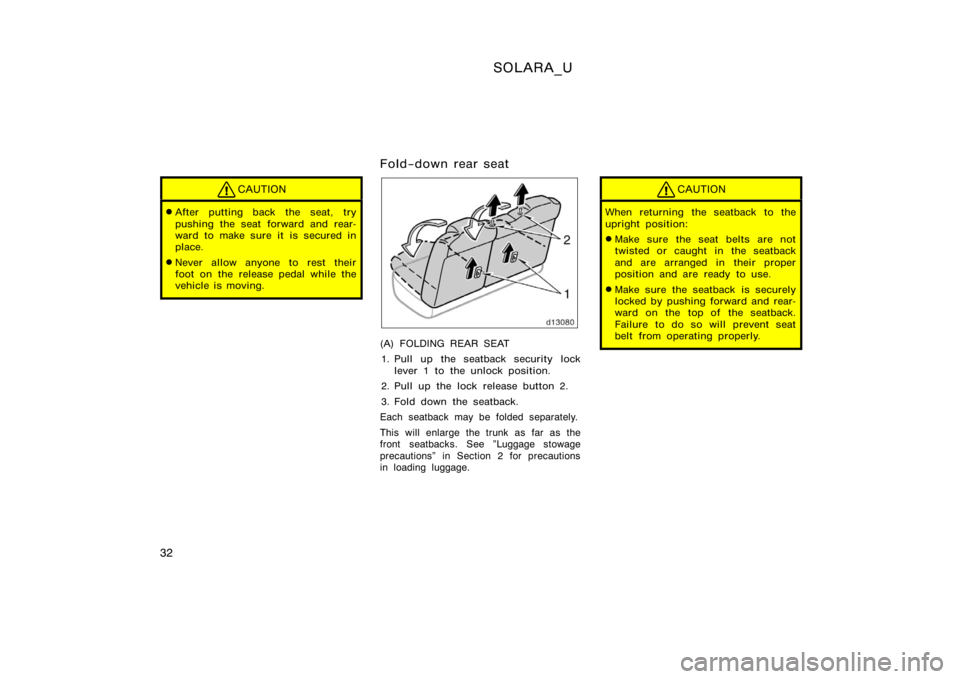

Fold−down rear seat
(A) FOLDING REAR SEAT1. Pull up the seatback security lock lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback may be folded separately.
This will enlarge the trunk as far as the
front seatbacks. See " Luggage stowage
precautions" in Section 2 for precautions
in loading luggage.
CAUTION
When returning the seatback to the
upright position:
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent seat
belt from operating properly.
Page 38 of 256
SOLARA_U
33

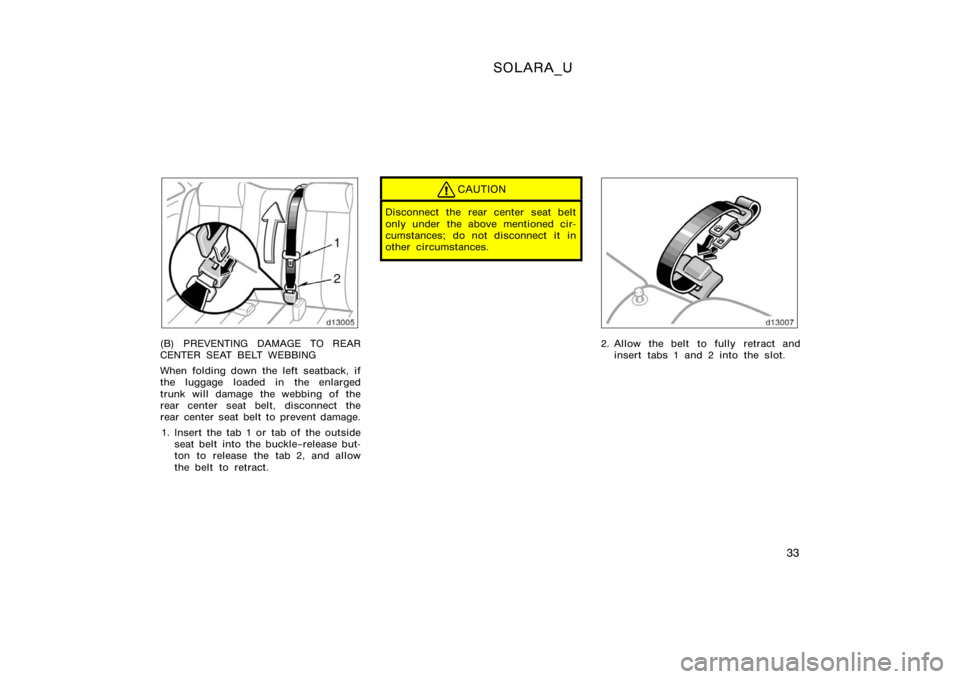

(B) PREVENTING DAMAGE TO REAR
CENTER SEAT BELT WEBBING
When folding down the left seatback, if
the luggage loaded in the enlarged
trunk will damage the webbing of the
rear center seat belt, disconnect the
rear center seat belt to prevent damage.1. Insert the tab 1 or tab of the outside seat belt into the buckle−release but-
ton to release the tab 2, and allow
the belt to retract.
CAUTION
Disconnect the rear center seat belt
only under the above mentioned cir-
cumstances; do not disconnect it in
other circumstances.
2. Allow the belt to fully retract andinsert tabs 1 and 2 into the slot.
Page 39 of 256
SOLARA_U
34

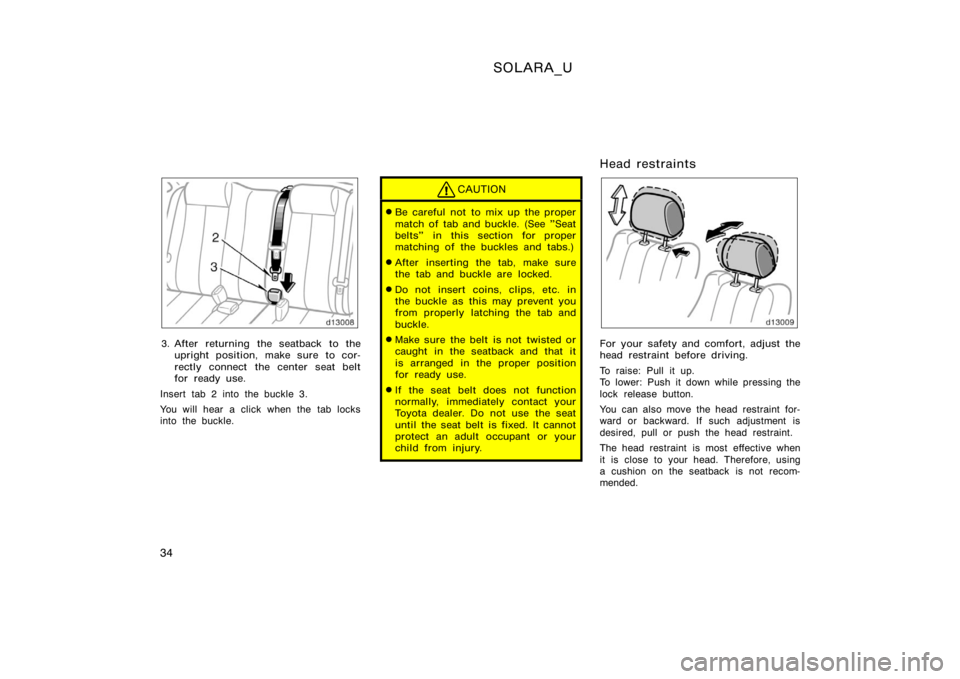

3. After returning the seatback to theupright position, make sure to cor-
rectly connect the center seat belt
for ready use.
Insert tab 2 into the buckle 3.
You will hear a click when the tab locks
into the buckle.
CAUTION
Be careful not to mix up the proper
match of tab and buckle. (See "Seat
belts" in this section for proper
matching of the buckles and tabs.)
After inserting the tab, make sure
the tab and buckle are locked.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
Make sure the belt is not twisted or
caught in the seatback and that it
is arranged in the proper position
for ready use.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Head restraints
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
You can also move the head restraint for-
ward or backward. If such adjustment is
desired, pull or push the head restraint.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Page 40 of 256
SOLARA_U
35
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See "Child restraint"
for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts
Seat belt precautions
