TOYOTA SOLARA 2000 (in English) Owner's Manual
Manufacturer: TOYOTA, Model Year: 2000, Model line: SOLARA, Model: TOYOTA SOLARA 2000Pages: 256, PDF Size: 4.65 MB
Page 21 of 256
SOLARA_U
16
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been con-
sumed. Check the battery in the trans-
mitter. To replace the battery, see "RE-
PLACING TRANSMITTER BATTERY".
REPLACING TRANSMITTER BATTERY
For replacement, use CR2032 lithium bat-
tery or equivalent.CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.
Page 22 of 256
SOLARA_U
17
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See If you lose your wireless re-
mote control transmitter" in Section 4.)
MODEL/FCC ID: GQ43VT14T
CAN: 1470102849
MADE IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Page 23 of 256
SOLARA_U
18
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the "ON" position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it. OPERATING THE PASSENGERS’ WIN-
DOWS
Use the switch on the passenger’s
door. The driver ’s door also has switch
that control the passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
Page 24 of 256
SOLARA_U
19
For front passenger’s use
For driver ’s use
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Trunk lid
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See "Luggage stowage precautions" in
Section 2 for precautions to observe for
loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
Page 25 of 256
SOLARA_U
20
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Lock release lever
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
Luggage security system
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.1. Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
Page 26 of 256
SOLARA_U
21
2. After closing the trunk lid, insert themaster key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Page 27 of 256
SOLARA_U
22
Theft deterrent system
To deter the vehicle theft, The system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM1. Turn the ignition key to the "LOCK" position and remove it.
The indicator light will start flashing every
1 second when the key is removed from
the ignition switch. (See "Engine
immobiliser system" for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
Page 28 of 256
SOLARA_U
23
If any of the door is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
"Activating the system".
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the "LOCK"
to "ON" position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key.CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail light come on for 2 seconds, the
theft deterrent system has been alarmed.
Check to see if there is any abnormality
on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Page 29 of 256
SOLARA_U
24

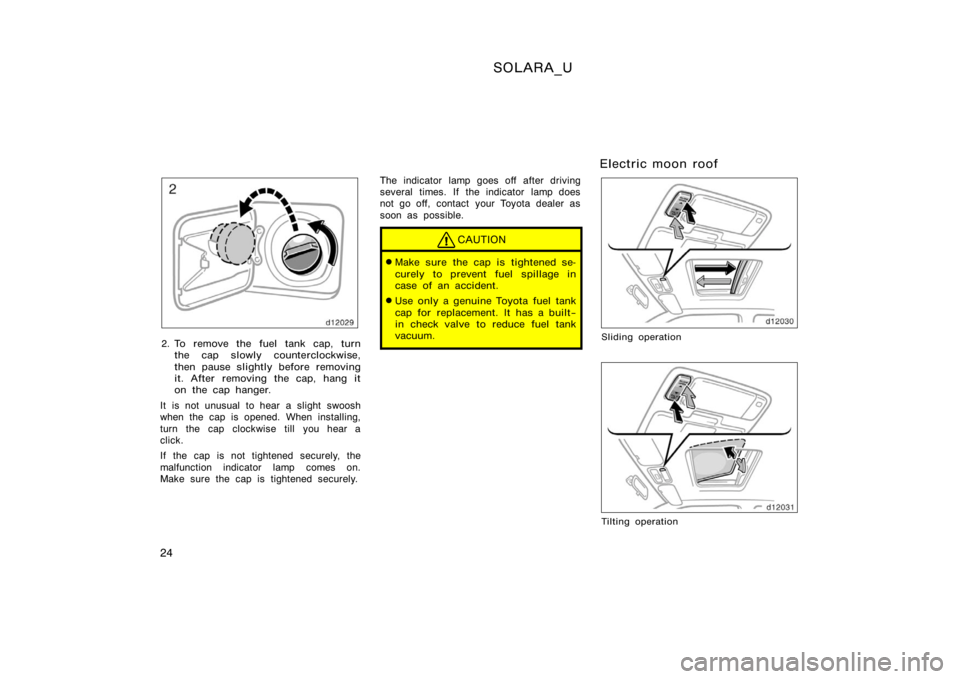

2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely. The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built−
in check valve to reduce fuel tank
vacuum.

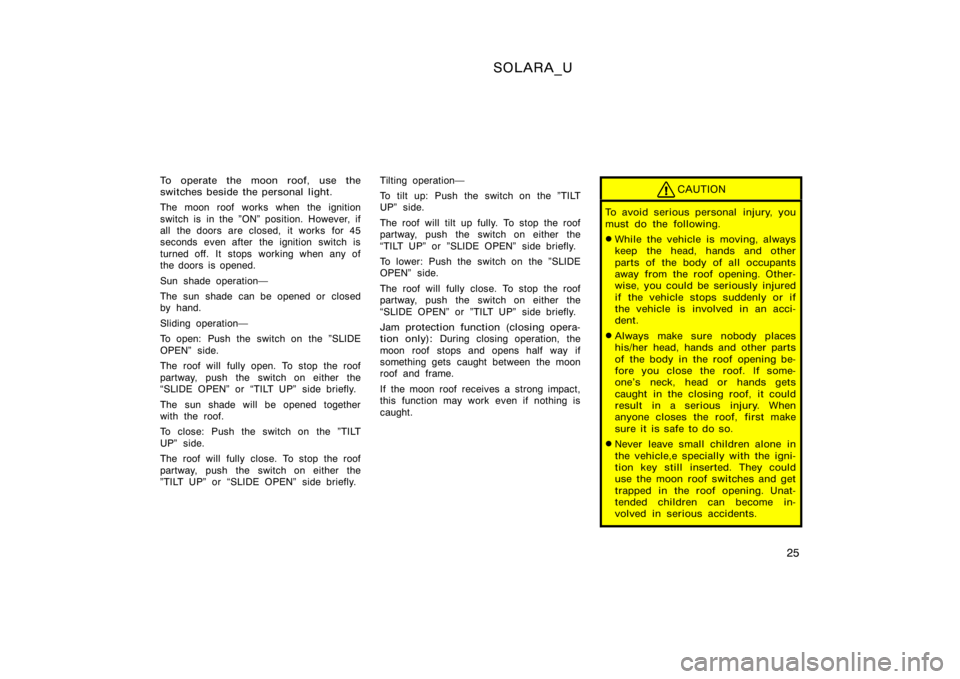

Electric moon roof
Sliding operation
Tilting operation
Page 30 of 256
SOLARA_U
25
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the "ON" position. However, if
all the doors are closed, it works for 45
seconds even after the ignition switch is
turned off. It stops working when any of
the doors is opened.
Sun shade operation
The sun shade can be opened or closed
by hand.
Sliding operation
To open: Push the switch on the "SLIDE
OPEN" side.
The roof will fully open. To stop the roof
partway, push the switch on either the
SLIDE OPEN" or TILT UP" side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the "TILT
UP" side.
The roof will fully close. To stop the roof
partway, push the switch on either the
"TILT UP" or SLIDE OPEN" side briefly.Tilting operation
To tilt up: Push the switch on the "TILT
UP" side.
The roof will tilt up fully. To stop the roof
partway, push the switch on either the
TILT UP" or "SLIDE OPEN" side briefly.
To lower: Push the switch on the "SLIDE
OPEN" side.
The roof will fully close. To stop the roof
partway, push the switch on either the
SLIDE OPEN" or "TILT UP" side briefly.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously injured
if the vehicle stops suddenly or if
the vehicle is involved in an acci-
dent.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle,e specially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.
