TOYOTA SOLARA 2000 Owners Manual (in English)

SOLARA_U
1292000 MY CAMRY SOLARA (OM33523U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Manual air conditioning system
Controls 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 133
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Automatic air conditioning system Controls 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air flow selector settings 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Side vents 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1− 8

SOLARA_U
1302000 MY CAMRY SOLARA (OM33523U)

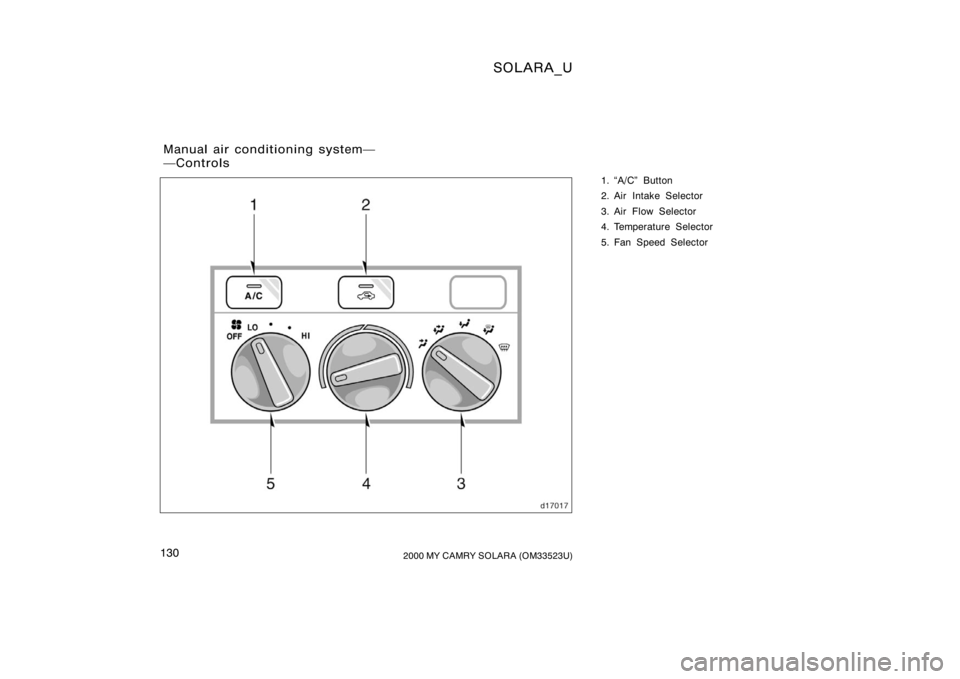

1. A/C" Button
2. Air Intake Selector
3. Air Flow Selector
4. Temperature Selector
5. Fan Speed Selector
Manual air conditioning system
Controls

SOLARA_U
1312000 MY CAMRY SOLARA (OM33523U)
Fan speed selector
Turn the knob to adjust the fan speedto
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature
to the right to warm, to the left to cool.
Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel Air flows mainly from the
instrument panel vents.
2. Bi−level Air flows from both the floor
vents and the instrument panel vents.
3. Floor Air flows mainly from the floor
vents.
4. Floor/Windshield Air flows mainly
from the floor vents and windshield
vents.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly. If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the A/C" button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
5. Windshield Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the A/C" button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
For details about air flow selector settings,
see Air flow selector settings" described
blow.

SOLARA_U
1322000 MY CAMRY SOLARA (OM33523U)
Air intake selector
The air intake selector button is used to
switch the air intake FRESH mode that
draws outside air into the system and RE-
CIRCULATED mode that recirculates the
air inside vehicle.
To turn the air source to RECIRCULATE
mode, press the button. The indicator will
come on. To turn the air source to FRESH
mode, press the button again. The indica-
tor will go off.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
A/C" button
To turn on the air conditioning, press the
A/C" button. The A/C" button indicator
will come on. To turn the air conditioning
off, press the button again.
If the A/C" button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

SOLARA_U
1332000 MY CAMRY SOLARA (OM33523U)

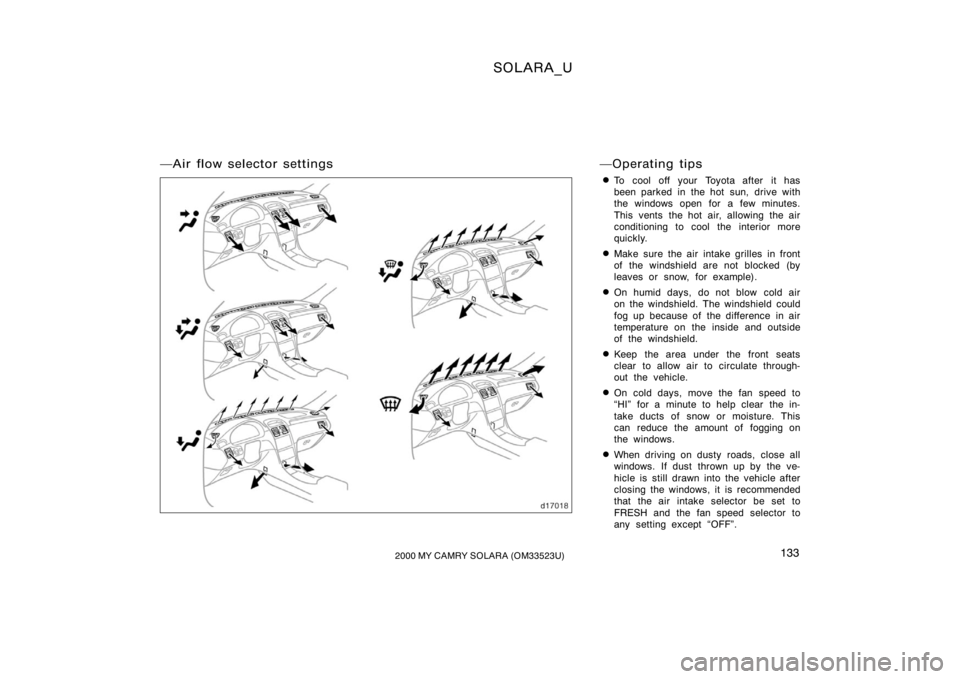

Air flow selector settings Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, move the fan speed to
HI" for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except OFF".

SOLARA_U
1342000 MY CAMRY SOLARA (OM33523U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior. Heating
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s WA R M
(red zone)
Air intakeFRESH (outside air)
Air flowFLOOR
Air conditioningOFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the A/C" button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s COLD
(blue zone)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningON
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s COLD
(blue zone)
Air intakeFRESH (outside air)
Air flowPANEL
Air conditioningOFF

SOLARA_U
1352000 MY CAMRY SOLARA (OM33523U)
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
When turning the air flow selector to wind-
shield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air intake
selector button once again.
Press the A/C" button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshieldthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed Any setting except OFF"
Temperature To w a r d s WA R M
(red zone)
Air intakeFRESH (outside air)
Air flowWINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defrosting
function with the purpose of clearing the
front view.
When turning the air flow selector to wind-
shield position, the air intake selects
FRESH automatically. This is to clean up
the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air intake
selector button once again.
Press the A/C" button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

SOLARA_U
1362000 MY CAMRY SOLARA (OM33523U)

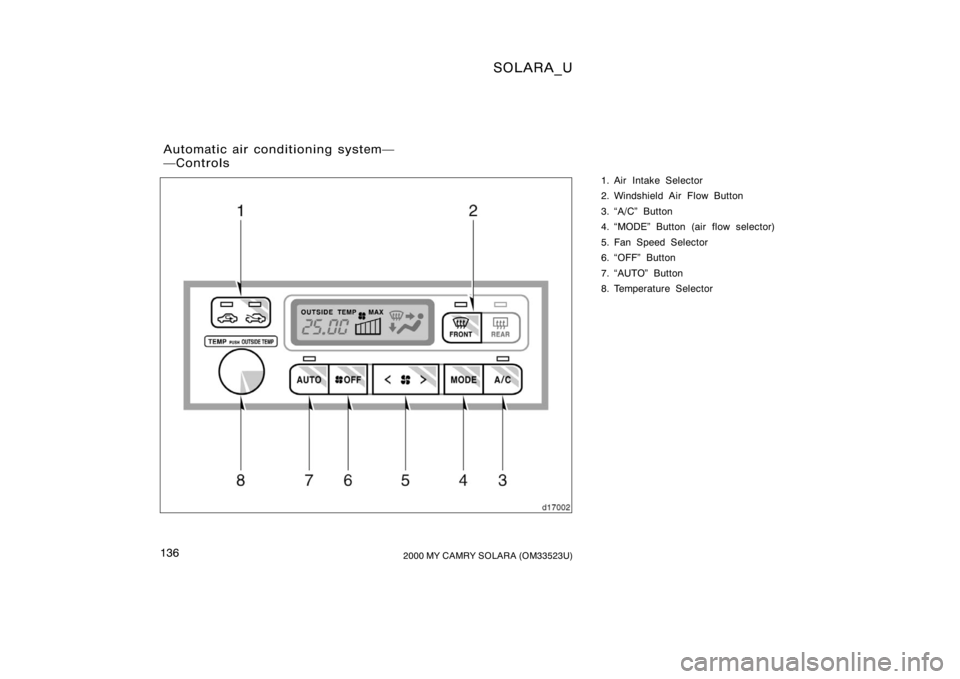

1. Air Intake Selector
2. Windshield Air Flow Button
3. A/C" Button
4. MODE" Button (air flow selector)
5. Fan Speed Selector
6. OFF" Button
7. AUTO" Button
8. Temperature Selector
Automatic air conditioning system
Controls

SOLARA_U
1372000 MY CAMRY SOLARA (OM33523U)
AUTO" button
For automatic operation of the air condi-
tioning, press the AUTO" button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you adjust the temperature selector
button to maximum cooling, a MAX
COLD" message will appear on the display
and the air intake mode will be automati-
cally changed to RECIRCULATE.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the OFF" button.
Fan speed selector
Push the >" (increase) or <" (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. Temperature selector
Turn the knob to adjust the temperature
to the right to warm, to the left to cool.
Pushing the temperature selector changes
the temperature display between the air
conditioning temperature and outside tem-
perature. (For details, see Outside tem-
perature gauge" in Section 1−9.
OFF" button
Push the button to turn off the air condi-
tioning system.
MODE" button (air flow selector)
Push the MODE" button to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel Air flows mainly from the
instrument panel vents.
2. Bi−level Air flows from both the floor
vents and the instrument panel vents.
3. Floor Air flows mainly from the floor
vents.
4. Floor/Windshield Air flows mainly
from the floor vents and windshield
vents.

SOLARA_U
1382000 MY CAMRY SOLARA (OM33523U)

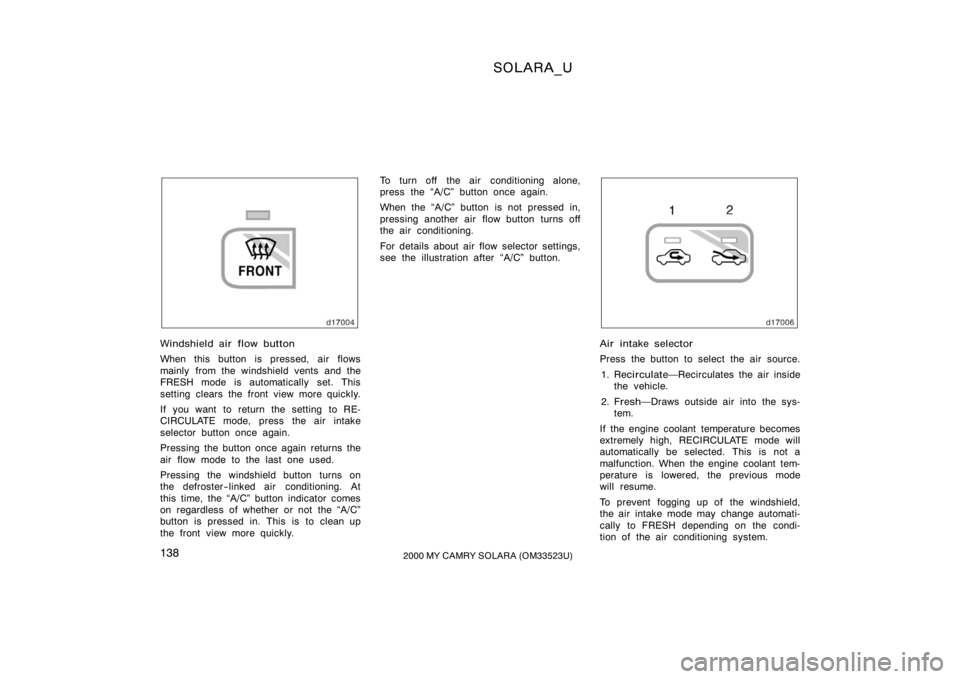

Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and the
FRESH mode is automatically set. This
setting clears the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the A/C" button indicator comes
on regardless of whether or not the A/C"
button is pressed in. This is to clean up
the front view more quickly. To turn off the air conditioning alone,
press the A/C" button once again.
When the A/C" button is not pressed in,
pressing another air flow button turns off
the air conditioning.
For details about air flow selector settings,
see the illustration after A/C" button.Air intake selector
Press the button to select the air source.
1. Recirculate Recirculates the air inside
the vehicle.
2. Fresh Draws outside air into the sys-
tem.
If the engine coolant temperature becomes
extremely high, RECIRCULATE mode will
automatically be selected. This is not a
malfunction. When the engine coolant tem-
perature is lowered, the previous mode
will resume.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
