TOYOTA SOLARA 2000 Owners Manual (in English)

SOLARA_U
1492000 MY CAMRY SOLARA (OM33523U)
2. Bring the hand held garage door open-
er to within about 25 mm (1 in.) of the
button being programmed and push the
button on the hand held garage door
opener. The signal from the hand held
garage door opener is sent to the ve-
hicle’s opener.
3. When the frequency and code is regis- tered, the indicator light flashers rapid-
ly. At this point, your can release both
buttons.
4. To program the remaining buttons, re- peat steps 1 through 3.
NOTICE
Canada only:
As your hand held garage door open-
er may automatically stop sending the
signal during programming, press and
re−press the hand held garage door
opener button every two seconds dur-
ing steps 1 through 4 above until the
frequency and code is registered.
If you want to replace an existing program
with a new program, select the button you
want to program. Follow the procedure
from step 1. If the transmitter has a rolling code
feature, it is necessary to program the
in−garage receiver after programming
HomeLink
.
1. Locate the training or learning but- ton on the in−garage receiver and
push and release this button. Loca-
tion of the button may vary among
garage door opener manufacturers.
2. Firmly push and release the trained HomeLink  button 2 times (some ga-
rage door manufacturers may require
you to push the HomeLink  button
up to 3 times) to complete the pro-
cess.
The garage door should now operate
when the HomeLink  button is pushed.
Do not use the HomeLink  universal
transmitter with any garage door opener
that lacks the safety stop and reverse
feature as required by Federal Safety
Standards. This includes any garage door
opener model manufactured before April 1,
1982.
CAUTION
When programming or operating the
garage door opener, make sure there
is no one around the moving door.
(b) Operating the garage door opener
Push the appropriate button to activate the
garage door opener. The indicator light
comes on. The garage door opener contin-
ues to send the signal as long as the
button is pushed (up to 20 seconds).
(c) Erasing the garage door opener
memory
Push and hold down the 2 outside buttons
for about 20 seconds until the indicator
light flashes. All memorized data will be
erased.

SOLARA_U
1502000 MY CAMRY SOLARA (OM33523U)

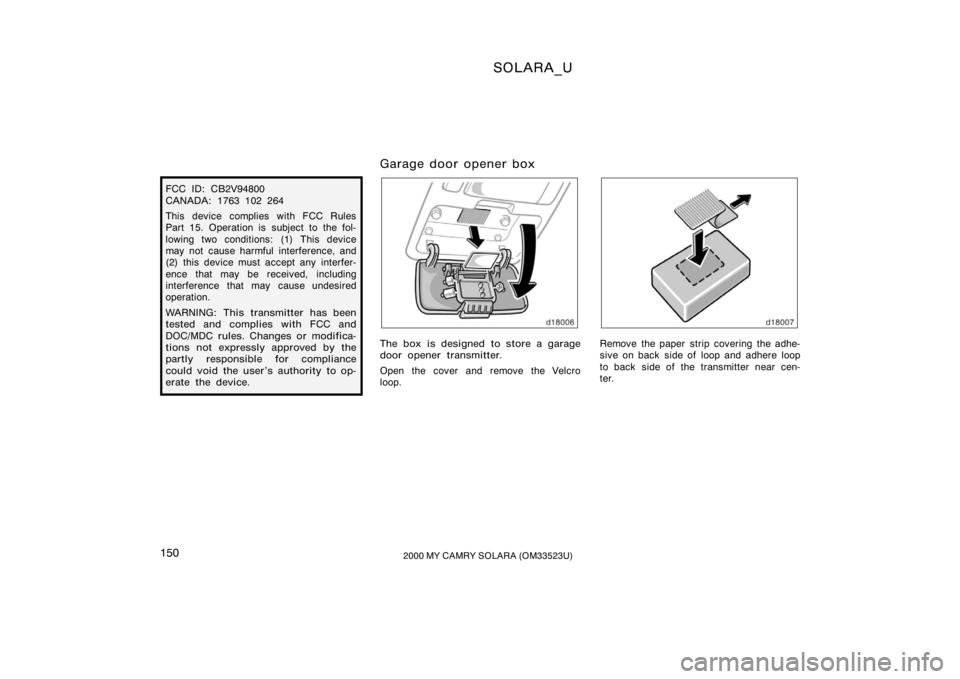

FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Rules
Part 15. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence that may be received, including
interference that may cause undesired
operation.
WARNING: This transmitter has been
tested and complies with FCC and
DOC/MDC rules. Changes or modifica-
tions not expressly approved by the
partly responsible for compliance
could void the user’s authority to op-
erate the device.
Garage door opener box
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.

SOLARA_U
1512000 MY CAMRY SOLARA (OM33523U)
Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.

SOLARA_U
1522000 MY CAMRY SOLARA (OM33523U)
When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.If the center panel does not contact with
your garage door opener transmitter:
Check to see if spacer is on correct
pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue add spacers until con-
tact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remained spacers away
from children.

SOLARA_U
1532000 MY CAMRY SOLARA (OM33523U)
The auxiliary box (type A) and garage
door opener box (stored in the glove
box) are interchangeable.
Removing the cover
Half open the cover. Pinch each hinge and
pull it out of its pivot one by one as
shown above.
Do not remove the cover forcibly.Installing the cover
Align the hinges to the pivots, and press
each hinge with a thumb until you hear a
click.
Make sure that the cover opens and
closes smoothly.
Auxiliary box (type A)
To use the box, open it as shown
above.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
In hot weather, inside of the vehicle
becomes very hot. Do not leave any-
thing flammable or deformable such
as a lighter, the glasses, etc. inside.

SOLARA_U
1542000 MY CAMRY SOLARA (OM33523U)

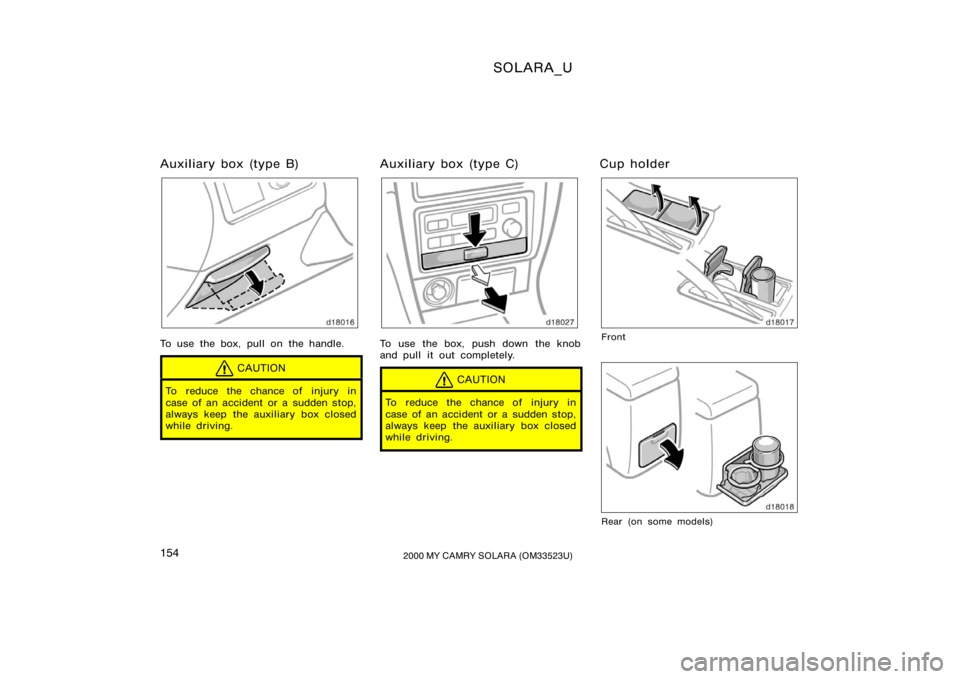

Auxiliary box (type B)
To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Auxiliary box (type C)
To use the box, push down the knob
and pull it out completely.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Cup holder
Front
Rear (on some models)

SOLARA_U
1552000 MY CAMRY SOLARA (OM33523U)
The cup holder is designed for holding
cups or drink−cans securely in its
holes.
Front: To use the holder, open the lid.
Rear: To use the holder, pull it out.
CAUTION
Do not place anything else other
than cups or drink−cans on the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.

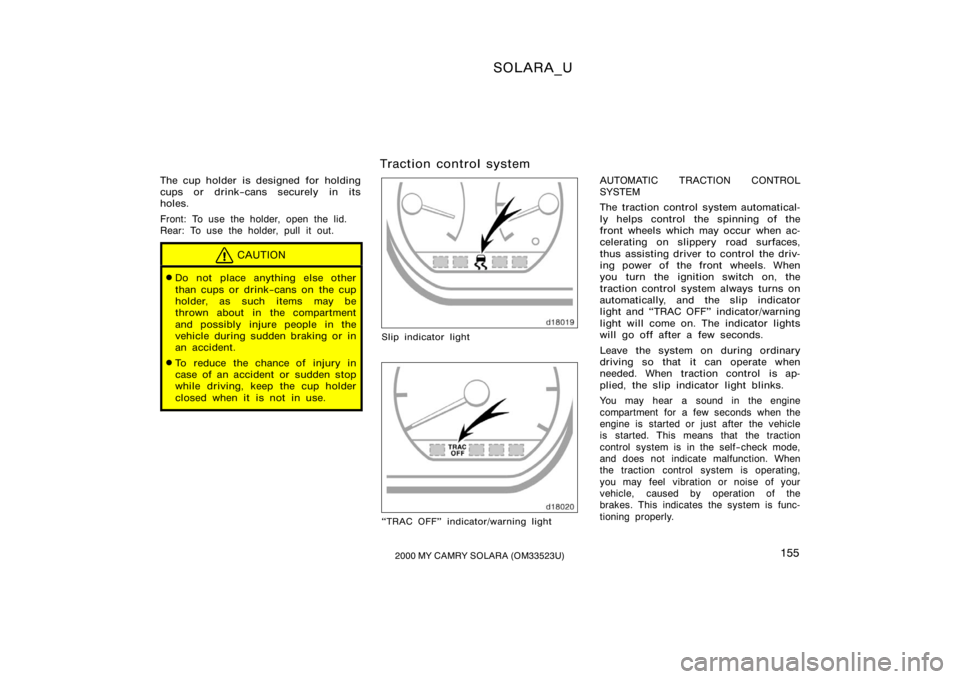

Traction control system
Slip indicator light
TRAC OFF" indicator/warning light
AUTOMATIC TRACTION CONTROL
SYSTEM
The traction control system automatical-
ly helps control the spinning of the
front wheels which may occur when ac-
celerating on slippery road surfaces,
thus assisting driver to control the driv-
ing power of the front wheels. When
you turn the ignition switch on, the
traction control system always turns on
automatically, and the slip indicator
light and TRAC OFF" indicator/warning
light will come on. The indicator lights
will go off after a few seconds.
Leave the system on during ordinary
driving so that it can operate when
needed. When traction control is ap-
plied, the slip indicator light blinks.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the traction
control system is in the self−check mode,
and does not indicate malfunction. When
the traction control system is operating,
you may feel vibration or noise of your
vehicle, caused by operation of the
brakes. This indicates the system is func-
tioning properly.

SOLARA_U
1562000 MY CAMRY SOLARA (OM33523U)
When getting the vehicle out of mud or
new snow, etc. the traction control system
will help operate to prevent the wheels
from spinning.

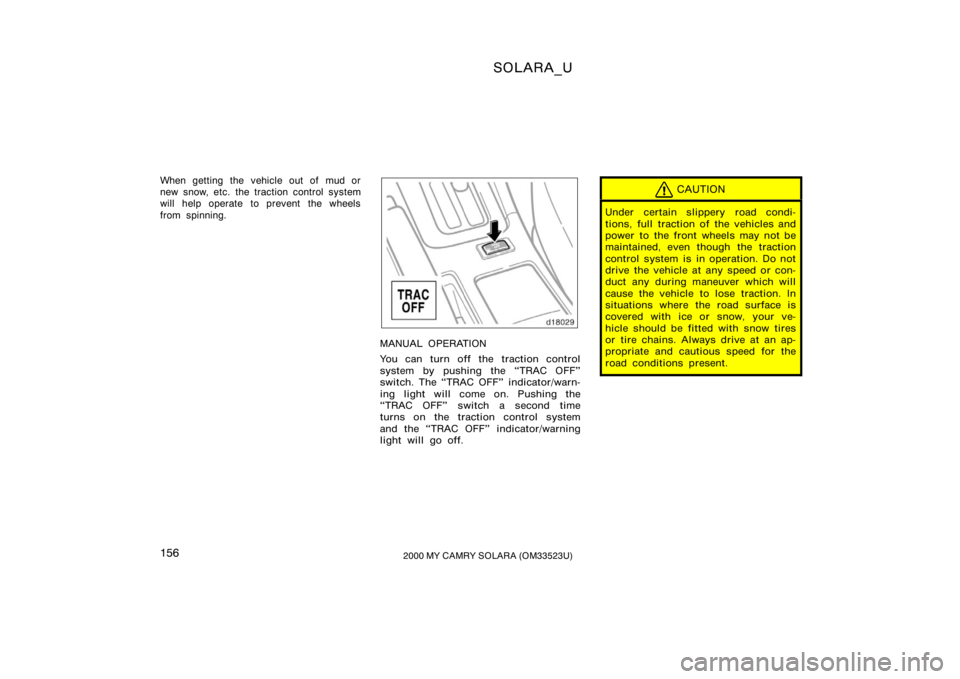

MANUAL OPERATION
You can turn off the traction control
system by pushing the TRAC OFF"
switch. The TRAC OFF" indicator/warn-
ing light will come on. Pushing the
TRAC OFF" switch a second time
turns on the traction control system
and the TRAC OFF" indicator/warning
light will go off.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicles and
power to the front wheels may not be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle at any speed or con-
duct any during maneuver which will
cause the vehicle to lose traction. In
situations where the road surface is
covered with ice or snow, your ve-
hicle should be fitted with snow tires
or tire chains. Always drive at an ap-
propriate and cautious speed for the
road conditions present.

SOLARA_U
1572000 MY CAMRY SOLARA (OM33523U)

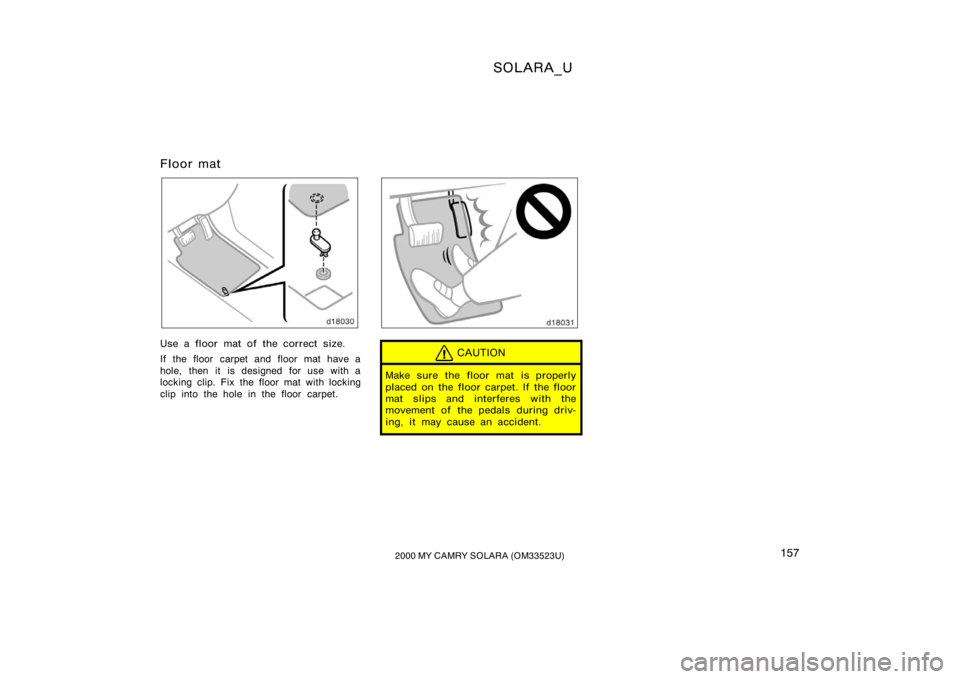

Floor mat
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
