TOYOTA SOLARA 2001 Owners Manual (in English)

'01 SOLARA_U (L/O 0009)
i2001 MY SOLARA (OM33527U)
Foreword
Welcome to the growing group of value±conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner 's Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and trouble±free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner 's Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota's policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
W2000 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.

'01 SOLARA_U (L/O 0009)
ii2001 MY SOLARA (OM33527U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may causedamage to the vehicle or its equipment if the warningis ignored. You are informed about what you must ormust not do in order to avoid or reduce the risk ofdamage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: ªDo not...º;
ªDo not do thisº; or ªDo not let this
happenº.

'01 SOLARA_U (L/O 0009)
iii2001 MY SOLARA (OM33527U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty

Emission control systems warranty

Others
For further information, please refer to the ªOwner's
Warranty Information Bookletº or ªOwner 's Manual
Supplementº.
Your responsibility for maintenance
It is the owner 's responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the ªScheduled
Maintenance Guideº or ªOwner 's Manual Supplementº.
Accessories, spare parts and modification of your Toyota
A wide variety of non±genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non±genuine
Toyota products. Modification with non±genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

'01 SOLARA_U (L/O 0009)
iv2001 MY SOLARA (OM33527U)
Spark ignition system ofyour Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference±Causing Equip-
ment Standard.
Installation of a mobiletwo±way radio system
As the installation of a mobile two±way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti±lock brake
system, traction control system, SRS airbag system and
seat belt pretensioner system, be sure to check with
your Toyota dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the quali-
fied service shop or by your Toyota dealer before you
dispose of your vehicle.

'01 SOLARA_U (L/O 0009)
12001 MY SOLARA (OM33527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 5
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 1

'01 SOLARA_U (L/O 0009)
22001 MY SOLARA (OM33527U)

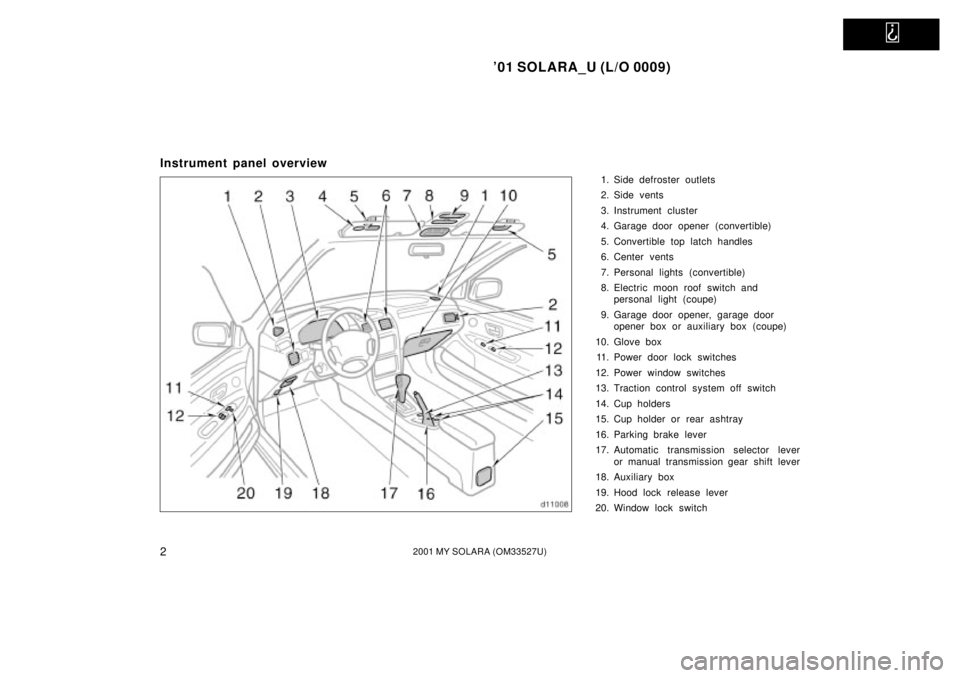

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Garage door opener (convertible)
5. Convertible top latch handles
6. Center vents
7. Personal lights (convertible)
8. Electric moon roof switch andpersonal light (coupe)
9. Garage door opener, garage door opener box or aux iliary box (coupe)
10. Glove box 11. Power door lock switches
12. Power window switches
13. Traction control system off switch
14. Cup holders
15. Cup holder or rear ashtray
16. Parking brake lever
17. Automatic transmission selector lever or manual transmission gear shift lever
18. Auxiliary box
19. Hood lock release lever
20. Window lock switch

'01 SOLARA_U (L/O 0009)
32001 MY SOLARA (OM33527U)

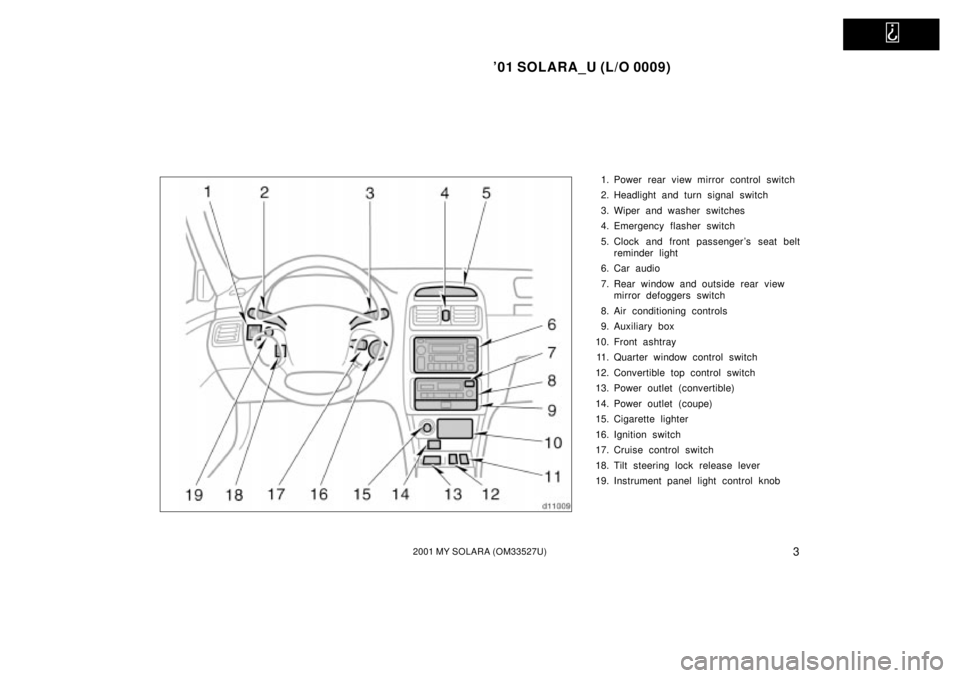

1. Power rear view mirror control switch
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock and front passenger 's seat beltreminder light
6. Car audio
7. Rear window and outside rear view mirror defoggers switch
8. Air conditioning controls
9. Auxiliary box
10. Front ashtray 11. Quarter window control switch
12. Convertible top control switch
13. Power outlet (convertible)
14. Power outlet (coupe)
15. Cigarette lighter
16. Ignition switch
17. Cruise control switch
18. Tilt steering lock release lever
19. Instrument panel light control knob

'01 SOLARA_U (L/O 0009)
42001 MY SOLARA (OM33527U)

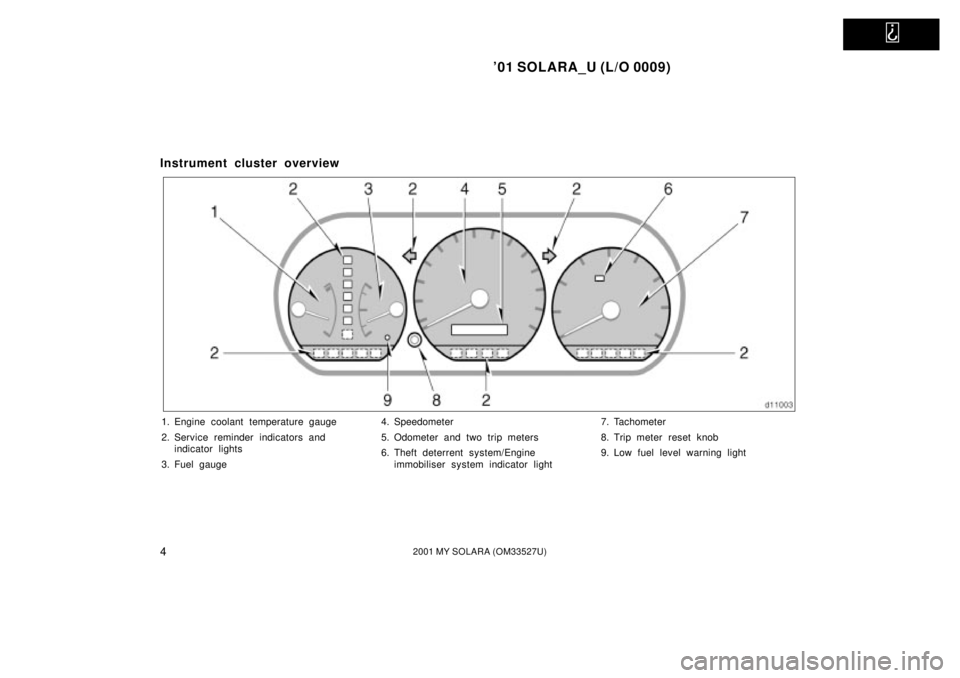

Instrument cluster overview
1. Engine coolant temperature gauge
2. Service reminder indicators and indicator lights
3. Fuel gauge 4. Speedometer
5. Odometer and two trip meters
6. Theft deterrent system/Engine
immobiliser system indicator light 7. Tachometer
8. Trip meter reset knob
9. Low fuel level warning light

'01 SOLARA_U (L/O 0009)
52001 MY SOLARA (OM33527U)
Indicator symbols on the instrument panel
Brake system warning light*1
Driver 's seat belt reminder light*1
Discharge warning light*1
Malfunction indicator lamp*1
Low oil pressure warning light*1
or
Anti±lock brake system warning light*1
Open door warning light*1
Rear light failure warning light*1
SRS warning light*1
Low windshield washer fluid level warning
light*1
Traction control system off indicator/warning
light*1
Front passenger 's seat belt reminder light*1
Overdrive±off indicator light
Cruise control indicator light
*2
Headlight high beam indicator light Turn signal indicator lights
or

'01 SOLARA_U (L/O 0009)
62001 MY SOLARA (OM33527U)
Automatic transmission indicator lights
*1: For details, see ªService reminder indicators and warning
buzzersº in Section 1±5.
*2: If this light flashes, see ªCruise controlº in Section 1±6. Slip indicator light
