TOYOTA SOLARA 2003 (in English) User Guide

’03 SOLARA_U (L/O 0207)
72003 MY SOLARA (OM33573U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 15.
∗2: If this light flashes, see “Cruise control” in Section 16. Slip indicator light
Cruise control indicator light∗
2

’03 SOLARA_U (L/O 0207)
82003 MY SOLARA (OM33573U)

’03 SOLARA_U (L/O 0207)
92003 MY SOLARA (OM33573U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobiliser system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Convertible top 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 2

’03 SOLARA_U (L/O 0207)
102003 MY SOLARA (OM33573U)
Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every lock.
2. Sub key—This key will not work in the glove box and trunk.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys. 1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
builtin transponder chip.
2. Sub key (gray)—This key will not work in the glove box and trunk.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser
system)

’03 SOLARA_U (L/O 0207)
112003 MY SOLARA (OM33573U)
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’03 SOLARA_U (L/O 0207)
122003 MY SOLARA (OM33573U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.

’03 SOLARA_U (L/O 0207)
132003 MY SOLARA (OM33573U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady. Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with builtin transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’03 SOLARA_U (L/O 0207)
142003 MY SOLARA (OM33573U)

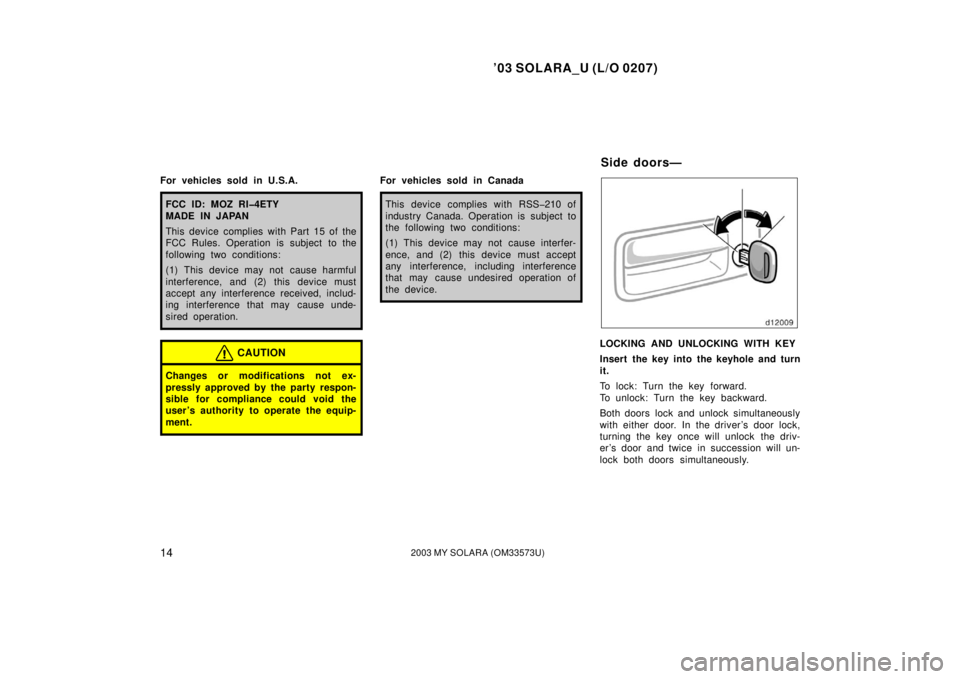

For vehicles sold in U.S.A.
FCC ID: MOZ RI4ETY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Both doors lock and unlock simultaneously
with either door. In the driver’s door lock,
turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock both doors simultaneously.
Side doors—

’03 SOLARA_U (L/O 0207)
152003 MY SOLARA (OM33573U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked if you leave
the key in the ignition switch.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Both doors lock or unlock simultaneously.

’03 SOLARA_U (L/O 0207)
162003 MY SOLARA (OM33573U)
Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock both doors,
open the trunk lid, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE
DOORS
To lock and unlock both doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. Both
doors are locked simultaneously. At this
time one beep will be heard, and the
parking lights and tail lights will flash
once.
Check to see that the doors are securely
locked.
If either doors is not securely closed,
locking cannot be performed by the
“LOCK” switch and a beep will sound con-
tinuously for 10 seconds. However, if the
key is in the ignition, a beep will not
sound.
To stop the beep, close both doors se-
curely or push the “UNLOCK” switch. To unlock: Push the “UNLOCK” switch
once to unlock only the driver’s door.
Pushing the switch twice within 3 seconds
unlocks both doors simultaneously. Each
time the “UNLOCK” switch is pushed, two
beeps will be heard, and the parking lights
and tail lights will flash twice.
When the “UNLOCK” switch is pressed,
the interior light and ignition switch light
come on. The lights remain on for about
15 seconds unless either door is opened
then and closed. (For further information,
see “Interior light” and “Ignition switch
light” in Section 14.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both
doors will be automatically locked again
and one beep will be heard.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
—Wireless remote control
