TOYOTA SOLARA 2003 (in English) Owner's Manual

’03 SOLARA_U (L/O 0207)
172003 MY SOLARA (OM33573U)
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK”, “PANIC” or trunk
opener switch twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
OPENING THE TRUNK LID
To open the trunk lid, push the trunk
lid open switch of the transmitter for 1
second or more. A long beep will
sound.
If the ignition key is in the “ON” position,
the trunk lid cannot be opened by the
trunk lid open switch.
To open the trunk lid with the master key,
see “Trunk lid” in this section.“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock any doors with the key or wire-
less remote control transmitter.
Open the trunk with the key or wireless
remote control transmitter.

’03 SOLARA_U (L/O 0207)
182003 MY SOLARA (OM33573U)
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been
consumed. Check the battery in the
transmitter. To replace the battery, see
“REPLACING TRANSMITTER
BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
MODEL/FCC ID: GQ43VT14T
CAN: 1470102849
MADE IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
REPLACING TRANSMITTER BATTERY
For replacement, use CR2032 lithium bat-
tery or equivalent.
Replace the transmitter battery by the fol-
lowing procedures:
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.

’03 SOLARA_U (L/O 0207)
192003 MY SOLARA (OM33573U)
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.

’03 SOLARA_U (L/O 0207)
202003 MY SOLARA (OM33573U)
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Power windows—
—Power window pr ecautions

’03 SOLARA_U (L/O 0207)
212003 MY SOLARA (OM33573U)
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either door is opened.

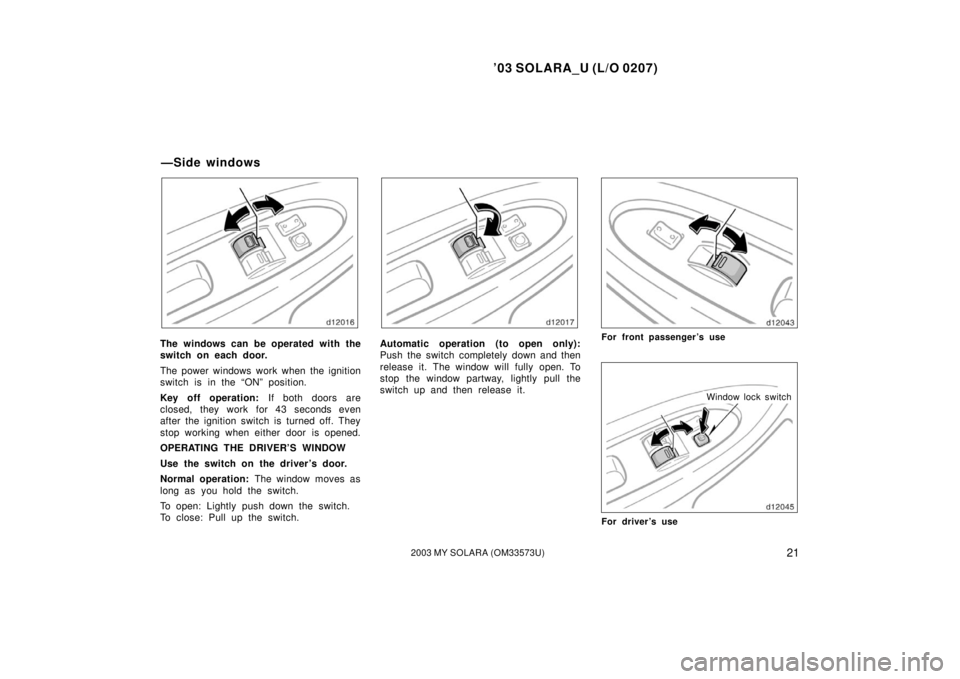

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.For front passenger’s use
Window lock switch
For driver’s use
—Side windows

’03 SOLARA_U (L/O 0207)
222003 MY SOLARA (OM33573U)
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s
door. The driver ’s door also has the
switch that control the passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
Convertible—The window lock switch also
locks the quarter windows.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See “Convertible top” in this
section.
Both quarter windows can be operated
with the switch on the rear console.
The windows move as long as you hold
the switch.
To open: Push on the lower side of the
switch.
To close: Push on the upper side of the
switch. Visually check that both quarter
windows are completely closed.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See “Convertible top” in this
section.To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
—Quarter windows
(convertible) Trunk lid (without wireless
remote control)—

’03 SOLARA_U (L/O 0207)
232003 MY SOLARA (OM33573U)
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

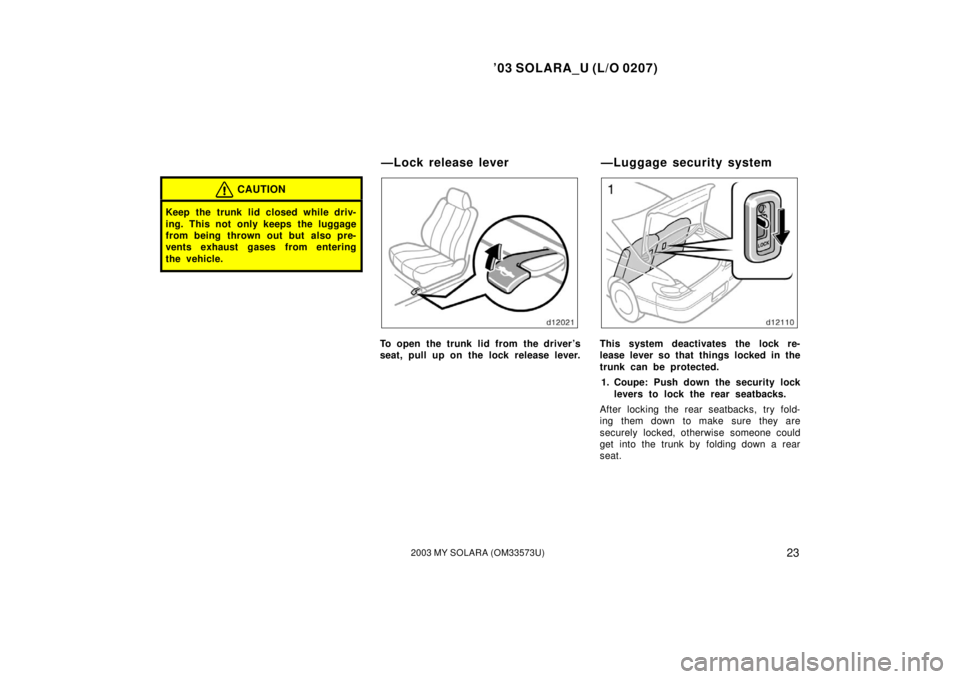

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Coupe: Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
—Lock release lever —Luggage security system

’03 SOLARA_U (L/O 0207)
242003 MY SOLARA (OM33573U)
2. After closing the trunk lid, insert the
master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glowinthedark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release handle

’03 SOLARA_U (L/O 0207)
252003 MY SOLARA (OM33573U)
With key
With wireless remote control
OPENING THE TRUNK LID FROM THE
OUTSIDE
With key—Insert the master key and
turn it clockwise.
With wireless remote control—Push the
trunk lid open switch for 1 second or
more.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the trunk lid from the inside
of the vehicle, push the trunk lid open
switch in the glove box.
Tr u n k lid (wit h wireless
remote control)— —Trunk lid open switch

’03 SOLARA_U (L/O 0207)
262003 MY SOLARA (OM33573U)
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Coupe: Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.2. Insert the master key into the glove box lock after closing the glove box
lid and turn it clockwise to safe-
guard the trunk lid open switch.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glowinthedark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
—Luggage security system —Internal trunk release handle
