clock TOYOTA SOLARA 2003 Owners Manual (in English)

’03 SOLARA_U (L/O 0207)
42003 MY SOLARA (OM33573U)

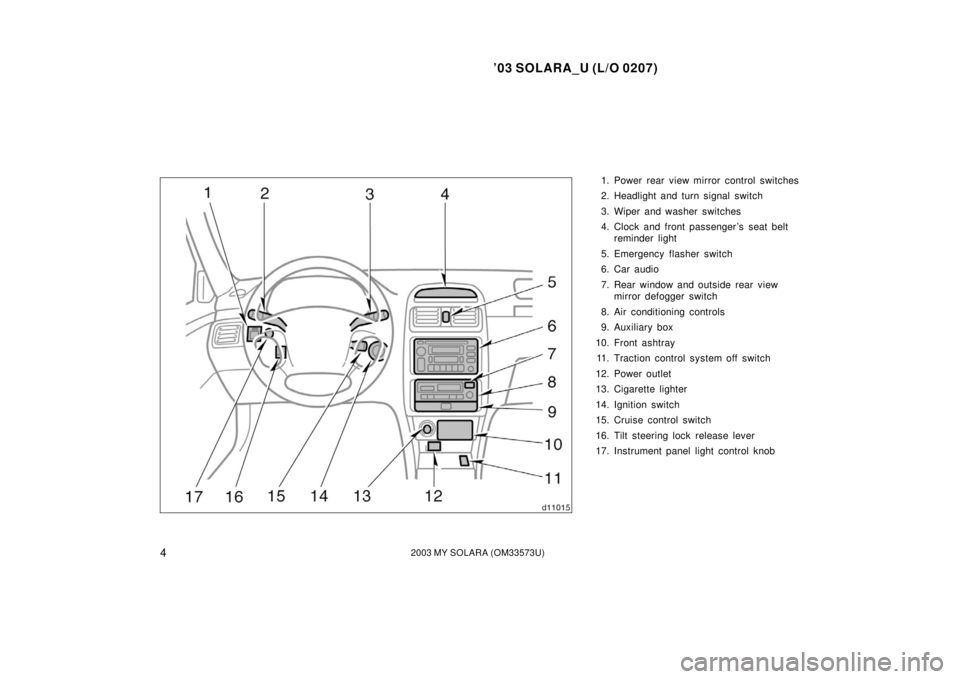

1. Power rear view mirror control switches
2. Headlight and turn signal switch
3. Wiper and washer switches

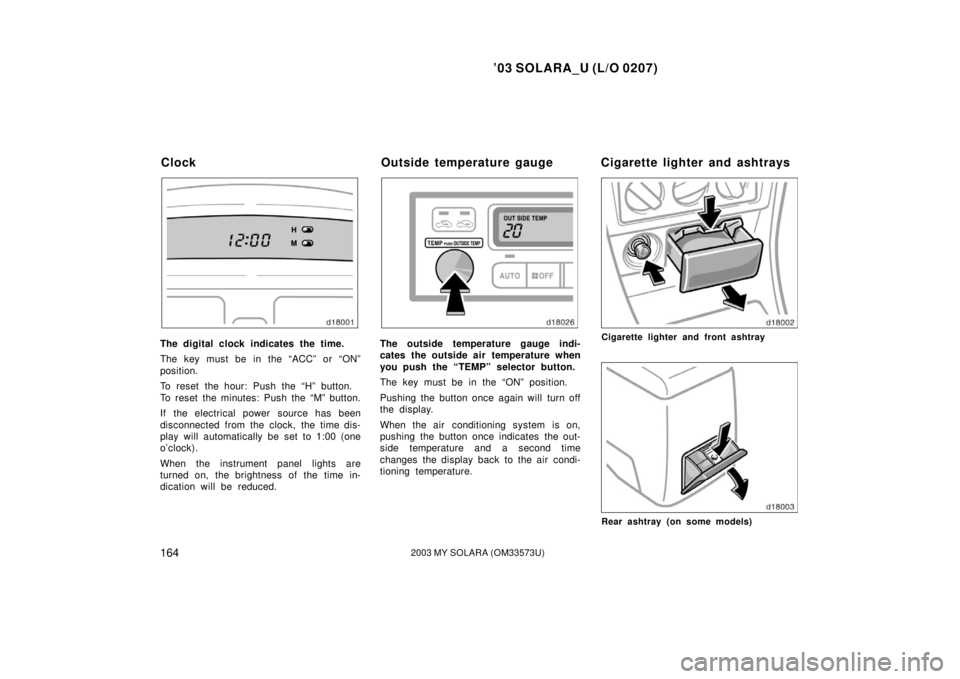

4. Clock and front passenger ’s seat belt
reminder light
5. Emergency flasher switch
6. Car audio
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Auxiliary box
10. Front ashtray 11. Traction control system off switch
12. Power outlet
13. Cigarette lighter
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Instrument panel light control knob

’03 SOLARA_U (L/O 0207)
222003 MY SOLARA (OM33573U)
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s
door. The driver ’s door also has the
switch that control the passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
Convertible—The window lock switch also
locks the quarter windows.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See “Convertible top” in this
section.

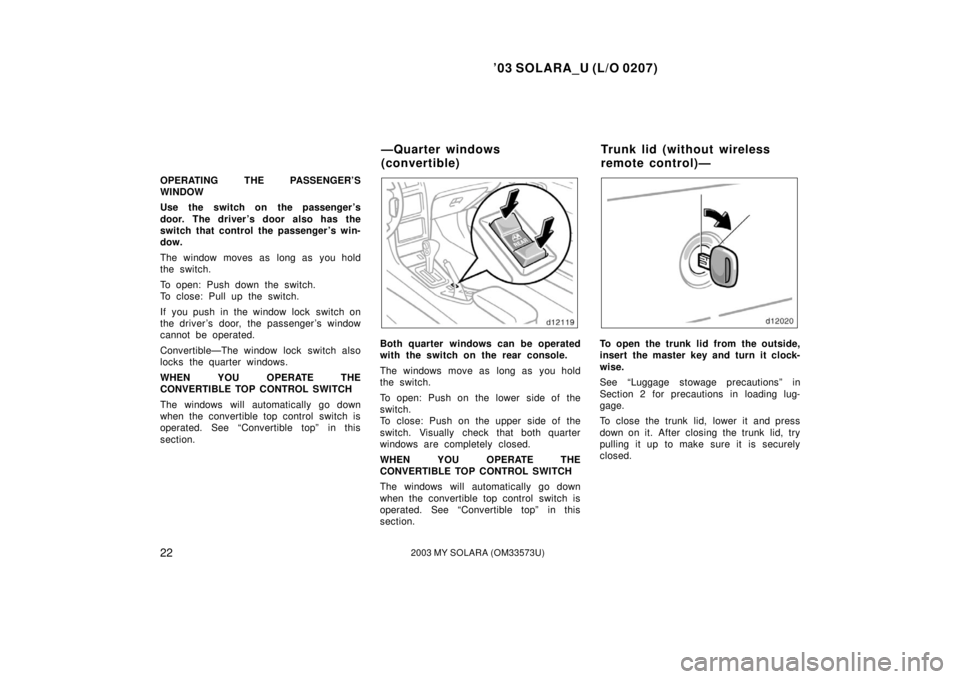

Both quarter windows can be operated
with the switch on the rear console.
The windows move as long as you hold
the switch.
To open: Push on the lower side of the
switch.
To close: Push on the upper side of the
switch. Visually check that both quarter
windows are completely closed.
WHEN YOU OPERATE THE
CONVERTIBLE TOP CONTROL SWITCH
The windows will automatically go down
when the convertible top control switch is
operated. See “Convertible top” in this
section.To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
—Quarter windows
(convertible) Trunk lid (without wireless
remote control)—

’03 SOLARA_U (L/O 0207)
242003 MY SOLARA (OM33573U)

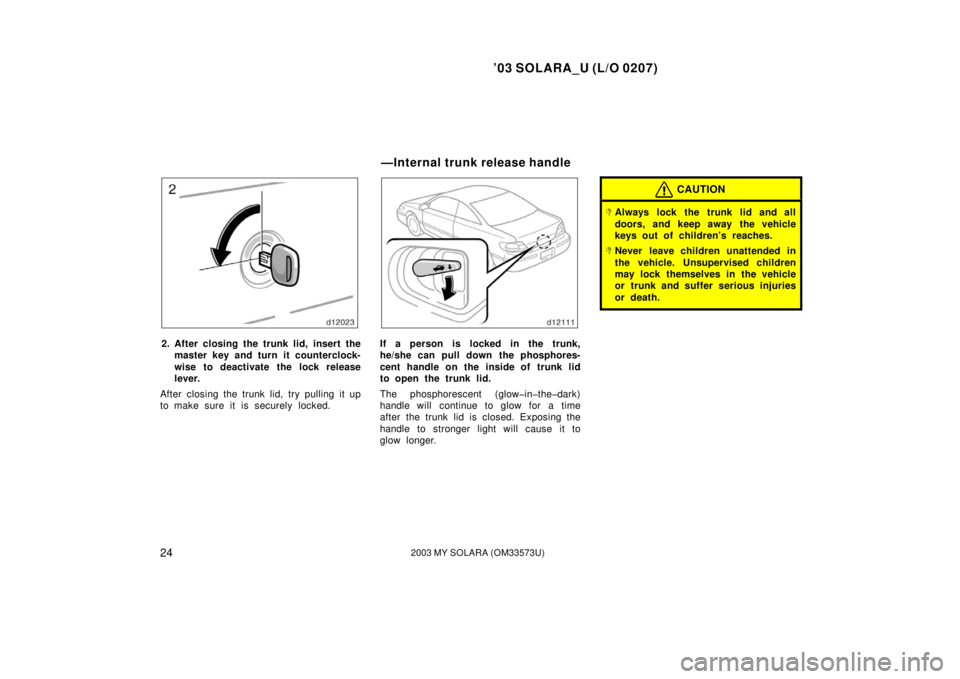

2. After closing the trunk lid, insert the
master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glowinthedark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release handle

’03 SOLARA_U (L/O 0207)
252003 MY SOLARA (OM33573U)
With key
With wireless remote control
OPENING THE TRUNK LID FROM THE
OUTSIDE
With key—Insert the master key and
turn it clockwise.
With wireless remote control—Push the
trunk lid open switch for 1 second or
more.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the trunk lid from the inside
of the vehicle, push the trunk lid open
switch in the glove box.
Tr u n k lid (wit h wireless
remote control)— —Trunk lid open switch

’03 SOLARA_U (L/O 0207)
262003 MY SOLARA (OM33573U)
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Coupe: Push down the security lock levers to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.2. Insert the master key into the glove box lock after closing the glove box
lid and turn it clockwise to safe-
guard the trunk lid open switch.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glowinthedark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
—Luggage security system —Internal trunk release handle

’03 SOLARA_U (L/O 0207)
302003 MY SOLARA (OM33573U)

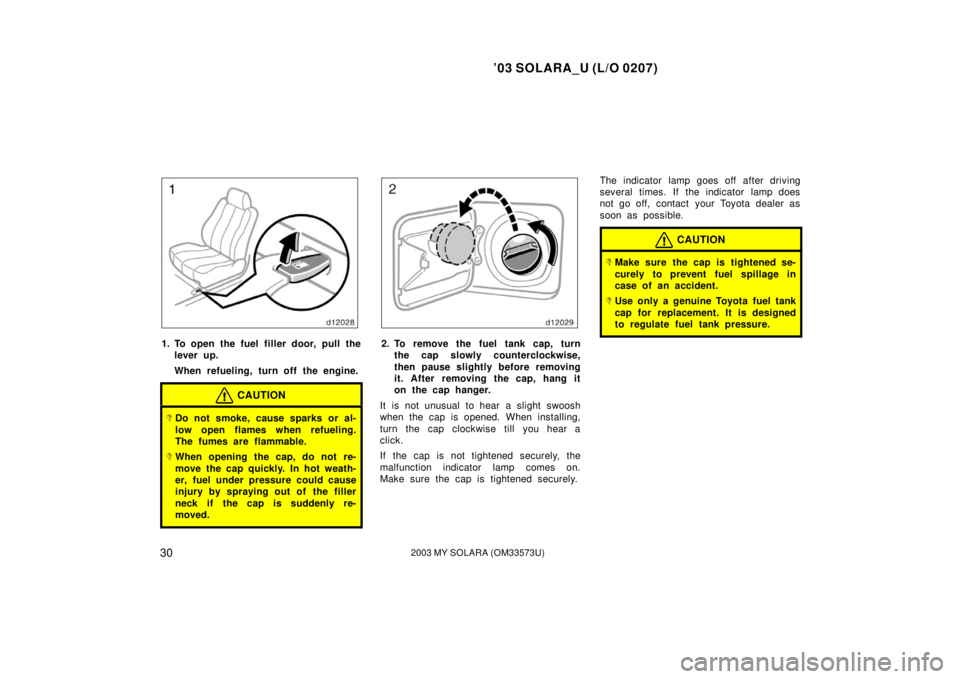

1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely. The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp
illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

’03 SOLARA_U (L/O 0207)
1342003 MY SOLARA (OM33573U)
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the “” or “ ” under the “SEEK”.
Do this again to find another station.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
“FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display. If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

’03 SOLARA_U (L/O 0207)
1412003 MY SOLARA (OM33573U)
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

’03 SOLARA_U (L/O 0207)
1632003 MY SOLARA (OM33573U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature gauge 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Garage door opener box 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary box 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cup holder 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Floor mat 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

’03 SOLARA_U (L/O 0207)
1642003 MY SOLARA (OM33573U)
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.The outside temperature gauge indi-
cates the outside air temperature when
you push the “TEMP” selector button.
The key must be in the “ON” position.
Pushing the button once again will turn off
the display.
When the air conditioning system is on,
pushing the button once indicates the out-
side temperature and a second time
changes the display back to the air condi-
tioning temperature.Cigarette lighter and front ashtray
Rear ashtray (on some models)
Clock Outside temperature gauge Cigarette lighter and ashtrays
