OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information displays204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass207 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Portable ashtray211 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders217 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage box218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grocery bag hooks218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo net219 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat219 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 10

’04 Solara_U (L/O 0402)
204
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

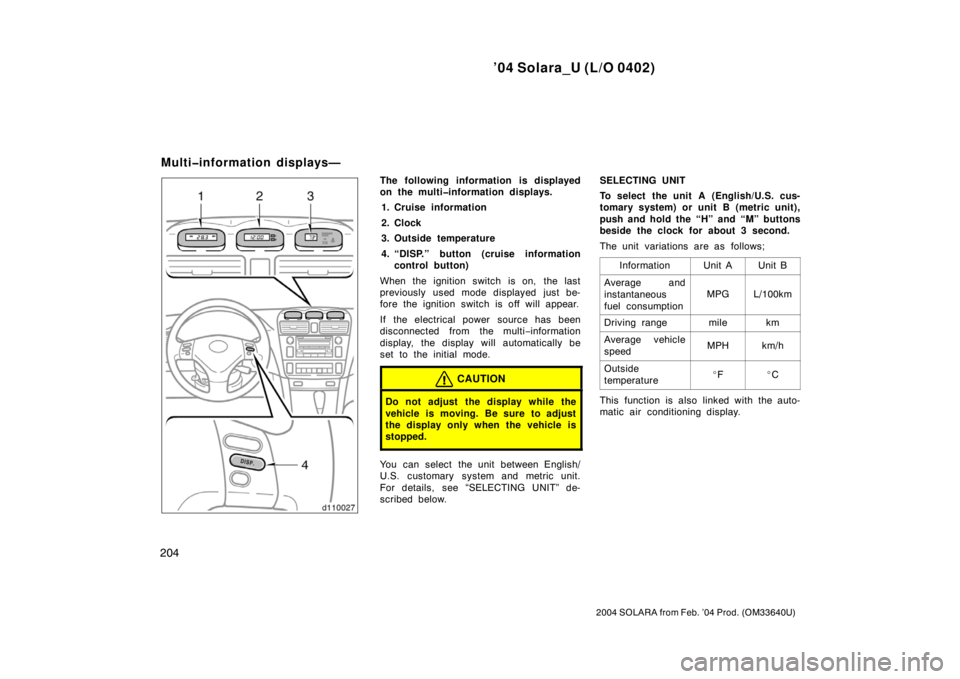

The following information is displayed
on the multiinformation displays.
1. Cruise information
2. Clock
3. Outside temperature
4. “DISP.” button (cruise information
control button)
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will automatically be
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
You can select the unit between English/
U.S. customary system and metric unit.
For details, see “SELECTING UNIT” de-
scribed below.SELECTING UNIT
To select the unit A (English/U.S. cus-
tomary system) or unit B (metric unit),
push and hold the “H” and “M” buttons
beside the clock for about 3 second.
The unit variations are as follows;
Information
Unit AUnit B
Average and
instantaneous
fuel consumption
MPGL/100km
Driving rangemilekm
Average vehicle
speedMPHkm/h
Outside
temperatureFC
This function is also linked with the auto-
matic air conditioning display.
Multiinformation displays—

’04 Solara_U (L/O 0402)
205
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
The left side display indicates the
cruise information when the ignition
switch is in the “ON” position.

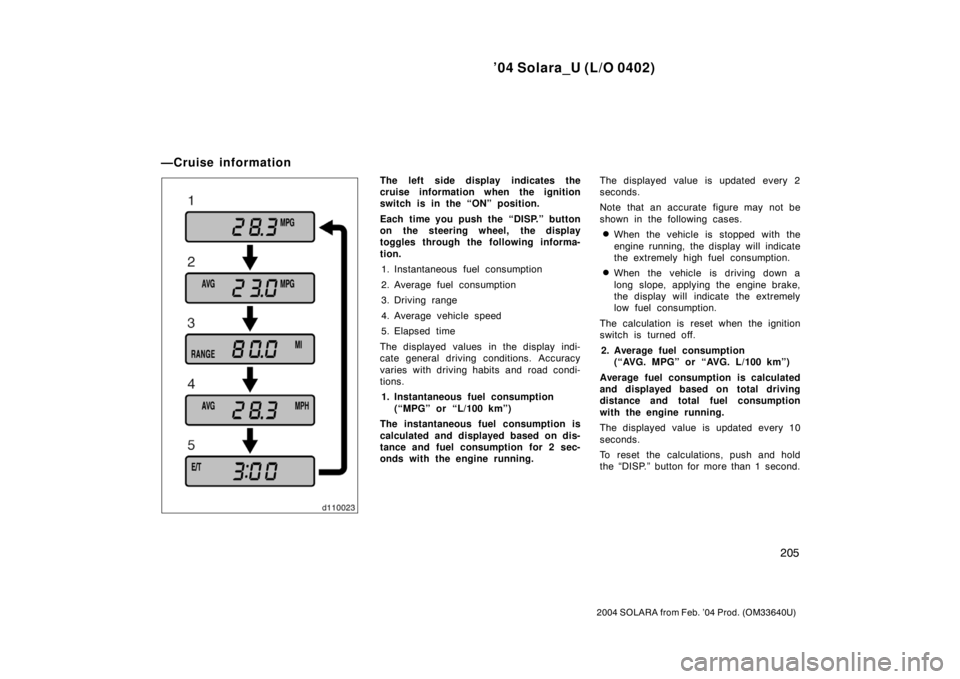

Each time you push the “DISP.” button
on the steering wheel, the display
toggles through the following informa-
tion.
1. Instantaneous fuel consumption
2. Average fuel consumption
3. Driving range
4. Average vehicle speed
5. Elapsed time
The displayed values in the display indi-
cate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
1. Instantaneous fuel consumption
(“MPG” or “L/100 km”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 2 sec-
onds with the engine running.The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the
engine running, the display will indicate
the extremely high fuel consumption.
When the vehicle is driving down a
long slope, applying the engine brake,
the display will indicate the extremely
low fuel consumption.
The calculation is reset when the ignition
switch is turned off.
2. Average fuel consumption
(“AVG. MPG” or “AVG. L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “DISP.” button for more than 1 second.
—Cruise information

’04 Solara_U (L/O 0402)
206
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
3. Driving range
(“RANGE MI” or “RANGE KM”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer. If fuel consumption is poor, the
driving range will be shorter.
If the low fuel level warning light comes
on, refuel even if the display indicates
that the vehicle can be driven further.4. Average vehicle speed
(“AVG. MPH” or “AVG. KM/h”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “DISP.” button for more than 1 second.
5. Elapsed time
(“E/T”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
To reset the calculations, push and hold
the “DISP.” button for more than 1 second.
The center display indicates the time
when the ignition switch is in the
“ACC” or “ON” position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
—Clock

’04 Solara_U (L/O 0402)
207
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
The right side display indicates the out-
side air temperatures when the ignition
switch is in the “ON” position.
The displayed temperature ranges from
−30C (−22F) up to 50C (122F).
If there is some abnormality in the con-
nection of the outside air temperature
sensor, “−−” will appear on the display. If
“−−” appears on the display, contact your
Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out

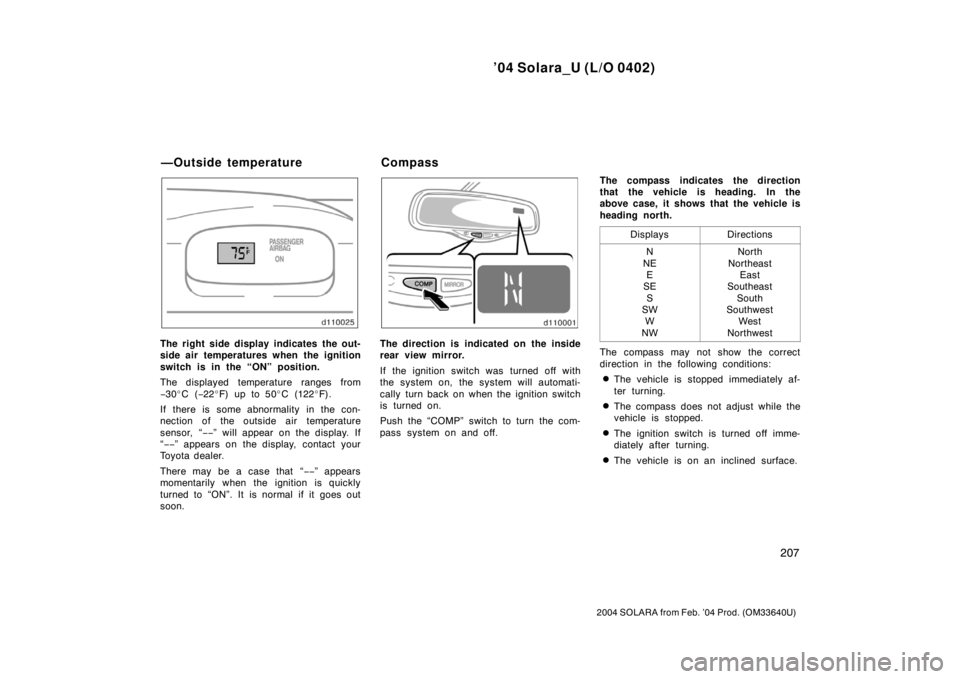

soon.The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “COMP” switch to turn the com-
pass system on and off.The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
—Outside temperature Compass

’04 Solara_U (L/O 0402)
208
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to the “CALIBRATING THE
COMPASS” below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.

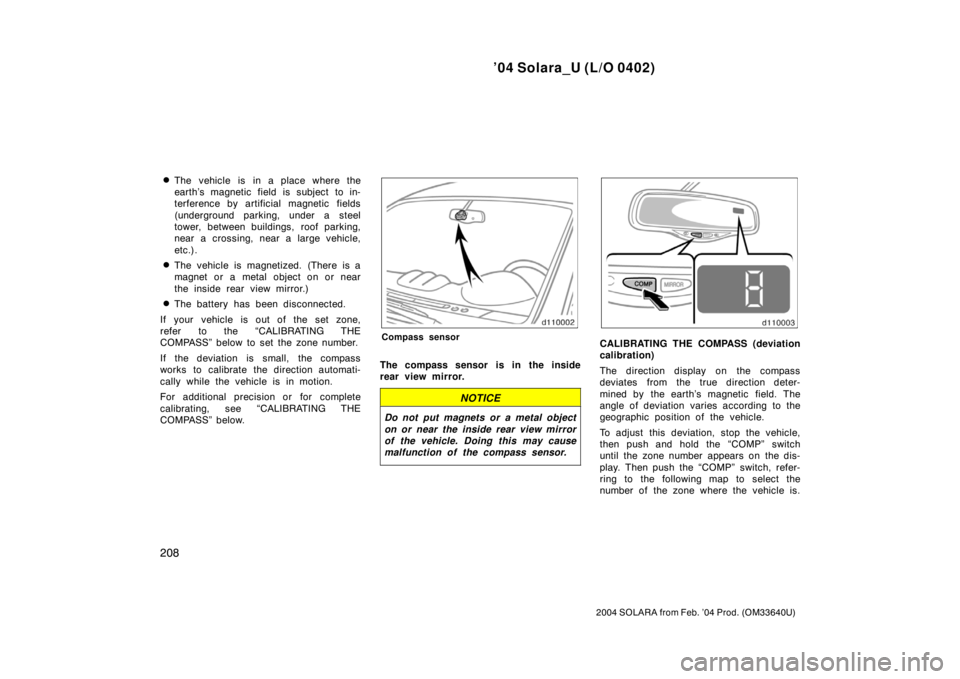

Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.

’04 Solara_U (L/O 0402)
209
2004 SOLARA from Feb. ’04 Prod. (OM33640U) Zone number
After calibration, leaving the system for
several seconds returns it to compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

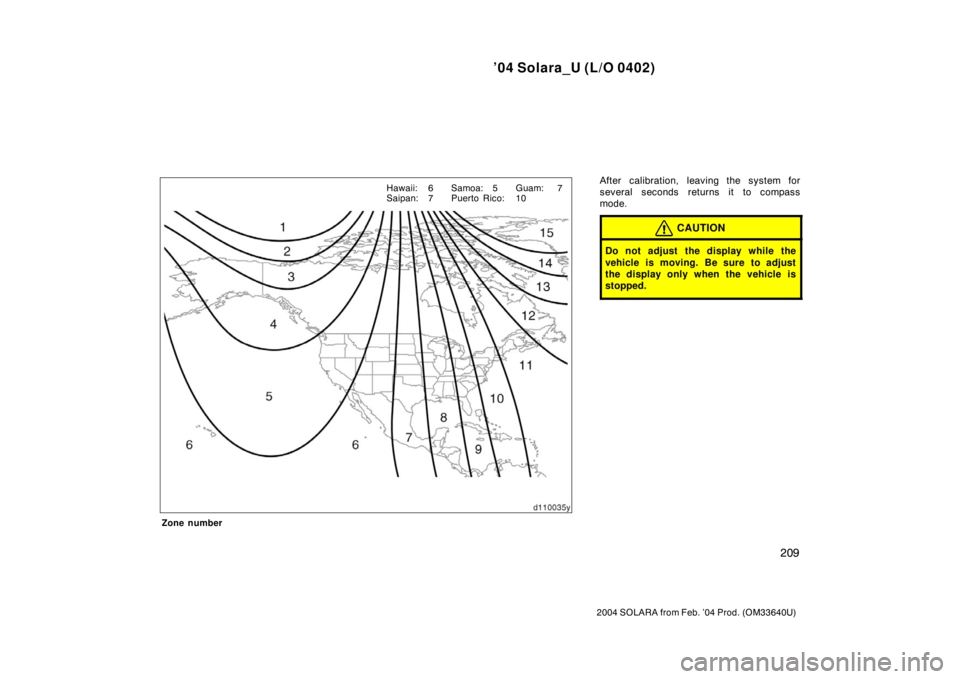

Hawaii: 6 Samoa: 5 Guam: 7
Saipan: 7 Puerto Rico: 10

’04 Solara_U (L/O 0402)
210
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

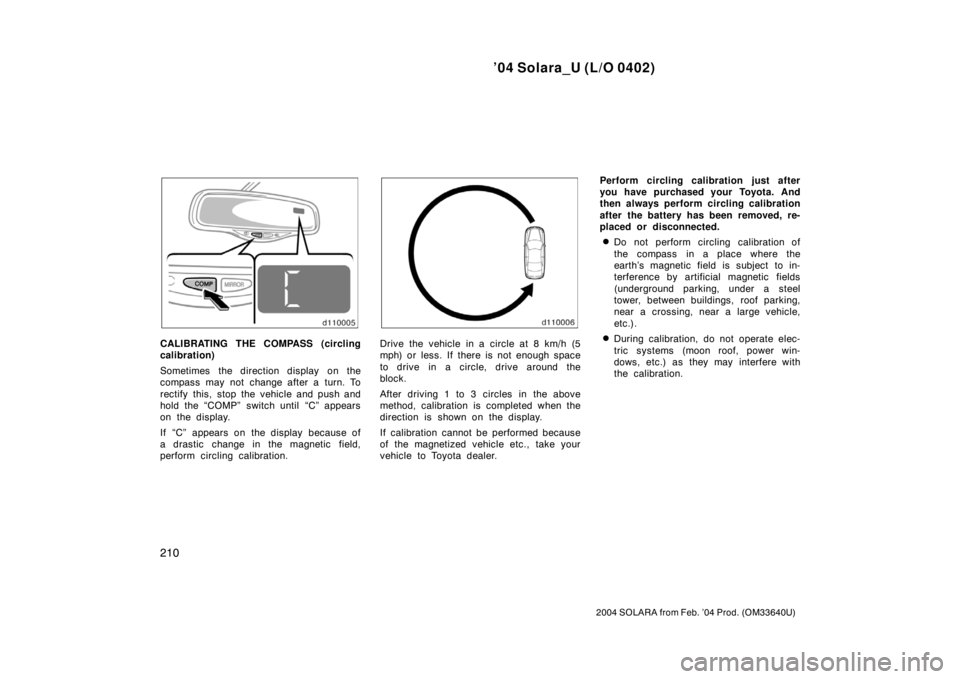

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “COMP” switch until “C” appears
on the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

’04 Solara_U (L/O 0402)
211
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

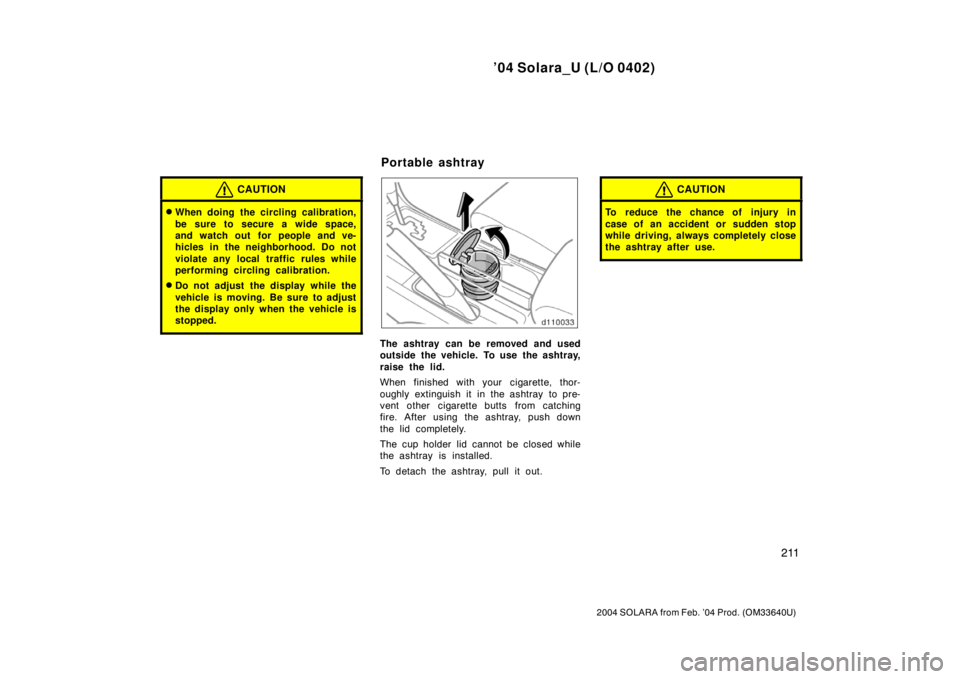

CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The ashtray can be removed and used
outside the vehicle. To use the ashtray,
raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push down
the lid completely.
The cup holder lid cannot be closed while
the ashtray is installed.
To detach the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Portable ashtray

’04 Solara_U (L/O 0402)
212
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

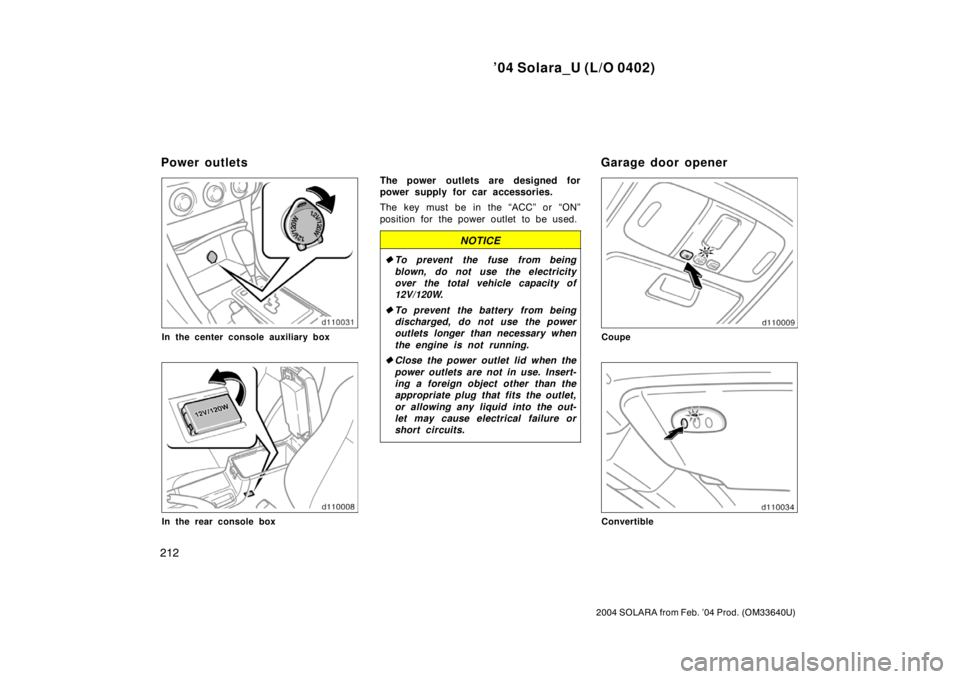

In the center console auxiliary box
In the rear console box
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Close the power outlet lid when the
power outlets are not in use. Insert-
ing a foreign object other than the
appropriate plug that fits the outlet,
or allowing any liquid into the out-
let may cause electrical failure or
short circuits.
Coupe
Convertible
Power outlets Garage door opener
