TOYOTA SOLARA 2004 Warranties & Maintenance Guides (in English)

PASSPORT
to performance
2004
Scheduled
Maintenance Guide

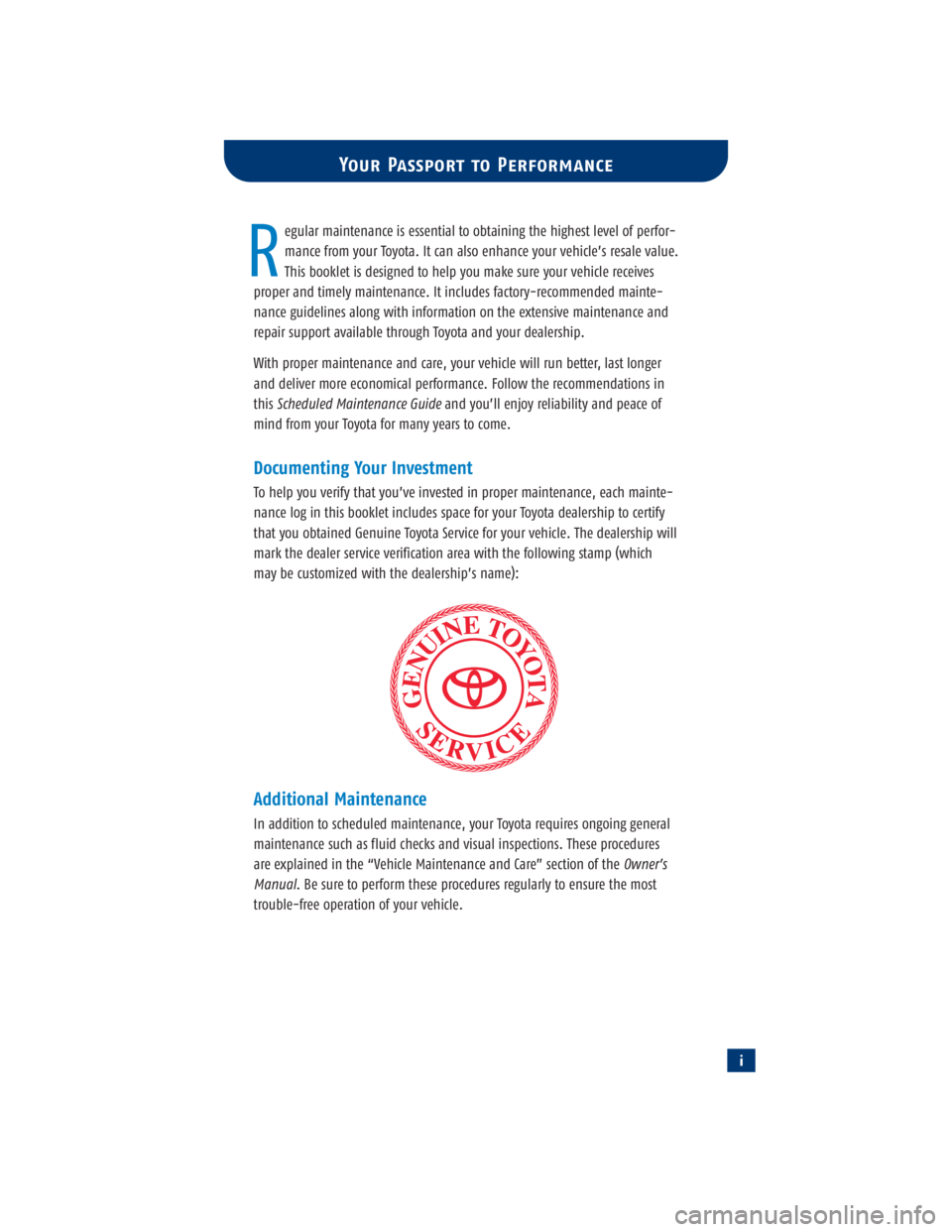

i
egular maintenance is essential to obtaining the highest level of perfor-
mance from your Toyota. It can also enhance your vehicle’s resale value.
This booklet is designed to help you make sure your vehicle receives
proper and timely maintenance. It includes factory-recommended mainte-
nance guidelines along with information on the extensive maintenance and
repair support available through Toyota and your dealership.
With proper maintenance and care, your vehicle will run better, last longer
and deliver more economical performance. Follow the recommendations in
thisScheduled Maintenance Guideand you’ll enjoy reliability and peace of
mind from your Toyota for many years to come.
Documenting Your Investment
To help you verify that you’ve invested in proper maintenance, each mainte-
nance log in this booklet includes space for your Toyota dealership to certify
that you obtained Genuine Toyota Service for your vehicle. The dealership will
mark the dealer service verification area with the following stamp (which
may be customized with the dealership’s name):
Additional Maintenance
In addition to scheduled maintenance, your Toyota requires ongoing general
maintenance such as fluid checks and visual inspections. These procedures
are explained in the “Vehicle Maintenance and Care” section of theOwner’s
Manual. Be sure to perform these procedures regularly to ensure the most
trouble-free operation of your vehicle.
Your Passport to Performance
R

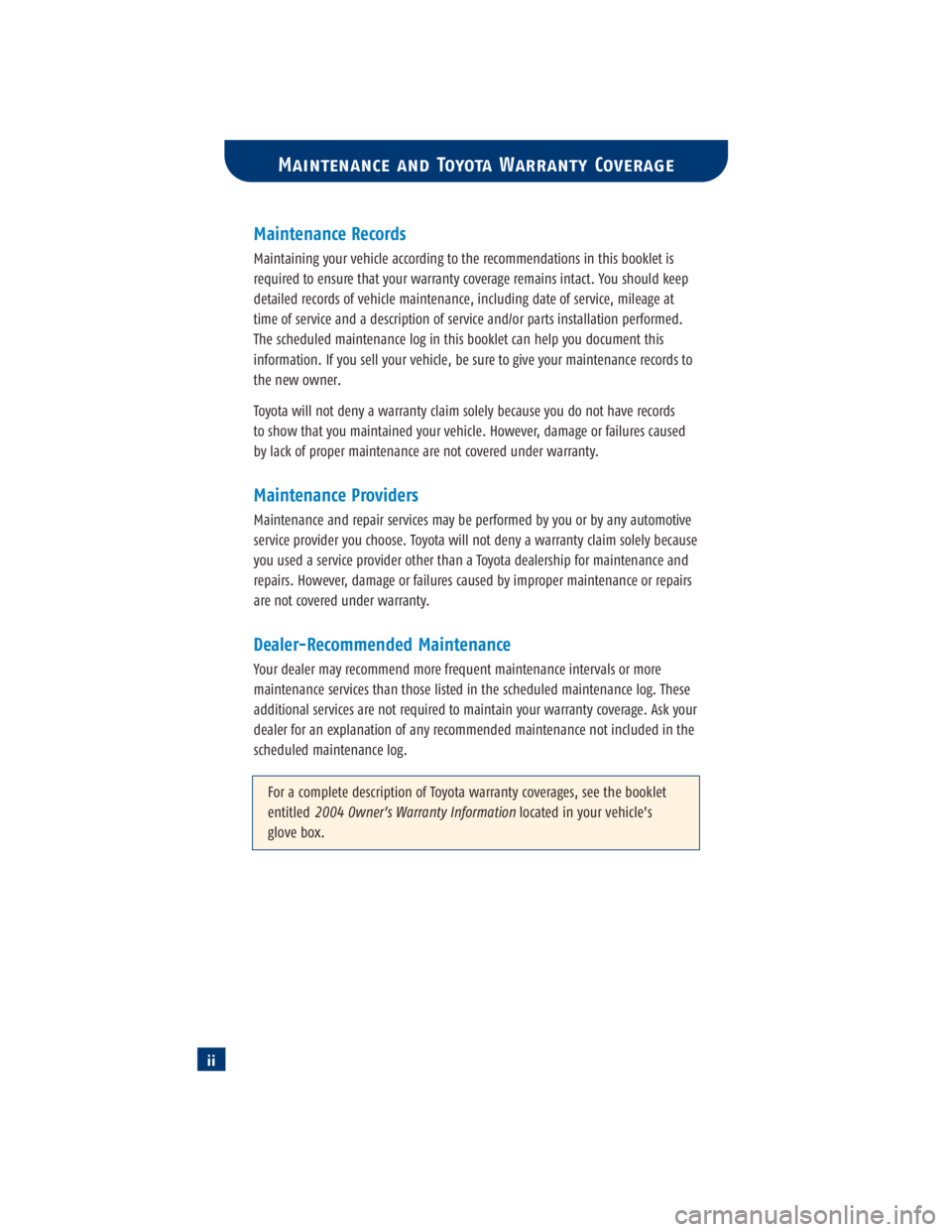

iiMaintenance Records
Maintaining your vehicle according to the recommendations in this booklet is
required to ensure that your warranty coverage remains intact. You should keep
detailed records of vehicle maintenance, including date of service, mileage at
time of service and a description of service and/or parts installation performed.
The scheduled maintenance log in this booklet can help you document this
information. If you sell your vehicle, be sure to give yourmaintenance records to
the new owner.
Toyota will not deny a warranty claim solely because you do nothave records
to show that you maintained your vehicle. However, damage or failures caused
by lack of proper maintenance are not covered under warranty.
Maintenance Providers
Maintenance and repair services may be performed by you or by any automotive
service provider you choose. Toyota will not deny a warranty claim solely because
you used a service provider other than a Toyota dealership for maintenance and
repairs. However, damage or failures caused by improper maintenance or repairs
are not covered under warranty.
Dealer-Recommended Maintenance
Your dealer may recommend more frequent maintenance intervals or more
maintenance services than those listed in the scheduled maintenance log. These
additional services are not required to maintain your warranty coverage. Ask your
dealer for an explanation of any recommended maintenance not included in the
scheduled maintenance log.
For a complete description of Toyota warranty coverages, see the booklet
entitled 2004 Owner’s Warranty Informationlocated in your vehicle’s
glove box.
Maintenance and Toyota Warranty Coverage

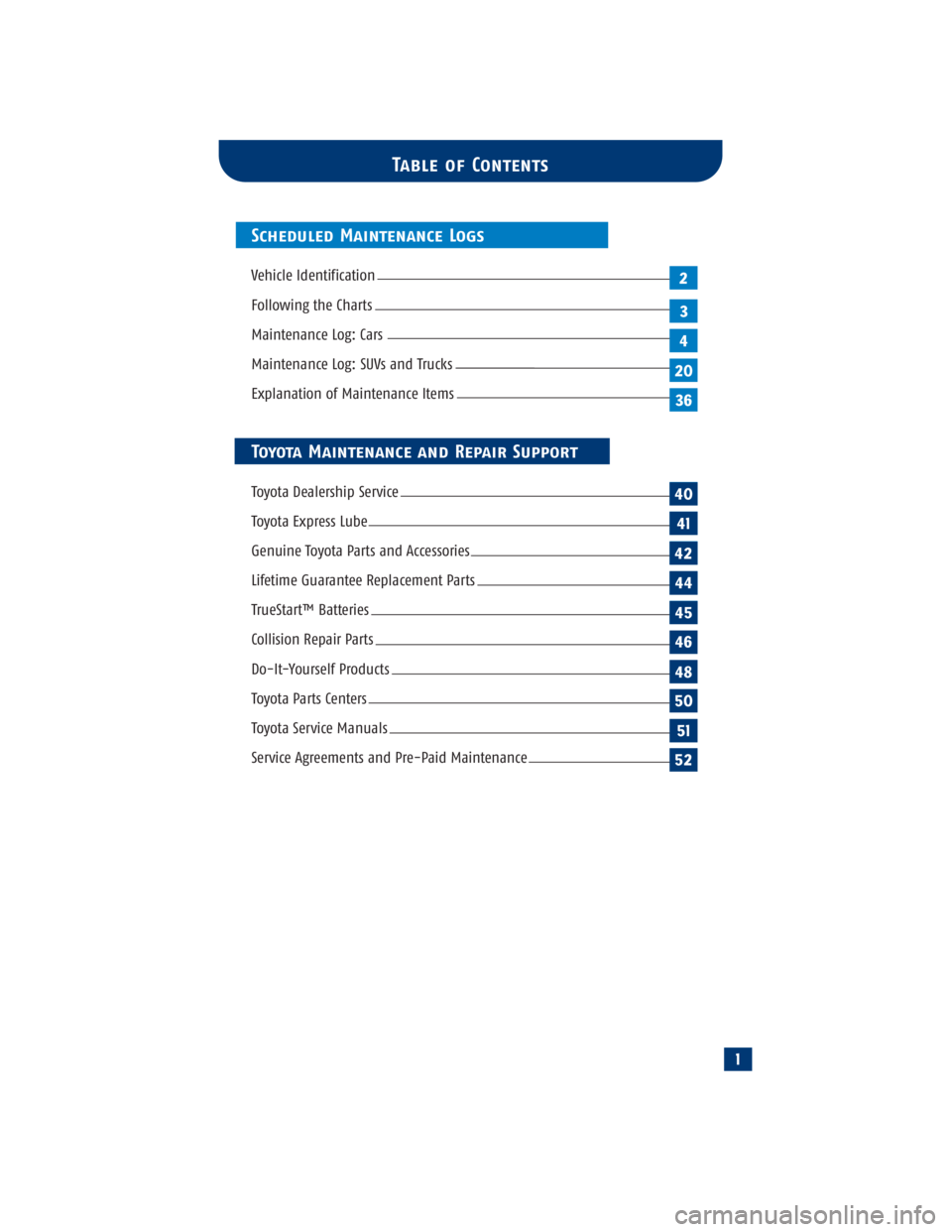

1
Scheduled Maintenance Logs
Vehicle Identification
Following the Charts
Maintenance Log: Cars
Maintenance Log: SUVs and Trucks
Explanation of Maintenance Items
Toyota Maintenance and Repair Support
Toyota Dealership Service
Toyota Express Lube
Genuine Toyota Parts and Accessories
Lifetime Guarantee Replacement Parts
TrueStart™ Batteries
Collision Repair Parts
Do-It-Yourself Products
Toyota Parts Centers
Toyota Service Manuals
Service Agreements and Pre-Paid Maintenance
Table of Contents
40
41
42
44
45
46
48
50
51
52
2
3
4
20
36

Scheduled Maintenance Logs2

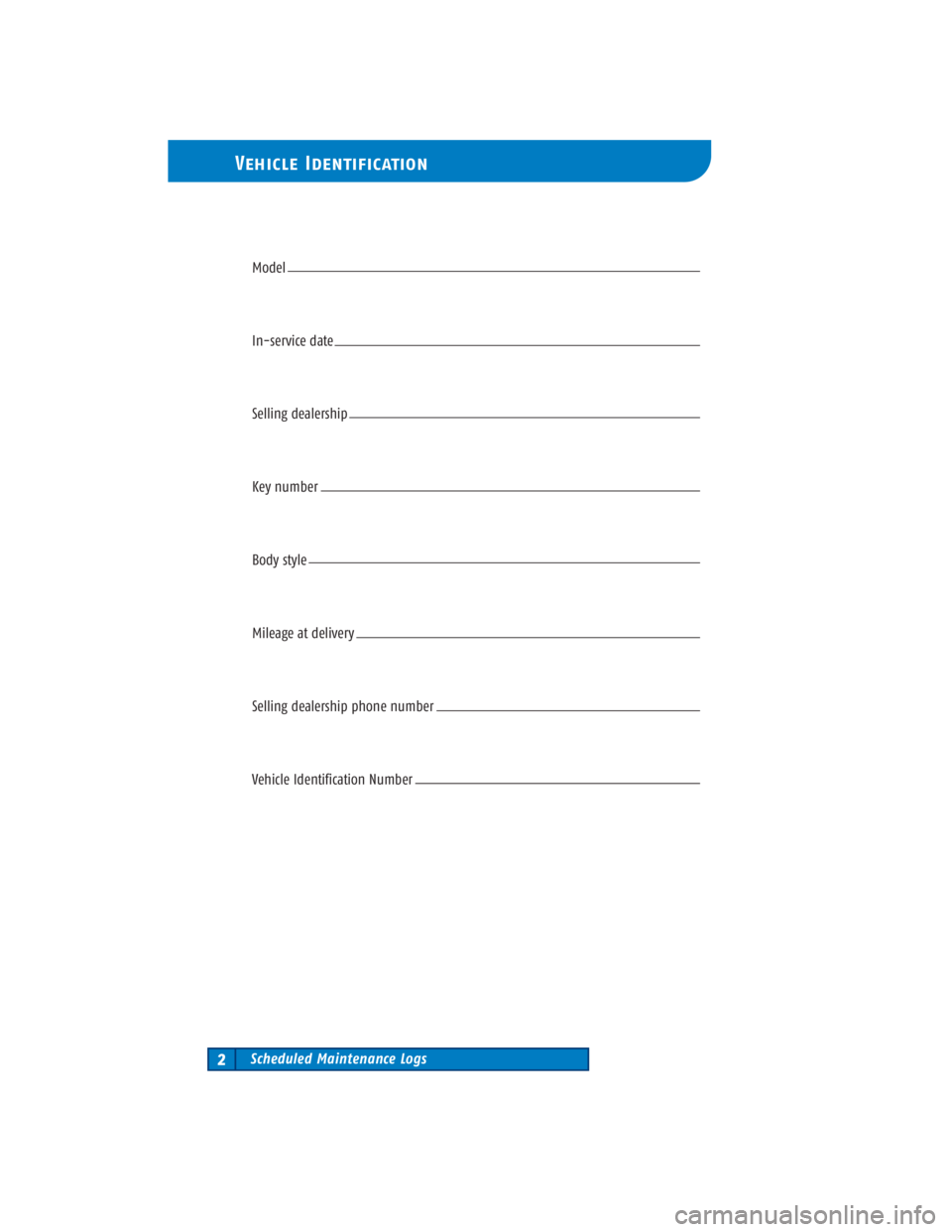

Vehicle Identification
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number

Scheduled Maintenance Logs3

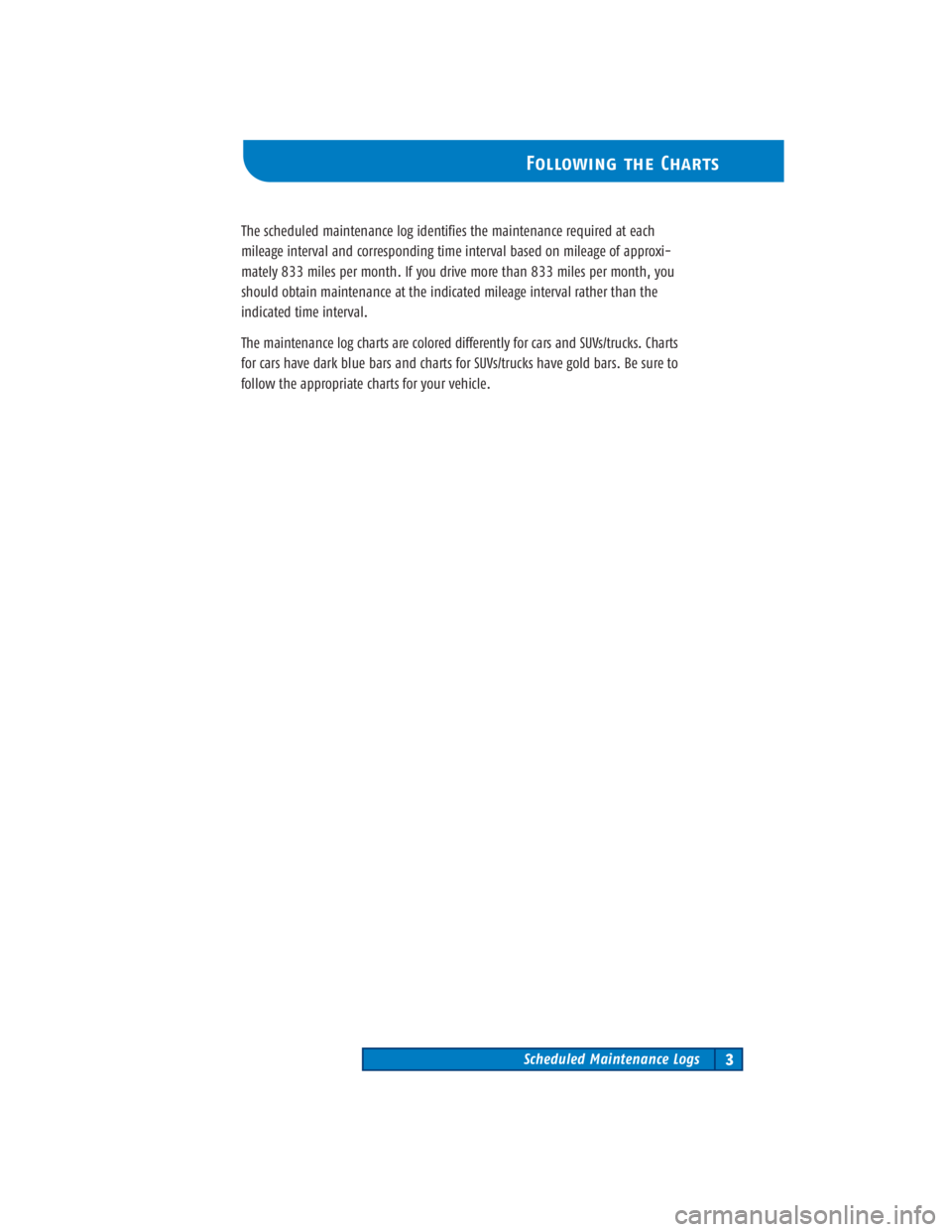

Following the Charts
The scheduled maintenance log identifies the maintenance required at each
mileage interval and corresponding time interval based on mileage of approxi-
mately 833 miles per month. If you drive more than 833 miles per month, you
should obtain maintenance at the indicated mileage interval rather than the
indicated time interval.
The maintenance log charts are colored differently for cars and SUVs/trucks. Charts
for cars have darkblue bars and charts for SUVs/trucks have gold bars. Be sure to
follow the appropriate charts for your vehicle.

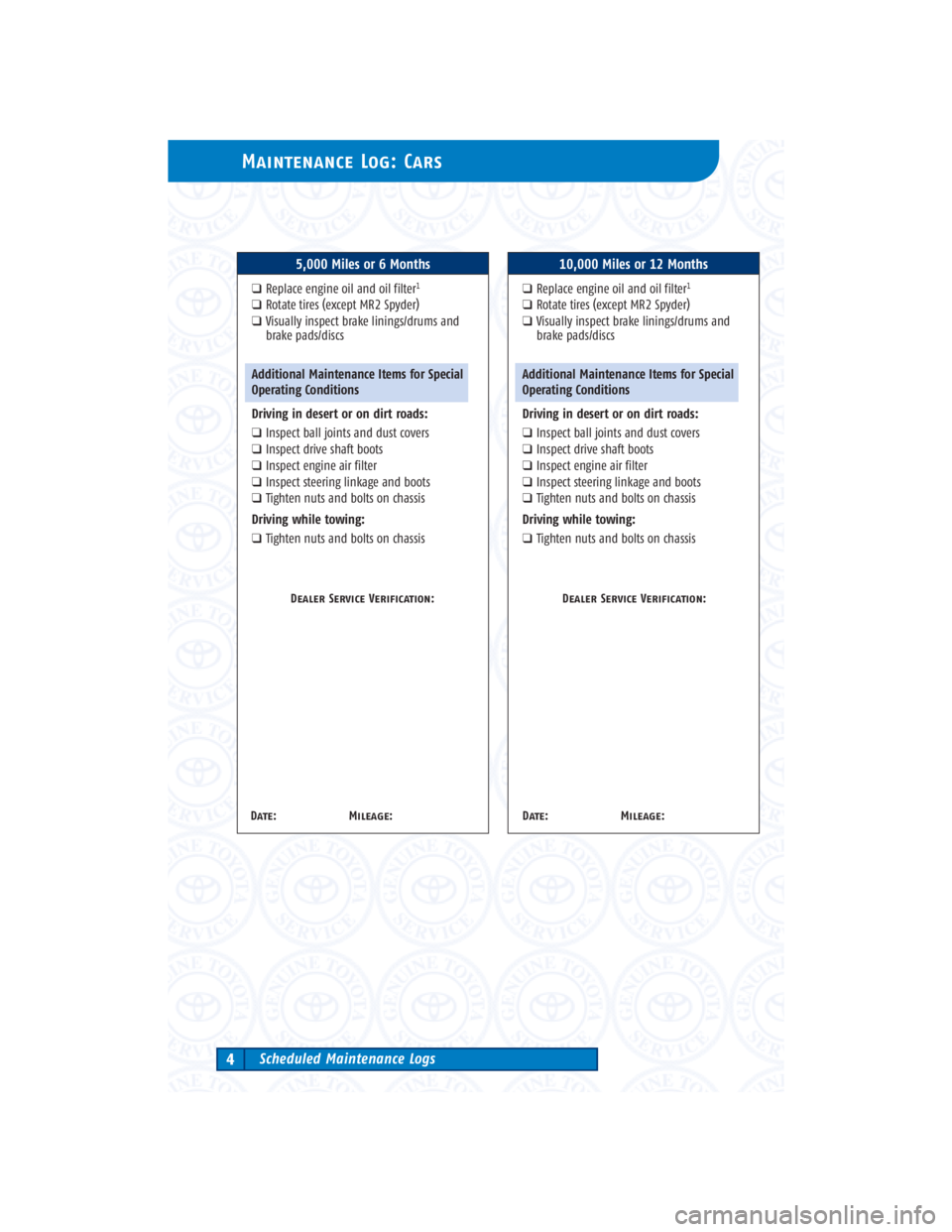

Maintenance Log: Cars
Scheduled Maintenance Logs4
5,000 Miles or 6 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
10,000 Miles or 12 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.
Maintenance Log: Cars
Scheduled Maintenance Logs5

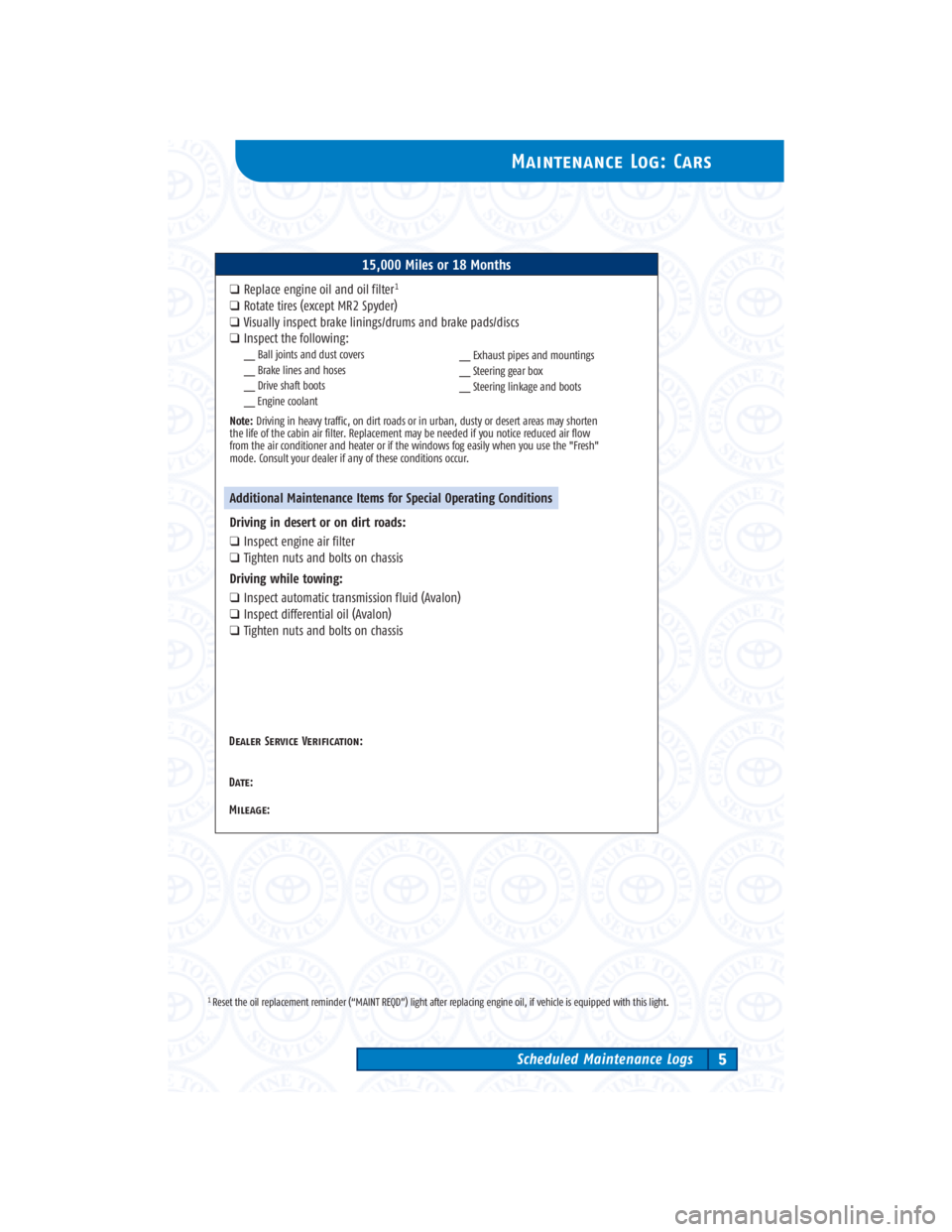

15,000 Miles or 18 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Inspect automatic transmission fluid (Avalon)
❑Inspect differential oil (Avalon)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots

Maintenance Log: Cars
Scheduled Maintenance Logs6
20,000 Miles or 24 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
25,000 Miles or 30 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.

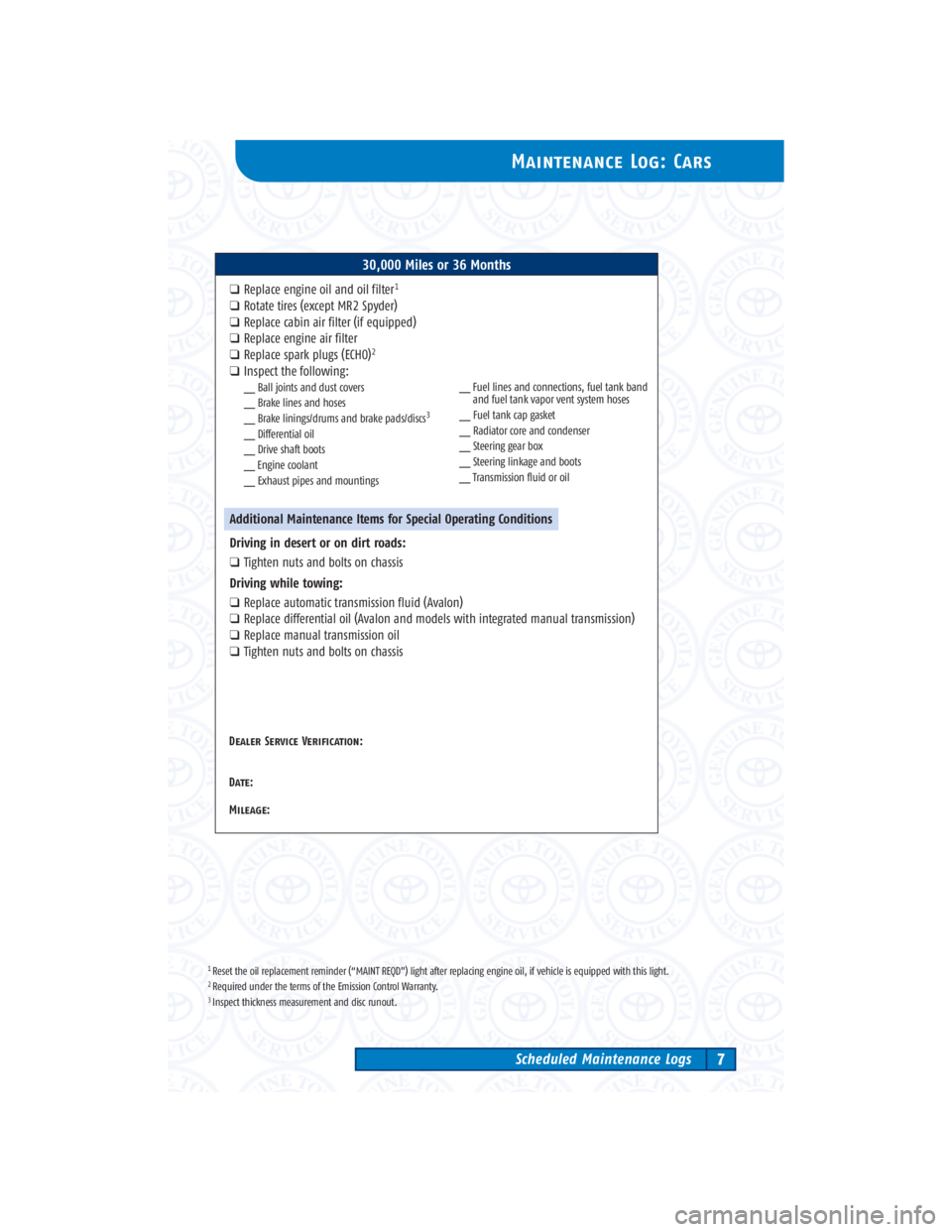

Maintenance Log: Cars
Scheduled Maintenance Logs7
30,000 Miles or 36 Months
❑Replace engine oil and oil filter1
❑Rotate tires (except MR2 Spyder)
❑Replace cabin air filter (if equipped)
❑Replace engine air filter
❑Replace spark plugs (ECHO)
2
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace automatic transmission fluid (Avalon)
❑Replace differential oil (Avalon and models with integrated manual transmission)
❑Replace manual transmission oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
