WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Do not use wheels other than the
manufacturer ’s recommended size, as
this may cause dangerous handling
characteristics resulting in loss of
control. Otherwise, an accident may
occur resulting in death or serious
injuries.
Initial adjustment of the tire pressure
warning system is necessary after you
have rotated your tires. See “Tire pres-
sure warning system” on page 151 in
Section 17.
When installing aluminum wheels,
check that the wheel nuts are tight
after driving your vehicle the first 1600
km (1000 miles).
If you have rotated, repaired, or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles).
When using tire chains, be careful not
to damage the aluminum wheels.
Use only Toyota wheel nuts and
wrench designed for your aluminum
wheels.
When balancing your wheels, use only
Toyota balance weights or equivalent
and a plastic or rubber hammer.
As with any wheel, periodically check
your aluminum wheels for damage. If
damaged, replace immediately.
Replacing wheels Aluminum wheel precautions

’04 Solara_U (L/O 0402)
314
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

’04 Solara_U (L/O 0402)
315
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions317 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses318 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid319 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 3

’04 Solara_U (L/O 0402)
316
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Terminals
Hold−down
clampGround cable
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off
with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose,
tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold−down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery condition—
—Precautions—Checking battery exterior

’04 Solara_U (L/O 0402)
317
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
Be careful not to cause a short cir-
cuit with tools.
Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the driver ’s power window and
moon roof may not operate automatically
and the jam protection function will not
function correctly after you reconnect, re-
place or recharge the battery. In any of
these cases, you should normalize the
power window and moon roof. To normal-
ize the power window and moon roof, see
“Power windows” on page 23 and “Electric
moon roof” on page 33 in Section 1−2.
Ty p e A
Green DarkClear or
light yellow
Ty p e B
Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear or
light
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed
on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re-
charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery condition Battery recharging precautions

’04 Solara_U (L/O 0402)
318
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Good Blown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D

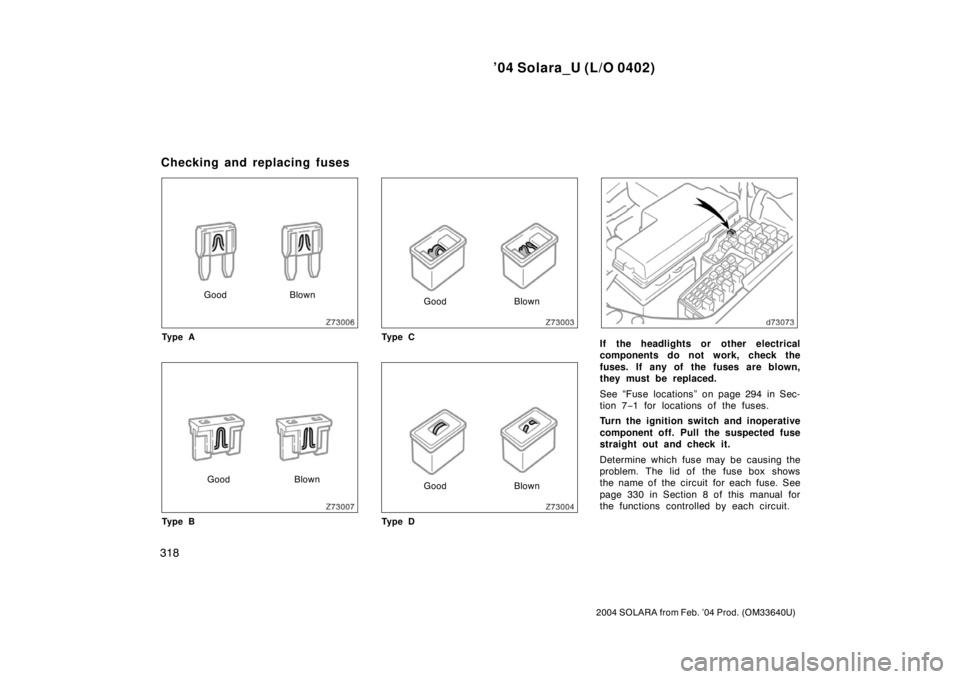

If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 294 in Sec-
tion 7−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 330 in Section 8 of this manual for
the functions controlled by each circuit.
Checking and replacing fuses

’04 Solara_U (L/O 0402)
319
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Type A and B fuses can be pulled out by
the pull−out tool. The location of the pull−
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “P/POINT”
or “RAD1” fuse, which may be dispens-
able for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’04 Solara_U (L/O 0402)
320
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

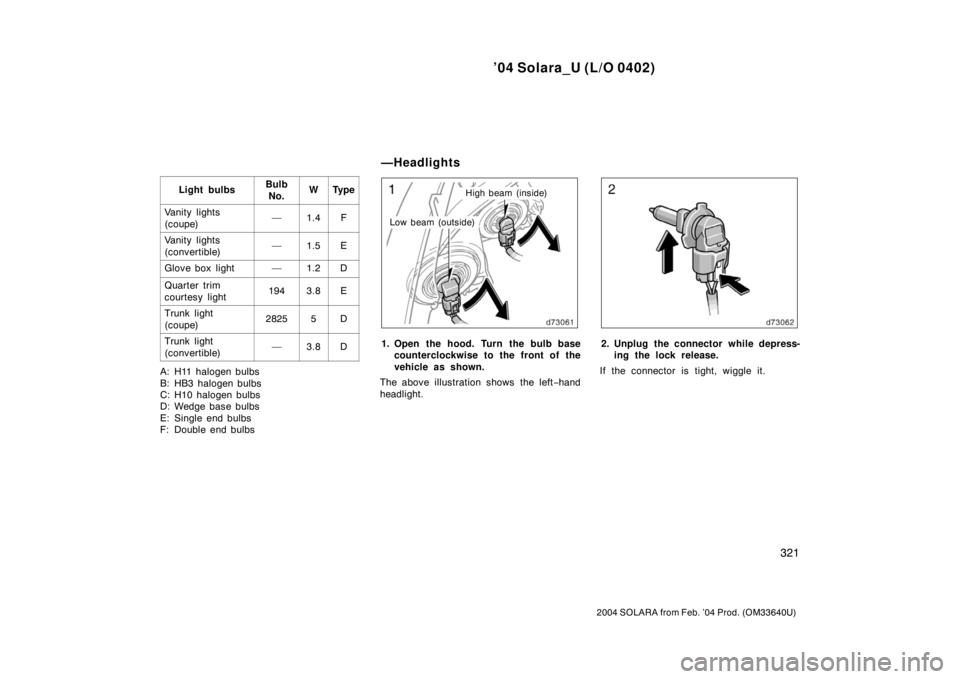

The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(low beam)—55A
Headlights
(high beam)900560B
Front fog lights—42C
Parking, front
side marker and
front turn signal
lights
3457NA30/8D
Rear turn signal
lights3156K27D
Stop/tail and rear
side marker lights3157K27/7D
Back−up lights92118D
License plate
lights1943.8D
High mounted
stoplight (coupe)92118D
Personal lights
(coupe)—5D
Personal lights
(convertible)—8E
Interior light—8F
Replacing light bulbs—

’04 Solara_U (L/O 0402)
321
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Light bulbsBulb
No.WTy p e
Vanity lights
(coupe)—1.4F
Vanity lights
(convertible)—1.5E
Glove box light—1.2D
Quarter trim
courtesy light1943.8E
Trunk light
(coupe)28255D
Trunk light
(convertible)—3.8D
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: H10 halogen bulbs
D: Wedge base bulbs
E: Single end bulbs
F: Double end bulbs
Low beam (outside)High beam (inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration shows the left−hand
headlight.2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.
—Headlights

’04 Solara_U (L/O 0402)
322
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
3. Plug in a new bulb into the connec-
tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Backup light
—Rear turn signal, backup,
stop/tail and rear side marker
lights
