TOYOTA SOLARA 2005 Owners Manual (in English)

’05 Solara_U (L/O 0409)
83
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

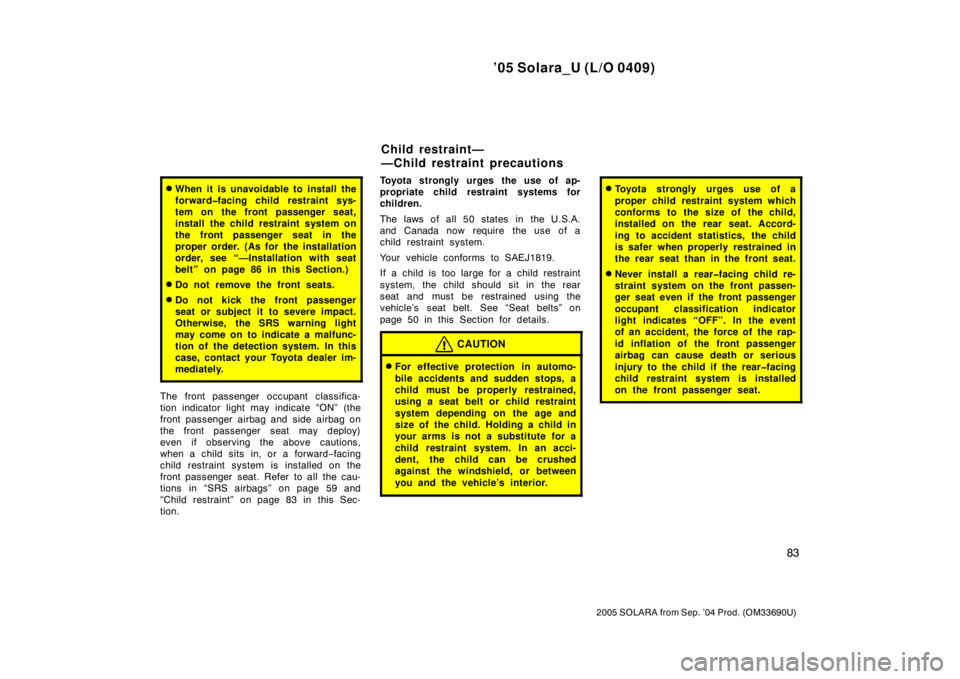

When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 86 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate “ON” (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward−facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in “SRS airbags” on page 59 and
“Child restraint” on page 83 in this Sec-
tion. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 50 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the force of the rap-
id inflation of the front passenger
airbag can cause death or serious
injury to the child if the rearfacing
child restraint system is installed
on the front passenger seat.
Child restraint—
—Child restraint precautions

’05 Solara_U (L/O 0409)
84
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

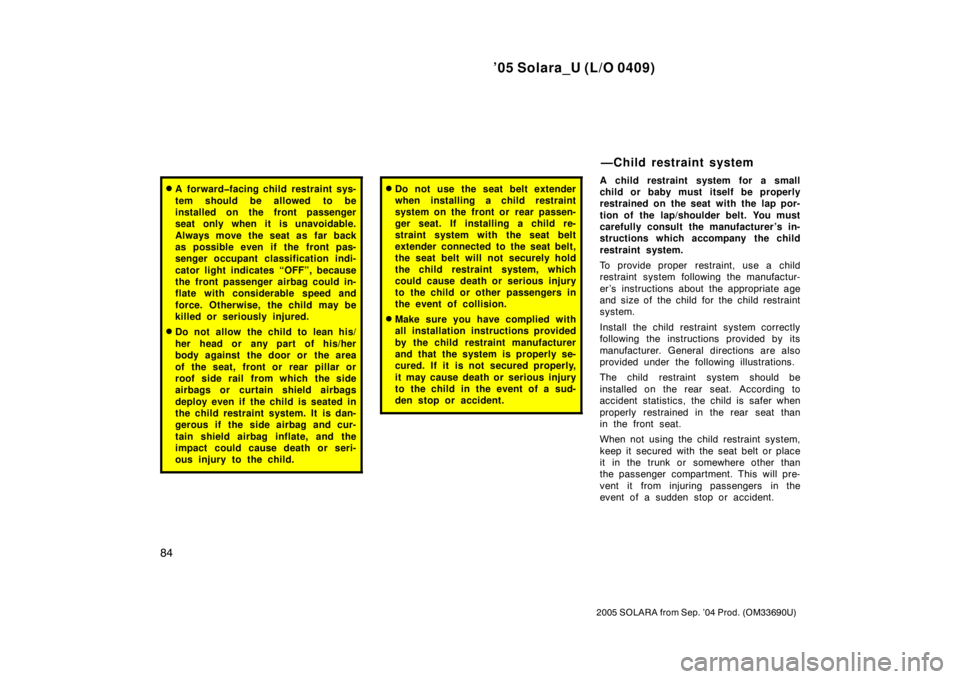

A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.
—Child restraint system

’05 Solara_U (L/O 0409)
85
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

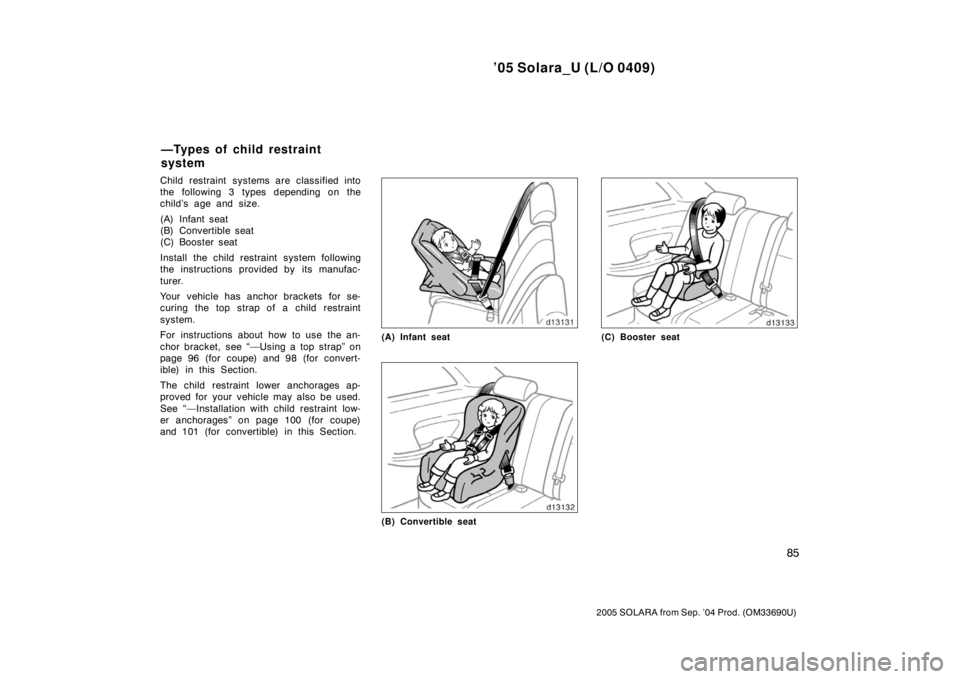

Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 96 (for coupe) and 98 (for convert-
ible) in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 100 (for coupe)
and 101 (for convertible) in this Section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

’05 Solara_U (L/O 0409)
86
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

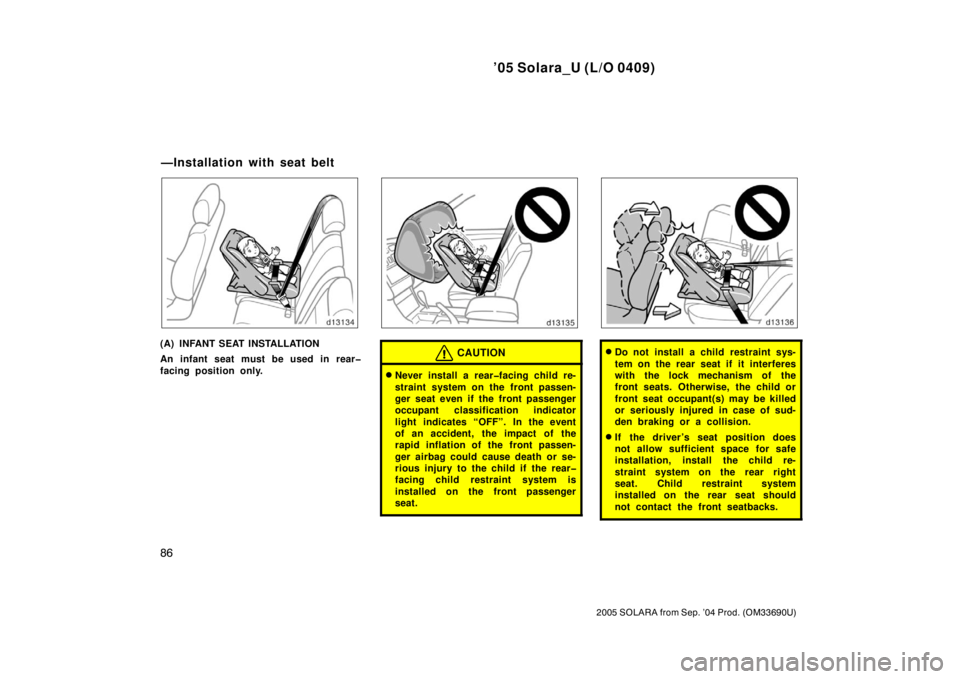

(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.
—Installation with seat belt

’05 Solara_U (L/O 0409)
87
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

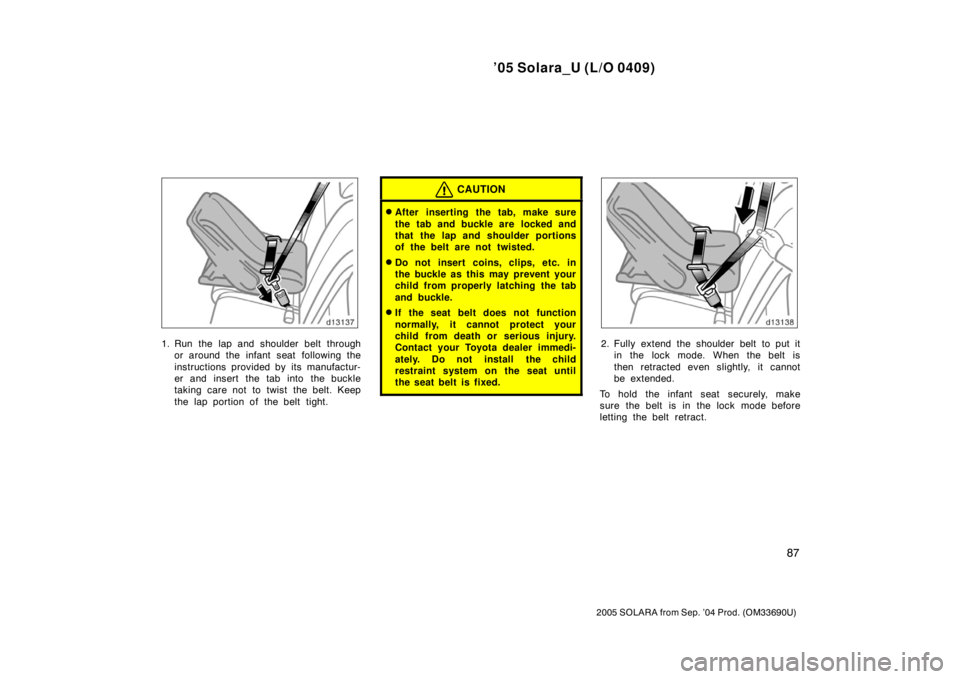

1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.

’05 Solara_U (L/O 0409)
88
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

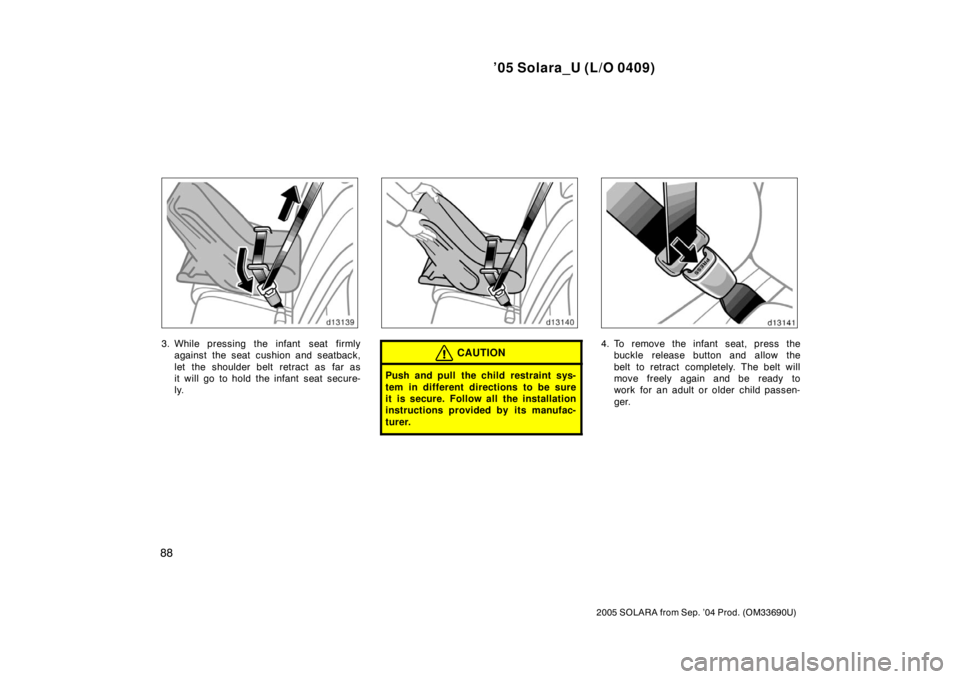

3. While pressing the infant seat firmlyagainst the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

’05 Solara_U (L/O 0409)
89
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

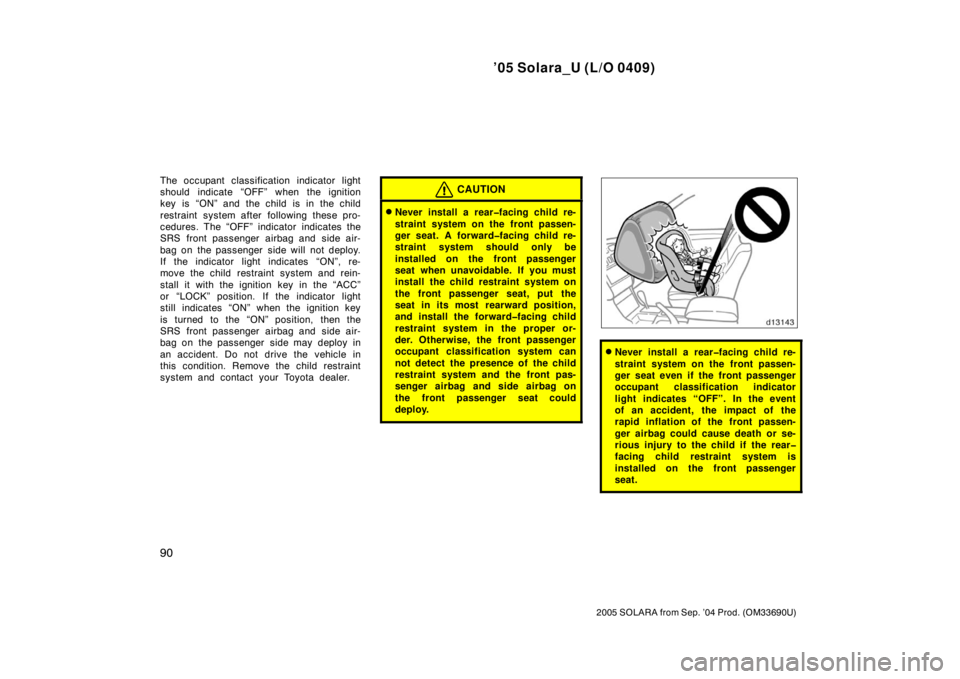

(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occu
pant
classification system correctly, install the
forward −facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the “ON” posi- tion.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.

’05 Solara_U (L/O 0409)
90
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
The occupant classification indicator light
should indicate “OFF” when the ignition
key is “ON” and the child is in the child
restraint system after following these pro-
cedures. The “OFF” indicator indicates the
SRS front passenger airbag and side air-
bag on the passenger side will not deploy.
If the indicator light indicates “ON”, re-
move the child restraint system and rein-
stall it with the ignition key in the “ACC”
or “LOCK” position. If the indicator light
still indicates “ON” when the ignition key
is turned to the “ON” position, then the
SRS front passenger airbag and side air-
bag on the passenger side may deploy in
an accident. Do not drive the vehicle in
this condition. Remove the child restraint
system and contact your Toyota dealer.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.

’05 Solara_U (L/O 0409)
91
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.

’05 Solara_U (L/O 0409)
92
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
