TOYOTA SOLARA 2005 (in English) Workshop Manual

’05 Solara_U (L/O 0409)
43
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
Front passenger seat

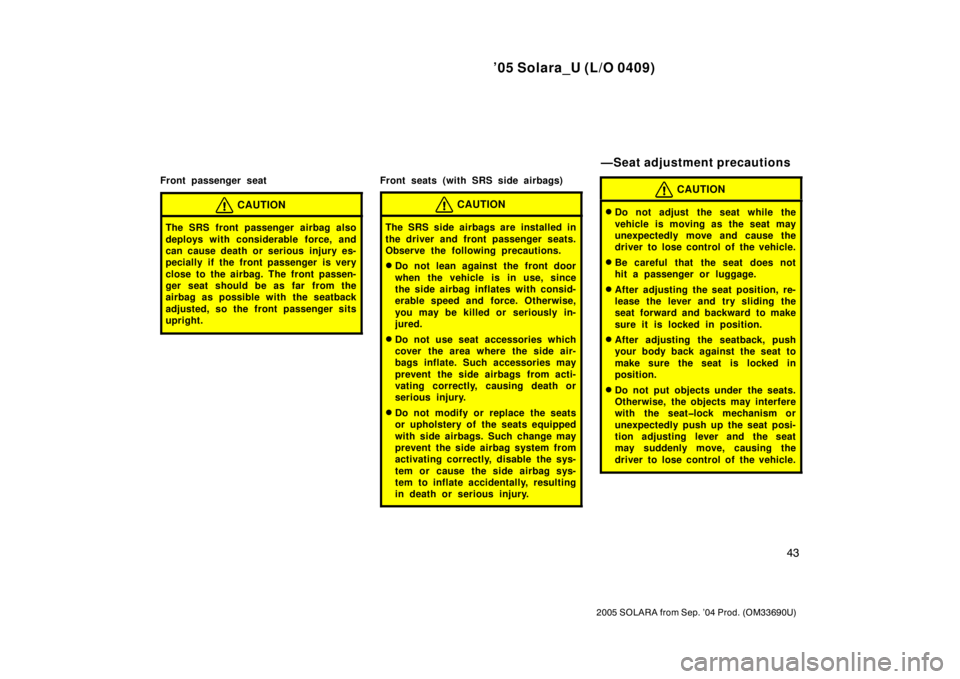

CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbag sys-
tem to inflate accidentally, resulting
in death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

’05 Solara_U (L/O 0409)
44
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

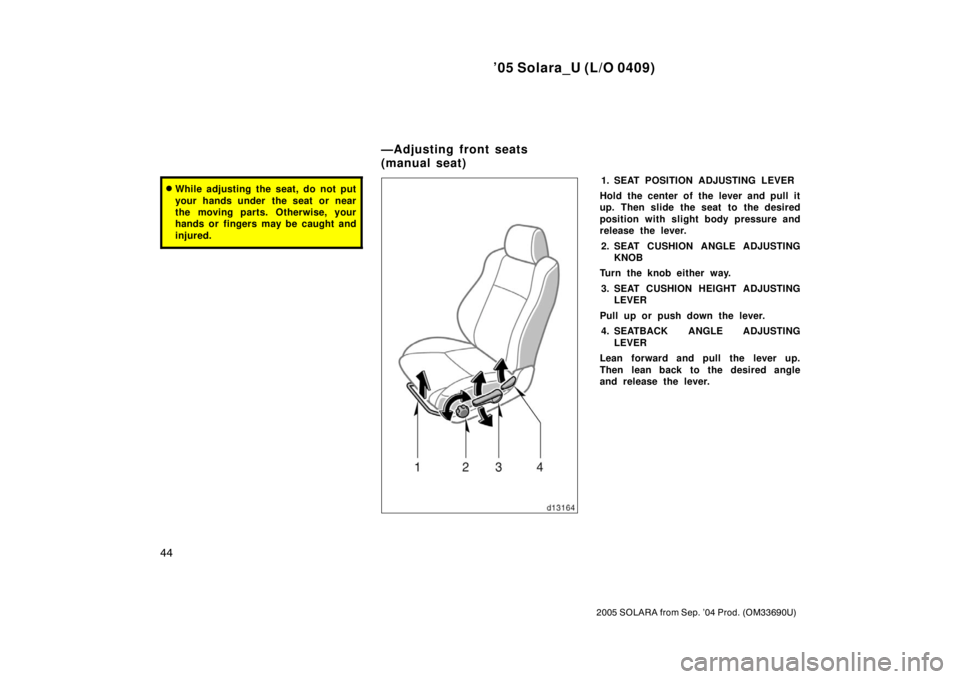

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEAT CUSHION HEIGHT ADJUSTING LEVER
Pull up or push down the lever. 4. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’05 Solara_U (L/O 0409)
45
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.

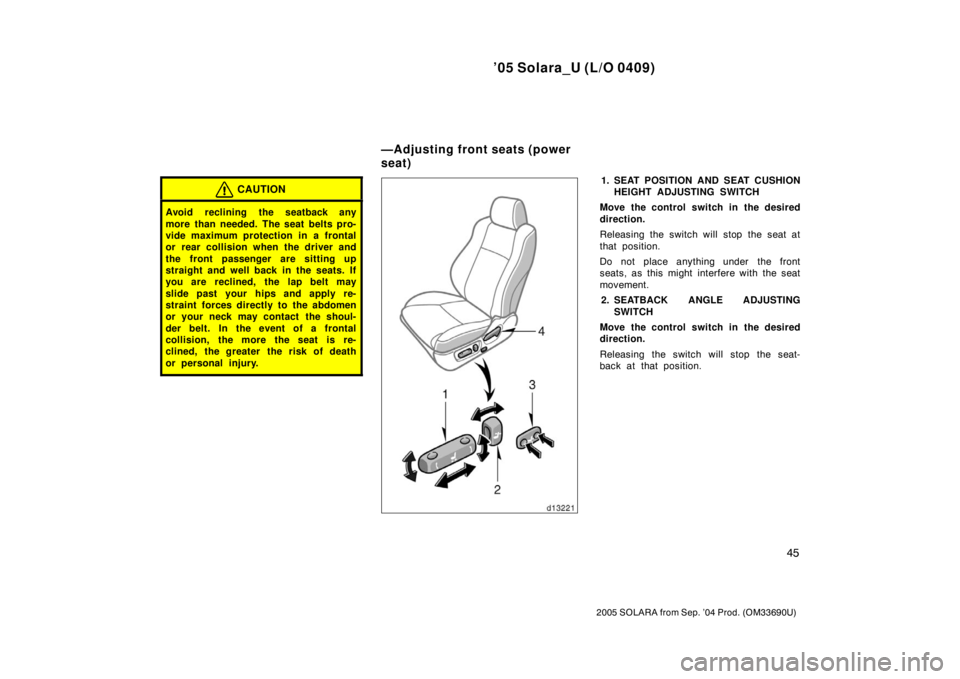

1. SEAT POSITION AND SEAT CUSHIONHEIGHT ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

’05 Solara_U (L/O 0409)
46
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the switch on either side.
The amount of lumbar support will change
while the switch is pushed. 4. SEATBACK LOCK RELEASE LEVER
This lever uses for the rear seat entry.
For details, see “—Moving front seats for
rear seat entry” described below.

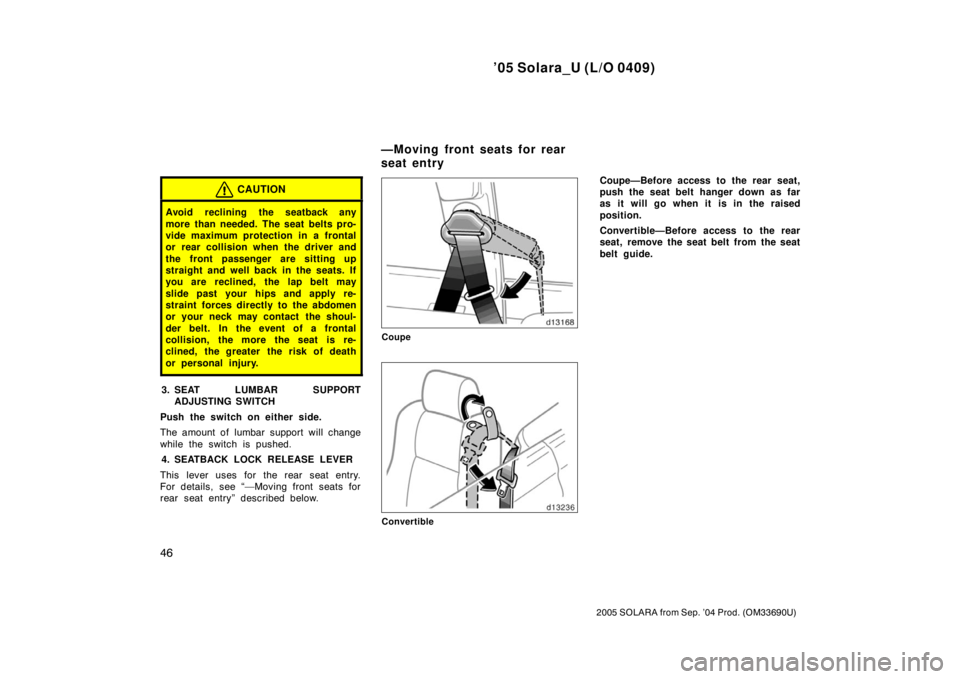

Coupe
Convertible
Coupe—Before access to the rear seat,
push the seat belt hanger down as far
as it will go when it is in the raised
position.
Convertible—Before access to the rear
seat, remove the seat belt from the seat
belt guide.
—Moving front seats for rear
seat entry

’05 Solara_U (L/O 0409)
47
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
From the driver’s side
From the front passenger’s side
From the driver’s side—
Pull up the seatback angle adjusting
lever (manual seat) or seatback lock re-
lease lever (power seat), and incline the
seatback.
After passengers are in, lift up on the
seatback.
From the front passenger ’s side—
Pull up the seatback angle adjusting
lever or press the lock release pedal
behind the seatback, and move the seat
to the front most position.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the lock release pedal be-
hind the front passenger seatback
while the vehicle is moving.
1. Pull up the seatback security locklever (1) to the unlock position.
2. Pull up the lock release button (2).
3. Fold down the seatback.
Each seatback can be folded separately.
NOTICE
To prevent damage to the lock release
button, do not fold down the seatback
by pulling the lock rel ease button.
Folddown rear seat (coupe)

’05 Solara_U (L/O 0409)
48
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
This will enlarge the trunk as far as the
seatbacks. See “—Stowage precautions”
on page 245 in Section 2 for precautions
when loading luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk will not damage the
webbing of the rear seat belts when
the seatback is folded down.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback
and that the red mark at the button
on the top of the seatback cannot
be seen. Failure to do so will pre-
vent the seat belt from operating
properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.
To turn on the seat heater, push the
switch. At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The key must be in the “ON” position to
operate seat heaters.
Seat heaters

’05 Solara_U (L/O 0409)
49
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from becom-
ing discharged, turn the switch off
when the engine is not running.
Front
Rear (coupe)
Head restraints

’05 Solara_U (L/O 0409)
50
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 83 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions

’05 Solara_U (L/O 0409)
51
2005 SOLARA from Sep. ’04 Prod. (OM33690U)

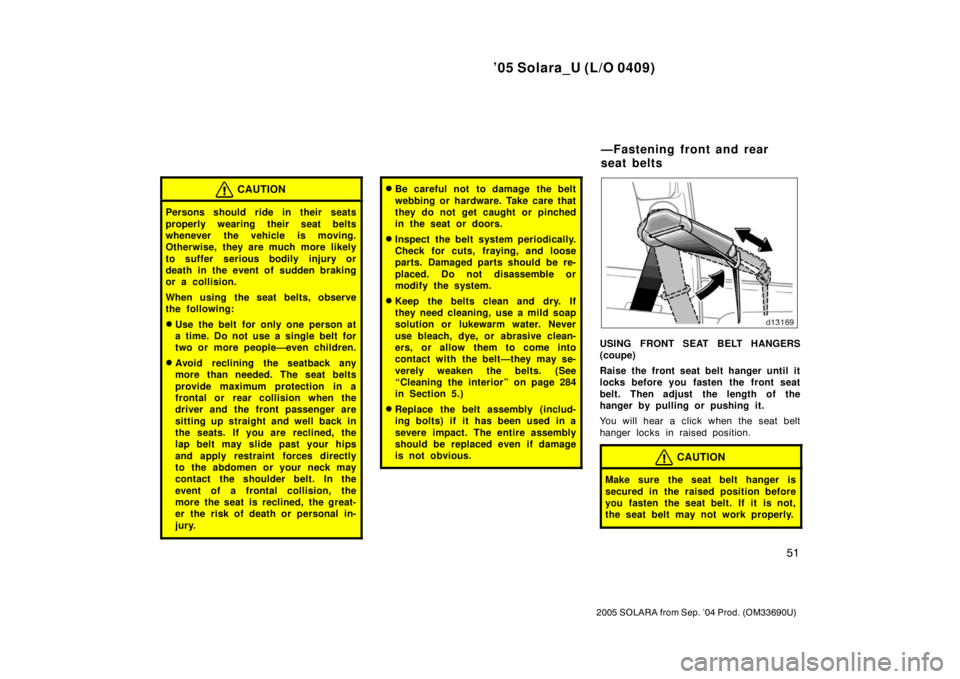

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belt—they may se-
verely weaken the belts. (See
“Cleaning the interior” on page 284
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
USING FRONT SEAT BELT HANGERS
(coupe)
Raise the front seat belt hanger until it
locks before you fasten the front seat
belt. Then adjust the length of the
hanger by pulling or pushing it.
You will hear a click when the seat belt
hanger locks in raised position.
CAUTION
Make sure the seat belt hanger is
secured in the raised position before
you fasten the seat belt. If it is not,
the seat belt may not work properly.
—Fastening front and rear
seat belts

’05 Solara_U (L/O 0409)
52
2005 SOLARA from Sep. ’04 Prod. (OM33690U)
USING FRONT SEAT BELT GUIDES
(convertible)
The seat belt guide helps keep the seat
belt in its proper position. The guide
can also be used to reach the seat belt
tab easily.
To use the seat belt guide, detach the
hanger magnet. Place the seat belt
through the guide and reattach the mag-
nets.
CAUTION
Always make sure the shoulder belt
is positioned securely across the
shoulder, but kept away from neck.
Use the seat belt guide to position
the belt if necessary. Failure to
properly position the belt may re-
duce the amount of protection in an
accident and could lead to serious
injuries in a collision.
Always make sure that the belt
webbing is not twisted and runs
freely through the guide when using
it.
Always adjust the seat belt webbing
snugly, adjust the seat belt guide
and seat position to assure proper
fit and comfort of your seat belt.
Ta bBuckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
