121

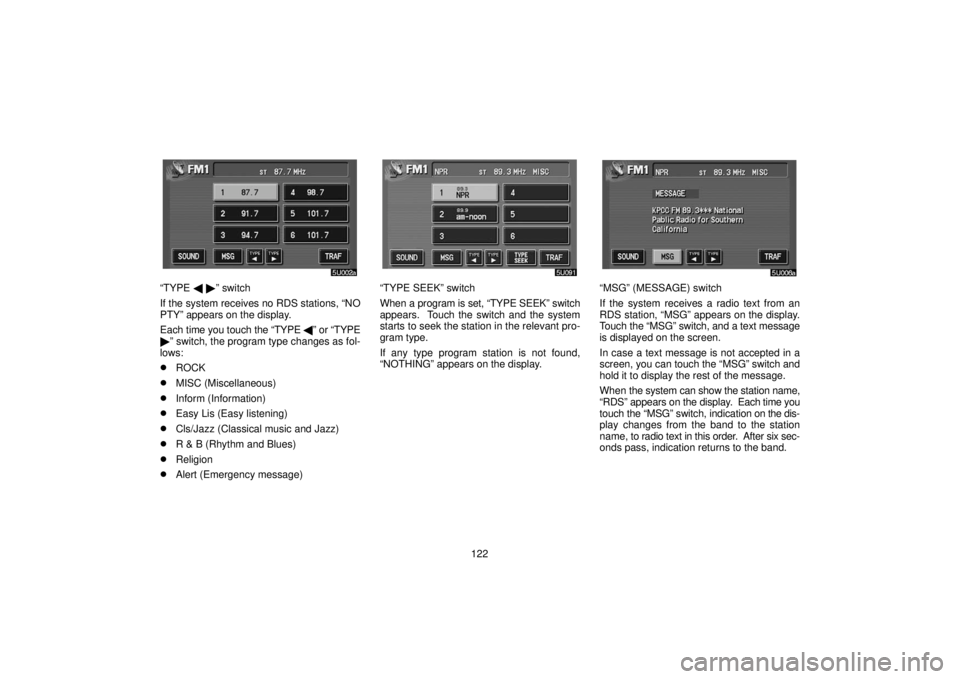

(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the switches (1 — 6) you
want and hold it until a beep is heard. This
sets the station to the switch and the fre-
quency appears on the switch.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning:
Touch the switch (1 — 6) for
the station you want. The switch is high-
lighted in g reen and the station frequency ap-
pears on the screen.
Seek tuning: Push the “SEEK/TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched out automatically after another.
To scan all the frequencies: Touch the
“SCAN” switch on the screen or push the
“SCAN” button briefly. “SCAN” appears on
the screen. The radio will find the next station
and stay there for a few seconds, and then
scan again. To select a station, touch the
“SCAN” switch or push the “SCAN” button
again.
To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than approximately
a second. “P. SCAN” appears on the screen.
The radio will tune in the next preset station,
stay there for a few seconds, and then move
to the next preset station. To select a station,
touch the “SCAN” switch or push the “SCAN”
button again. (d) Radio Data System
Your audio system is equipped with Radio
Data Systems
(RDS). RDS mode allows you
to receive text messages from radio stations
that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for use only on FM
stations which broadcast RDS information.

122
“TYPE   ” switch
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch the “TYPE ” or “TYPE
 ” switch, the program type changes as fol-
lows:
ROCK
MISC (Miscellaneous)
Inform (Information)
Easy Lis (Easy listening)
Cls/Jazz (Classical music and Jazz)
R & B (Rhythm and Blues)
Religion
Alert (Emergency message)
“TYPE SEEK” switch
When a program is set, “TYPE SEEK” switch
appears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.“MSG” (MESSAGE) switch
If the system receives a radio text from an
RDS station, “MSG” appears on the display.
Touch t he “MSG” switch, and a text message
is displayed on the screen.
In case a text message is not accepted in a
screen, you can touch th e “MSG” switch and
hold it to display the rest of the message.
When the system can show the station name,
“RDS” appears on the display . Each time you
touch the “MSG” switch, indication on the dis-
play changes from the band to the station
name, to radio text in this order. After six sec-
onds pass, indication returns to the band.

123
(e) Traffic announcement
“TRAF” switch
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the “TRAF” switch, “TRAF
SEEK” appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
“NOTHING” appears on the display.
If the traffic program station is found, the
name for traffic program station is displayed
and “TRAF” is lit for a while until traffic an-
nouncement is received.
— Radio operation
(XM satellite radio broadcast)
To listen to a satellite radio broadcast in your
vehicle, an additional genuine Toyota satellite
receiver and antenna must be purchased and
installed, and the subscription to the XM sat-
ellite radio is necessary. (a) How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed ex-
clusively to receive broadcasts provided un-
der a separate subscription. Availability is
limited to the 48 contiguous states.
How to subscribe: You must enter into a
separate service agreement with the XM ra-
dio in order to receive satellite broadcast pro-
gramming in
the vehicle. Additional activation
and service subscription fees apply that are
not included in the purchase price of the ve-
hicle and optional digital satellite tuner. For
complete information on subscription rates
and terms, or to subscribe to the XM radio,
visit XM on the web at www.xmradio.com
or
call an XM’s Listener Care at (800) 852−9696.
The XM radio is solely responsible for the
quality, availability and content of the satellite
radio services provided, which are subject to
the terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID ready;
the radio ID can be found by selecting “chan-
nel 000” on the radio. For details, see the
“Displaying the radio ID” that follows.
All fees and programming are the responsibil-
ity of the XM satellite radio and are subject to
change.

124
Satellite tuner technology notice:

Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM Satellite
Radio Inc. on “March 10, 2003” and “April 15,
2003” as proof of compatibility with the ser-
vices offered by the XM satellite radio. (b) Displaying the radio ID
Each XM tuner is identified with a unique ra-
dio ID. You
will need the radio ID when activat-
ing XM service or when reporting a problem.
If you select the “CH 000” using the “TUNE”
knob, the ID code of 8 alphanumeric charac-
ters appears. If you select another channel,
display of the ID code is canceled. The chan-
nel (000) alternates the display between the
radio ID and the specific radio ID code.
(c) Listening to satellite radio

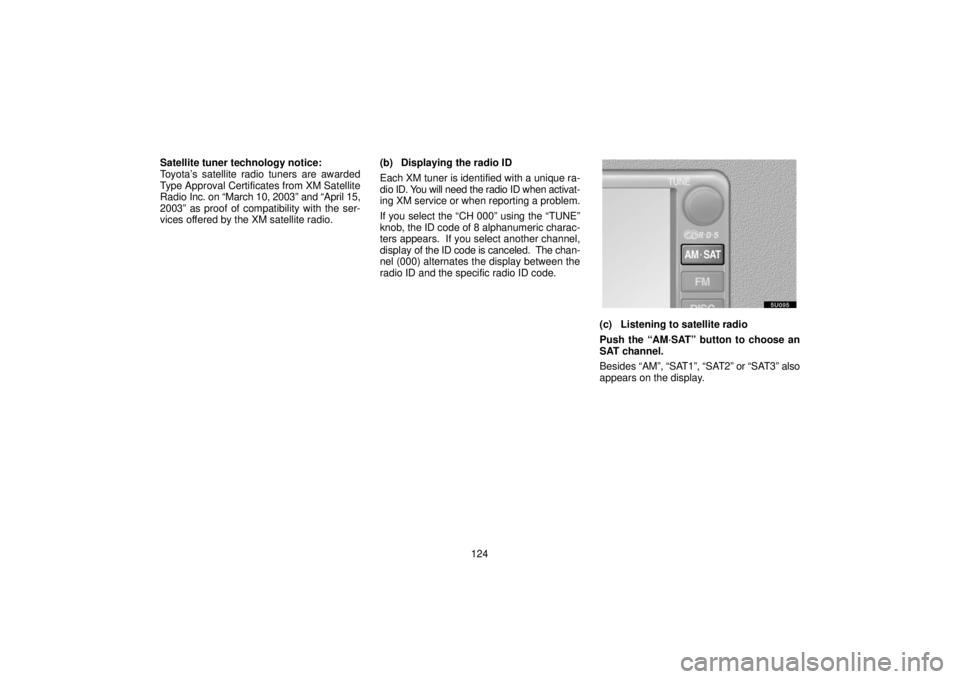

Push the “AM·SAT” button to choose an
SAT channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3” also
appears on the display.

125
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly scroll
forward or down through the channels.
(d) Channel category
When the channel category appears, touch
either “TYPE ” or “TYPE” switch to go to
the next or previous category.(e) Presetting a channel

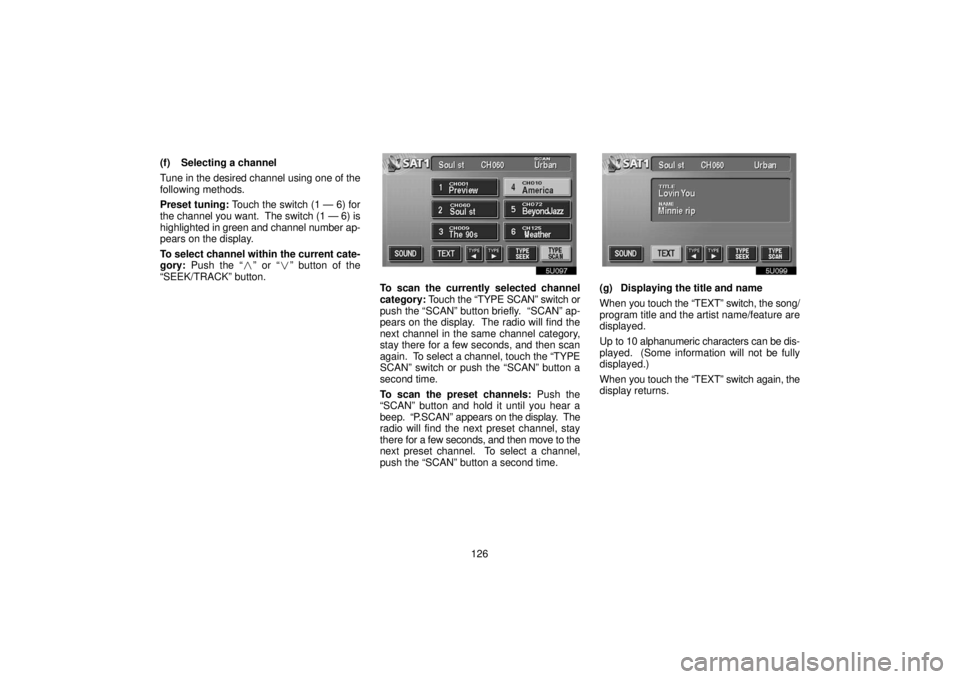

1. Tune in the desired channel.
2. Touch one of the channel selector
switches (1 — 6) and hold it until a beep is
heard. This sets the channel to the switch
and the name and number of the channel
appears on the switch.
Each switch can store three SAT channels.
To change the preset channel to a different
one, follow the same procedure.
The preset channel memory is cancelled
when the power source is interrupted by bat-
tery disconnection or a blown fuse.

126
(f) Selecting a channel
Tune in the desired channel using one of the
following methods.
Preset tuning: Touch the switch (1 — 6) for
the channel you want. The switch (1 — 6) is
highlighted
in green and channel number ap-
pears on the display.
To select channel within the current cate-
gory: Push the “ ” or “” button of the
“SEEK/TRACK” button.
To scan the currently selected channel
category: Touch the “TYPE SCAN” switch or
push the “SCAN” button briefly. “SCAN” ap-
pears on the display. The radio will find the
next channel in the same channel category,
stay there for a few seconds, and then scan
again. To select a channel, touch the “TYPE
SCAN” switch or push the “SCAN” button a
second time.
To scan the preset channels: Push the
“SCAN” button and hold it until you hear a
beep. “P.SCAN” appears on the display. The
radio will find the next preset channel, stay
there for a few seconds, and then move to the
next preset channel. To select a channel,
push the “SCAN” button a second time.(g) Displaying the title and name
When you touch the “TEXT” switch, the song/
program title and the artist name/feature are
displayed.
Up to 10 alphanumeric characters can be dis-
played. (Some information will not be fully
displayed.)
When you touch the “TEXT” switch again, the
display returns.

127
(h) If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Referring to the table below to identify the problem, take the
suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM antenna cable is \
attached securely.
A short−circuit occurs in the antenna or the surrounding antenna cable. See a T\
oyota certified dealer.
UPDATING
You have not subscribed to the XM satellite radio. The radio is being up\
dated with the latest encryption code.
Contact the XM satellite radio for subscription information. When a con\
tact is canceled, you can choose the
“CH000” and all free −to− air channels.
The premium channel you selected is not authorized. Wait for about 2 seconds until the radio returns to the pre-
vious channel or “CH001”. If it does not change automatically, select another channel. If you want to listen to the
premium channel, contact the XM satellite radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select an\
other channel.
−−−−−There is no song/program title or artist name/feature associated with the channel\
at that time. No action needed.
−−−The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous
channel or “CH001”. If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call \
(800) 852 −9696 during the following hours:
Monday — Saturday: 7 a.m. — 1 a.m. Sunday: 12 p.m. — 12 a.m. (EST)

128
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to Part
15 of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a resi-
dential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the in-
structions, may cause harmful interfer-
ence to radio communications. Howev-
er, there is no guarantee that interfer-
ence will not occur in a particular instal-
lation.
If this equipment does cause harmful in-
terference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user is
encouraged to try to correct the interfer-
ence by one or more of the following
measures:
— Reorient or relocate the receiving an-
tenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
Information to user
Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.NOTICE
This XM tuner supports “Audio Ser-
vices” (Music and Talk) of only XM satel-
lite radio and “Text In formation”* linked
to the respective “Audio Services”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.

129
— Compact disc player

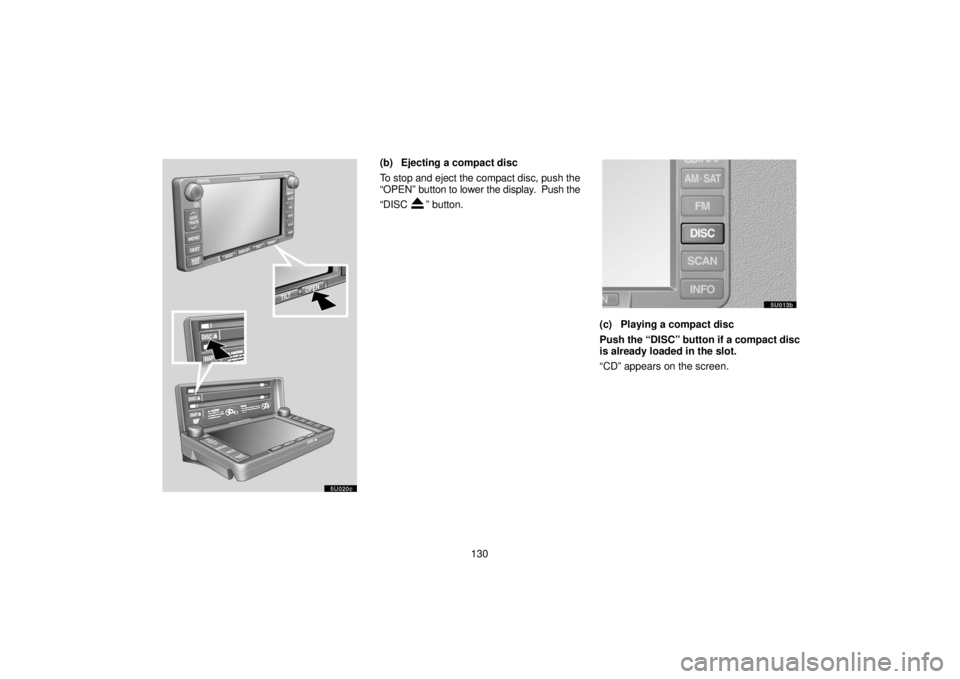

operation(a) Inserting a compact disc
The slot for the compact disc player is be-
hind the display.
To insert a compact disc, push the
“OPEN” button to lower the display. Put
the compact disc in the slot with the label
side up.
The player will automatically start when you
insert the compact disc. At this time, “CD” ap-
pears on the screen.
If the label faces down, the disc cannot be
played. In this case, “CD CHECK” appears
on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your audio
system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

130
(b) Ejecting a compact disc
To stop and eject the compact disc, push the
“OPEN” button to lower the display . Push the
“DISC
” button.
(c) Playing a compact disc
Push the “DISC” button if a compact disc
is already loaded in the slot.
“CD” appears on the screen.
