TOYOTA SOLARA 2006 Accessories, Audio & Navigation (in English)

1
BASIC FUNCTIONS
Basic information before operation
Display operation2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Touch switch operation 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Inputting letters and numbers 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Current position display 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Screen scroll operation (one −touch scroll) 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Orientation of the map 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Limitations of the navigation system 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

2
Display operation
1U009
You can adjust the angle of the display by
pushing the
“TILT” button. Each push of
the
“TILT” button will tilt the display to
positions
1, 2, 3 and then back to 0 in
the reverse order.
If you turn the ignition switch off, the display
will automatically move back to position
0.
The display will automatically resume the pre-
vious position when the ignition switch is
turned to the “ACC” or “ON” position.
CAUTION
Take care not to jam your hand while the
display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your naviga-
tion system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Touch switch operation
This system is operated mainly by the
switches on the screen. To prevent dam-
age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen, a beep
sounds.
Do not use objects other than your finger
to touch the screen.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
 Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the switches may be harder
than usual to depress.

3
Inputting letters and numbers
When searching for an address or a name, or
entering a memo, you can input letters and
numbers via the touch screen.
To input letters
To display the alphabet keys, touch the
“AZ” switch or the “” switch.
Enter letters by touching the alphabet keys di-
rectly.
: Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
To input numerals and symbols
To display the number keys and symbol keys,
touch the
“09” switch.
Enter numerals and symbols by touching the
number keys and symbol keys directly.
: Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
: Touching this switch displays other
symbols.
To display the list
To search for an address or a name, touch the“List” switch. Matching items from the da-
tabase are listed even if the entered address
or name is incomplete.
If the number of matches is four or less, the list
is displayed without touching the
“List”
switch.

4
INFORMATION
The number of matching items is shown
to the right side of the screen. If the
number of matching items is more than
9,999, the system displays “
∗∗∗∗” on
the screen.
List screen operation
When a list is displayed, you can scroll or
page through the list by using the appropriate
switch.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the
beginning of the name.

5
Current position display
When starting the navigation system, the cur-
rent position is displayed first.
This screen displays the current vehicle posi-
tion and a map of the surrounding local area.
The current vehicle position mark appears in
the center or bottom center of the map
screen. You can return to this map screen
showing your current position at any time
from any screen by pushing the
“MAP/
VOICE”
button.
During driving, the current vehicle position
mark is fixed in the screen and the map
moves. The current position is automatically set as
your vehicle receives signals from the GPS
(Global Positioning System). If your current
position is not correct, it is automatically cor-
rected after your vehicle receives signals
from the GPS.
INFORMATION

After battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the
correct current position is displayed.
 To correct the current position manu-
ally, see page 81.
Screen scroll operation
(onetouch scroll)
Touch any point on the map and that point
moves to the center of the screen and is
shown by the cursor mark.
If you wish to look at a point on the map which
is different to your current vehicle position,
you can bring the desired point to the center
of the screen by using the scroll feature.
If you continue to hold your finger on the
screen, the map will continue scrolling in that
direction until you lift your finger.

6
After you scroll the screen, the map remains
centered at the selected location
until you ac-
tivate another function. The current vehicle
position mark will continue to move along
your actual route and may move off the
screen. When you push the
“MAP/
VOICE” button, the current vehicle position
mark returns to the center of the screen and
the map moves as you proceed along the
designated route.
INFORMATION
When you use the onetouch scroll fea-
ture, the current vehicle position mark
may disappear from the screen. Move
the map with a onetouch scroll again or
push the
“MAP/VOICE” button to re-
turn to the current vehicle position map
location display.
To set the cursor position as a destina-
tion
You can set a specific point on the map as a
destination using the one −touch scroll func-
tion.
Touch the “Enter ” switch.
The screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)
If there is already a preset destination, touch
the
“Add to ” switch or the “Replace
” switch.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To register the cursor position as a
memory point
Memory point registration enables easy ac-
cess to a specific point.
Touch the “Mark” switch.

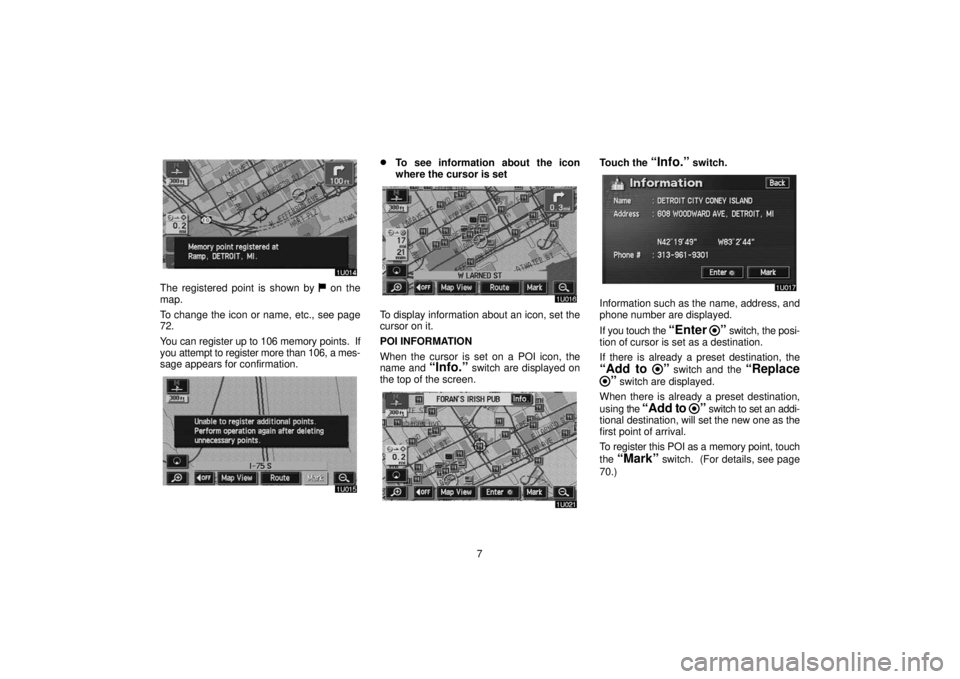

When you touch the
“Mark” switch, the fol-
lowing screen appears for a few seconds, and
then the map screen returns.

7
The registered point is shown by on the
map.
To change the icon or name, etc., see page
72.
You can register up to 106 memory points. If
you attempt to register more than 106, a mes-
sage appears for confirmation.
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and
“Info.” switch are displayed on
the top of the screen.
Touch the “Info.” switch.
Information such as the name, address, and
phone number are displayed.
If you touch the
“Enter ” switch, the posi-
tion of cursor is set as a destination.
If there is already a preset destination, the
“Add to ” switch and the “Replace
” switch are displayed.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To register this POI as a memory point, touch
the
“Mark” switch. (For details, see page
70.)

8
INFORMATION
The desired Point of Interest can be dis-
played on the map screen. (For details,
see page 53.)

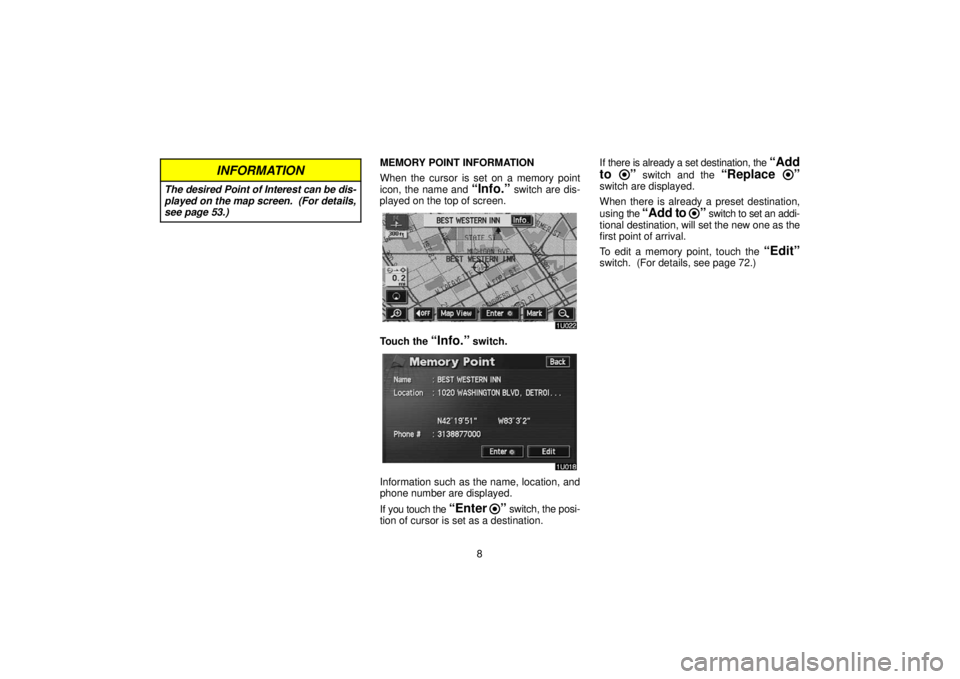

MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and
“Info.” switch are dis-
played on the top of screen.
Touch the “Info.” switch.
Information such as the name, location, and
phone number are displayed.
If you touch the
“Enter ” switch, the posi-
tion of cursor is set as a destination. If there is already a set destination, the
“Add
to
” switch and the “Replace ”switch are displayed.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To edit a memory point, touch the
“Edit”switch. (For details, see page 72.)

9

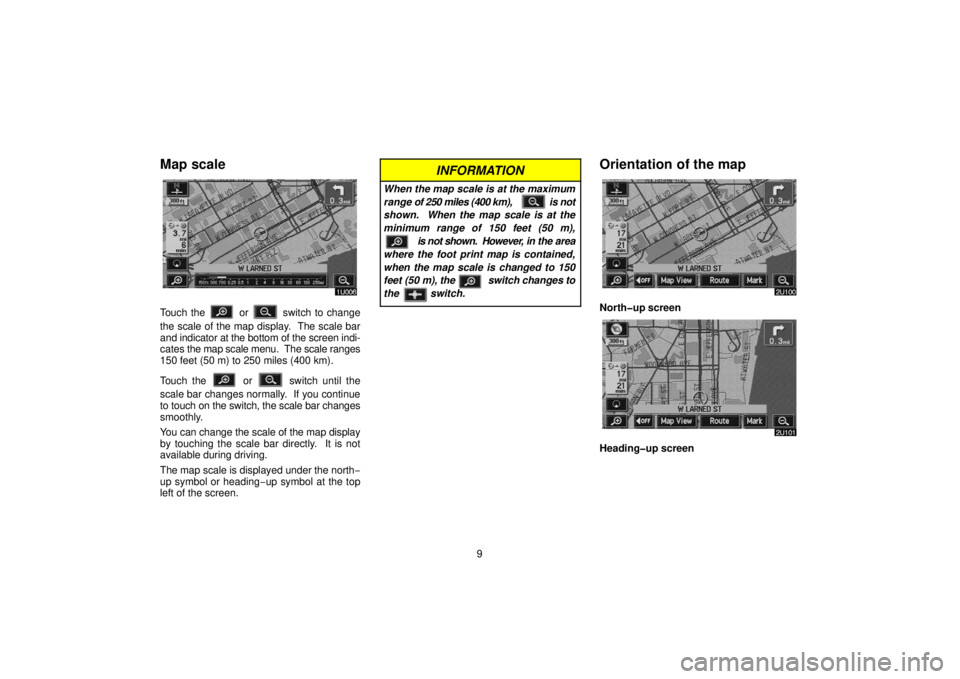

Map scale
Touch the or switch to change
the scale of the map display. The scale bar
and indicator at the bottom of the screen indi-
cates the map scale menu. The scale ranges
150 feet (50 m) to 250 miles (400 km).
Touch the
or switch until the
scale bar changes normally. If you continue
to touch on the switch, the scale bar changes
smoothly.
You can change the scale of the map display
by touching the scale bar directly. It is not
available during driving.
The map scale is displayed under the north −
up symbol or heading −up symbol at the top
left of the screen.
INFORMATION
When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 feet (50 m),
is not shown. However, in the area
where the foot print map is contained,
when the map scale is changed to 150
feet (50 m), the switch changes to
the switch.
Orientation of the map
Northup screen
Headingup screen

10
You can change the orientation of the map
from
northup to headingup by touching
the orientation symbol at the top left of the
screen.
Northup symbol
Regardless of the direction of vehicle travel,
North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
Limitations of the navigation
system
This navigation system calculates the cur-
rent vehicle position using satellite sig-
nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.
The Global Positioning System (GPS) devel-
oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys-
tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors of up to 300 feet (100 m) can and
should be expected. Generally, position er-
rors will be corrected within a few seconds.
When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.
The installation of window tinting may also ob-
struct the GPS signals. Most window tinting
contains some metallic content that will inter-
fere with GPS signal reception. We advice
against the use of window tinting on vehicles
equipped with navigation systems.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
