TOYOTA SOLARA 2006 Owners Manual (in English)

’06 Solara_U (L/O 0502)
293
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

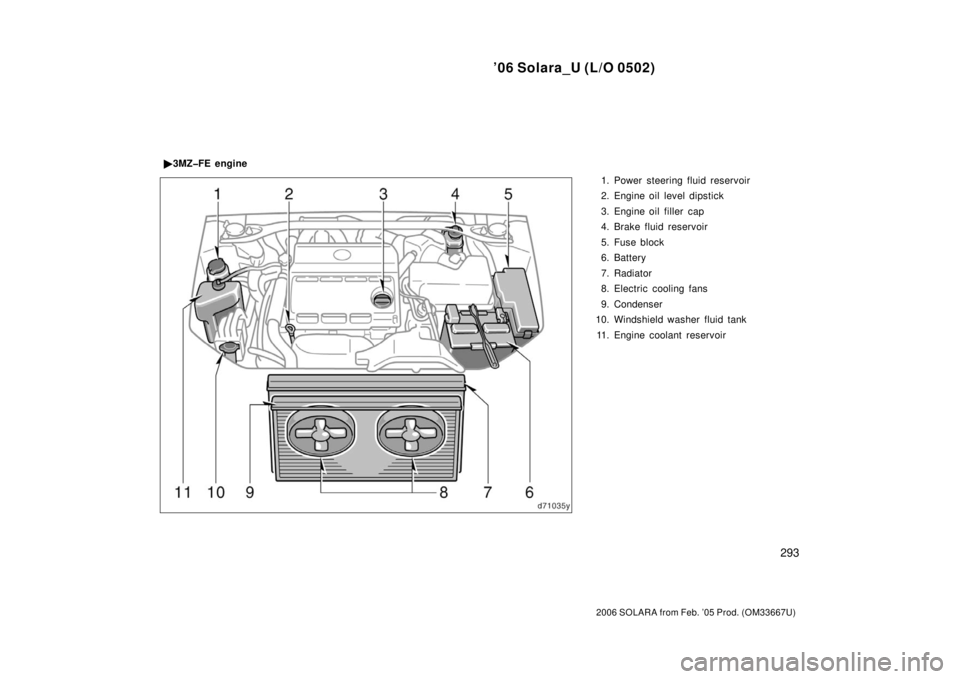

1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine oil filler cap
4. Brake fluid reservoir
5. Fuse block
6. Battery
7. Radiator
8. Electric cooling fans
9. Condenser
10. Windshield washer fluid tank
11. Engine coolant reservoir

3MZFE engine

’06 Solara_U (L/O 0502)
294
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Spare fuses
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools” on page 297 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:

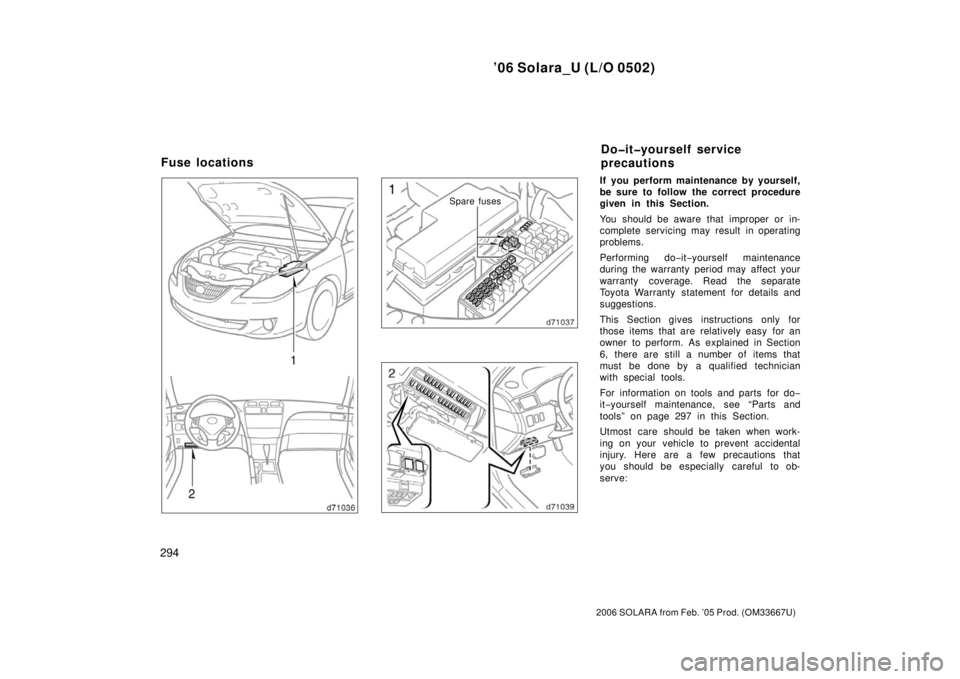

Fuse locations Doityourself service
precautions

’06 Solara_U (L/O 0502)
295
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

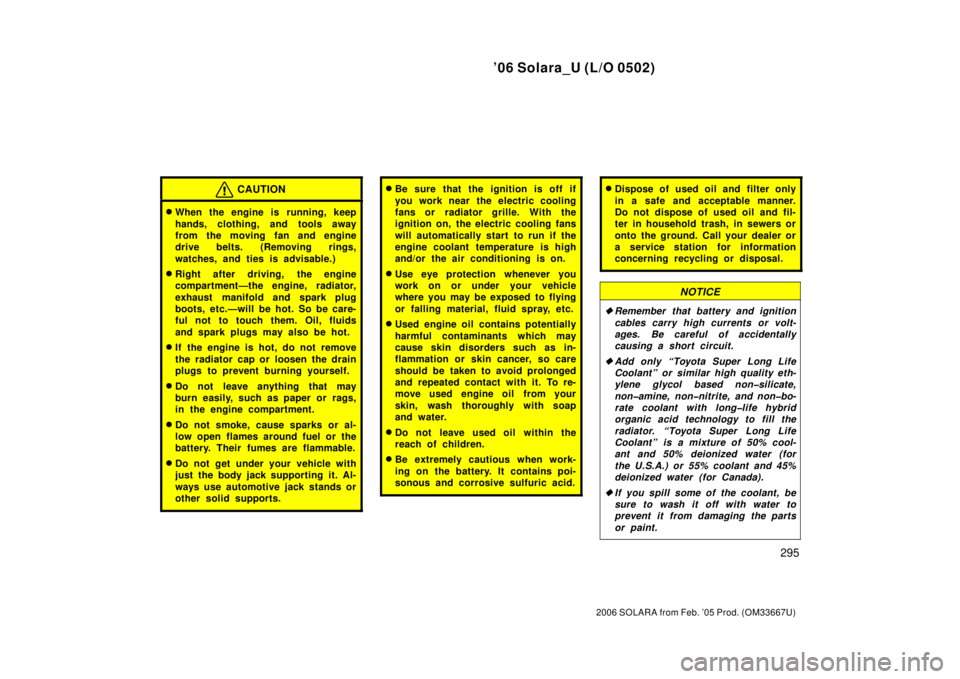

CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
 Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based nonsilicate,
nonamine, nonnitrite, and nonbo-
rate coolant with longlife hybrid
organic acid technology to fill the
radiator. “Toyota Super Long Life
Coolant” is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
 If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.

’06 Solara_U (L/O 0502)
296
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Do not allow dirt or anything else
to fall through the spark plugholes.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
 Do not reuse iridiumtipped spark
plugs by cleaning or regapping.
 Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.

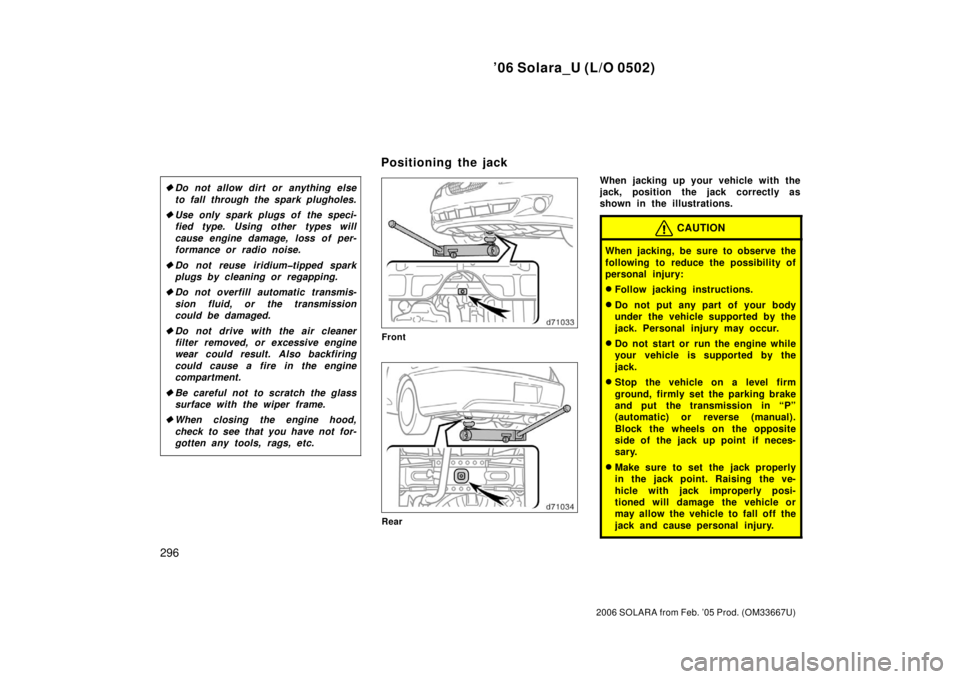

Front
Rear
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustrations.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start or run the engine while
your vehicle is supported by the
jack.
Stop the vehicle on a level firm
ground, firmly set the parking brake
and put the transmission in “P”
(automatic) or reverse (manual).
Block the wheels on the opposite
side of the jack up point if neces-
sary.
Make sure to set the jack properly
in the jack point. Raising the ve-
hicle with jack improperly posi-
tioned will damage the vehicle or
may allow the vehicle to fall off the
jack and cause personal injury.
Positioning the jack

’06 Solara_U (L/O 0502)
297
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Never get under the vehicle when
the vehicle is supported by the jack
alone; use vehicle support stands.
Do not raise the vehicle with some-
one in the vehicle.
When raising the vehicle, do not
place any objects on top of or un-
derneath the jack.
NOTICE
Make sure to place the jack correctly,
or your vehicle may be damaged.
Here is a list of parts and tools you will
need to perform do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent
See page 300 in Section 7 −2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non −silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada). Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
Parts and tools

’06 Solara_U (L/O 0502)
298
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 320 in
Section 7 −3.)

’06 Solara_U (L/O 0502)
299
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 303
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking power steering fluid 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 310
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 311
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7 2

’06 Solara_U (L/O 0502)
300
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

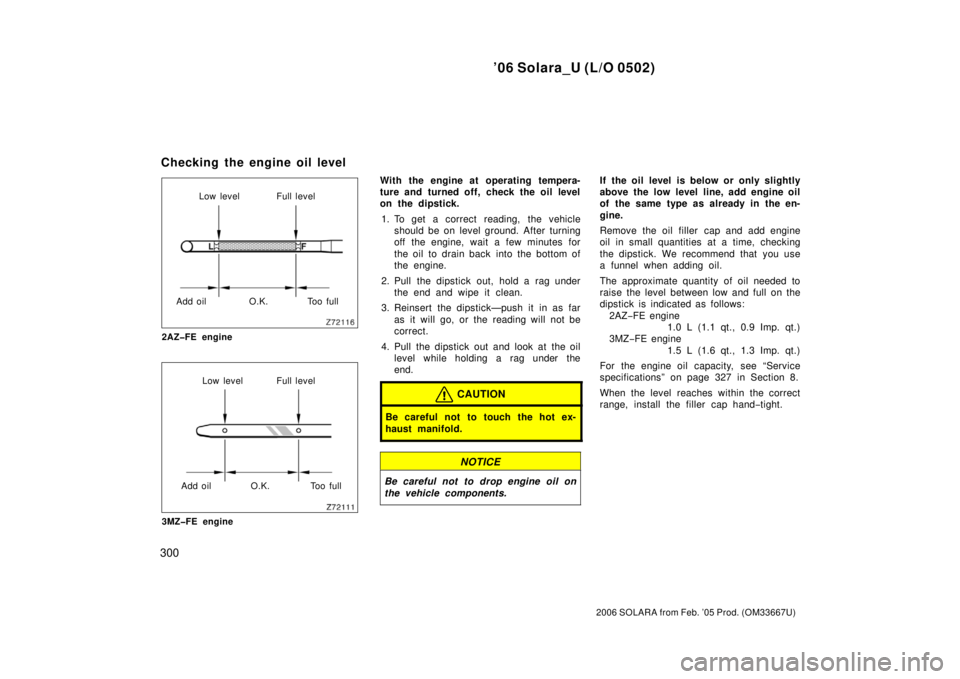

Low level Full level
Add oil O.K. Too full
2AZFE engine
Low level Full level
Add oil O.K. Too full
3MZFE engine
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. 1. To get a correct reading, the vehicle should be on level ground. After turning
off the engine, wait a few minutes for
the oil to drain back into the bottom of
the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it clean.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level while holding a rag under the
end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
NOTICE
Be careful not to drop engine oil on
the vehicle components.
If the oil level is below or only slightly
above the low level line, add engine oil
of the same type as already in the en-
gine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick. We recommend that you use
a funnel when adding oil.
The approximate quantity of oil needed to
raise the level between low and full on the
dipstick is indicated as follows:
2AZ− FE engine
1.0 L (1.1 qt., 0.9 Imp. qt.)
3MZ −FE engine
1.5 L (1.6 qt., 1.3 Imp. qt.)
For the engine oil capacity, see “Service
specifications” on page 327 in Section 8.
When the level reaches within the correct
range, install the filler cap hand− tight.
Checking the engine oil level

’06 Solara_U (L/O 0502)
301
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
NOTICE
Be careful not to spill engine oil on
the vehicle components.
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

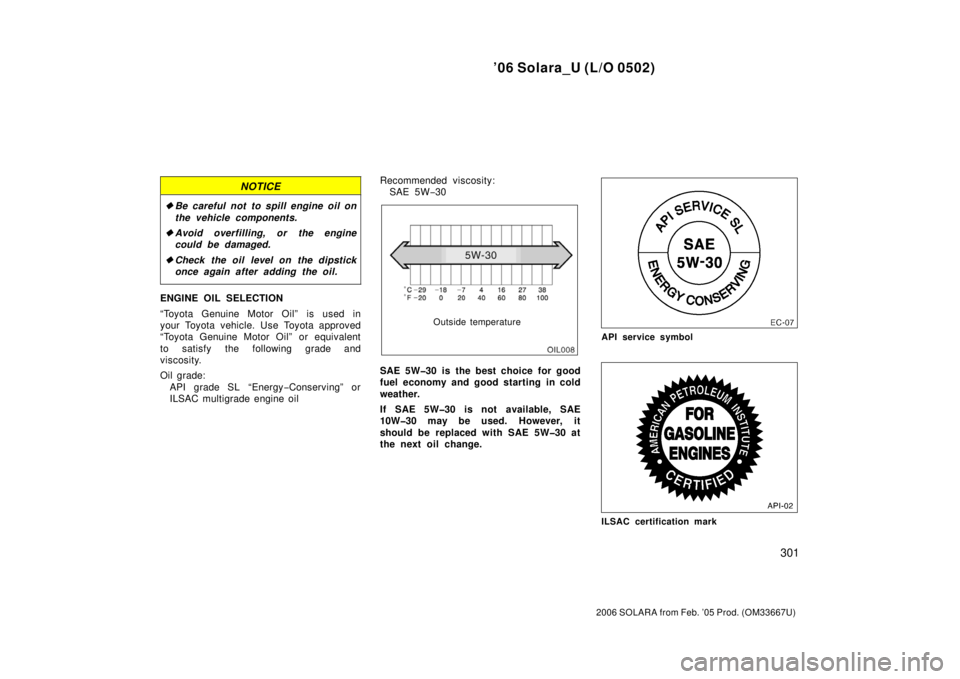

Oil grade:
API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil Recommended viscosity:
SAE 5W −30
Outside temperature
SAE 5W30 is the best choice for good
fuel economy and good starting in cold
weather.
If SAE 5W30 is not available, SAE
10W30 may be used. However, it
should be replaced with SAE 5W30 at
the next oil change.
API service symbol
ILSAC certification mark

’06 Solara_U (L/O 0502)
302
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SL. The center
portion of the label shows the SAE viscos-
ity grade such as SAE 5W−30. “Energy −
Conserving” shown in the lower portion,
indicates that the oil has fuel −saving ca-
pabilities.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is displayed on the front of
the container.
To ensure excellent lubrication perfor-
mance for your engine, “Toyota Genuine
Motor Oil” is available, which has been
specifically tested and approved for all
Toyota engines.
Please contact your Toyota dealer for fur-
ther details about “Toyota Genuine Motor
Oil”. Look at the seethrough coolant reser-
voir when the engine is cold. The cool-
ant level is satisfactory if it is between
the “F” and “L” lines on the reservoir.
If the level is low, add the coolant. (For
the coolant type, see “Coolant type
selection” described below.)
The coolant level in the reservoir will vary
with engine temperature. However, if the
level is on or below the “L” line, add
coolant. Bring the level up to the “F” line.
If the coolant level drops within a short
time after replenishing, there may be a
leak in the system. Visually check the
radiator, hoses, engine coolant filler cap,
radiator cap and drain cock and water
pump.
If you can find no leak, have your Toyota
dealer test the cap pressure and check
for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not
remove the radiator cap when the en-
gine is hot.
Checking the engine coolant
level
