TOYOTA SOLARA 2006 Owners Manual (in English)

’06 Solara_U (L/O 0502)
323
2006 SOLARA from Feb. ’05 Prod. (OM33667U)

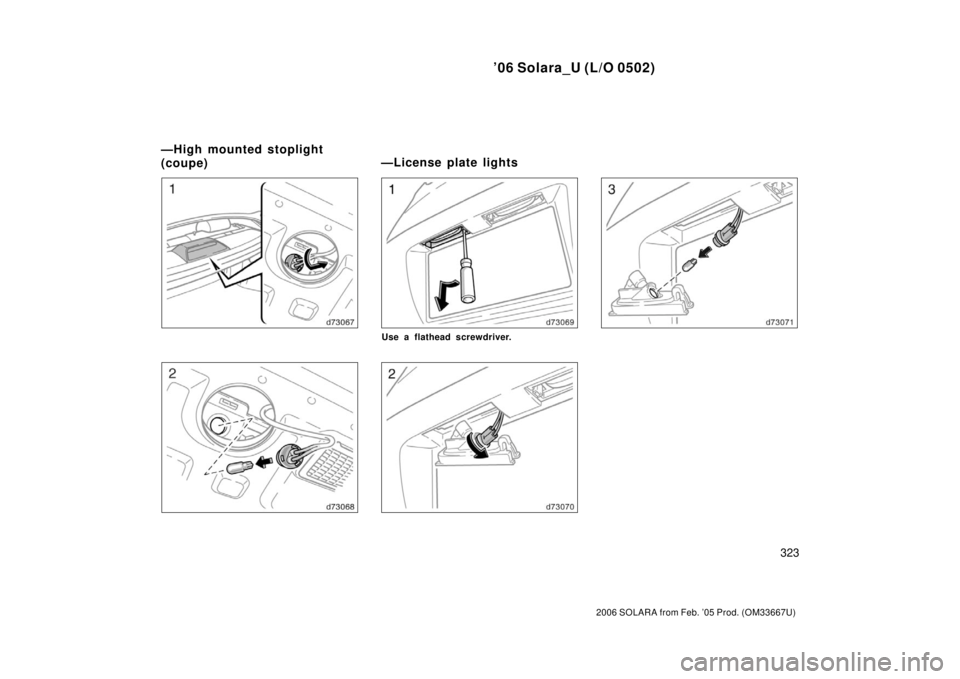

Use a flathead screwdriver.
—High mounted stoplight
(coupe)—License plate lights

’06 Solara_U (L/O 0502)
324
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
If either the left or right front fog, park-
ing, front side marker and front turn
signal lights burns out, contact your
Toyota dealer.
NOTICE
Do not try to replace the front fog,
parking, front side marker and front
turn signal light bulbs by yourself.
You may damage the vehicle.
—Front fog, parking, front
side marker and front turn
signal lights

’06 Solara_U (L/O 0502)
325
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
SPECIFICATIONS
Specifications
Dimensions and weight326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’06 Solara_U (L/O 0502)
326
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Model:2AZ− FE and 3MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
3MZ −FE engine
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
3MZ −FE engine 3311 (201.9)
Dimensions and weight
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗: Unladen vehicle 1440 (56.7) 4890 (192.5)
1815 (71.5)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Coupe
1450 (57.1) 4890 (192.5)
1815 (71.5)
2720 (107.1)
1545 (60.8)
1535 (60.4)342 (754)
Convertible
Engine

’06 Solara_U (L/O 0502)
327
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Fuel type:2AZ− FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
3MZ −FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2AZ− FE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
3MZ −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
3MZ −FE engine only—Drive belt tension
measured with Borroughs drive belt ten-
sion gauge No.BT −33− 73F (used belt), Ibf:
11 5 20 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ− FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
3MZ −FE engine
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Fuel Service specifications

’06 Solara_U (L/O 0502)
328
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2AZ− FE engine 6.2 (6.6, 5.4)
3MZ −FE engine 9.2 (9.8, 8.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long− life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
NOTE: If replacement is necessary, make sure to do so with a battery that
meets the same standard as the
original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90

’06 Solara_U (L/O 0502)
329
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):3.5 (3.7, 3.1)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
With vehicle stability control system78 (3.1)
Without vehicle stability control system 68.5 (2.7)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’06 Solara_U (L/O 0502)
330
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Engine compartment
Tires
Ti r e siz e
P215/60R16 94V Front
P215/55R17 93V200 (2.0, 29)
220 (2.2, 32) Rear
200 (2.0, 29)
220 (2.2, 32) Wheel size
16 61/2 JJ
17 7 JJ
When driving at sustained high speeds above 160 km/h (100 mph), in coun-
tries where such speeds are permitted by −law, add 40 kPa (0.4 kgf/cm
2
or bar, 6 psi) to the front and rear tires and it does not exceed the maximum
cold tire inflation pressure molded on the tire sidewall.
Compact spare tire kPa (kgf/cm
2 or bar, psi) Wheel size
T155/70R17 110M 420 (4.2, 60) 17  4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) : 104 (10.5, 77)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 305 through 313, in Section 7 −2.
Tire size and cold tire inflation pressure:
kPa (kgf/cm
2 or bar, psi)

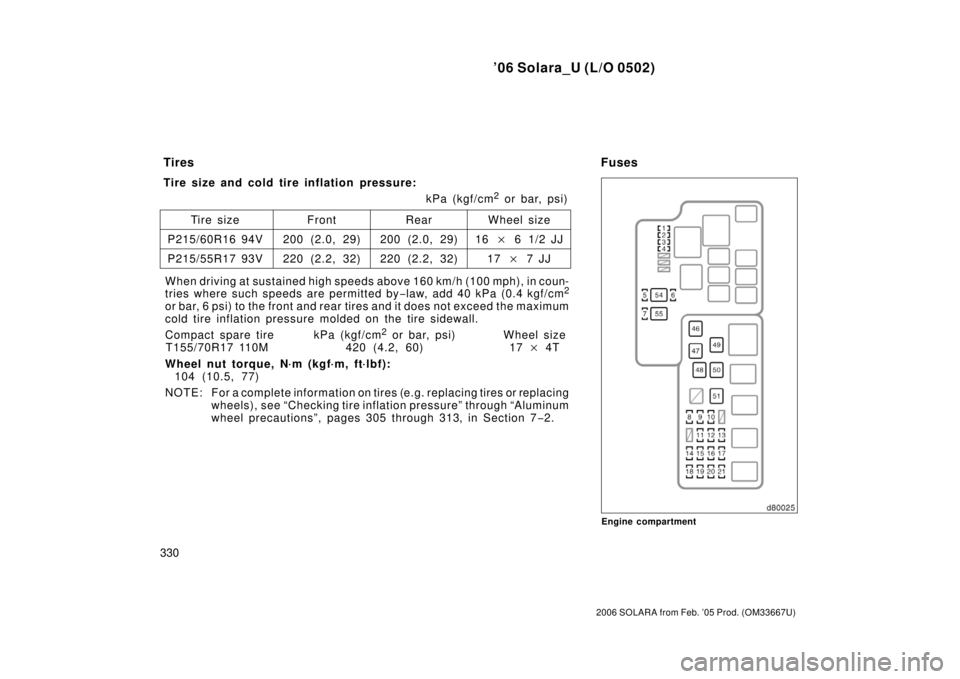

Fuses

’06 Solara_U (L/O 0502)
331
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
Instrument panel
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. SPARE 10 A: Spare fuse
6. SPARE 15 A: Spare fuse
7. SPARE 5 A: Spare fuse
8. AM2 30 A: Starting system, “IGN” and
“IG2” fuses 9. HEAD LH UPR 10 A:
Left−hand head-
light (high beam)
10. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
11. ALTS 5 A: Charging system
12. IGN 15 A: Ignition system, multi −infor-
mation display
13. IG2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, cruise
control system, gauges and meters,
front passenger occupant classification
system
14. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
15. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
16. HORN 10 A: Horns
17. D.C.C 30 A: “ECU−B”, “RAD1” and
“DOME” fuses
18. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system 19. ABS No.2 25 A:
Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
20. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
21. HAZ 15 A: Emergency flashers
Fuses (type B)
22. P/W No.2 7.5 A (convertible): Side power windows
23. FOG 10 A: Front fog lights
24. OBD 7.5 A: On−board diagnosis sys-
tem
25. AMP 25 A: Audio system
26. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock control system, vehicle stability
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
2 7 .

AM1 7.5 A: Starting system
28. P/W 25 A: Power windows
29. S/ROOF 25 A: Electric moon roof
30. TAIL 10 A: Tail lights, parking lights,
license plate lights, front fog lights,
multiport fuel injection system/sequen-
tial multiport fuel injection system

’06 Solara_U (L/O 0502)
332
2006 SOLARA from Feb. ’05 Prod. (OM33667U)
31. PANEL 10 A: Glove box light, multi −in-
formation display, instrument cluster
lights, instrument panel lights
32. ECUIG 10 A: SRS airbag system,
anti −lock brake system, vehicle stability
control system, traction control system,
brake assist system, compass, anti −
glare inside rear view mirror, electric
moon roof, power windows, multiplex
communication system
33. HTR 10 A: Air conditioning system,
rear window defogger, outside rear
view mirror defoggers
34. WASH 15 A: Windshield washer
35. S/HTR 20 A: Seat heaters
36. GAUGE1 10 A: Gauges and meters,
multi −information display, shift lock con-
trol system, turn signal lights, back −up
lights, cruise control system, charging
system, theft deterrent system, auto-
matic transmission
37. WIP 25 A: Windshield wipers
38. RAD1 20 A: Audio system 39. ECUB 10 A:
Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system, front passenger occupant clas-
sification system, gauges and meters,
vehicle stability control system
40. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, wireless remote control
system, multi −information display
41. ECU ACC 7.5 A: Power rear view mir-
rors, multi −information display, gauges
and meters, automatic transmission,
multiplex communication system
42. CIG 15 A: Power outlet
43. P/POINT 15 A: Power outlet
44. RAD2 10 A: Audio system
45. MIR HTR 10 A: Outside rear view mir-
ror defoggers, multiport fuel injection
system/se quential multiport fuel injec-
tion system Fuses (type C)
46. MAIN 40 A: Headlights, daytime run-
ning light system, multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, “HEAD LH LWR”,
“HEAD RH LWR”, “HEAD LH UPR”,
“HEAD LH UPR” and “DRL” fuses
47. ABS No.1 50 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
48. CDS 30 A: Electric cooling fan
49. RDI 30 A: Electric cooling fan
50. HTR 50 A: Air conditioning system
51. TSK 30 A (convertible): Convertible
top control system, quarter windows
52. PWR 30 A: Side power windows
53. P/SEAT 30 A: Power seats
Fuses (type D)
54. ALT 120 A: “
H EAD
LH LWR”, “HEAD
RH LWR”, “DRL”, “A/C”, “AM2”, “HEAD
LH UPR”, “HEAD RH UPR”, “ALT −S”,
“IGN”, “IG2”, “DOOR1”, “EFI”, “HORN”,
“D.C.C”, “A/F”, “ABS No.2”, “ETCS”,
“HAZ”, “DEF”, “MAIN”, “ABS No.1”,
“CDS”, “RDI” and “HTR (50 A)” fuses
55. DEF 40 A: Rear window defogger, out-
side rear view mirror defoggers
