TOYOTA SOLARA 2008 Owners Manual (in English)

’08 Solara_U (L/O 0802)
363
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Type A and B fuses can be pulled out by
the pull−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “P/POINT”
or “RAD1” fuse, which may be dispens-
able for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the driver’s power
window (coupe) and moon roof may not
operate correctly after replacing blown
fuses. To normalize the power window and
moon roof, see “Power windows” on page
24 and “Electric moon roof” on page 34
in Section 1−
2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’08 Solara_U (L/O 0802)
364
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The stop/tail and rear side maker lights
and high mounted stoplight (convertible)
consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to
your Toyota dealer to have the light re-
placed.
If one or more LEDs in a stop/tail light
burn out, your vehicle may not conform to
local laws (SAE).
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
Vehicle with discharge headlights—
Do not touch the highintensity dis-
charge headlight’s high voltage
socket when the headlights are
turned on. An extremely high volt-
age of 20000 V will be discharged
and could result in serious injury or
death by electric shock.
Do not attempt to take apart or re-
pair the low beam headlight bulbs,
connectors, power supply circuits,
or related components. Doing so
could result in electric shock and
serious injury or death. Call your
Toyota dealer for headlight repair or
servicing, including replacement of
bulbs and bulb disposal.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Replacing light bulbs—

’08 Solara_U (L/O 0802)
365
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Light bulbsBulbNo.WTy p e
Headlights (low) With discharge
headlights
Without
discharge
headlights
—
35
55A
B
Headlights
(high beam)—65C
Front fog lights—55B
Parking, front
side marker and
front turn signal
lights
3457NA30/8E
Rear turn signal
lightsT20NA21E
Back −up lights92116D
License plate
lights1943.8D
High mounted
stoplight (coupe)92117.9D
Personal lights
(coupe)—5D
Light bulbsBulb
No.WTy p e
Personal lights
(convertible)—8F
Interior light—8G
Vanity lights
(coupe)—1.4G
Vanity lights
(convertible)—1.5F
Glove box light—1.2D
Quarter trim
courtesy light1943.8F
Trunk light
(coupe)28255D
Trunk light
(convertible)—3.8D
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HIR1 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulb (amber)
F: Single end bulbs
G: Double end bulbs
1. Open the hood. Turn the bulb cover counterclockwise and remove it.
—Low beam headlights
(except discharge headlights)

’08 Solara_U (L/O 0802)
366
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

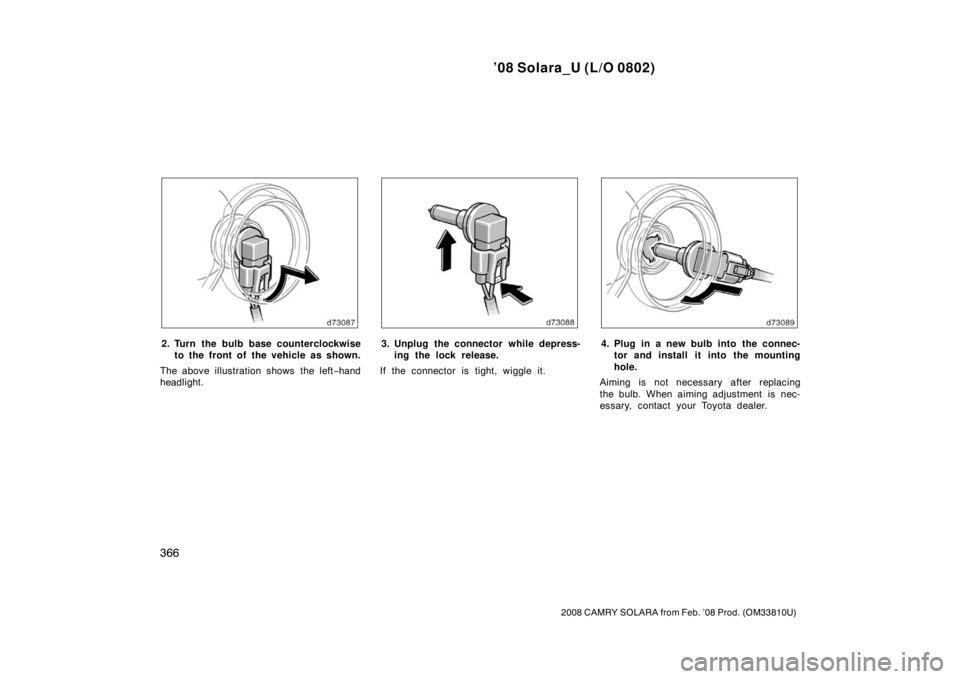

2. Turn the bulb base counterclockwiseto the front of the vehicle as shown.
The above illustration shows the left −hand
headlight.3. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.4. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’08 Solara_U (L/O 0802)
367
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

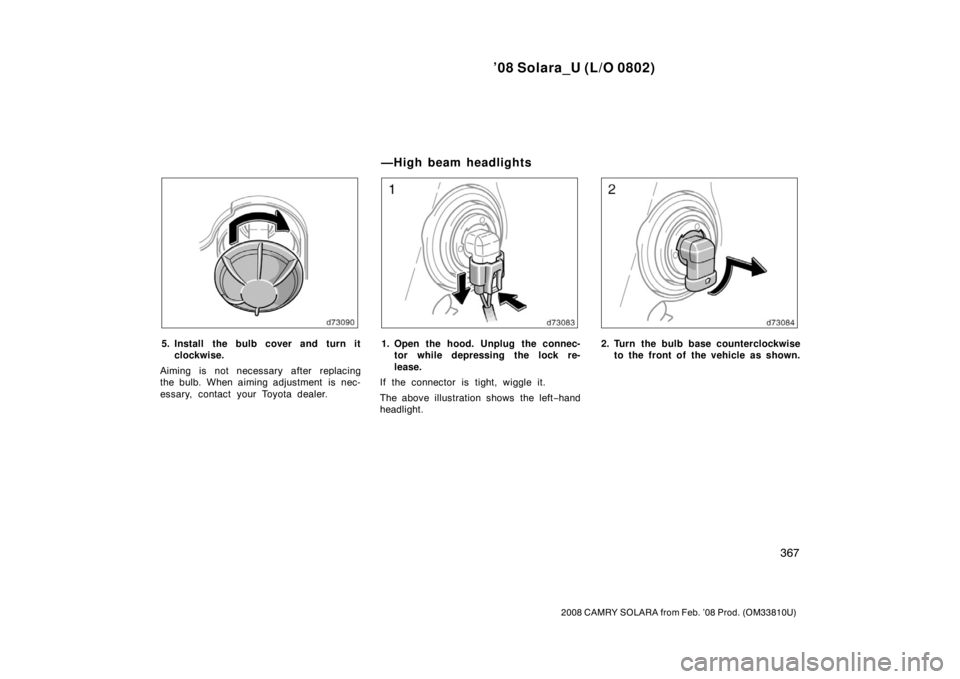

5. Install the bulb cover and turn itclockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Open the hood. Unplug the connec- tor while depressing the lock re-
lease.
If the connector is tight, wiggle it.
The above illustration shows the left −hand
headlight.2. Turn the bulb base counterclockwise to the front of the vehicle as shown.
—High beam headlights

’08 Solara_U (L/O 0802)
368
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

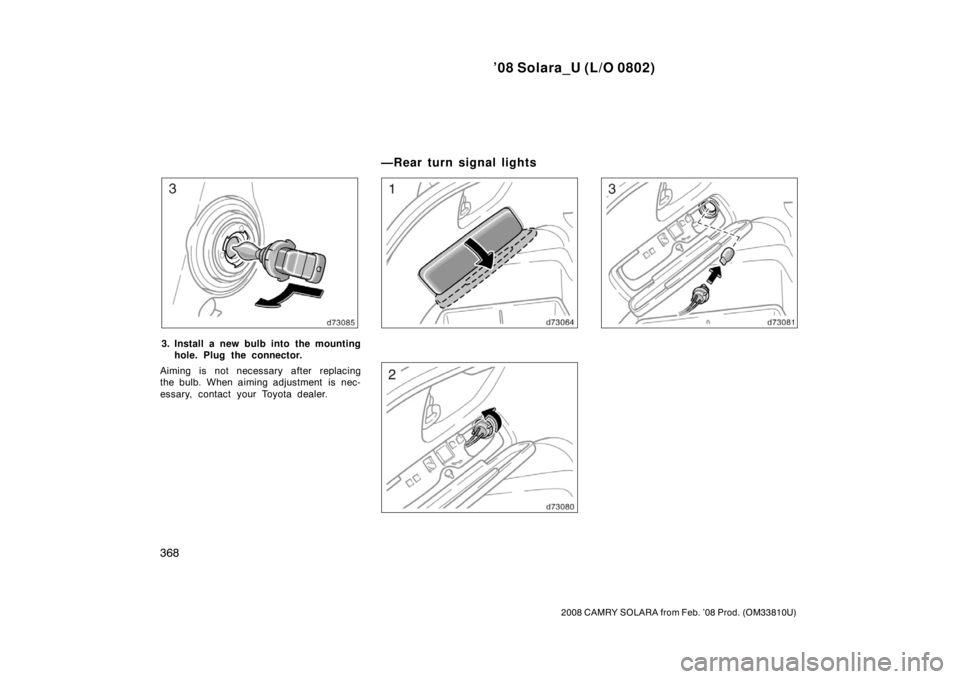

3. Install a new bulb into the mountinghole. Plug the connector.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

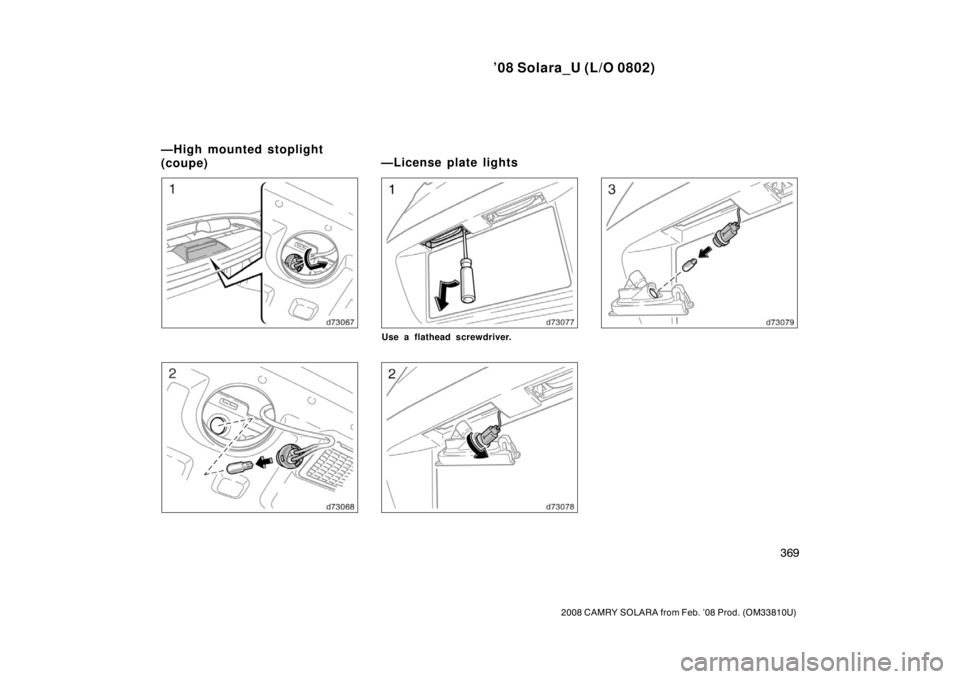

—Rear turn signal lights

’08 Solara_U (L/O 0802)
369
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Use a flathead screwdriver.
—High mounted stoplight
(coupe)—License plate lights

’08 Solara_U (L/O 0802)
370
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If either the left or right front fog, park-
ing, front side marker, front turn signal
and backup lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog,
parking, front side marker and front
turn signal light bulbs by yourself.
You may damage the vehicle.
—Front fog, parking, front
side marker, front turn signal
and backup lights

’08 Solara_U (L/O 0802)
371
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
SPECIFICATIONS
Specifications
Dimensions and weight372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’08 Solara_U (L/O 0802)
372
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Model:2AZ− FE and 3MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
3MZ −FE engine
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
3MZ −FE engine 3311 (201.9)
Dimensions and weight
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗: Unladen vehicle 1440 (56.7) 4890 (192.5)
1815 (71.5)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Coupe
1450 (57.1) 4890 (192.5)
1815 (71.5)
2720 (107.1)
1545 (60.8)
1535 (60.4)342 (754)
Convertible
Engine
