Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2.4 L 4 −cylinder (2AZ −FE) engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.38—0.48 (0.015—0.019)
3.3 L V6 (3MZ −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
3.3 L V6 (3MZ −FE) engine only—Drive
belt tension measured with Borroughs
drive belt tension gauge No.BT −33− 73F
(used belt), Ibf: 11 5 20 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2.4 L 4 −cylinder (2AZ −FE) engine
With filter 4.3 (4.5, 3.7)
Without filter 4.1 (4.3, 3.6)
3.3 L V6 (3MZ −FE) engine
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: ILSAC multigrade engine oil
Fuel Service specifications

’08 Solara_U (L/O 0802)
374
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

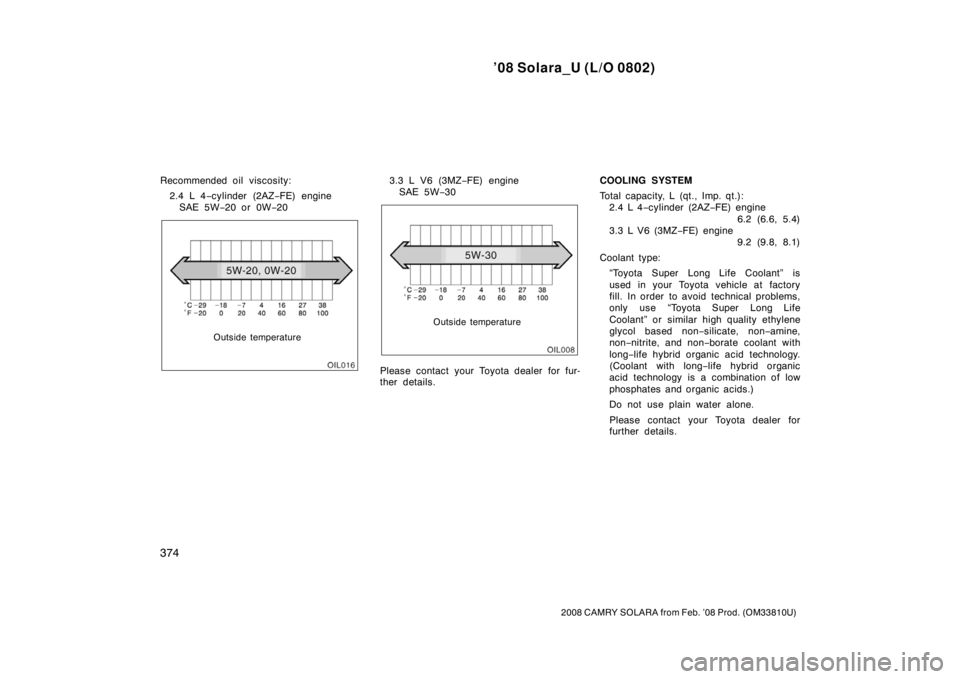

Recommended oil viscosity:2.4 L 4 −cylinder (2AZ −FE) engine
SAE 5W −20 or 0W −20
Outside temperature
3.3 L V6 (3MZ −FE) engine
SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2.4 L 4 −cylinder (2AZ −FE) engine
6.2 (6.6, 5.4)
3.3 L V6 (3MZ −FE) engine
9.2 (9.8, 8.1)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.

’08 Solara_U (L/O 0802)
375
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
BATTERY
Open voltage
∗ at 20C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
NOTE: If replacement is necessary, make sure to do so with a battery that
meets the same standard as the
original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
3.5 (3.7, 3.1)
Fluid type:
2.4 L 4 −cylinder (2AZ −FE) engine
Toyota Genuine ATF WS
3.3 L V6 (3MZ −FE) engine
Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only the following types to aid in
assuring optimum transaxle performance. 2.4 L 4 −cylinder (2AZ −FE) engine
“Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638)
3.3 L V6 (3MZ −FE) engine
“Toyota Genuine ATF Type T −IV” (ATF
JWS3309 or NWS6500) Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” (2.4 L 4cylinder [2AZFE] engine)
or “Toyota genuine ATF Type TIV” (3.3
L V6 [3MZFE] engine) may cause dete-
rioration in shift quality, locking up of
your transmission accompanied by
vibration, and ultimately damage the au-
tomatic transmission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.

’08 Solara_U (L/O 0802)
376
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):With vehicle stability control system78 (3.1)
Without vehicle stability control system 68.5 (2.7)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’08 Solara_U (L/O 0802)
377
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Engine compartment
Tires
Ti r e siz e
P215/60R16 94V Front
P215/55R17 93V200 (2.0, 29)
220 (2.2, 32) Rear
200 (2.0, 29)
220 (2.2, 32) Wheel size
16 61/2 J
16 61/2 JJ
17 7 J
When driving under the above driving conditions at sustained high speeds
above 160 km/h (100 mph), in countries where such speeds are permitted
by law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm
2 or bar, 35
psi) provided that it does not exceed the maximum cold tire inflation pressure
molded on the tire sidewall.
Tire size and cold tire inflation pressure:
Front and rear kPa (kgf/cm
2 or bar, psi)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 349 through 358, in Section 7 −2.
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) :
103 (10.5, 76)
Ti r e siz e
P215/60R16 94V Front
P215/55R17 93V200 (2.0, 29)
220 (2.2, 32) Rear
200 (2.0, 29)
220 (2.2, 32) Wheel size
16 61/2 J
16 61/2 JJ
17 7 J
Spare kPa (kgf/cm
2 or bar, psi)
T155/70R17 110M 420 (4.2, 60) 420 (4.2, 60) 17
4 T
Fuses

’08 Solara_U (L/O 0802)
378
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Instrument panel
Fuses (type A)1. HEAD LH LWR 15 A: Left−hand head-
light (low beam)
2. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
3. DRL 5 A: Daytime running light system
4. A/C 10 A: Air conditioning system
5. EFI2 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
6. ST 5 A: Starting system
7. SPARE 10 A: Spare fuse
8. SPARE 15 A: Spare fuse 9. SPARE 5 A:
Spare fuse
10. AM2 30 A: Starting system, “IGN” and
“IG2” fuses
11. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
12. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
13. ALTS 5 A: Charging system
14. IGN 15 A: Ignition system, multi −infor-
mation display
15. IG2 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, cruise
control system, gauges and meters,
front passenger occupant classification
system
16. DOOR1 25 A: Multiplex communication
system (power door lock system, auto −
door locking system, wireless remote
control system)
17. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
18. HORN 10 A: Horns
19. D.C.C 30 A: “ECU−B”, “RAD1” and
“DOME” fuses 20. A/F 25 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ABS No.2 25 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
22. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
23. HAZ 15 A: Emergency flashers
Fuses (type B)
24. P/W No.2 7.5 A (convertible): Side power windows
25. FOG 15 A: Front fog lights
26. OBD 7.5 A: On−board diagnosis sys-
tem
27. AMP 25 A: Audio system
28. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
l

ock control system, vehicle stability
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
29. AM1 7.5 A: Starting system
30. P/W 25 A: Power windows
31. S/ROOF 25 A: Electric moon roof

’08 Solara_U (L/O 0802)
379
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
32. TAIL 10 A: Tail lights, parking lights,
license plate lights, front fog lights,
multiport fuel injection system/sequen-
tial multiport fuel injection system
33. PANEL 10 A: Glove box light, multi −in-
formation display, instrument cluster
lights, instrument panel lights
34. ECUIG 10 A: SRS airbag system,
anti −lock brake system, vehicle stability
control system, traction control system,
brake assist system, compass, anti −
glare inside rear view mirror, electric
moon roof, power windows, multiplex
communication system
35. HTR 10 A: Air conditioning system,
rear window defogger, outside rear
view mirror defoggers
36. WASH 15 A: Windshield washer
37. S/HTR 20 A: Seat heaters
38. GAUGE1 10 A: Gauges and meters,
multi −information display, shift lock con-
trol system, turn signal lights, back −up
lights, cruise control system, charging
system, theft deterrent system, auto-
matic transmission
39. WIP 25 A: Windshield wipers
40. RAD1 20 A: Audio system 41. ECUB 10 A:
Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system, front passenger occupant clas-
sification system, gauges and meters,
vehicle stability control system
42. DOME 7.5 A: Engine switch light, inte-
rior light, personal lights, trunk light,
vanity lights, wireless remote control
system, multi −information display
43. ECU ACC 7.5 A: Power rear view mir-
rors, multi −information display, gauges
and meters, automatic transmission,
multiplex communication system
44. CIG 15 A: Power outlet
45. P/POINT 15 A: Power outlet
46. RAD2 10 A: Audio system
47. MIR HTR 10 A: Outside rear view mir-
ror defoggers, multiport fuel injection
system/se quential multiport fuel injec-
tion system Fuses (type C)
48. MAIN 40 A: Headlights, daytime run-
ning light system, multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, “HEAD LH LWR”,
“HEAD RH LWR”, “HEAD LH UPR”,
“HEAD RH UPR” and “DRL” fuses
49. ABS No.1 50 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
50. CDS 30 A: Electric cooling fan
51. RDI 30 A: Electric cooling fan
52. HTR 50 A: Air conditioning system
53. TSK 30 A (convertible): Convertible
top control system, quarter windows
54. PWR 30 A: Side power windows
55. P/SEAT 30 A: Power
seats

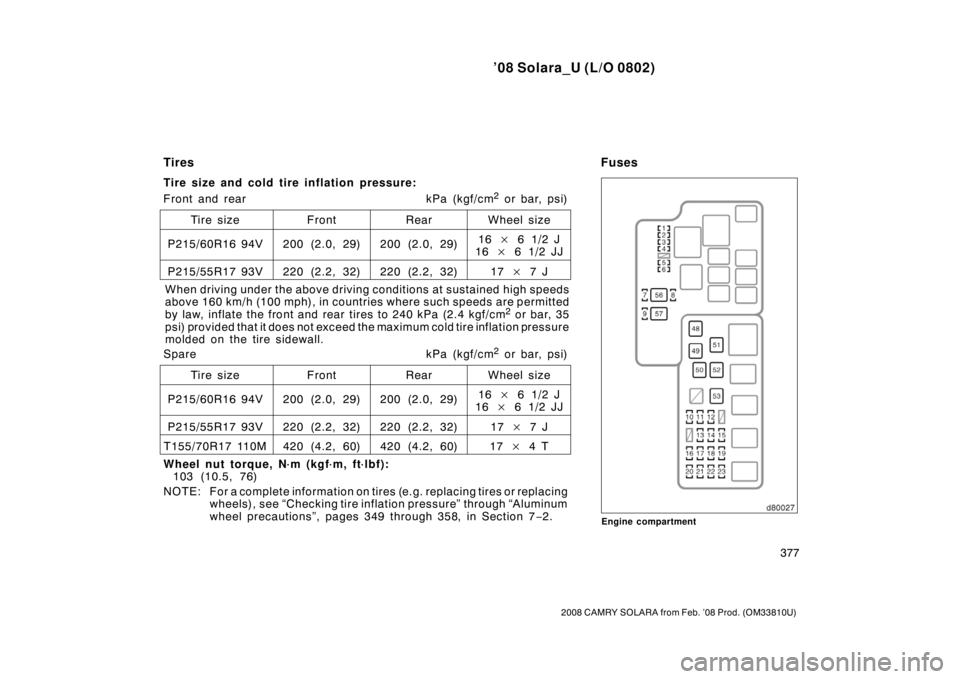

Fuses (type D)
56. ALT 120 A: “HEAD LH LWR”, “HEAD
RH LWR”, “DRL”, “A/C”, “AM2”, “HEAD
LH UPR”, “HEAD RH UPR”, “ALT −S”,
“IGN”, “IG2”, “DOOR1”, “EFI”, “HORN”,
“D.C.C”, “A/F”, “ABS No.2”, “ETCS”,
“HAZ”, “DEF”, “MAIN”, “ABS No.1”,
“CDS”, “RDI” and “HTR (50 A)” fuses
57. DEF 40 A: Rear window defogger, out-
side rear view mirror defoggers

’08 Solara_U (L/O 0802)
380
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)
381
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
FOR OWNERS
For owners
Reporting safety defects for U.S. owners382
. . . . . . . . . . . . . . . . . . . . . .
Seat belt instructions for Canadian owners (in French) 382
. . . . . . . . . .
SECTION 9

’08 Solara_U (L/O 0802)
382
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll−free: 1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may call
the Vehicle Safety Hotline toll
−free
at 1 −888 −327 −4236 (TTY:
1 −800 −424 −9153); go to
http://www.safercar.gov ; or write
to: Administrator, NHTSA, 1200
New Jersey Ave, S.E.,
Washington, DC 20590. You can
also obtain other information about
motor vehicle safety from
http://www.safercar.gov .The following is a French explanation
of seat belt instructions extracted from
the seat belt section in this manual.
See the seat belt section for more de-
tailed seat belt instructions in English.
Reporting safety defects for
U.S. owners Seat belt instructions for
Canadian owners (in
French)—
