OXYGEN SENSOR INSPECTION
1. INSPECT OPERATION OF SUB HEATED OXYGEN
SENSOR
(See circuit inspection in Engine Troubleshooting)
2. INSPECT HEATER RESISTANCE OF SUB HEATED
OXYGEN SENSOR
(a) Remove the driver's seat.
(b) Take out the console box side of the floor carpet.
(c) Disconnect the oxygen sensor connector.
(d) Using an ohmmeter, measure the resistance between the
terminals +B and HT.
Resistance:
At 20°C (68°F) 11±16

If the resistance is not as specified, replace the sensor.
Torque: 20 NVm (200 kgfVcm, 14 ftVlbf)
(e) Reconnect the oxygen sensor connector.
(f) Reinstall the floor carpet.
(g) Reinstall the driver's seat.
± ENGINESFI SYSTEM (2JZ±GE)EG±251

FUEL PUMP ECU
COMPONENTS FOR REMOVAL AND
INSTALLATION
FUEL PUMP ECU INSPECTION
1. REMOVE FUEL PUMP ECU
2. INSPECT FUEL PUMP ECU
(See circuit inspection in Engine Troubleshooting)
3. REINSTALL FUEL PUMP ECU EG±252
± ENGINESFI SYSTEM (2JZ±GE)

ENGINE CONTROL MODULE (ECM)
COMPONENTS FOR REMOVAL AND
INSTALLATION
± ENGINESFI SYSTEM (2JZ±GE)EG±253

ECM INSPECTION
1. DISCONNECT NEGATIVE (±) TERMINAL CABLE FROM
BATTERY
2. REMOVE SCUFF PLATE
3. REMOVE ECM PROTECTOR
(a) Take out the front side of the floor carpet.
(b) Remove the 2 nuts and ECM protector.
4. REMOVE ECM
(a) Remove the nut, and disconnect the ECM from the floor
panel.
(b) Fully loosen the bolt and disconnect the 2 ECM connectors,
and remove the ECM.
5. INSPECT ECM
(See standard value of ECM terminals in Engine Trouble-
shooting)
6. REINSTALL ECM
(a) Connect the 2 ECM connectors.
wMatch the male connector correctly with the female
connector, then press them together.
wTighten the bolt.
Make sure the connector is completely connected by tighten-
ing the bolt until there is a clearance of less than 1 mm (0.04
in.) between the bottom of the male connector and the end
of the female connector.
(b) Insert the ECM bracket into the stay on the floor panel.
(c) Install the ECM with the nut.
7. REINSTALL ECM PROTECTOR
8. REINSTALL SCUFF PLATE
9. RECONNECT NEGATIVE (±) TERMINAL CABLE TO
BATTERY EG±254
± ENGINESFI SYSTEM (2JZ±GE)

FUEL CUT RPM
FUEL CUT RPM INSPECTION
1. WARM UP ENGINE
Allow the engine to warm up to normal operating tempera-
ture.
2. CONNECT TACHOMETER TO ENGINE
Connect the tester probe of a tachometer to terminal IG
of
the DLC1.
NOTICE:
wNever allow the tachometer terminal to touch ground as
it could result in damage to the igniter and/or ignition
coil.
wAs some tachometers are not compatible with this igni-
tion system, we recommend that you confirm the compat-
ibility of your unit before use.
3. INSPECT FUEL CUTOFF OPERATION
(a) Increase the engine speed to at least 3,000 rpm.
(b) Check for injector operating noise.
(c) Check that when the throttle lever is released, injector
operation noise stops momentarily and then resumes.
HINT: Measure with the A/C OFF.
Fuel return speed:
1,400 rpm
4. DISCONNECT TACHOMETER
± ENGINESFI SYSTEM (2JZ±GE)EG±255

SERVICE SPECIFICATIONS
SERVICE DATA


Fuel pressure
regulator

Fuel pressure at no vacuum

265±304 kPa (2.7±3.1 kgf/cm2, 38±44 psi)
 Fuel pump Resistance at 20°C (68°F) 0.2±3.0




Injector


Resistance
Injection volume
Difference between each cylinder
Fuel leakage


13.4±14.2

70±88 cm3 (4.3±5.4 cu in.) per 15 sec.
9 cm
3 (0.5 cu in.) or less
One drop or less per minute





VAF meter





Resistance (THA±E2) at±20°C (±4°F)
at 0°C (32°F)
at 20°C (68°F)
at 40°C (104°F)
at 60°C (140°F)





10±20 k

4±7 k

2±3 k

0.9±1.3 k

0.4±0.7 k





Throttle body



Throttle body fully closed angle
Dashpot setting speed M/T
A/T
Throttle opener setting speed



65
2,600 + 400 rpm
1,800 + 400 rpm
1,500 + 400 rpm





Throttle
position
sensor




Clearance between stop screw and lever
0 mm (0 in.) VTA±E2
0.40 mm (0.016 in.) IDL±E2
0.60 mm (0.024 in.) IDL±E2
Throttle valve fully open VTA±E2
± VC±E2




0.34±6.3 k

0.5 k
or less
Infinity
2.4±11.2 k

3.1±7.2 k

 IAC valve Resistance B1 (or B2)±Others 18±22
 VSV for ACIS Resistance at 20°C (68°F) 38.5±44.5





VSV for Fuel
pressure
control
(California
only)





Resistance at 20°C (68°F)





33±39

 VSV for EVAP Resistance at 20°C (68°F) 27±33

 VSV for EGR Resistance at 20°C (68°F) 38.5±44.5






ECT sensor





Resistance at ±20°C (±4°F)
at 0°C (32°F)
at 20°C (68°F)
at 40°C (104°F)
at 60°C (140°F)
at 80°C (176°F)





10±20 k

4±7 k

2±3 k

0.9±1.3 k

0.4±0.7 k

0.2±0.4 k



EGR gas
temperature
sensor

Resistance at 50°C (122°F)
at 100°C (212°F)
at 150°C (302°F)

64±97 k

11±16 k

2±4 k




Main heated
oxygen sensor
(California)



Heater coil resistance at 20°C (68°F)



11±16

EG±256± ENGINESFI SYSTEM (2JZ±GE)




Sub heated
oxygen sensor
(California
only)


Heater coil resistance at 20°C (68°F)


11±16


 Fuel cut rpm

 Fuel return rpm

 1,400 rpm
TORQUE SPECIFICATIONS
 Part tightened NVm kgfVcm ftVlbf


Fuel line for union bolt
for flare nut

29
30

300
310

22
22
 Fuel pressure regulator x Delivery pipe 8.8 90 78 in.Vlbf
 Delivery pipe x Intake manifold 21 210 15
 Actuator for ACIS x Air intake chamber 6.8 70 61 in.Vlbf
 Fuel inlet pipe x Delivery pipe 41 420 30 Fuel return pipe x Fuel pressure regulator 27 280 20 Air intake chamber stay x Cylinder head 18 185 13
Air intake chamber stay x Air intake chamber

18

185

13
Intake air connector x Air intake chamber

27

270

20
 Throttle body bracket x Throttle body

 21

 210

 15
 Throttle body bracket x Cylinder head 21 210 15
 No.2 vacuum pipe x Intake manifold 27 270 20
 EGR pipe x Cylinder head 27 270 20
 EGR pipe x EGR valve 64 650 47


Fuel pressure pulsation damper x Fuel pipe support
for SST

41
35

420
350

30
25
 Starter x Transmission 39 400 29
 Fuel tank band x Body 39 400 29 VAF meter x Air cleaner case 10 100 7 Throttle body x Intake air connector 21 210 15
Vacuum tank x Intake manifold

21

210

15
Brake booster union x Air intake chamber

29

300

22
 Air intake chamber x Intake manifold

 27

 270

 20
 EGR gas temperature sensor x EGR valve 20 200 14
 Knock sensor x Cylinder block 44 450 33
 Oxygen sensor (Except California) x Exhaust manifold 20 200 14
 Main heated oxygen sensor (California) x Exhaust manifold 44 450 33
 Sub heated oxygen sensor (California only) x Center exhaust pipe 20 200 14
± ENGINESFI SYSTEM (2JZ±GE)EG±257

SFI SYSTEM (2JZ±GTE)
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09205±76030 Cylinder Head Setting Bolt
Tightening Adaptor
09268±41045Injection Measuring Tool Set
(09268±41070)No.4 Union
(90405±09015)No.1 Union
09268±45012 EFI Fuel Pressure Gauge
ECT sensor
09612±24014 Steering Gear Housing Overhaul
Tool Set
(09617±24011) Steering Rack Wrench
09631±22020 Power Steering Hose Nut
14 x 17 mm Wrench Set
09808±14010Fuel Sender Gauge Tool Assy
09816±30010 Oil Pressure Switch Socket
09842±30080 Wiring ªEº EFI Inspection
Knock sensor
Fuel pressure pulsation damper
09843±18020 Diagnosis Check Wire
Injector
Fuel line flare nut
EG±258± ENGINESFI SYSTEM (2JZ±GTE)

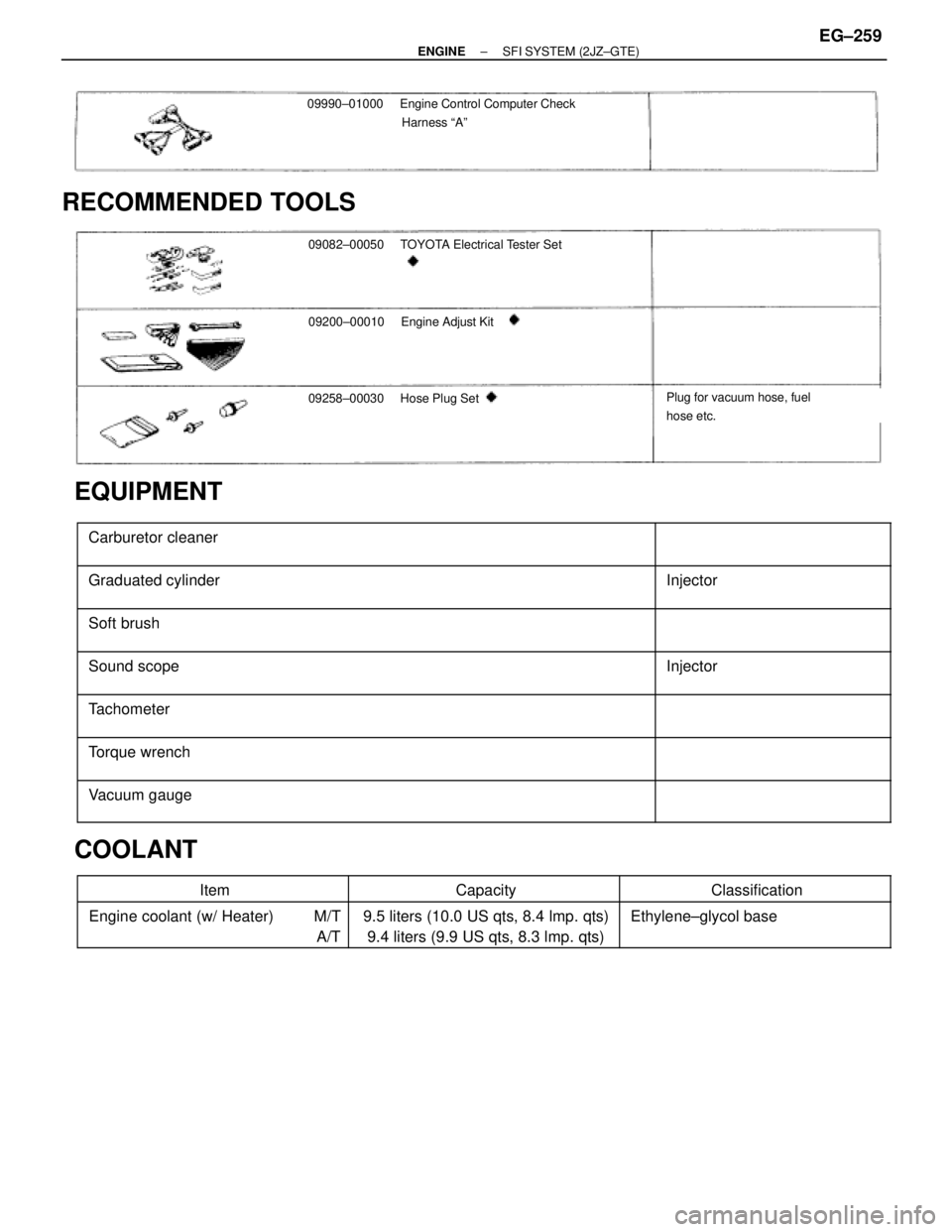

09990±01000Engine Control Computer Check
Harness ªAº
RECOMMENDED TOOLS
09082±00050 TOYOTA Electrical Tester Set
09200±00010Engine Adjust Kit
09258±00030 Hose Plug SetPlug for vacuum hose, fuel
hose etc.
EQUIPMENT

 Carburetor cleaner



 Graduated cylinder
 Injector


Soft brush



Sound scope

Injector
 Tachometer

 Torque wrench



 Vacuum gauge

COOLANT
 Item Capacity Classification
 Engine coolant (w/ Heater) M/T
A/T
 9.5 liters (10.0 US qts, 8.4 lmp. qts)
9.4 liters (9.9 US qts, 8.3 lmp. qts)
 Ethylene±glycol base
± ENGINESFI SYSTEM (2JZ±GTE)EG±259

PRECAUTION
1. Before working on the fuel system, disconnect the
negative (±) terminal cable from the battery.
HINT: Any diagnostic trouble code retained by the computer
will be erased when the negative (±) terminal cable is discon-
nected.
Therefore, if necessary, read the diagnosis before discon-
necting the negative (±) terminal cable from the battery.
2. Do not smoke or work near an open flame when working
on the fuel system.
3. Keep gasoline away from rubber or leather parts.
MAINTENANCE PRECAUTIONS
1. PRECAUTION WHEN CONNECTING GAUGE
(a) Use ba tte ry as th e po we r so u rce fo r th e timin g lig h t,
tachometer, etc.
(b) Connect the tester probe of a tachometer to the terminal IG

of the DLC1.
2. IN EVENT OF ENGINE MISFIRE, FOLLOWING
PRECAUTIONS SHOULD BE TAKEN
(a) Check proper connection of battery terminals, etc.
(b) After repair work, check that the ignition coil terminals and all
other ignition system lines are reconnected securely.
(c) When cleaning the engine compartment, be especially
careful to protect the electrical system from water.
3. PRECAUTIONS WHEN HANDLING OXYGEN SENSOR
(a) Do not allow oxygen sensor to drop or hit against an object.
(b) Do not allow the sensor to come into contact with water. EG±260
