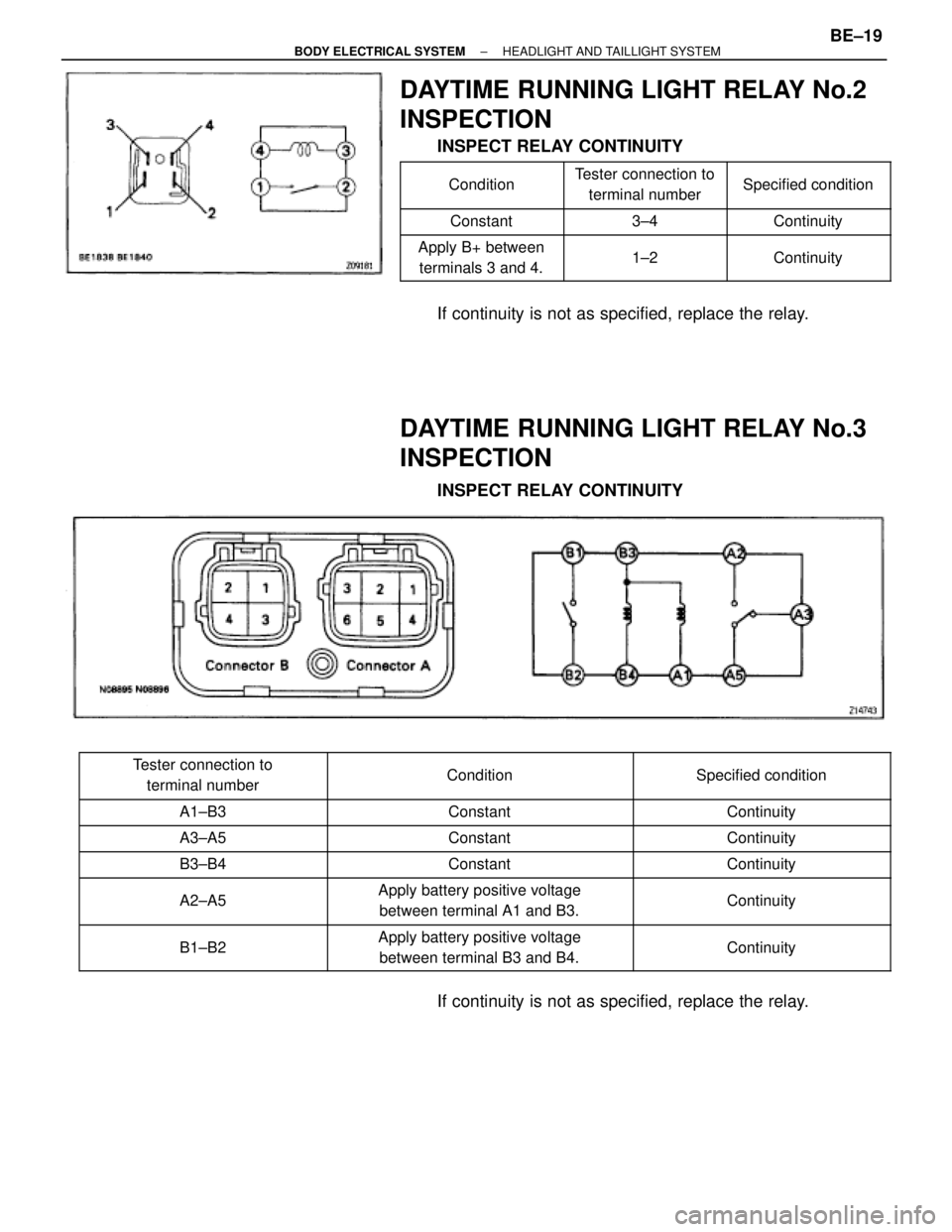

DAYTIME RUNNING LIGHT RELAY No.2
INSPECTION
INSPECT RELAY CONTINUITY
 Condition

 Tester connection to
terminal number
 Specified condition
 Constant 3±4 Continuity
 Apply B+ between
terminals 3 and 4.
 1±2

 Continuity
If continuity is not as specified, replace the relay.
DAYTIME RUNNING LIGHT RELAY No.3
INSPECTION
INSPECT RELAY CONTINUITY


Tester connection to
terminal number
 Condition

 Specified condition
 A1±B3 Constant Continuity
 A3±A5 Constant Continuity
 B3±B4 Constant Continuity
 A2±A5

 Apply battery positive voltage
between terminal A1 and B3.
 Continuity

 B1±B2

 Apply battery positive voltage
between terminal B3 and B4.
 Continuity
If continuity is not as specified, replace the relay.
± BODY ELECTRICAL SYSTEMHEADLIGHT AND TAILLIGHT SYSTEMBE±19

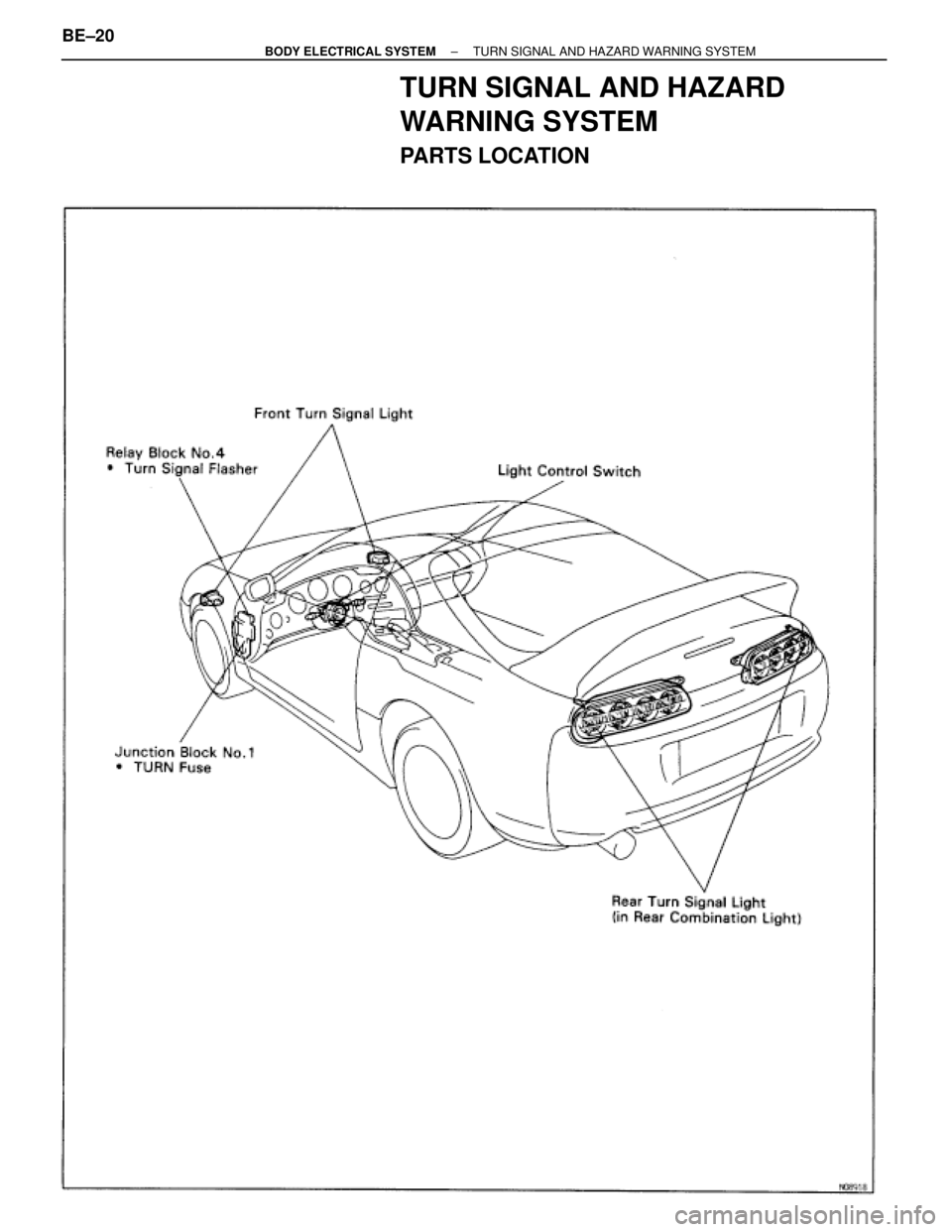

TURN SIGNAL AND HAZARD
WARNING SYSTEM
PARTS LOCATION
BE±20± BODY ELECTRICAL SYSTEMTURN SIGNAL AND HAZARD WARNING SYSTEM

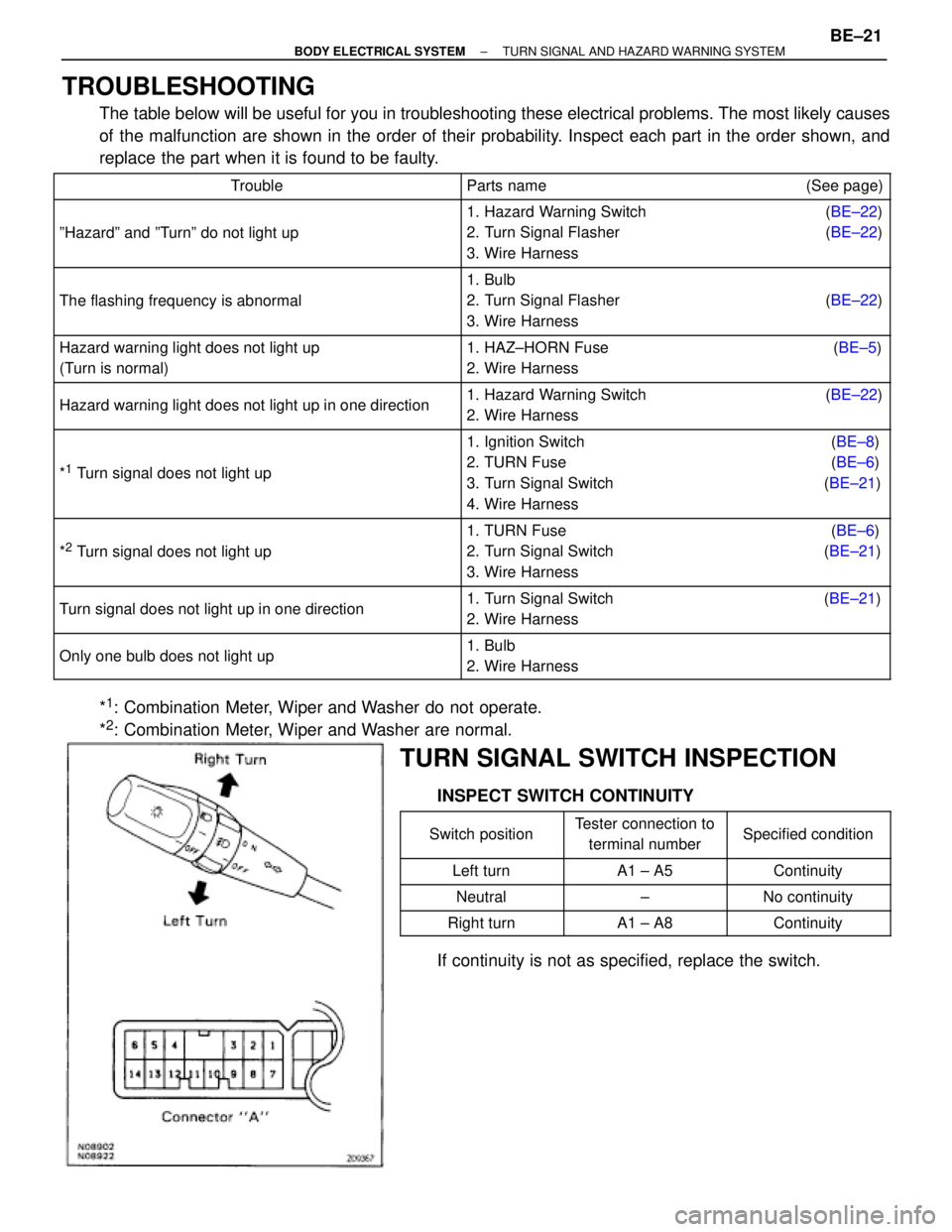

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
 Trouble Parts name (See page)



ºHazardº and ºTurnº do not light up



1. Hazard Warning Switch (BE±22)
2. Turn Signal Flasher (BE±22)
3. Wire Harness



The flashing frequency is abnormal



1. Bulb
2. Turn Signal Flasher (BE±22)
3. Wire Harness
 Hazard warning light does not light up
(Turn is normal) 1. HAZ±HORN Fuse (BE±5)
2. Wire Harness

 Hazard warning light does not light up in one direction

 1. Hazard Warning Switch (BE±22)
2. Wire Harness




*1 Turn signal does not light up




1. Ignition Switch (BE±8)
2. TURN Fuse (BE±6)
3. Turn Signal Switch (BE±21)
4. Wire Harness



*2 Turn signal does not light up



1. TURN Fuse (BE±6)
2. Turn Signal Switch (BE±21)
3. Wire Harness

 Turn signal does not light up in one direction


1. Turn Signal Switch (BE±21)
2. Wire Harness

 Only one bulb does not light up


1. Bulb
2. Wire Harness
*1: Combination Meter, Wiper and Washer do not operate.
*
2: Combination Meter, Wiper and Washer are normal.
TURN SIGNAL SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
 Switch position

 Tester connection to
terminal number

 Specified condition

 Left turn

 A1 ± A5

 Continuity
 Neutral

 ±

 No continuity
 Right turn A1 ± A8 Continuity
If continuity is not as specified, replace the switch.
± BODY ELECTRICAL SYSTEMTURN SIGNAL AND HAZARD WARNING SYSTEMBE±21

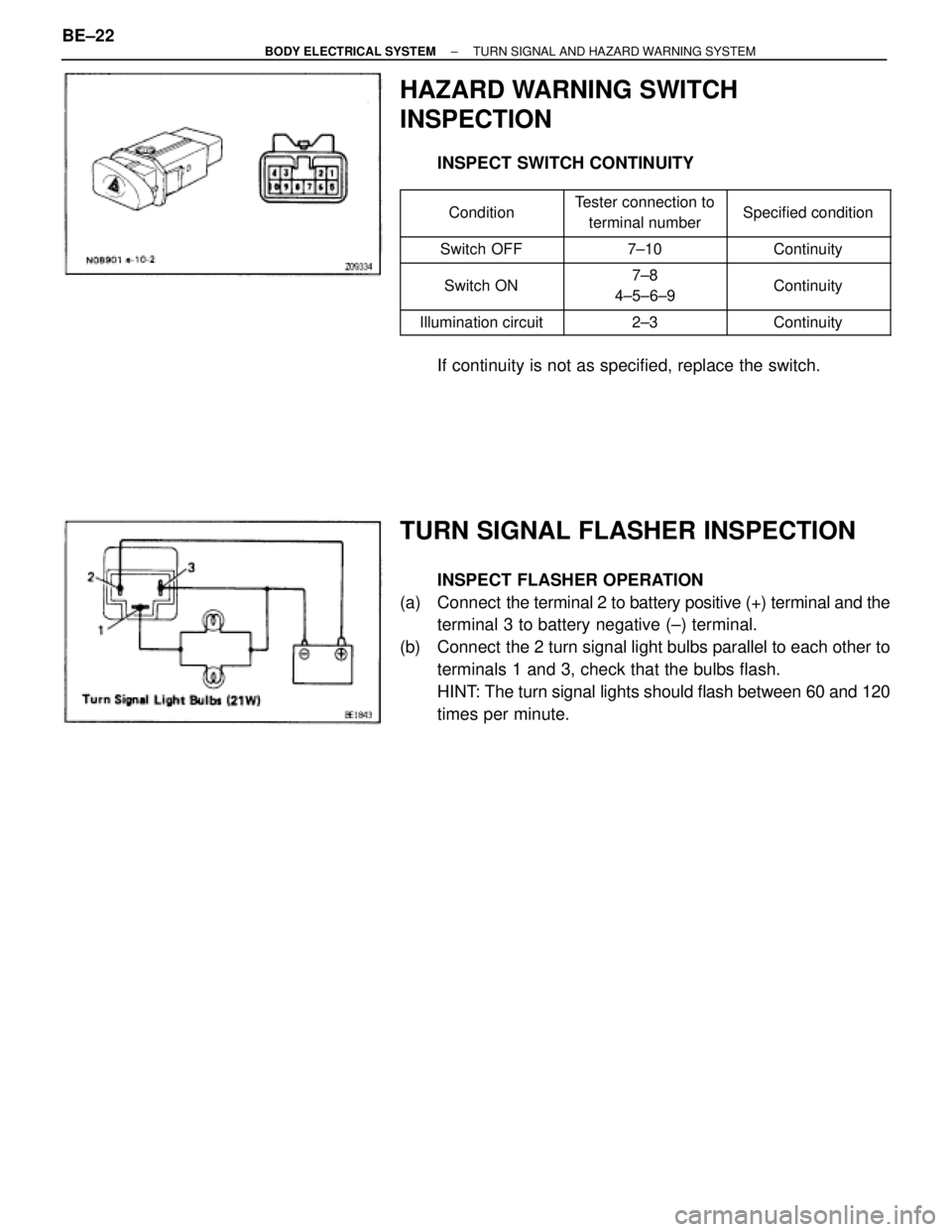

HAZARD WARNING SWITCH
INSPECTION
INSPECT SWITCH CONTINUITY

 Condition

 Tester connection to
terminal number

 Specified condition
 Switch OFF 7±10 Continuity
 Switch ON

 7±8
4±5±6±9

 Continuity

 Illumination circuit

 2±3

 Continuity
If continuity is not as specified, replace the switch.
TURN SIGNAL FLASHER INSPECTION
INSPECT FLASHER OPERATION
(a) Connect the terminal 2 to battery positive (+) terminal and the
terminal 3 to battery negative (±) terminal.
(b) Connect the 2 turn signal light bulbs parallel to each other to
terminals 1 and 3, check that the bulbs flash.
HINT: The turn signal lights should flash between 60 and 120
times per minute. BE±22
± BODY ELECTRICAL SYSTEMTURN SIGNAL AND HAZARD WARNING SYSTEM

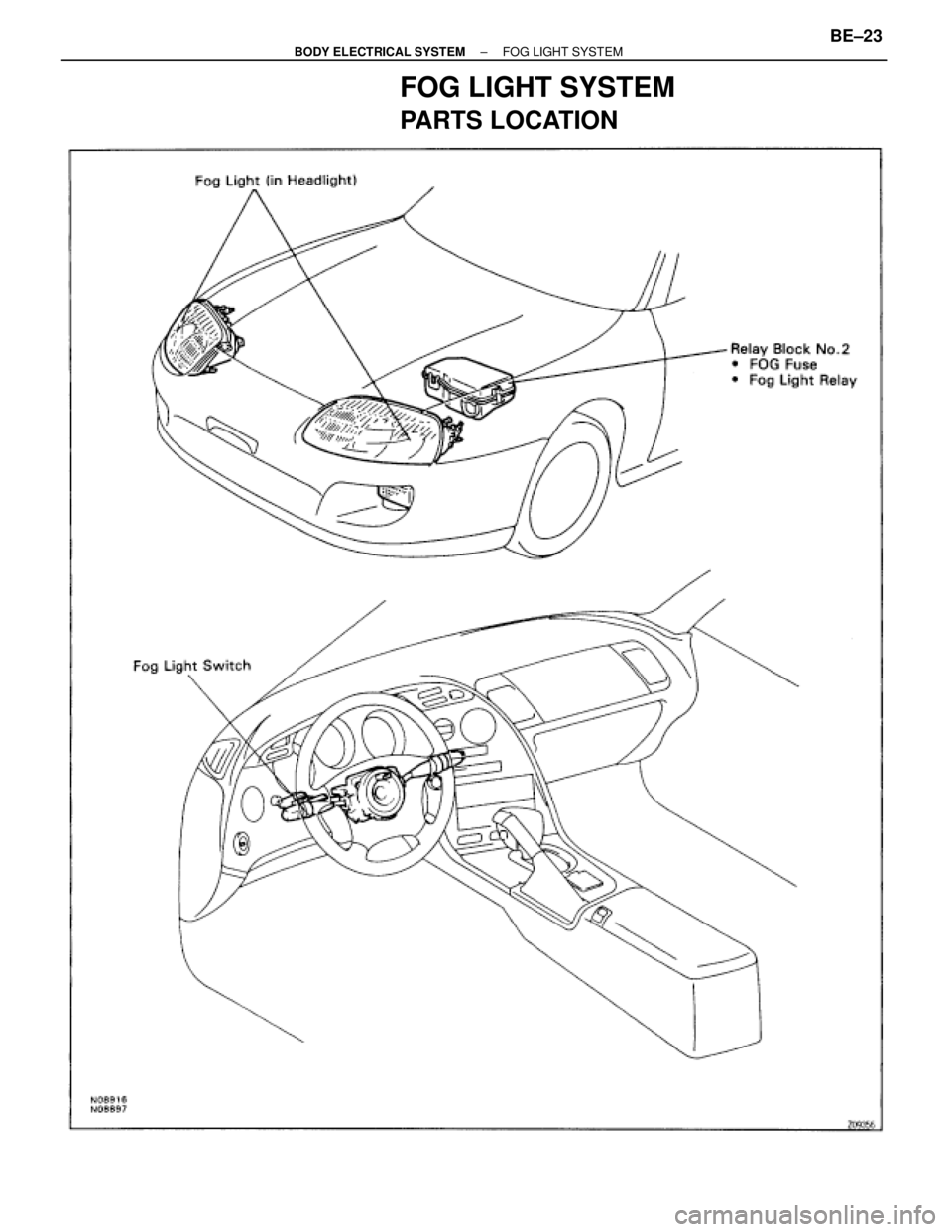

FOG LIGHT SYSTEM
PARTS LOCATION
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEMBE±23

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
 Trouble Parts name (See page)




Fog light does not light with light control SW HEAD
(Headlight is normal).




1. HEAD Fuse (BE±5)
2. Fog Light Relay (BE±25)
3. Fog Light Switch (BE±24)
4. Wire Harness


Fog light does not light with light control SW HEAD
(Headlight does not light).

1. Inspect Headlight system (BE±10)
2. Wire Harness
 Only one light does not light. 1. Bulb
2. Wire Harness
FOG LIGHT AIM ADJUSTMENT
Adjust Screw: Vertical Direction
FOG LIGHT SWITCH INSPECTION
INSPECT SWITCH CONTINUITY

 Switch position

Tester connection to
terminal number
 Specified condition
 OFF ± No continuity
 ON A6±A7 Continuity
If continuity is not as specified, replace the switch. BE±24
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEM

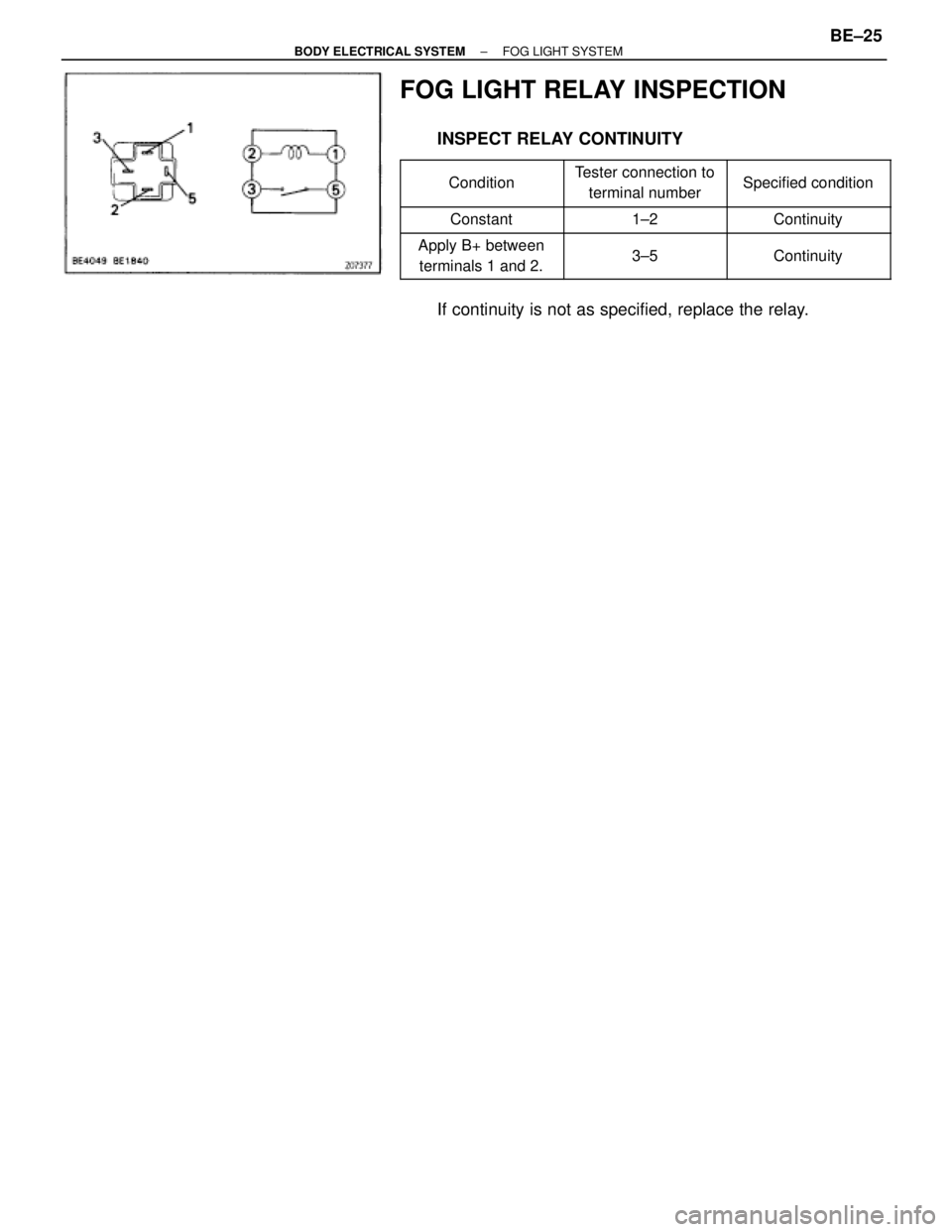

FOG LIGHT RELAY INSPECTION
INSPECT RELAY CONTINUITY

 Condition

 Tester connection to
terminal number
 Specified condition
 Constant 1±2 Continuity
 Apply B+ between
terminals 1 and 2.
 3±5

 Continuity
If continuity is not as specified, replace the relay.
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEMBE±25

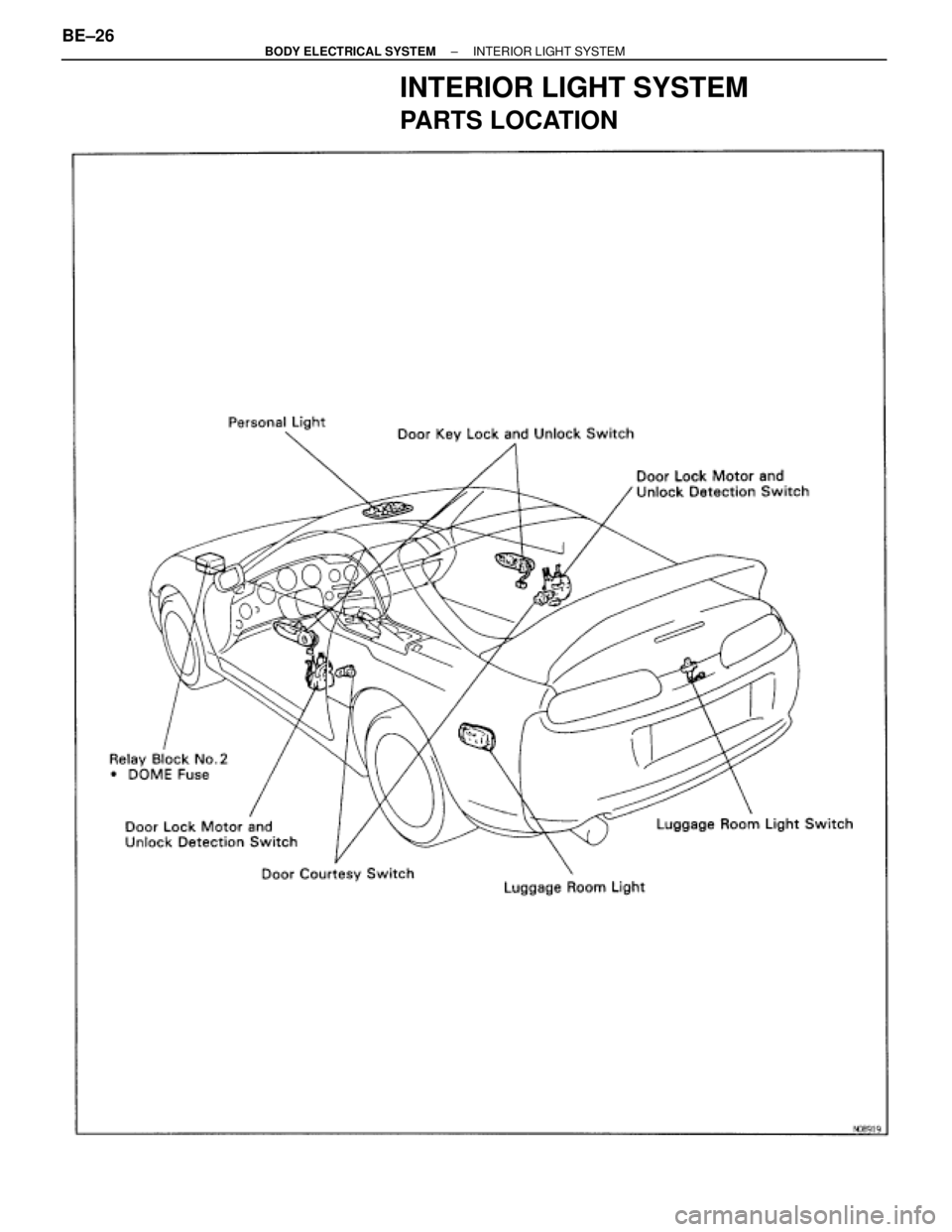

INTERIOR LIGHT SYSTEM
PARTS LOCATION
BE±26± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEM

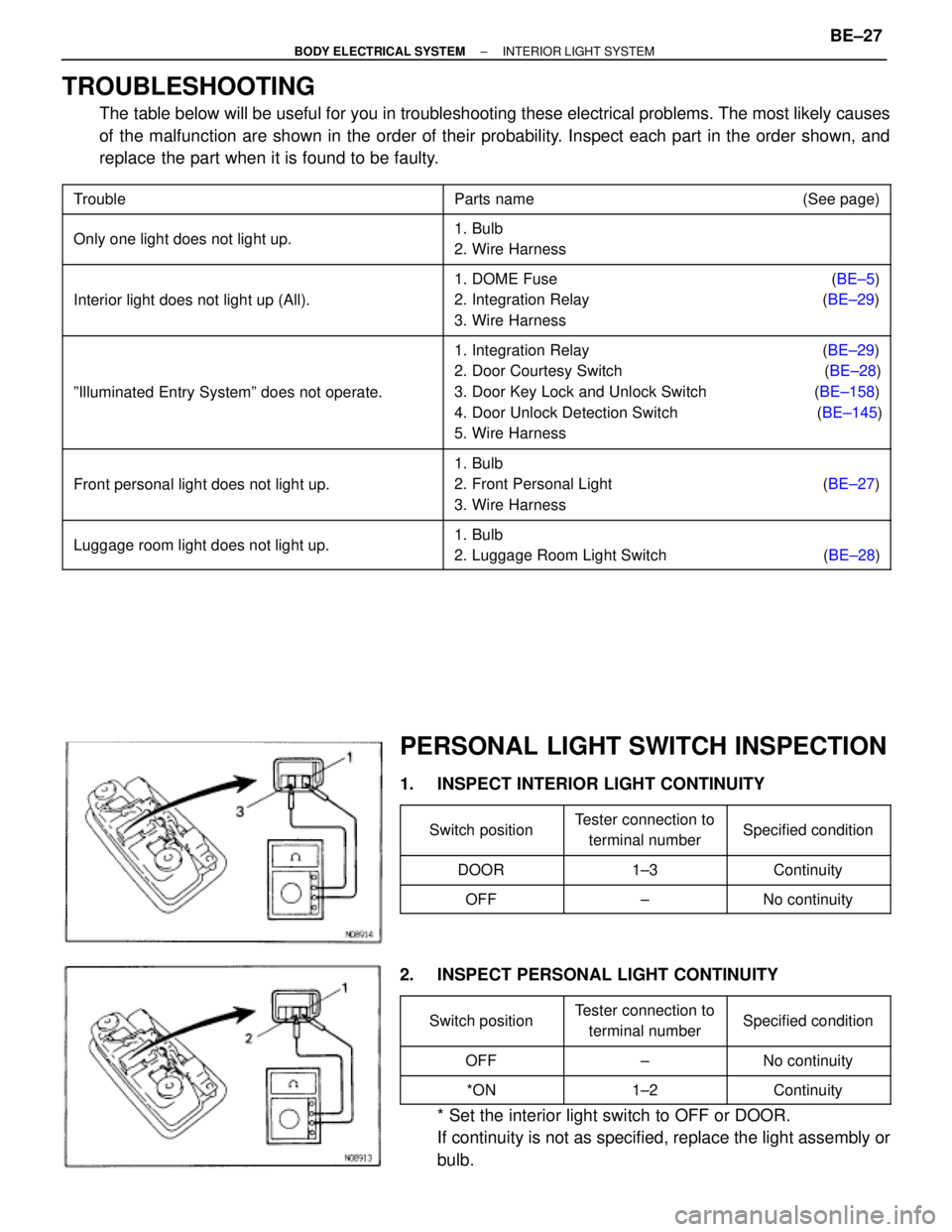

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
 Trouble Parts name (See page)


Only one light does not light up.



1. Bulb
2. Wire Harness



Interior light does not light up (All).



1. DOME Fuse (BE±5)
2. Integration Relay (BE±29)
3. Wire Harness




ºIlluminated Entry Systemº does not operate.




1. Integration Relay (BE±29)
2. Door Courtesy Switch (BE±28)
3. Door Key Lock and Unlock Switch (BE±158)
4. Door Unlock Detection Switch (BE±145)
5. Wire Harness


 Front personal light does not light up.



1. Bulb
2. Front Personal Light (BE±27)
3. Wire Harness

 Luggage room light does not light up.

 1. Bulb
2. Luggage Room Light Switch (BE±28)
PERSONAL LIGHT SWITCH INSPECTION
1. INSPECT INTERIOR LIGHT CONTINUITY

 Switch position

 Tester connection to
terminal number
 Specified condition

 DOOR
 1±3
 Continuity
 OFF ± No continuity
2. INSPECT PERSONAL LIGHT CONTINUITY

 Switch position

 Tester connection to
terminal number
 Specified condition

OFF
±
No continuity
 *ON

 1±2

 Continuity
* Set the interior light switch to OFF or DOOR.
If continuity is not as specified, replace the light assembly or
bulb.
± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEMBE±27

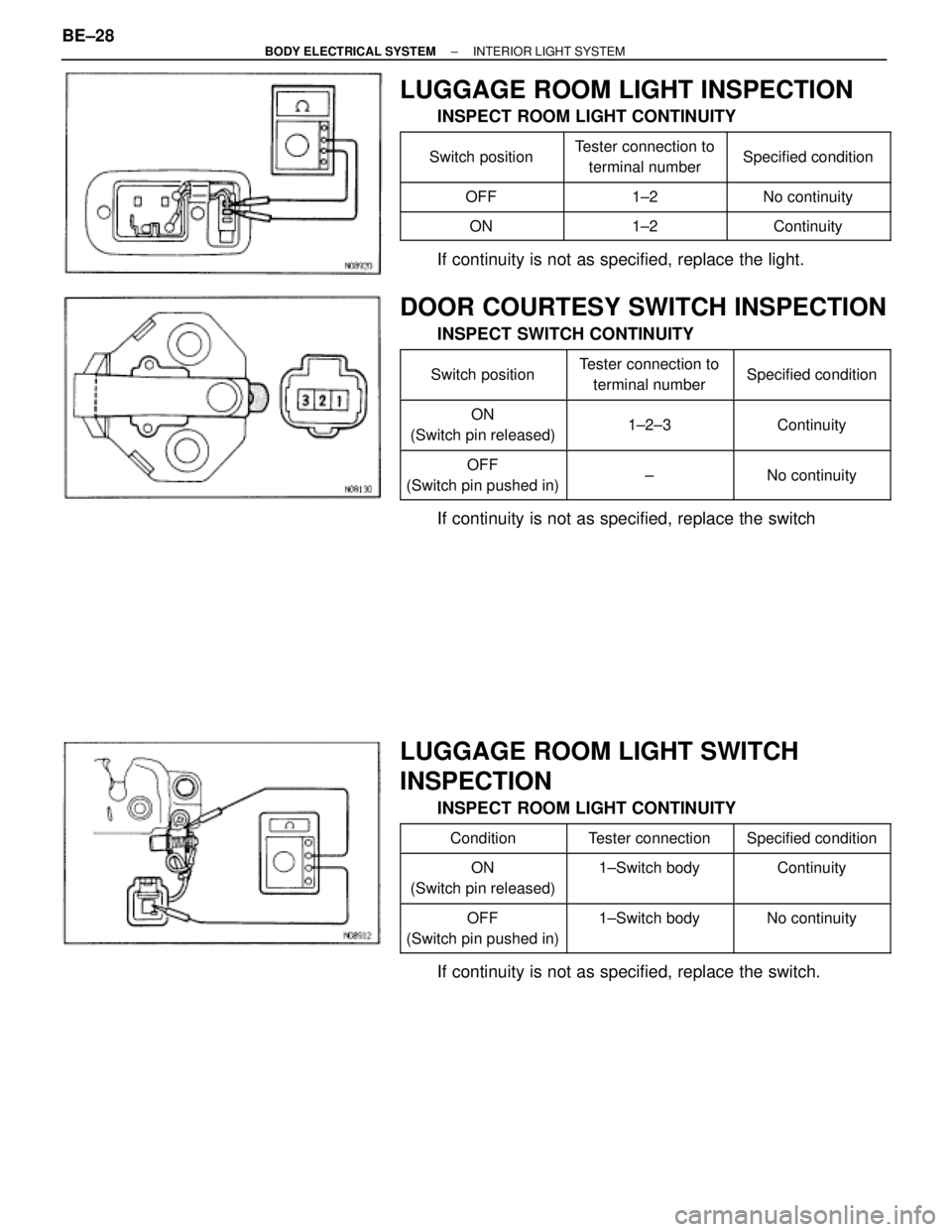

LUGGAGE ROOM LIGHT INSPECTION
INSPECT ROOM LIGHT CONTINUITY

 Switch position


Tester connection to
terminal number
 Specified condition
 OFF 1±2 No continuity
 ON

 1±2

 Continuity
If continuity is not as specified, replace the light.
DOOR COURTESY SWITCH INSPECTION
INSPECT SWITCH CONTINUITY

 Switch position

 Tester connection to
terminal number
 Specified condition

 ON
(Switch pin released)
 1±2±3

 Continuity

 OFF
(Switch pin pushed in)

 ±

 No continuity
If continuity is not as specified, replace the switch
LUGGAGE ROOM LIGHT SWITCH
INSPECTION
INSPECT ROOM LIGHT CONTINUITY
 Condition Tester connection Specified condition

 ON
(Switch pin released)
 1±Switch body
 Continuity

 OFF
(Switch pin pushed in)
 1±Switch body
 No continuity
If continuity is not as specified, replace the switch. BE±28
