Page 31 of 92
311-1. NAVIGATION
Supra_Navi_(U)
1
NAVIGATION
1 "Navigation"
2 "Map "
3 "Map content "
"Traffic icons ": symbols
for traffic events are dis-
played.
"Traffic flow ": lines for
traffic flow are displayed.
Depending on the scale of the
map and the location of the traf-
fic obstruction, the symbols for
traffic events are displayed.
Depending on the scale of the
map, length and impact of a traf-
fic obstruction are displayed on
the map using colored lines.
Black: road blocked.
Red: congestion.
Orange: stop-and-go traffic.
Yellow: heavy traffic.
Green: clear roads.
Gray: general traffic bulletins,
for instance construction site.
The displayed information
depends on the particular traffic information service.
With dynamic destination guid-
ance, traffic bulletins are consid-
ered when calculating routes.
1
"Navigation "
2 "Settings"
3 "Route settings "
4 "Dynamic guidance "
5 Select desired setting:
"With confirmation ": a mes-
sage is displayed, whether
the route should be guided
around a traffic obstruction.
"Automatic ": the route is
automatically changed in the
event of traffic obstructions.
Traffic bulletins on the
map
Map view settings
Symbols in the map view
Information about traffic
flow in the map view
Dynamic destination guid-
ance
Concept
Settings
Page 32 of 92
321-1. NAVIGATION
Supra_Navi_(U)
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures that are not necessarily
available in your vehicle, e. g.,
due to the selected options or
country versions. This also
applies to safety-related func-
tions and systems. When using
these functions and systems,
the applicable laws and regula-
tions must be observed.
Information regarding position
determination and navigation
data version can be called up.
1"Navigation"
2 "Settings"
3 "Position and software ver-
sion "
4 Select desired setting:
"Enter position ": the vehicle
position can be manually set
on the map in situations with-
out GPS reception or, for
instance immediately after
transport on a ferry.
"Software version": informa-
tion about the current map
version.
In the Professional navigation
system:"Help to improve the navigation
map": data such as speed or posi-
tion is stored in the vehicle in an
anonymized state and transmitted
to the manufacturer in order to
improve the digital map.
Navigation data is stored in the
vehicle and can be updated
from a USB storage device.
Current navigation data is avail-
able from your Toyota dealer or
in the Toyota Supra Connect
User Site.
Depending on the data volume,
the navigation data update may
take several hours. The status
of the update can be queried.
The navigation data is updated
during the trip to preserve the
vehicle battery.
1 Connect the USB storage
device with the new naviga-
tion data to a USB interface
in the front.
2 Follow the instructions on the
Control Display.
Navigation data
Vehicle features and
options
Concept
Settings
Map update
General information
Update
Page 33 of 92
331-1. NAVIGATION
Supra_Navi_(U)
1
NAVIGATION
3 Remove the USB storage
device after the update.
1 Press the button.
2 "Saving navigation data in
the vehicle…(USB)"
Depending on the vehicle equip-
ment and country version, the
navigation data for the home
region is transmitted online to
the vehicle four times a year and
automatically installed and
updated. This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures that are not necessarily
available in your vehicle, e. g.,
due to the selected options or
country versions. This also
applies to safety-related func-
tions and systems. When using
these functions and systems,
the applicable laws and regula-
tions must be observed.
Why can the current position not
be displayed?
The vehicle is located in an
unrecognized region, is in a
poor reception area, or the
system is currently determin-
ing the position. Reception is
usually best when you have
an unobstructed view of the
sky.
Why does destination guidance
not accept a destination without
the street?
No downtown can be deter-
mined for the entered
town/city. Input any street in
Viewing the status
Automatic map update
General information
Frequently asked
questions
Vehicle features and
options
Frequently asked ques-
tions
Page 34 of 92
341-1. NAVIGATION
Supra_Navi_(U)
the selected town/city and
start destination guidance.
Why does destination guidance
not accept a destination?
The destination data is not
contained in the navigation
data. Select a destination that
is as close as possible to the
original.
Why can letters not be selected
for destination input?
The destination data is not
contained in the navigation
data. Select a destination that
is as close as possible to the
original.
Why are spoken instructions no
longer be output during destina-
tion guidance in front of inter-
sections?
You have left the recom-
mended route and the system
requires a few seconds to cal-
culate a new route sugges-
tion.
Page 35 of 92
35
Supra_Navi_(U)
2
2
ENTERTAINMENT
ENTERTAINMENT
.2-1. ENTERTAINMENTGeneral information ....... 36
Tone ............................... 38
Radio.............................. 40
Audio .............................. 50
Video .............................. 59

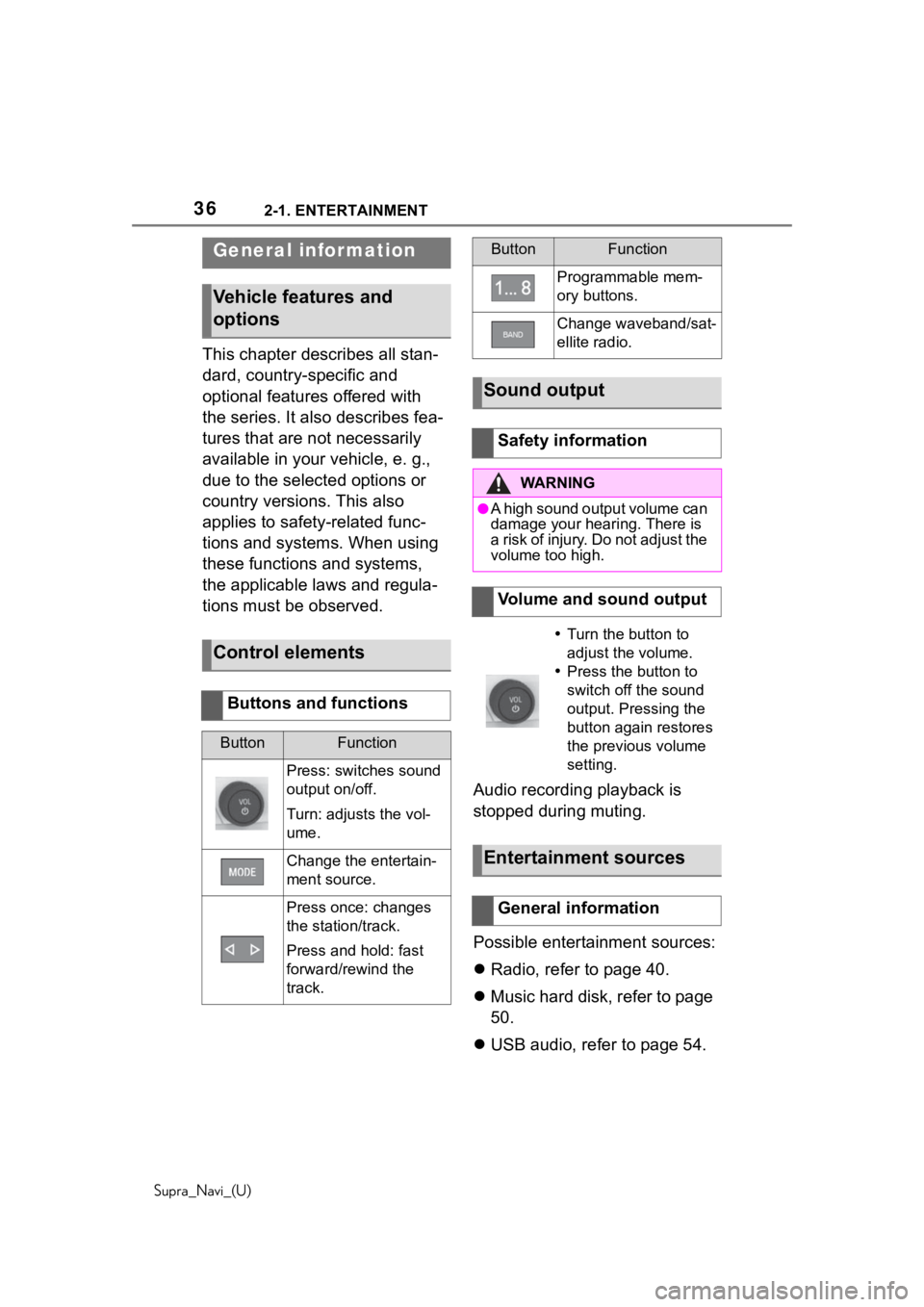

Page 36 of 92
362-1. ENTERTAINMENT
Supra_Navi_(U)
2-1.ENTERTAINMENT
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures that are not necessarily
available in your vehicle, e. g.,
due to the selected options or
country versions. This also
applies to safety-related func-
tions and systems. When using
these functions and systems,
the applicable laws and regula-
tions must be observed.Audio recording playback is
stopped during muting.
Possible entertainment sources:
Radio, refer to page 40.
Music hard disk, refer to page
50.
USB audio, refer to page 54.
General infor mation
Vehicle features and
options
Control elements
Buttons and functions
ButtonFunction
Press: switches sound
output on/off.
Turn: adjusts the vol-
ume.
Change the entertain-
ment source.
Press once: changes
the station/track.
Press and hold: fast
forward/rewind the
track.
Programmable mem-
ory buttons.
Change waveband/sat-
ellite radio.
Sound output
Safety information
WA R N I N G
●A high sound output volume can
damage your hearing. There is
a risk of injury. Do not adjust the
volume too high.
Volume and sound output
Turn the button to
adjust the volume.
Press the button to
switch off the sound
output. Pressing the
button again restores
the previous volume
setting.
Entertainment sources
General information
ButtonFunction
Page 37 of 92
372-1. ENTERTAINMENT
Supra_Navi_(U)
2
ENTERTAINMENT
USB video, refer to page 60.
Bluetooth audio, refer to page
55.
Screen Mirroring, refer to
page 60.
Apple CarPlay, refer to page
85.
On the radio:
1 Press the button.
A list of all cu rrently available enter-
tainment sources is displayed.
2 Press the button again
to select an entertainment
source.
Via Toyota Supra Command:
1 "Media/Radio"
A list of all possib le entertainment
sources is displayed.
2 Select the desired entertain-
ment source.
Via the button on the Controller:
1 Press the button.
The most recently selected enter-
tainment source is played.
2 Press the button again.
A list of all cu rrently available enter-
tainment sources is displayed.
3 Select the desired entertain-
ment source. It is possible to select which
entertainment sources are dis-
played in the selection list. The
entertainment source currently
being played cannot be
removed from the selection list.
1
"Media/Radio"
A list of all possibl e entertainment
sources is displayed.
2 "Personalize menu"
3 Select the desired setting.
Changing the entertain-
ment source
Adjusting the selection list
of entertainment sources
Page 38 of 92
382-1. ENTERTAINMENT
Supra_Navi_(U)
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures that are not necessarily
available in your vehicle, e. g.,
due to the selected options or
country versions. This also
applies to safety-related func-
tions and systems. When using
these functions and systems,
the applicable laws and regula-
tions must be observed.
The settings are stored in the
currently used driver profile.
1"Media/Radio"
2 "Tone"
3 Select desired setting:
"Treble": treble adjustment.
"Bass ": depth adjustment.
"Balance ": left/right volume
distribution.
"Fader ": front/rear volume
distribution.
4 To adjust: turn the Controller. 5
To store: press the Controller.
When surround is activated,
multi-channel playback is simu-
lated when a stereo audio track
is played.
1 "Media/Radio"
2 "To n e "
3 "Surround"
Depending on the vehicle equip-
ment, this function may not be
available.
Settings for individual audio fre-
quency ranges.
1 "Media/Radio"
2 "To n e "
3 "Equalizer "
The current bass and treble set-
tings, refer to pag e 38, are shown
on the left and ri ght edge of the
equalizer display. These values can
also be adjusted in the equalizer.
The treble and bass sound settings
affect the settings for the audio fre-
quency ranges of the equalizer.
Select and adjust trebles,
basses, or an audio frequency
range.
To n e
Vehicle features and
options
General information
Treble, bass, balance, and
fader
Multi-channel playback,
surround
Concept
Switching on/off
Equalizer
Page 39 of 92
392-1. ENTERTAINMENT
Supra_Navi_(U)
2
ENTERTAINMENT
1 Turn the Controller to select
the audio frequency range to
be adjusted.
2 Press the Controller.
3 Turn the Controller to adjust
the audio frequency.
4 Press the Controller to store
the setting.
An automatic increase of the
volume can be set to compen-
sate for the increasing driving
noises at higher speeds.
1 "Media/Radio"
2 "Tone"
3 "Volume settings"
4 Select the desired setting.
"Navigation ": ratio of spoken
instructions volume to enter-
tainment volume.
"Speed volume ": ratio of
entertainment volume to
speed.
"Parking Sens. ": ratio of the
volume of the signal tone of
Parking Sensors to the enter-
tainment volume.
The basic setting ensures that the
signal tone is audible at any vol- ume.
"Gong ": ratio of the volume of
the signal tone, for instance
for safety belt reminder, to the
entertainment volume.
The basic setting ensures that the
signal tone is audible at any vol-
ume.
"Microphone ": sensitivity of
the microphone during a
phone call.
The setting is adjusted while calling
and is stored for the mobile phone
used.
"Speakers ": volume of the
loudspeakers during a phone
call.
Audio recording playback is
stopped during muting.
The setting is adjusted while calling
and is stored for the mobile phone
used.
5 To adjust: turn the Controller.
6 To store: press the Controller.
The tone settings are reset to
the factory settings.
1 "Media/Radio"
2 "To n e "
3 "Reset "
Volume equalization
Concept
Set automatic volume
increase
Reset the tone settings
Page 40 of 92
402-1. ENTERTAINMENT
Supra_Navi_(U)
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures that are not necessarily
available in your vehicle, e. g.,
due to the selected options or
country versions. This also
applies to safety-related func-
tions and systems. When using
these functions and systems,
the applicable laws and regula-
tions must be observed.
The settings are stored in the
currently used driver profile.
Depending on the vehicle equip-
ment and country version, it may
not be possible to receive AM
stations.
RDS broadcasts additional infor-
mation, such as the station name, in the FM waveband.
It is recommended to switch on
RDS.
1
"Media/Radio"
2 "FM "
3 Press the button.
4 "RDS "
1 "Media/Radio"
2 "FM " or " AM"
The last station listened to will be
played and the station list dis-
played.
3Select the desired station.
On the radio:
The previous or next station
from the list of stations is
played.
A symbol on the highlighted
channel indicates whether the
channel has already been
stored.
Radio
Vehicle features and
options
General information
AM/FM station
General information
Radio Data System RDS
Concept
Switching on/off
Selecting a station
Changing the station
Press the left or right
button.
Storing a station
General information
