TOYOTA TACOMA 2000 Owners Manual (in English)

’00 Tacoma(U)
194
Specified
jack point
NOTICE
Only put the jack to the specified jack
point; otherwise your vehicle may be
damaged.
Xtra cab modelsPut a jack handle, jack
handle extension and jack handle end to-
gether as shown in the illustration.
1 Jack handle end
2 Jack handle extension
3 Jack handle
Raising your vehicle
6. After making sure that no one is inthe vehicle, raise it high enough so
that the spare tire can be installed.
Remember you will need more ground
clearance when putting on the spare tire
than when removing the flat tire.
Normal cab modelsTo raise the vehicle,
insert the jack handle into the jack (it is
a loose fit) and turn it clockwise. As the
jack touches the vehicle and begins to lift,
double−check that it is properly positioned.

’00 Tacoma(U)
195
Xtra−cab modelsTo raise the vehicle, in-
sert the jack handle extension into the
jack (it is a loose fit) and turn it clockwise
with the handle, making sure the handle
remains firmly fitted onto the jack handle
extension. As the jack touches the vehicle
and begins to lift, double−check that it is
properly positioned.
CAUTION
Never get under the vehicle when the
vehicle is supported by the jack
alone.
Changing wheels
7. Remove the wheel nuts and changetires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the bolts.
Then lift up the wheel and get at least the
top bolt started through its hole. Wiggle
the tire and press it back over the other
bolts.
Before putting on wheels, remove any cor-
rosion on the mounting surfaces with a
wire brush or such. Installation of wheels
without good metal−to−metal contact at the
mounting surface can cause wheel nuts to
loosen and eventually cause a wheel to
come off while driving. Therefore after the
first 1600 km (1000 miles), check to see
that the wheel nuts are tight.

’00 Tacoma(U)
196
Reinstalling wheel nuts
8. Reinstall all the wheel nuts fingertight.
Reinstall the wheel nuts (tapered end in-
ward) and tighten them as much as you
can by hand. Press back on the tire back
and see if you can tighten them more.
Lowering your vehicle
Two−wheel drive models
Four−wheel drive models
9. Lower the vehicle completely and tighten the wheel nuts.
Normal cab modelsTurn the jack handle
counterclockwise to lower the vehicle.
Xtra−cab modelsTurn the jack handle
extension counterclockwise with handle to
lower the vehicle, making sure the handle
remains firmly fitted onto the jack handle
extension.
Use only the wheel nut wrench and turn
it clockwise to tighten the nuts. Do not
use other tools or any additional leverage
other than your hands, such as a hammer,
pipe or your foot. Make sure the wrench
is securely engaged over the nut.
Tighten each nut a little at a time in the
order shown. Repeat the process until all
the nuts are tight.
CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.

’00 Tacoma(U)
197
Reinstalling wheel ornament
10. Reinstall the wheel ornament.1. Put the wheel ornament in position.
On some models, align the cutout of the
wheel ornament with the valve stem as
shown. 2. Then firmly tap the outer edge of the wheel cap with the side or heel of your
hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
On steel wheel ornaments for free−wheel-
ing hubs, place the wheel ornament re-
placer over the opening and tap on the
replacer to snap the ornament into place.
Be careful not to slip off the replacer.
After changing wheels
11. Check the air pressure of the re- placed tire.
Adjust the air pressure to the specification
designated in Section 8. If the pressure is
lower, drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
12. Restow all the tools, jack and flat tire securely.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified in Section 8 with a torque
wrench. Have a technician repair the flat
tire.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.

’00 Tacoma(U)
198
(a) Towing with wheel lift type truckFrom front
From rear
(b) Using flat bed truck
Two−wheel drive models(a) Towing with wheel lift type truck From front
From rear
(b) Using flat bed truck
Four−wheel drive modelsIf towing is necessary, we recommend
you have it done by your Toyota dealer
or a commercial tow truck service. In
consultation with them, have your ve-
hicle towed using either (a) or (b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in Emergency tow-
ing" in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
If your vehicle needs to be
towed

’00 Tacoma(U)
199
Two−wheel drive models
(a) Towing with wheel lift type truck
From front
Manual transmission:
We recommend using a towing dolly under
the rear wheels. If you do not use a tow-
ing dolly, release the parking brake and
put the transmission in neutral.
Automatic transmission:
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the front with the
rear wheels on the ground, as this
may cause serious damage to the
transmission.
From rear Place the ignition key in the
ACC" position.
NOTICE
 When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the LOCK" position, as the
steering lock mechanism is not
strong enough to hold the front
wheels straight while towing.
(b) Using flat bed truck Four−wheel drive models
(a) Towing with wheel lift type truck
From front
Manual transmission:
We recommend using a towing dolly under
the rear wheels. If you do not use a tow-
ing dolly, release the parking brake, put
the transmission in neutral and set the
transfer in H2" mode.
Automatic transmission:
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the front with the
rear wheels on the ground, as this
may cause serious damage to the
transmission.

’00 Tacoma(U)
200
From rearWe recommend using a tow-
ing dolly under the front wheels. If you do
not use a towing dolly, place the ignition
key in the ACC" position, put the trans-
mission in neutral and set the transfer in
H2" mode. Disengage both free−wheeling
hubs if so equipped.
NOTICE
Do not tow with the key removed or
in the LOCK" position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
(b) Using flat bed truck
(c) Towing with sling type truck
All models
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to one of the emergency towing
eyelets under the front of the vehicle.
Use extreme caution when towing the
vehicle.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
Emergency towing
(two−wheel drive models
except Pre Runner)

’00 Tacoma(U)
201
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing the
vehicle. Avoid sudden starts or errat-
ic driving maneuvers which would
place excessive stress on the emer-
gency towing eyelet and towing cable
or chain. The eyelet and towing cable
or chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or N" (automatic). The key must be
in ACC" (engine off) or ON" (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to the emergency towing hook
under the front of the vehicle. Use ex-
treme caution when towing the vehicle.
NOTICE
Only use specified towing hook;
otherwise your vehicle may be dam-
aged.
Emergency towing
(four−wheel drive models and
Pre Runner)

’00 Tacoma(U)
202
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing the
vehicle. Avoid sudden starts or errat-
ic driving maneuvers which would
place excessive stress on the emer-
gency towing hook and towing cable
or chain. The hook and towing cable
or chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing hook provided.
Before towing, release the parking brake,
put the transmission in neutral (manual) or
N" (automatic) and set the transfer in
H2" mode. The key must be in ACC"
(engine off) or ON" (engine running).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
Before emergency towing, check that
the hook is not broken or damaged and
that the installation bolts are not loose.
Fasten the towing cable or chain se-
curely to the hook.
Do not jerk the hook. Apply steady and
even force.
To avoid damaging the hook, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
Emergency towing hook
precautions
(four−wheel drive models)

’00 Tacoma(U)
203

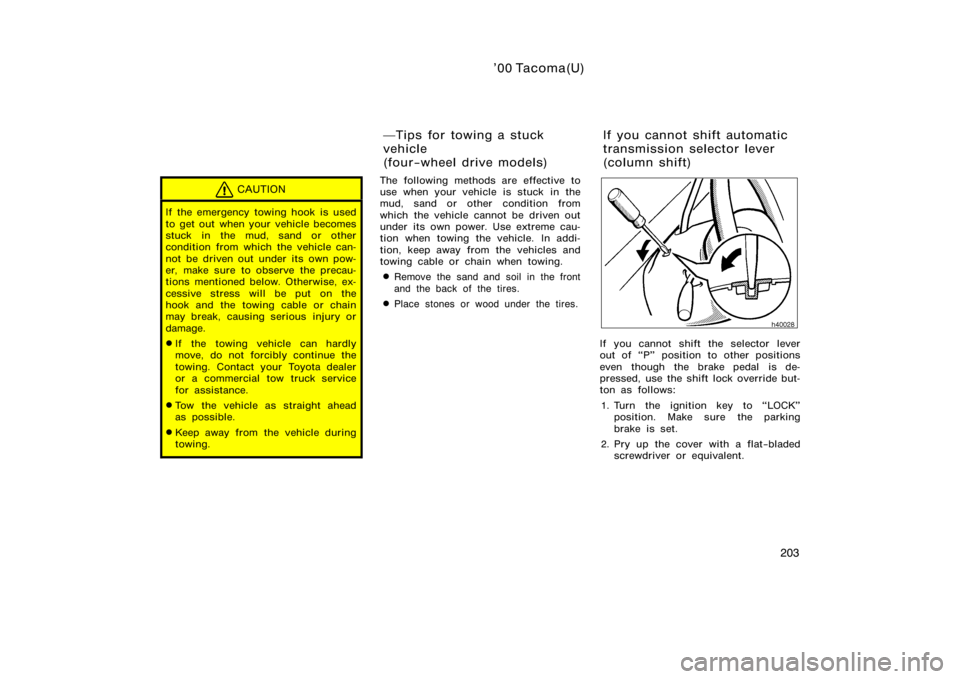

CAUTION
If the emergency towing hook is used
to get out when your vehicle becomes
stuck in the mud, sand or other
condition from which the vehicle can-
not be driven out under its own pow-
er, make sure to observe the precau-
tions mentioned below. Otherwise, ex-
cessive stress will be put on the
hook and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
The following methods are effective to
use when your vehicle is stuck in the
mud, sand or other condition from
which the vehicle cannot be driven out
under its own power. Use extreme cau-
tion when towing the vehicle. In addi-
tion, keep away from the vehicles and
towing cable or chain when towing.
Remove the sand and soil in the front
and the back of the tires.
Place stones or wood under the tires.
If you cannot shift the selector lever
out of P" position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:1. Turn the ignition key to LOCK" position. Make sure the parking
brake is set.
2. Pry up the cover with a flat−bladed screwdriver or equivalent.
Tips for towing a stuck
vehicle
(four−wheel drive models) If you cannot shift automatic
transmission selector lever
(column shift)
