TOYOTA TACOMA 2001 (in English) User Guide

’01 Tacoma U (L/O 0009)
52001 TACOMA (OM35766U)
1. Engine coolant temperature gauge
2. Service reminder indicators and indicator lights 3. Speedometer
4. Odometer
5. Fuel gauge

Without tachometer

’01 Tacoma U (L/O 0009)
62001 TACOMA (OM35766U)
Indicator symbols on the instrument panel
Seat belt reminder light∗1
Low oil pressure warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Anti−lock brake system warning light∗1
SRS warning light∗1
or
Automatic transmission fluid temperature warning
light∗1
Unengaged Park" warning light∗1
Low windshield washer fluid level warning
light∗1
Headlight high beam indicator light
Overdrive−off indicator light Turn signal indicator lights
Driving pattern (POWER mode) indicator light

’01 Tacoma U (L/O 0009)
72001 TACOMA (OM35766U)
∗1: For details, see Service reminder indicators and warning
buzzers" in Section 1−5.
∗2: If this light flashes, see Cruise control" in Section 1−6. Cruise control indicator light
∗
2
Rear differential lock indicator light
Four−wheel drive indicator light

’01 Tacoma U (L/O 0009)
82001 TACOMA (OM35766U)

’01 Tacoma U (L/O 0009)
92001 TACOMA (OM35766U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Side doors 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Quarter windows 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear window 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tailgate 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Hood 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Detachable moon roof 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Detachable sun shade 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 2

’01 Tacoma U (L/O 0009)
102001 TACOMA (OM35766U)
Keys
This key works in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the door simulta-
neously.

’01 Tacoma U (L/O 0009)
112001 TACOMA (OM35766U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in will also lock the door. Be care-
ful not to lock your keys in the vehicle.
Vehicles with power door lock system
The doors cannot be locked if you leave
the key in the ignition switch.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
All the doors cannot be unlocked with the
power door lock switch by the following
cases:
Either front door is locked by the key.
Either front door is closed with the
inside door lock button pushed in.

’01 Tacoma U (L/O 0009)
122001 TACOMA (OM35766U)
REAR DOOR CHILD−PROTECTORS
Move the lock lever to the LOCK"
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the ON" position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.

’01 Tacoma U (L/O 0009)
132001 TACOMA (OM35766U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the WINDOW LOCK"
switch on the driver’s door, the passen-
gers’ windows cannot be operated.

’01 Tacoma U (L/O 0009)
142001 TACOMA (OM35766U)

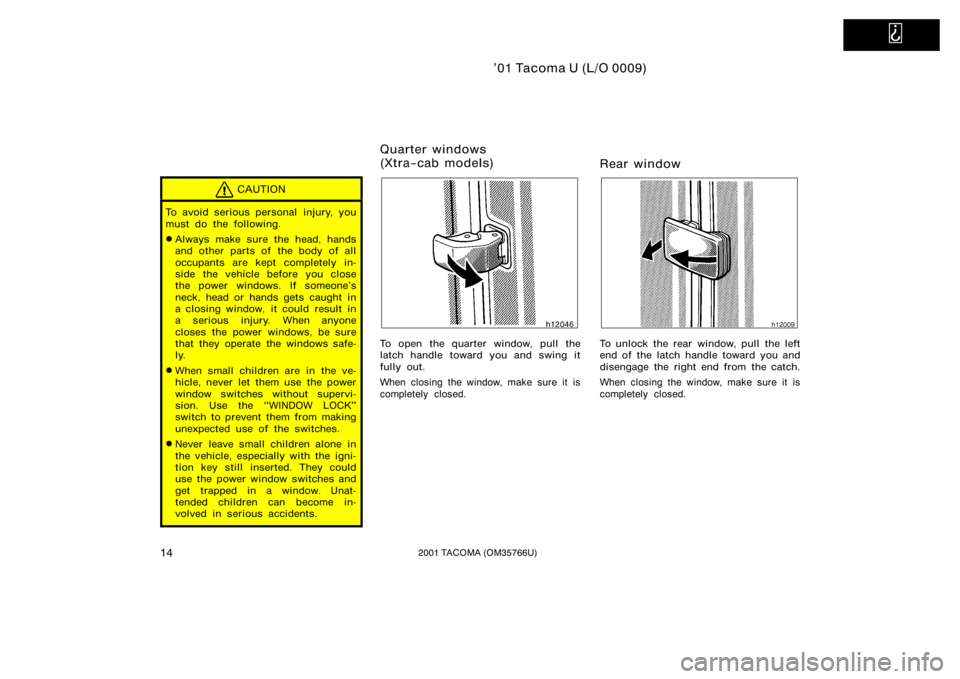

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the WINDOW LOCK"
switch to prevent them from making
unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.
Rear window
To unlock the rear window, pull the left
end of the latch handle toward you and
disengage the right end from the catch.
When closing the window, make sure it is
completely closed.
Quarter windows
(Xtra−cab models)
