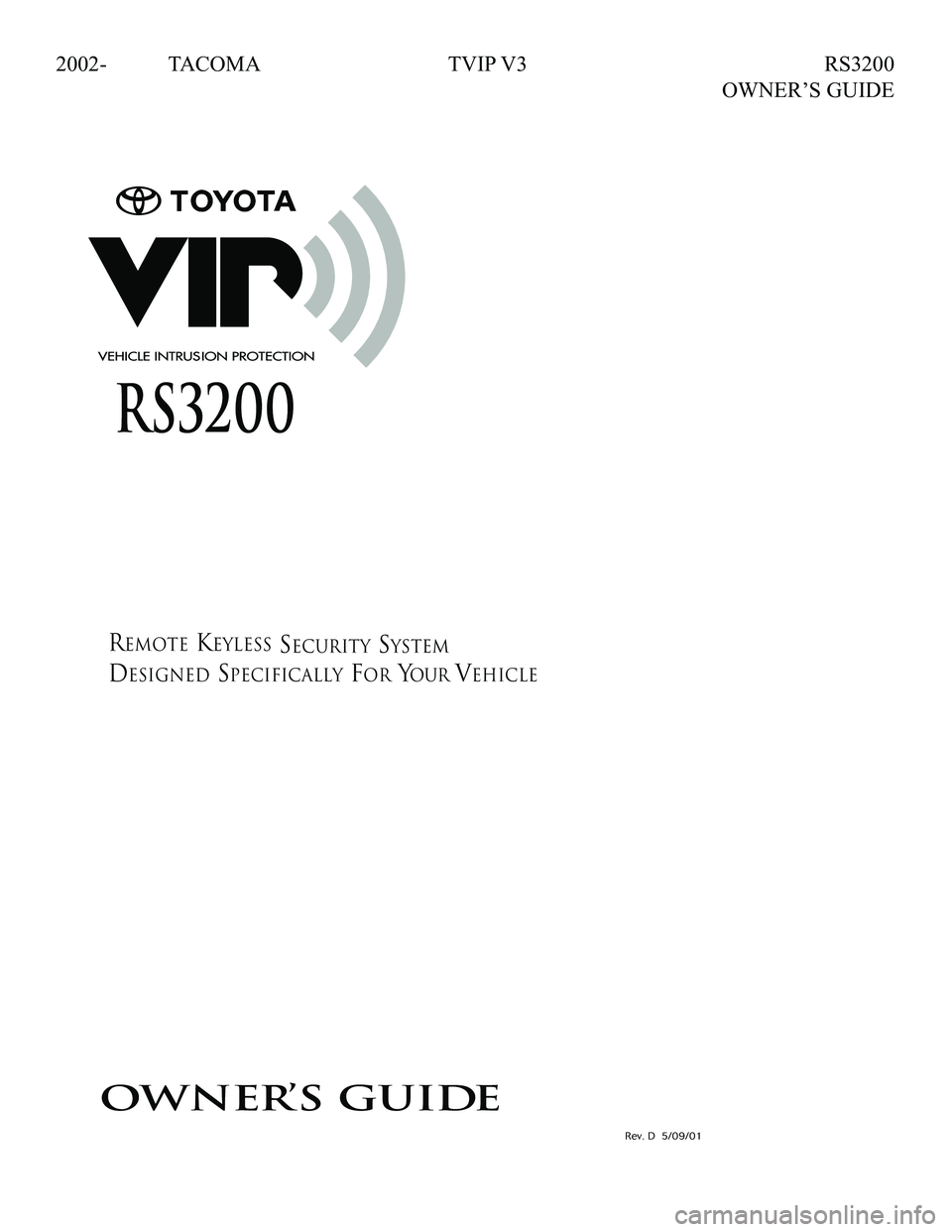

TOYOTA TACOMA 2002 Accessories, Audio & Navigation (in English)

2002- TACOMA TVIP V3 RS3200
OWNER’S GUIDE
Remote Keyless Security system
Designed Specifically for your Vehicle
owner’s guide
RS3200
090002-24750700
Rev. D 5/09/01
2005-2006 COROLLA/MATRIX TVIP V3 RS3200
OWNER'S GUIDE

Page 20 TOYOTARS3200 REMOTE KEYLESS Security system
To better understand the features and functions of this security system, please read this
Owner’s Guide completely prior to use.

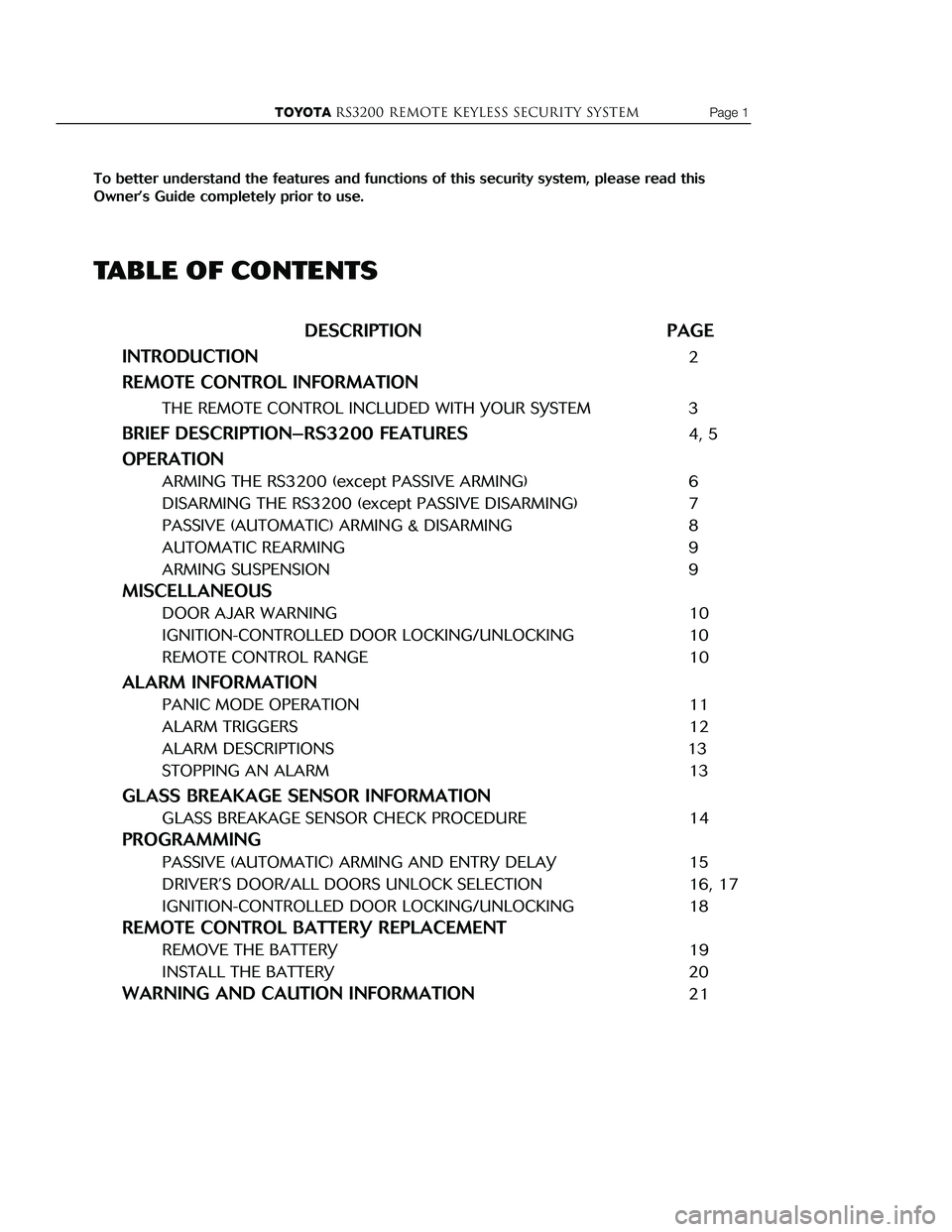

TABLE OF CONTENTS
DESCRIPTIONPAGE
INTRODUCTION
2
REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3
BRIEF DESCRIPTION–RS3200 FEATURES4, 5
OPERATION

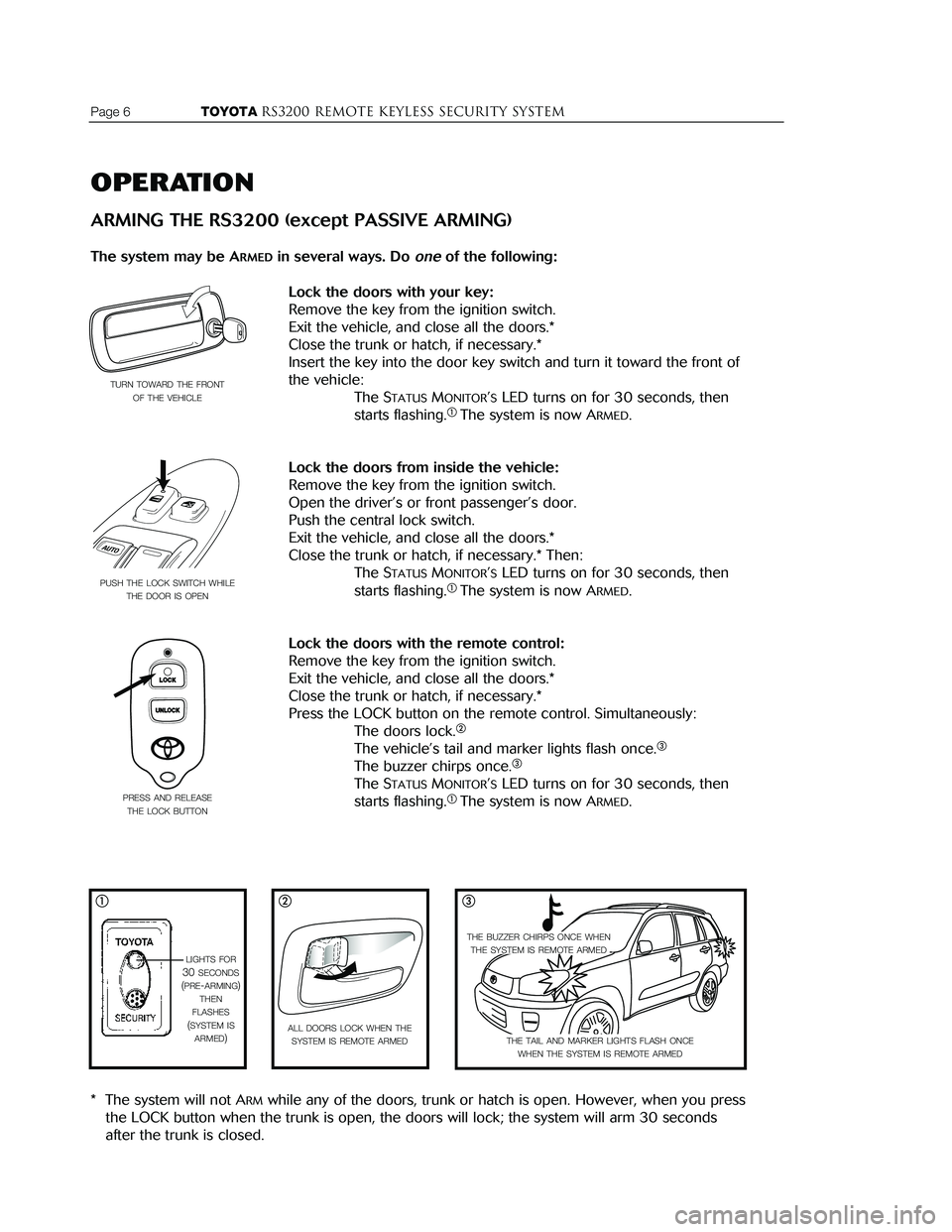

ARMING THE RS3200 (except PASSIVE ARMING)6

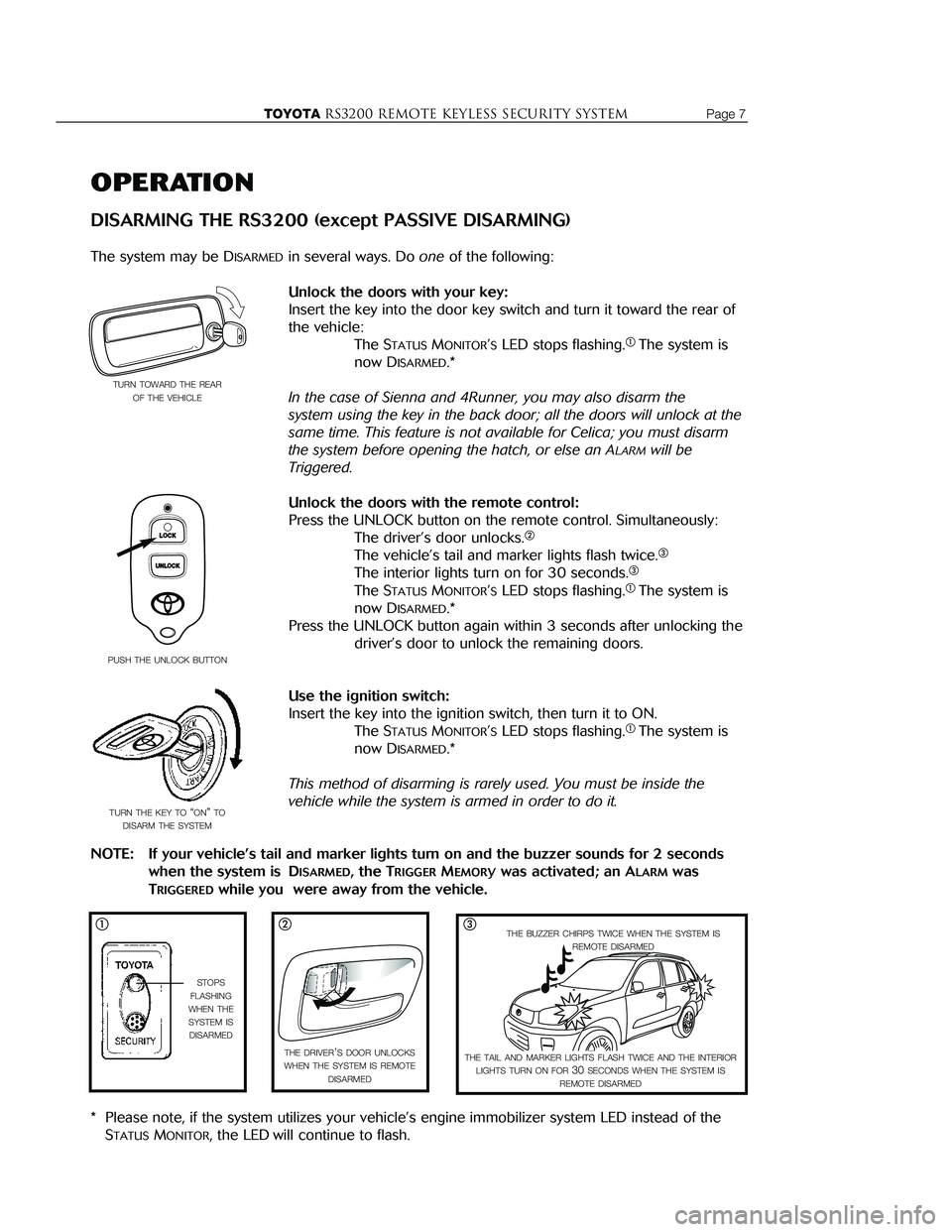

DISARMING THE RS3200 (except PASSIVE DISARMING) 7

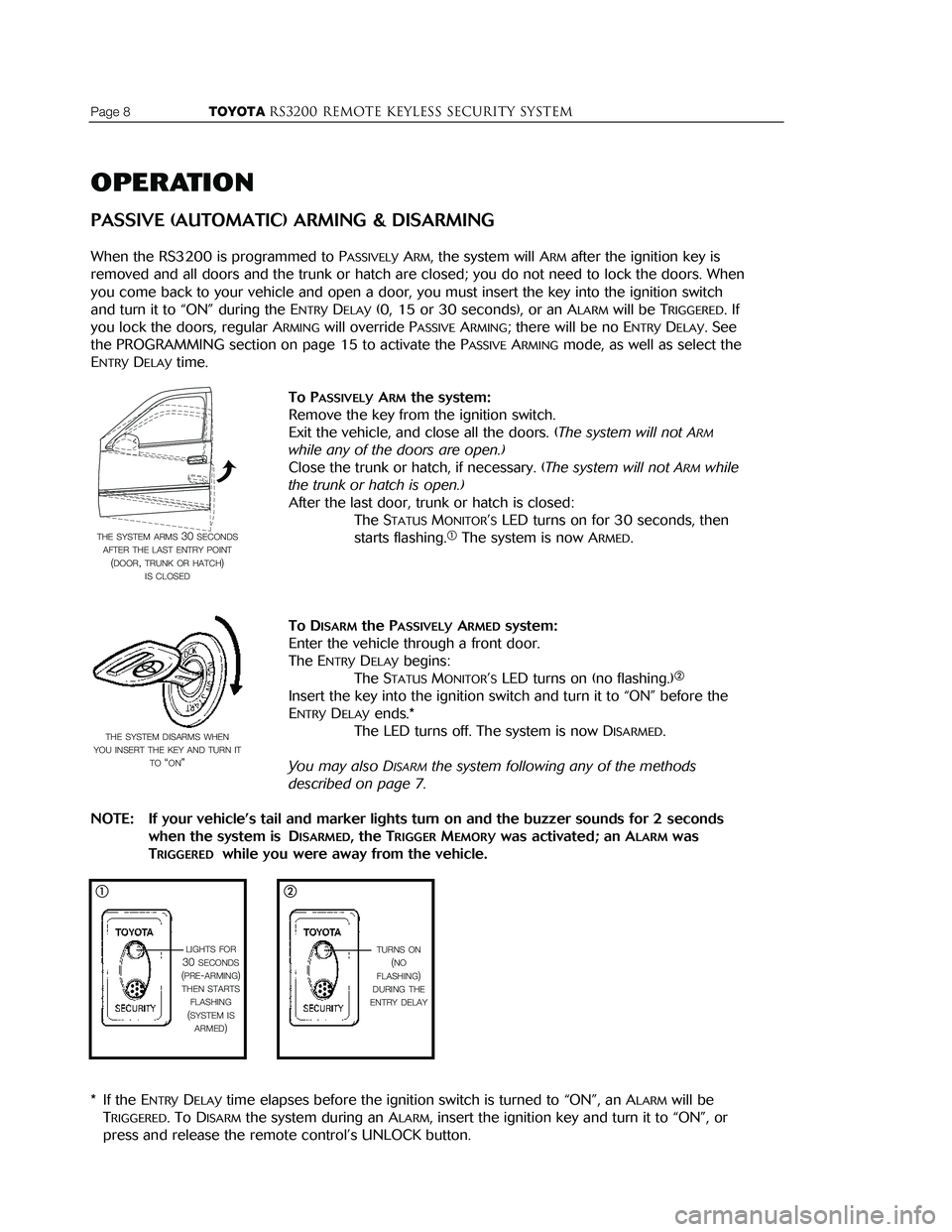

PASSIVE (AUTOMATIC) ARMING & DISARMING 8

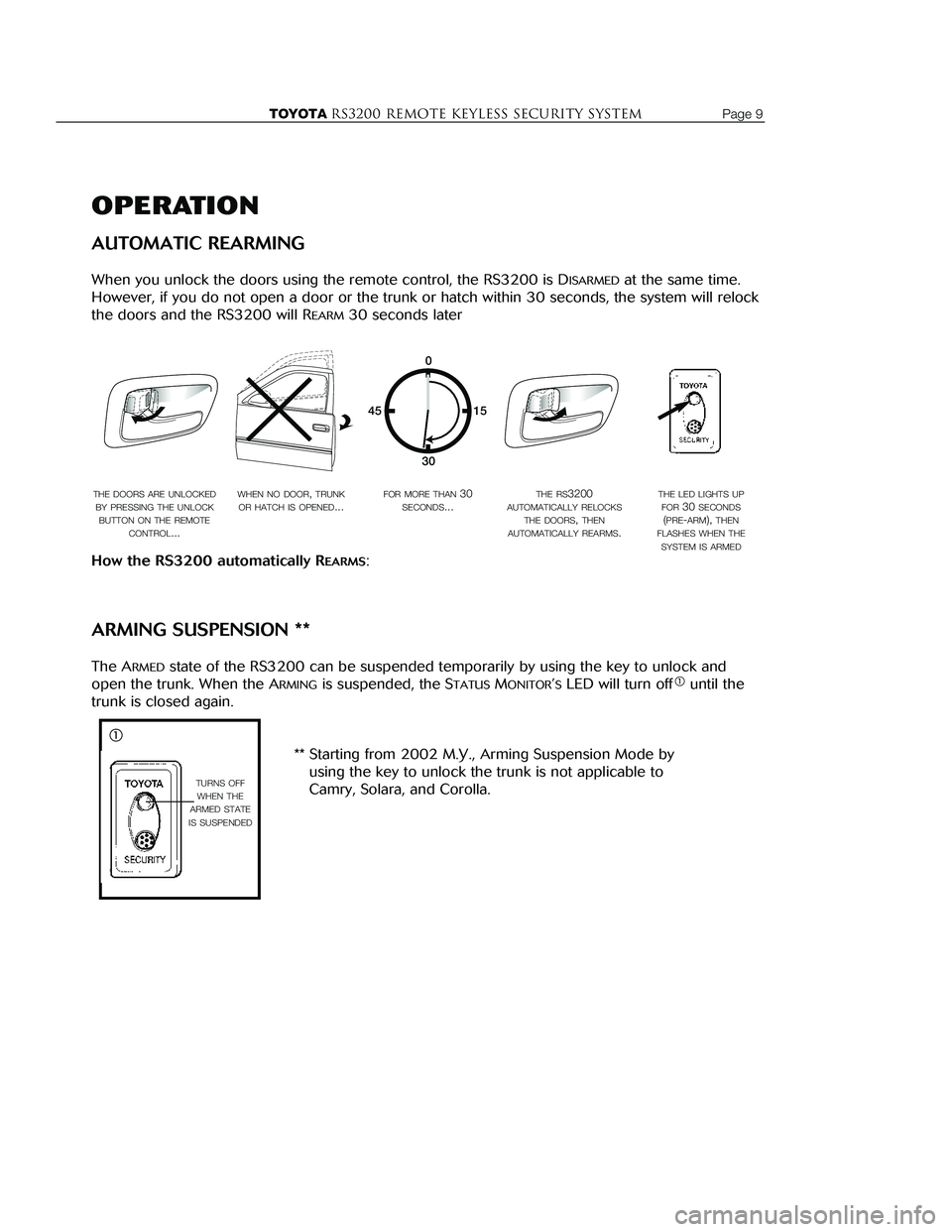

AUTOMATIC REARMING 9
ARMING SUSPENSION 9
MISCELLANEOUS
DOOR AJAR WARNING10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10
ALARM INFORMATION
PANIC MODE OPERATION11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE 14
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18
REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION21
REMOTE CONTROL BATTERY REPLACEMENT
INSTALL THE BATTERY
1. Hold the battery with the plus side up.
Handle the battery with a cloth or tissue; body oils and moisture can
interfere with operation and may reduce the life of the battery.
2. Insert the new battery as shown.
Place the edge of the battery in the contacts first, then slide the
battery back and down.
3. Place the rubber gasket back on the remote control.
Make sure the gasket is seated properly.
4. Place the back cover back on the top half of the remote control.
Place even pressure and listen for the halves to “snap” together.
TOYOTARS3200 remote keyless Security systemPage 1

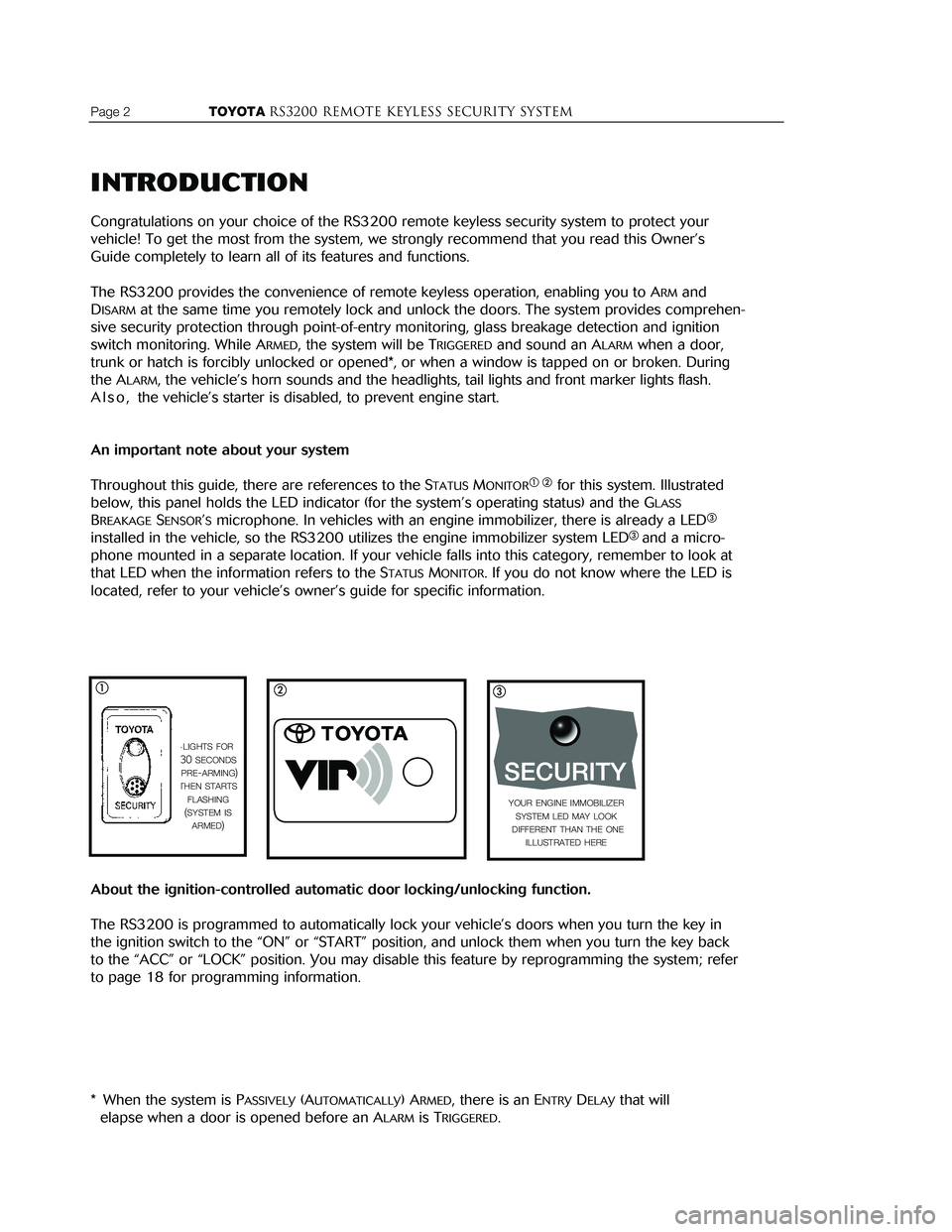

INTRODUCTION
Congratulations on your choice of the RS3200 remote keyless security system to protect your
vehicle! To get the most from the system, we strongly recommend that you read this Owner’s
Guide completely to learn all of its features and functions.
The RS3200 provides the convenience of remote keyless operation, enabling you to A
RMand
D
ISARMat the same time you remotely lock and unlock the doors. The system provides comprehen-
sive security protection through point-of-entry monitoring, glass breakage detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGEREDand sound an ALARMwhen a door,
trunk or hatch is forcibly unlocked or opened*, or when a window is tapped on or broken. During
the A
LARM, the vehicle’s horn sounds and the headlights, tail lights and front marker lights flash.
A l s o , the vehicle ’s starter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the STATUSMONITOR� �for this system. Illustrated
below, this panel holds the LED indicator (for the system ’s operating status) and the G
LASS
BREAKAGESENSOR’Smicrophone. In vehicles with an engine immobilizer, there is already a LED�
installed in the vehicle, so the RS3200 utilizes the engine immobilizer system LED� and a micro-
phone mounted in a separate location. If your vehicle falls into this category, remember to look at
that LED when the information refers to the S
TATUSMONITOR. If you do not know where the LED is
located, refer to your vehicle ’s owner’s guide for specific information.
About the ignition-controlled automatic door locking/unlocking function.
The RS3200 is programmed to automatically lock your vehicle ’s doors when you turn the key in
the ignition switch to the “ON” or “START” position, and unlock them when you turn the key back
to the “ACC” or “LOCK” position. You may disable this feature by reprogramming the system; refer
to page 18 for programming information.
* When the system is P
ASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will
elapse when a door is opened before an A
LARMis TRIGGERED.
YOUR ENGINE IMMOBILIZER
SYSTEM LED MAY LOOK
DIFFERENT THAN THE ONE ILLUSTRATED HERE
LIGHTS FOR30 SECONDS(PRE-ARMING)THEN STARTSFLASHING
(SYSTEM ISARMED)
Page 2 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 19
� �
REMOTE CONTROL BATTERY REPLACEMENT
The following shows the procedure to replace the batteries in your remote controls. We recom-
mend that you replace the batteries at least once a year, or when the remote control ’s transmitting
range diminishes. You may obtain the replacement battery from your Toyota dealer, as well as
many retailers that sell watch batteries.
The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.
REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material.
Place it with the back side facing up.
2. Using a coin, pry open the remote control.
Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5. Push the battery down and toward you, and hold it down.
6. Pry the back edge of the battery up and toward you.
�

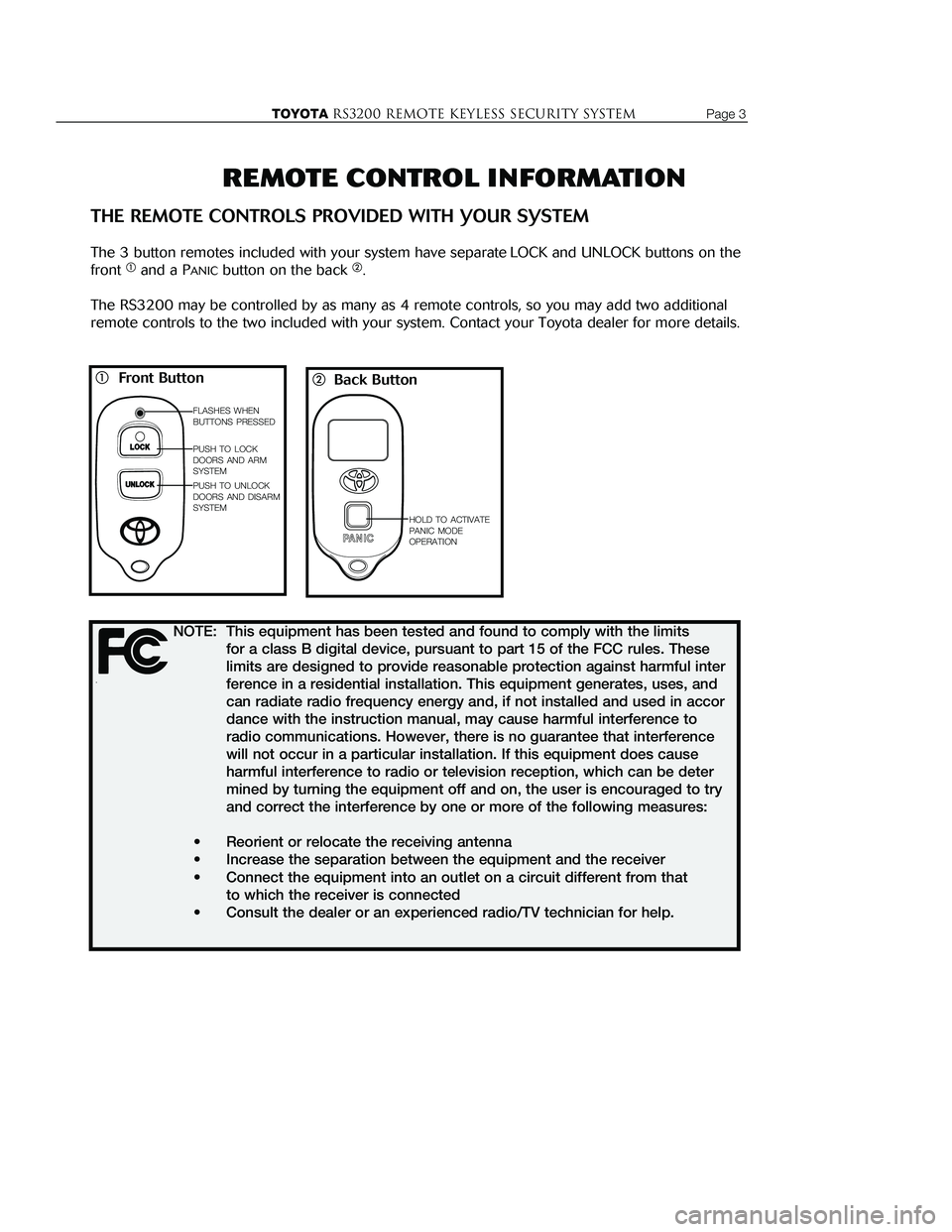

REMOTE CONTROL INFORMATION
THE REMOTE CONTROLS PROVIDED WITH YOUR SYSTEM
The 3 button remotes included with your system have separate LOCK and UNLOCK buttons on the
front �and a PANICbutton on the back �.
The RS3200 may be controlled by as many as 4 remote controls, so you may add two additional
remote controls to the two included with your system. Contact your Toyota dealer for more details.
PROGRAMMING
IGNITION-CONTROLLED AUTOMATIC DOOR LOCK/UNLOCK
The RS3200 is factory-set to automatically lock your vehicle ’s doors when you turn the ignition key
to “ON” or “START”, and unlock the doors when you turn the key back to “ACC” or “LOCK”. To
change the programming of this feature, follow the procedure shown below.
1. Before you begin:
Open the driver’s door.
Remove the key from the ignition switch.
2. Start the Programming Procedure. (Complete these steps within 30 seconds.)
Note: If the system does not activate the lights and buzzer, start over.
3. Select the Operating Mode and Complete the Programming Procedure.
Page 18 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 3
�Front Button
FLASHES WHEN
BUTTONS PRESSED
PUSH TO LOCK
DOORS AND ARM
SYSTEM
PUSH TO UNLOCK
DOORS AND DISARM
SYSTEM
� Back Button
HOLD TO ACTIVATE
PANIC MODE
OPERATION
NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful inter
ference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accor
dance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter
mined by turning the equipment off and on, the user is encouraged to try
and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
a.Insert the key into the
ignition switch and
turn it
from LOCK to ON 5 times
(ending at ON).
c.The STATUSMONITOR’SLED
(or the engine immobilizer
system ’s LED) turns on
for 30 seconds.
b. Turn the ignition
key backto
lock.
a. Closethe door =
IG. Controlled Door Locks
ON
Close
, then open and close
the door again = IG. Controlled
Door Locks
OFF c.
The tail and marker lights
flash once
and the buzzer
chirps oncewhen the system is
set for
IG door lock control ON,
twice for IG door lock control
OFF
. If this does not happen,
start over. Programming is now
complete.
b.The tail and marker lights
flash once, and the buzzer
chirps once.

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION (continued)
3. Select the Operating Mode and Complete the Programming Procedure.
Note: If the system locks the doors twice, start over.
Page 4 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 17

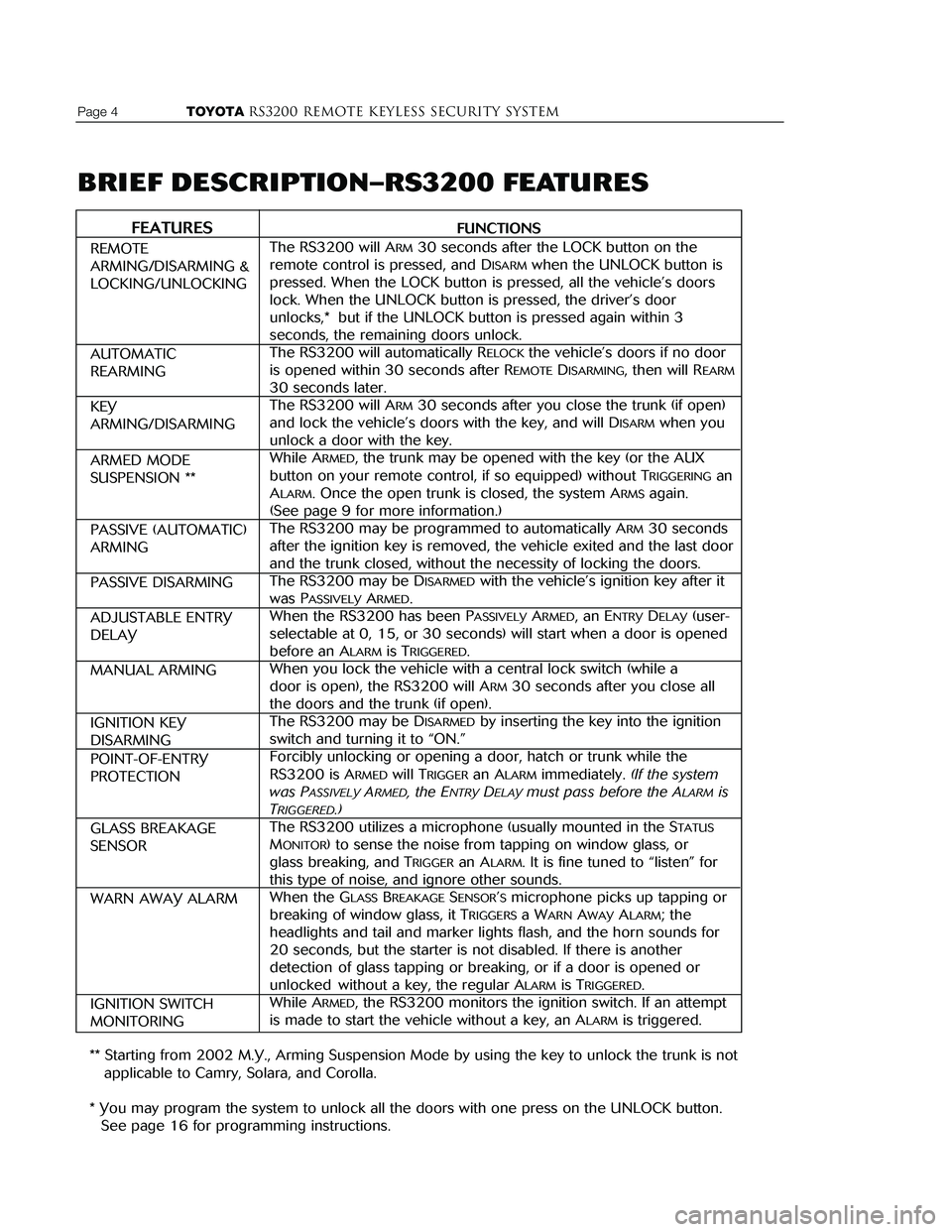

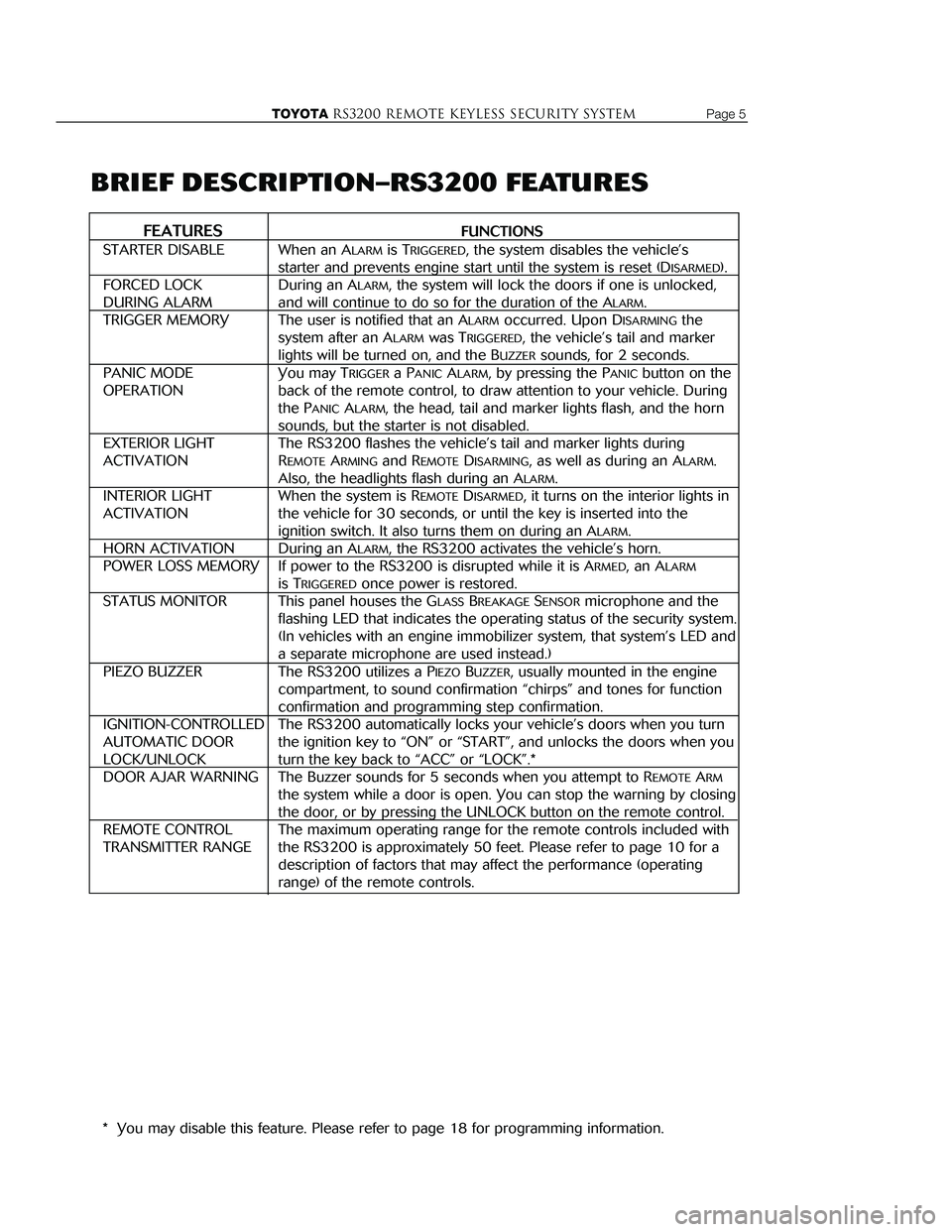

FEATURESFUNCTIONS
The RS3200 will ARM30 seconds after the LOCK button on the
remote control is pressed, and D
ISARMwhen the UNLOCK button is
pressed. When the LOCK button is pressed, all the vehicle ’s doors
lock. When the UNLOCK button is pressed, the driver ’s door
unlocks,* but if the UNLOCK button is pressed again within 3
seconds, the remaining doors unlock.
The RS3200 will automatically R
ELOCKthe vehicle’s doors if no door
is opened within 30 seconds after R
EMOTEDISARMING, then will REARM
30 seconds later.
The RS3200 will A
RM30 seconds after you close the trunk (if open)
and lock the vehicle ’s doors with the key, and will D
ISARMwhen you
unlock a door with the key.
While A
RMED, the trunk may be opened with the key (or the AUX
button on your remote control, if so equipped) without T
RIGGERINGan
A
LARM. Once the open trunk is closed, the system ARMSagain.
(See page 9 for more information.)
The RS3200 may be programmed to automatically A
RM30 seconds
after the ignition key is removed, the vehicle exited and the last door
and the trunk closed, without the necessity of locking the doors.
The RS3200 may be D
ISARMEDwith the vehicle ’s ignition key after it
was P
ASSIVELYARMED.
When the RS3200 has been P
ASSIVELYARMED, an ENTRYDELAY(user-
selectable at 0, 15, or 30 seconds) will start when a door is opened
before an A
LARMis TRIGGERED.
When you lock the vehicle with a central lock switch (while a
door is open), the RS3200 will A
RM30 seconds after you close all
the doors and the trunk (if open).
The RS3200 may be D
ISARMEDby inserting the key into the ignition
switch and turning it to “ON.”
Forcibly unlocking or opening a door, hatch or trunk while the
RS3200 is A
RMEDwill TRIGGERan ALARMimmediately. (If the system
was P
ASSIVELYARMED, the ENTRYDELAYmust pass before the ALARMis
T
RIGGERED.)
The RS3200 utilizes a microphone (usually mounted in the STATUS
MONITOR) to sense the noise from tapping on window glass, or
glass breaking, and T
RIGGERan ALARM. It is fine tuned to “listen” for
this type of noise, and ignore other sounds.
When the G
LASSBREAKAGESENSOR’Smicrophone picks up tapping or
breaking of window glass, it T
RIGGERSa WARNAWAYALARM; the
headlights and tail and marker lights flash, and the horn sounds for
20 seconds, but the starter is not disabled. If there is another
detection of glass tapping or breaking, or if a door is opened or
unlocked without a key, the regular A
LARMis TRIGGERED.
While A
RMED, the RS3200 monitors the ignition switch. If an attempt
is made to start the vehicle without a key, an A
LARMis triggered.
** Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to Camry, Solara, and Corolla.
* You may program the system to unlock all the doors with one press on the UNLOCK button. See page 16 for programming instructions.
REMOTE
ARMING/DISARMING &
LOCKING/UNLOCKING
AUTOMATIC
REARMING
KEY
ARMING/DISARMING
ARMED MODE
SUSPENSION **
PASSIVE (AUTOMATIC)
ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH
MONITORING
BRIEF DESCRIPTION–R
S3200 FEATURES
a. Press and
release
both
LOCK and
UNLOCK
buttons at the
same time.
b. Press and release
the
UNLOCK button
once for
all doors
unlock.
or Press and release
the
LOCK button
once for
driver ’s
door unlock.
e.Open the driver ’s
door;
programming is
now complete.i.The tail and marker lights flash 1time, the
buzzer
chirps 1time, and the doors lock and
unlock
1time.

PROGRAMMING
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION
The RS3200 is factory-set to unlock the driver’s door when the UNLOCK button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK button is pressed again within
3 seconds. You may change the programming so all doors will unlock at once when the UNLOCK
button is pressed by following the steps below.
1. Before you begin: 2. Start the Programming Procedure.
Open the driver’s door.(Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.
Page 16 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 5
FEATURESFUNCTIONS
When an ALARMis TRIGGERED, the system disables the vehicle ’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARMoccurred. Upon DISARMINGthe
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker
lights will be turned on, and the B
UZZERsounds, for 2 seconds.
You may T
RIGGERa PANICALARM, by pressing the PANICbutton on the
back of the remote control, to draw attention to your vehicle. During
the P
ANICALARM, the head, tail and marker lights flash, and the horn
sounds, but the starter is not disabled.
The RS3200 flashes the vehicle ’s tail and marker lights during
R
EMOTEARMINGand REMOTEDISARMING, as well as during an ALARM.
Also, the headlights flash during an A
LARM.
When the system is R
EMOTEDISARMED, it turns on the interior lights in
the vehicle for 30 seconds, or until the key is inserted into the
ignition switch. It also turns them on during an A
LARM.
During an A
LARM, the RS3200 activates the vehicle ’s horn.
If power to the RS3200 is disrupted while it is A
RMED, an ALARM
is TRIGGEREDonce power is restored.
This panel houses the G
LASSBREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.
(In vehicles with an engine immobilizer system, that system ’s LED and
a separate microphone are used instead.)
The RS3200 utilizes a P
IEZOBUZZER, usually mounted in the engine
compartment, to sound confirmation “chirps” and tones for function
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle ’s doors when you turn
the ignition key to “ON” or “START”, and unlocks the doors when you
turn the key back to “ACC” or “LOCK”.*
The Buzzer sounds for 5 seconds when you attempt to R
EMOTEARM
the system while a door is open. You can stop the warning by closing
the door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with
the RS3200 is approximately 50 feet. Please refer to page 10 for a
description of factors that may affect the performance (operating
range) of the remote controls.
* You may disable this feature. Please refer to page 18 for programming information. STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY
PANIC MODE
OPERATION
EXTERIOR LIGHT
ACTIVATION
INTERIOR LIGHT
ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-CONTROLLED
AUTOMATIC DOOR
LOCK/UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
BRIEF DESCRIPTION
–RS3200 FEATURES
a. Insert the key into,
and
remove it
from the ignition
switch
2 times.
e. Insert the key into
the ignition and
leave it in.
c. Insert the key into,
and
remove it
from the ignition
switch
1 time.
g. Turn the key from
LOCK to ON
4
times
(ending at
LOCK.)
h. Remove the key
from the ignition
switch.i.The tail and marker lights flash 4times, the
buzzer
chirps 4times, and the doors lock and
unlock
4times.
b. Close, then open
the driver ’s door
2 times.
f. Closethe driver ’s
door.d. Close, then open
the driver ’s door
2 times.

Page 6 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 15
OPERATION
ARMING THE RS3200 (except PASSIVE ARMING)
The system may be ARMEDin several ways. Do one of the following:
Lock the doors with your key:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Insert the key into the door key switch and turn it toward the front of
the vehicle: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing.� The system is now ARMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch.
Open the driver’s or front passenger’s door.
Push the central lock switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.* Then: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing.� The system is now ARMED.
Lock the doors with the remote control:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Press the LOCK button on the remote control. Simultaneously: The doors lock.
�
The vehicle’s tail and marker lights flash once.�
The buzzer chirps once.�
The STATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing.� The system is now ARMED.
* The system will not A
RMwhile any of the doors, trunk or hatch is open. However, when you press
the LOCK button when the trunk is open, the doors will lock; the system will arm 30 seconds
after the trunk is closed.
TURN TOWARD THE FRONT
OF THE VEHICLE
PRESS AND RELEASETHE LOCK BUTTON
PUSH THE LOCK SWITCH WHILE THE DOOR IS OPEN
LIGHTS FOR30 SECONDS(PRE-ARMING)THEN
FLASHES
(SYSTEM IS ARMED)
� � �
THE TAIL AND MARKER LIGHTS FLASH ONCE WHEN THE SYSTEM IS REMOTE ARMED
ALL DOORS LOCK WHEN THE
SYSTEM IS REMOTE ARMED
PROGRAMMING
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
The RS3200 is factory-set to notPASSIVELYARM. To change the system ’s operation for PASSIVE
ARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For more
information on this feature, please refer to page 8.
1. Before you begin:
Close all the doors, and the trunk or hatch.
Unlock all the doors with the inside lock switch.
Remove the key from the ignition switch.
2. Start the Programming Procedure. (Complete these steps within 30 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
a.Using the remote control,
lock, then unlock the
doors
3 times.
b. Open the driver ’s door.
b. Lock then unlock the
driver ’s door inside lock
button
1 time.
a. Close, then Open the door:
2 times = P
ASSIVEARMINGOFF
3 times = PASSIVEARMINGON,
0 Sec. E
NTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. E
NTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. E
NTRYDELAY
c. Lock, then unlock the
driver ’s door inside lock
button
3 times.
d.The system locks the door
in 2 seconds; if this does
not happen, start over.
c.The system locks the door
in 2 seconds; if this does
not happen, start over.
Programming is now
complete.
e. Unlock the driver ’s door
inside lock button.
THE BUZZER CHIRPS ONCE WHEN
THE SYSTEM IS REMOTE ARMED

Page 14 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 7
OPERATION
DISARMING THE RS3200 (except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do oneof the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle:The S
TATUSMONITOR’SLED stops flashing.� The system is
now D
ISARMED.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARMwill be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously: The driver’s door unlocks.�
The vehicle ’s tail and marker lights flash twice.�
The interior lights turn on for 30 seconds.�
The STATUSMONITOR’SLED stops flashing.� The system is
now D
ISARMED.*
Press the UNLOCK button again within 3 seconds after unlocking the driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON.The S
TATUSMONITOR’SLED stops flashing.� The system is
now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle ’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGERMEMORYwas activated; an ALARMwas
T
RIGGEREDwhile you were away from the vehicle.
* Please note, if the system utilizes your vehicle ’s engine immobilizer system LED instead of the
S
TATUSMONITOR, the LED will continue to flash.
TURN TOWARD THE REAR
OF THE VEHICLE
TURN THE KEY TO“ON” TO
DISARM THE SYSTEM
THE DRIVER
’S DOOR UNLOCKS
WHEN THE SYSTEM IS REMOTE DISARMEDTHE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTERIORLIGHTS TURN ON FOR30 SECONDS WHEN THE SYSTEM IS
REMOTE DISARMED
PUSH THE UNLOCK BUTTON
STOPS
FLASHING
WHEN THE SYSTEM IS DISARMED
� � �THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS REMOTE DISARMED
GLASS BREAKAGE SENSOR INFORMATION
The RS3200 provides protection for your vehicle above and beyond entry point monitoring –it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the G
LASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 was installed in your vehicle, care was taken to adjust the sensitivity level of the
G
LASSBREAKAGESENSOR. You may observe how it works following the procedure listed below.
1. ARMthe system.
Press the LOCK button on the remote control or lock the doors with
the key.
(Remember, the system will not ARMif any door, the trunk or hatch is
open.)
2. Wait until the STATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door, the trunk or hatch
is closed.
3. With the tip of a key, tap the center of the driver ’s door window.
Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in
cold weather, or you may crack or break it.
A W
ARNAWAYALARMshould be TRIGGERED. If the ALARMis not
T
RIGGERED, make sure you performed the procedure correctly and try
again. If you find that the system did not perform as expected,
contact your Toyota dealer for more information.
4. DISARMthe system to stop the WARNAWAYALARM.
Press the UNLOCK button on the remote control or use the key to
D
ISARMthe system.

Page 8 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 13
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELYARM, the system will ARMafter the ignition key is
removed and all doors and the trunk or hatch are closed; you do not need to lock the doors. When
you come back to your vehicle and open a door, you must insert the key into the ignition switch
and turn it to “ON” during the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If
you lock the doors, regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See
the PROGRAMMING section on page 15 to activate the P
ASSIVEARMINGmode, as well as select the
E
NTRYDELAYtime.
To PASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (
The system will not ARM
while any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not ARMwhile
the trunk or hatch is open.)
After the last door, trunk or hatch is closed: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing.�The system is now ARMED.
To DISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)�
Insert the key into the ignition switch and turn it to “ON” before the
E
NTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also DISARMthe system following any of the methods
described on page 7.
NOTE: If your vehicle ’s tail and marker lights turn on and the buzzer sounds for 2 seconds
when the system is D
ISARMED, the TRIGGERMEMORYwas activated; an ALARMwas
T
RIGGEREDwhile you were away from the vehicle.
* If the ENTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control ’s UNLOCK button.
THE SYSTEM ARMS30 SECONDS
AFTER THE LAST ENTRY POINT
(DOOR, TRUNK OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO
“ON”
LIGHTS FOR30 SECONDS(PRE-ARMING)THEN STARTSFLASHING
(SYSTEM ISARMED)
�
TURNS ON(NO
FLASHING)DURING THE
ENTRY DELAY
�
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM�
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur: The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker lights flash repeatedly for 60 seconds.
The interior lights turn on for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of A
LARM, the system will REARMand continue to protect the vehicle.
WARN-AWAY ALARM�
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker lights flash repeatedly for 20 seconds.
The interior lights turn on for 20 seconds.
If the G
LASSBREAKAGESENSORdetects noise again, or if a door or trunk or hatch is opened while the
system is still A
RMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 7.
THE HORN SOUNDS
FOR20 SECONDS
�
HEADLIGHTS FLASHFOR20 SECONDS
MARKER LIGHTS FLASH
FOR
20 SECONDS
TAIL LIGHTS FLASH FOR20 SECONDS
THE HORN SOUNDS FOR60 SECONDS
HEADLIGHTS FLASHFOR60 SECONDS
THE STARTER IS DISABLED UNTIL THE SYSTEM IS DISARMED
MARKER LIGHTS FLASH
FOR
60 SECONDS TAIL LIGHTS FLASH
FOR
60 SECONDS
INTERIOR LIGHTS TURN ON FOR60 SECONDS
INTERIOR LIGHTS TURN ON FOR20 SECONDS
�

Page 12 TOYOTARS3200 REMOTE KEYLESS Security systemTOYOTARS3200 remote keyless Security systemPage 9
OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the RS3200 is DISARMEDat the same time.
However, if you do not open a door or the trunk or hatch within 30 seconds, the system will relock
the doors and the RS3200 will R
EARM30 seconds later
How the RS3200 automatically REARMS:
ARMING SUSPENSION **
The ARMEDstate of the RS3200 can be suspended temporarily by using the key to unlock and
open the trunk. When the A
RMINGis suspended, the STATUSMONITOR’SLED will turn off�until the
trunk is closed again.
** Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to
Camry, Solara, and Corolla.
0
15
30
45
THE DOORS ARE UNLOCKED
BY PRESSING THE UNLOCK BUTTON ON THE REMOTE CONTROL
...
WHEN NO DOOR, TRUNK
OR HATCH IS OPENED...FOR MORE THAN30 SECONDS...THE RS3200 AUTOMATICALLY RELOCKS THE DOORS, THEN
AUTOMATICALLY REARMS.
THE LED LIGHTS UP FOR30 SECONDS(PRE-ARM), THEN
FLASHES WHEN THE SYSTEM IS ARMED
�
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
�Forcibly opening a door, or the trunk or hatch without a key
Pulling the trunk or hatch release lever inside the vehicle will also
T
RIGGERan ALARM.
�Manually unlocking a door
Manually operating an inside lock button will TRIGGERan ALARM.
Note: Because this action will TRIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
�“Hot wiring ” the vehicle
The RS3200 can detect the absence of the ignition key if the ignition
circuit is shorted in attempt to start the vehicle.
�Tapping on or breaking the glass
The noise from tapping on, or breaking of glass TRIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of how
the G
LASSBREAKAGESENSORTRIGGERSALARMSon page 14.
�Power restoration
If power to the system is interrupted while it is ARMED, an ALARMwill
be T
RIGGEREDimmediately when power is restored.
TURNS OFF
WHEN THE
ARMED STATE
IS SUSPENDED
