TOYOTA TACOMA 2004 Accessories, Audio & Navigation (in English)

2003 - TACOMA TVIP V5 RS3200 PLUS
OWNER’S GUIDE
090002-25520700
Rev. A 09/24/02
RS3200 PLUS
SECURITY SYSTEM
DESIGNED FOR USE WITH YOUR VEHICLE’S
REMOTE KEYLESS ENTRY SYSTEM
OWNER’S GUIDE

To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
BRIEF DESCRIPTION–RS3200 PLUSFEATURES3, 4
OPERATION
ARMING THE RS3200 PLUS (except PASSIVE ARMING) 5
DISARMING THE RS3200 PLUS (except PASSIVE DISARMING) 6
PASSIVE (AUTOMATIC) ARMING & DISARMING 7
AUTOMATIC REARMING 8
ARMING SUSPENSION 8
ALARM INFORMATION9
ALARM TRIGGERS 9
ALARM DESCRIPTIONS 10
STOPPING AN ALARM 10
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 12
(Not applicable to Highlander and Sienna. Please consult your
Toyota Dealer for programming information.)
WARNING and CAUTION INFORMATION13
TOYOTARS3200 PLUSSecurity system Page 1
PROGRAMMING
The RS3200 PLUSis factory-set to not PASSIVELYARM. To change the system’s operation for
P
ASSIVEARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For
more information on this feature, please refer to page 7. (Not applicable to Highlander and
Sienna. Please consult your Toyota Dealer for programming information.)
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin: Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 TOYOTARS3200 PLUSSecurity system
a. Close the driver’s
door. b.
Lock and unlock all
doors 3 times by key
or remote control.
b.Lock then unlock the
driver’s door inside lock
button 1 time.
a. Close, then Open the driver’s door:
2 times = P
ASSIVEARMINGOFF
3 times = P
ASSIVEARMINGON,
0 Sec. E
NTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. E
NTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. E
NTRYDELAY
c. Open and close the driver’s door.
c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door. d.
Lock , then unlock
the driver’s door
inside lock button
3 times .
2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.
f. The system locks the door in 2 seconds; if this does
not happen, start over. g. Unlock the driver’s
door knob.

INTRODUCTION
Congratulations on your choice of the RS3200 PLUSadd-on security system to protect your vehicle!
To get the most from the system, we strongly recommend that you read this Owner’s Guide com-
pletely to learn all of its features and functions.
The RS3200 P
LUSprovides security through point-of-entry monitoring, glass breakage detection and
ignition switch monitoring. While A
RMED, the system will be TRIGGEREDand sound an ALARMwhen a
door, trunk or hatch is forcibly unlocked or opened*, or when a window is tapped on or broken.
During the A
LARM, the vehicle’s horn sounds and the headlights, tail lights and front marker or turn
signal lights flash. Also, the vehicle’s starter is disabled, preventing engine start. In addition to the
comprehensive protection, the RS3200 P
LUSworks in conjunction with your vehicle’s remote key-
less entry system, enabling you to A
RMand DISARMthe security system at the same time the doors
are remotely locked and unlocked. In vehicles equipped with a buzzer, it will chirp when the system
is R
EMOTEARMEDand DISARMED.
An important note about your system
Throughout this guide, there are references to the S
TATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) and the G
LASS
BREAKAGESENSOR’Smicrophone. In vehicles equipped with an engine immobilizer system, there is
a LED already installed, so the RS3200 P
LUSutilizes the vehicle’s engine immobilizer system LED
instead and a microphone mounted in a separate location. If your vehicle falls into this category,
remember to look at that LED when the information refers to the S
TATUSMONITOR. If you do not
know where the LED is located, refer to your vehicle’s owner’s guide for specific information.
* When the system is P
ASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an A
LARMis TRIGGERED.
YOUR ENGINE IMMOBILIZER SYSTEM LED MAY LOOK
DIFFERENT THAN THE ONE ILLUSTRATED HERE
Page 2 TOYOTARS3200 PLUSSecurity system
LIGHTS
FOR 30
SECONDS (PRE-
ARMING) THEN
STARTS
FLASHING (SYSTEM IS
ARMED)� �
� �
�
�
TOYOTARS3200 PLUSSecurity system Page 11
GLASS BREAKAGE SENSOR INFORMATION
The RS3200 PLUSprovides protection for your vehicle above and beyond entry point monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. Using a microphone designed
specifically for this task, the G
LASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 PLUSwas installed in your vehicle, care was taken to adjust the sensitivity level
of the G
LASSBREAKAGESENSOR. You may observe how it works following the procedure listed
below.
1. A
RMthe system.
Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not A
RMif any door, the trunk or
hatch is open.)
2. Wait until the S
TATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door, the trunk or
hatch is closed.
3. With the tip of a key, tap the center of the driver’s door window. Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in cold weather, or you may crack or break it.
A W
ARNAWAYALARMshould be TRIGGERED. If the ALARMis not
T
RIGGERED, make sure you performed the procedure correctly
and try again. If you find that the system did not perform as
expected, contact your Toyota dealer for more information.
4. D
ISARMthe system to stop the WARNAWAYALARM.
Press the unlock button on the remote control or use the key
to D
ISARMthe system.

TOYOTARS3200 PLUSSecurity systemPage 3
REMOTE
ARMING/DISARMING
AUTOMATIC
REARMING
KEY
ARMING/DISARMING
ARMED MODE
SUSPENSION**
PASSIVE (AUTOMATIC)
ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH
MONITORING
FEATURESFUNCTIONS
The RS3200 PLUSwill ARM30 seconds after the lock button on the remote
keyless entry system’s remote control is pressed, and D
ISARMwhen the
unlock button is pressed. If your vehicle is equipped with a buzzer that chirps
when the lock and unlock buttons on the remote controls are pressed, the
buzzer will also chirp when the system is R
EMOTEARMEDand DISARMED.
The RS3200 P
LUSwill automatically REARMat the same time the
vehicle’s remote keyless entry system relocks the vehicle’s
doors, if no door is opened within 30 seconds after R
EMOTEDISARMING.
The RS3200 P
LUSwill ARM30 seconds after you close the trunk (if
open) and lock the vehicle’s doors with the key, and will D
ISARMwhen
you unlock a door with the key.
While A
RMED, the trunk may be opened with the key (or trunk release button
on your remote control, if so equipped) without T
RIGGERINGan ALARM. Once
the open trunk is closed, the system A
RMSagain.
The RS3200 P
LUSmay be programmed to automatically ARM30
seconds after the ignition key is removed, the vehicle exited and the
last door and the trunk closed, without the necessity of locking doors.
The RS3200 P
LUSmay be DISARMEDwith the vehicle’s ignition key
after it was P
ASSIVELYARMED.
When the RS3200 P
LUShas been PASSIVELYARMED, an ENTRYDELAY
(user-selectable at 0, 15, or 30 seconds) will start when a door is
opened before an A
LARMis TRIGGERED.
When you lock the vehicle with the central lock switch (while a door
is open), the RS3200 P
LUSwill ARM30 seconds after you close all
the doors and the trunk (if open).
The RS3200 P
LUSmay be DISARMEDby inserting the key into the
ignition switch and turning it to “ON.”
Forcibly unlocking or opening a door or trunk while the RS3200 P
LUS
is ARMEDwill TRIGGERan ALARMimmediately. (If the system was PASSIVELY
ARMED, the ENTRYDELAYmust pass after opening a door before the ALARMis
T
RIGGERED.)
The RS3200 P
LUSutilizes a microphone (usually mounted in the
S
TATUSMONITOR) to sense the noise from tapping on window glass, or
glass breaking, and T
RIGGERthe system to sound an ALARM. It is fine
tuned to “listen” for this type of noise, and ignore other sounds.
When the G
LASSBREAKAGESENSOR’Smicrophone picks up tapping or
breaking of window glass, it T
RIGGERSa WARNAWAYALARM; the headlights
and tail and marker or turn signal lights flash, and the horn sounds for 20
seconds, but the starter is not disabled. If there is another detection of glass
tapping or breaking, or if a door is opened or unlocked without a key, the
regular A
LARMis TRIGGERED.
While A
RMED, the RS3200 PLUSmonitors the ignition switch. If an attempt is
made to start the vehicle without a key, an A
LARMis TRIGGERED.

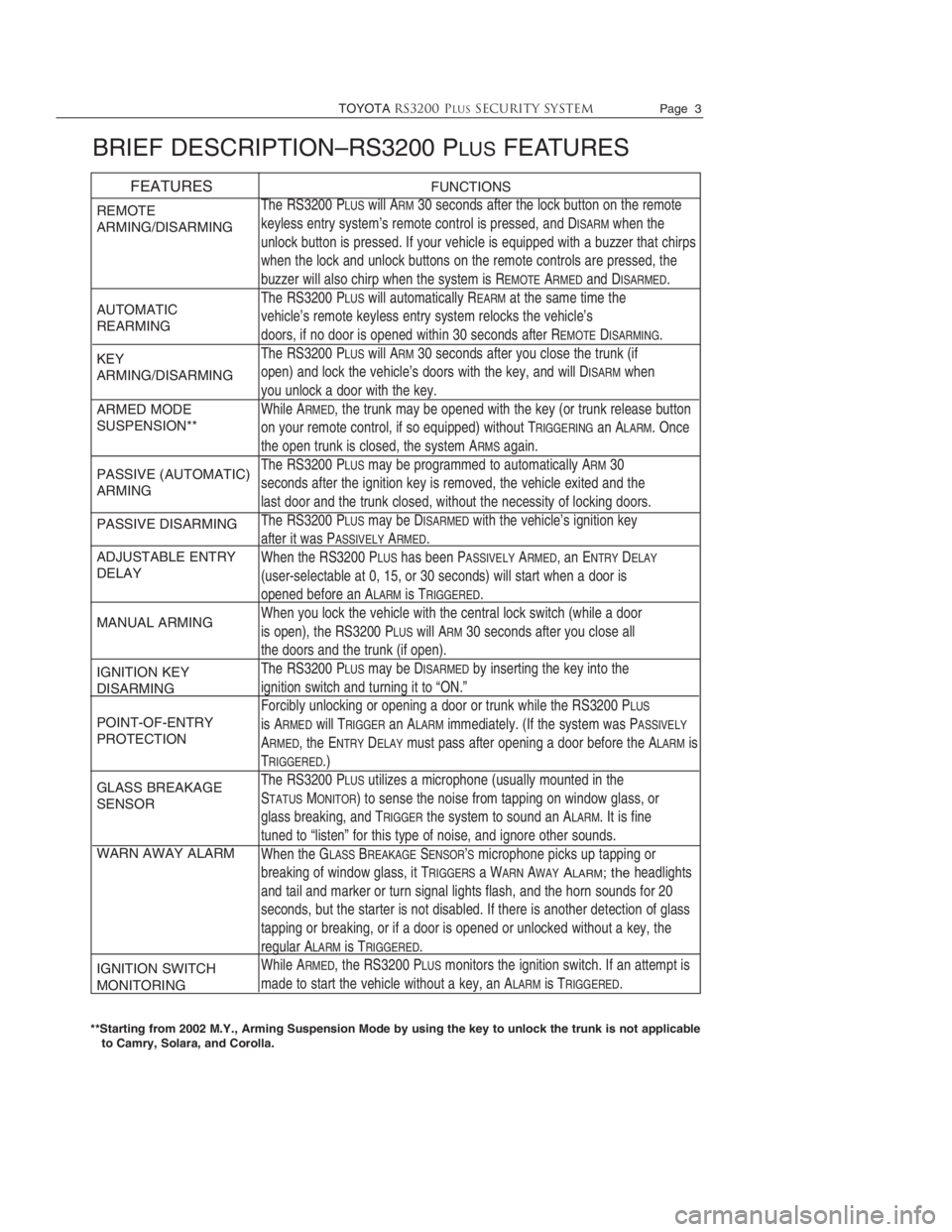

BRIEF DESCRIPTION–RS3200 PLUSFEATURES
**Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to Camry, Solara, and Corolla.
Page 10

TOYOTARS3000 PLUS Security system

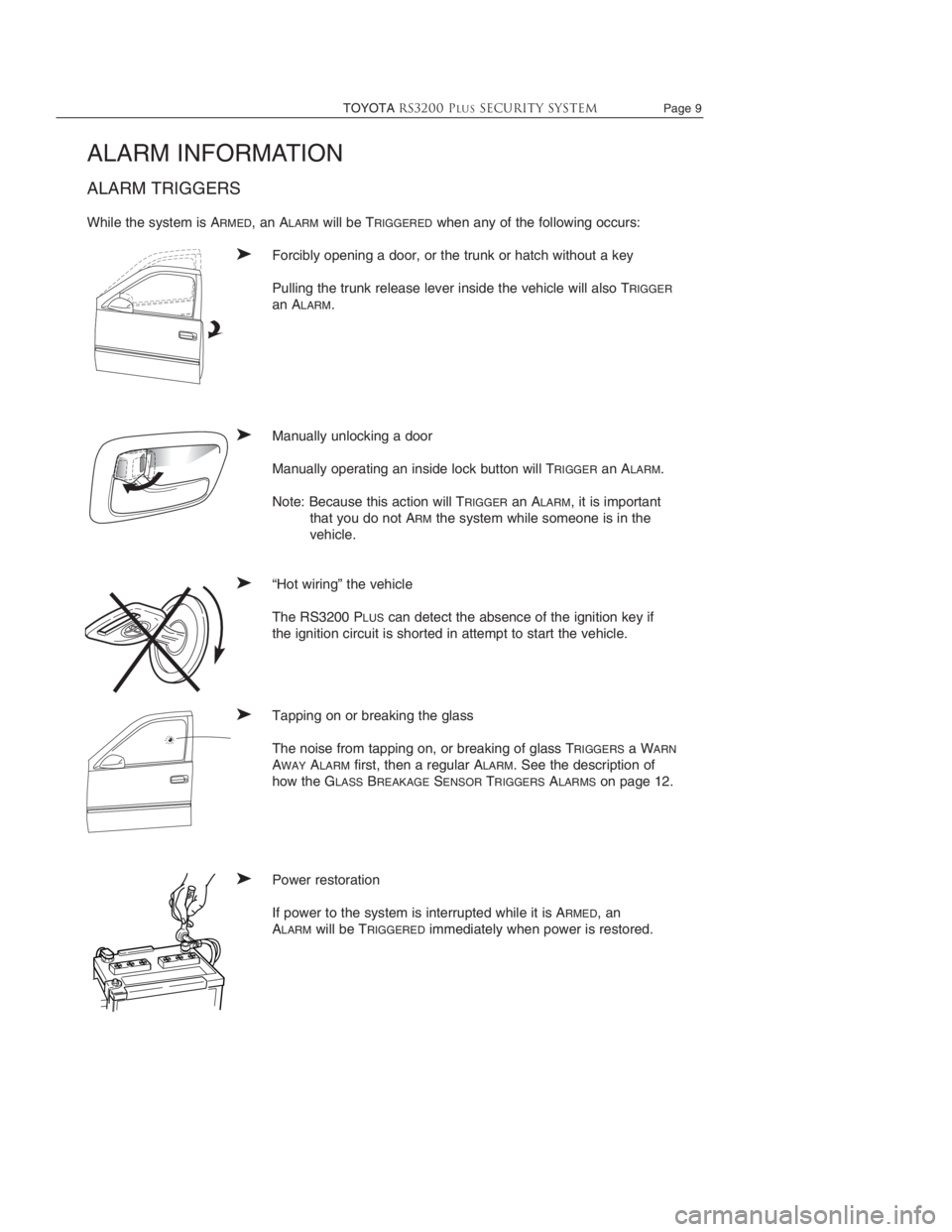

ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the GLASSBREAKAGESENSOR,
the following occur: The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of A
LARM, the system will REARMand continue to protect the vehicle.
W
ARN-AWAYALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASSBREAKAGESENSOR
TRIGGERSa WARNAWAYALARM:
The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker or turn signal lights flash repeatedly for 20 seconds.
If the G
LASSBREAKAGESENSORdetects noise again, or if a door or trunk is opened while the system
is still A
RMED, the regular ALARM(described above) is activated.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.
THE HORN SOUNDS
FOR 20 SECONDS THE HORN
SOUNDS
FOR 60 SECONDS
HEAD LIGHTSFLASH
FOR 60 SECONDS THE STARTER IS DIS-
ABLED UNTIL THE SYSTEM IS DISARMED
MARKER OR TURNSIGNAL LIGHTS FLASH
FOR 60 SECONDS
HEADLIGHTS FLASH FOR 20 SECONDS MARKER OR TURN
SIGNAL LIGHTS FLASH FOR 20 SECONDS TAIL OR TURN SIG-
NAL LIGHTS FLASH FOR 60 SECONDS
TAIL OR TURN SIG-
NAL LIGHTS FLASH FOR 20 SECONDS
�
�
�
�

Page 4 TOYOTARS3200 PLUSSecurity system
STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY *
EXTERIOR LIGHT
ACTIVATION
BUZZER ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
BRIEF DESCRIPTION–RS3200 PLUSFEATURES
FEATURESFUNCTIONS
When an ALARMis TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARMoccurred. Upon DISARMINGthe
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker lights
will be turned on for 2 seconds.
The RS3200 P
LUSflashes the vehicle’s tail and marker or turn signal lights
during R
EMOTEARMINGand REMOTEDISARMING, and during an ALARM.
Also, during an A
LARMthe headlights flash.
If your vehicle is equipped with a buzzer that chirps when the lock
and unlock buttons on the remote keyless entry system’s remote
controls are pressed, the buzzer will also chirp when the system is
R
EMOTEARMEDand DISARMED.
During an A
LARM,t he RS3200 PLUSactivates the vehicle’s horn.
If power to the RS3200 P
LUSis disrupted while it is ARMED, an ALARMis
T
RIGGEREDonce power is restored.
This panel houses the G
LASSBREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.
(Some vehicle applications utilize the vehicle’s engine immobilizer system
LED and a separate microphone, instead.)
* TRIGGER MEMORY is not available for Corolla / Matrix.
TOYOTARS3200 PLUSSecurity system Page 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
�Forcibly opening a door, or the trunk or hatch without a key
Pulling the trunk release lever inside the vehicle will also T
RIGGER
an ALARM.
�Manually unlocking a door
Manually operating an inside lock button will T
RIGGERan ALARM.
Note: Because this action will T
RIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
�“Hot wiring” the vehicle
The RS3200 P
LUScan detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
�Tapping on or breaking the glass
The noise from tapping on, or breaking of glass T
RIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of
how the G
LASSBREAKAGESENSORTRIGGERSALARMSon page 12.
�Power restoration
If power to the system is interrupted while it is A
RMED, an
A
LARMwill be TRIGGEREDimmediately when power is restored.

TOYOTARS3000 PLUS Security systemPage 5
OPERATION
ARMING THE RS3200 PLUS(except PASSIVE ARMING)
The system may be ARMEDin several ways. Do one of the following:
Lock the doors with your key:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Insert the key into the door key switch and turn it toward the
front of the vehicle: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch.
Open the driver’s or front passenger’s door.
Push the central lock switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.* Then: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors with the remote control:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Press the lock button on the remote control. Simultaneously: The doors lock.
The vehicle’s tail and marker or turn signal lights flash
once.
The vehicle’s buzzer chirps once. ∆
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
* The system will not A
RMwhile any of the doors, trunk or hatch is open.
∆ If your vehicle is equipped with a buzzer.
TURN TOWARD THE
FRONT
OF THE VEHICLE
PRESS AND RELEASE THE LOCK BUTTON
PUSH THE LOCK
SWITCH WHILE THE
LIGHTS FOR 30 SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)
THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH ONCE WHEN THE SYSTEM IS REMOTE ARMED
ALL DOORS LOCK WHEN
THE SYSTEM IS REMOTE ARMED
� � �
�
�
�
�
�
OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the RS3200 PLUSis DISARMEDat the same
time. However, if you do not open a door or the trunk within 30 seconds, the keyless entry system
will relock the doors and the RS3200 P
LUSwill REARM30 seconds later.
How the RS3200 P
LUSautomatically REARMS:
ARMING SUSPENSION**
The ARMEDstate of the RS3200 PLUScan be suspended temporarily by using the key to unlock and
open the trunk. If your remote control is so equipped, you may also suspend the A
RMEDstate using
the trunk release button to open the trunk. When the A
RMINGis suspended, the STATUSMONITOR’S
LED will turn off until the trunk is closed again.
**Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not
applicable to Camry, Solara, and
Corolla.
OPENING THE TRUNK SUSPENDS THE
ARMED STATE OF THE SECURITY SYSTEM
Page 8 TOYOTARS3200 PLUSSecurity system
0
15
30
45
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON ON THE REMOTE CONTROL... WHEN NO DOOR,
TRUNK OR HATCH IS OPENED... FOR MORE THAN
30
SECONDS... THE KEYLESS
ENTRY
SYSTEM AUTOMAT- ICALLY RELOCKS
THE DOORS, THEN THE RS3200 PLUS AUTOMATICALLY REARMS. THE LED WILL
LIGHT UP FOR 30 SECONDS
(PRE-ARM), THEN
FLASH WHEN THE
SYSTEM IS ARMED
TURNS OFF
WHEN THE
ARMED STATE
IS SUS-
PENDED��
�
�

Page 6 TOYOTARS3200 PLUSSecurity system
OPERATION
DISARMING THE RS3200 PLUS(except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle: The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
In the case of Highlander, Sienna, and 4Runner, you may also disarm
the system using the key in the back door; all doors will unlock at the
same time.
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously: The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice. ∆
The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON. The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system is D
ISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle. This feature is not available for Corolla / Matrix.
* Please note, if the system utilizes your vehicle’s engine immobilizer system LED instead of the
S
TATUSMONITOR, the LED will continue to flash.
∆ If your vehicle is equipped with a buzzer.
TURN TOWARD THE
REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO
DISARM THE SYSTEM
THE DRIVER’S DOOR
UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH TWICE WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCKBUTTON
STOPS
FLASH- ING
WHEN
THE SYS- TEM IS DIS-
ARMED
� � �
�
�
� �
�
TOYOTARS3200 PLUSSecurity system Page 7
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 PLUSis programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors and the trunk are closed; you do not need to lock the doors. When you
come back to your vehicle and open a door, you must insert the key into the ignition switch and turn
it to “ON” during the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock
the doors, regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the
PROGRAMMING information on page 13 to activate the P
ASSIVEARMINGmode, as well as to select
the E
NTRYDELAYtime. (Not applicable to Highlander and Sienna. Please consult your Toyota
Dealer for programming information .)
To P
ASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RMwhile any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not A
RM
while the trunk or hatch is open.)
After the last door, trunk or hatch is closed:
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
To D
ISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key is turned to “ON”, the T
RIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle. This feature is not available for Corolla/Matrix.
* If the E
NTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
TURNS
ON (NO FLASH- ING)
DURING THE
ENTRY DELAY
THE SYSTEM ARMS 30 SECONDS AFTER THE
LAST ENTRY POINT (DOOR, TRUNK OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
LIGHTSFOR 30
SECONDS
(PRE-ARM- ING)
THEN
STARTS
FLASHING (SYSTEM
IS ARMED)
�
�
�
�

Page 6 TOYOTARS3200 PLUSSecurity system
OPERATION
DISARMING THE RS3200 PLUS(except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle: The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
In the case of Highlander, Sienna, and 4Runner, you may also disarm
the system using the key in the back door; all doors will unlock at the
same time.
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously: The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice. ∆
The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON. The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system is D
ISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle. This feature is not available for Corolla / Matrix.
* Please note, if the system utilizes your vehicle’s engine immobilizer system LED instead of the
S
TATUSMONITOR, the LED will continue to flash.
∆ If your vehicle is equipped with a buzzer.
TURN TOWARD THE
REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO
DISARM THE SYSTEM
THE DRIVER’S DOOR
UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH TWICE WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCKBUTTON
STOPS
FLASH- ING
WHEN
THE SYS- TEM IS DIS-
ARMED
� � �
�
�
� �
�
TOYOTARS3200 PLUSSecurity system Page 7
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 PLUSis programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors and the trunk are closed; you do not need to lock the doors. When you
come back to your vehicle and open a door, you must insert the key into the ignition switch and turn
it to “ON” during the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock
the doors, regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the
PROGRAMMING information on page 13 to activate the P
ASSIVEARMINGmode, as well as to select
the E
NTRYDELAYtime. (Not applicable to Highlander and Sienna. Please consult your Toyota
Dealer for programming information .)
To P
ASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RMwhile any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not A
RM
while the trunk or hatch is open.)
After the last door, trunk or hatch is closed:
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
To D
ISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key is turned to “ON”, the T
RIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle. This feature is not available for Corolla/Matrix.
* If the E
NTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
TURNS
ON (NO FLASH- ING)
DURING THE
ENTRY DELAY
THE SYSTEM ARMS 30 SECONDS AFTER THE
LAST ENTRY POINT (DOOR, TRUNK OR HATCH) IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
LIGHTSFOR 30
SECONDS
(PRE-ARM- ING)
THEN
STARTS
FLASHING (SYSTEM
IS ARMED)
�
�
�
�

TOYOTARS3000 PLUS Security systemPage 5
OPERATION
ARMING THE RS3200 PLUS(except PASSIVE ARMING)
The system may be ARMEDin several ways. Do one of the following:
Lock the doors with your key:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Insert the key into the door key switch and turn it toward the
front of the vehicle: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch.
Open the driver’s or front passenger’s door.
Push the central lock switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.* Then: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors with the remote control:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Press the lock button on the remote control. Simultaneously: The doors lock.
The vehicle’s tail and marker or turn signal lights flash
once.
The vehicle’s buzzer chirps once. ∆
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
* The system will not A
RMwhile any of the doors, trunk or hatch is open.
∆ If your vehicle is equipped with a buzzer.
TURN TOWARD THE
FRONT
OF THE VEHICLE
PRESS AND RELEASE THE LOCK BUTTON
PUSH THE LOCK
SWITCH WHILE THE
LIGHTS FOR 30 SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)
THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH ONCE WHEN THE SYSTEM IS REMOTE ARMED
ALL DOORS LOCK WHEN
THE SYSTEM IS REMOTE ARMED
� � �
�
�
�
�
�
OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the RS3200 PLUSis DISARMEDat the same
time. However, if you do not open a door or the trunk within 30 seconds, the keyless entry system
will relock the doors and the RS3200 P
LUSwill REARM30 seconds later.
How the RS3200 P
LUSautomatically REARMS:
ARMING SUSPENSION**
The ARMEDstate of the RS3200 PLUScan be suspended temporarily by using the key to unlock and
open the trunk. If your remote control is so equipped, you may also suspend the A
RMEDstate using
the trunk release button to open the trunk. When the A
RMINGis suspended, the STATUSMONITOR’S
LED will turn off until the trunk is closed again.
**Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not
applicable to Camry, Solara, and
Corolla.
OPENING THE TRUNK SUSPENDS THE
ARMED STATE OF THE SECURITY SYSTEM
Page 8 TOYOTARS3200 PLUSSecurity system
0
15
30
45
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON ON THE REMOTE CONTROL... WHEN NO DOOR,
TRUNK OR HATCH IS OPENED... FOR MORE THAN
30
SECONDS... THE KEYLESS
ENTRY
SYSTEM AUTOMAT- ICALLY RELOCKS
THE DOORS, THEN THE RS3200 PLUS AUTOMATICALLY REARMS. THE LED WILL
LIGHT UP FOR 30 SECONDS
(PRE-ARM), THEN
FLASH WHEN THE
SYSTEM IS ARMED
TURNS OFF
WHEN THE
ARMED STATE
IS SUS-
PENDED��
�
�

Page 4 TOYOTARS3200 PLUSSecurity system
STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY *
EXTERIOR LIGHT
ACTIVATION
BUZZER ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
BRIEF DESCRIPTION–RS3200 PLUSFEATURES
FEATURESFUNCTIONS
When an ALARMis TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARMoccurred. Upon DISARMINGthe
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker lights
will be turned on for 2 seconds.
The RS3200 P
LUSflashes the vehicle’s tail and marker or turn signal lights
during R
EMOTEARMINGand REMOTEDISARMING, and during an ALARM.
Also, during an A
LARMthe headlights flash.
If your vehicle is equipped with a buzzer that chirps when the lock
and unlock buttons on the remote keyless entry system’s remote
controls are pressed, the buzzer will also chirp when the system is
R
EMOTEARMEDand DISARMED.
During an A
LARM,t he RS3200 PLUSactivates the vehicle’s horn.
If power to the RS3200 P
LUSis disrupted while it is ARMED, an ALARMis
T
RIGGEREDonce power is restored.
This panel houses the G
LASSBREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.
(Some vehicle applications utilize the vehicle’s engine immobilizer system
LED and a separate microphone, instead.)
* TRIGGER MEMORY is not available for Corolla / Matrix.
TOYOTARS3200 PLUSSecurity system Page 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
�Forcibly opening a door, or the trunk or hatch without a key
Pulling the trunk release lever inside the vehicle will also T
RIGGER
an ALARM.
�Manually unlocking a door
Manually operating an inside lock button will T
RIGGERan ALARM.
Note: Because this action will T
RIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
�“Hot wiring” the vehicle
The RS3200 P
LUScan detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
�Tapping on or breaking the glass
The noise from tapping on, or breaking of glass T
RIGGERSa WARN
AWAYALARMfirst, then a regular ALARM. See the description of
how the G
LASSBREAKAGESENSORTRIGGERSALARMSon page 12.
�Power restoration
If power to the system is interrupted while it is A
RMED, an
A
LARMwill be TRIGGEREDimmediately when power is restored.
