TOYOTA TACOMA 2006 Owners Manual (in English)

2312006 TACOMA from Jan.’06 Prod. (OM35871U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
G18021
Air flow selector
Turn the knob to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging/defrosting function with the
purpose of clearing the windshield. In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. If you
want to return the setting to RECIRCU-
LATE mode, press the air intake selec-
tor button once again.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the windshield more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging/defrosting function with the pur-
pose of clearing the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. It is not
possible to return to RECIRCULATE in
this position.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the windshield more quickly.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

2322006 TACOMA from Jan.’06 Prod. (OM35871U)
LS19003
Air intake selector
Press the button to select the air source.1. Recirculate (indicator light is on)—Re-
circulates the air inside the vehicle.
2. Fresh (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button (on some models)
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

2332006 TACOMA from Jan.’06 Prod. (OM35871U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open long enough for the
hot air to escape. This operation allows
the air conditioning to cool the interior
more quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

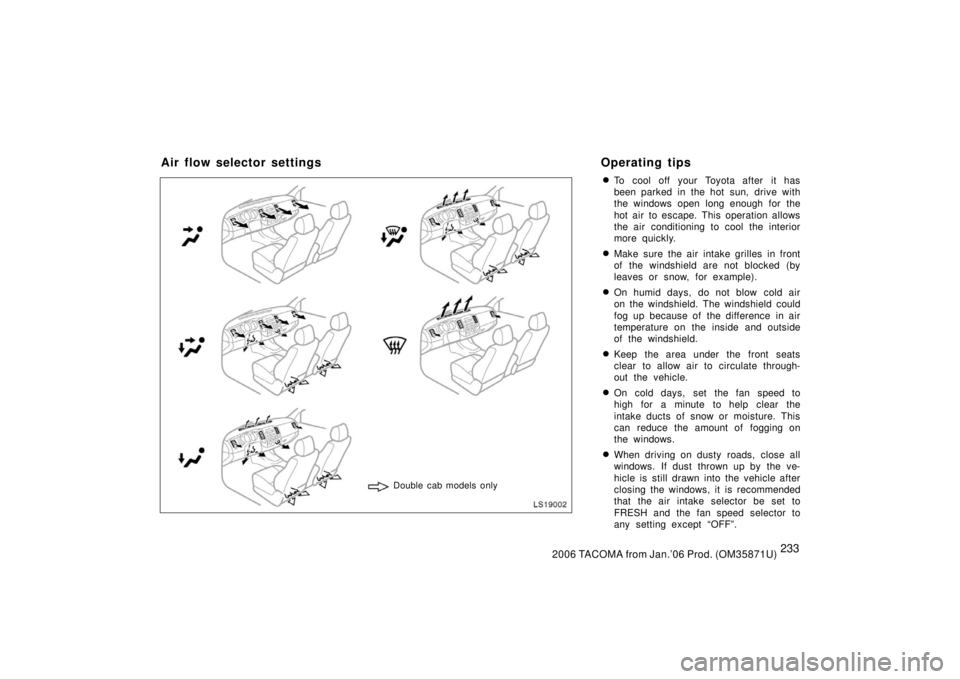

Air flow selector settingsOperating tips
LS19002
Double cab models only

2342006 TACOMA from Jan.’06 Prod. (OM35871U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For most effective cooling, move the
air intake selector to recirculate.
Ventilation
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

2352006 TACOMA from Jan.’06 Prod. (OM35871U)
Defogging
Condition: Moisture is on the inside of the
windshield.
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— Towards red zone to heat;
blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
When side windows fog up, turn the
side vents toward the windows.
Defrosting
Condition: Moisture is on the outside of
the windshield.
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE. Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.

2362006 TACOMA from Jan.’06 Prod. (OM35871U)
LS19004
OpenCloseOpen
Close

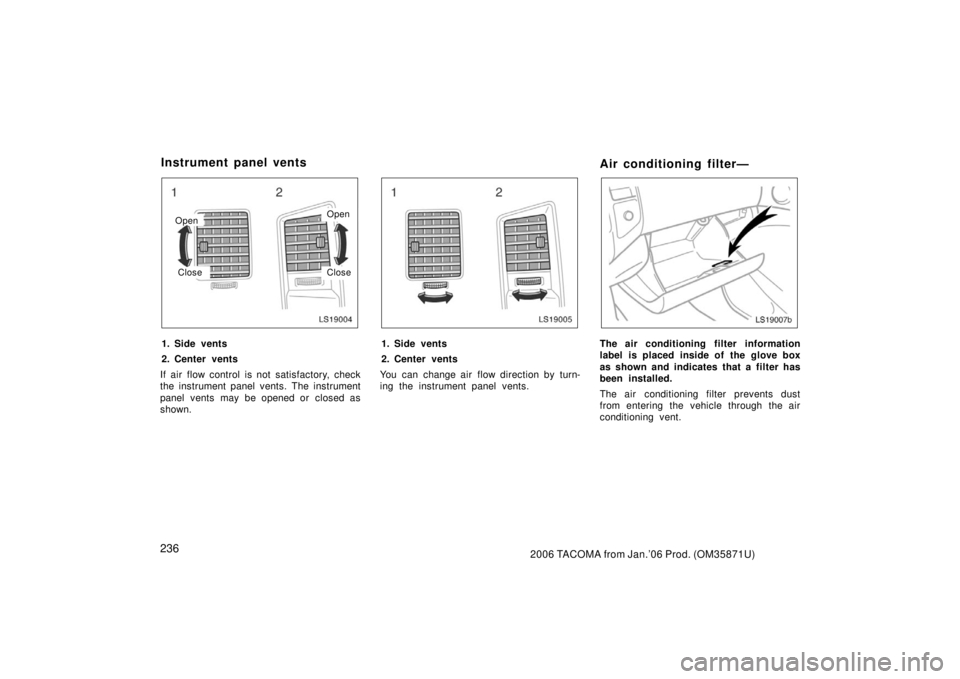

1. Side vents
2. Center vents
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
LS19005
1. Side vents
2. Center vents
You can change air flow direction by turn-
ing the instrument panel vents.
Air conditioning filter—
LS19007b
The air conditioning filter information
label is placed inside of the glove box
as shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
Instrument panel vents

2372006 TACOMA from Jan.’06 Prod. (OM35871U)
LS19008b

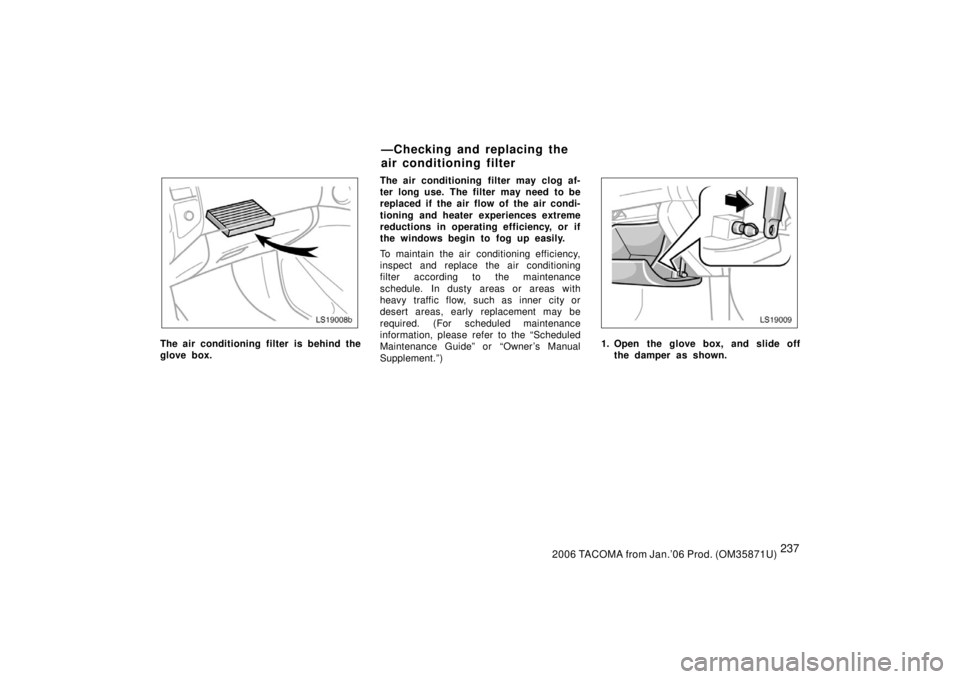

The air conditioning filter is behind the
glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, early replacement may be
required. (For scheduled maintenance
information, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manual
Supplement.”)
LS19009
1. Open the glove box, and slide off
the damper as shown.
—Checking and replacing the
air conditioning filter

2382006 TACOMA from Jan.’06 Prod. (OM35871U)
LS19010

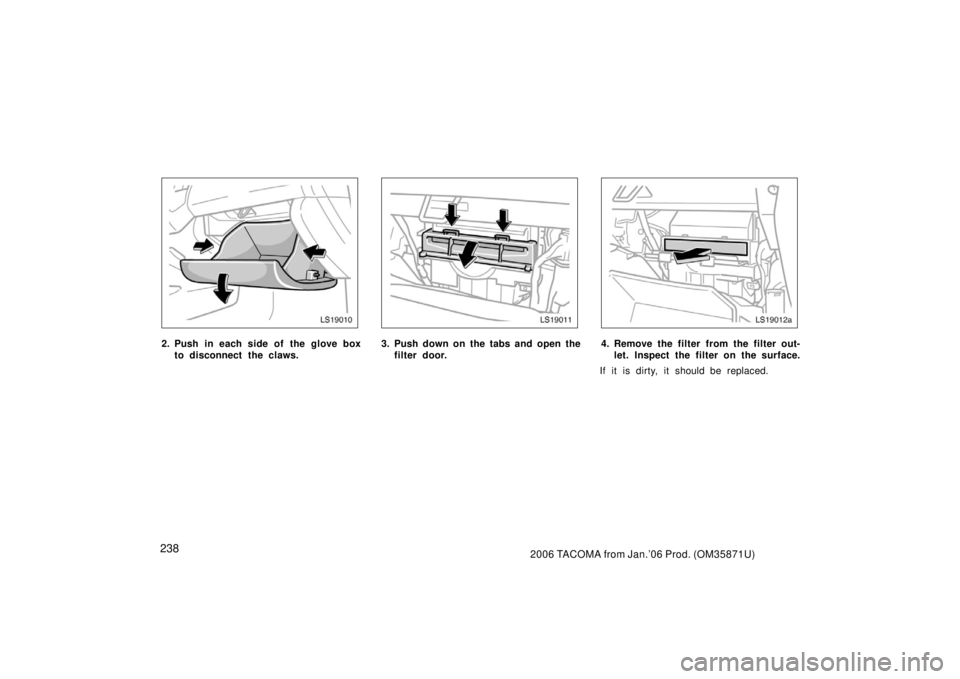

2. Push in each side of the glove boxto disconnect the claws.
LS19011
3. Push down on the tabs and open thefilter door.
LS19012a
4. Remove the filter from the filter out-let. Inspect the filter on the surface.
If it is dirty, it should be replaced.

2392006 TACOMA from Jan.’06 Prod. (OM35871U)
LS19013a
When installing the filter in the filter
outlet, follow the instructions indicated
on the label.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.
