TOYOTA TACOMA 2007 (in English) User Guide

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16
FEATURES/OPERATIONS

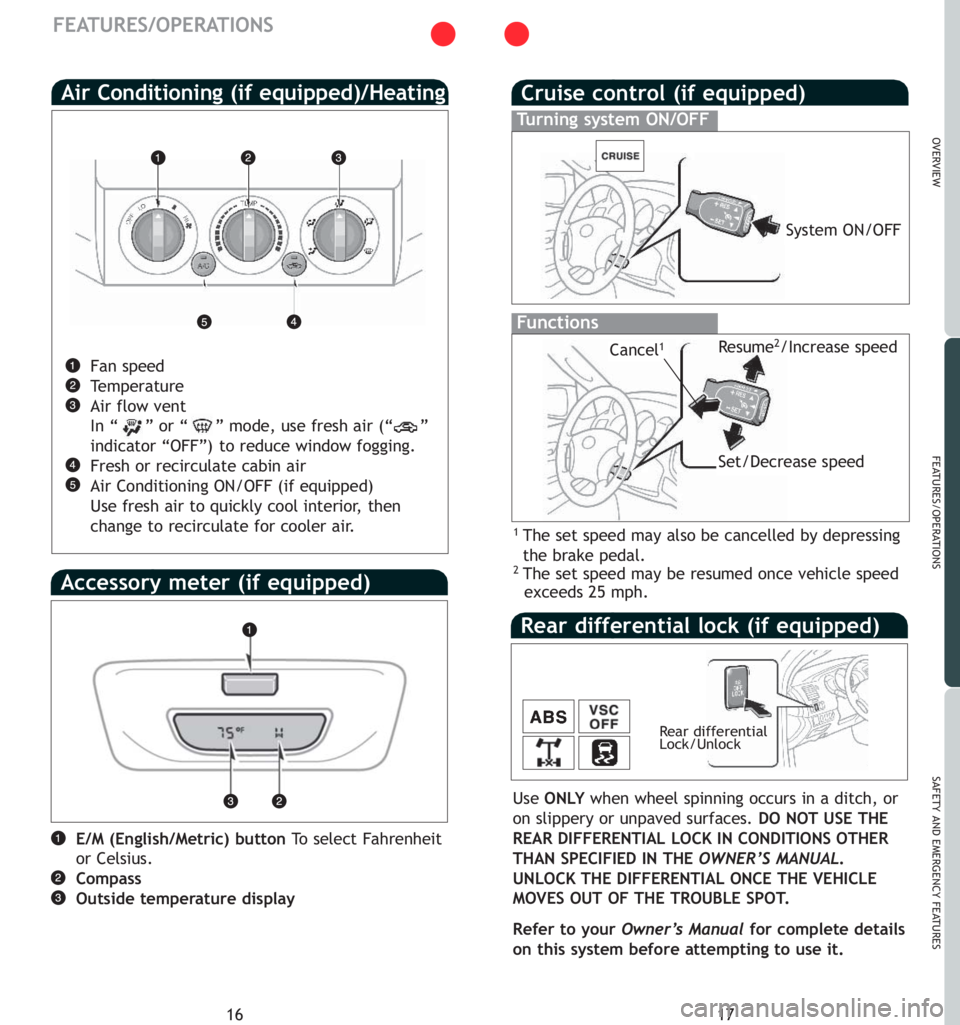

Air Conditioning (if equipped)/Heating
Fan speed
Temperature
Air flow vent
In “ ” or “ ” mode, use fresh air (“ ”
indicator “OFF”)to reduce window fogging.
Fresh or recirculate cabin air
Air Conditioning ON/OFF (if equipped)
Use fresh air to quickly cool interior, then
change to recirculate for cooler air.
Use ONLYwhen wheel spinning occurs in a ditch, or
on slippery or unpaved surfaces. DONOT USE THE
REAR DIFFERENTIAL LOCK IN CONDITIONS OTHER
THAN SPECIFIED IN THE OWNER’S MANUAL.
UNLOCK THE DIFFERENTIAL ONCE THE VE
HICLE
MOVES OUT OF THE TROUBLE SPOT.
Refer to your Owner’s Manualfor complete details
on this system before attempting to use it.
Rear differential lock (if equipped)
Rear differential
Lock/Unlock
Cruise control (if equipped)
1The set speed may also be cancelled by depressing
the brake pedal.
2The set speed may be resumed once vehicle speed
exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
Accessory meter (if equipped)
E/M (English/Metric) buttonTo select Fahrenheit
or Celsius.
Compass
Outside temperature display

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
18
FEATURES/OPERATIONS

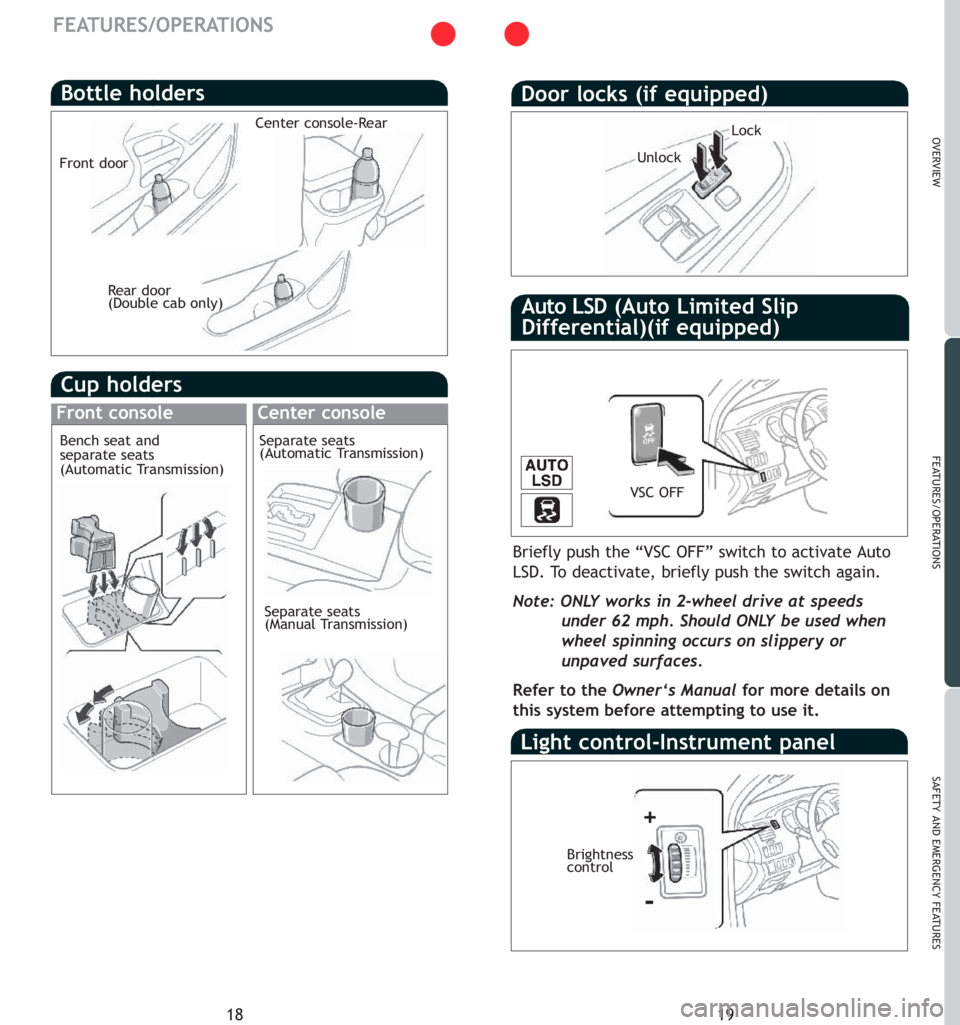

Door locks (if equipped)
Light control-Instrument panel
VSC OFF
Lock
Unlock
Brightness
control
-
Briefly push the “VSC OFF” switch to activate Auto
LSD. To deactivate, briefly push the switch again.
Note: ONLY works in 2-wheel drive at speeds
under 62 mph. Should ONLY be used when
wheel spinning occurs on slippery or
unpaved surfaces.
Refer
to the Owner‘s Manualfor more details on
this system before attempting to use it.
+
Bottle holders
Front door
Rear door
(Double cab only)
Center console-Rear
Cup holders
Bench seat and
separate seats
(Automatic Transmission)
Separate seats
(Manual Transmission)
Separate seats
(Automatic Transmission)
Front consoleCenter console
Auto LSD (Auto Limited Slip
Differential)(if equipped)

20
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up
slack
To o high

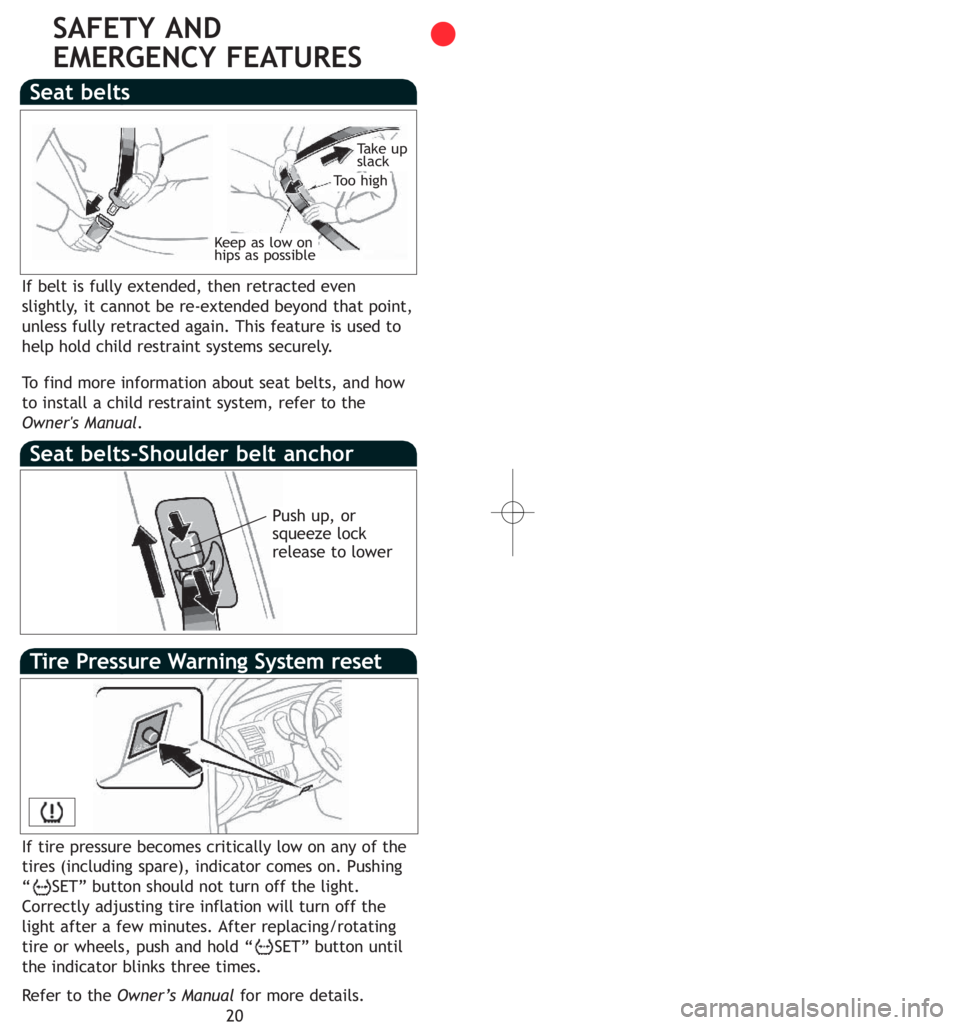

Seat belts
Seat belts-Shoulder belt anchor
Push up, or
squeeze lock
release to lower
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the
tires (including spare), indicator comes on. Pushing
“SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the
light after a few minutes. After replacing/rotating
tire or wheels, push and hold “ SET” button until
the indicator
blinks three times.
Refer to the
Owner’s Manualfor more details.

2007
Tacoma
Spare tire & tools
Tool location
Removing the spare tire
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Assemble the jack handle.
Insert the jack handle end into the lowering
screw.
Turn the jack handle counterclockwise.
Refer to the Owner’s Manualfor tire changing and
jack positioning procedures.
Regular cab models
-behind the seatbackDouble cab models
-under the rear seat
Access cab models
-under the rear seat
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Front
Front

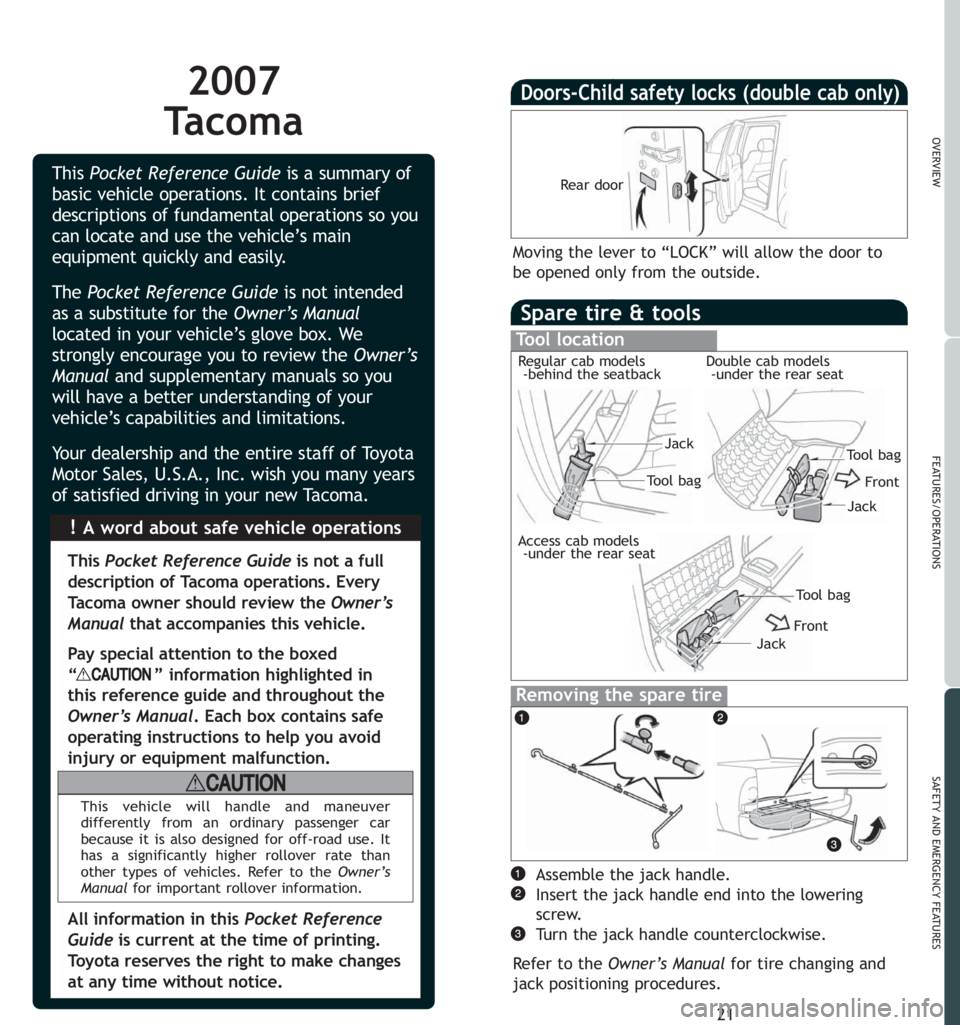

!A word about safe vehicle operations This Pocket Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended
as a substitute for theOwner’s Manual
located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s
Manual and supplementary manuals so you
will have a better understanding of your
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Tacoma.
This Pocket Reference Guideis not a full
description of Tacoma operations. Every
Tacoma owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted in
this reference guide and throughout the
Owner’s Manual. Each box contains safe
operating instructions to help you avoid
injury or equipment malfunction.
All information in this Pocket Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.
This vehicle will handle and maneuver
differently from an ordinary passenger car
because it is also designed for off-road use. It
has a significantly higher rollover rate than
other types of vehicles. Refer to the Owner’s
Manualfor important rollover information.
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks (double cab only)
Rear door
