2007
Tacoma

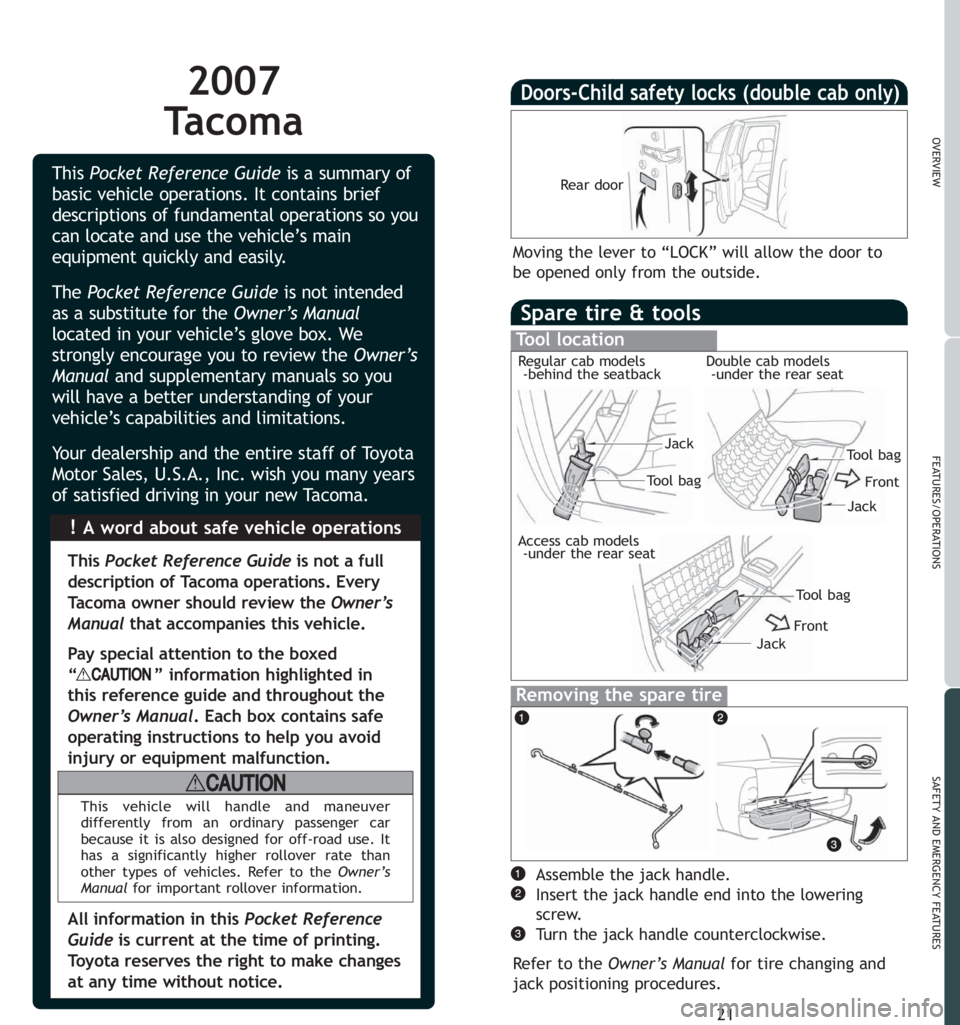

Spare tire & tools
Tool location
Removing the spare tire
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Assemble the jack handle.
Insert the jack handle end into the lowering
screw.
Turn the jack handle counterclockwise.
Refer to the Owner’s Manualfor tire changing and
jack positioning procedures.
Regular cab models
-behind the seatbackDouble cab models
-under the rear seat
Access cab models
-under the rear seat
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Front
Front
!A word about safe vehicle operations This Pocket Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended
as a substitute for theOwner’s Manual
located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s
Manual and supplementary manuals so you
will have a better understanding of your
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Tacoma.
This Pocket Reference Guideis not a full
description of Tacoma operations. Every
Tacoma owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted in
this reference guide and throughout the
Owner’s Manual. Each box contains safe
operating instructions to help you avoid
injury or equipment malfunction.
All information in this Pocket Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.
This vehicle will handle and maneuver
differently from an ordinary passenger car
because it is also designed for off-road use. It
has a significantly higher rollover rate than
other types of vehicles. Refer to the Owner’s
Manualfor important rollover information.
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks (double cab only)
Rear door
Page 3 of 14
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

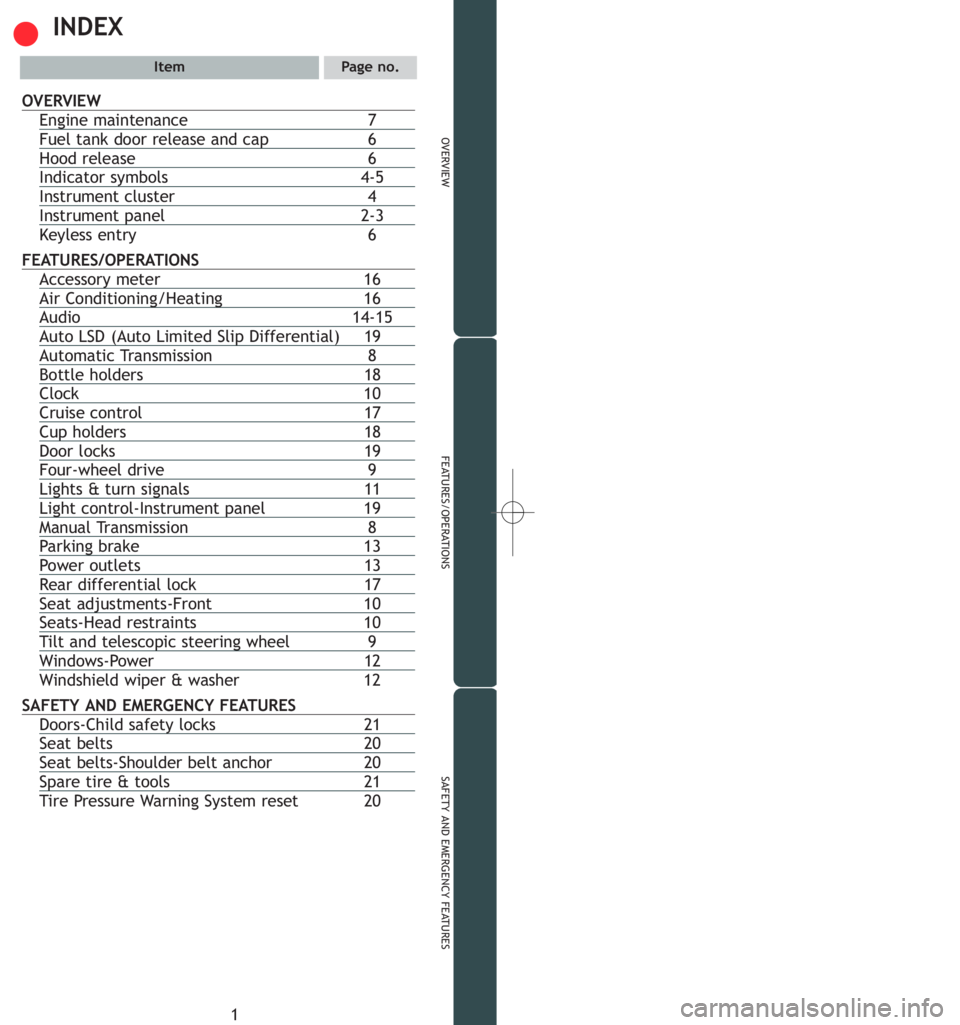

INDEX
ItemPage no.
OVERVIEW
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
FEATURES/OPERATIONS
Accessory meter 16
Air Conditioning/Heating 16
Audio 14-15
Auto LSD(Auto Limited Slip Differential)19
Automatic Transmission 8
Bottle holders 18
Clock 10
Cruise control 17
Cup holders 18
Door locks 19
Four-wheel drive9
Lights & turn signals 11
Light control-Instrument panel 19
Manual Transmission 8
Parking brake 13
Power outlets 13
Rear differential lock 17
Seat adjustments-Front 10
Seats-Head restraints 10
Tilt and telescopic steering wheel9
Windows-Power 12
Windshield wiper & washer 12
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks 21
Seat belts 20
Seat belts-Shoulder belt anchor 20
Spare tire & tools 21
Tire Pressure Wa r n i n g System reset 20
Page 4 of 14
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

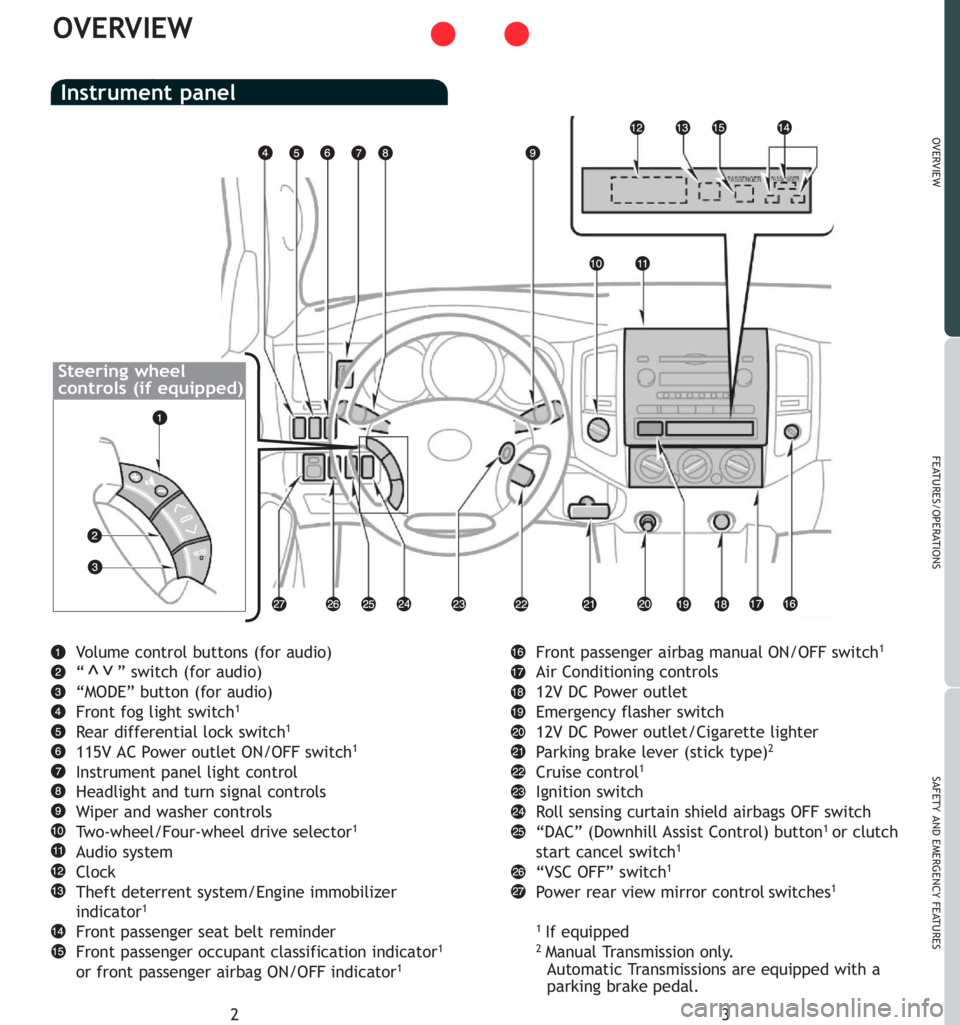

2
OVERVIEW

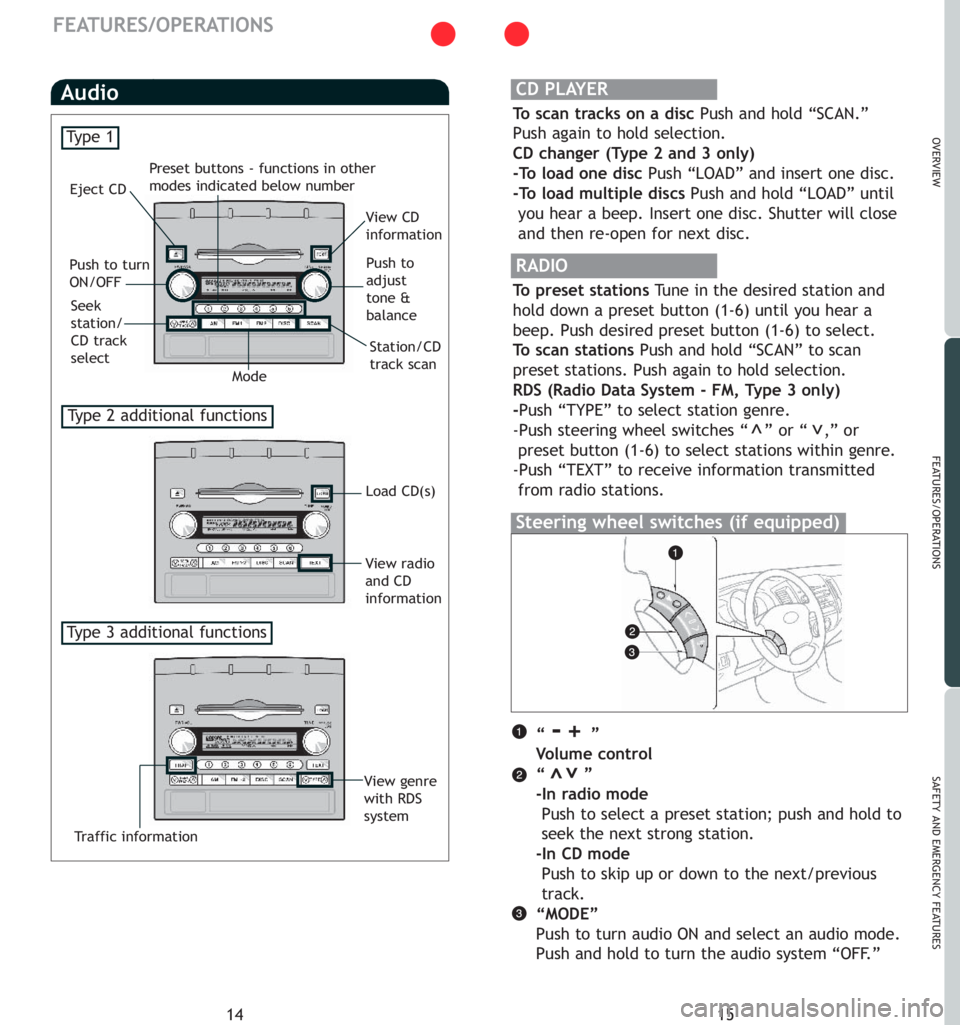

Vo l u m e control buttons (for audio)
“ ” switch (for audio)
“MODE” button (for audio)
Front fog light switch
1
Rear differential lock switch1
115V AC Power outlet ON/OFF switch1
Instrument panel light control
Headlight and turn signal controls
Wiper and washer controls
Two-wheel/Four-wheel drive selector
1
Audio system
Clock
Theft deterrent system/Engine immobilizer
indicator
1
Front passenger seat belt reminder
Front passenger occupant classification indicator1
or front passenger airbag ON/OFF indicator1
Front passenger airbag manual ON/OFF switch1
Air Conditioning controls
12V DC Power outlet
Emergency flasher switch
12V DC Power outlet/Cigarette lighter
Parking brake lever (stick type)
2
Cruise control1
Ignition switch
Roll sensing curtain shield airbags OFF switch
“DAC” (Downhill Assist Control) button
1or clutch
start cancel switch1
“VSC OFF” switch1
Power rear view mirror control switches1
1
If equipped2Manual Transmission only.
Automatic Transmissions are equipped with a
parking brake pedal.
Instrument panel
>>
Steering wheel
controls (if equipped)
Page 5 of 14
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
4

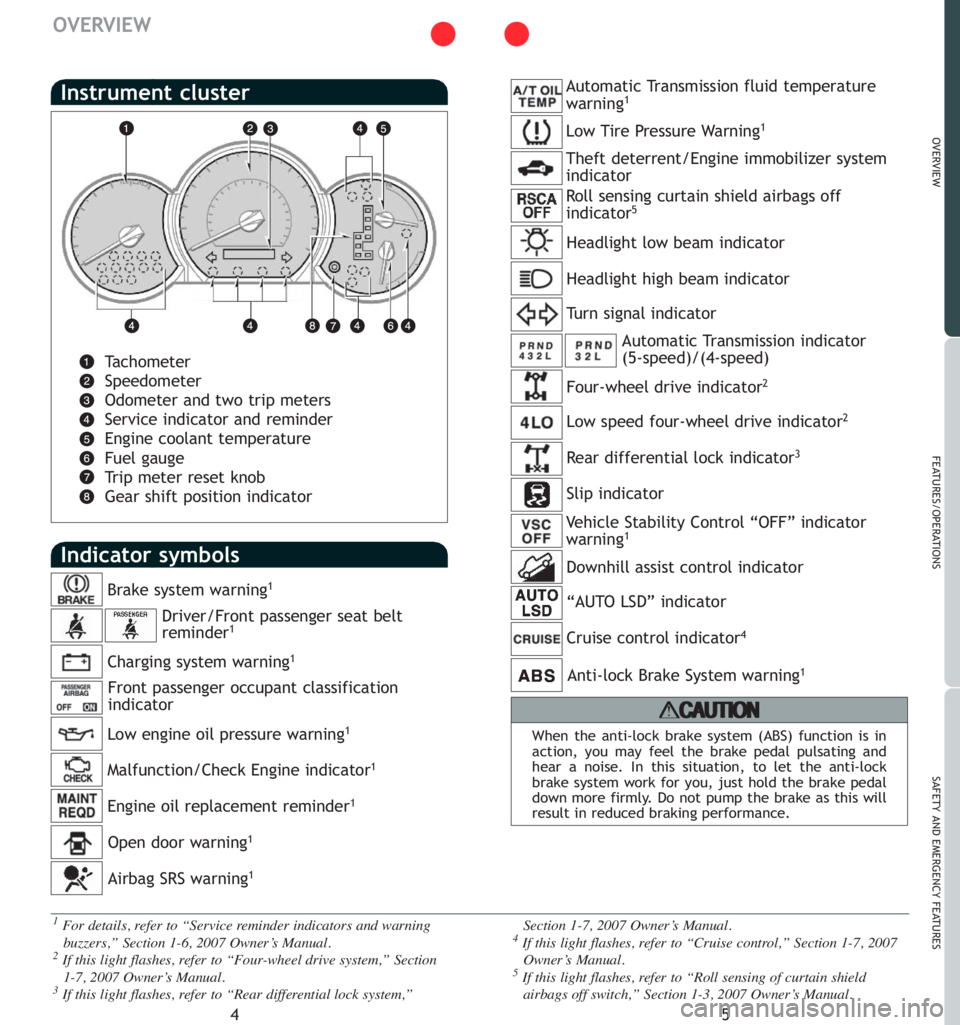

OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2If this light flashes, refer to “Four-wheel drive system,” Section
1-7, 2007 Owner’s Manual.
3If this light flashes, refer to “Rear differential lock system,”Section 1-7, 2007 Owner’s Manual.
4If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
5If this light flashes, refer to “Roll sensing of curtain shield
airbags off switch,” Section 1-3, 2007 Owner’s Manual.
Tachometer
Speedometer
Odometer and two trip meters
Service indicator and reminder
Engine coolant temperature
Fuel gauge
Tr i p meter reset knob
Gear shift position indicator
Instrument cluster
Automatic Transmission indicator
(5-speed)/(4-speed)
Driver/Front passenger seat belt
reminder1
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Anti-lock Brake System warning1Front passenger occupant classification
indicator
When the anti-lock brake system (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the anti-lock
brake system work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking
performance.
Indicator symbols
Headlight low beam indicator
Headlight high beam indicator
Tu r n signal indicator
Four-wheel drive indicator
2
Low speed four-wheel drive indicator2
Rear differential lock indicator3
Slip indicator
Vehicle Stability Control “OFF” indicator
warning
1
Downhill assist control indicator
“AUTO LSD” indicator
Cruise control indicator4
Automatic Transmission fluid temperature
warning1
Low Tire Pressure Wa r n i n g1
Theft deterrent/Engine immobilizer system
indicator
Open door warning1
Airbag SRS warning1
Roll sensing curtain shield airbags off
indicator5
Page 6 of 14
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6
OVERVIEW
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’sWarranty
I
nformation Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”

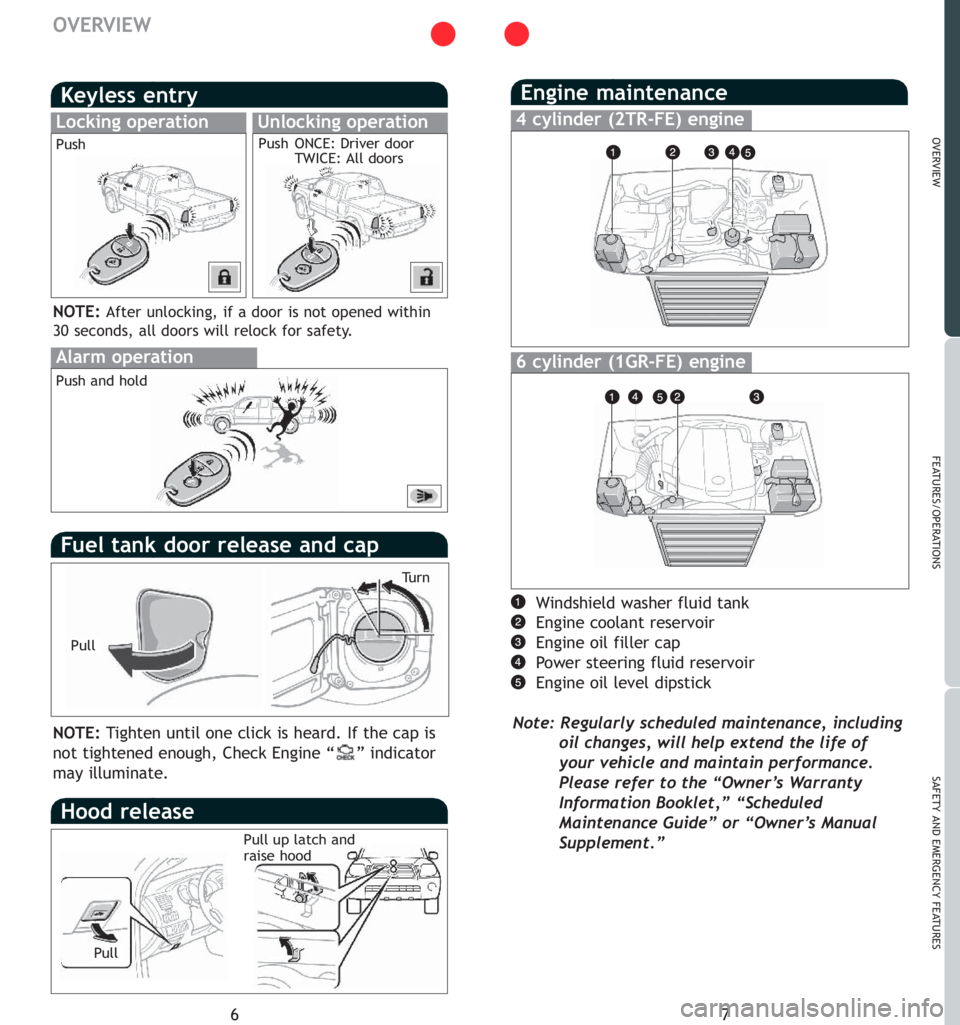

Fuel tank door release and cap
Engine maintenance
Hood release
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
4 cylinder (2TR-FE) engine
6cylinder (1GR-FE) engine
Pull
Pull up latch and
raise hoodTu r n
Alarm operation
Keyless entry
Locking operationUnlocking operation
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.
Push
Push and holdPush ONCE: Driver door
TWICE: All doors
Pull
Page 7 of 14
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8
FEATURES/OPERATIONS

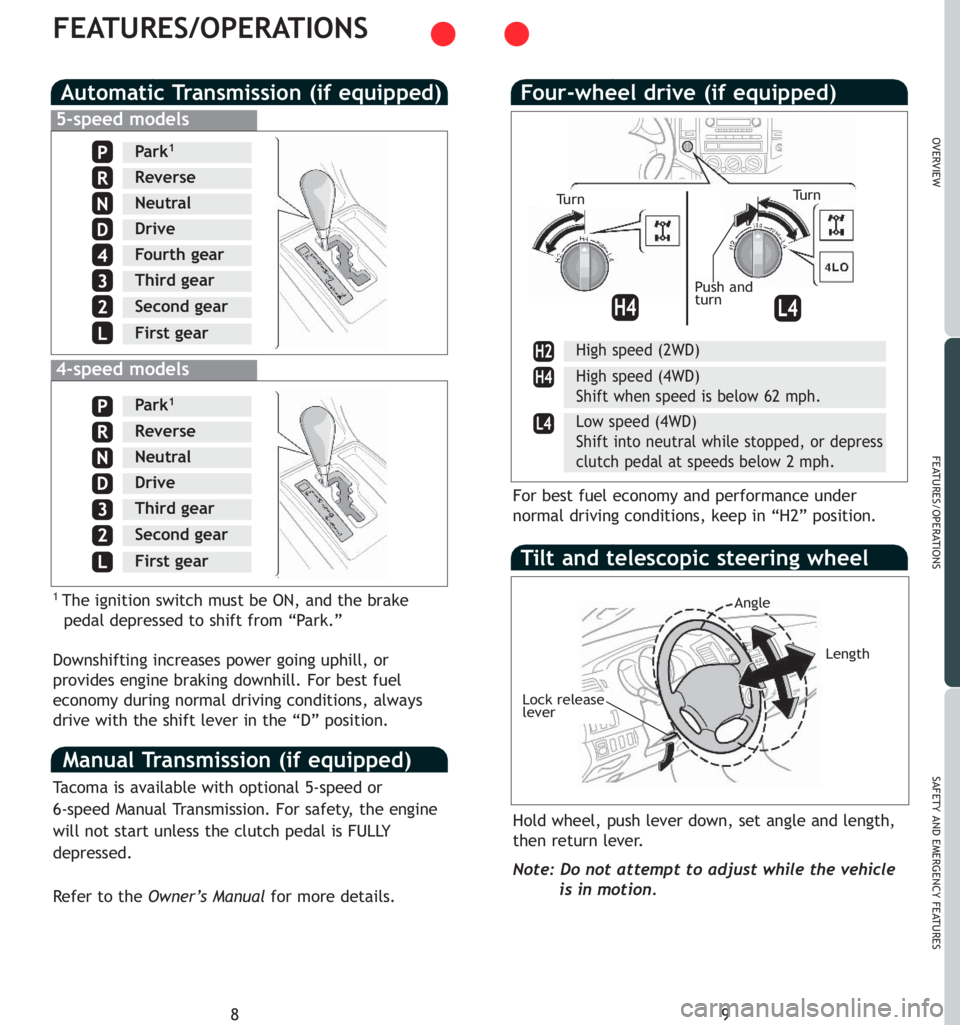

Automatic Transmission (if equipped)
1The ignition switch must be ON, and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
5-speed models
4-speed models
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Shift when speed is below 62 mph.
Low speed (4WD)
Shift into neutral while stopped, or depress
clutch pedal at speeds below 2 mph.
For best fuel economy and performance under
normal driving conditions, keep in “H2” position.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length,
then return lever.
Note: Do not attempt to adjust while the vehicle
is in motion.
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Tacoma is available with optional 5-speed or
6-speed Manual Transmission. For safety, the engine
will not start unless the clutch pedal is FULLY
depressed.
Refer to the Owner’s Manualfor more details.
Manual Transmission (if equipped)
Tu r n
Push and
turn
Length
Angle
Lock release
lever
Tu r n
Page 8 of 14
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS

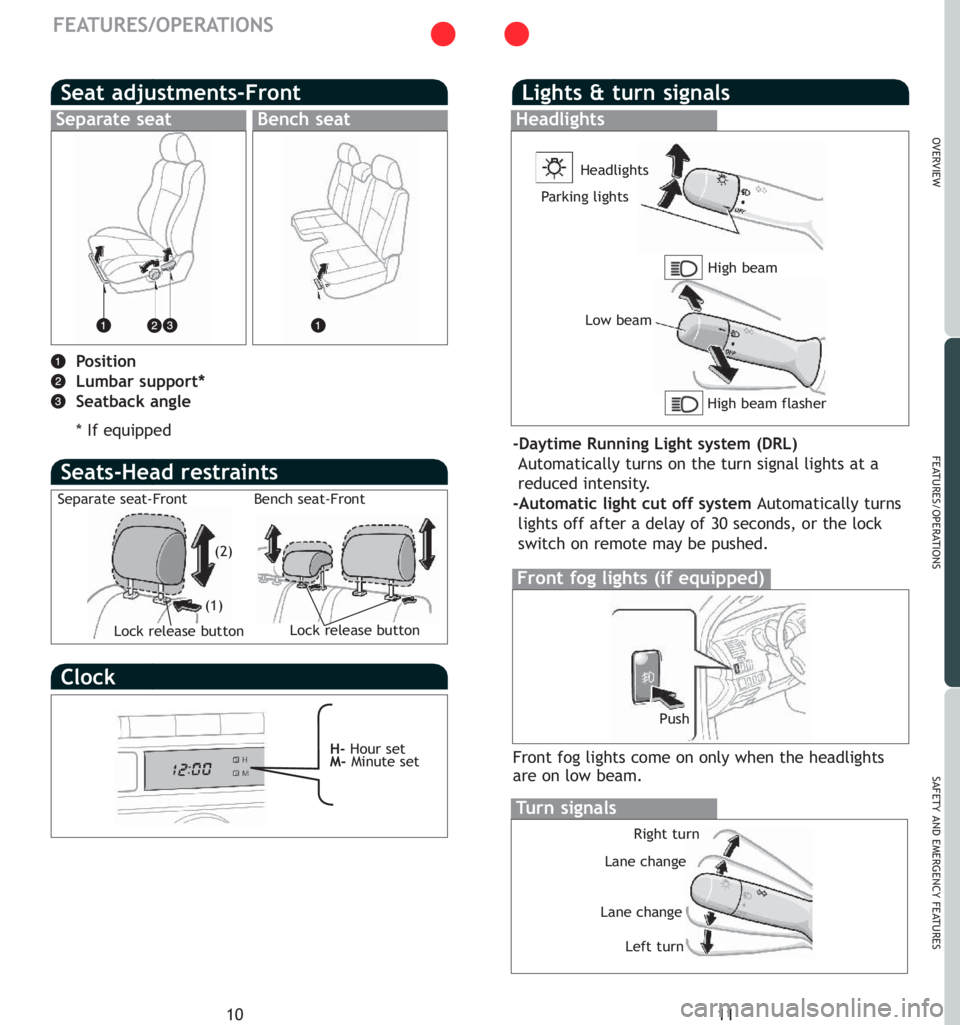

Seat adjustments-Front
Separate seatBench seat
Position
Lumbar support*
Seatback angle
*If equipped
Seats-Head restraints
Bench seat-Front Separate seat-Front
Lock release buttonLock release button
Lights & turn signals
Tu r n signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL)
Automatically turns on the turn signal lights at a
reduced intensity.
-Automatic light cut off system Automatically turns
lights off after a delay of 30 seconds, or the lock
switch on remote may be pushed.
Front fog lights come on only when the headlights
are on low beam.
Parking lights
Right turn Push
Lane change
Lane change
Left turnHigh beam
Clock
H-Hour set
M-Minute set
(1) (2)
Page 9 of 14
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Parking brake
12
FEATURES/OPERATIONS

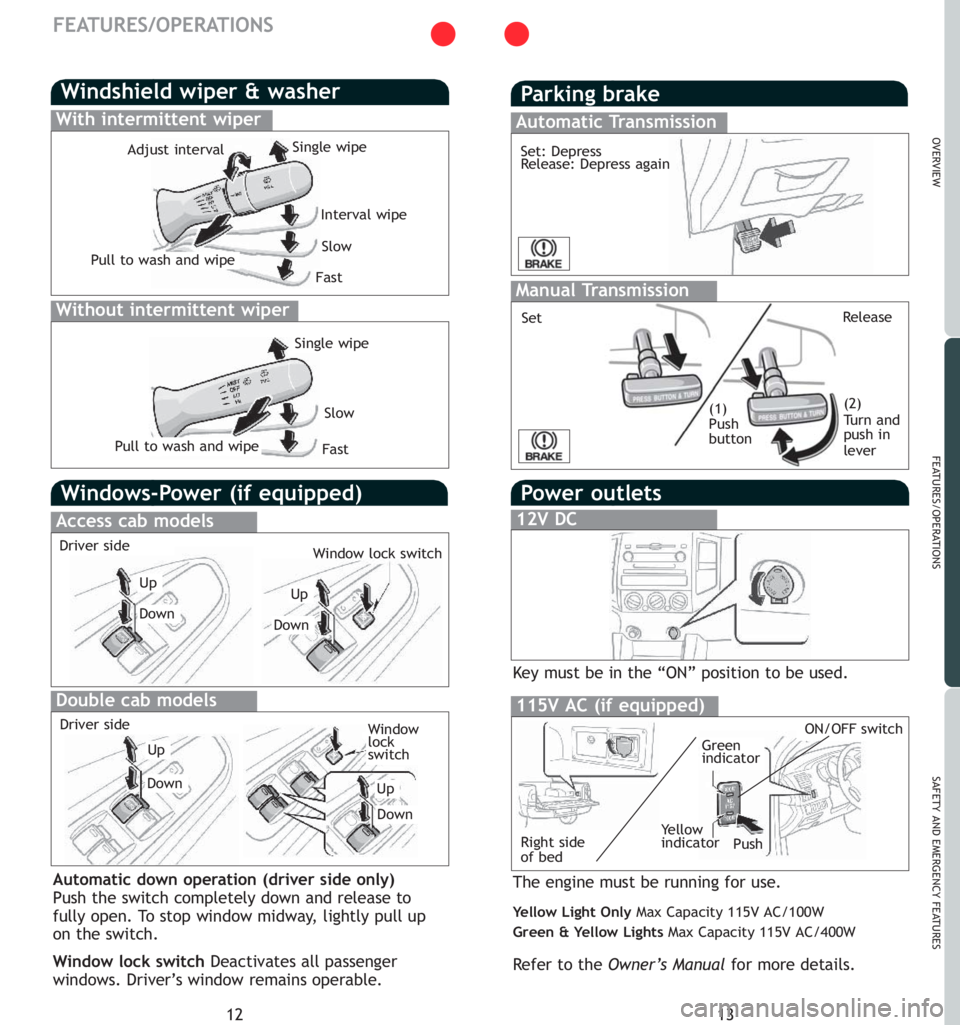

Windshield wiper & washer
Interval wipe
Single wipe
Slow
Manual Transmission
SetRelease
(1)
Push
button(2)
Tu r n and
push in
lever
FastPull to wash and wipe Adjust interval
With intermittent wiper
Without intermittent wiper
Pull to wash and wipe
Single wipe
Slow
Fast
Automatic Transmission
Set: Depress
Release: Depress again
Windows-Power (if equipped)
Access cab models
Up
Down
Driver sideWindow lock switch
Up
Down
Double cab models
Up
Down
Driver sideWindow
lock
switch
Up
Down
Automatic down operation (driver side only)
Push the switch completely down and release to
fully open. To stop window midway, lightly pull up
on the switch.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
Power outlets
12V DC
115V AC (if equipped)
ON/OFF switchGreen
indicator
Yellow
indicator Right side
of bedPush
Key must be in the “ON” position to be used.
The engine must be running for use.
Yellow Light OnlyMax Capacity 115V AC/100W
Green & Yellow LightsMax Capacity 115V AC/400W
Refer to the Owner’s Manualfor more details.
Page 10 of 14
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
FEATURES/OPERATIONS
Ty p e 2 additional functions
Ty p e 3 additional functions
Audio
Eject CD
Push to turn
ON/OFFView CD
information
Push to
adjust
tone &
balance Seek
station/
CD track
selectStation/CD
track scan
Mode
View radio
and CD
information Preset buttons - functions in other
modes indicated below number
View genre
with RDS
system
Tr a f f i c information
Load CD(s)
“-+”
Volume control
“”
-In radio mode
Push to select a preset station; push and hold to
seek the next strong station.
-In CD mode
Push to skip up or down to the next/previous
track.
“MODE”
Push to turn audio ON and select an audio mode.
Push and hold to turn the
audio system “OFF.”
>>
Steering wheel switches (if equipped)
RADIO
To preset stations Tune in the desired station and
hold down a preset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push and hold “SCAN” to scan
preset stations. Push again to hold selection.
RDS (Radio Data System - FM, Ty p e 3 only)
-Push “TYPE”
to select station genre.
-Push steering wheel switches “ ” or “ ,” or
preset button (1-6) to select stations within genre.
-Push “TEXT” to receive information transmitted
from radio stations.
>>
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.”
Push again to hold selection.
CD changer (Type 2 and 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then re-open
for next disc. Ty p e 1
