TOYOTA TACOMA 2008 Owners Manual (in English)

381
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
The tire pressure warning system
must be initialized when the
specified tire inflation pressure is
changed due to tire replacement.
See “Tire pressure warning
system” on page 194 in Section
17.NOTICE
When the tires must be re-
paired or replaced, have them
repaired or replaced by the
nearest Toyota dealer or au-
thorized tire dealer. Failure to
do so may cause the tire
pressure sensors to be dam-
aged when the tires are re-
moved or installed.
 Remove the air pressure sen-
sors before replacing the
tires to prevent the sensors
from being damaged.
LS72010
With a spare tire of the same
wheel type as the installed tires
LS72012
With a spare tire of different
wheel type from the installed
tires
Rotating tires

382
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
To equalize the wear and help
extend tire life, Toyota
recommends that you rotate your
tires according to the maintenance
schedule. (For scheduled
maintenance information, please
refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.) However,
the most appropriate timing for tire
rotation may vary according to
your driving habits and road
surface conditions.
See “If you have a flat tire” on page
329 in Section 4 for tire change proce-
dure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out −
of −balance wheels, or severe braking. The tire pressure warning system
must be initialized when rotating
tires, in case that specified tire
inflation pressure is different
between front and rear. See “Tire
pressure warning system” on page
194 in Section 17.WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on fourwheel drive models, all
the tires must be the same brand and
have the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use snow tires other than
the manufacturer ’s recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.
Installing snow tires and
chains

383
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Fourwheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the rear wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
G72017
Side chain
Cross chain
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Use the following type chains.
mm (in.)
A Diameter of side chain: 5.0 (0.20)
B Diameter of cross chain: 6.3 (0.25)
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
NOTICE
If the wrong combination of tire and
chain is used, the chains could dam-
age the vehicle body.
CHAIN INSTALLATION
Install the chains on the rear tires as
tightly as possible. Do not use tire
chains on the front tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.

384
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Snow tires or chains may affect the
tire pressure warning system. See
“Tire pressure warning system” on
page 194 in Section 17.
As you might have difficulty in identify-
ing a flat or deflated tire, a tire pres-
sure warning system is provided on
this vehicle.
When replacing the wheels, be sure to
install tire pressure warning valves and
transmitters on the wheels. Consult your
Toyota dealer about how to set up the tire
pressure warning valves and transmitters.
CAUTION
Have the tires, wheels or tire pres-
sure warning valves and transmit-
ters replaced and ID codes regis-
tered by Toyota dealer. If you need
tire pressure warning valves and
transmitters, purchase from Toyota
dealer.
The tire pressure warning valve and
transmitter nuts should always be
tightened to a torque of 4 N·m (0.4
kgf·m, 2.9 ft·lbf).
The use of nongenuine wheels may
result in the tire pressure warning
system failure or airleak.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacing wheels

385
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use wheels other than the
manufacturer ’s recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.
Fourwheel drive models:
Do not use wheels of different
brands, sizes and types, as this
may cause dangerous handling
characteristics resulting in loss of
control.
The tire pressure warning system must
be initialized when the specified tire
inflation pressure is changed due to
wheel replacement. See “Tire pressure
warning system” on page 194 in
Section 17.
NOTICE
The use of nongenuine wheels will
cause the air pressure sensors to
transmit the electronic code in differ-
ent manner, resulting in the system
failure.
When installing aluminum wheels,
check that the wheel nuts are tight
after driving your vehicle the first 1600
km (1000 miles). Retorque the wheel
nuts to 113 N·m (11.5 kgf·m, 85 ft·lbf).
If you have rotated, repaired, or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles). Retorque the
wheel nuts to 113 N·m (11.5 kgf·m, 85
ft·lbf).
When using tire chains, be careful not
to damage the aluminum wheels.
Use only Toyota wheel nuts and
wrench designed for your aluminum
wheels.
When balancing your wheels, use only
Toyota balance weights or equivalent
and a plastic or rubber hammer.
As with any wheel, periodically check
your aluminum wheels for damage. If
damaged, replace immediately.
Aluminum wheel precautions

386
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

387
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 389
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 391
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 392
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

388
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

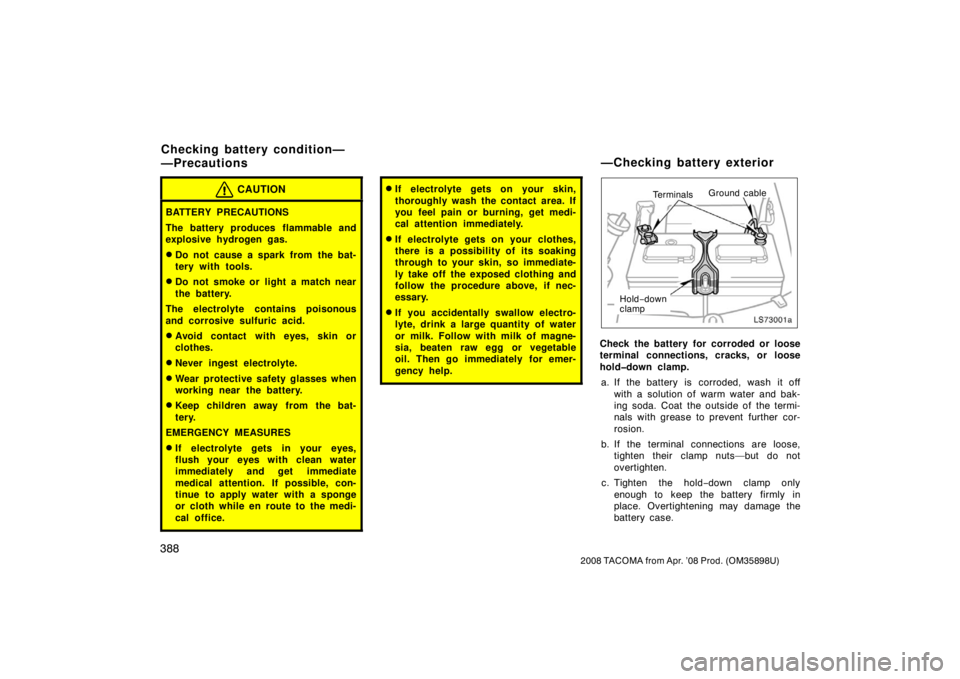

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
LS73001a
Terminals Ground cable
Hold −down
clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold −down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery c ondition—
—Precautions —Checking battery exterior

389
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

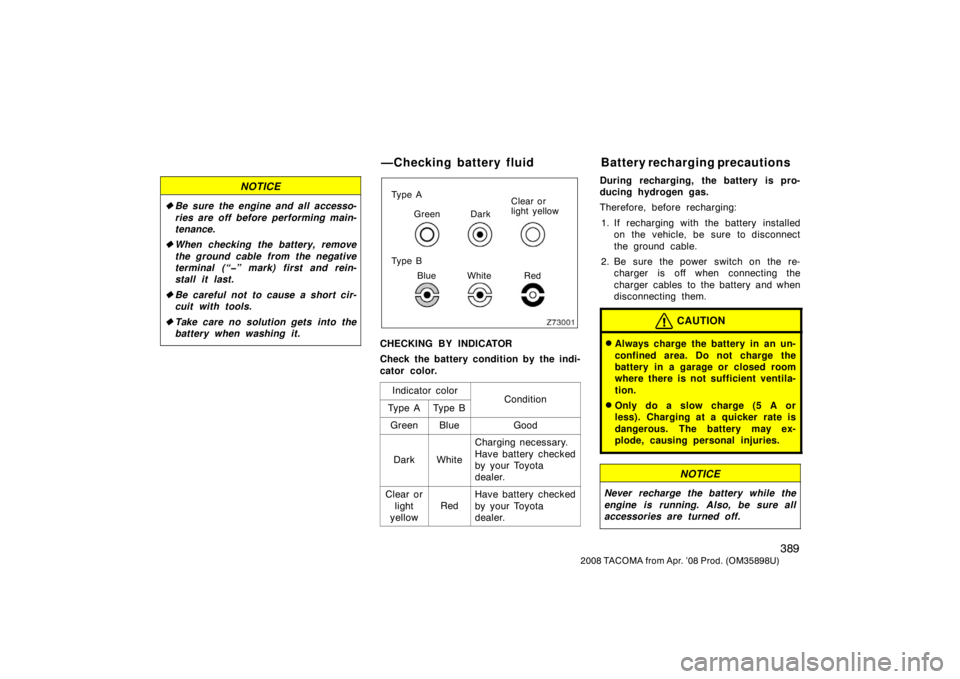

NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery checked
by your Toyota
dealer.
Clear orlight
yellow
Red
Have battery checked
by your Toyota
dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery fluid Battery recharging precautions

390
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
LS73002
GoodBlown
Ty p e A
LS73003
Good Blown
Ty p e B
LS73024
Good Blown
Ty p e C
LS73023
Good Blown
Ty p e D
LS73004a
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 364 in Sec-
tion 7 −1 for locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 411 in Section 8 for the functions
controlled by each circuit.
Checking and replacing fuses
