TOYOTA TACOMA 2008 Owners Manual (in English)

391
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C”
fuse, which may be dispensable for nor-
mal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Make sure that the fuse box lid has been
closed securely after closing it.
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

392
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (high
and low beam)—60/55A
Front fog lights914542B
Par k i ng and fr ont
side marker lights—5D
Front turn signal
lights4157NAK27/8D
Rear turn signal
lights3157A27/8D
Stop/tail and rear
side marker lights315727/8C
Back −up lights92118C
License plate
lights1685C
High mounted
stoplight1685C
Interior light—5E
Personal lights1685C
Replacing light bulbs—

393
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
A: HB2 halogen bulbs
B: H10 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs
LS73005
1. Open the hood. Unplug the connec-tor. Remove the rubber cover.
If the connector is tight, wiggle it.
LS73006
2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
—Headlights

394
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

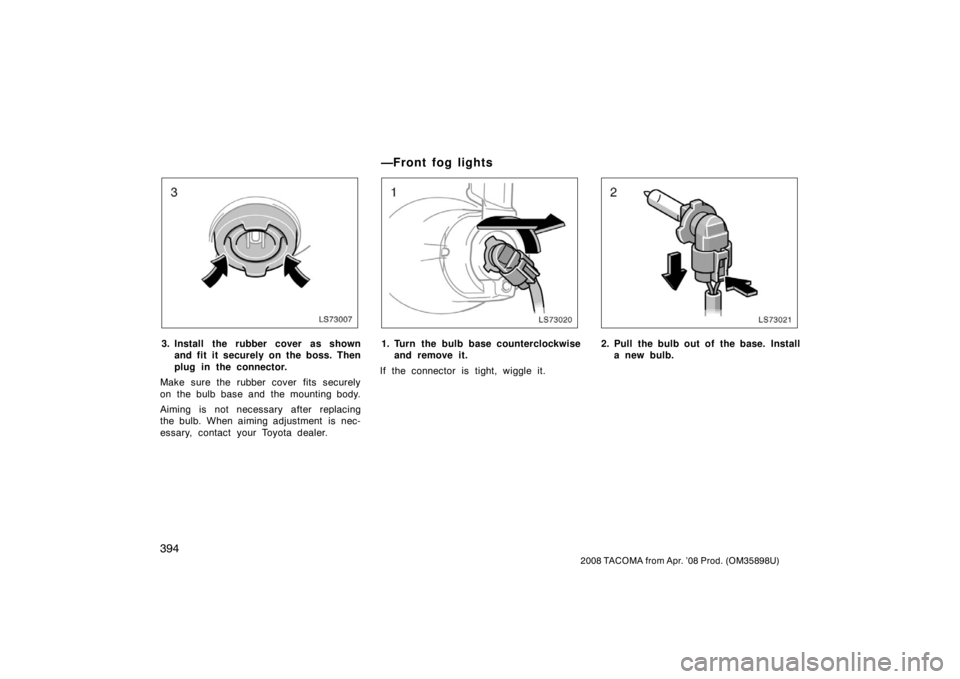

LS73007
3. Install the rubber cover as shownand fit it securely on the boss. Then
plug in the connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
LS73020
1. Turn the bulb base counterclockwise and remove it.
If the connector is tight, wiggle it.
LS73021
2. Pull the bulb out of the base. Install a new bulb.
—Front fog lights

395
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

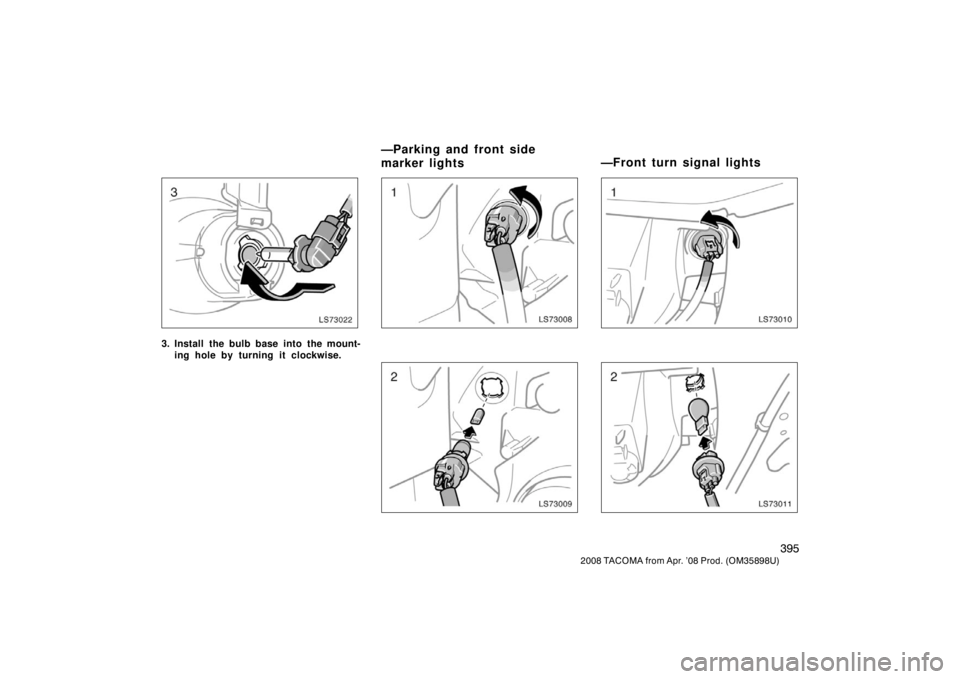

LS73022
3. Install the bulb base into the mount-ing hole by turning it clockwise.
LS73008
LS73009
LS73010
LS73011
—Parking and front side
marker lights —Front turn signal lights

396
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

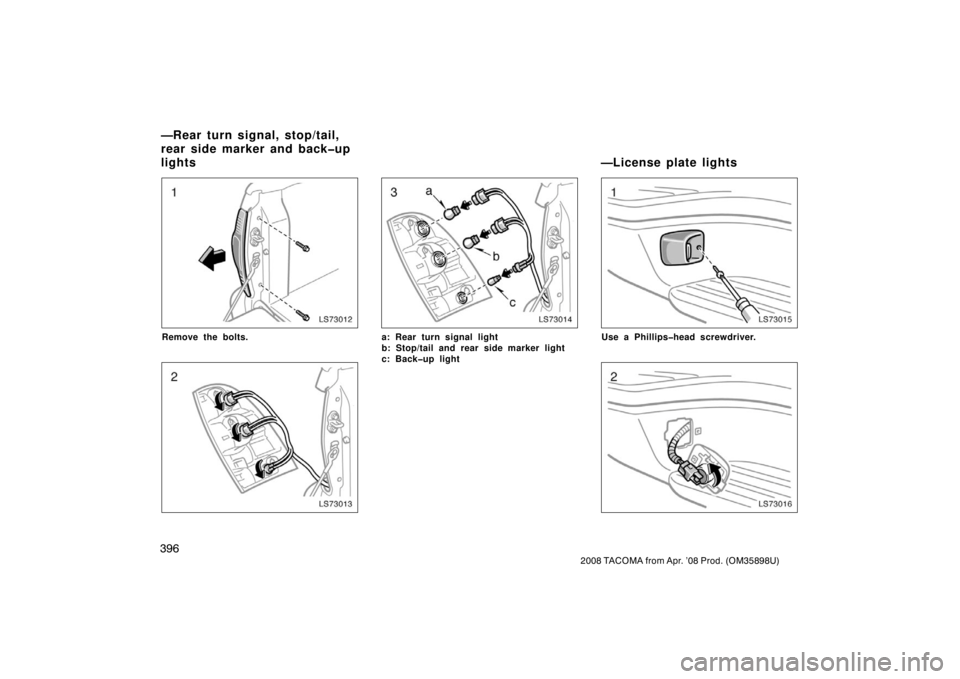

LS73012
Remove the bolts.
LS73013
LS73014
a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Backup light
LS73015
Use a Phillipshead screwdriver.
LS73016
—Rear turn signal, stop/tail,
rear side marker and backup
lights—License plate lights

397
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

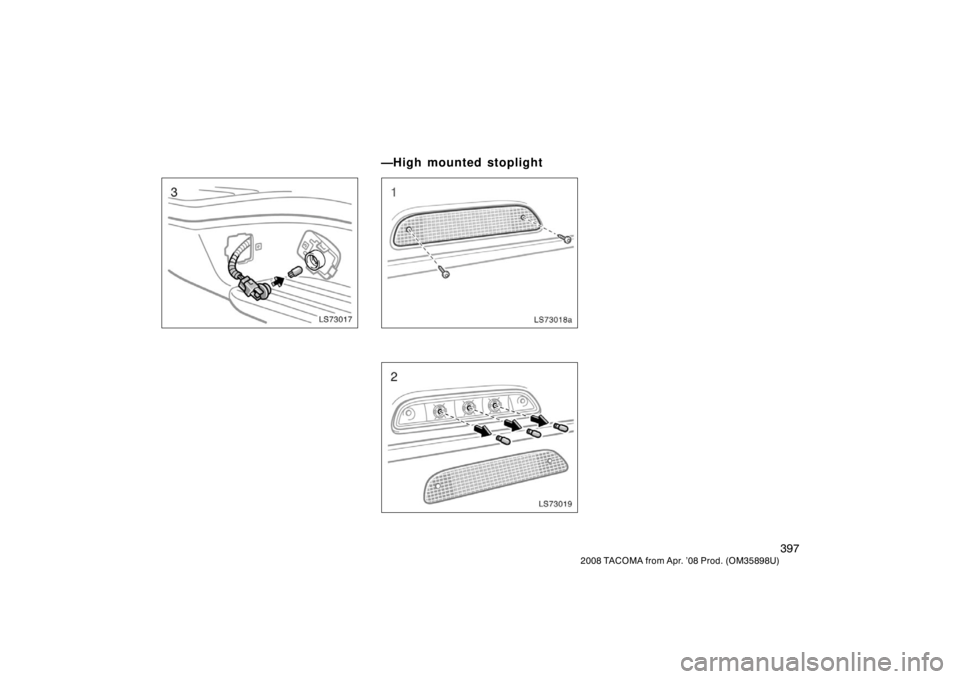

LS73017LS73018a
LS73019
—High mounted stoplight

398
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

399
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
SPECIFICATIONS
Dimensions400
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Vehicle capacity weight 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Towing capacity 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 406
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 410
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 411
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

400
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Dimensions
Regular cab models Access cab models
Overall length
Overall height
∗ 2
Front tread
Rear tread Overall width
Wheelbase 4835 (190.4) 5285 (208.1)
1835 (72.2)
1880 (74.0)
∗11835 (72.2)
1670 (65.8)
3230 (127.2)
1550 (61.0)
1580 (62.2)
∗1
1550 (61.0) 1550 (61.0) 2780 (109.4) 1670 (65.8)
1655 (65.2)
∗
1
∗ 1
: With P255/45R18∗2: Unladen vehicle
Tw o
−wheel drive models except PreRunner mm (in.)
1550 (61.0)
1580 (62.2)
∗ 1
