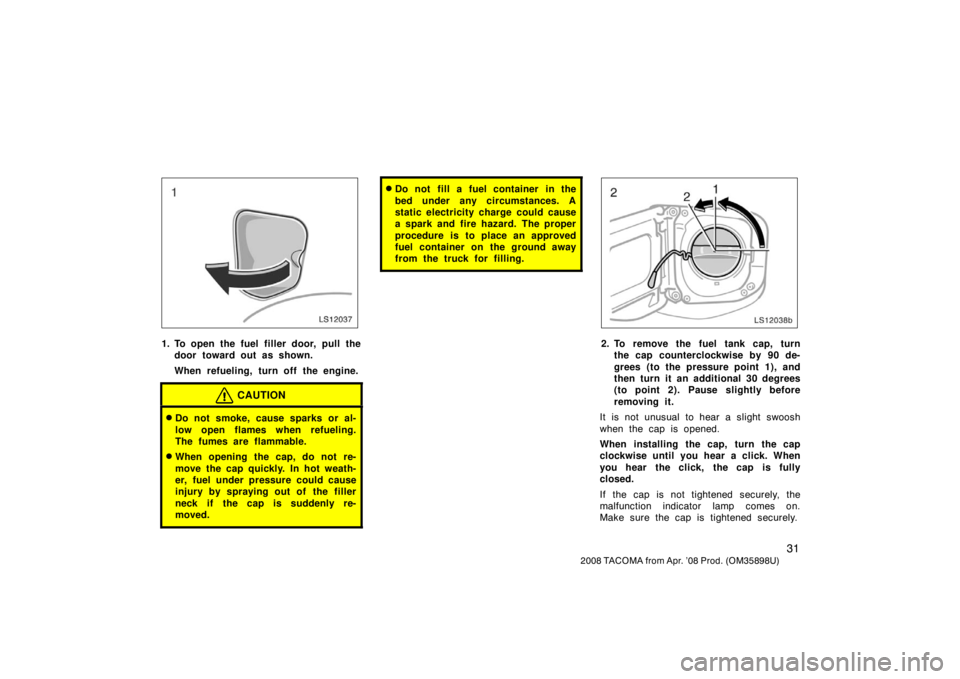

1. To open the fuel filler door, pull thedoor toward out as shown.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Do not fill a fuel container in the
bed under any circumstances. A
static electricity charge could cause
a spark and fire hazard. The proper
procedure is to place an approved
fuel container on the ground away
from the truck for filling.
LS12038b
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.

32
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.

33
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Flip −over jump seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Folding rear seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Head restraints 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 53
. . . . . . . . . . . . . . . . . . .
Passenger airbag off switch 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 72
. . . . . . . . . . . . . . . . . . . .
Front passenger occupant classification system 82
. . . . . . . . . . . . . . . .
Roll sensing of curtain shield airbags off switch 92
. . . . . . . . . . . . . . . . .
Child restraint 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

34
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

35
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Front passenger seats

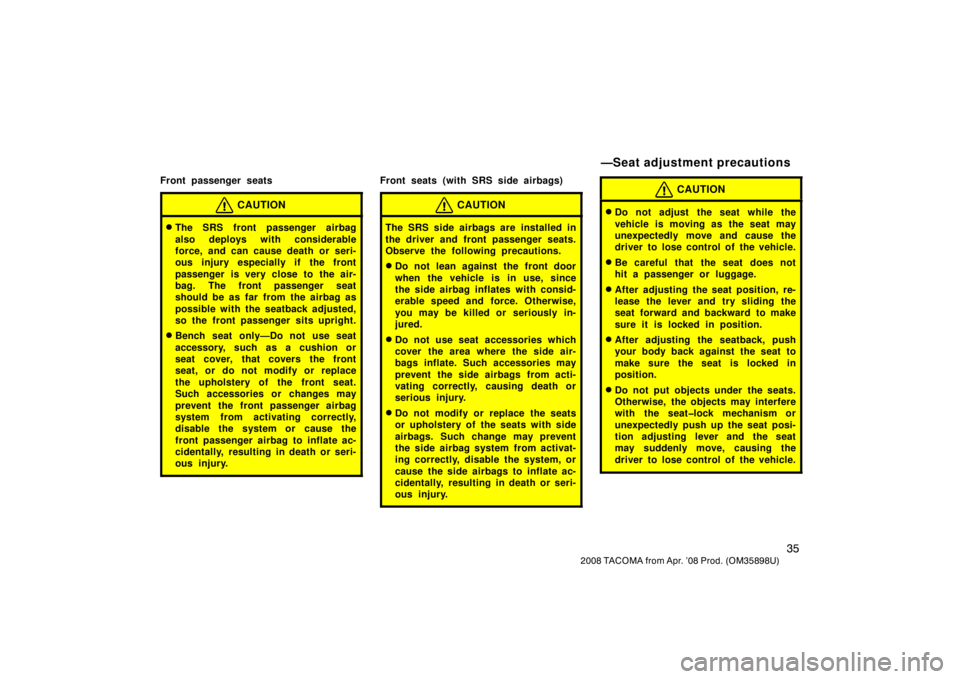

CAUTION
The SRS front passenger airbag
also deploys with considerable
force, and can cause death or seri-
ous injury especially if the front
passenger is very close to the air-
bag. The front passenger seat
should be as far from the airbag as
possible with the seatback adjusted,
so the front passenger sits upright.
Bench seat only—Do not use seat
accessory, such as a cushion or
seat cover, that covers the front
seat, or do not modify or replace
the upholstery of the front seat.
Such accessories or changes may
prevent the front passenger airbag
system from activating correctly,
disable the system or cause the
front passenger airbag to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system, or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

36
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

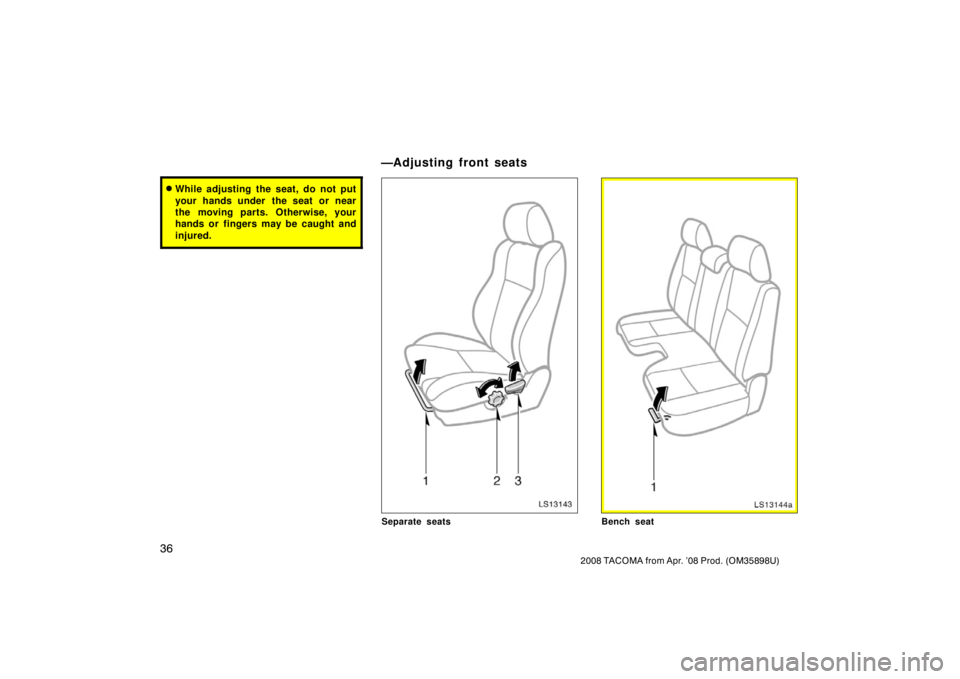

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
LS13143
Separate seats
LS13144a
Bench seat
—Adjusting front seats

37
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

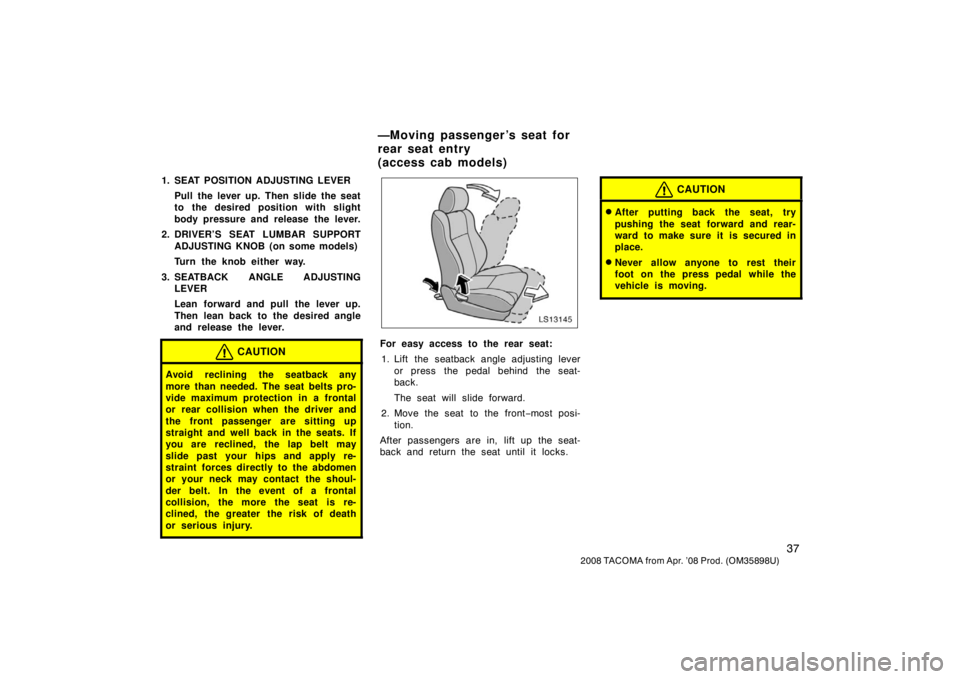

1. SEAT POSITION ADJUSTING LEVERPull the lever up. Then slide the seat
to the desired position with slight
body pressure and release the lever.
2. DRIVER’S SEAT LUMBAR SUPPORT ADJUSTING KNOB (on some models)
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
LS13145
For easy access to the rear seat:
1. Lift the seatback angle adjusting lever or press the pedal behind the seat-
back.
The seat will slide forward.
2. Move the seat to the front −most posi-
tion.
After passengers are in, lift up the seat-
back and return the seat until it locks.
CAUTION
After putting back the seat, try
pushing the seat forward and rear-
ward to make sure it is secured in
place.
Never allow anyone to rest their
foot on the press pedal while the
vehicle is moving.
—Moving passenger ’s seat for
rear seat entry
(access cab models)

38
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
LS13146

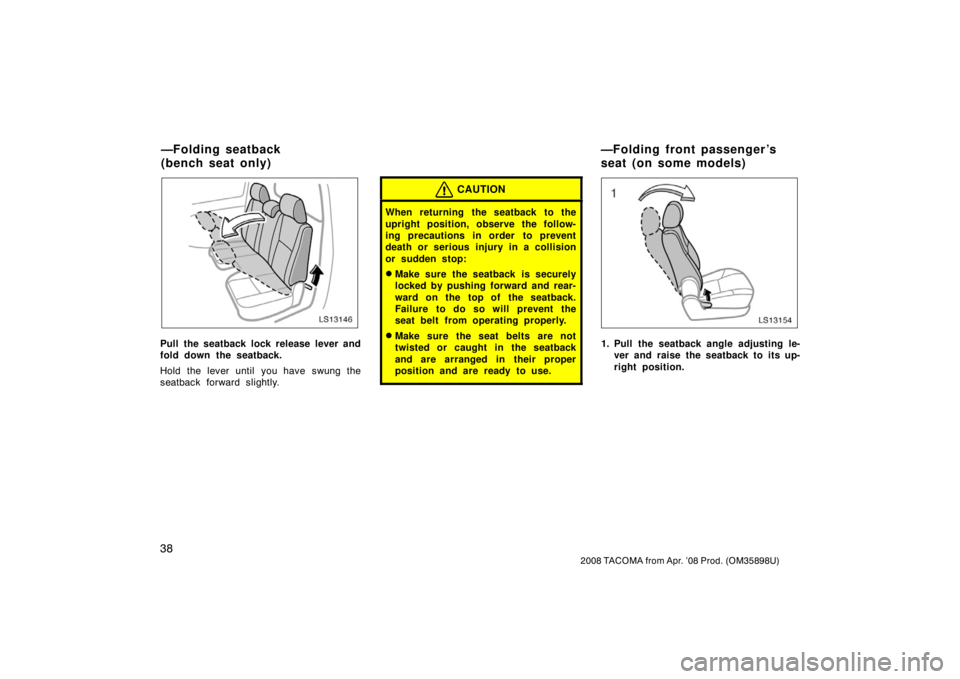

Pull the seatback lock release lever and
fold down the seatback.
Hold the lever until you have swung the
seatback forward slightly.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
LS13154
1. Pull the seatback angle adjusting le-ver and raise the seatback to its up-
right position.
—Folding seatback
(bench seat only) —Folding front passenger ’s
seat (on some models)

39
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
LS13155

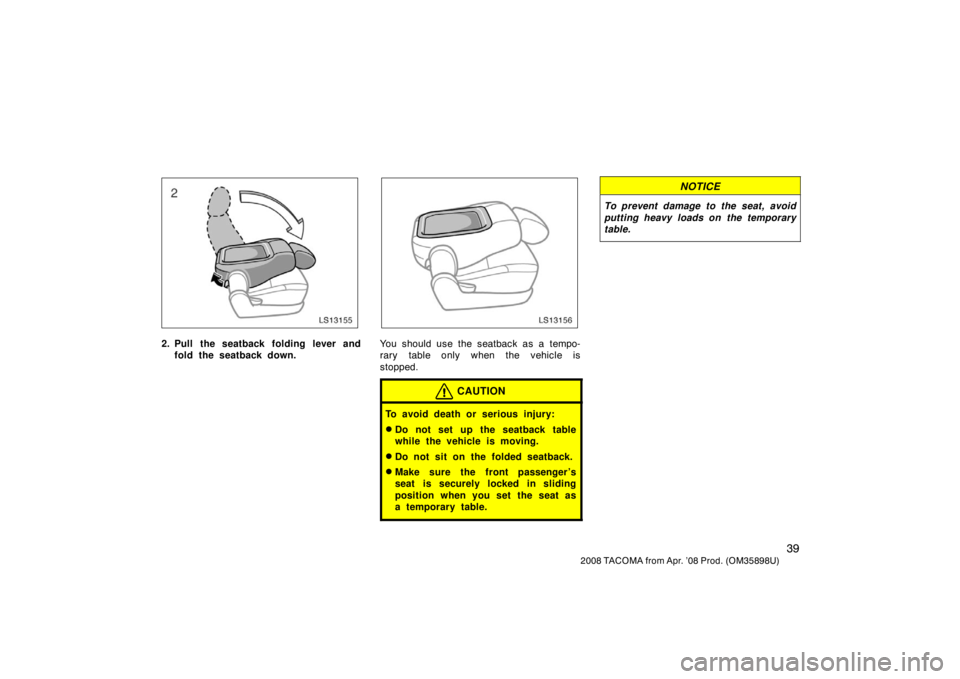

2. Pull the seatback folding lever andfold the seatback down.
LS13156
You should use the seatback as a tempo-
rary table only when the vehicle is
stopped.
CAUTION
To avoid death or serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the folded seatback.
Make sure the front passenger ’s
seat is securely locked in sliding
position when you set the seat as
a temporary table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.

40
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
LS13147

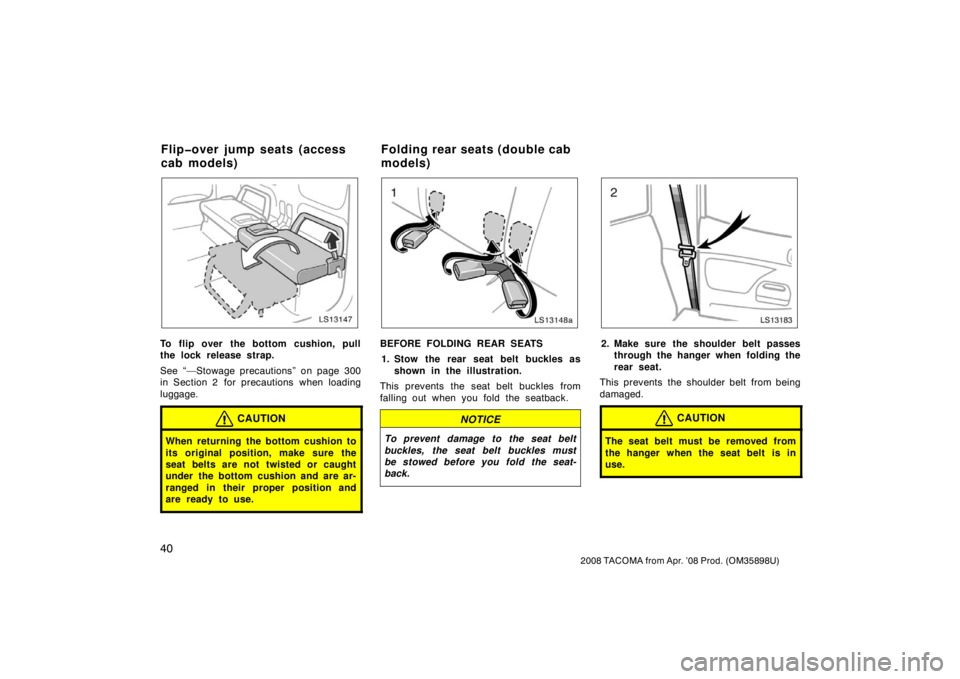

To flip over the bottom cushion, pull
the lock release strap.
See “—Stowage precautions” on page 300
in Section 2 for precautions when loading
luggage.
CAUTION
When returning the bottom cushion to
its original position, make sure the
seat belts are not twisted or caught
under the bottom cushion and are ar-
ranged in their proper position and
are ready to use.
LS13148a
BEFORE FOLDING REAR SEATS1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold the seatback.
NOTICE
To prevent damage to the seat belt
buckles, the seat belt buckles must
be stowed before you fold the seat-
back.
LS13183
2. Make sure the shoulder belt passes through the hanger when folding the
rear seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
Flipover jump seats (access
cab models) Folding rear seats (double cab
models)
