brake light TOYOTA TACOMA 2008 Owners Manual (in English)

3
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

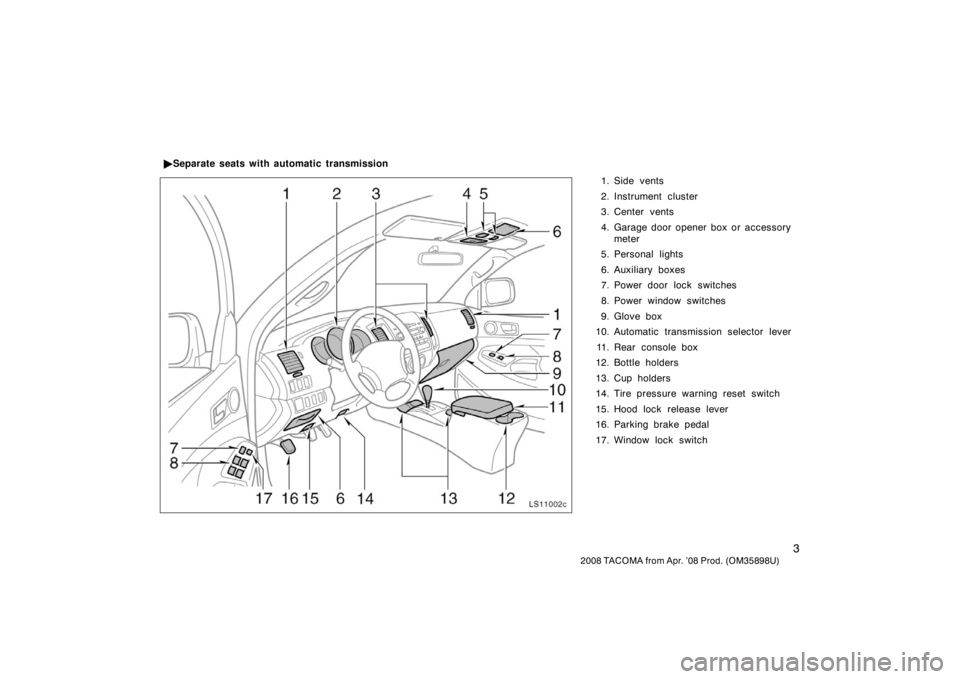

1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or accessorymeter
5. Personal lights
6. Auxiliary boxes
7. Power door lock switches
8. Power window switches
9. Glove box
10. Automatic transmission selector lever
11. Rear console box
12. Bottle holders
13. Cup holders
14. Tire pressure warning reset switch
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch

Separate seats with automatic transmission
LS11002c

5
2008 TACOMA from Apr. ’08 Prod. (OM35898U)

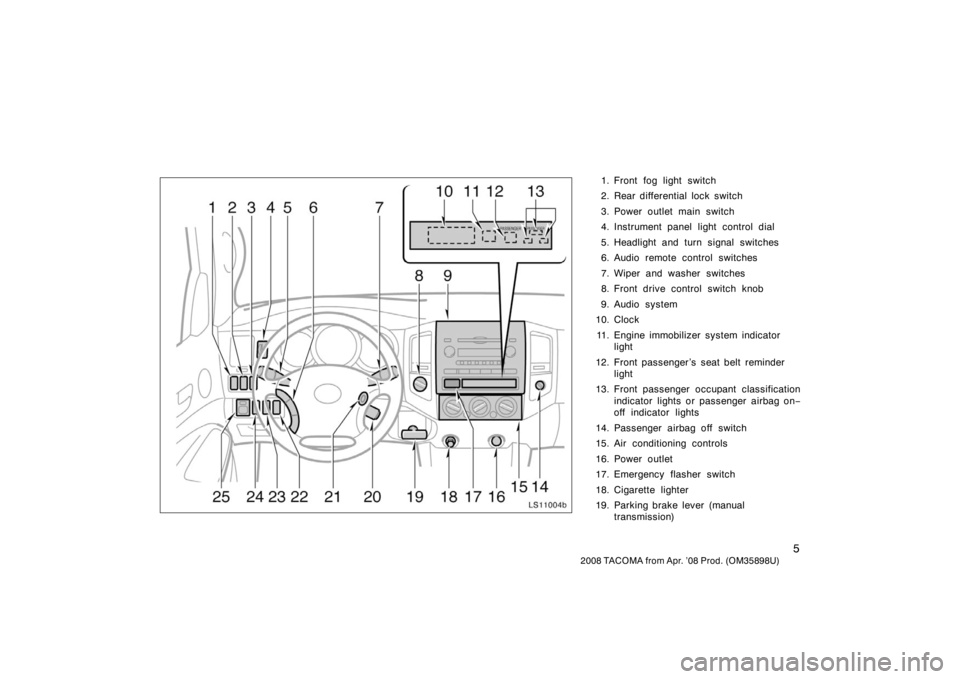

1. Front fog light switch
2. Rear differential lock switch
3. Power outlet main switch
4. Instrument panel light control dial
5. Headlight and turn signal switches
6. Audio remote control switches
7. Wiper and washer switches
8. Front drive control switch knob
9. Audio system
10. Clock
11. Engine immobilizer system indicator light
12. Front passenger ’s seat belt reminder light
13. Front passenger occupant classification indicator lights or passenger airbag on −
off indicator lights
14. Passenger airbag off switch
15. Air conditioning controls
16. Power outlet
17. Emergency flasher switch
18. Cigarette lighter
19. Parking brake lever (manual transmission)
LS11004b

8
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Front passenger ’s seat belt reminder light∗1
Front passenger occupant classification
indicator light or passenger airbag on −off
indicator light
Engine oil replacement reminder light∗ 1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Tire pressure warning light∗1
Automatic transmission fluid temperature
warning light∗1
(four −wheel drive models only)
Engine immobilizer system indicator light
∗ 1
Roll sensing of curtain shield airbags off
indicator light∗5
Indicator symbols on the instrument panel

143
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
Daytime running light (DRL) system (on
some models)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make your front turn
signal lights come on when:
The engine switch is on with the en-
gine running.
The knob is in the “OFF” position or
position 1.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2 or turn the engine switch off.
LS15003b

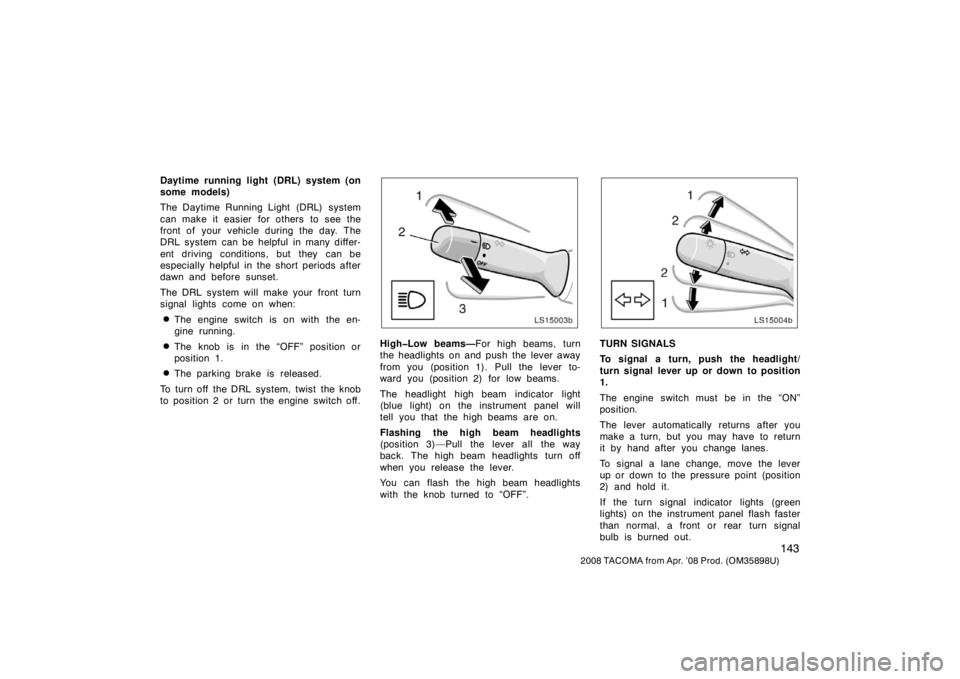

HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

LS15004b
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The engine switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.

154
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
If the indicator or buzzer comes on...Do this.
(h)Low fuel level
warning lightFill up tank.
(i)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(j)If the light flashes, take vehicle to Toyota dealer.
(k)Close all doors.
(l)Take vehicle to Toyota dealer immediately.
(m)Adjust tire inflation pressure (including spare tire). If the warning light comes on after
blinking for 1 minute, contact Toyota dealer.
(n)Stop and check.

156
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
(a) Brake System Warning Light andbuzzer
This light comes on in the following cases
when the engine switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the engine switch is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the hydraulic brake booster
fails (with the vehicle stability con-
trol system)...
If the hydraulic booster causes a problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the en-
gine switch is in the “ON” position.
The light does not come on even if the
engine switch is turned on with the
parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
Without the vehicle stability control
system—
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
With the vehicle stability control sys-
tem—
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly
and your stopping distance will be-
come longer. Depress the brake
pedal firmly and bring the vehicle
to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.

157
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
With the vehicle stability control system—
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the engine switch is
turned to the “ON” position. It is nor-
mal if it turns off after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the engine is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is
not a malfunction.(b) Driver’s Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the engine switch is turned to the
“ON” or “START”, the reminder light
flashes and buzzer sounds if the driver ’s
seat belt is not fastened. Unless the driv-
er fastens the belt, the light continues
flashing and the buzzer stops after about
4 to 8 seconds.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Toyota dealer.
However, Toyota recommends that the
seat belt reminder buzzer be operational
to alert the driver and front passenger that
the seat belts are not fastened. (c) Front Passenger ’s Seat Belt Re-
minder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the engine switch is turned to the
“ON” position, the reminder light flashes if
a passenger sits in the right front passen-
ger seat and does not fasten the seat
belt.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 20 km/h (12 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the driver ’s seat belt
is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Toyota dealer.

160
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
(i) “ABS” Warning Light
Without the vehicle stability control
system—
The light comes on when the engine
switch is turned to the “ON” position. If
the anti−lock brake system works properly,
the light turns off after a few seconds.
Thereafter, if the system malfunctions, the
light comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
but the brake assist system still operates.
In this case, the wheels could lock up
during a sudden braking or braking on
slippery road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.The light does not come on when the
engine switch is turned to the “ON”
position, or the light remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
With rear differential lock: However, it is
a normal operation for the light to be on
with rear differential locked. At this time,
the anti −lock brake system does not oper-
ate. With the vehicle stability control sys-
tem—
The light comes on when the engine
switch is turned to the “ON” position. If
the anti
−lock brake system and the brake
assist system work properly, the light
turns off after a few seconds. Thereafter,
if either of the systems malfunctions, the
light comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
following systems do not operate, but the
brake system still operates conventionally.
Anti −lock brake system
Brake assist system
Traction control system
“AUTO LSD” system
Vehicle stability control system
Downhill assist control system
Hill −start assist control system

161
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate,
so that the wheels will lock up during a
sudden braking or braking on slippery
road surfaces.
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
engine switch is turned to the “ON”
position, or remains on.
The light comes on while you are dri-
ving.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Any of the following conditions may oc-
cur, but do not indicate a malfunction:
The light may stay on for about 60
seconds after the engine switch is
turned to the “ON” position. It is nor-
mal if it turns off after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
turns off after a few seconds.
With rear differential lock: The light
comes on with rear differential locked.
At this time, the anti −lock brake sys-
tem, the brake assist system, the ve-
hicle stability control system, the trac-
tion control system, the downhill assist
control system and the hill −start assist
control system do not operate.
(j) “VSC OFF” warning light
The light flashing warns that there is a
problem somewhere in the following.
Vehicle stability control system
Traction control system
“AUTO LSD” system
Downhill assist control system
Hill −start assist control system
The light will come on when the engine
switch turned to “ON”, and will go off after
a few seconds.
It is not a malfunction that the light may
stay on for 60 seconds after the engine
switch is turned to the “ON” position.
Depressing the brake pedal repeatedly
may turn on the lights. It is normal if they
go out after a few seconds.

163
2008 TACOMA from Apr. ’08 Prod. (OM35898U)
(n) Automatic Transmission Fluid Tem-perature Warning Light (fourwheel
drive models only)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(o) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the engine switch in the “ACC” or
“LOCK” position. (p) Parking Brake Reminder Buzzer
The buzzer acts once when the parking
brake is not completely released at the
vehicle speed of 5 km/h (3 mph) or more.
Stop the vehicle and release the parking
brake fully.
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the engine switch to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on.
The following service reminder indica-
tors go off after a few seconds:
Engine oil replacement reminder light
“ABS” warning light
“RSCA OFF” indicator light
“VSC OFF” indicator/warning light
“AUTO LSD” indicator light
Tire pressure warning light
Slip indicator light
Downhill assist control system indicator
light
