TOYOTA TACOMA 2010 Owners Manual (in English)

401 4-3. Do-it-yourself maintenance
4
Maintenance and care

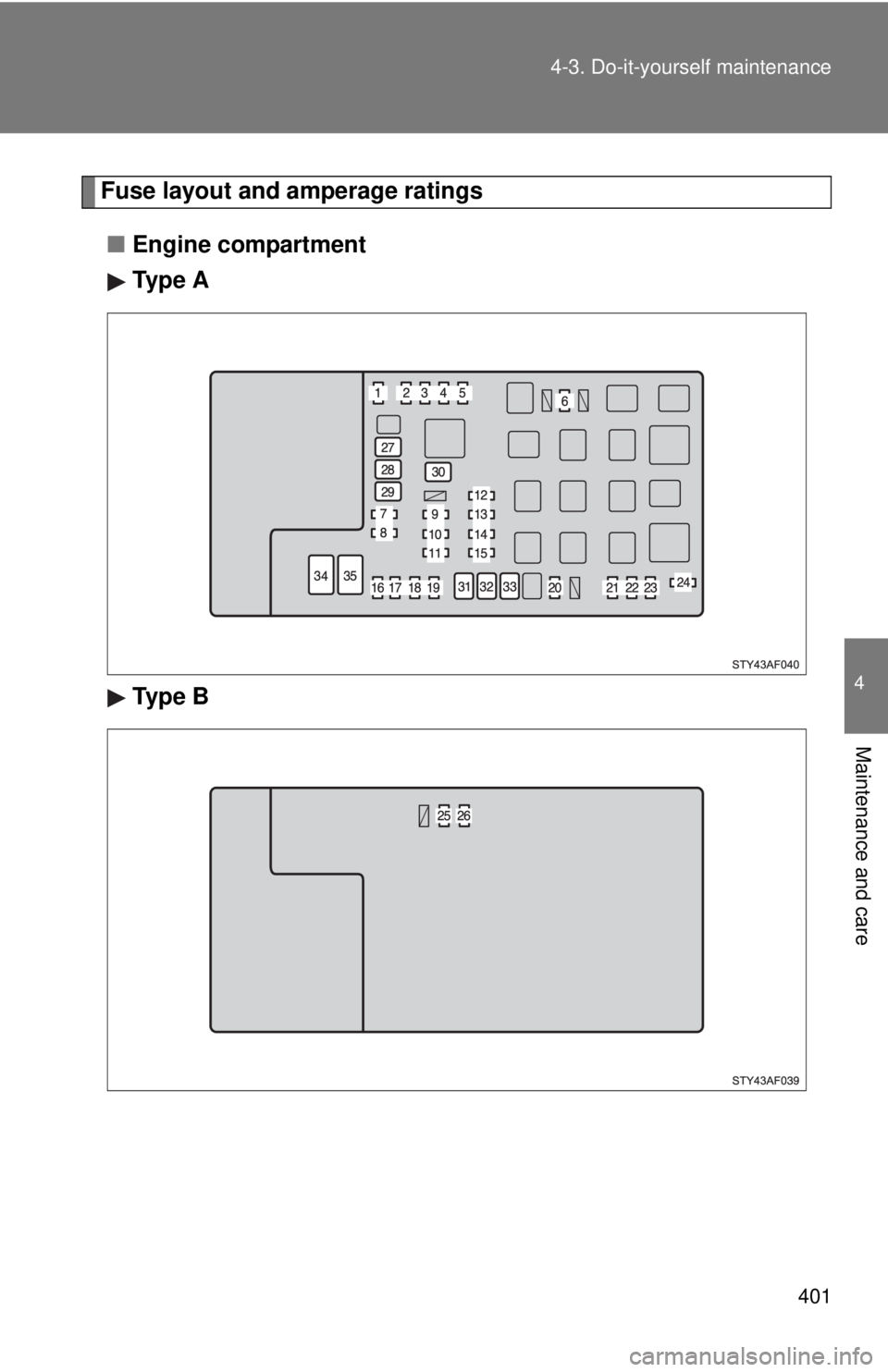

Fuse layout and amperage ratings
■Engine compartment
Ty p e A
Ty p e B

402 4-3. Do-it-yourself maintenance
FuseAmpereCircuit
1 A/C 10 A Air conditioning system
2 FR FOG 15 A Front fog lights
3 TOWING TAIL 30 A Trailer lights (tail lights)
4 STOP 10 AStop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing converter
5 OBD 7.5 A On-board diagnosis system
6 EFI NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
7 TOWING BRK 30 A Trailer brake controller
8 BATT CHG 30 A Trailer sub battery
9 TOWING 30 A Towing converter
10 TRN-HAZ 15 ATurn signal lights, emergency
flashers, meter and gauge
11 RADIO NO.2 30 A Audio system
12 HEAD (LO RH) 10 A Right-hand headlight (low beam)
13 HEAD (LO LH) 10 ALeft-hand headlight (low beam),
front fog lights
14 HEAD (HI RH) 10 A Right-hand headlight (high beam)
15 HEAD (HI LH) 10 ALeft-hand headlight (high beam),
meter and gauge
16 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
17 ALT-S 7.5 A Charging system

403 4-3. Do-it-yourself maintenance
4
Maintenance and care
18 EFI 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
19 HORN 10 A Horn
20 A/F HEATER 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
21 ECU-B 7.5 AWireless remote control system, air
conditioning system, multiplex
communication system, meter and
gauge, clock, front passenger
occupant classification system
22 DOME 7.5 A Interior light, personal lights
23 RADIO NO.1 10 A Audio system
24 STA 7.5 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system, meter
and gauge, clutch start cancel
switch
25 Spare 10 A Spare fuse
26 Spare 15 A Spare fuse
27 J/B 50 ATAIL, AC SKT, DR LCK, D FR P/W,
D RR P/W, P FR P/W and P RR P/
W fuses
28 AM1 50 AACC, IG1, IG1 NO.2, WIP, WSH,
4WD and STA fuses
29 HEATER 50 A A/C fuse, air conditioning system
30 ABS NO.1 50 AAnti-lock brake system, vehicle sta-
bility control system
31 AM2 30 AIGN and GAUGE fuses, multiport
fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

404 4-3. Do-it-yourself maintenance
*: Replace the fuse with one of the same ampere rating as the original32 A/PUMP 50 AMultiport fuel injection system/
sequential multiport fuel injection
system
33 ABS NO.2 30 AAnti-lock brake system, vehicle sta-
bility control system
34 AC SKT 100 A Cigarette lighter, power outlets
35 ALT120 A* AM1, AC SKT, HEATER, FR FOG,
STOP, OBD, J/B, TOWING TAIL,
TOWING BRK and BATT CHG
fuses 140 A*
FuseAmpereCircuit

405 4-3. Do-it-yourself maintenance
4
Maintenance and care

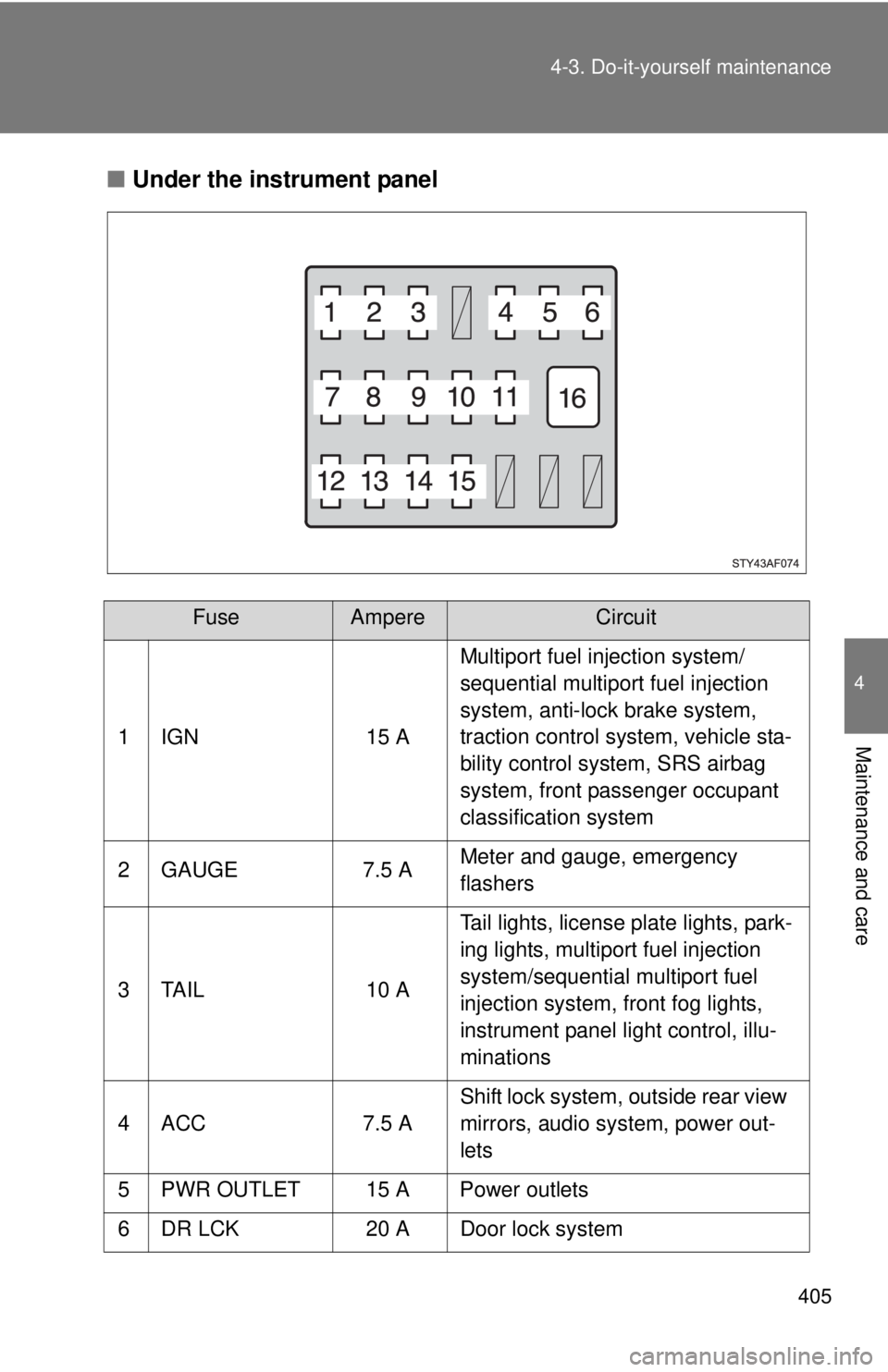

■Under the instrument panel
FuseAmpereCircuit
1 IGN 15 AMultiport fuel injection system/
sequential multiport fuel injection
system, anti-lock brake system,
traction control system, vehicle sta-
bility control system, SRS airbag
system, front passenger occupant
classification system
2 GAUGE 7.5 AMeter and gauge, emergency
flashers
3 TAIL 10 ATail lights, license plate lights, park-
ing lights, multiport fuel injection
system/sequential multiport fuel
injection system, front fog lights,
instrument panel light control, illu-
minations
4 ACC 7.5 AShift lock system, outside rear view
mirrors, audio system, power out-
lets
5 PWR OUTLET 15 A Power outlets
6 DR LCK 20 A Door lock system

406 4-3. Do-it-yourself maintenance
7 IG1 NO.2 10 AAnti-lock brake system, vehicle sta-
bility control system, stop lights,
charging system, multiport fuel
injection system/sequential multi-
port fuel injection system, air condi-
tioning system, instrument panel
light control, anti-glare inside rear
view mirror, back monitor, clutch
start cancel switch, rear differential
lock system, power outlets, tire
pressure warning system
8 BKUP LP 10 A Trailer lights (back-up lights)
9 IG1 10 ABack-up lights, air conditioning sys-
tem, passenger airbag off switch,
shift lock system
10 P RR P/W 20 ARear passenger’s power window
(right side)
11 P FR P/W 20 A Front passenger’s power window
12 WSH 10 A Wipers and washer
13 D RR P/W 20 ARear passenger’s power window
(left side)
14 4WD 20 AFour-wheel drive system, rear dif-
ferential lock system
15 WIP 30 A Wipers and washer
16 D FR P/W 30 A Power windows
FuseAmpereCircuit

407 4-3. Do-it-yourself maintenance
4
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 408)
●If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

408
4-3. Do-it-yourself maintenance

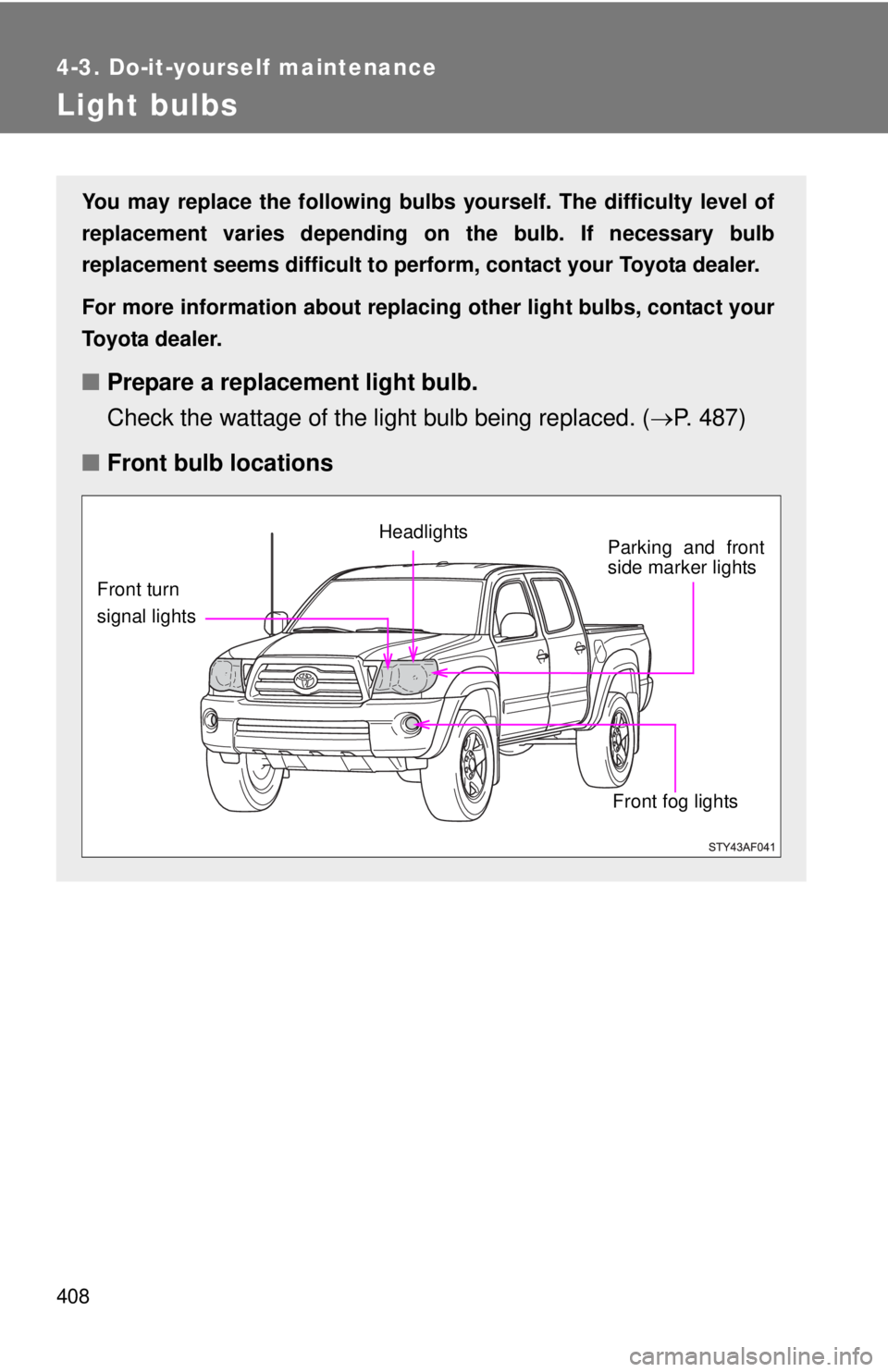

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (P. 487)
■Front bulb locations
Headlights
Front fog lightsParking and front
side marker lights
Front turn
signal lights

409 4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■Headlights
Unplug the connector.

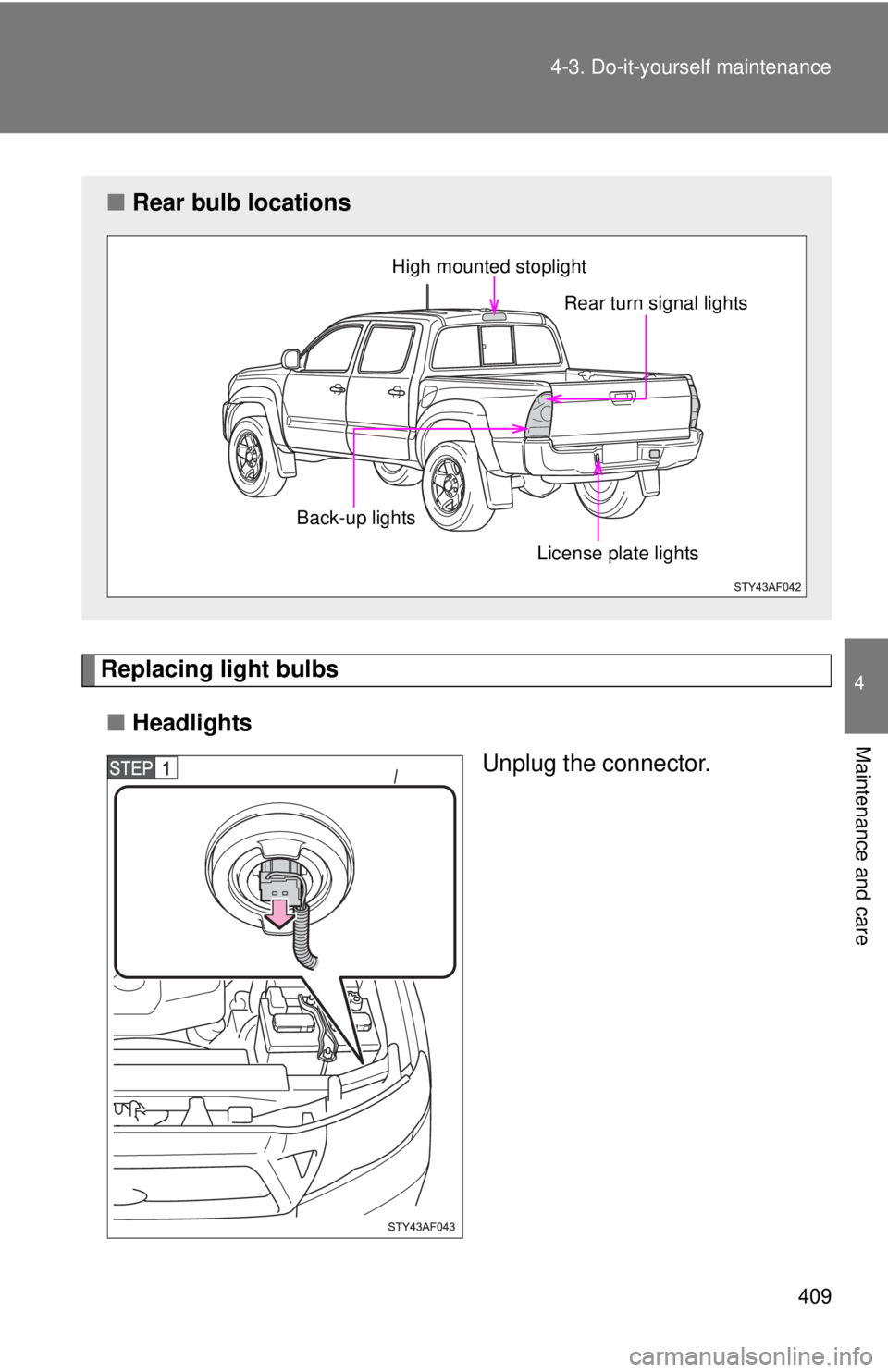

■Rear bulb locations
High mounted stoplight
Rear turn signal lights
License plate lights Back-up lights

410 4-3. Do-it-yourself maintenance

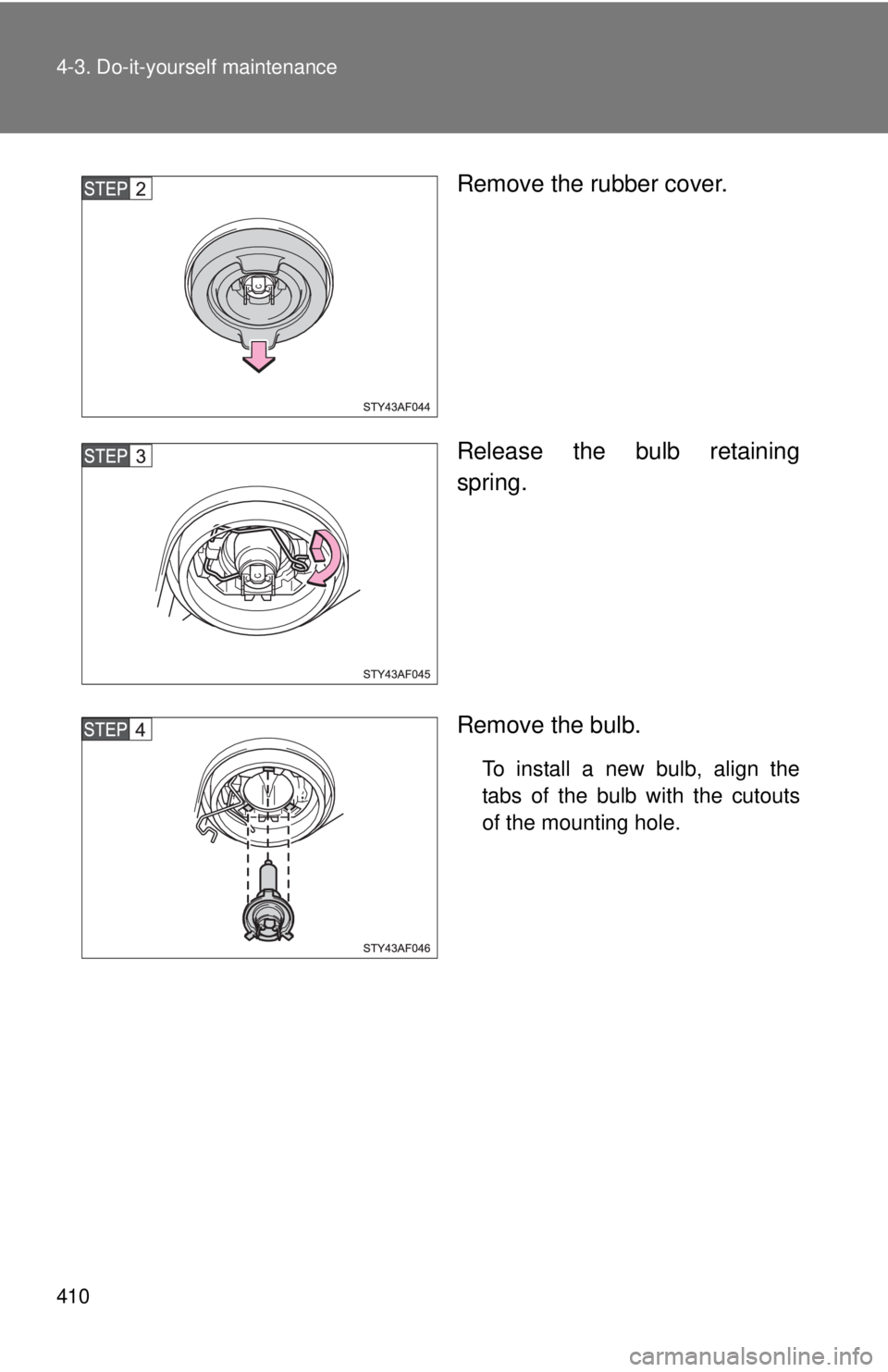

Remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
